Back to CatalogEB-LINK Intel 82599 Chip PCI-E X4 10G Dual Port Fiber Network Card X520-DA2 SFP+ Fiber Server Network Adapter
Specifications
- Type
- PCIe network card
- Interface
- PCI-E
- Suitable Scenarios
- Enterprise
- Rate
- 10000M
- Connection method
- Wired
Variants / Sale Attributes
Color: 10 Gigabit Dual Optical Port Network Card (X4)
Package Contents
Network card *1, half-height bracket *1, certificate of conformity *1
Product Description
Product Specifications
Overview
- Brand
- EB-LINK
- Test Environment
- Ubuntu, CentOS
- Test Duration
- 1 min, 10 min
- Test Types
- Single card dual-port, dual card dual-port, dual card send-only
- Total Receive Rate
- Up to 6.77 Gbps
- Total Send Rate
- Up to 6.70 Gbps
Similar Products
In Stock
In Stock

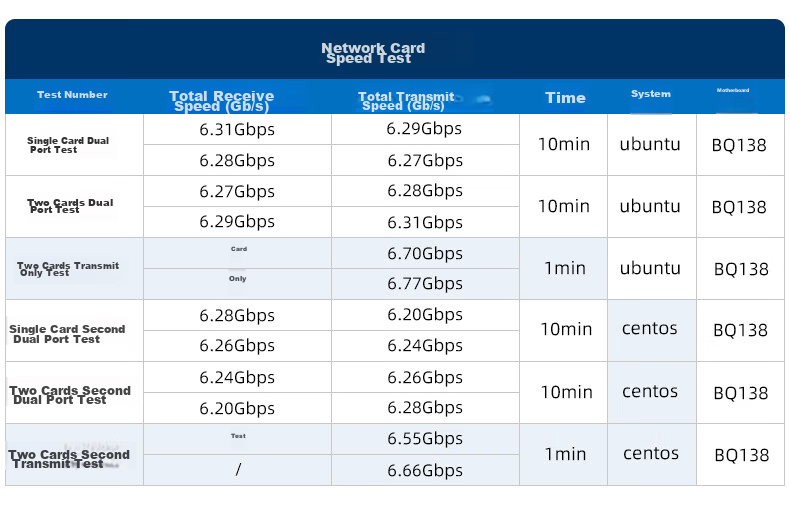

| Single card dual-port (Ubuntu, 10 min) | ~6.31 Gbps receive, ~6.29 Gbps send |
| Dual card dual-port (Ubuntu, 10 min) | ~6.28 Gbps receive, ~6.27 Gbps send |
| Dual card send-only (Ubuntu, 1 min) | ~6.70 Gbps send |
| Single card second test dual-port (CentOS, 10 min) | ~6.28 Gbps receive, ~6.20 Gbps send |
| Dual card second test dual-port (CentOS, 10 min) | ~6.26 Gbps receive, ~6.24 Gbps send |
| Dual card second test send-only (CentOS, 1 min) | ~6.55 Gbps send |
Windows 10/11, Windows Server 2012/R2, 2016, 2019, 2022
SUSE Linux 12 SP5, 15 SP5
Red Hat Enterprise Linux (RHEL) 8.7, 8.8, 9.0, 9.1, 9.2
Ubuntu 20.04 LTS, 22.04 LTS, 13.0, 12.3 and previous versions
1. Contact online customer service for drivers
2. Download drivers from official sources matching your OS
Intel 82599 original high-performance controller chip

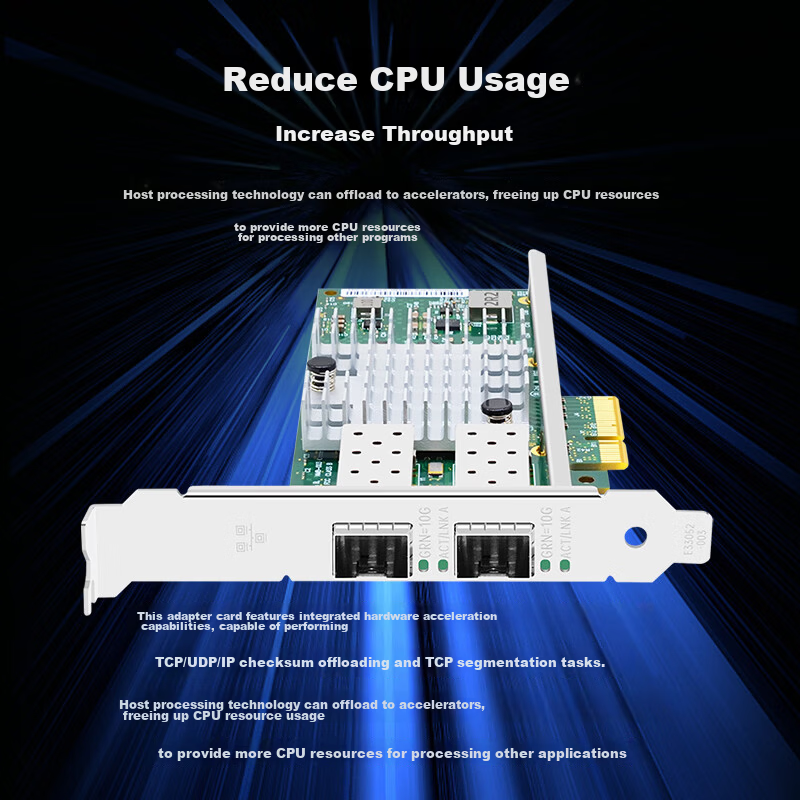

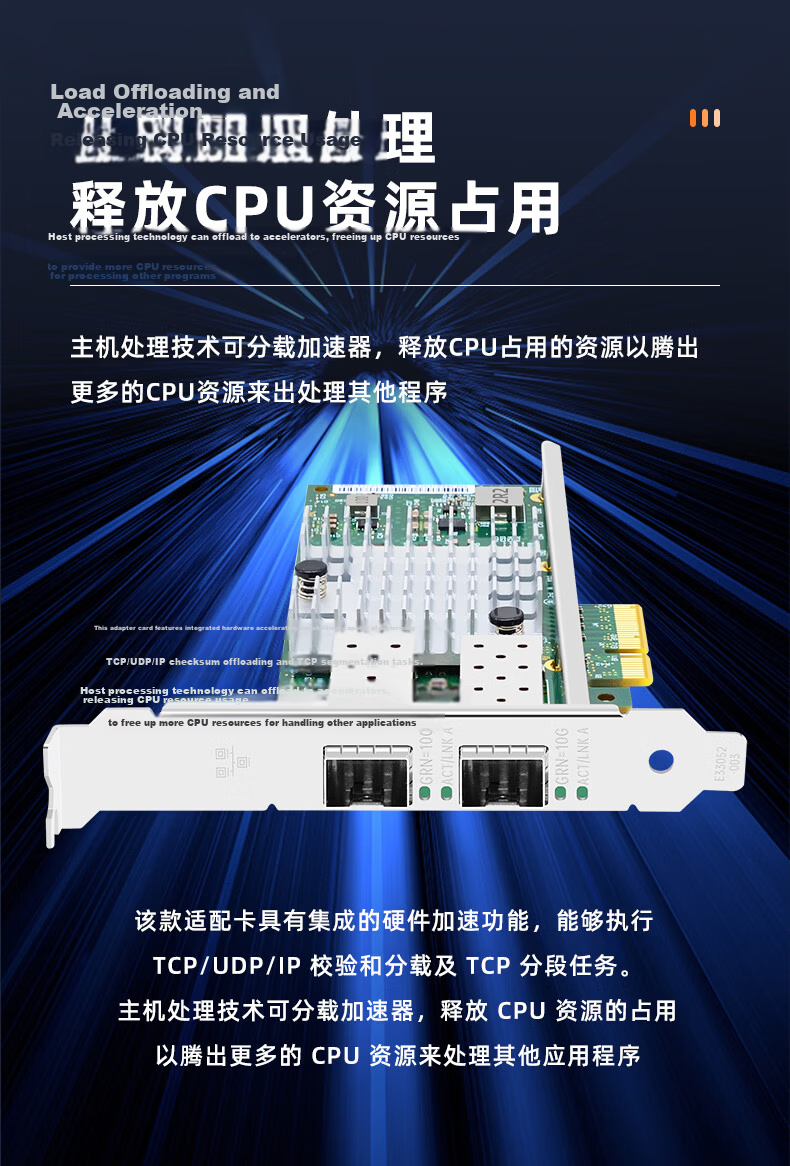

Offload acceleration technology to reduce CPU usage
Integrated hardware acceleration for TCP/UDP/IP checksum offload and TCP segmentation offload
Supports multi-queue RSS and TX queue for enhanced performance
Supports PXE boot and DPDK
Compatible with industrial cameras, proximity sensors, displacement sensors, laser sensors, and other SFP+ optical port sensors

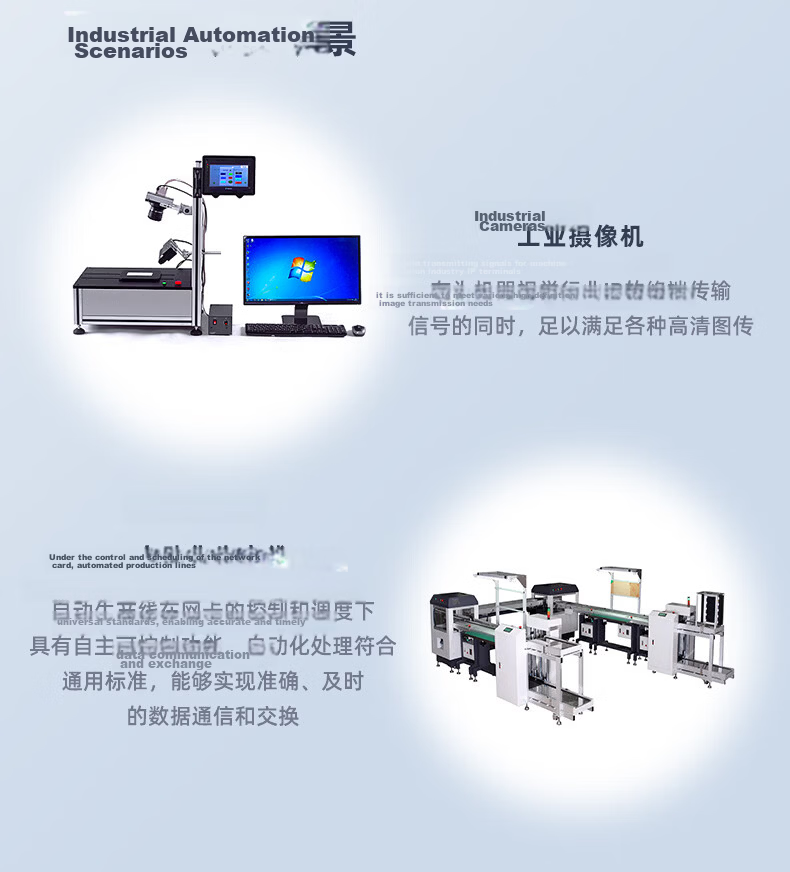

Suitable for machine vision and automated production lines with real-time, accurate data communication and control

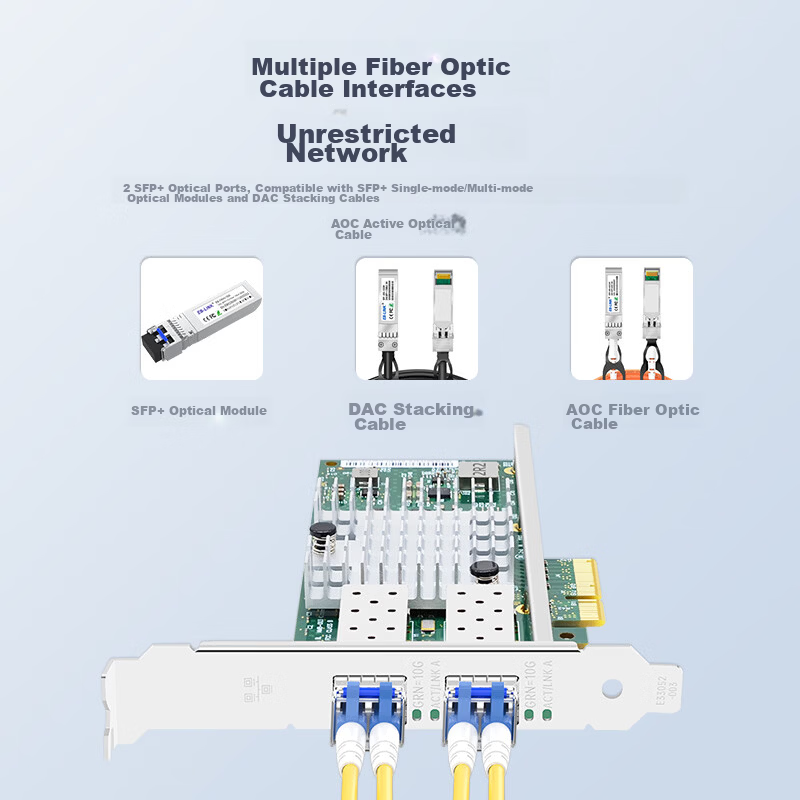

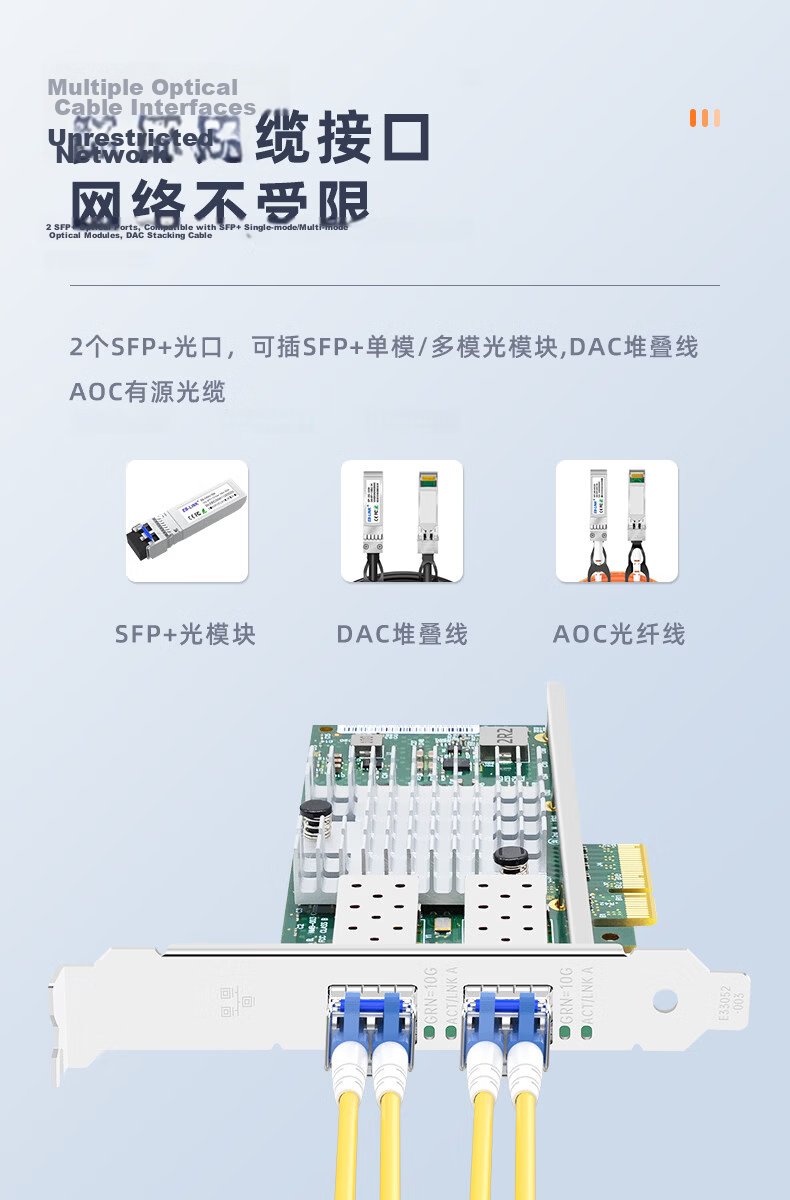

Dual SFP+ optical ports supporting single-mode/multi-mode SFP+ modules, DAC stacking cables, and AOC active optical cables

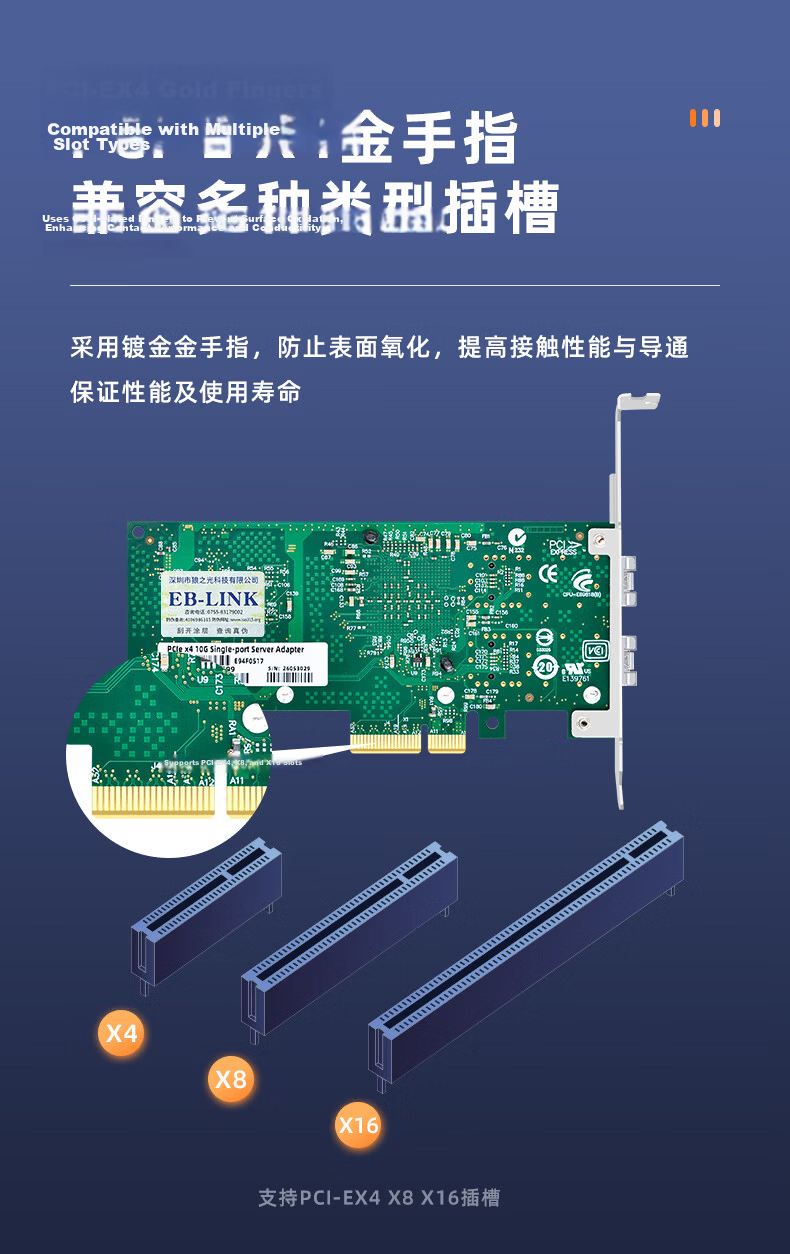

PCI-Express x4 interface compatible with x4, x8, x16 slots
Gold-plated PCIe fingers for oxidation resistance and improved contact reliability

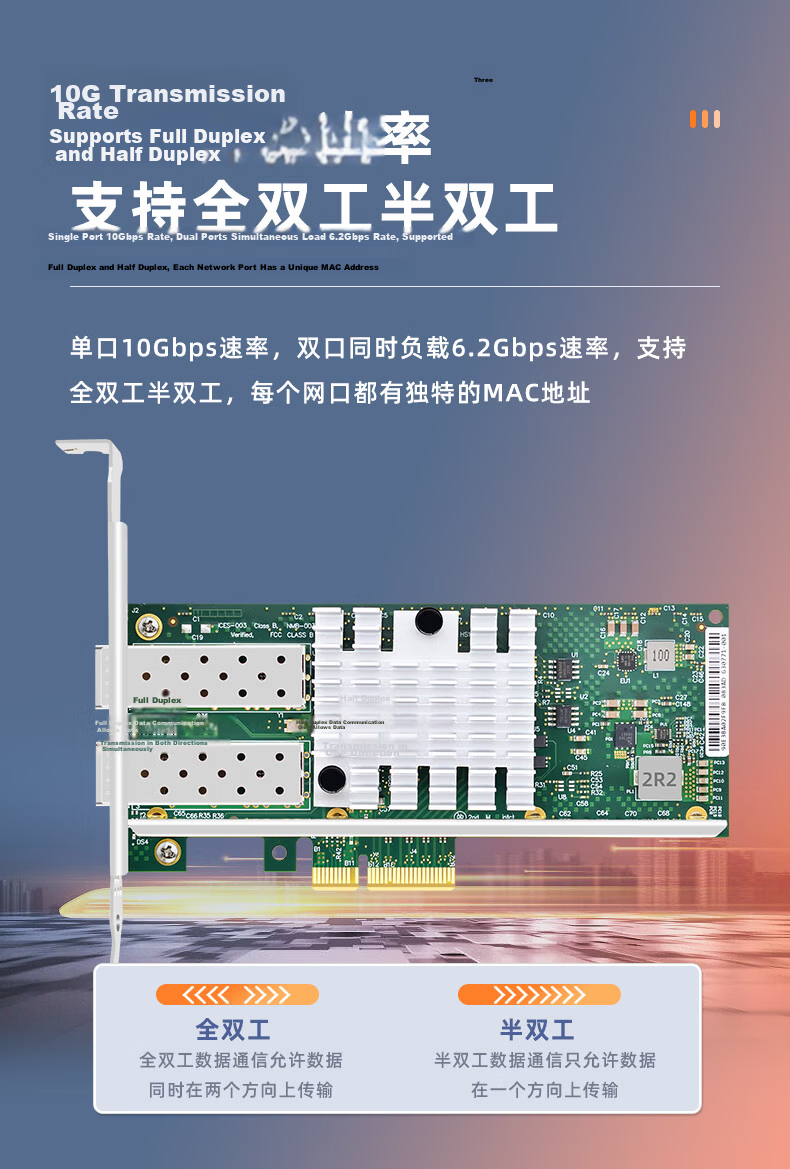

Single port supports 10 Gbps
Dual ports support simultaneous load of approximately 6.2 Gbps each
Supports full-duplex and half-duplex modes
Each port has a unique MAC address
Additional details

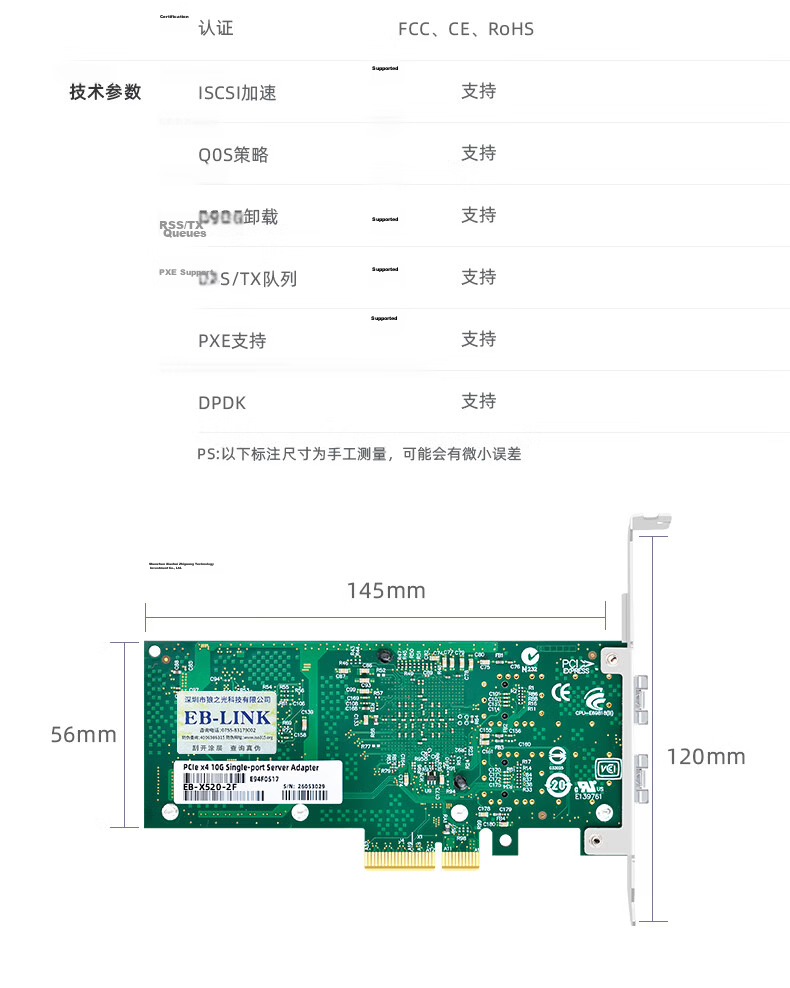

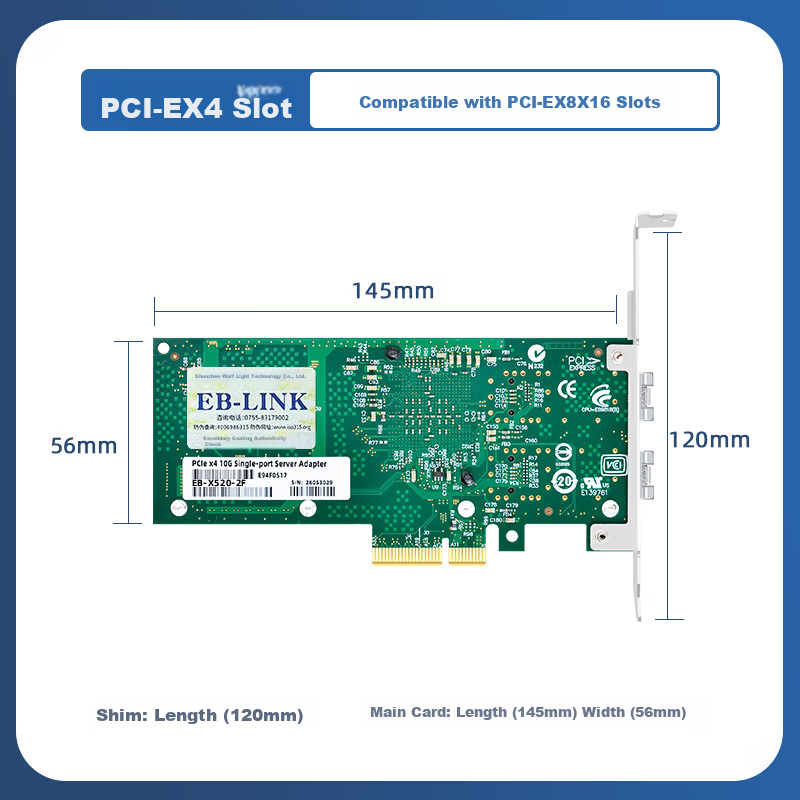

- Length
- 145 mm
- Width
- 56 mm
- Height
- 120 mm
- Full-height bracket
- 12 cm (3U)
- Half-height bracket
- 8 cm (2U)
Includes long and short brackets to fit different chassis types
iSCSI acceleration support
