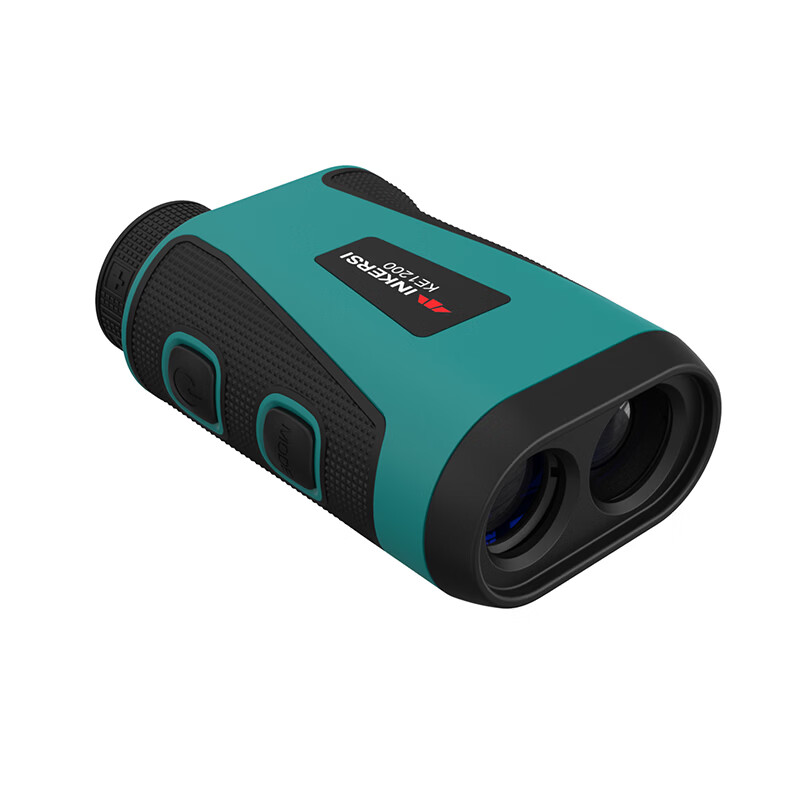

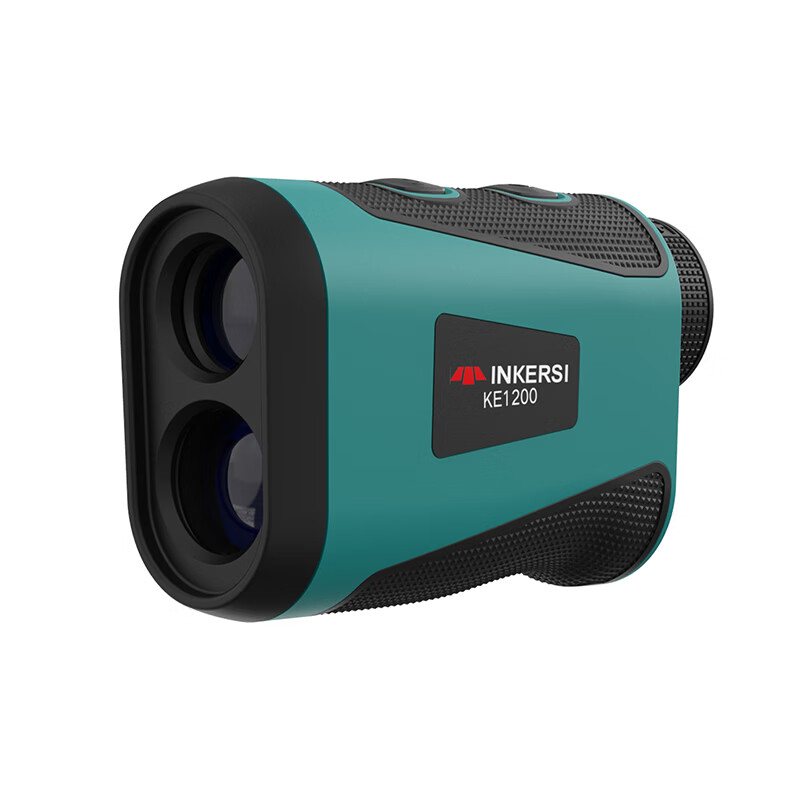

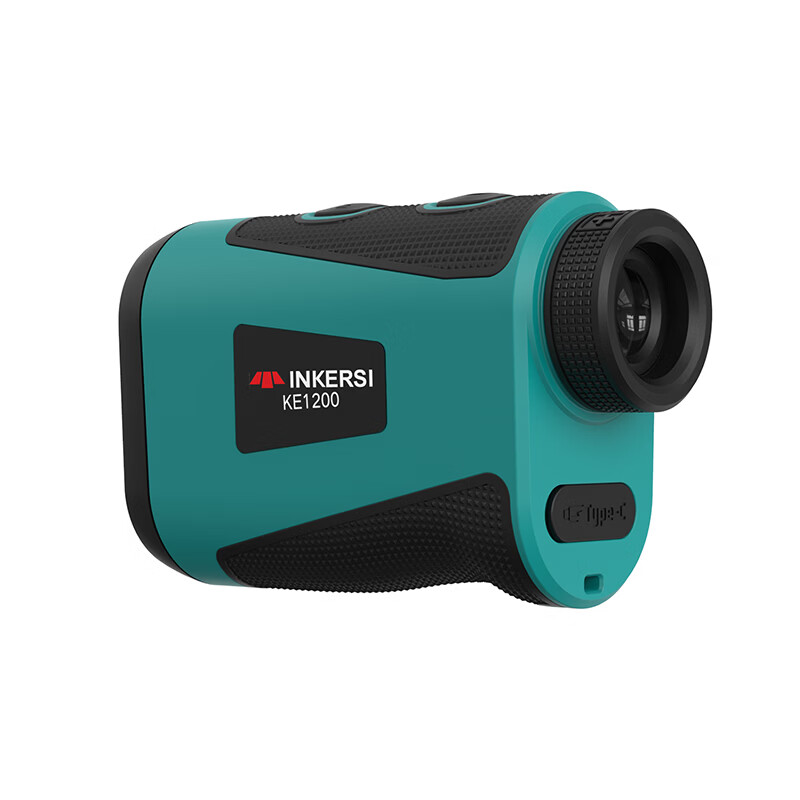

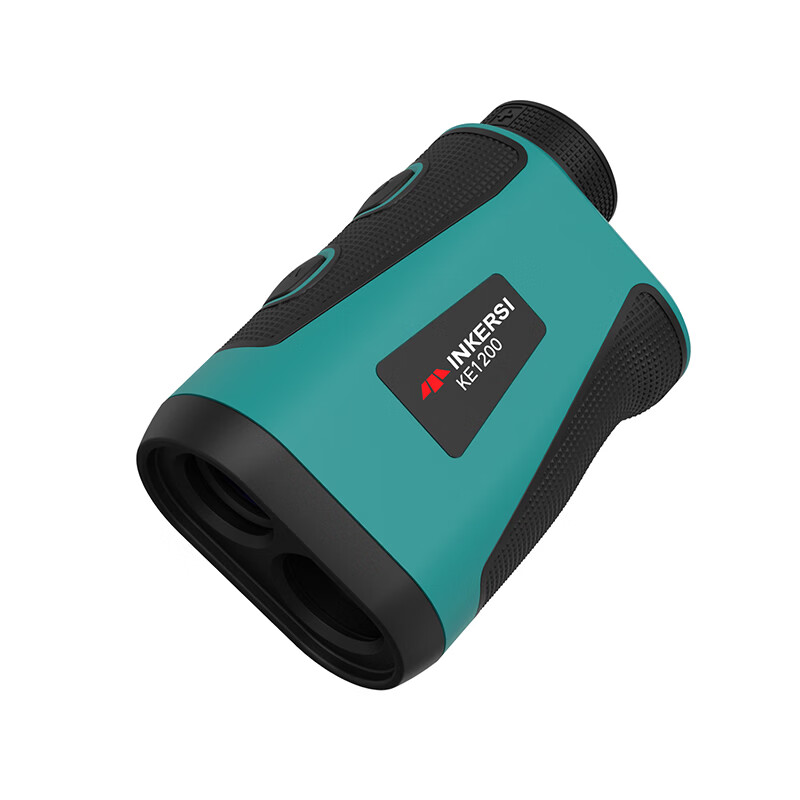

SNDWAY EagleScope Laser Rangefinder Infrared High-Precision Outdoor Distance Measuring Instrument KE1200

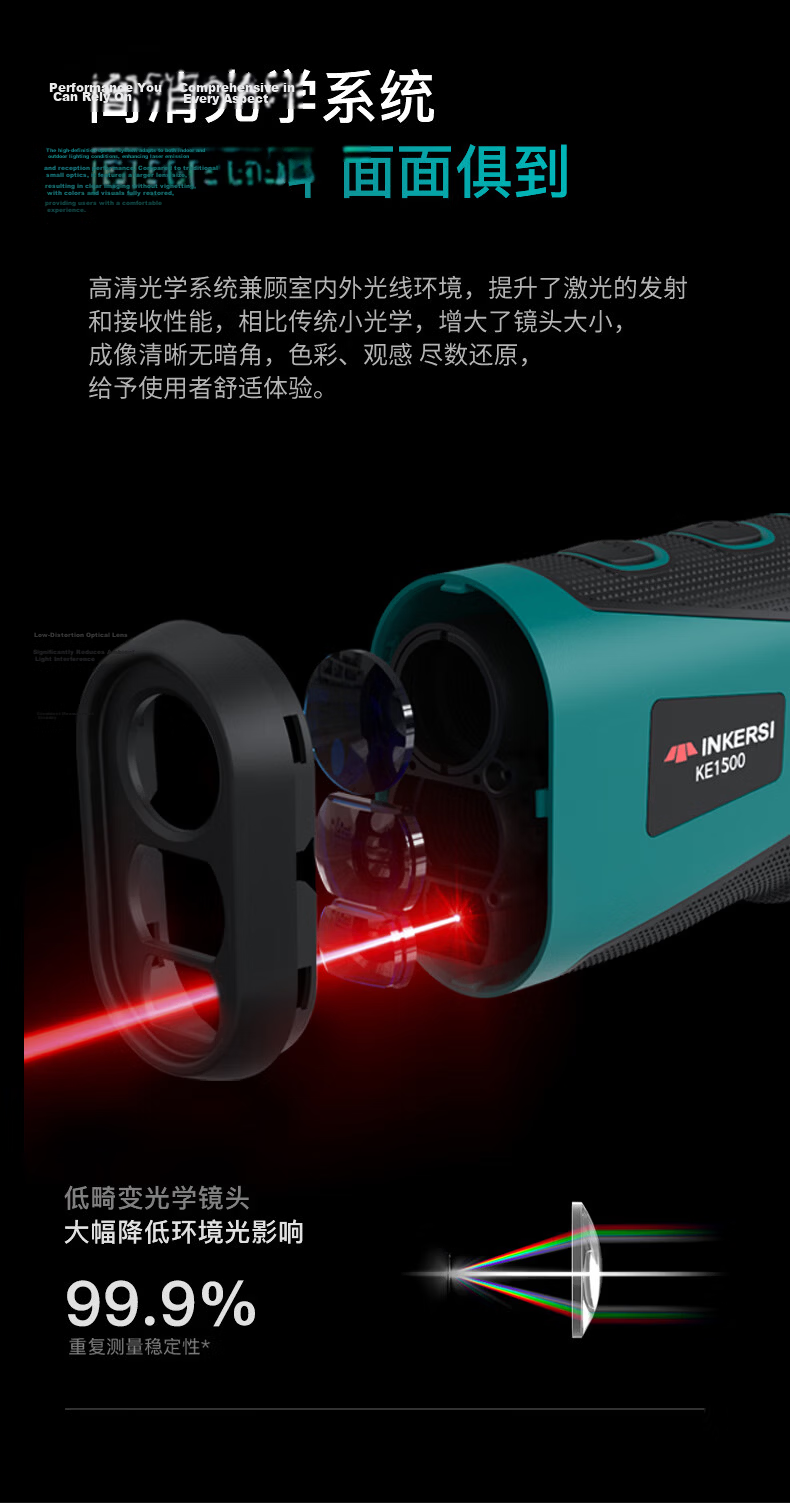

High-definition optical system optimized for indoor and outdoor lighting conditions.

Enlarged lens size for clear imaging without dark corners, true color reproduction.

Low distortion optical lens reduces environmental light interference by 99.9%.

90% light transmittance with multi-layer coating for clear visibility in low light.

Anti-stick coating for easy cleaning; objective and eyepiece lenses are oil and water repellent.

Ergonomic design for comfortable and immersive observation.

6x comfortable magnification with high contrast coating and micro-adjustable focus.

Intelligent focus system with ergonomic focus wheel operable even with gloves.

Real-time tracking speed measurement with data refresh rate up to 0.1s.

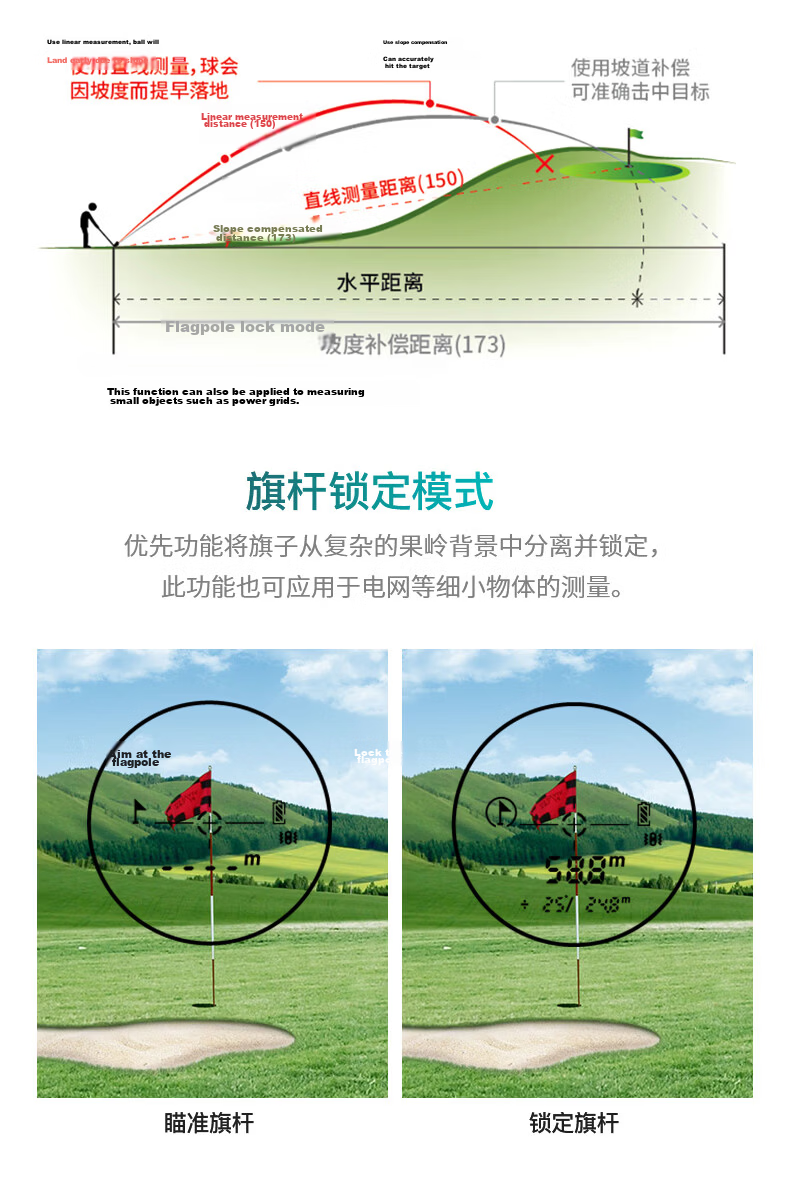

Golf trajectory compensation with slope and height adjustments for accurate distance.

Flagpole lock mode prioritizes flag detection in complex backgrounds, also applicable for fine object measurement.

| Parameter | KE500/KE600/KE800/KE1000 | KE1200/KE1500 |

|------------------------|----------------------------------|----------------------------------|

| Measurement Range | 3–500m/600m/800m/1000m | 3–1200m/1500m |

| Accuracy | ±(1.0m + D×0.2%) | ±(1.0m + D×0.2%) |

| Eyepiece Diameter | 16 mm | 15 mm |

| Exit Pupil Diameter | 3.5 ± 0.5 mm | 3.7 mm |

| Units | Meter, Yard | Meter, Yard |

| Measurement Response Time | <0.5s (<120m 64ms; ≥120m 460ms) | <0.5s (<120m 64ms; ≥120m 460ms) |

| Telescope Magnification | 6X ± 5% | 6X ± 5% |

| Field of View | 7.0° ± 5% | 7.0° ± 5% |

| Objective Lens Diameter | 19 mm | 19 mm |

| Diopter Adjustment Range | +6° | +6° |

| Laser Class | Class 1 | Class 1 |

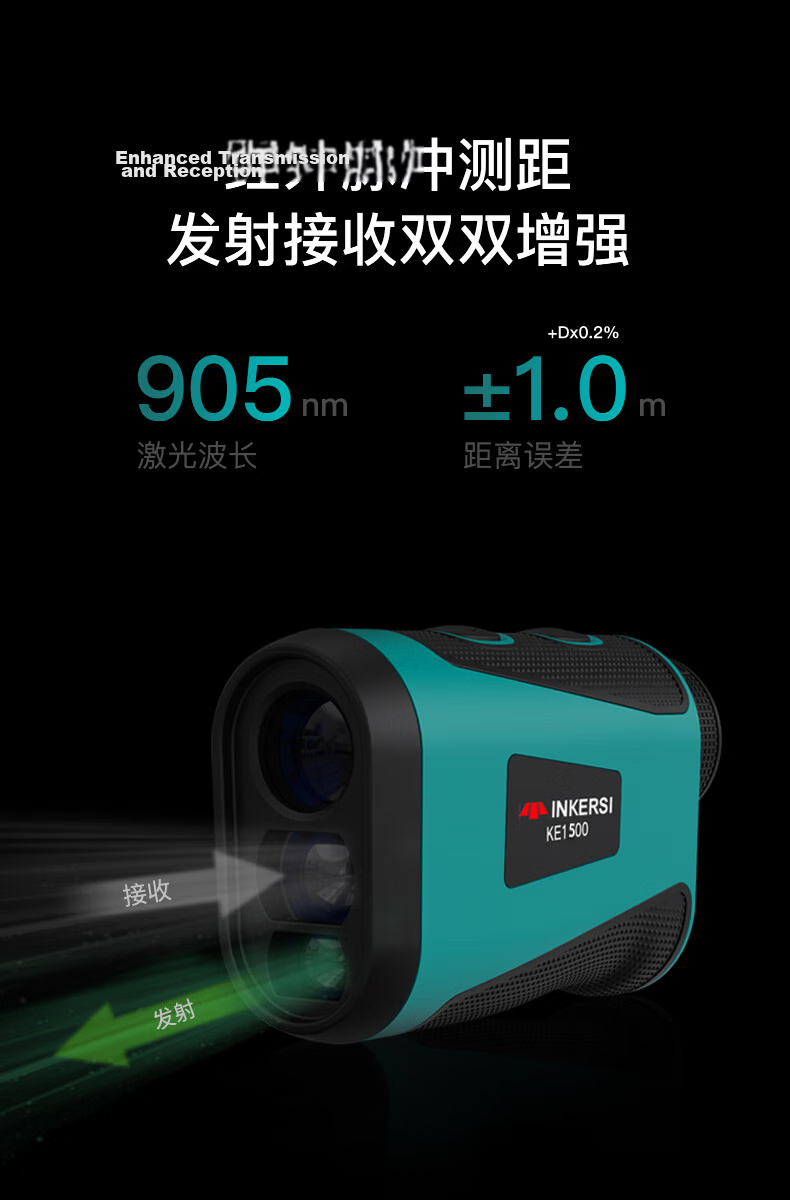

| Laser Wavelength | 905 nm | 905 nm |

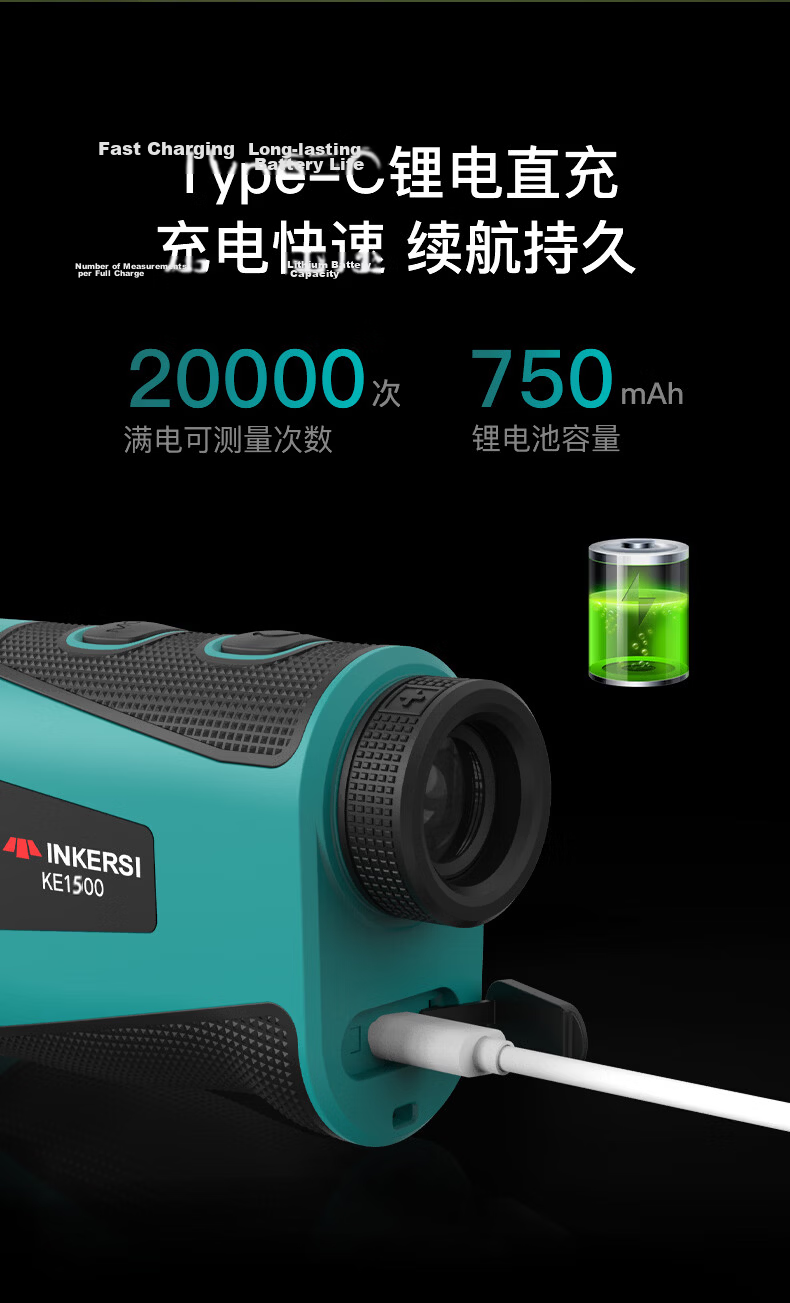

| Power Supply | 3.7V/750mAh Li-ion | 3.7V/750mAh Li-ion |

| Battery Life | 20,000 measurements (full charge) | 20,000 measurements (full charge) |

| Operating Temperature | 0°C to 50°C | 0°C to 50°C |

| Height Measurement | Yes | Yes |

| Slope Measurement | Yes | Yes |

| Charging Specification | DC 5V 0.5A Type-C interface | DC 5V 0.5A Type-C interface |

| Dimensions | 103 x 65 x 38 mm | 103 x 65 x 38 mm |

Ergonomic design allows quick eye positioning and comfortable observation.

Anti-oil and waterproof coatings ensure clear images in all weather conditions.

Intelligent autofocus and ergonomic operation provide high precision even with gloves.

Real-time speed tracking and fast data refresh enable dynamic target monitoring.

Golf mode includes slope compensation and flagpole lock for enhanced accuracy.
