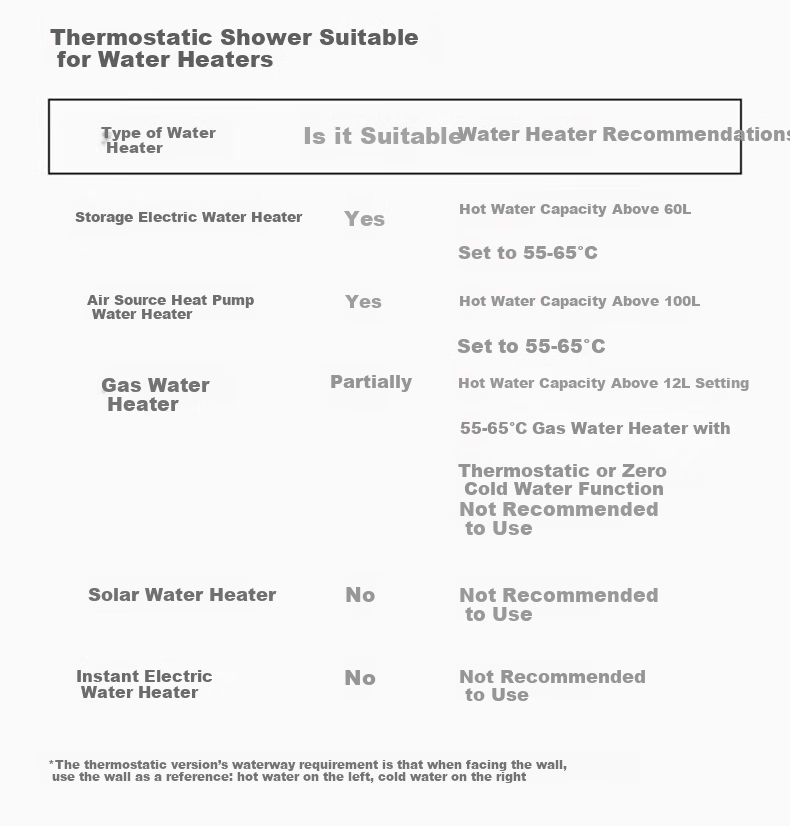

Suitable, capacity ≥60L, temperature setting 55-65°C
Air energy water heater
Suitable, capacity ≥100L, temperature setting 55-65°C
Gas water heater
Partially suitable, capacity ≥12L, temperature setting 55-65°C; not recommended if equipped with thermostatic or zero cold water function
Solar water heater
Not recommended
Instant electric water heater
Not recommended

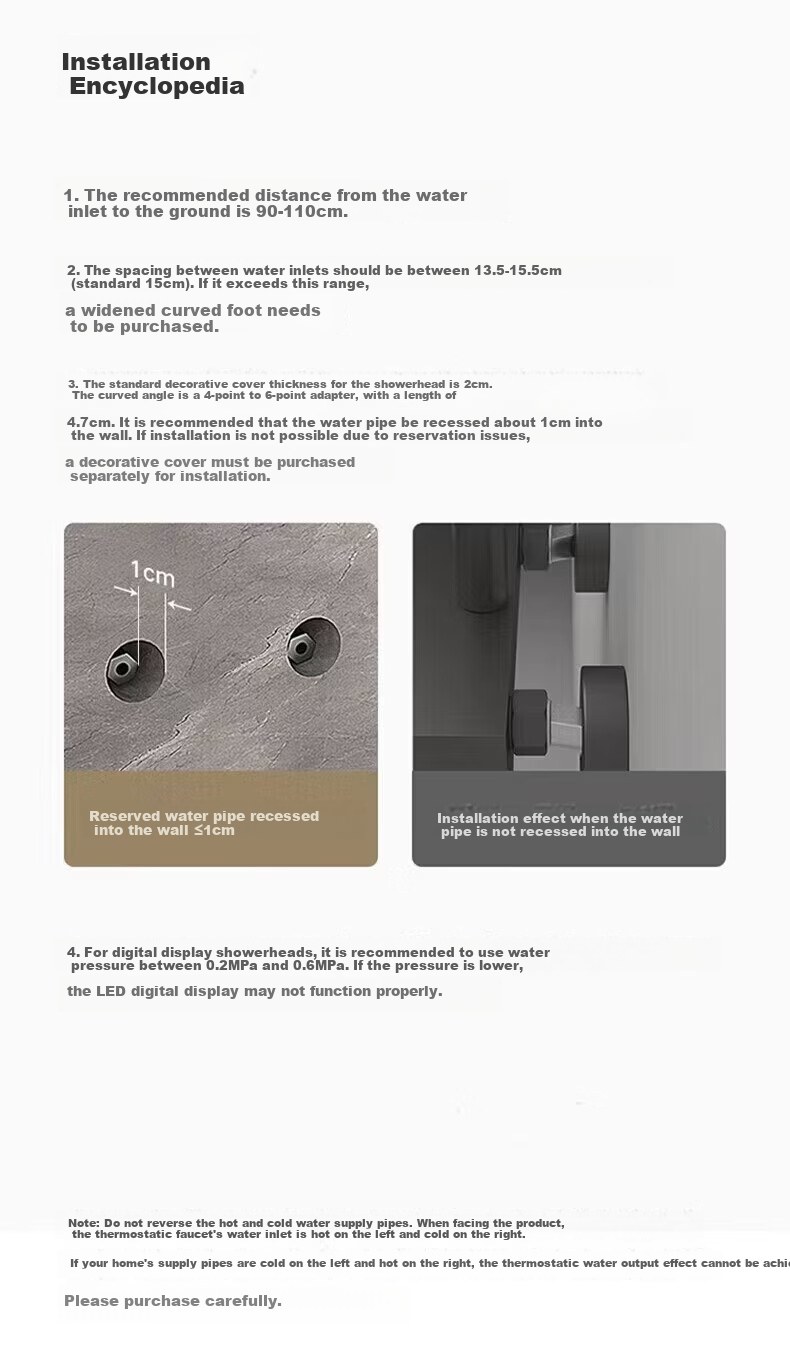

Installation Notes
Item
Detail
Inlet height from floor
90-110 cm recommended
Inlet spacing
135-155 mm (standard 150 mm)
Decorative cover thickness
2 cm
Water pipe recess
approx. 1 cm recommended for installation

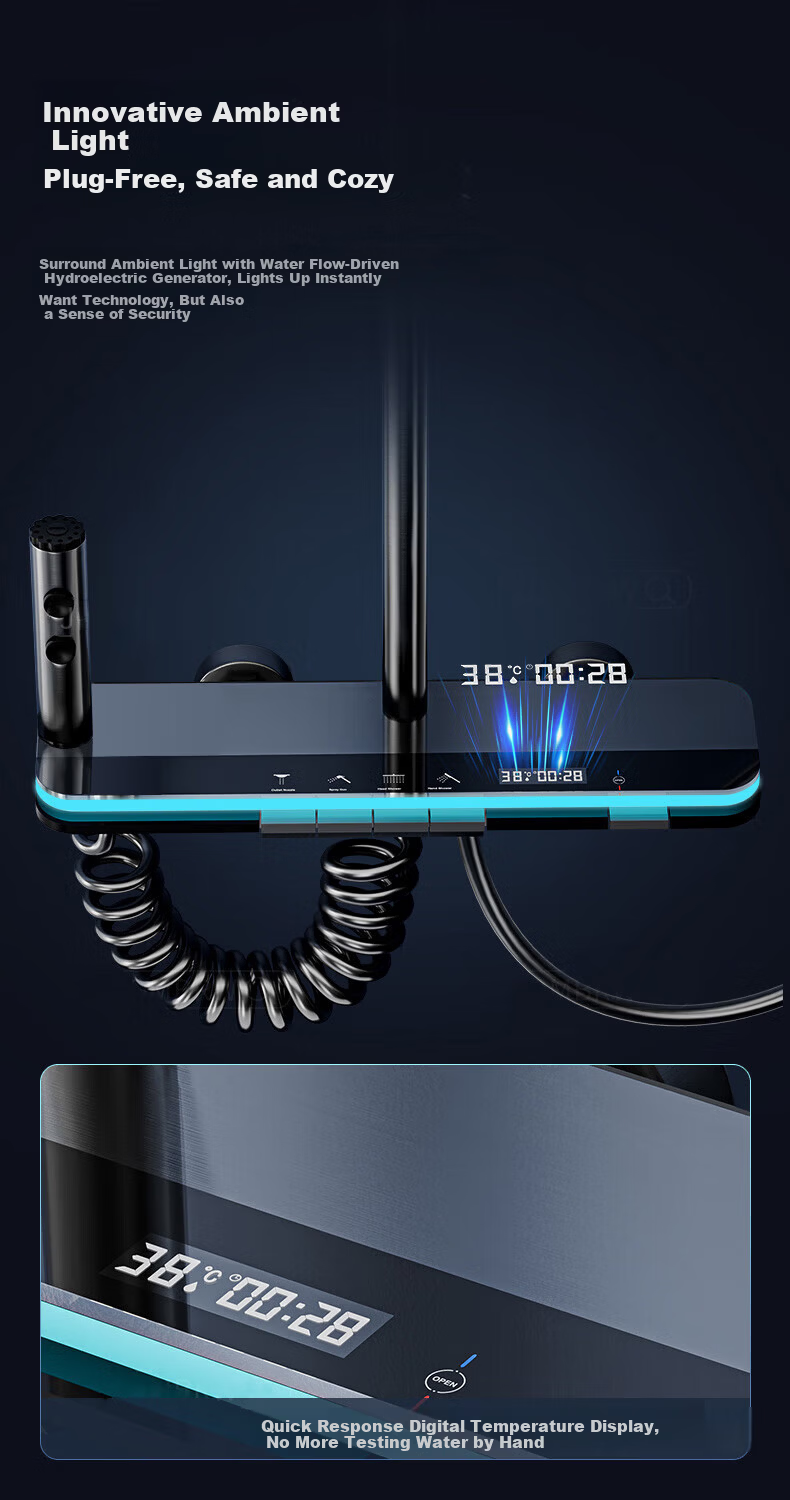

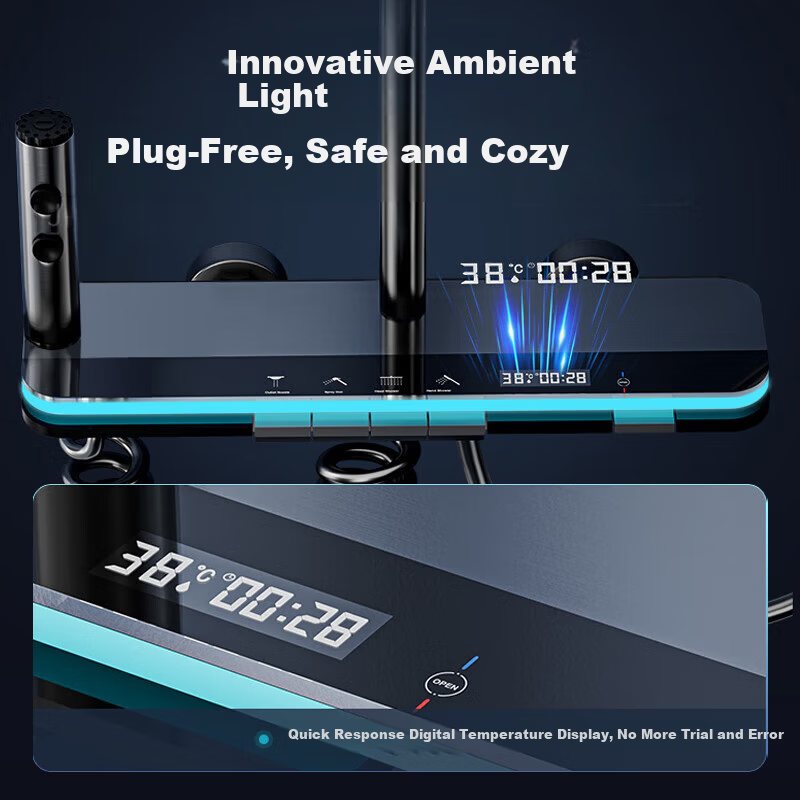

Water pressure for digital display
0.2MPa to 0.6MPa recommended
Hot and cold water inlet orientation
Left hot, right cold (facing product)

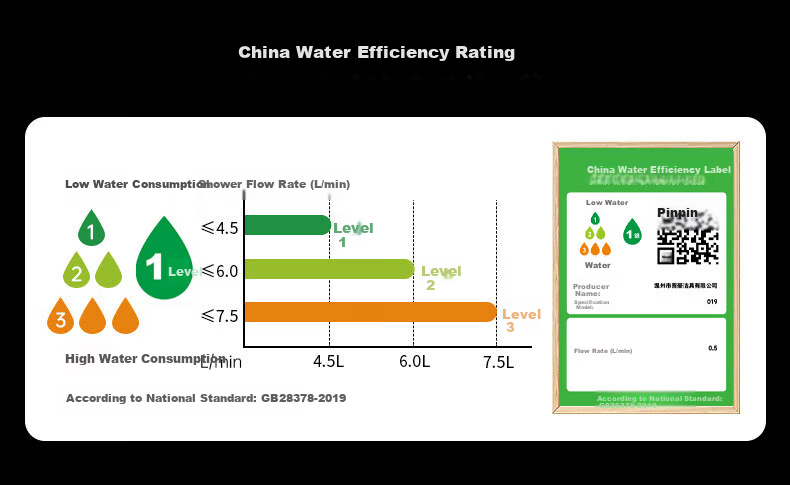

Water Efficiency
Item
Detail
National standard
GB28378-2019
Water flow rate
≤4.5 L/min (Level 1 water efficiency)
Low water consumption showerhead
—

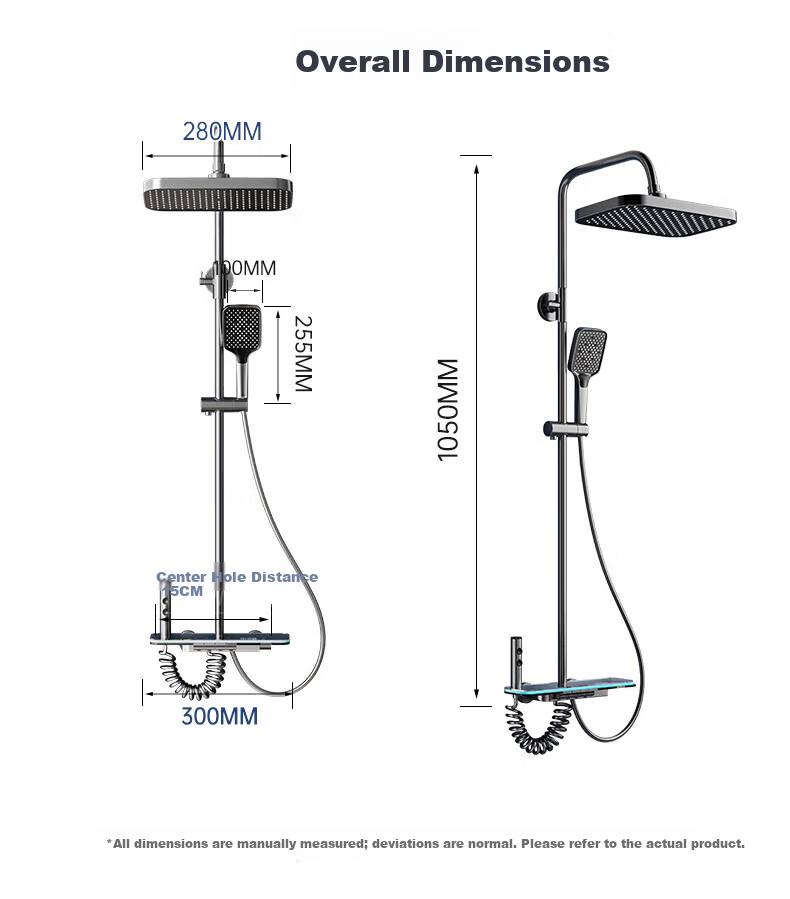

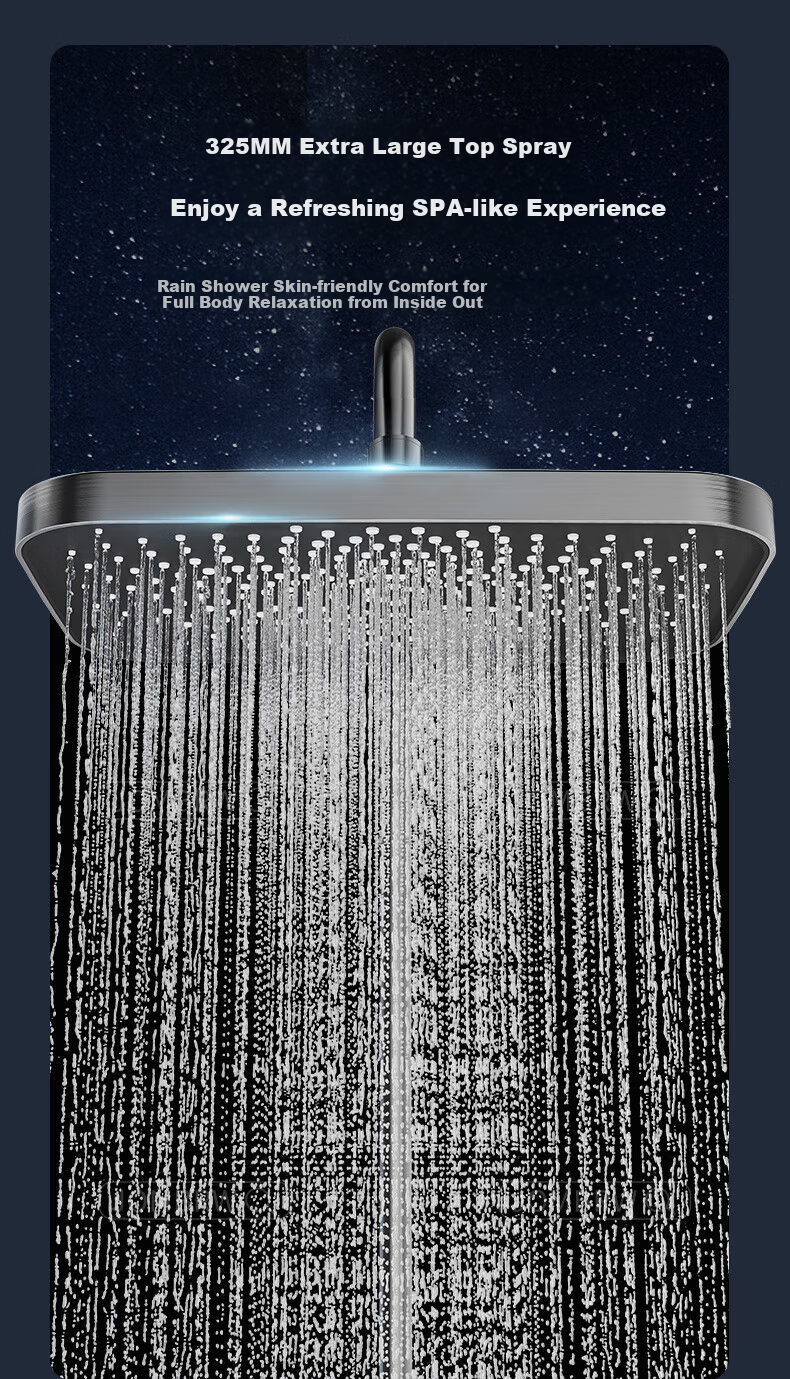

Dimensions are manually measured and may have slight deviations. Actual product shall prevail. The top spray shown in promotional images is not for sale separately.
