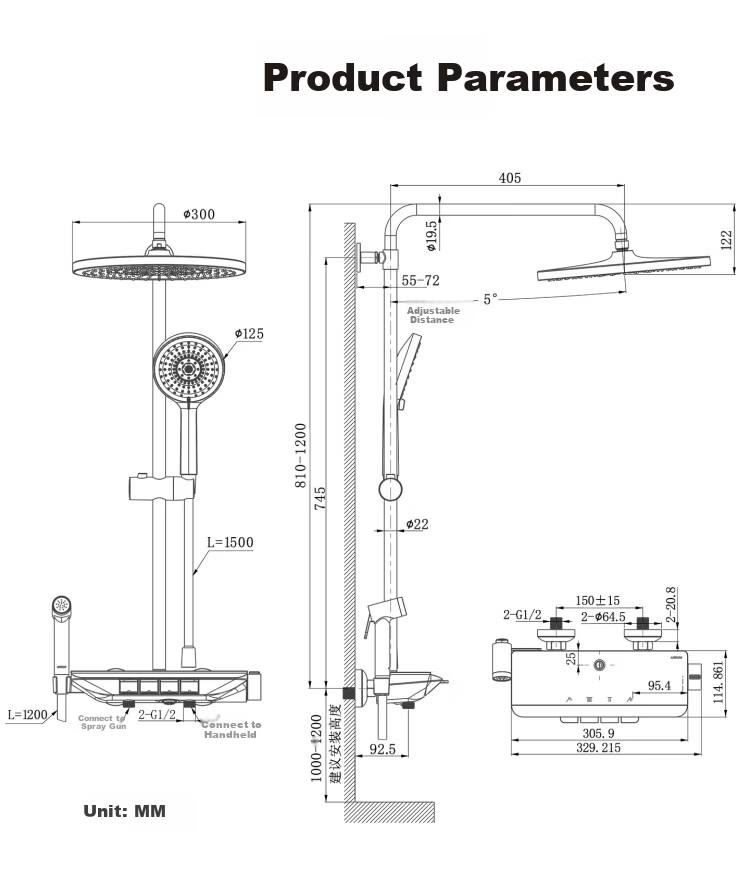

Other detailed dimensions available; please refer to installation guide

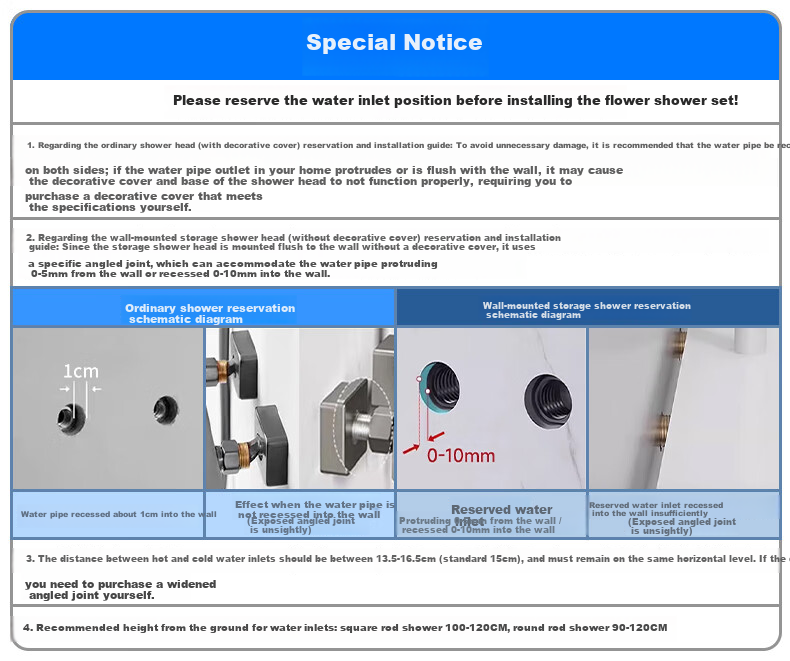

1. For standard showerheads with decorative cover
Water pipe should be recessed about 1cm into the wall to ensure proper fit of decorative cover and base.
If water pipe protrudes or is flush with wall, decorative cover may not fit; user must purchase compatible covers.
2. For wall-mounted storage showerheads without decorative cover
Item
Detail
Acceptable water pipe protrusion
0–5 mm
Acceptable water pipe recess
0–10 mm
3. Hot and cold water inlet spacing must be between 13.5cm and 16.5cm (standard 15cm) and level.
If spacing exceeds this range, user must purchase wider angle fittings.
4. Recommended water inlet height from floor
Item
Detail
Square rod shower
100–120 cm
Round rod shower
90–120 cm

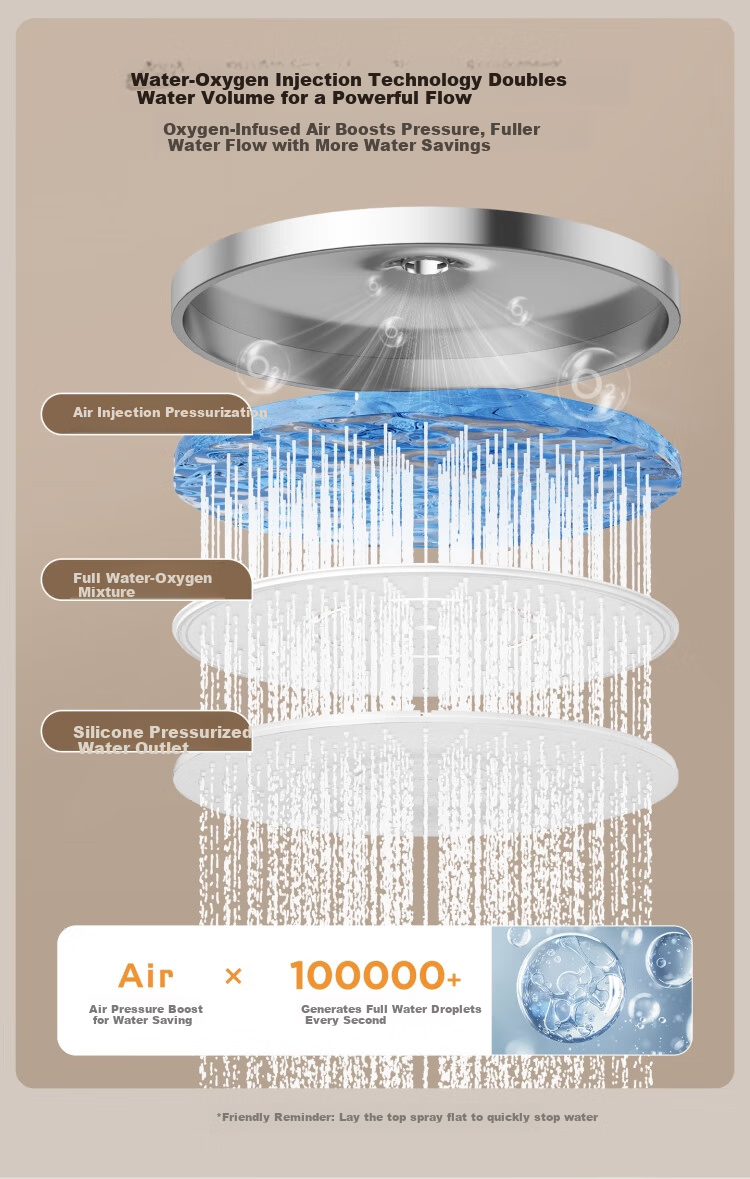

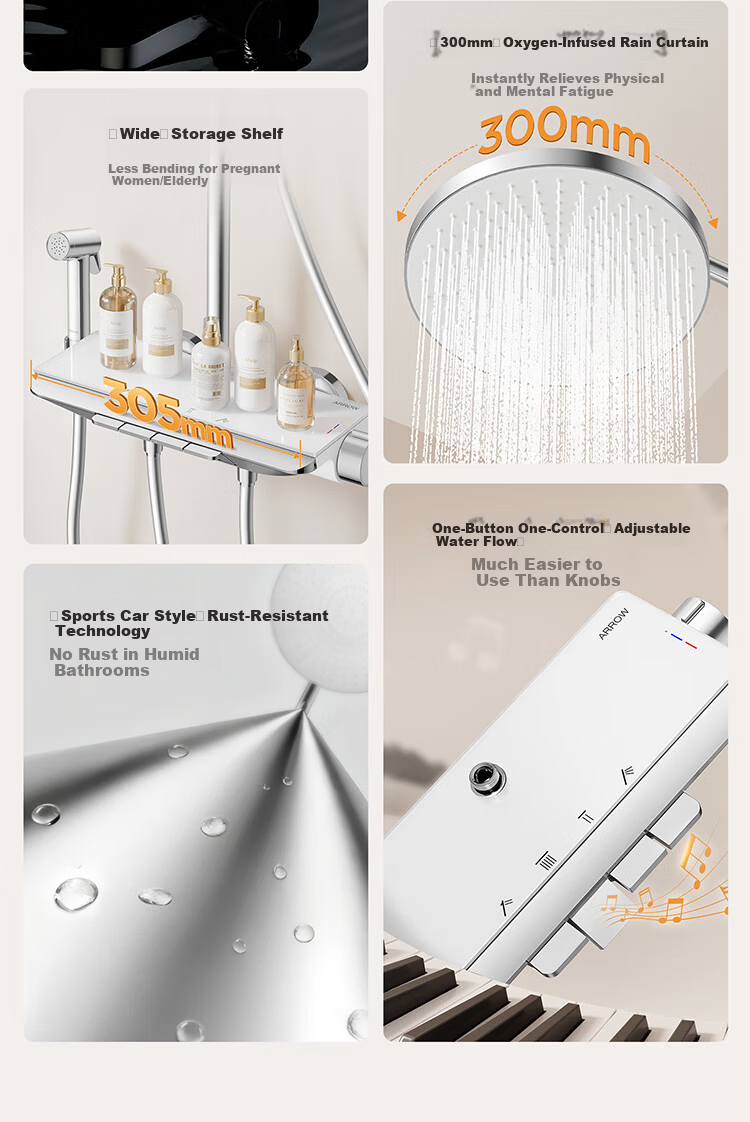

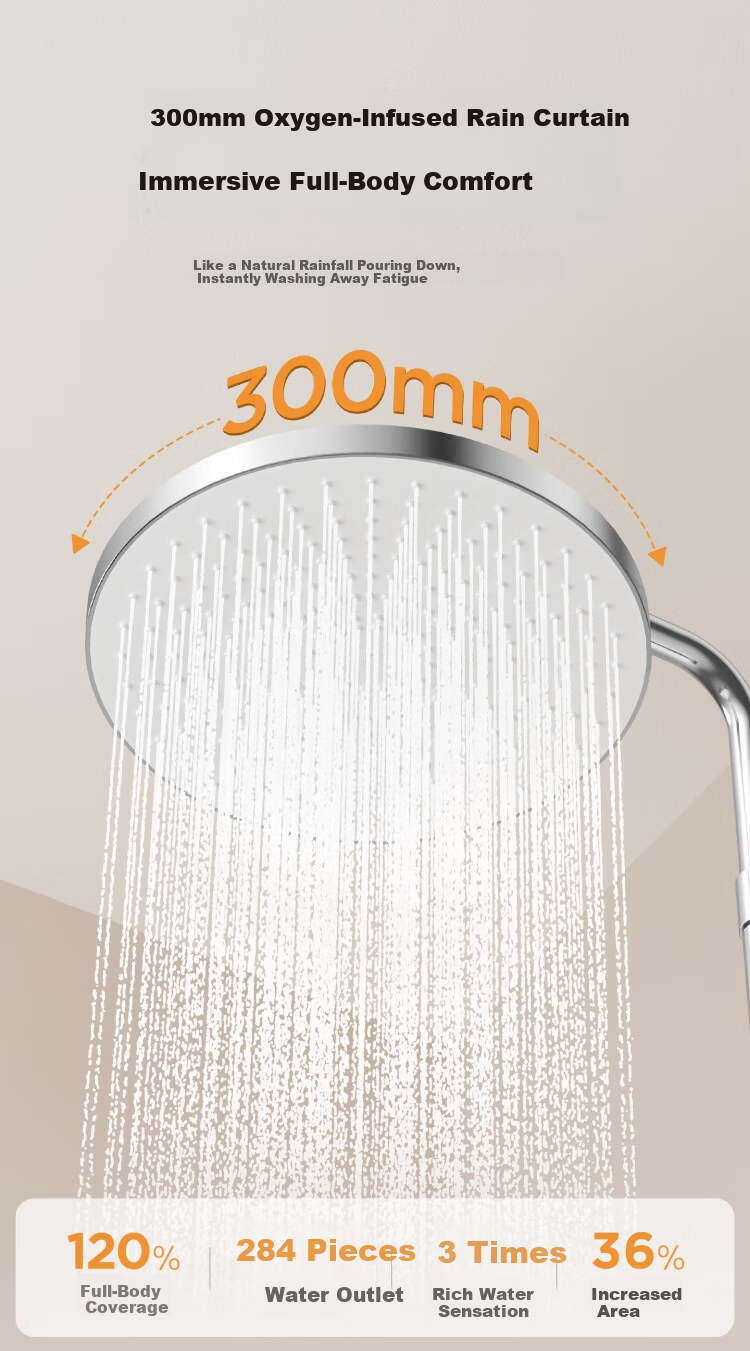

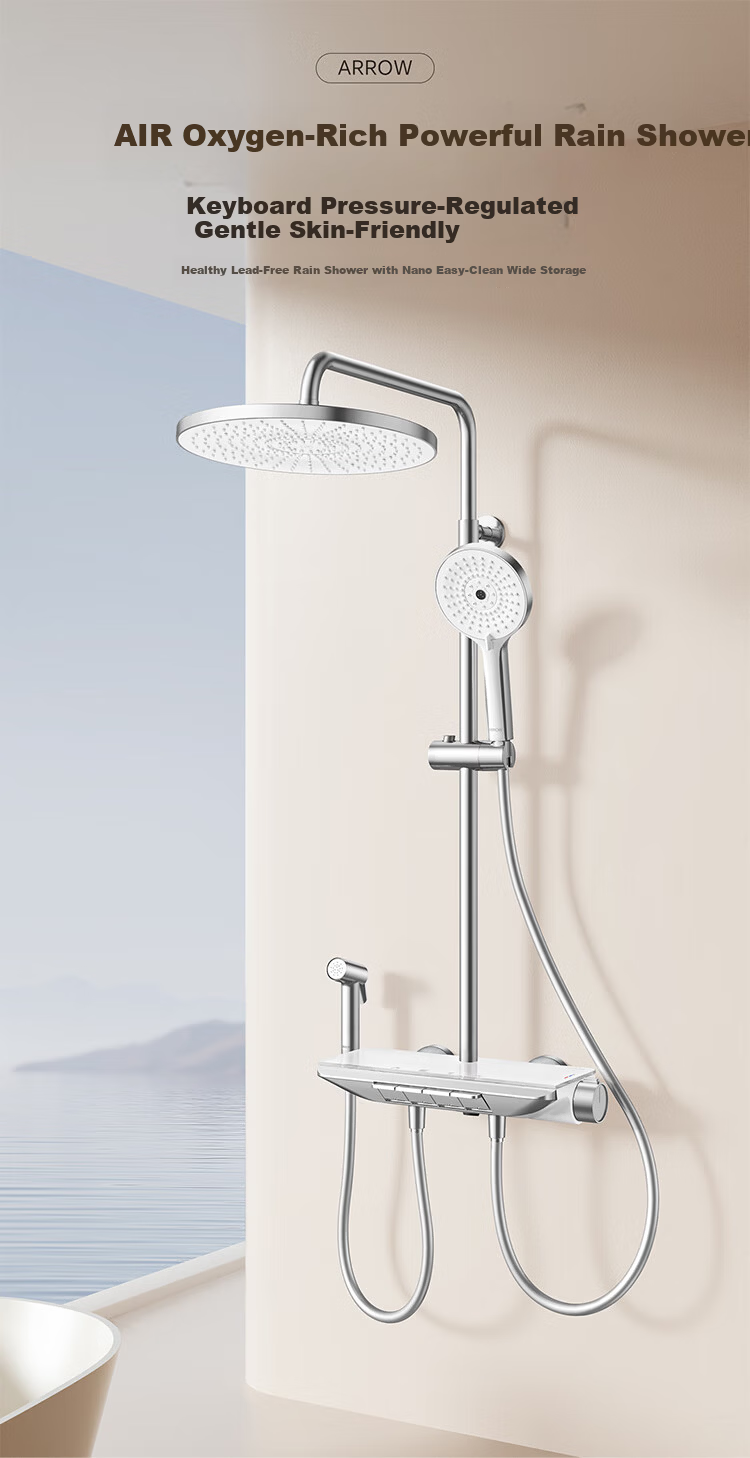

AIR oxygen-enriched large rain shower with 300mm diameter for full-body coverage

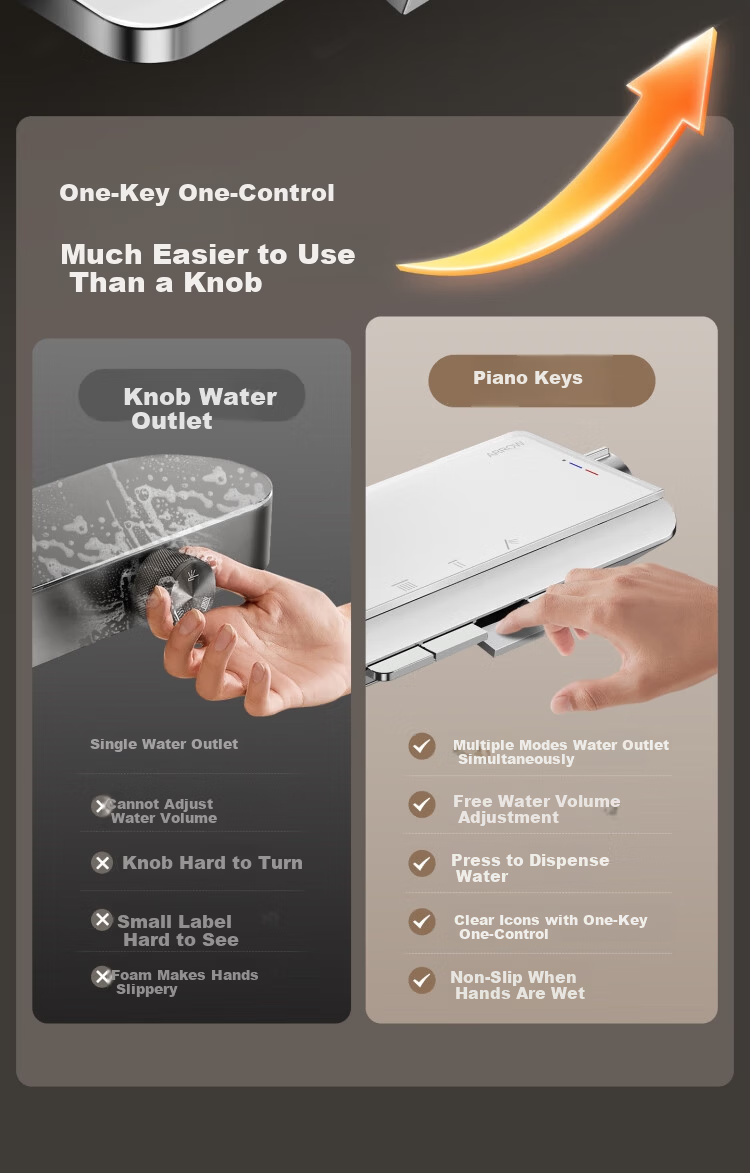

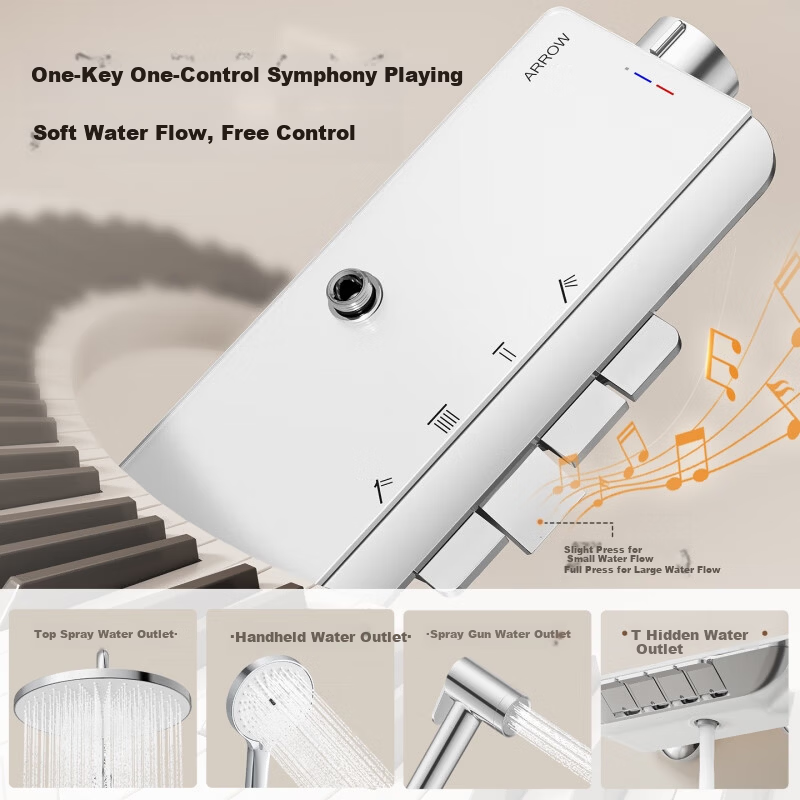

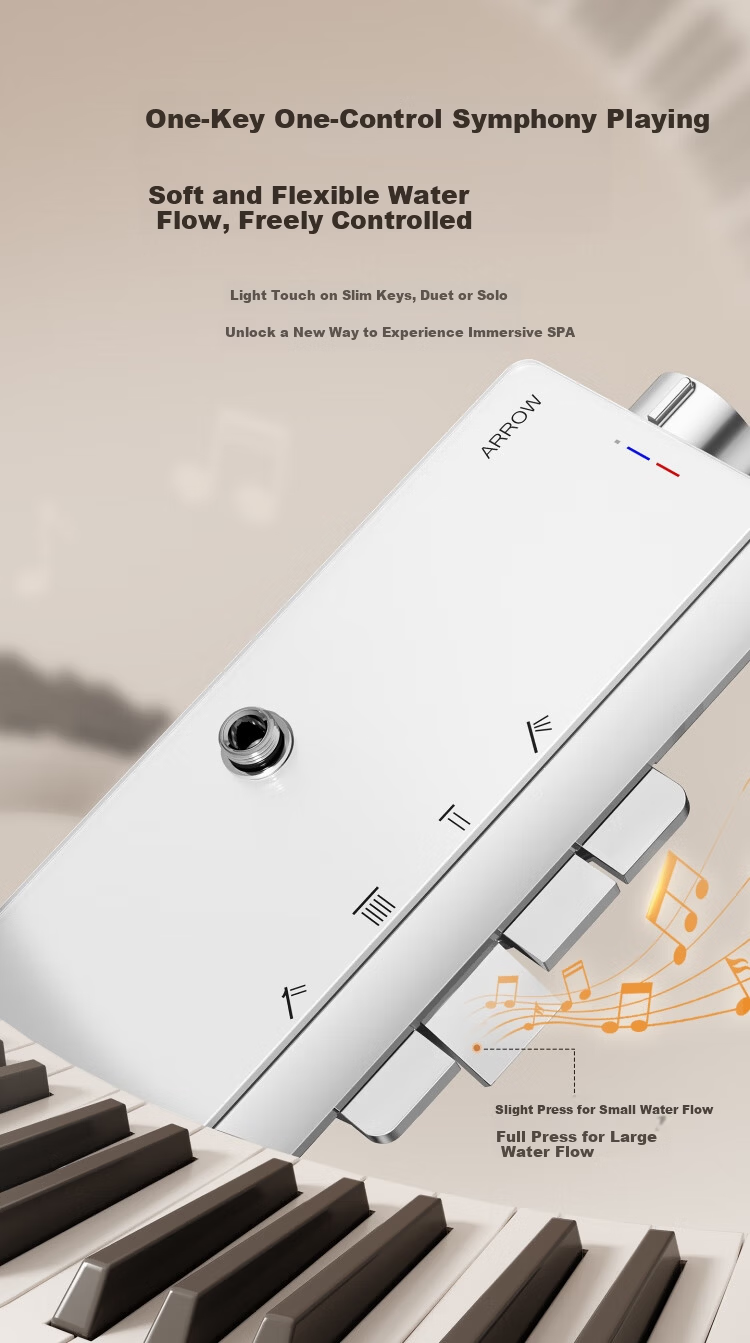

Piano key pressure regulation for gentle, skin-friendly water flow with easy one-touch control

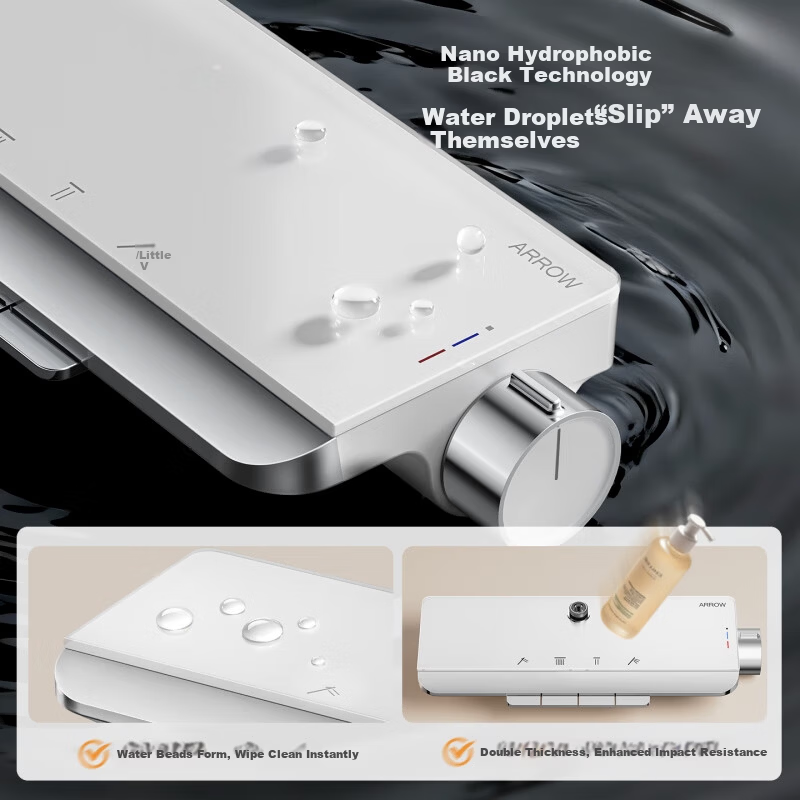

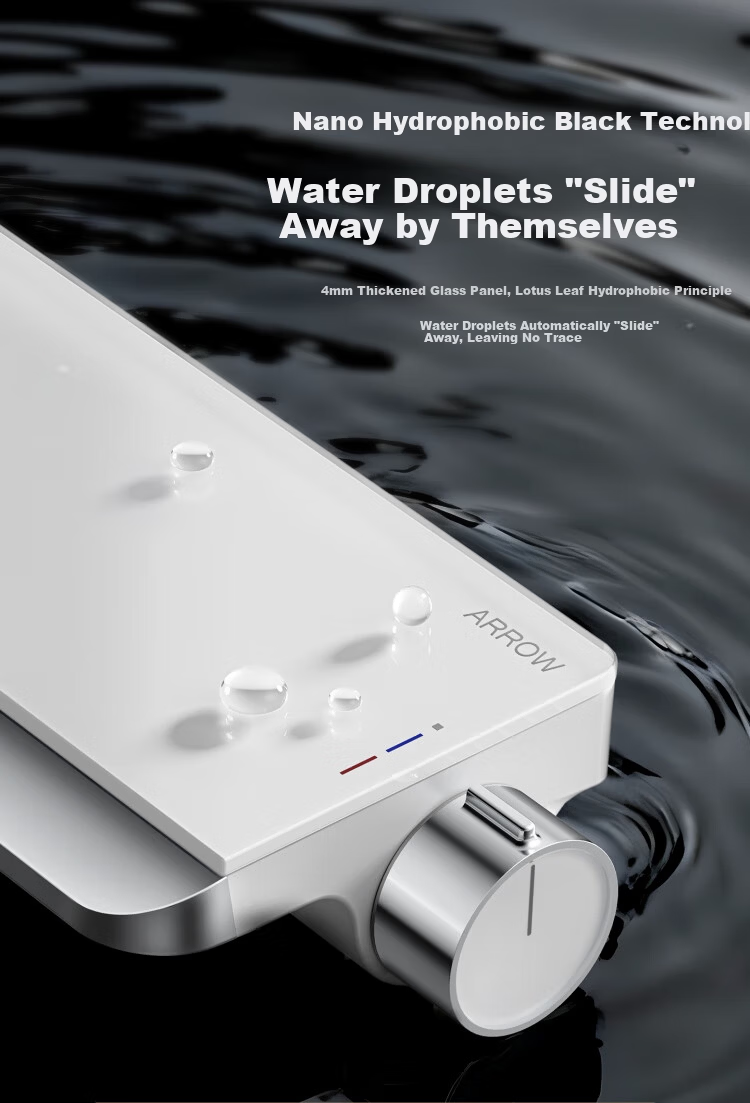

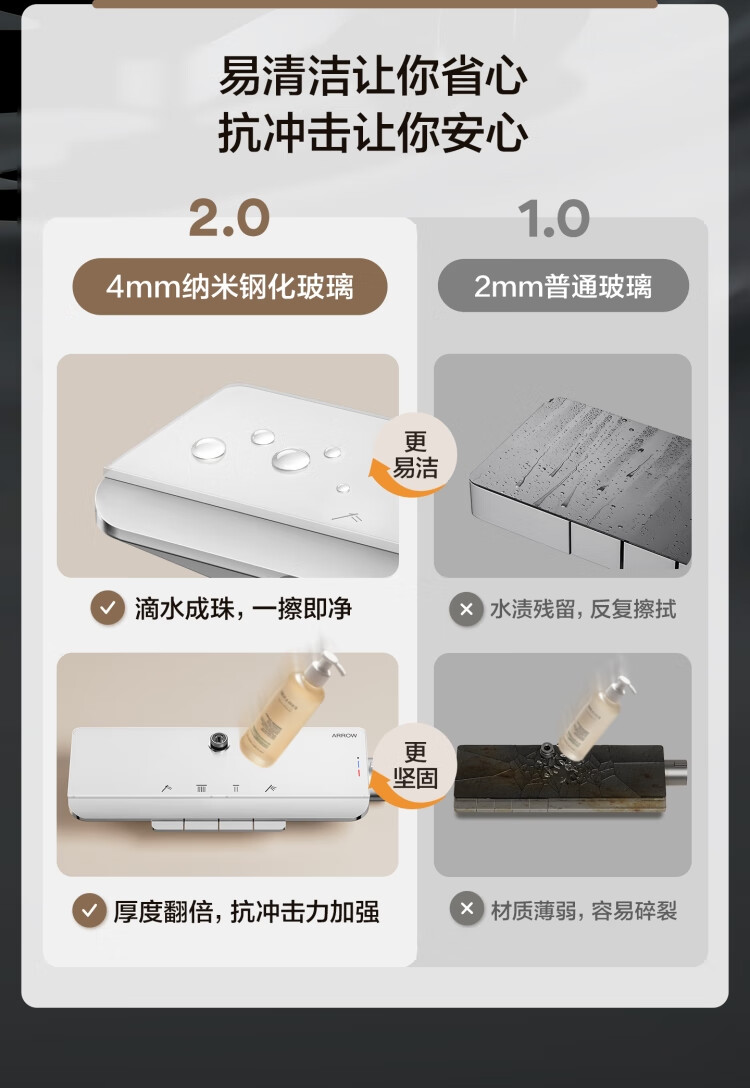

Nano hydrophobic technology on 4mm thick glass panel for water repellency and easy cleaning

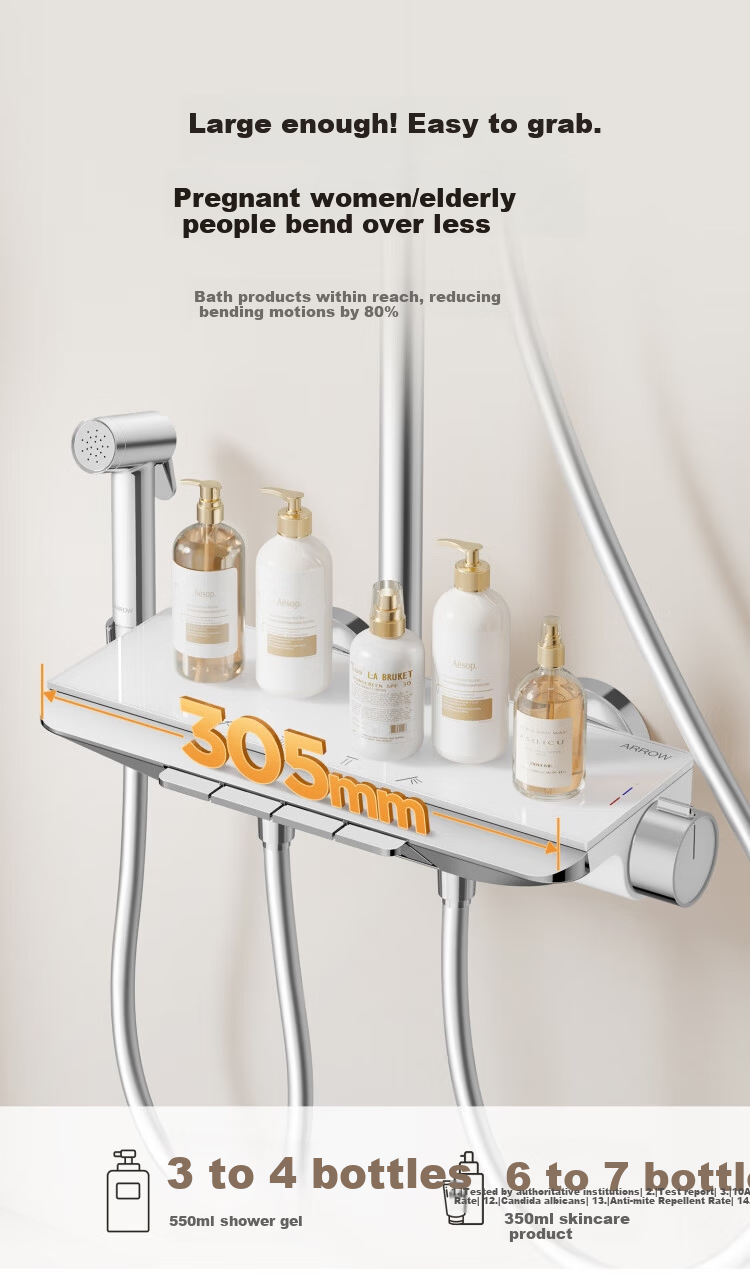

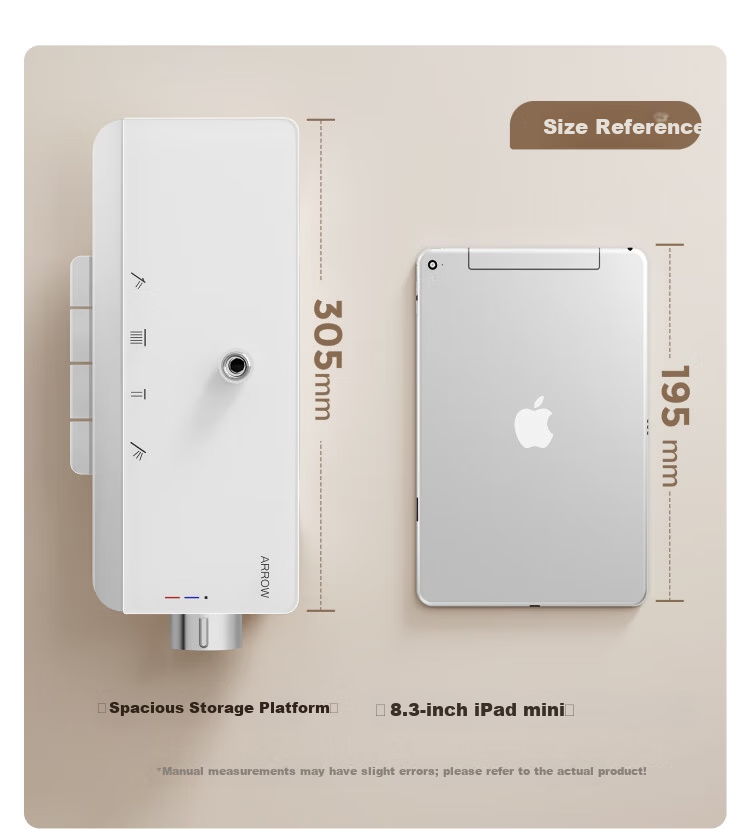

Wide storage shelf (305mm width) designed for easy access to 3–7 bottles, reducing bending for elderly and pregnant users
Additional details

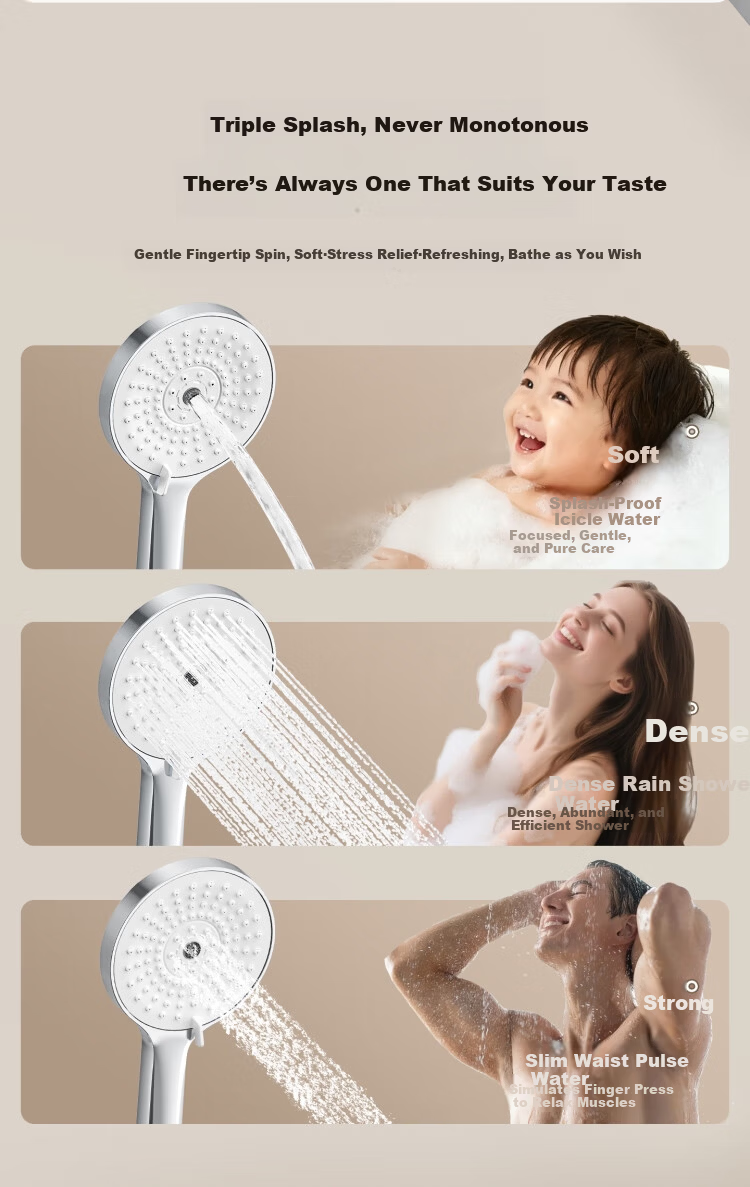

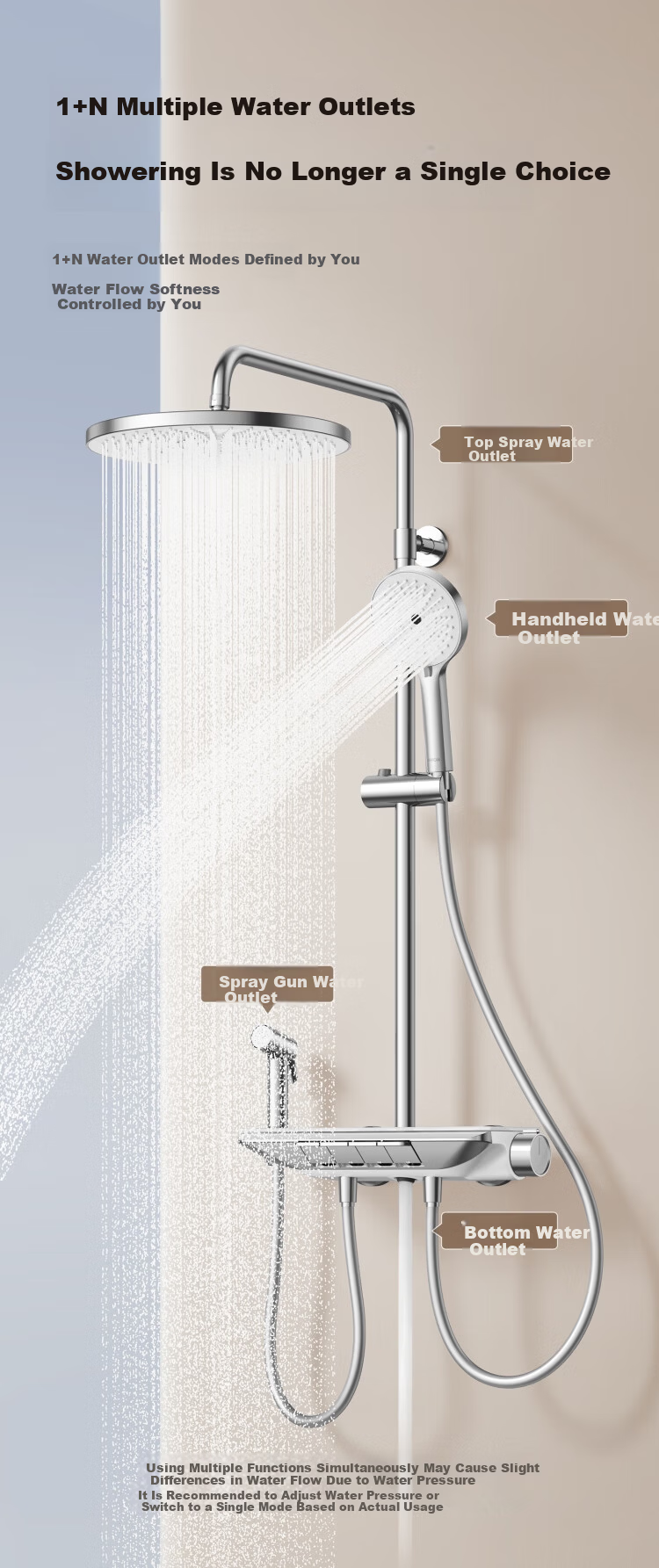

Multi-mode water output

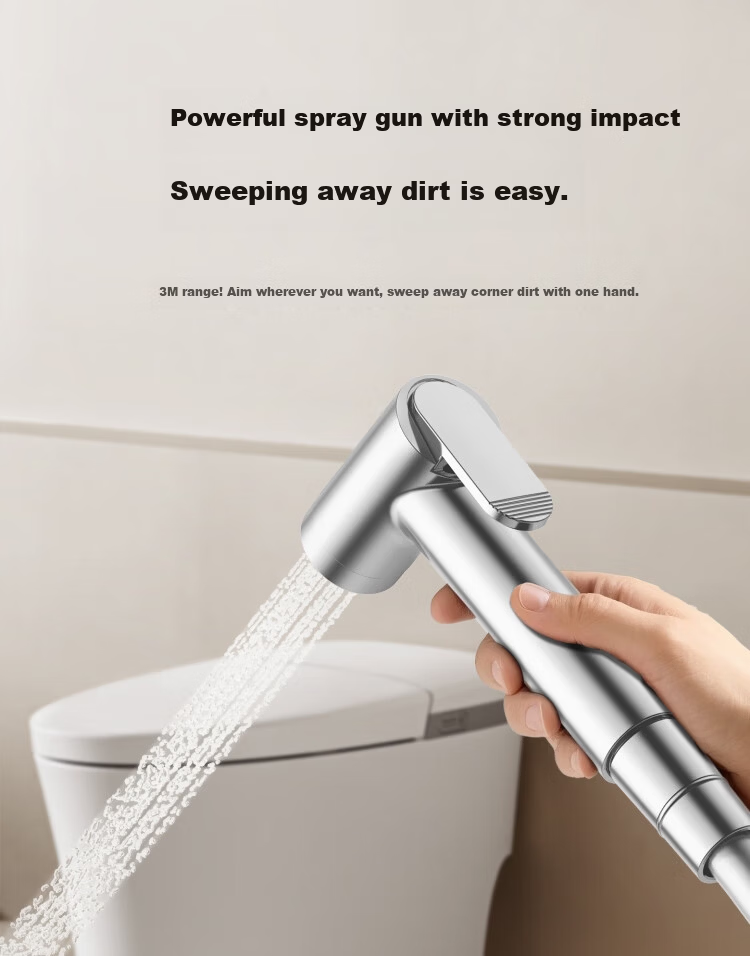

overhead shower, handheld shower, spray gun, and hidden lower outlet with simultaneous or single use

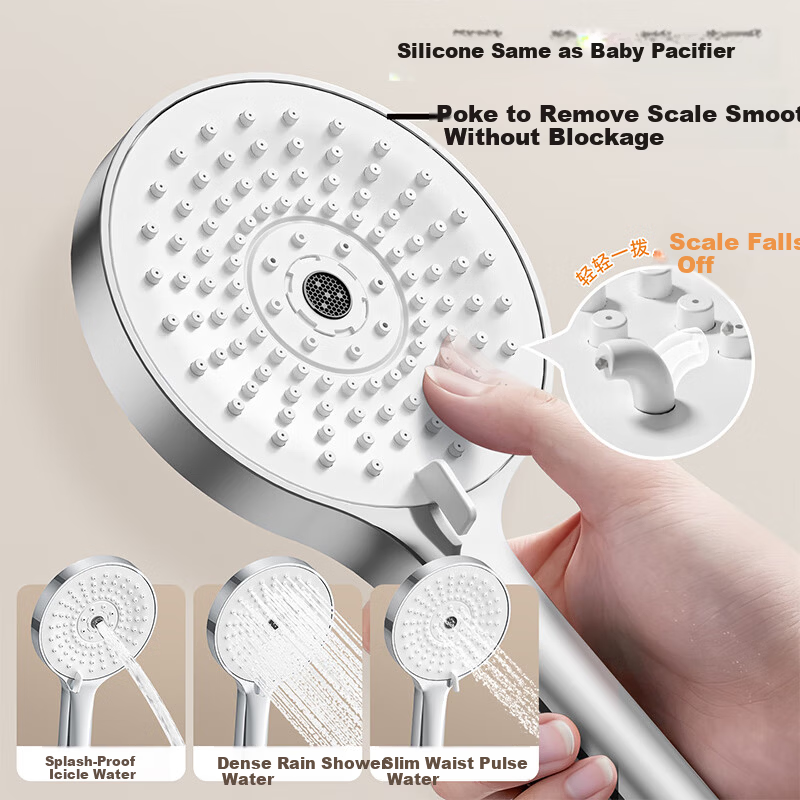

Innovative concentrated ice column water flow for gentle, splash-free experience ideal for babies and sensitive skin
Anti-scald double-layer insulation with hidden lower water outlet for safety
Durable piano key controls tested for 200,000 presses without failure
Rust-resistant mirror-grade chrome plating exceeding national standards; passes 24-hour 10-level salt spray test simulating 5 years of use

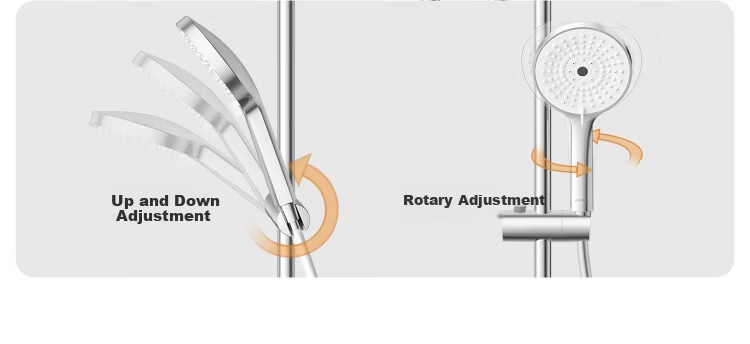

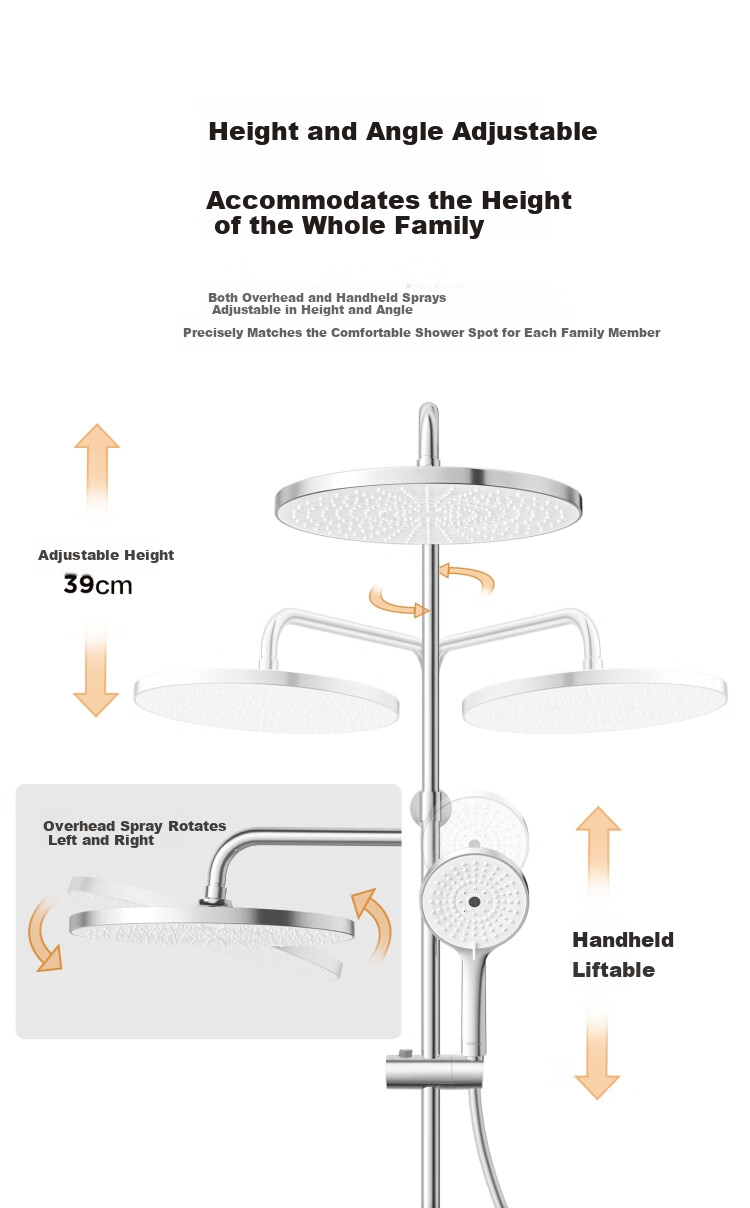

Adjustable height and angle for overhead and handheld showers to accommodate all family members (height adjustment range 390mm)

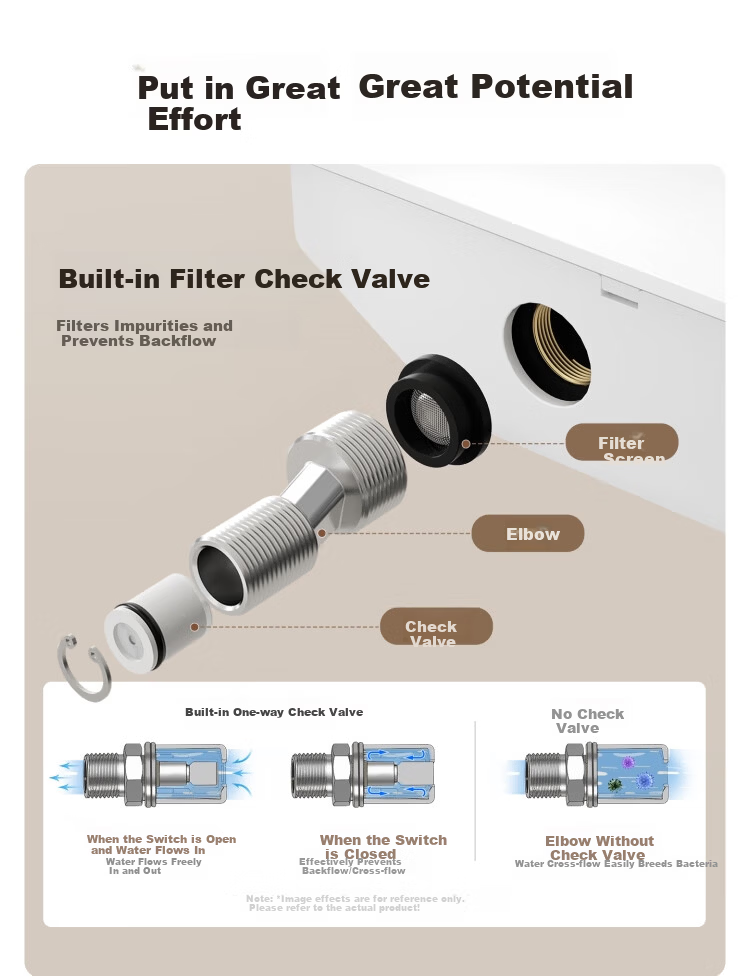

Built-in filter and one-way check valve to prevent backflow and contamination

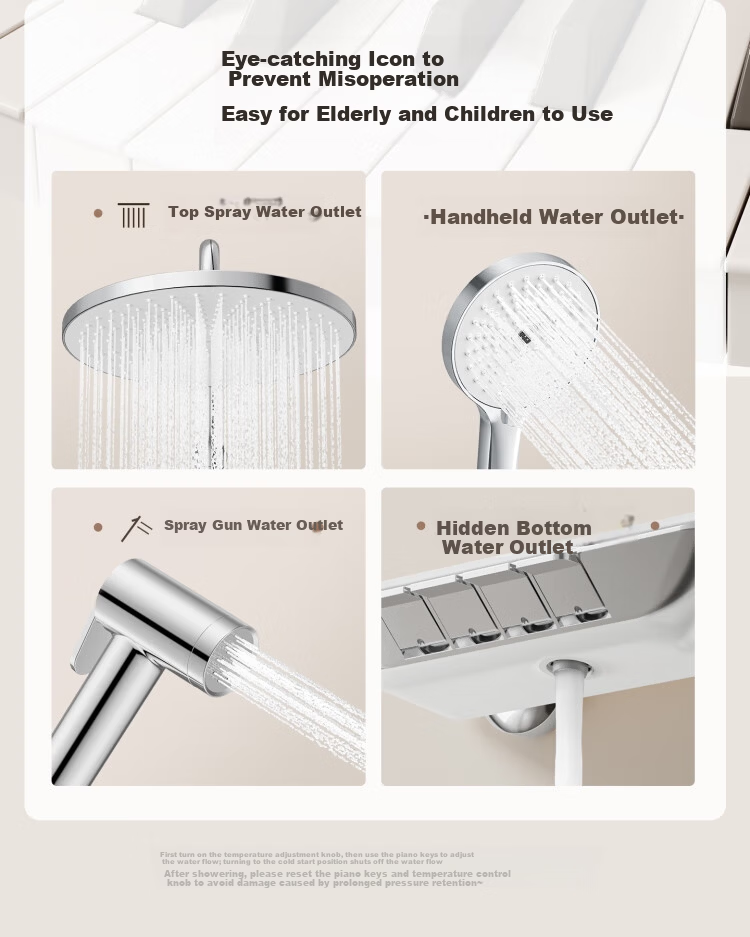

Easy-to-read icons to prevent misuse by elderly and children
Additional details

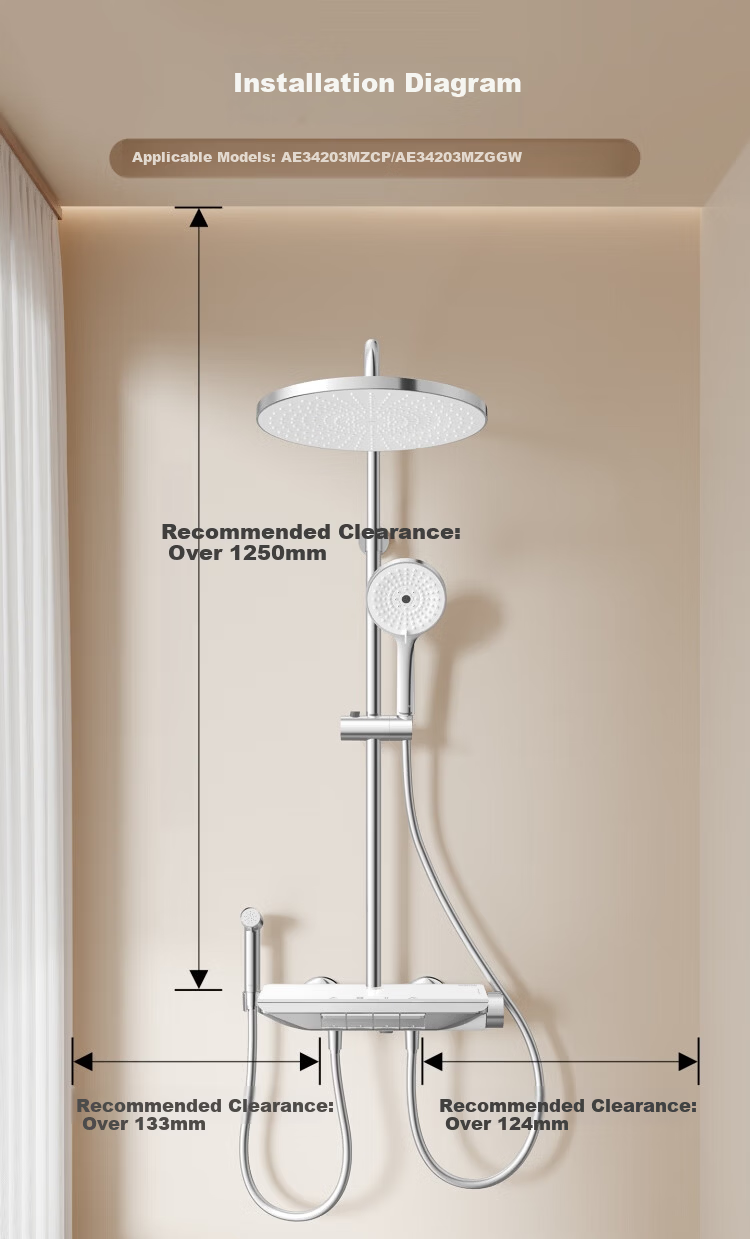

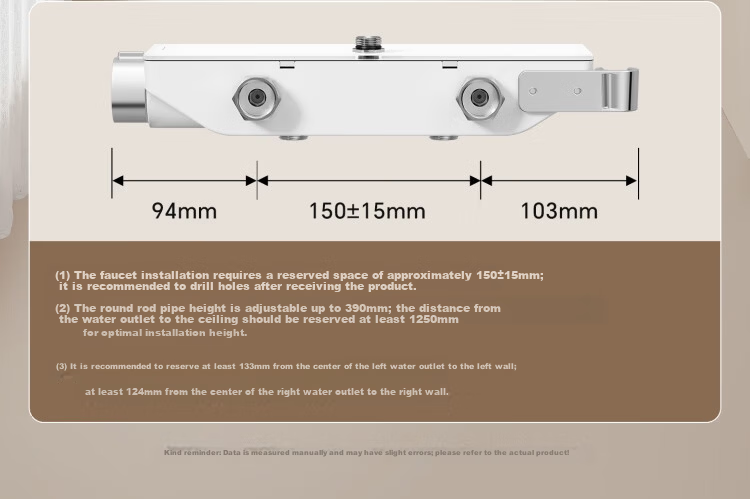

Recommended installation clearance
minimum 1250 mm height from outlet to ceiling; side clearances 124 mm (right) and 133 mm (left) from wall to water inlet centers
Product dimensions are manually measured; slight deviations may occur
Installation diagrams and detailed measurements provided with product

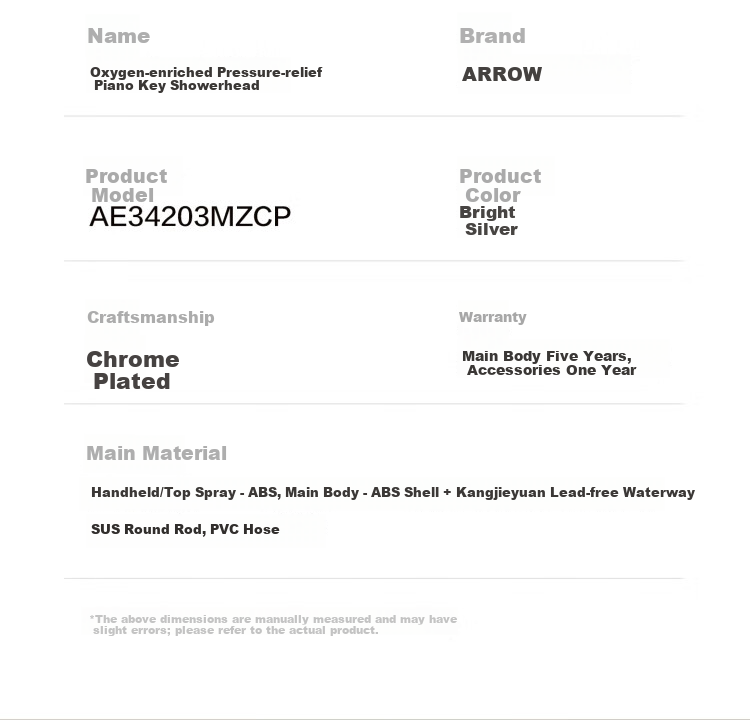

Suitable for models AE34203MZCP and AE34203MZGGW
Please reserve water inlet positions carefully before installation to avoid damage or improper fitting. Actual product may vary slightly from images shown.
