Insta360 Luna Series Extended Battery Handle (Black)

•body accessories

Insta360 Luna Series Extended Battery Handle (Black)

CN¥359.00

SKU: 100282494221

Status:In Stock (119)

ID: 100370916886

Weight: 95.00 g

Dims:122x62x46 mm

Specifications

For Use With: Insta360
Type: Other

Variants / Sale Attributes

Color: Luna Series Extended Battery Grip (Black)

Package Contents

Battery life controller *1

Product Description

Overview

Brand: Insta360 ()
Model: Insta360 Luna Ultra

Multi-functional battery grip designed to extend shooting time and meet various needs.

Built-in 1000mAh lithium-ion battery (7.82Wh) to ensure uninterrupted shooting.

Additional details

Supports fast charging: charges camera battery from 0% to Approx. 44% in about 30 minutes (lab test at room temperature, for reference only).

Integrated tripod at the bottom of the grip for easy switching between handheld and fixed shooting without disassembly.

USB-C interface (OUT2) supports connection to external audio devices such as wired digital headphones, wired microphones, and wireless microphone receivers.

1/4" threaded interface at the bottom for mounting additional accessories (not recommended for use during intense activities like motorcycling, cycling, or skiing).

Additional details

Similar Products

In Stock

SUREWObody accessories

SUREWO Camera Quick Release Wrist Strap Compatible with Canon Sony Nikon Fuji DSLR Handwoven Vintage Anti-Lost Safety Wristband for Mirrorless Cameras

H2 QuickRelease Wristband Deep Green

CN¥49.00

View

In Stock

PGYTECHbody accessories

PGYTECH Photography Gloves Fleece Lined Warm Gloves Cold Resistant Cycling Skiing Camera Photography Gloves Fingerless Touchscreen Waterproof Winter Outdoor Professional Gloves Size M

Professional Edition M

CN¥269.10

View

Weight: 63.73 g
Dimensions: 34.59 x 37.55 x 59.61 mm
Materials: Metal, plastic, silicone

Input Voltage

5V ⎓ 3.6A
9V ⎓ 2A
12V ⎓ 1.5A
12V ⎓ 3A

Additional details

Output (OUT1): 5V ⎓ 1.5A
Output (OUT2): 6.8V-9V ⎓ 2A max, 12V ⎓ 3A

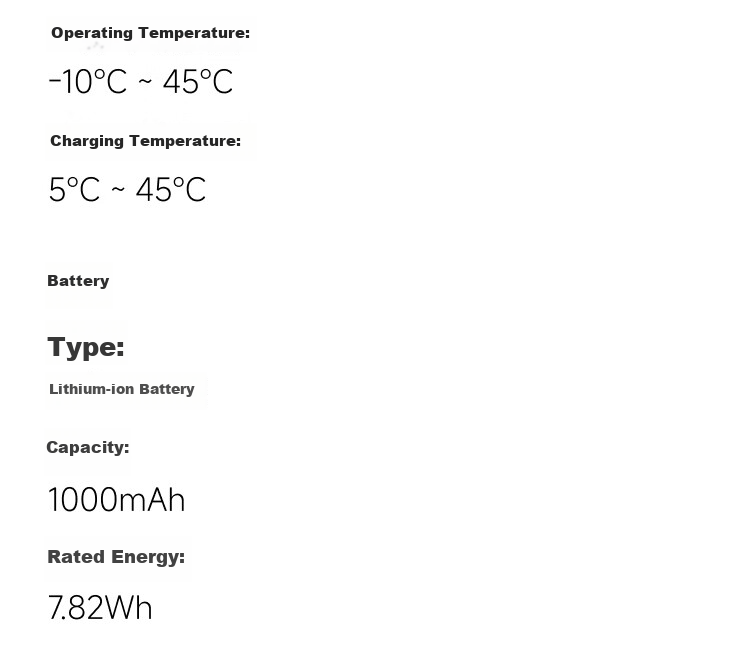

Type: Lithium-ion battery
Capacity: 1000mAh
Rated Energy: 7.82Wh
Working Temperature: -10°C to 45°C
Charging Temperature: 5°C to 45°C

Additional details

Charging: Orange LED steady on
Fully Charged: Green LED steady on
Firmware Upgrade: Green LED blinking

Battery Level (on short press of unlock button)

Item	Detail
50%-100%	Green LED on for 3 seconds
20%-49%	Yellow LED on for 3 seconds
1%-19%	Red LED on for 3 seconds
Battery depleted	Red LED blinks 5 times then off

Tracking Mode (when inserted into camera)

Tracking active: Green LED steady on
Tracking lost: Yellow LED steady on
Tracking stopped: LED off

1. Charging the Camera

Insert the battery grip into the camera’s bottom USB-C port, ensuring both side locks engage fully.
The grip will automatically charge the camera.
Long press the unlock button to remove the grip; short press to check grip battery level.
Firmware upgrades for the grip may occur automatically when connected; do not remove during upgrade.

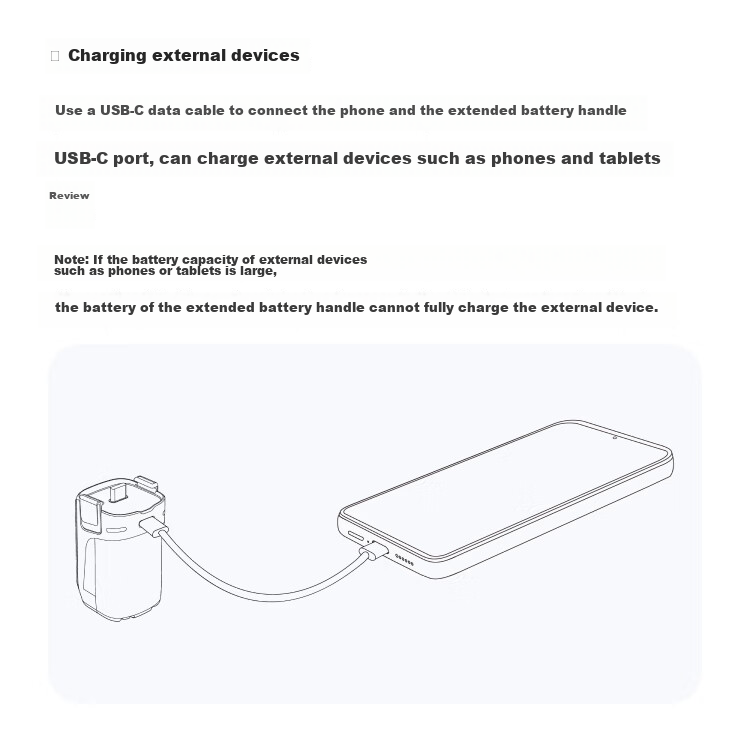

2. Charging External Devices

Connect external devices (phones, tablets) to the grip’s USB-C port using a USB-C cable.

Large capacity devices may not be fully charged by the grip.

3. Charging Both Camera and Grip

Connect the grip inserted in the camera to a power adapter via USB-C cable.
Charge the camera first, then the grip.

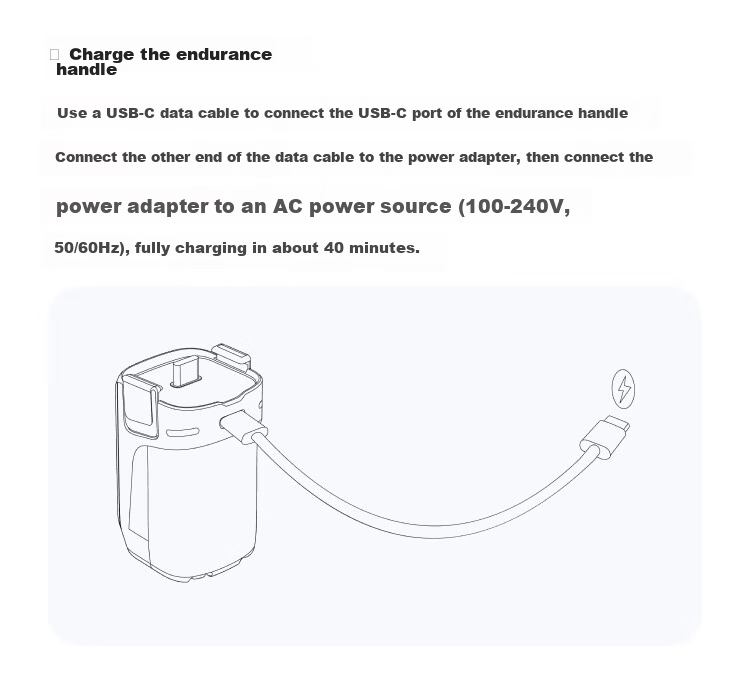

4. Charging the Grip Alone

Connect the grip to a power adapter via USB-C cable; full charge takes approximately 40 minutes.

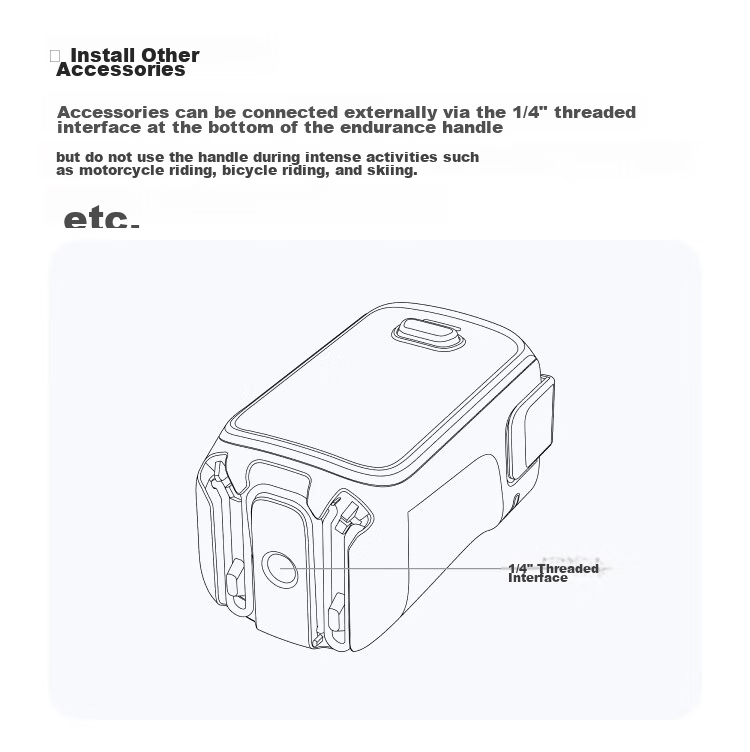

5. Accessory Installation

Attach accessories via the 1/4" threaded interface at the grip’s bottom.
Avoid use during vigorous activities.

The USB-C plug (OUT2) is only compatible with Insta360 Luna Ultra for charging.

The grip is not waterproof; avoid rain or underwater use.

Clean with a soft cloth; do not use liquids with cleaning agents.

Do not disassemble, mechanically impact, crush, or throw the grip.

Avoid placing heavy objects on the grip.

Charge and discharge periodically if unused for long periods to maintain battery health.

Store in dust- and sand-free environments.

Use the built-in tripod on stable, flat surfaces only; avoid excessive force to prevent deformation.

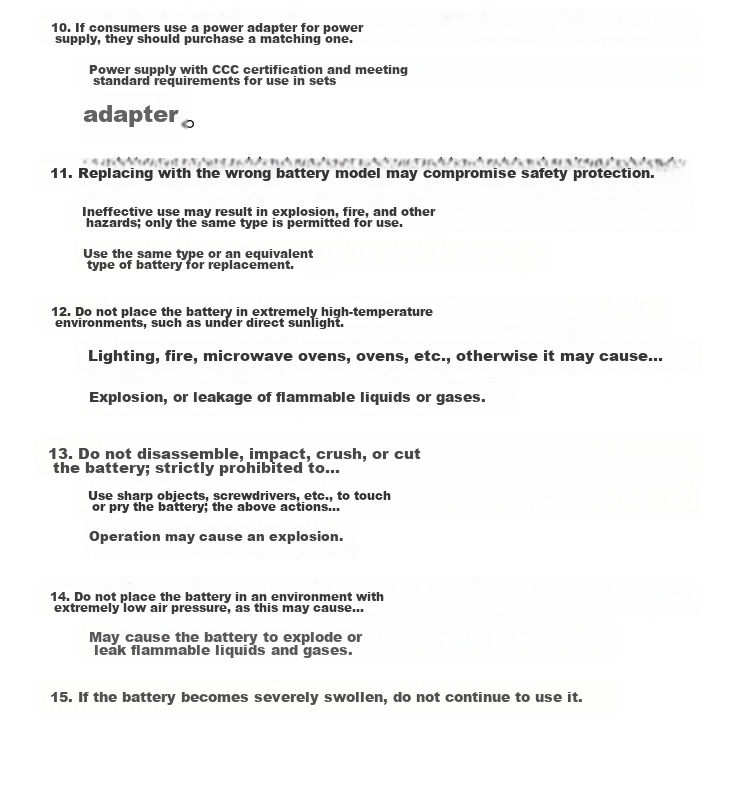

Use only CCC-certified power adapters.

Replace batteries only with the same or equivalent type to avoid safety hazards.

Avoid exposing the battery to extreme temperatures, mechanical damage, or low pressure environments.

Discontinue use if battery swelling occurs.

Specifications and features are subject to change based on firmware updates and official product documentation.
