Jingpinlu Multifunctional Asynchronous Controller Black Fan HUB Splitter/Independent Addressing/Asynchronous Control/Same Screen Effects/Remote Control/ARGB Sync PWM Temperature Control

Jingpinlu Multifunctional Asynchronous Controller Black Fan HUB Splitter/Independent Addressing/Asynchronous Control/Same Screen Effects/Remote Control/ARGB Sync PWM Temperature Control

CN¥59.00

SKU: 100283485546

Status:Out of Stock

ID: 100283485546

Weight: 160.00 g

Dims:154x65x32 mm

Specifications

Type: chassis fan
Lighting Effects: ARGB
Number of heat pipes: No

Variants / Sale Attributes

Color: Multifunctional Asynchronous Controller, Black

Package Contents

Controller *1 Remote control *1 SATA power cable *1 Motherboard ARGB sync cable + PWM temperature control cable *1

Product Description

Product Specifications

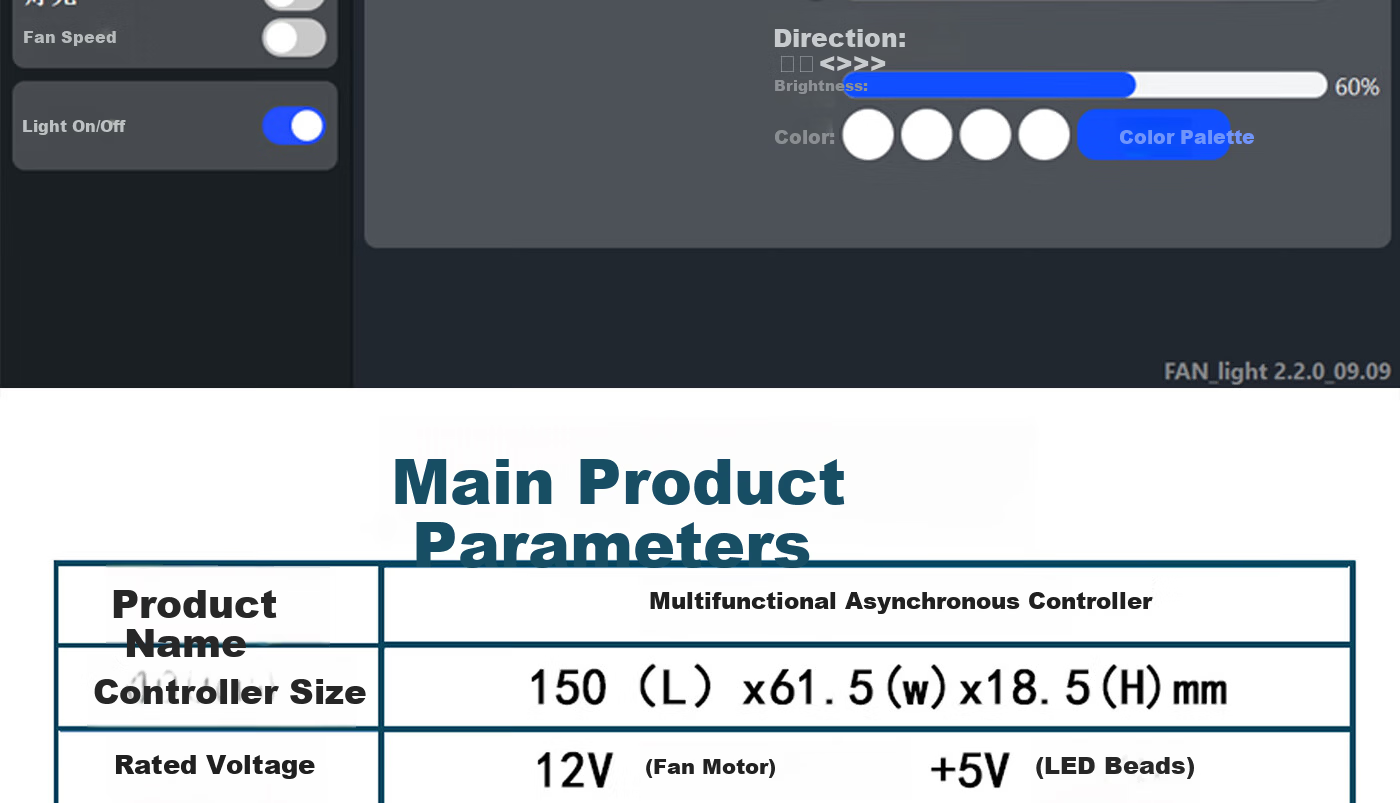

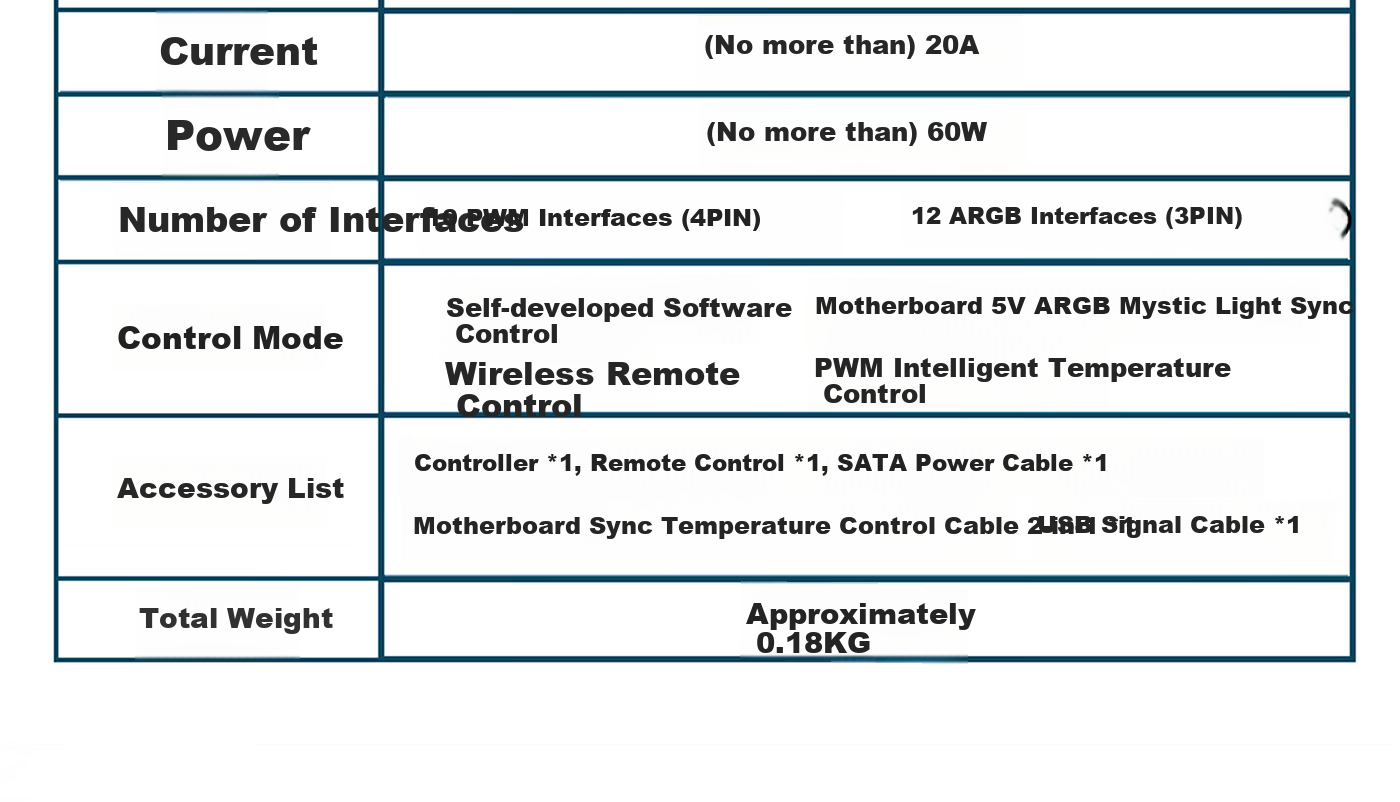

Overview

Product Name: Multifunctional Asynchronous Controller

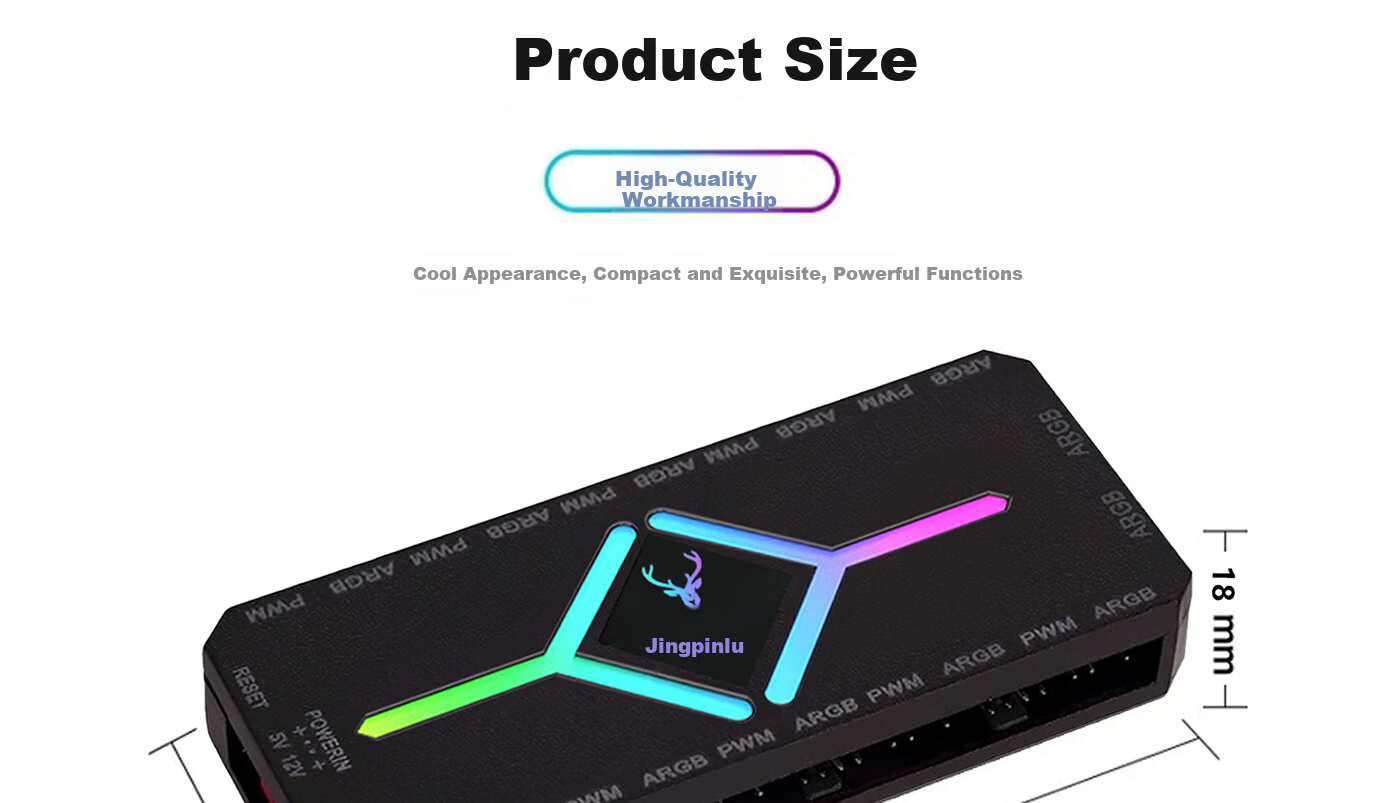

Dimensions: 150 mm (L) x 61.5 mm (W) x 18.5 mm (H)
Rated Voltage: 12V (Fan Motor), 5V (LED)
Maximum Current: 20A
Maximum Power: 60W

10 PWM interfaces (4-pin)

12 ARGB interfaces (3-pin)

Independent Addressing

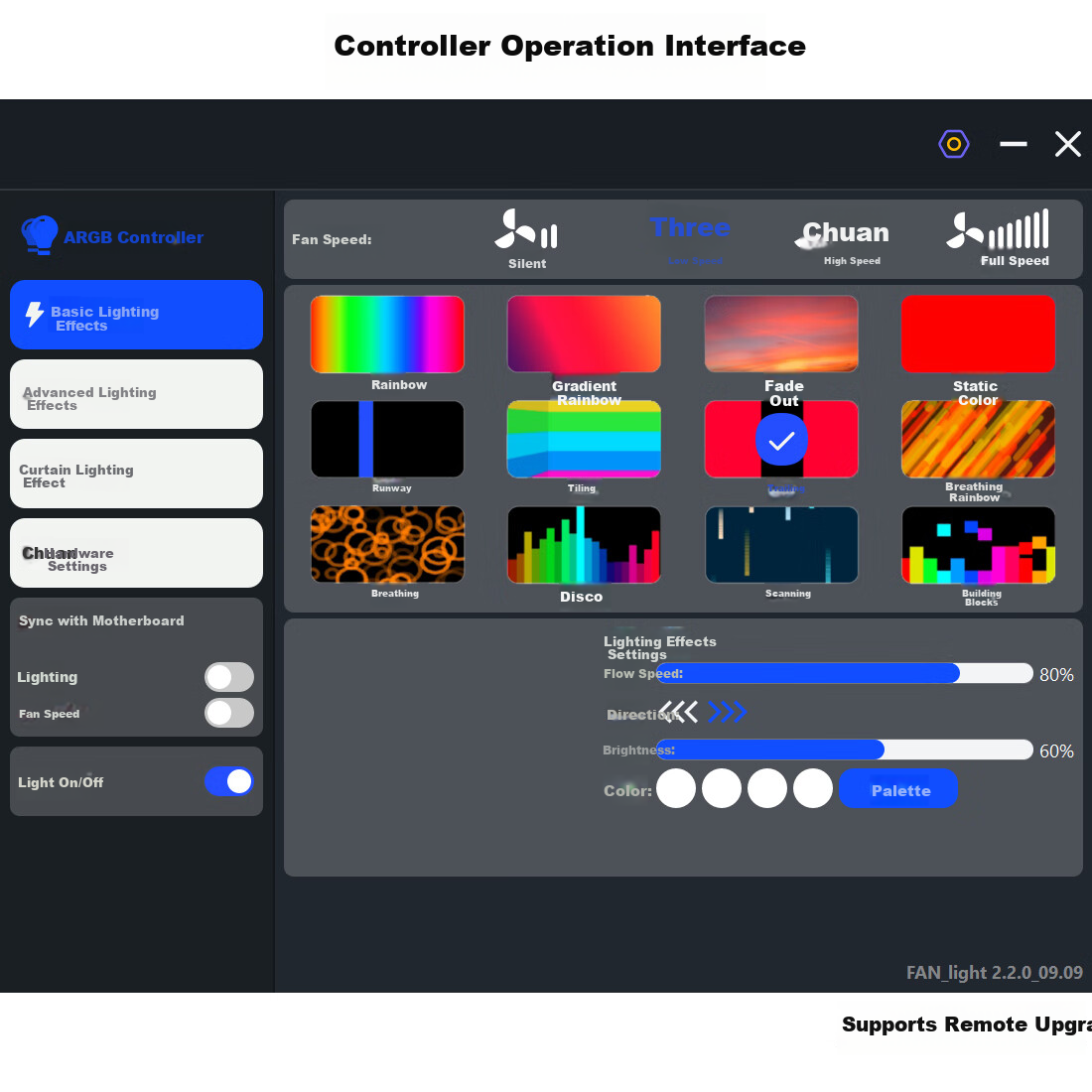

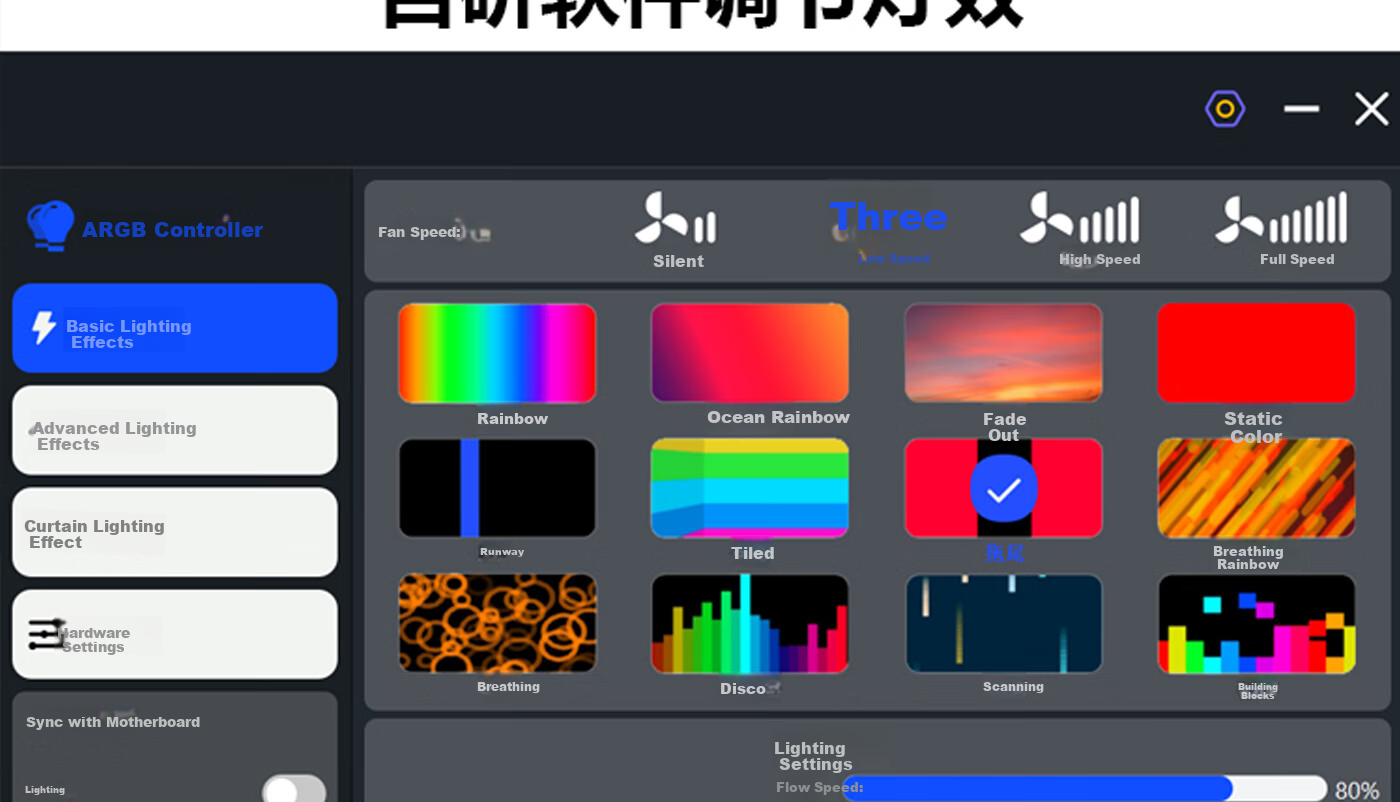

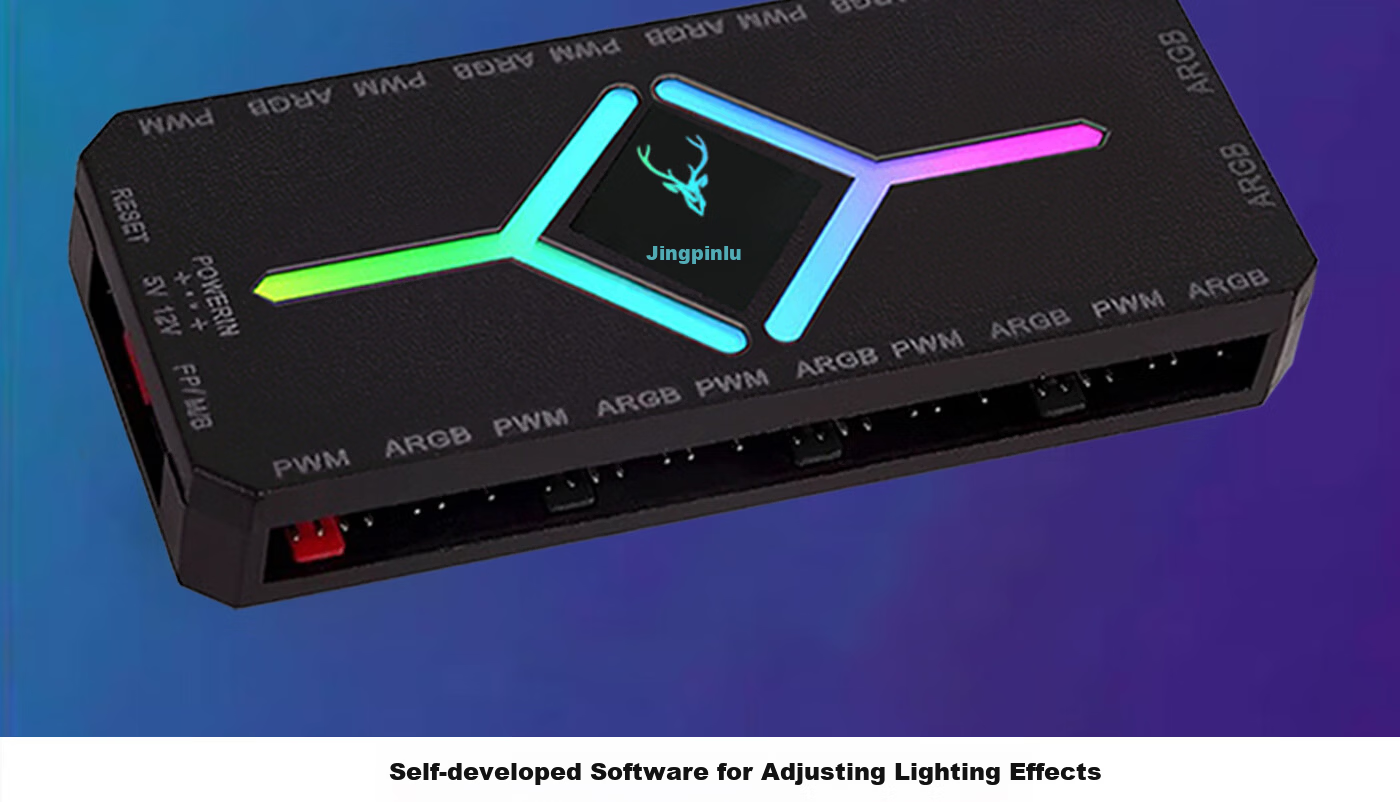

Software Control with Self-developed Software for Lighting Effects Adjustment

PWM Intelligent Temperature Control

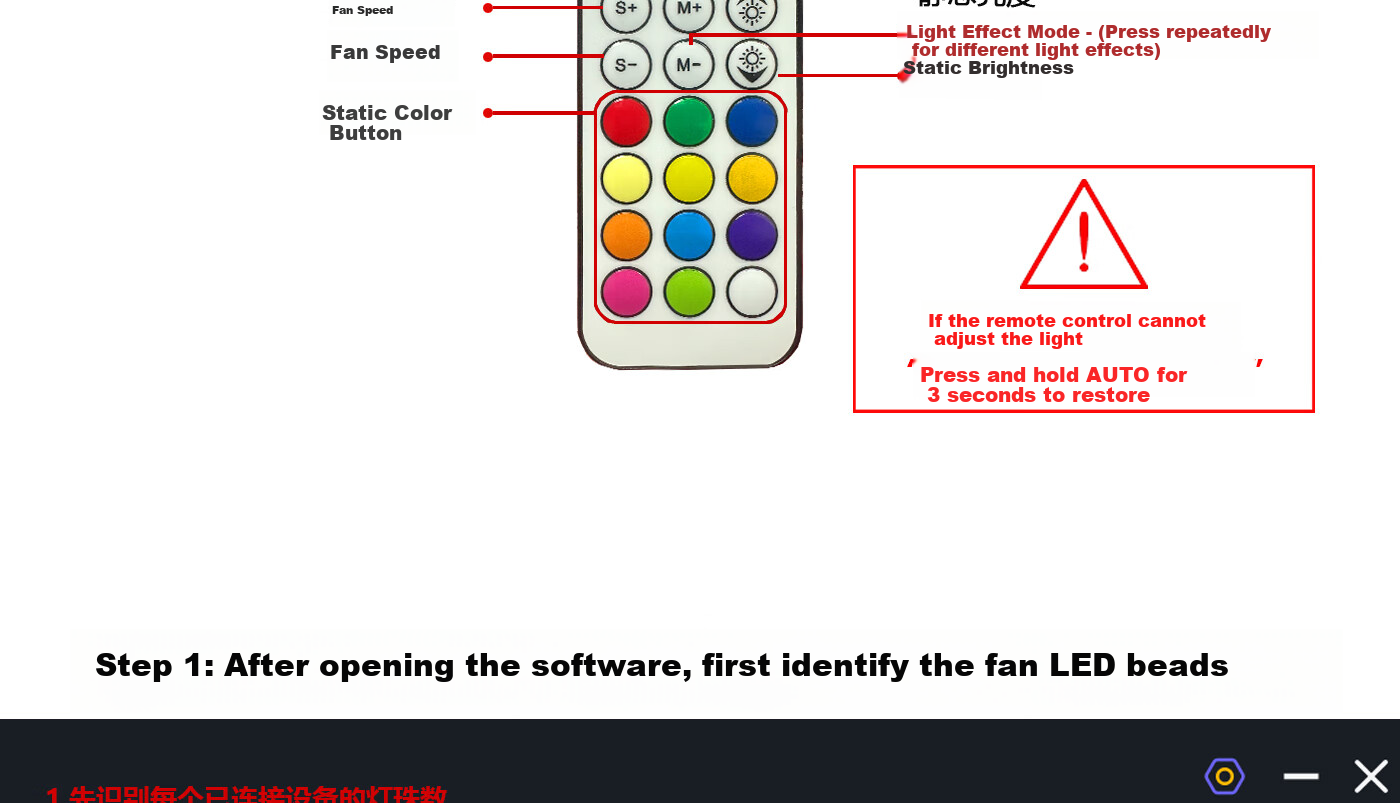

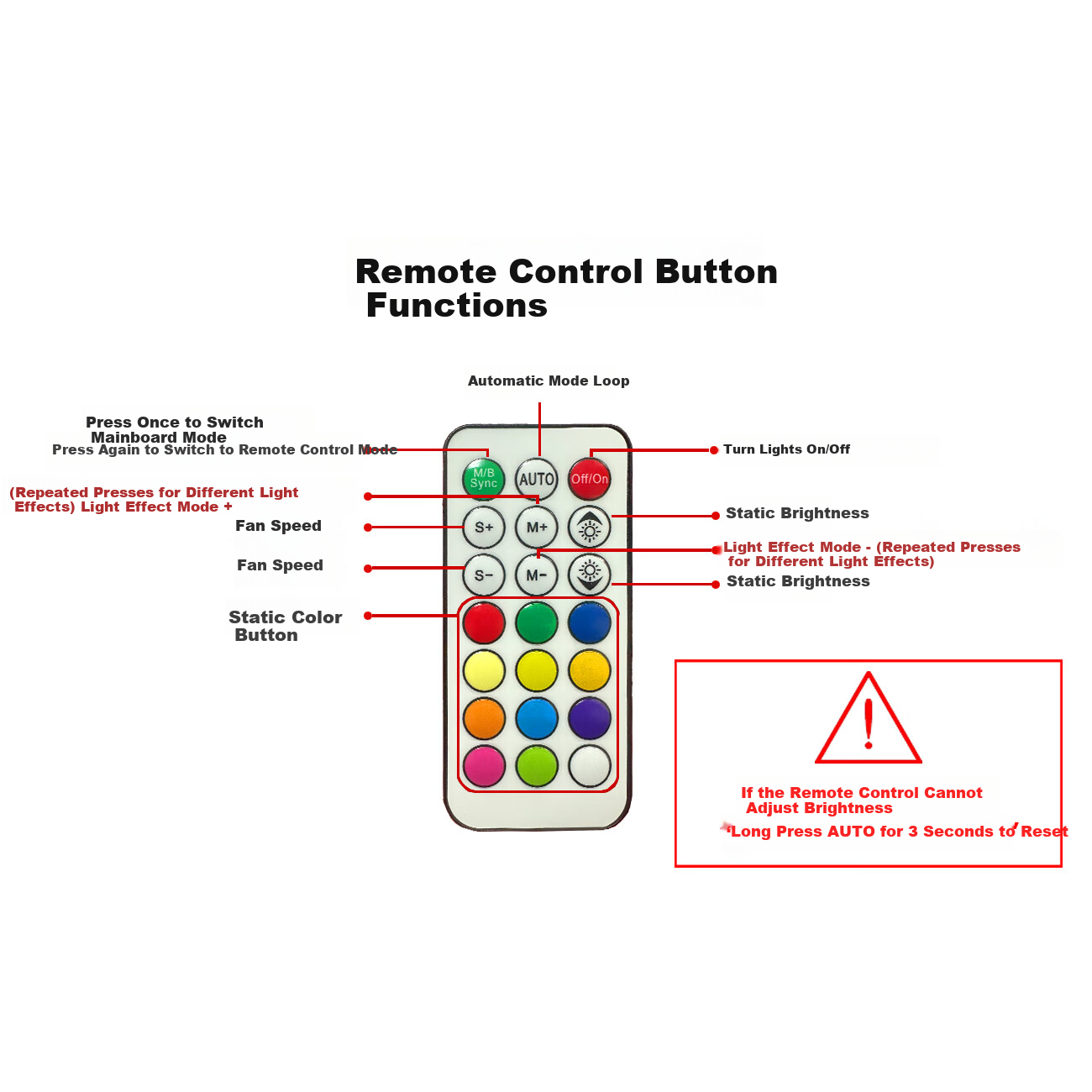

RF Wireless Remote Control

Motherboard 5V ARGB Sync (Shining Sync)

Similar Products

Out of Stock

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

thermalrightradiator

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

AS120 VISION ARGB Black

CN¥129.90

In Stock

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

SAMAradiator

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black

CN¥529.00

Hardware Settings and Reset

Additional details

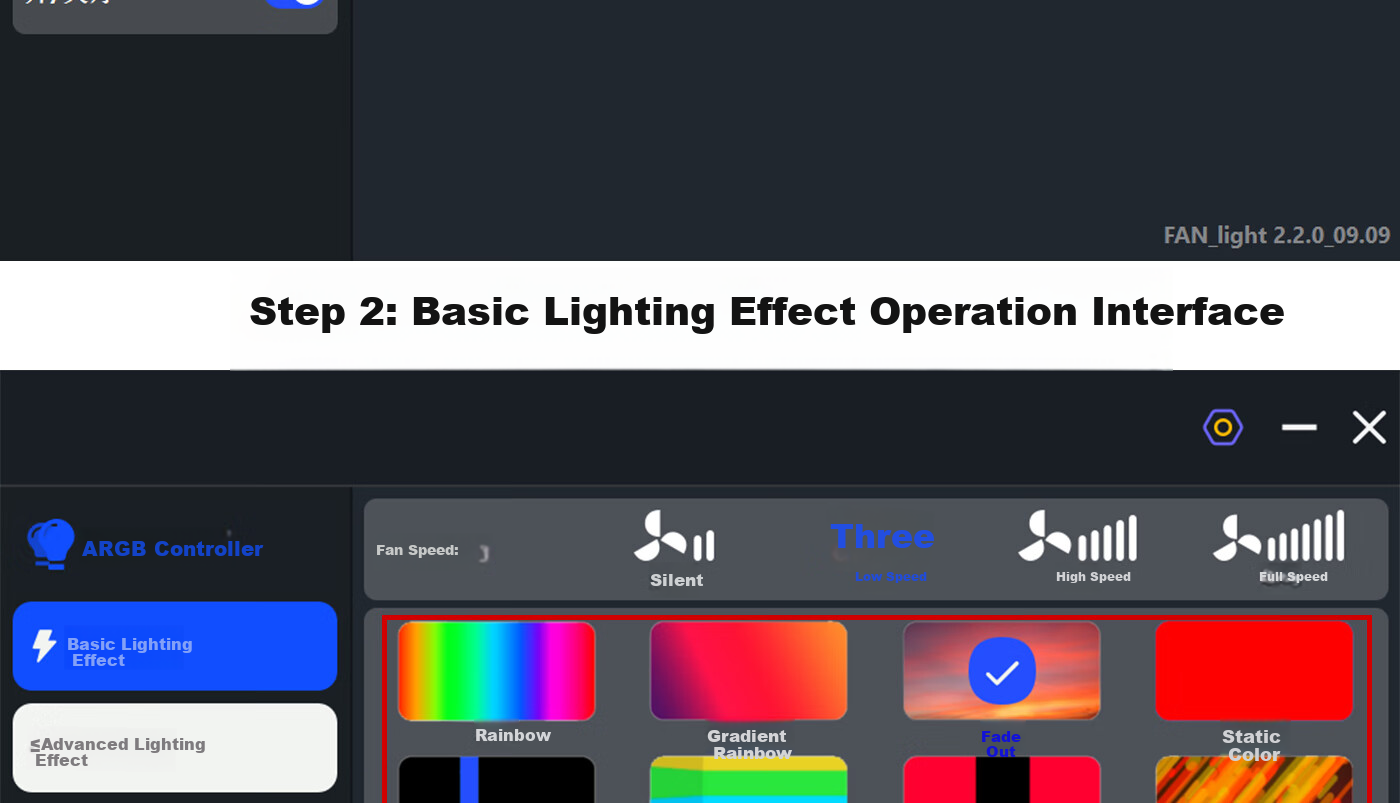

Basic Effects: Rainbow, Gradient Rainbow, Fade Out, Static Color

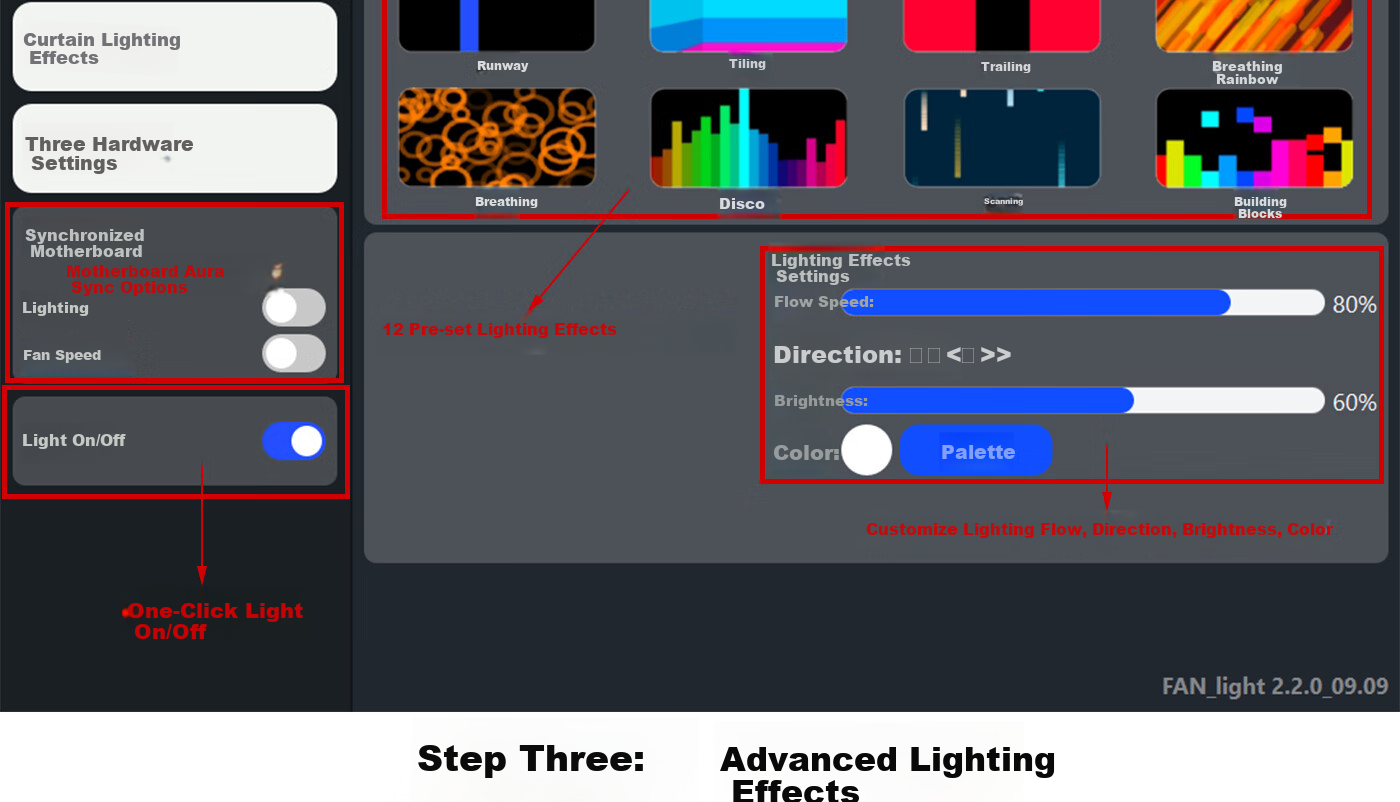

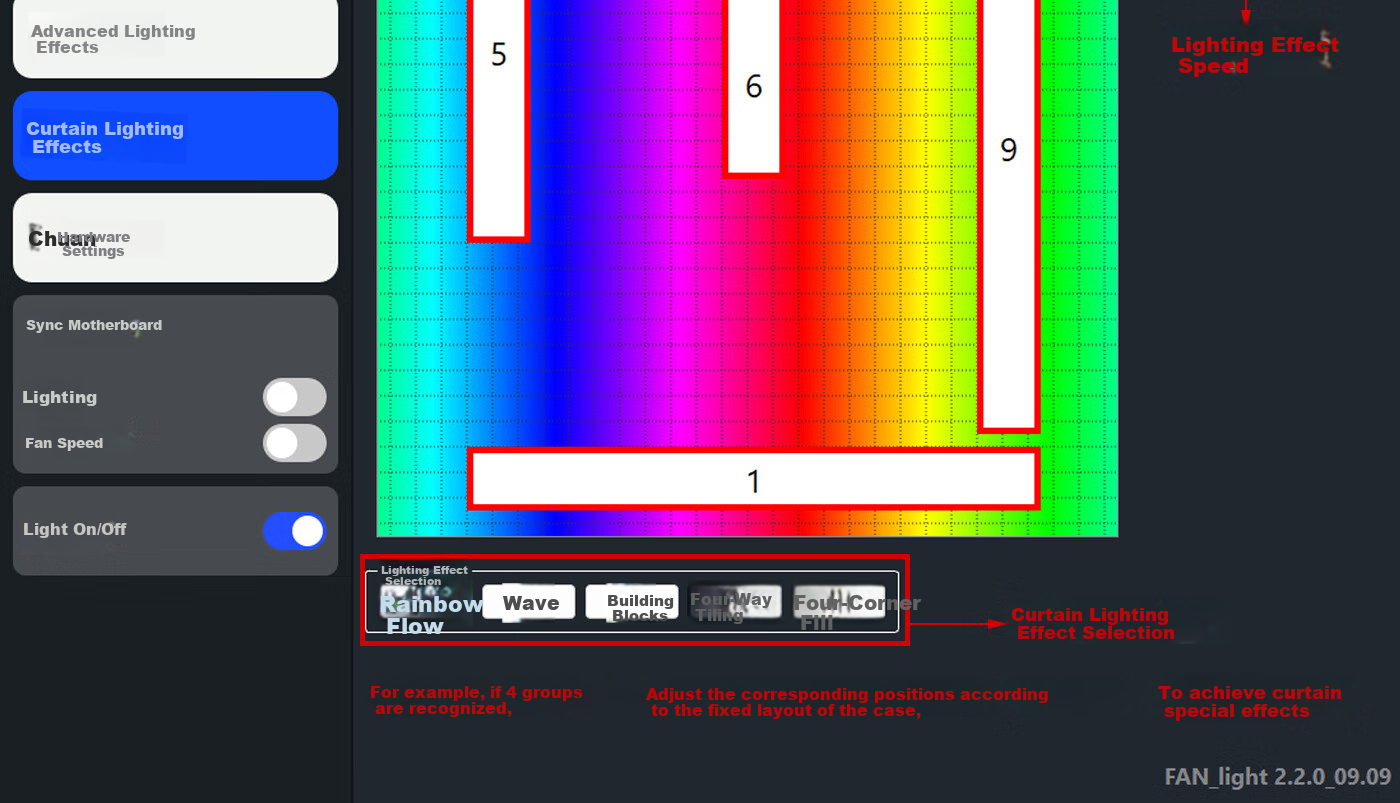

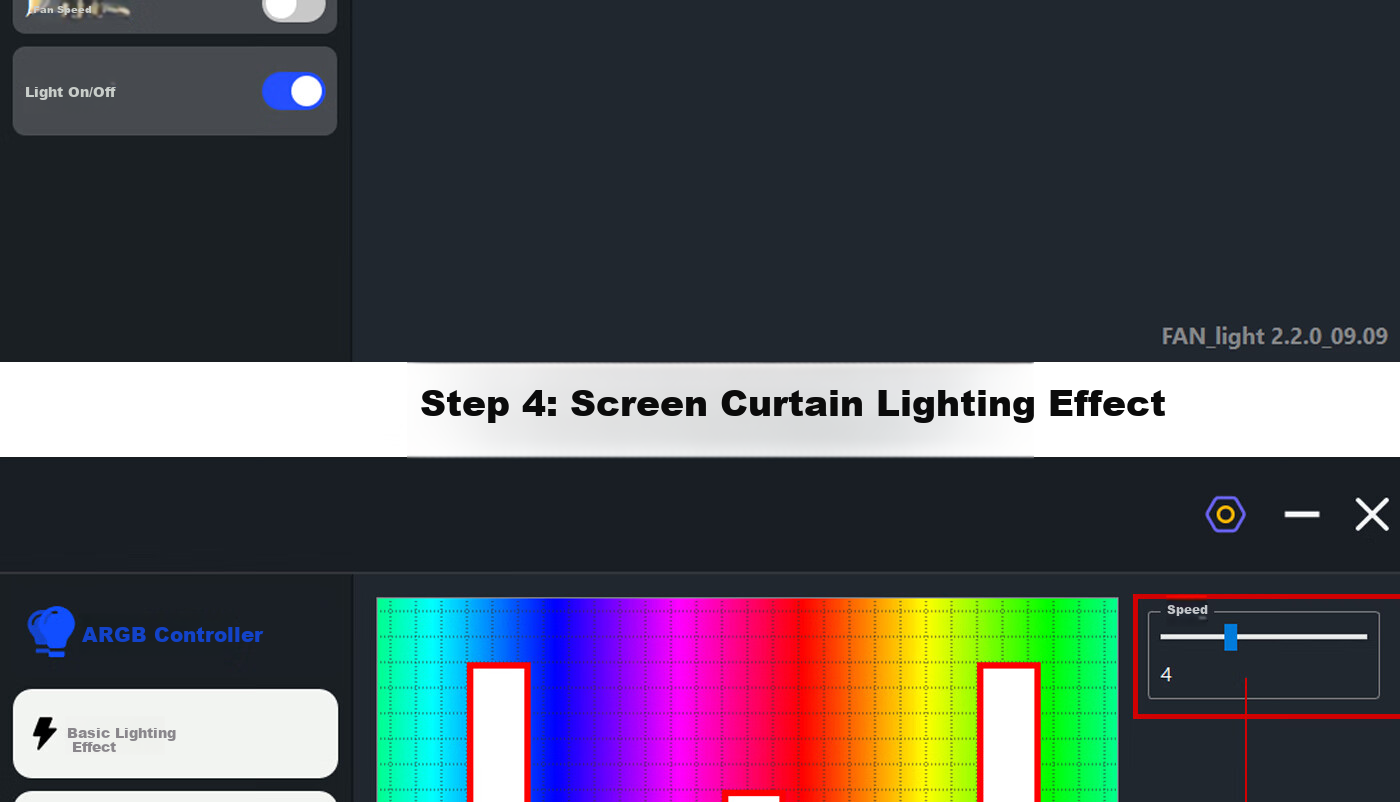

Advanced Effects: Curtain Effect, Running Track, Tiling, Breathing Rainbow, Disco, Scanning, Building Blocks

Synchronized Effects with Motherboard

Customizable Flow Direction, Speed, Brightness, and Color Palette

One-key Light On/Off

Silent

Low Speed

High Speed

Full Speed

Fan Speed Direction Adjustable (<<< >>>)

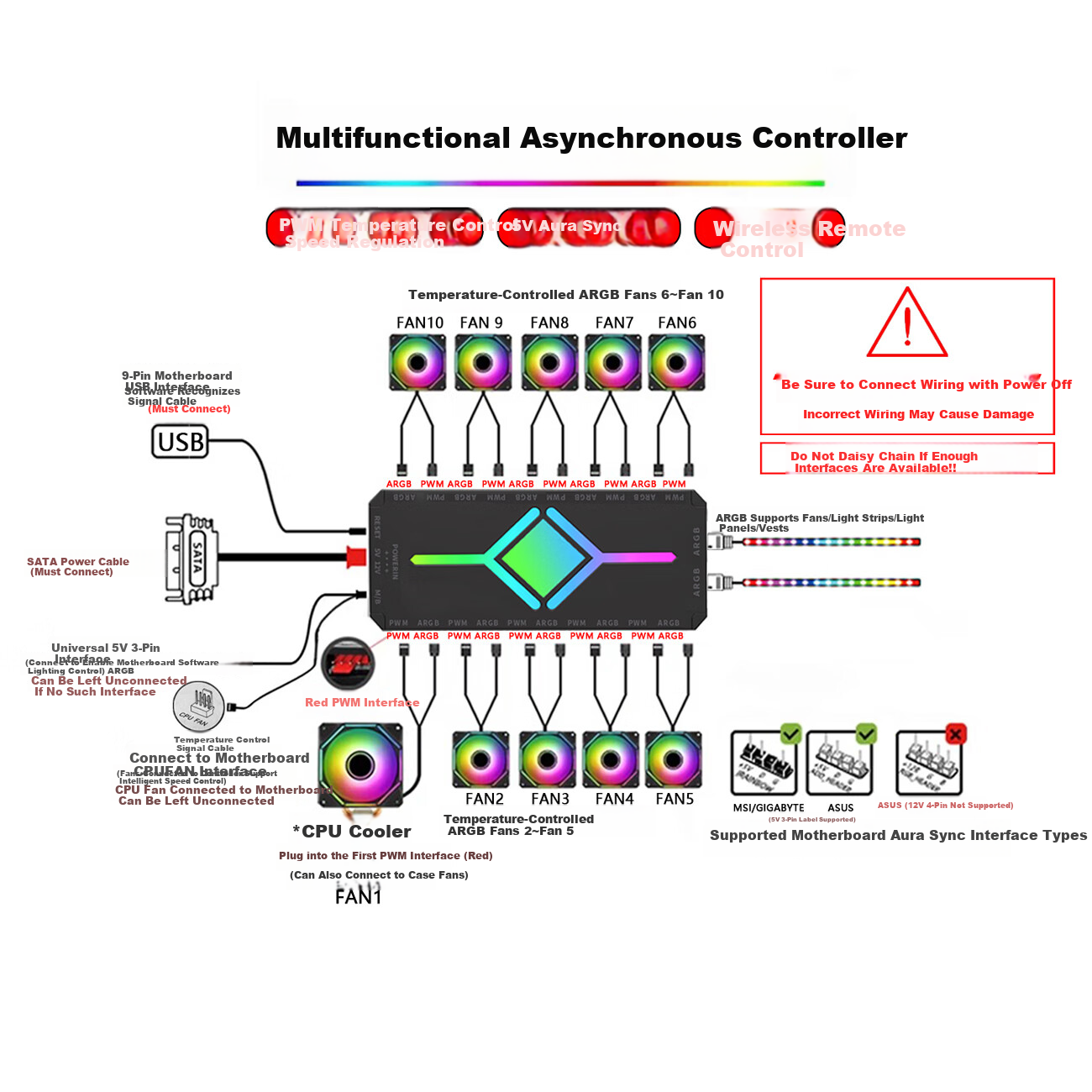

Supports 6 to 10 Fans (PWM Temperature Control)

SATA Power Cable (Required)

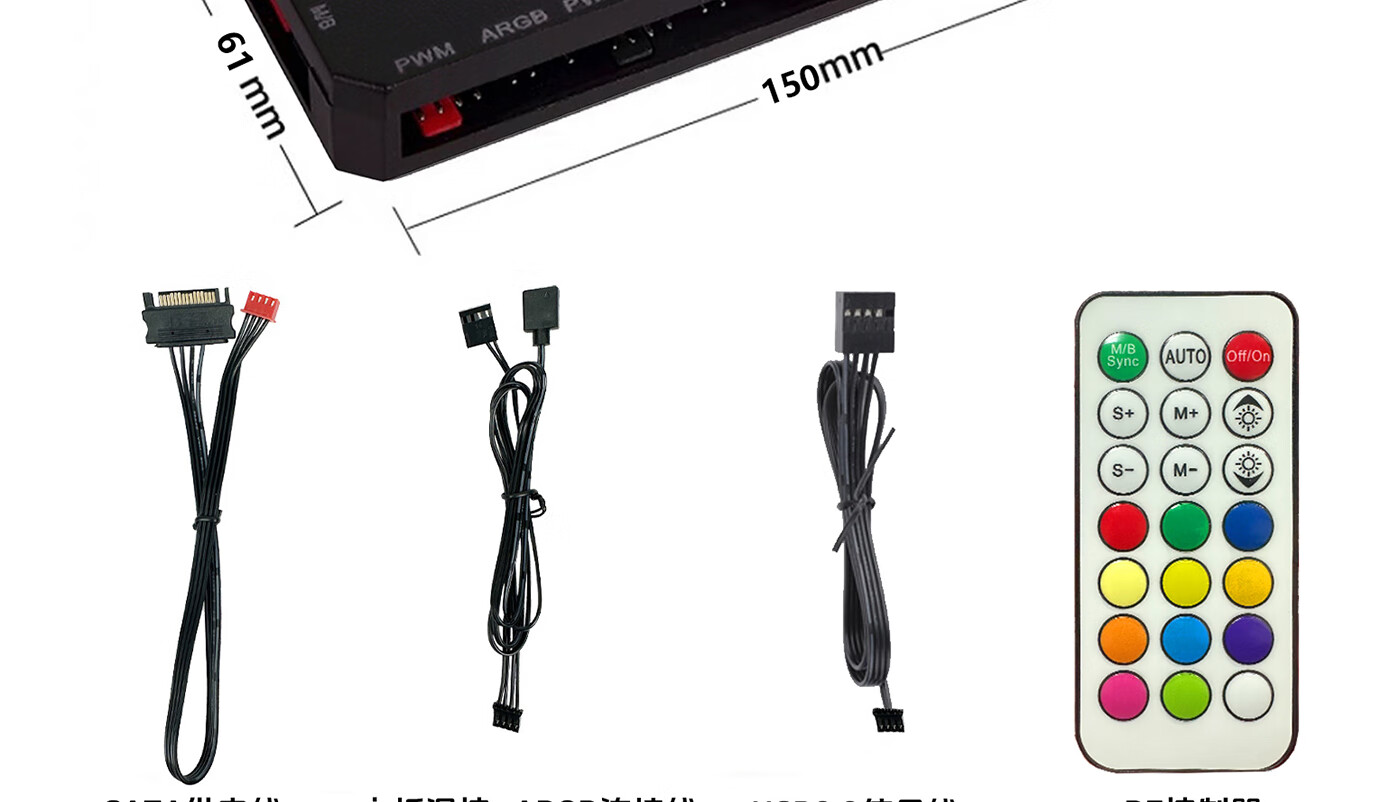

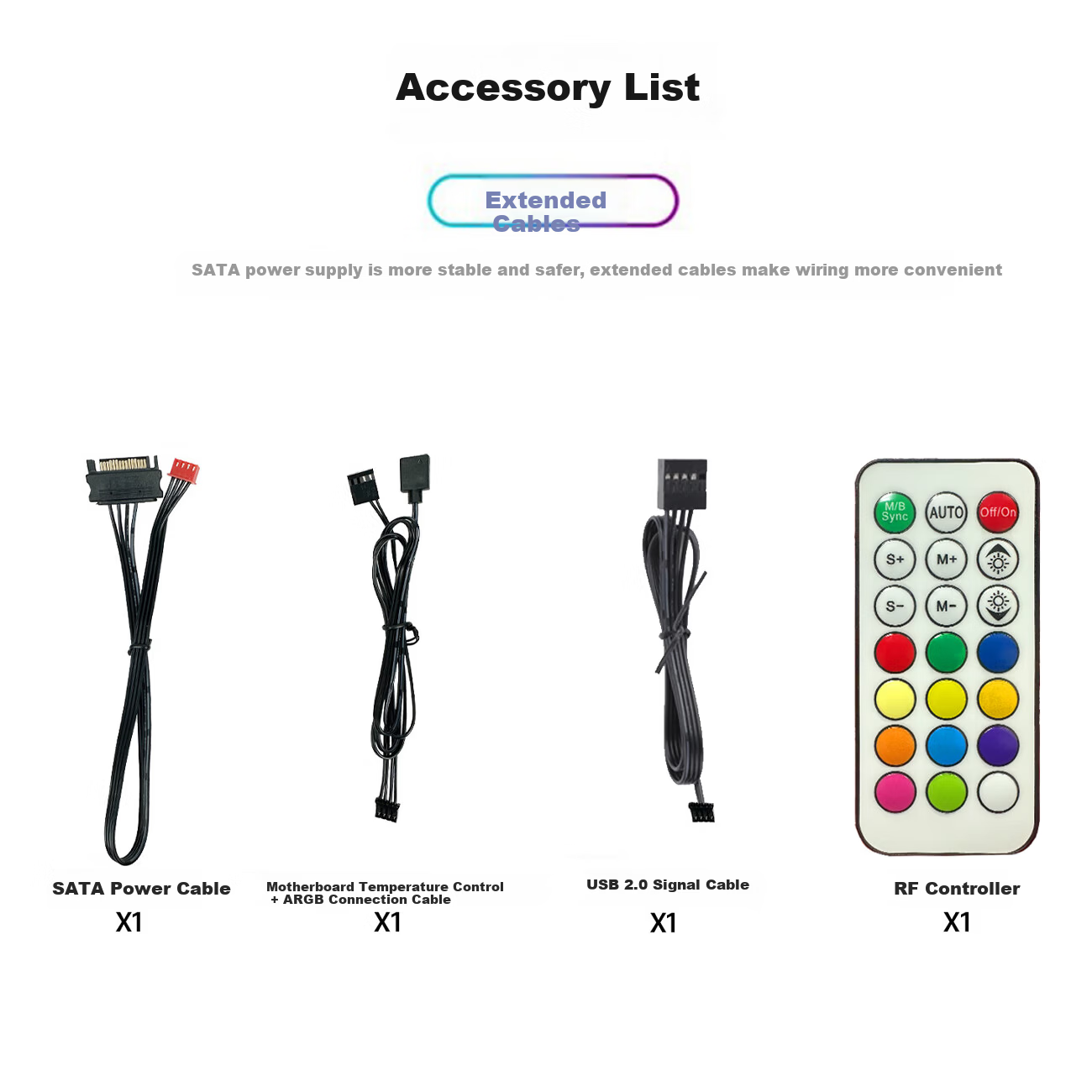

Controller x1

Remote Control x1

SATA Power Cable x1

Motherboard Sync Temperature Control Cable (2-in-1) x1

USB Signal Cable x1

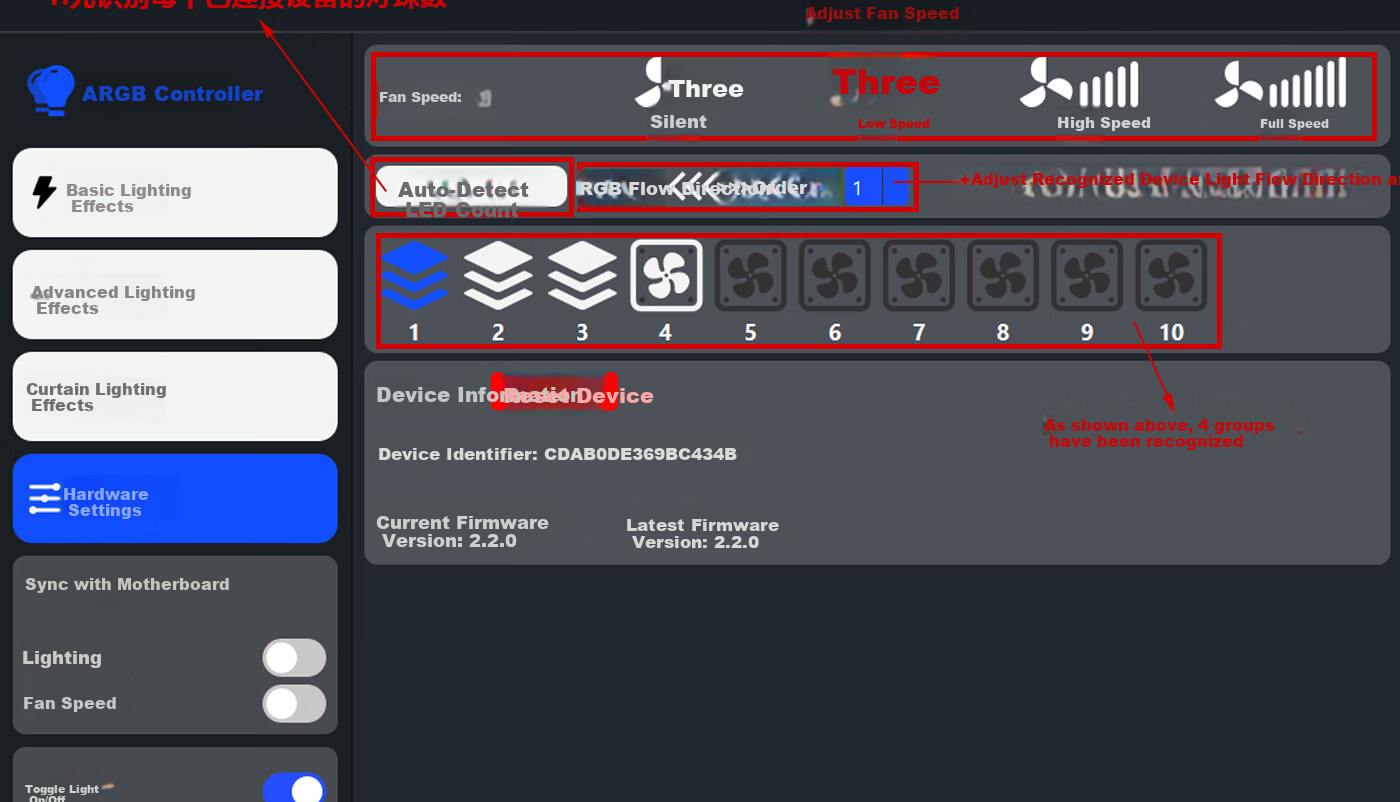

Automatic LED Detection and Recognition

Additional details

Firmware Version: 2.2.0

Supports RGB Flow Direction and Sequence Adjustment

Supports ARGB Fans, LED Strips, Light Panels, and Vest Lighting

Additional details

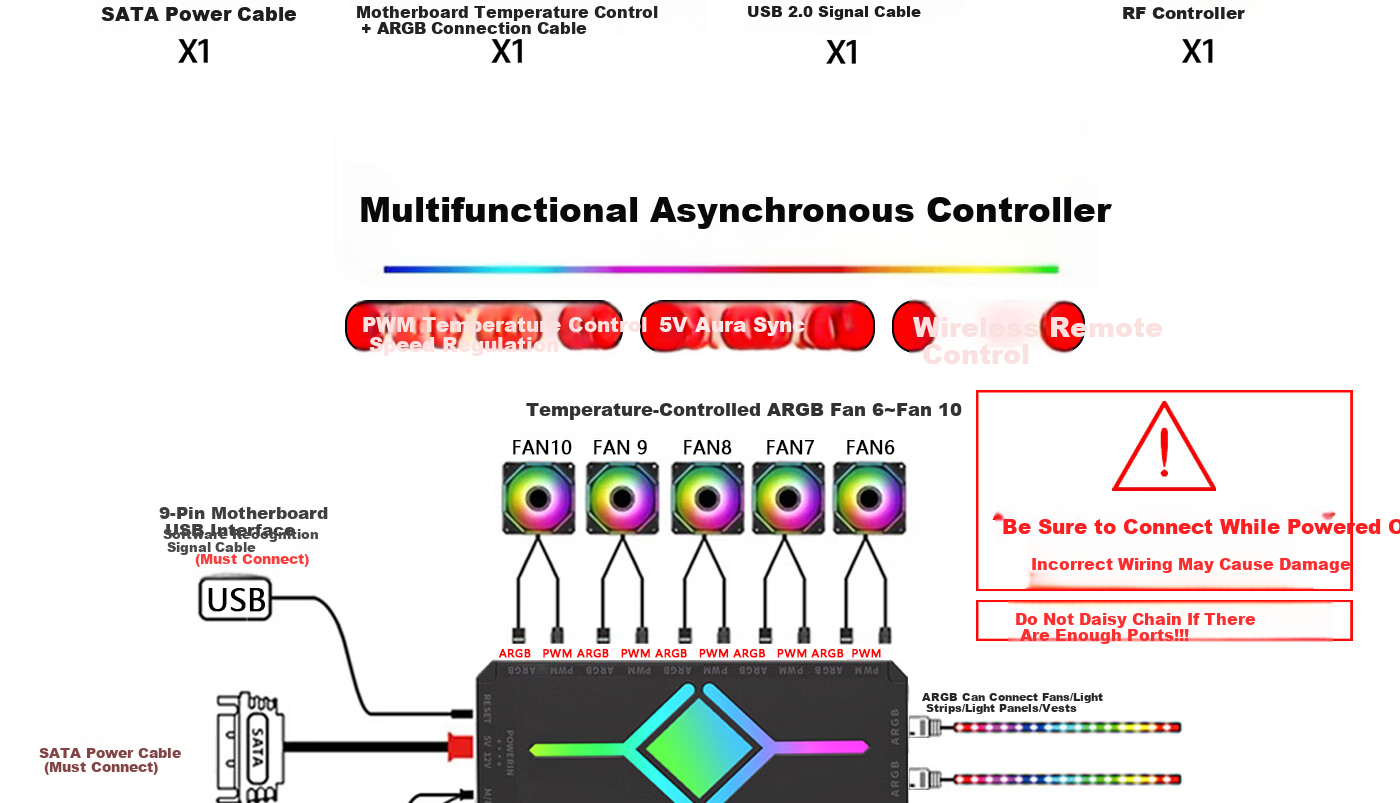

Warning: Connect USB Signal Cable with Power Off; Incorrect Wiring May Cause Damage; Avoid Daisy-Chaining USB Interfaces
Weight: Approx. 0.18 kg

Compact and Exquisite Design with High-Quality Craftsmanship

Supports PWM and ARGB Control Modes

Compatible with 5V and 12V Systems

Supports Multiple Lighting Modes and Fan Speed Settings via Software and Remote Control
