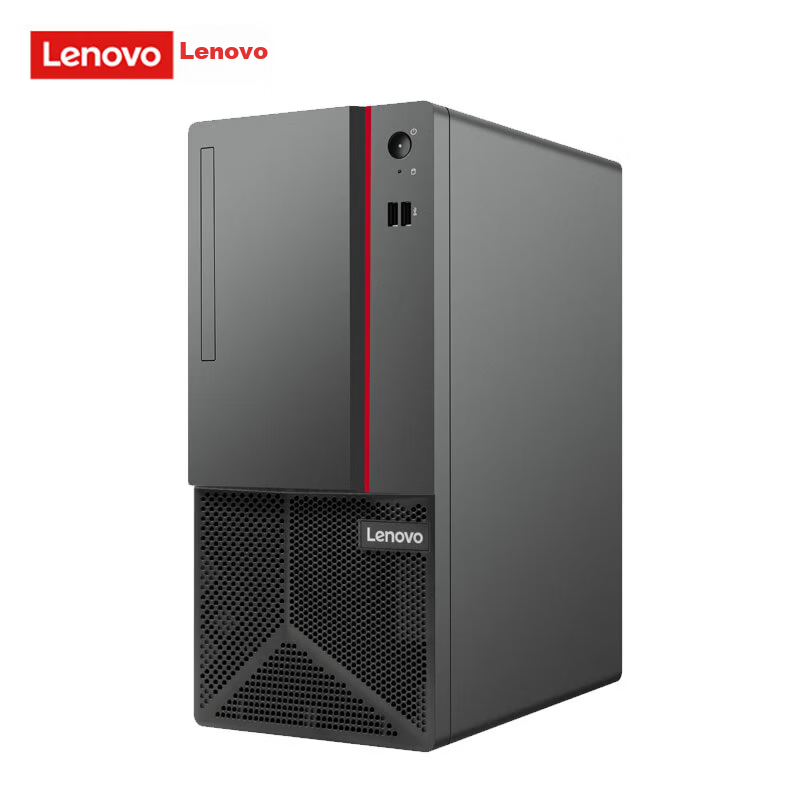

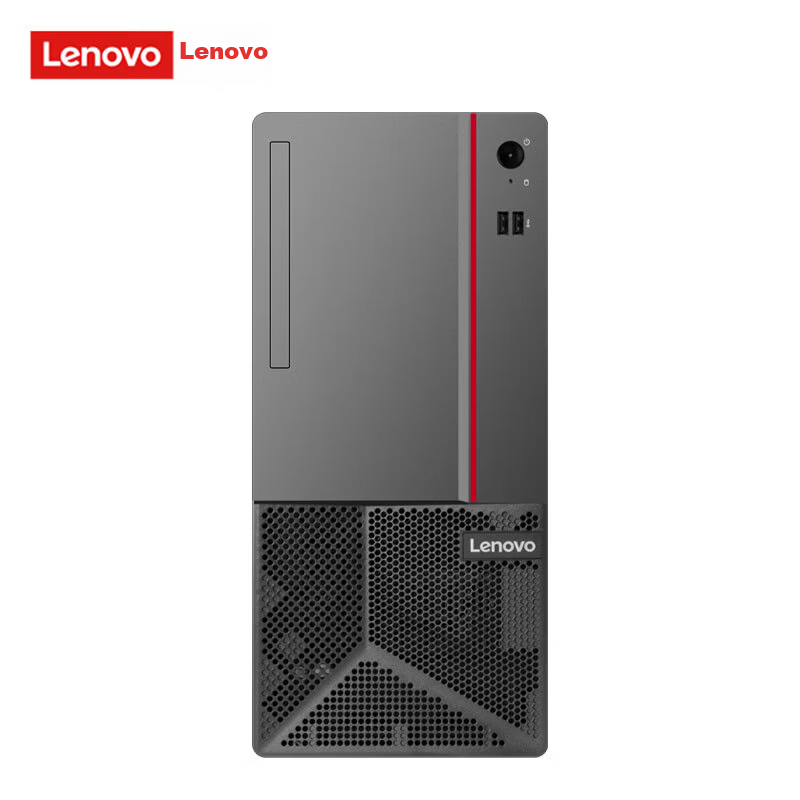

Back to CatalogLenovo ECI-T630 Tower Industrial Control Computer Host (I5-13400 H610 8GB 512GB 350W No OS)
Specifications
Video memory Integrated graphics
Type desktop workstation
Memory capacity 8GB
Processor Intel i5
Chipset No
Number of supported CPU cores 1 piece
Hard disk capacity 512GB
System Other Variants / Sale Attributes color: Tower Industrial Control Computer ECIT630
version: I513400 / 8GB RAM / 512GB SSD / Integrated Graphics
Product Description Product Specifications
Overview
Brand Lenovo
Compatibility Industrial-grade microATX and mini-ITX motherboards
Front Ports 2 USB ports, 1 optical drive bay (optional), 2 LED indicators, 1 power switch
Power Supply Support PS2 standard ATX power supply
Security Lockable chassis to prevent unauthorized access
Volume 17L compact size with high performance and excellent cooling
PCIe Support Similar Products In Stock
Out of Stock
Full-height PCIe slots
Dimensions (L x W x H) 286 x 170 x 376 mm
Installation Desktop style
Materials Heavy-duty steel frame, ABS+PC front panel
Operating Temperature 0°C to +40°C
Storage Temperature -20°C to +60°C
Vibration Resistance 1 Grms (operating), 2 Grms (non-operating) at 5~500 Hz
Shock Resistance 10 G half-sine wave

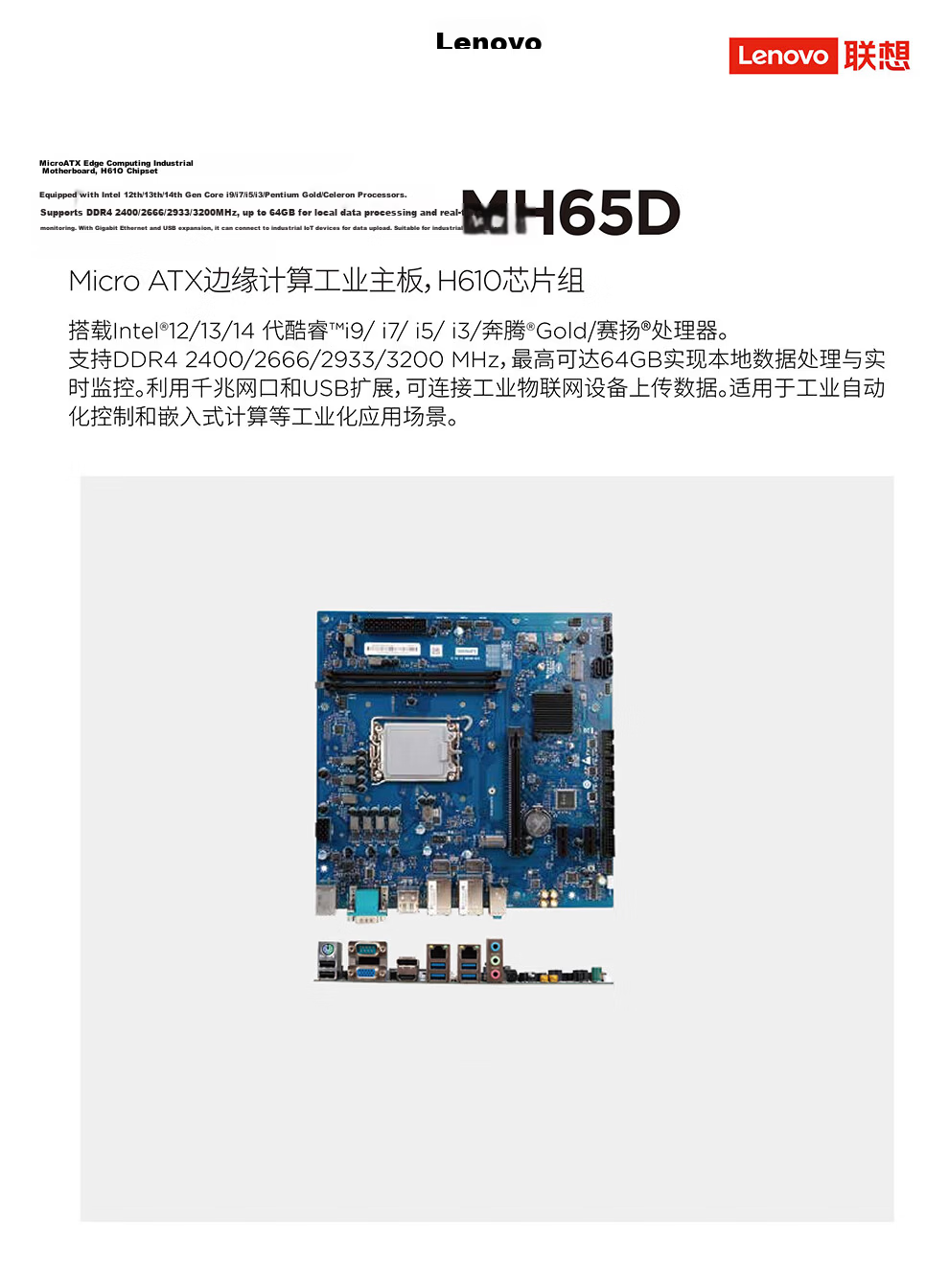

Motherboard Model Lenovo ECB-MH65D
Form Factor MicroATX edge computing industrial motherboard
Processor Support Intel 12th, 13th, and 14th Gen Core i9/i7/i5/i3, Pentium Gold, Celeron processors
Memory Dual channel DDR4 2400/2666/2933/3200 MHz, 2x U-DIMM slots, up to 64GB
Storage Interfaces 3x SATA Gen3 (up to 6 Gb/s), 1x M.2 M Key 2242/2280 (PCIe Gen3 x4/SATA)
Expansion Slots 1x PCIe 4.0 x16, 2x PCIe 3.0 x1
Display Outputs HDMI (max 4096x2160@30Hz), VGA (max 1920x1080@60Hz), DisplayPort (max 4096x2160@60Hz)
Graphics Integrated Intel graphics supporting triple display output
Network 2x Gigabit Ethernet ports (1x Intel I219V, 1x Realtek RTL811H)
Audio Realtek ALC897 codec with Line-Out, Line-In, Mic-In
USB Ports 4x USB 3.2 Gen1 (Type A), 4x USB 2.0 (including internal headers)
Serial Ports 1x RS232/422/485 (jumper selectable), 3x RS232 COM headers
Other Interfaces 1x PS/2, 1x LPT header, 1x M.2 2230 WiFi/BT connector
Internal Connectors CPU fan (PWM), 3x chassis fan headers (PWM), system panel header (10-pin), buzzer, speaker out, F_Audio, Clear CMOS jumper, 8-pin ATX12V power connector, 24-pin ATX power connector Industrial Features Supports local data processing and real-time monitoring, Gigabit Ethernet and USB expansion for industrial IoT device connectivity Additional details
Application Suitable for industrial automation control and embedded computing scenarios In Stock
