ZOYI Digital Multimeter Bridge Tweezer LCR Auto Voltage Resistance Capacitance Inductance 100K [Zhongyi ZT-MD2]

ZOYI•Multimeter

ZOYI Digital Multimeter Bridge Tweezer LCR Auto Voltage Resistance Capacitance Inductance 100K [Zhongyi ZT-MD2]

CN¥229.00

SKU: 100293522830

Status:In Stock (16)

ID: 100311279424

Weight: 180.00 g

Dims:202x68x50 mm

Specifications

Functions: voltage, Resistor, Capacitance, frequency, diode, On/Off (buzzing), backlight
Precision: Other
Measuring range: Automatic range
testing principles: true effective value
Category: pentype multimeter

Variants / Sale Attributes

Model: MD2 Red

Package Contents

Note: MD2 red bare device *1, charging cable *1, reference board *1, color box *1, manual *1, certificate of conformity *1, storage pouch *1

Product Description

Product Specifications

Overview

Brand: ZOYI
Model: ZT-MD2 LCR Tester

Newly upgraded performance for enhanced efficiency

Measures resistance (R), capacitance (C), inductance (L), quality factor (Q), dissipation factor (D), and equivalent series/parallel parameters (Rs, Rp, Cs, Cp, Ls, Lp)

Supports series and parallel measurement modes

Additional details

Adjustable test signal levels: 0.1V, 0.3V, 0.6V
Multi-frequency scanning: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

Automatic range selection and manual range options

Data hold and automatic data recording with export capability to Excel for PC and Mac

OLED display with screen orientation adjustable for user preference

Similar Products

In Stock

CHNTMultimeter

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

ZTW0103D Upgraded Version [LCD Backlight]

CN¥89.00

View

In Stock

CHNTMultimeter

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

ZTY0121A Standard Model [High-Definition Large Screen]

CN¥59.00

View

Firmware upgradeable

Auto power off function

Auto identification of diode and lithium battery charging status

Diode measurement function included

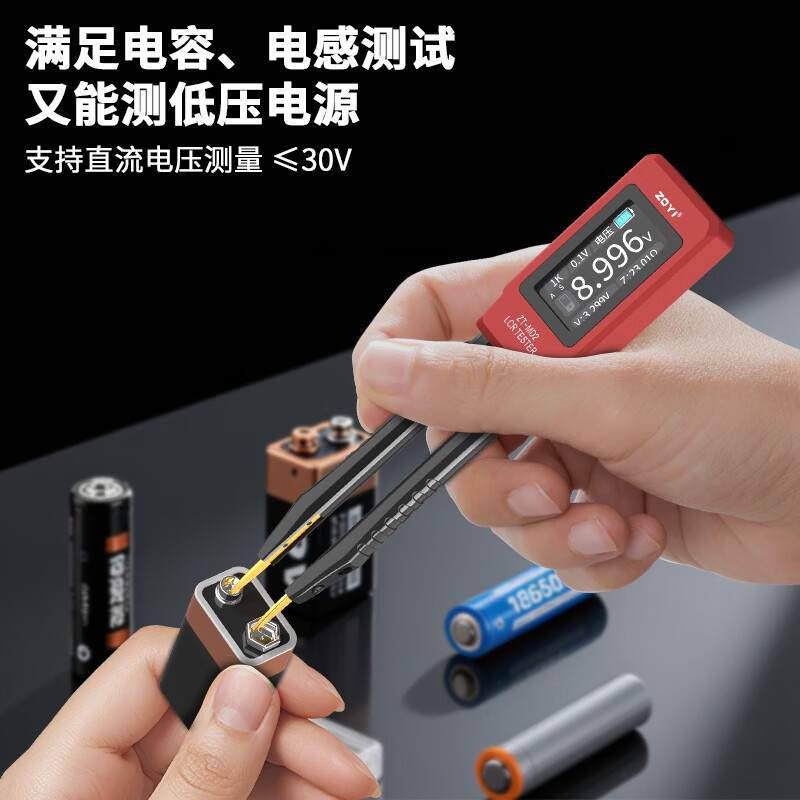

Supports low voltage DC measurement up to 30V

Additional details

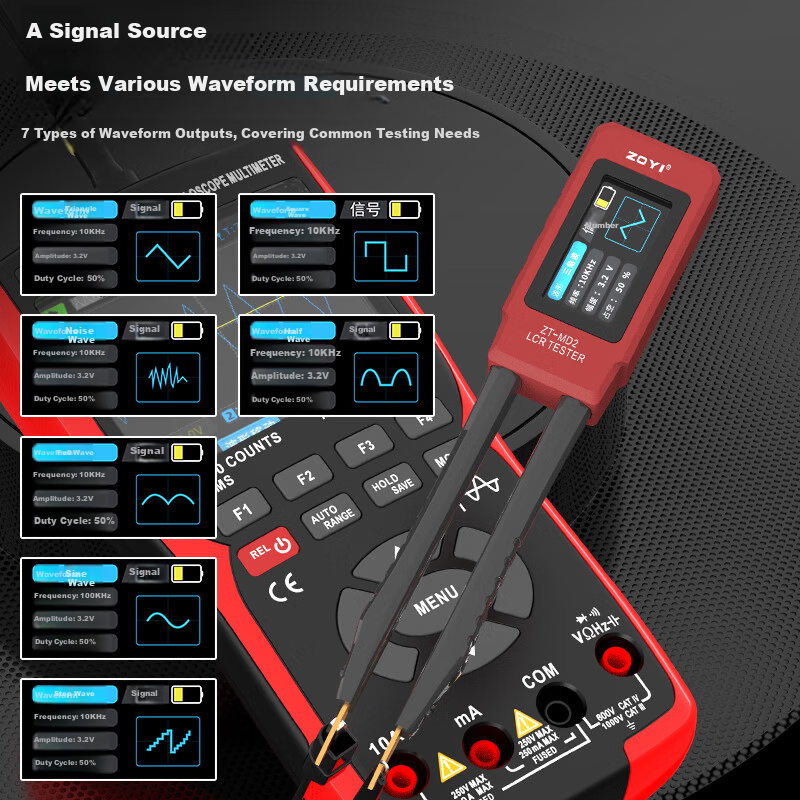

Signal generator with 7 waveform outputs: sine, square, triangle, noise, half-wave, full-wave, and staircase waveforms

Signal generator frequency adjustable up to 100kHz, amplitude up to 3.2V, duty cycle 50%

True RMS measurement capability

Data max/min, relative (REL) measurement, and NCV (non-contact voltage) detection

Additional details

Resistance: 1 mΩ to 10 MΩ

Accuracy varies by range and frequency, e.g., 1%±2 to 5%±5 depending on test conditions

Additional details

Capacitance: 1pF to 22mF

Accuracy ranges from 0.5%±2 to 5%±3 depending on range and frequency

Additional details

Inductance: 1µH to 10H

Accuracy ranges from 0.5%±2 to 5%±3 depending on range and frequency

Additional details

Frequency measurement: 100Hz to 100kHz

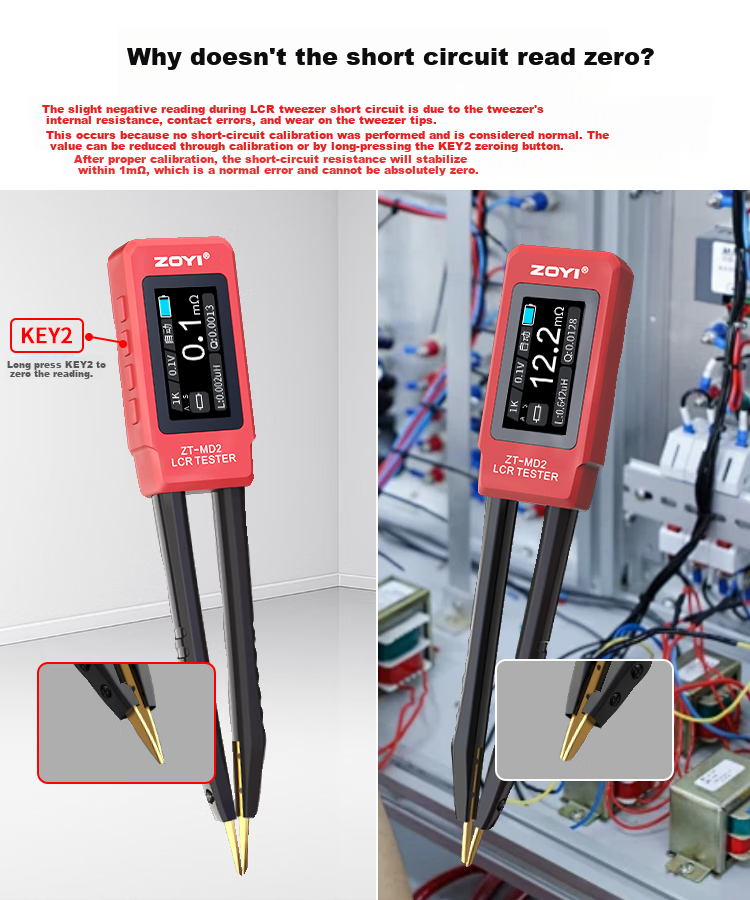

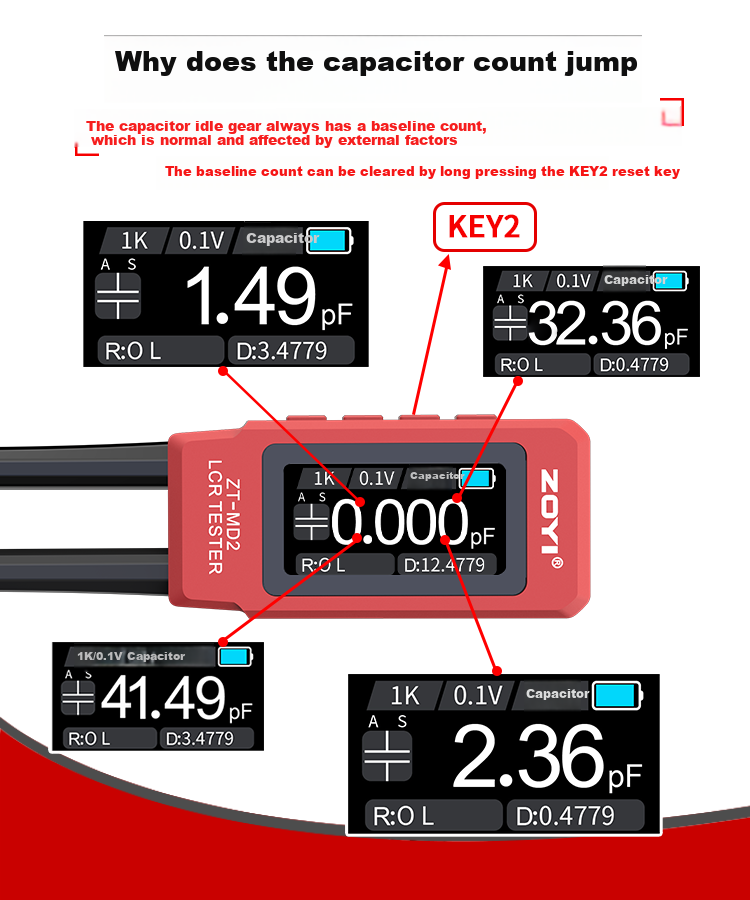

Automatic zeroing and calibration with KEY2 button to clear baseline offset

Short circuit calibration to reduce measurement error

Supports measurement of low-loss capacitors and inductors

Provides equivalent circuit model parameters (series and parallel)

Supports data recording and holding for analysis

Compatible with Excel for data export and review on computers

Supports rechargeable battery operation

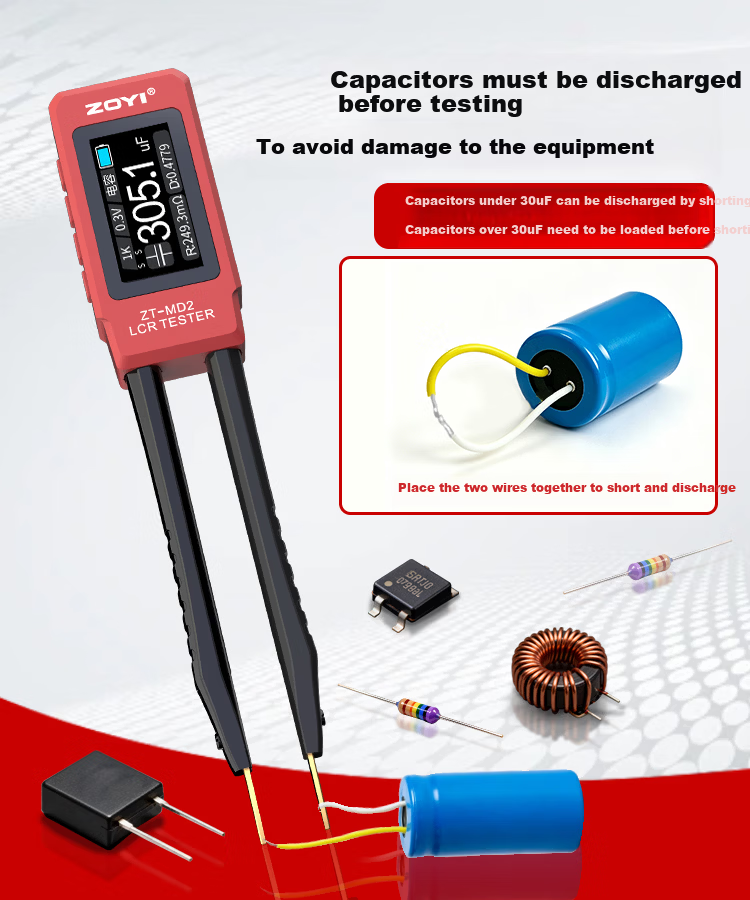

Includes instructions for safe capacitor discharge before measurement to protect device

OLED screen with adjustable orientation

Compact handheld design

Includes test leads and accessories for LCR testing

Supports USB connection for data transfer and firmware updates

CAT II 1000V safety rating

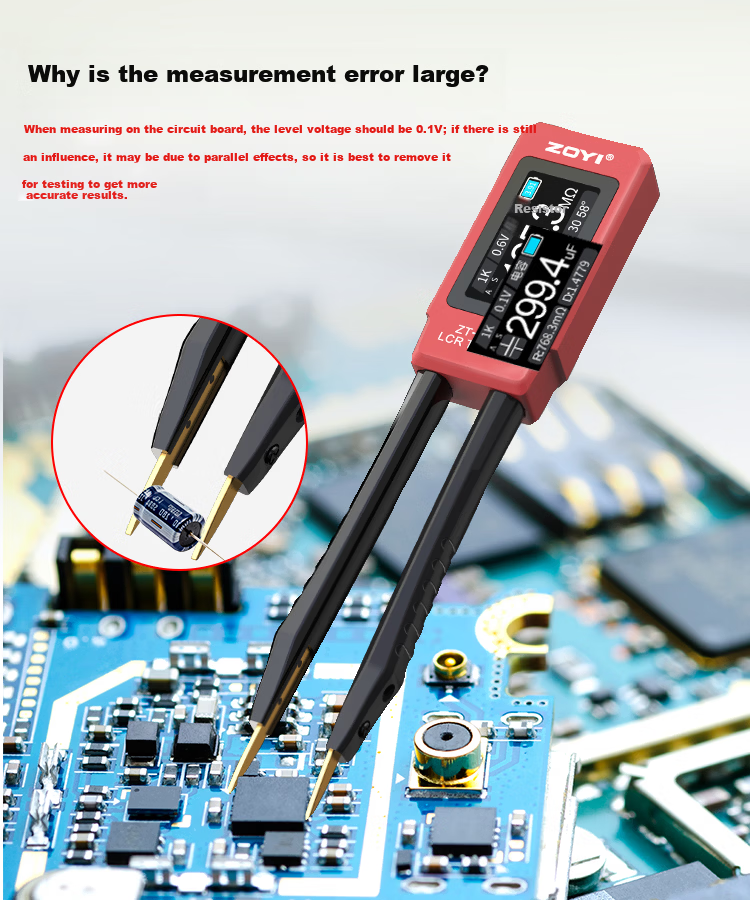

Measurement accuracy may be affected by external factors such as test lead resistance, contact quality, and component placement on circuit boards

Recommended to remove components from circuit for most accurate measurements

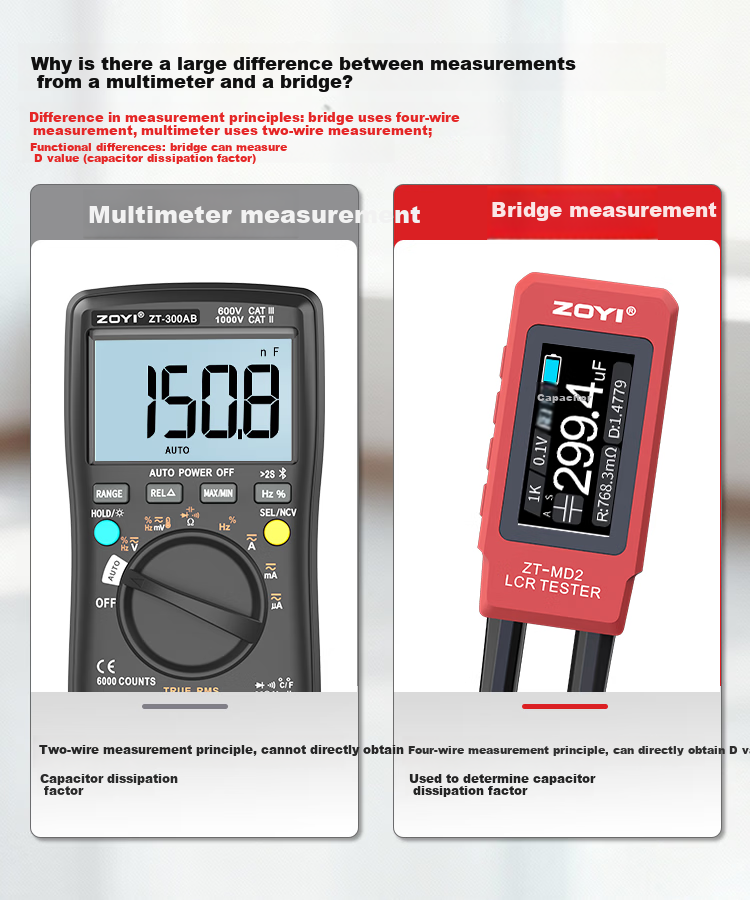

Differences between multimeter and LCR meter readings are due to measurement principles (two-wire vs. four-wire) and device capabilities

This ZOYI ZT-MD2 LCR Tester is a versatile, professional-grade instrument designed for precise measurement of electrical components and signals, suitable for electronics testing, repair, and quality control applications.
