FNIRSI Portable Dual-Channel Digital Oscilloscope 100MHz Bandwidth Multimeter Signal Generator

FNIRSI•Oscilloscope

FNIRSI Portable Dual-Channel Digital Oscilloscope 100MHz Bandwidth Multimeter Signal Generator

CN¥799.00

SKU: 100294995944

Status:In Stock (30)

ID: 100294995944

Weight: 1160.00 g

Dims:236x178x114 mm

Specifications

Category: digital oscilloscope
How it works: Desk-top
Number of channels: Dual channel
Bandwidth: 0100MHz

Package Contents

2D15P main unit *1, P6100 probes *2, multimeter test leads, alligator clip probes, USB data cable, instruction manual

Product Description

Product Specifications

Overview

Brand: FNIRSI
Product Type: 3-in-1 Dual-Channel Compact Desktop Oscilloscope with Multimeter and Signal Generator

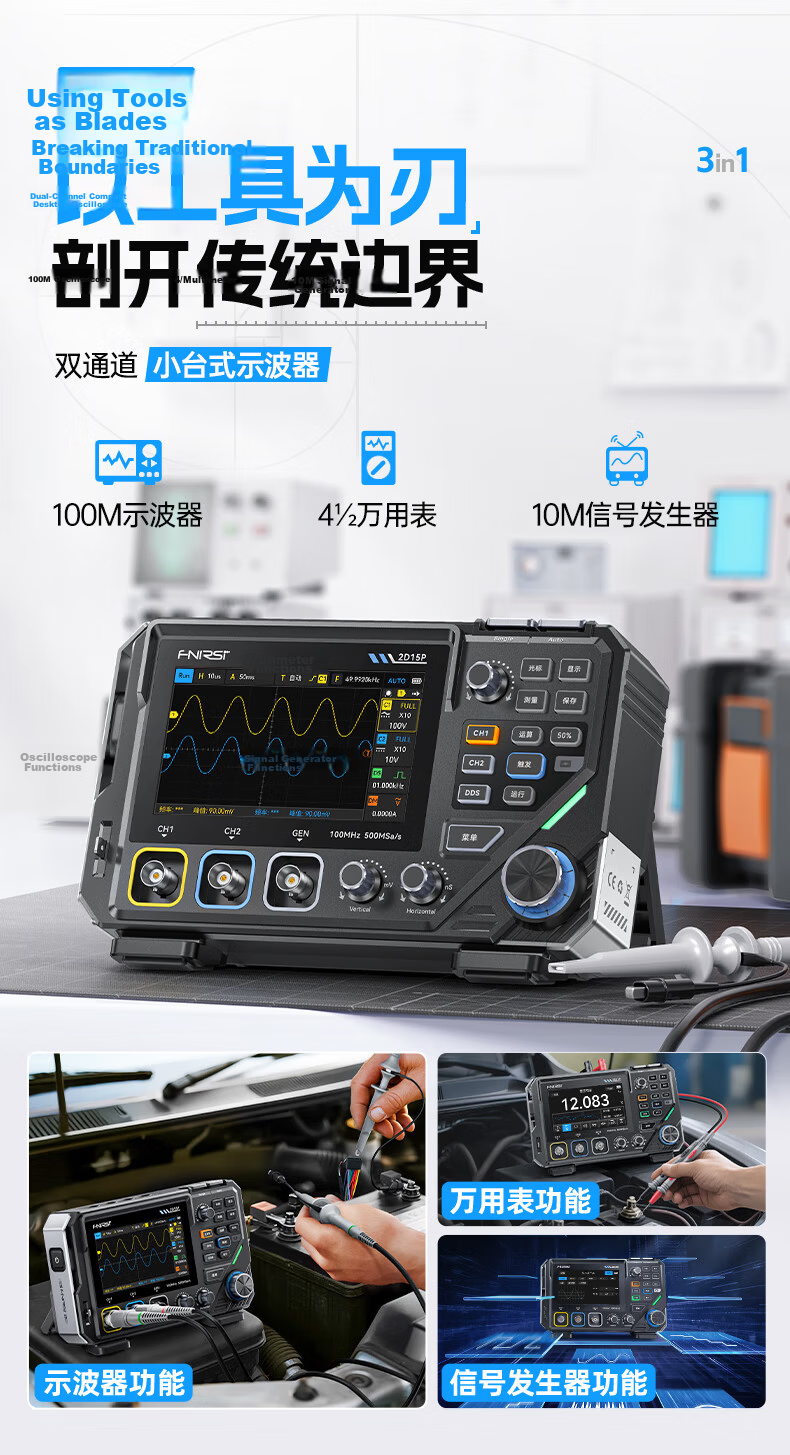

Integration of oscilloscope, multimeter, and signal generator in one device

Dual-channel oscilloscope with 100 MHz bandwidth

Multimeter with 6000 counts resolution and 4½ digit precision

Signal generator with 0–10 MHz frequency range, 0.1–3.0 Vpp amplitude, and 0–100% duty cycle

Touchscreen combined with physical buttons for intuitive operation

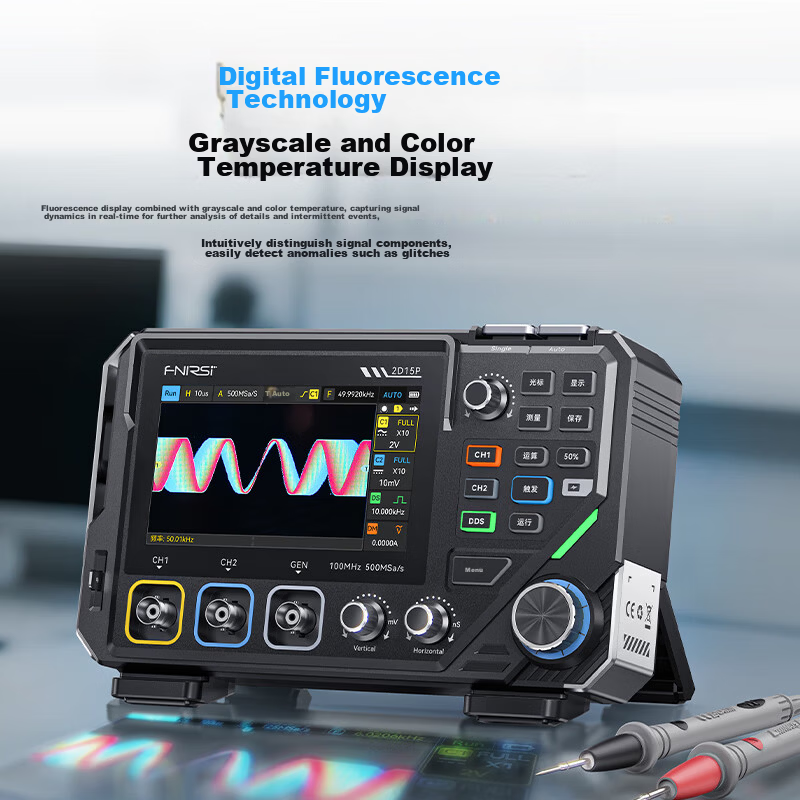

Display modes include grayscale and color temperature with digital fluorescence technology

Supports 18 automatic measurement parameters including RMS, peak value, negative pulse width, etc.

Cursor measurement and waveform saving/exporting capabilities

Firmware upgradeable via USB connection

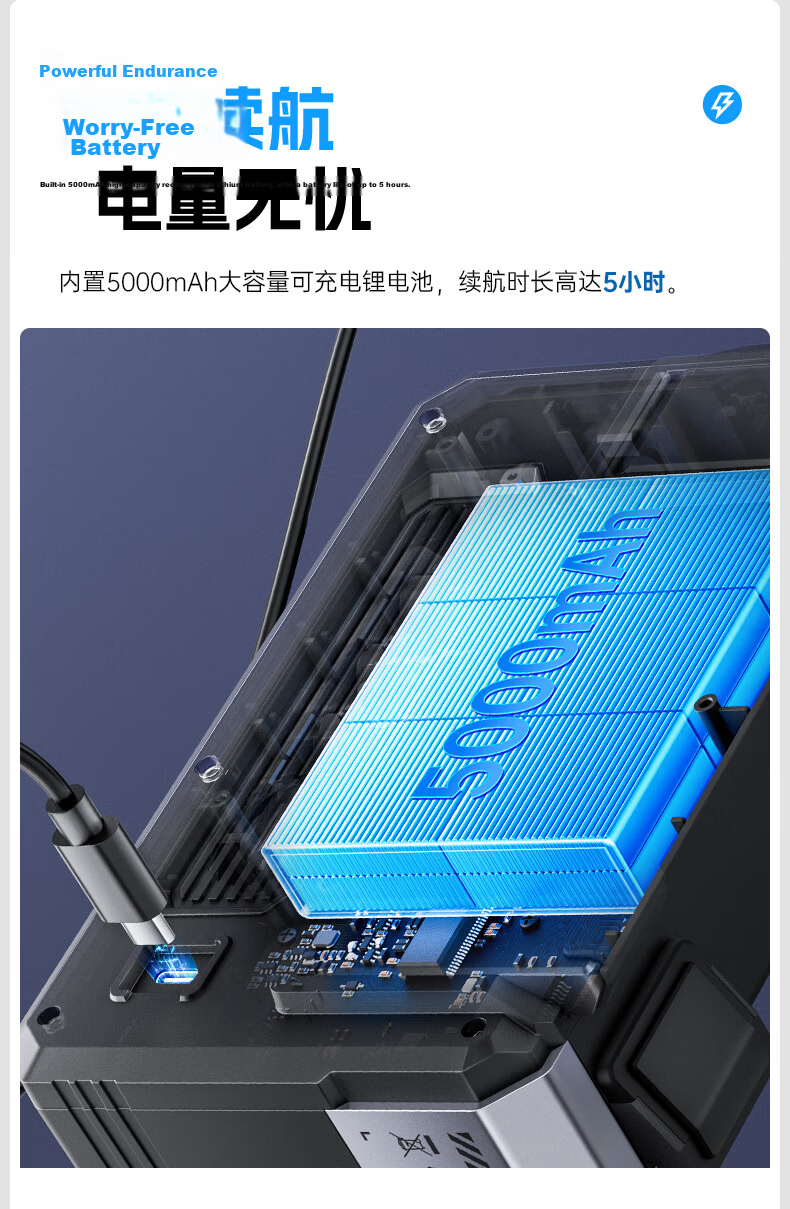

High-capacity 5000 mAh rechargeable lithium battery providing up to 5 hours of continuous use

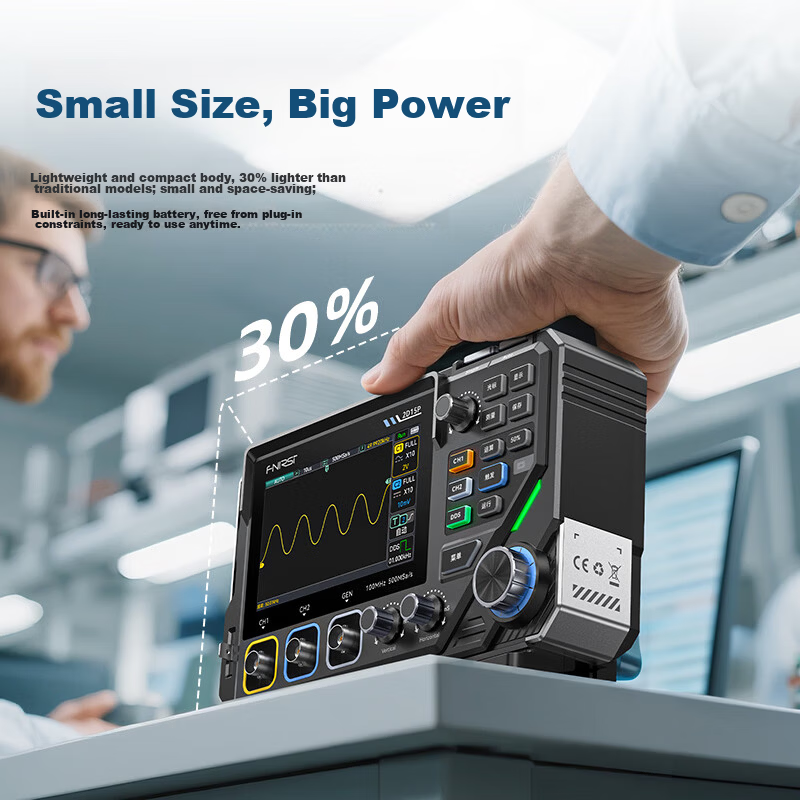

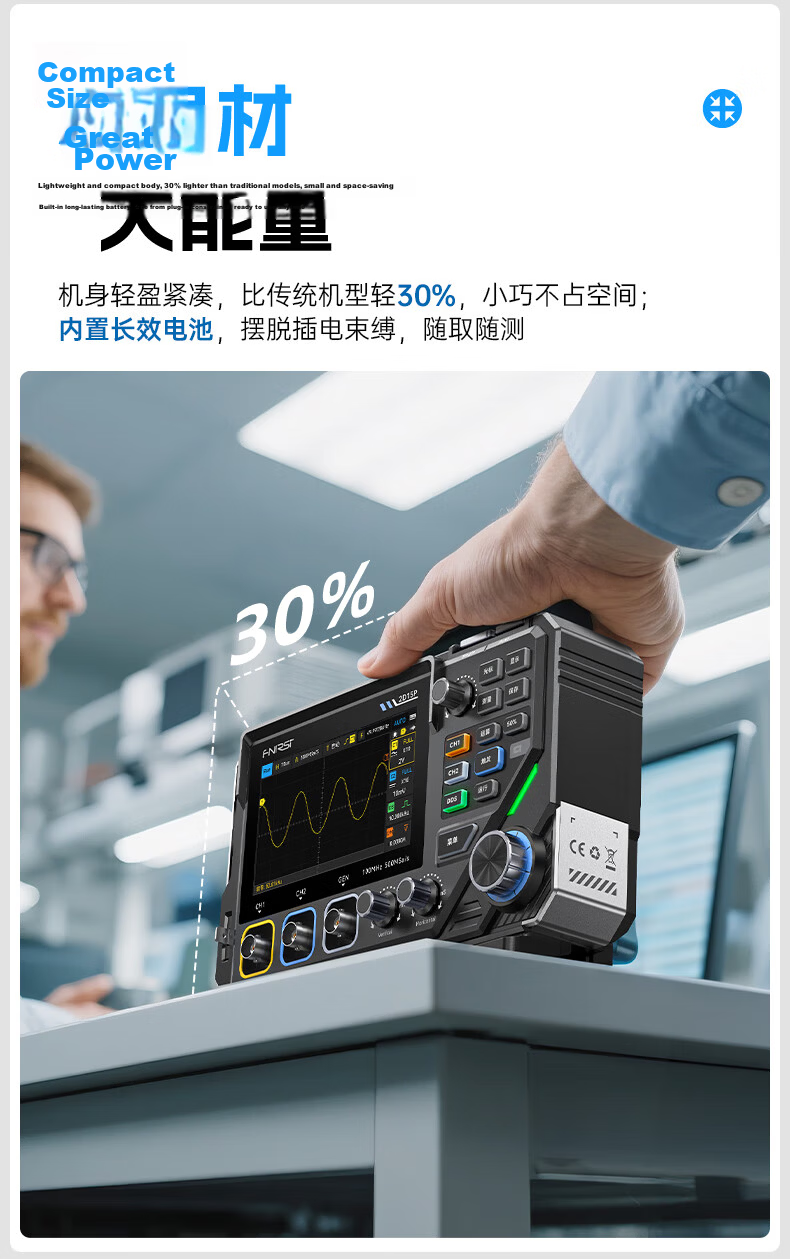

Compact and lightweight design, approximately 30% lighter than traditional models

Adjustable anti-slip stand and wall-mountable with reserved mounting holes

Similar Products

In Stock

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

FNIRSIOscilloscope

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

digital oscilloscope

CN¥549.00

In Stock

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TEKTRONIXOscilloscope

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TBS1102X (Dual Channel 100MHz)

CN¥4,099.00

In Stock

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UNI-TOscilloscope

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UT-V23

CN¥179.90

Silent fan cooling system for noise-free operation

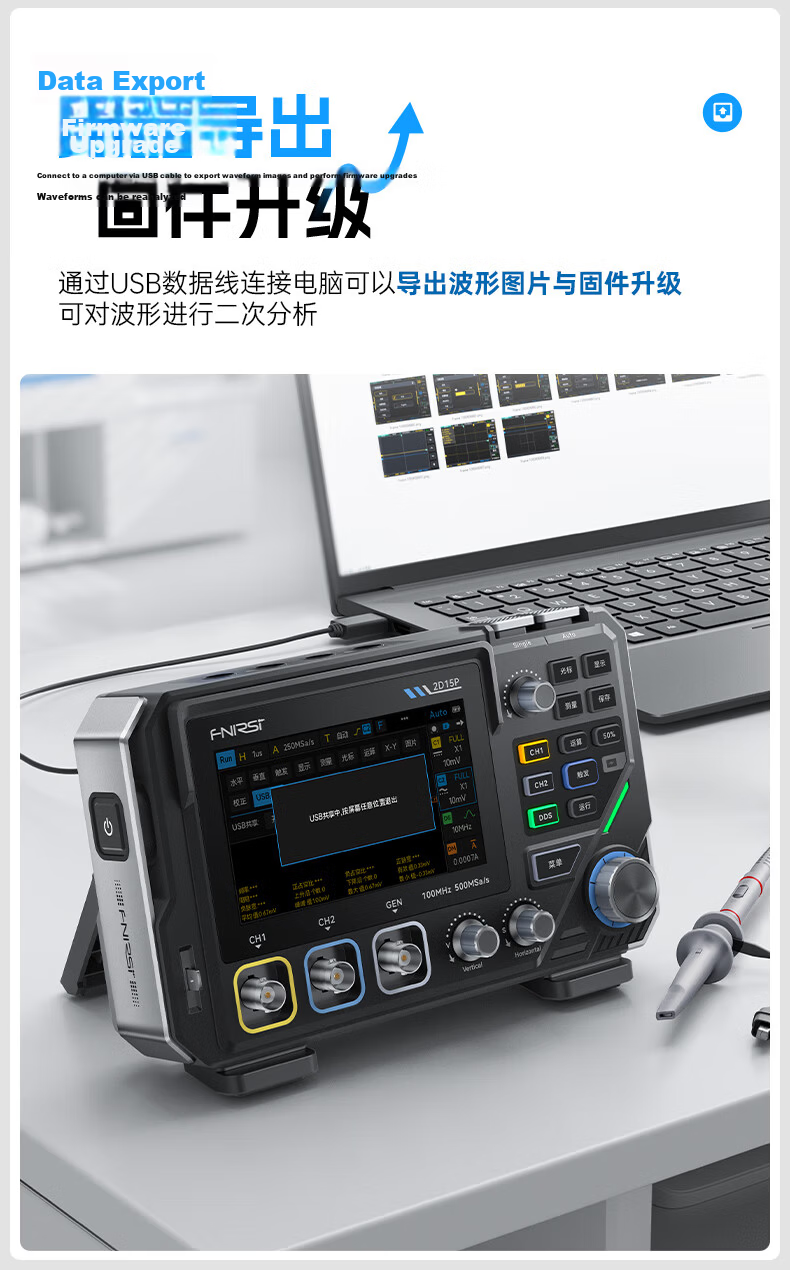

Supports waveform data export and secondary analysis on PC

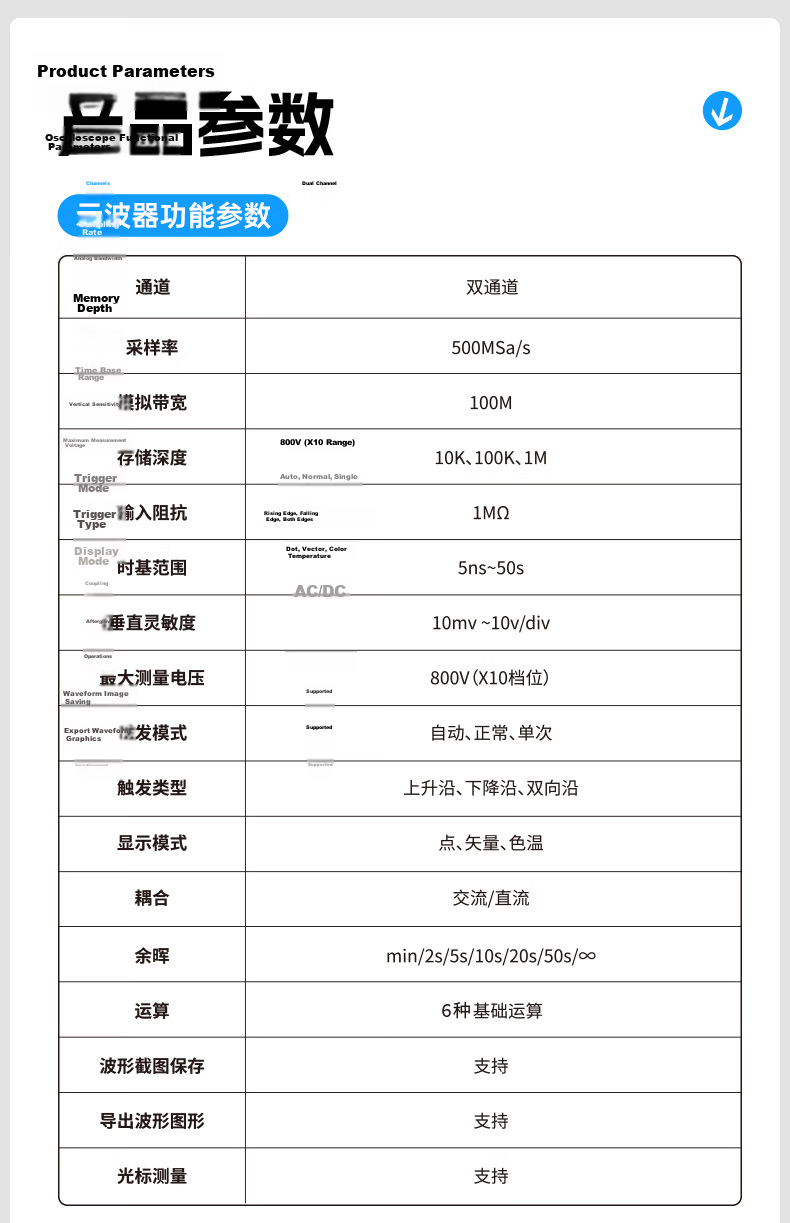

Additional details

Channels: 2
Sampling Rate: 500 MSa/s
Analog Bandwidth: 100 MHz
Memory Depth: 10K, 100K, 1 M points selectable
Input Impedance: 1 MΩ
Time Base Range: 5 ns to 50 s/div
Vertical Sensitivity: 10 mV to 10 V/div
Maximum Input Voltage: 800 V (X10 probe setting)
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising edge, Falling edge, Both edges
Display Modes: Dot, Vector, Color Temperature
Coupling: AC/DC
Persistence Settings: Min, 2s, 5s, 10s, 20s, 50s, Infinite
Math Operations: 6 basic waveform calculations supported
Waveform Storage: Supported with export function
Cursor Measurement: Supported

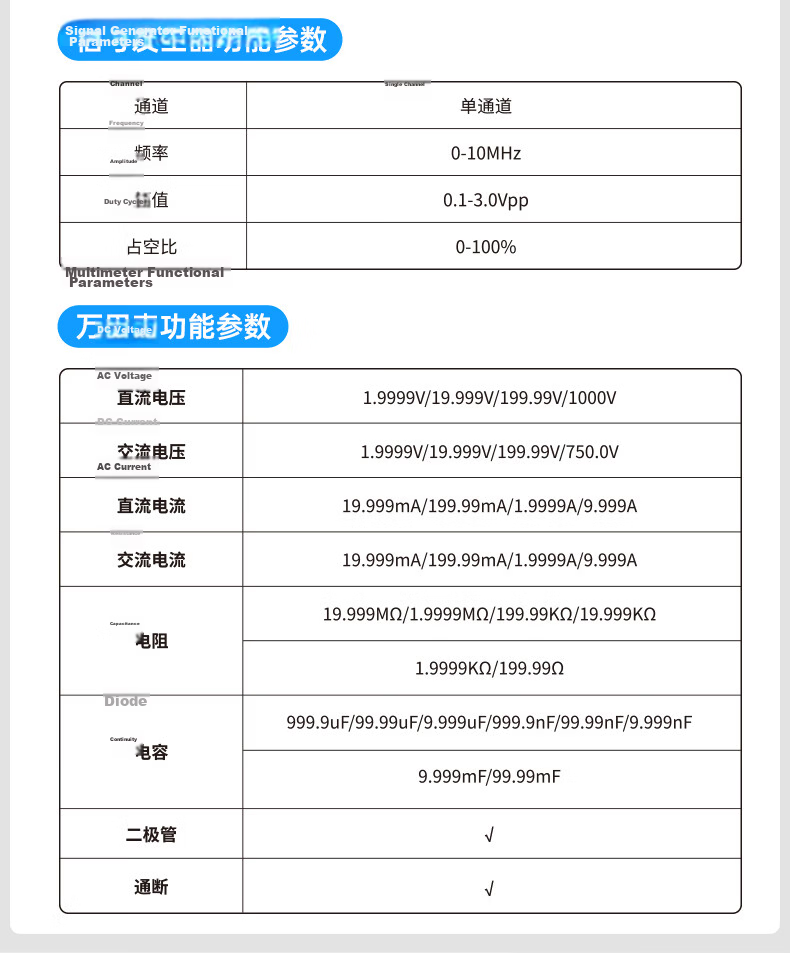

Channels: 1

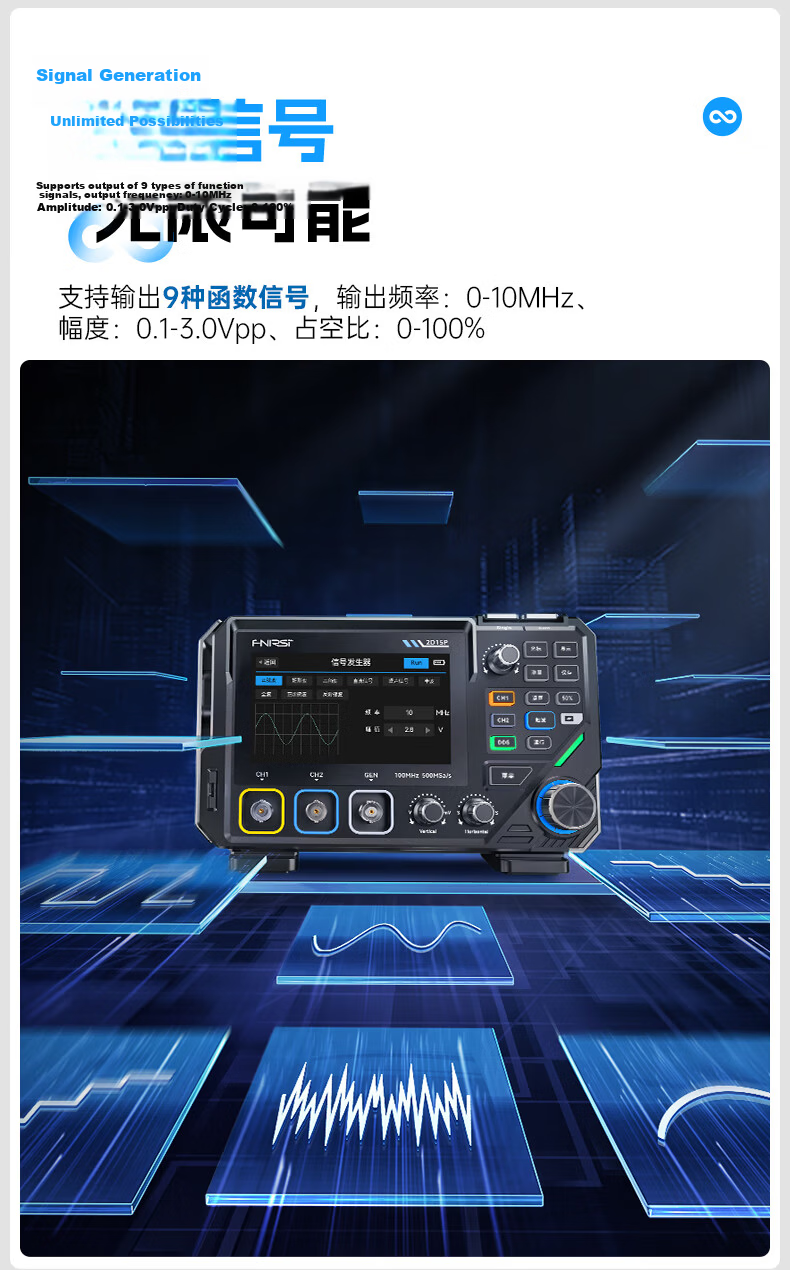

Frequency Range: 0 to 10 MHz
Amplitude: 0.1 to 3.0 Vpp
Duty Cycle: 0 to 100%

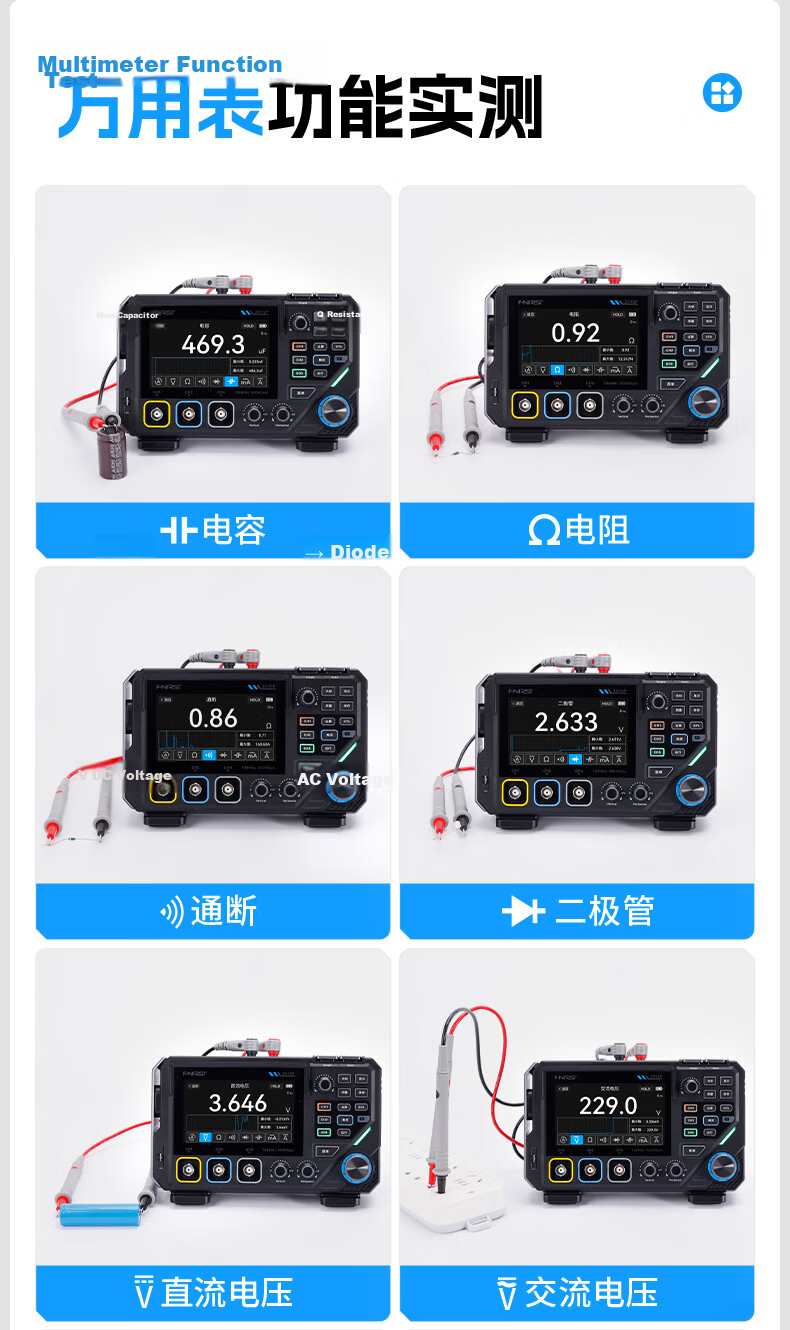

DC Voltage Ranges: 1.9999 V, 19.999 V, 199.99 V, 1000 V
AC Voltage Ranges: 1.9999 V, 19.999 V, 199.99 V, 750.0 V
DC Current Ranges: 19.999 mA, 199.99 mA, 1.9999 A, 9.999 A
AC Current Ranges: 19.999 mA, 199.99 mA, 1.9999 A, 9.999 A
Resistance Ranges: 19.999 MΩ, 1.9999 MΩ, 199.99 KΩ, 19.999 KΩ, 1.9999 KΩ, 199.99 Ω
Capacitance Ranges: 9.999 mF, 99.99 mF, 999.9 μF, 99.99 μF, 9.999 μF, 999.9 nF, 99.99 nF, 9.999 nF

Diode Test and Continuity Check supported

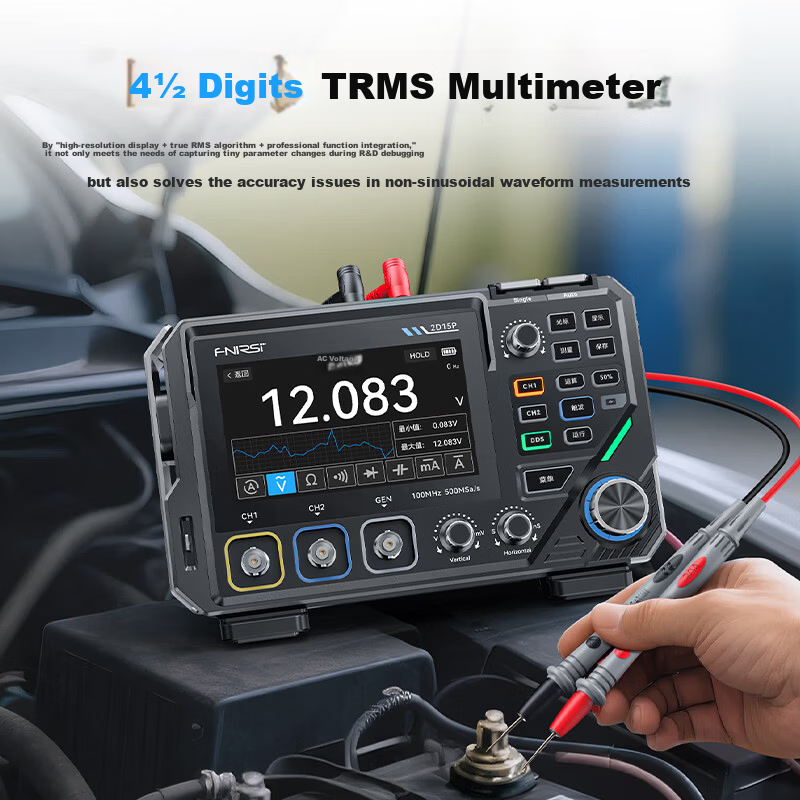

True RMS measurement with high resolution and professional function integration for accurate non-sinusoidal waveform analysis

Curve recording function for real-time trend visualization of measurement parameters

Three trigger modes including automatic trigger for waveform scanning without signal, normal trigger, and single trigger for capturing transient signals

Supports 13 parameter measurements with cursor positioning for quick anomaly detection

Real-time dynamic signal capture with digital fluorescence display enhancing detail and intermittent event analysis

Stable and secure usage with independent trigger button and adjustable anti-slip stand

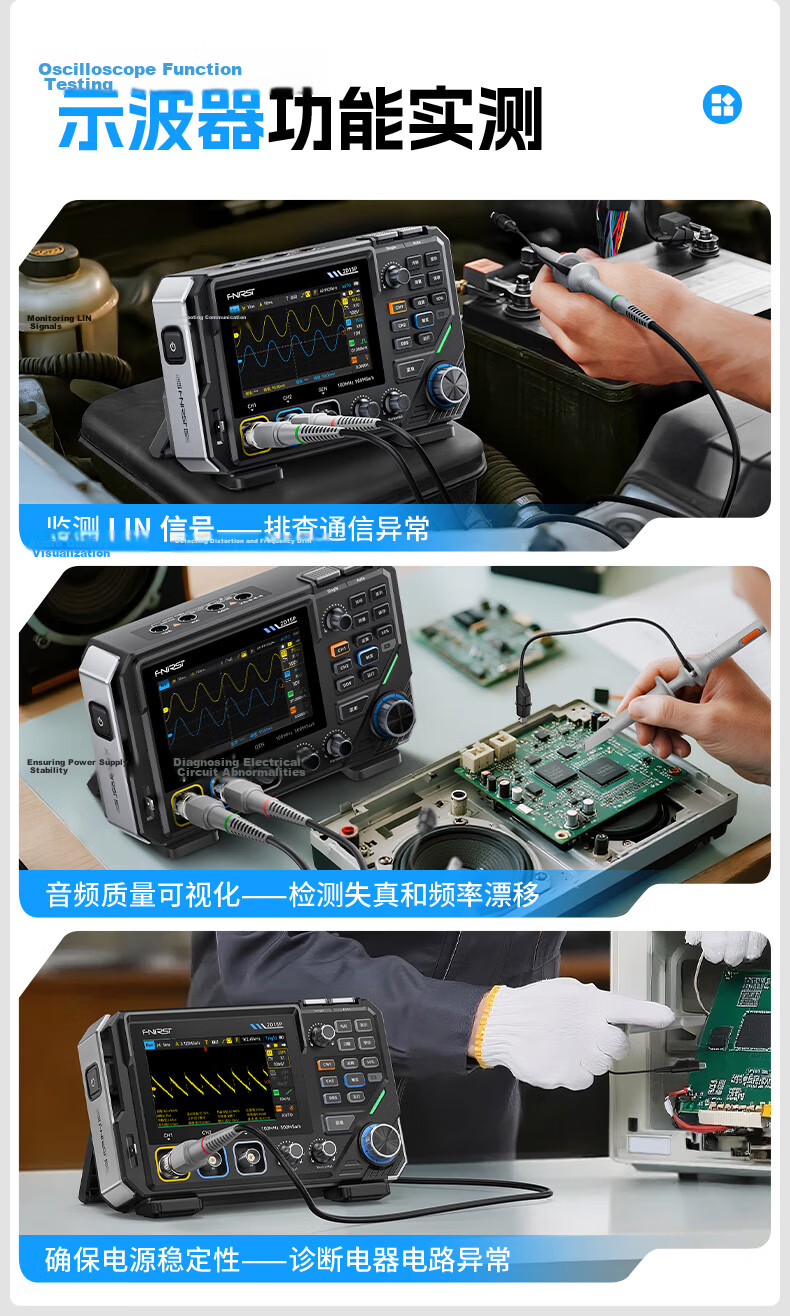

Practical applications include LIN signal monitoring, communication troubleshooting, audio quality visualization, power supply stability verification, and electrical circuit diagnostics

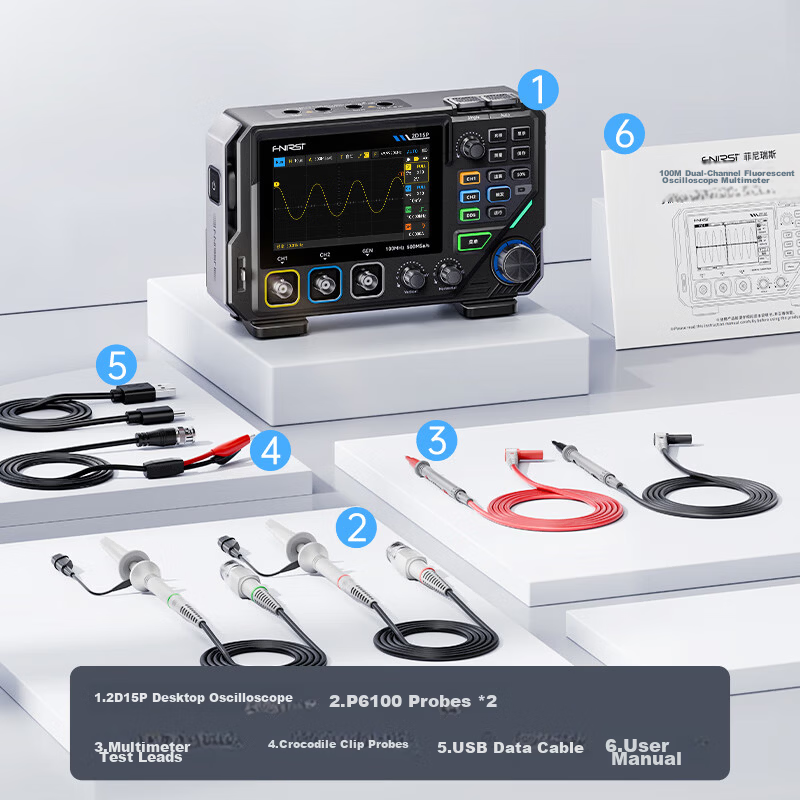

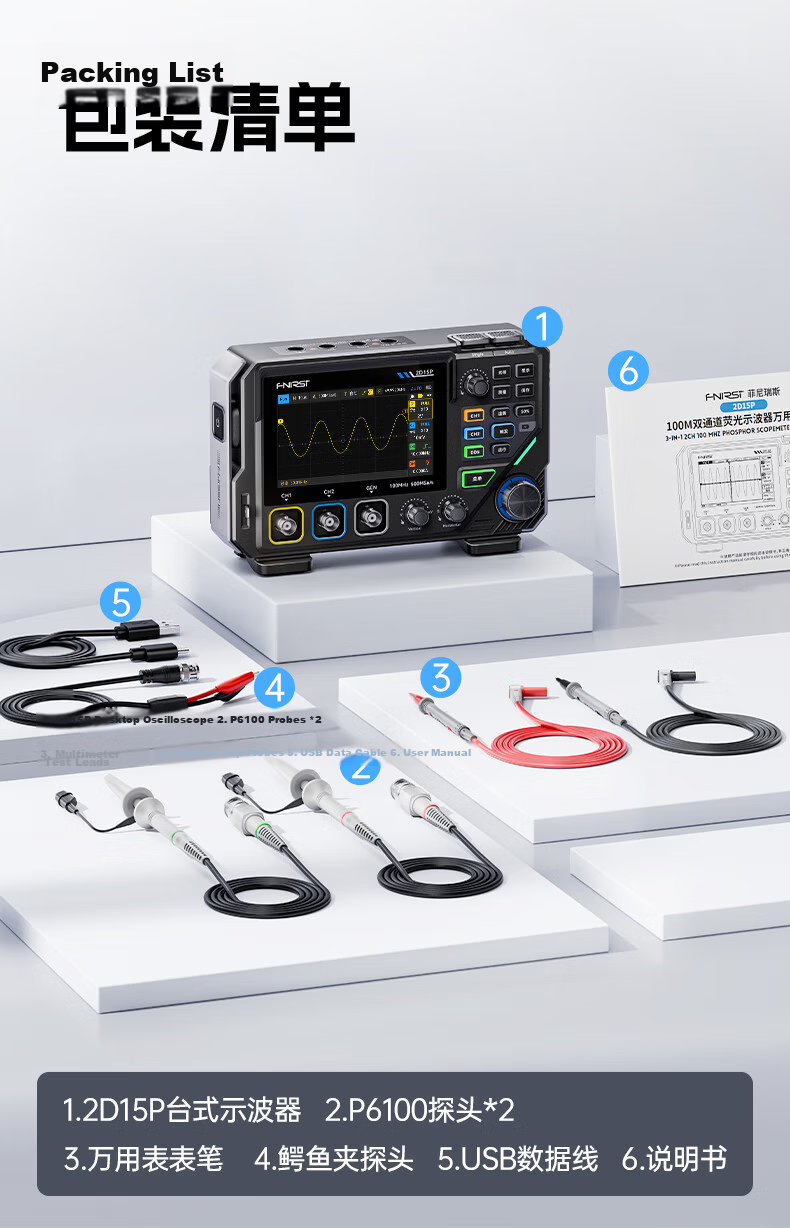

1. FNIRSI 3-in-1 Desktop Oscilloscope

2. P6100 Probes x2

3. Multimeter Test Leads

4. Alligator Clip Probes

5. USB Data Cable

6. User Manual
