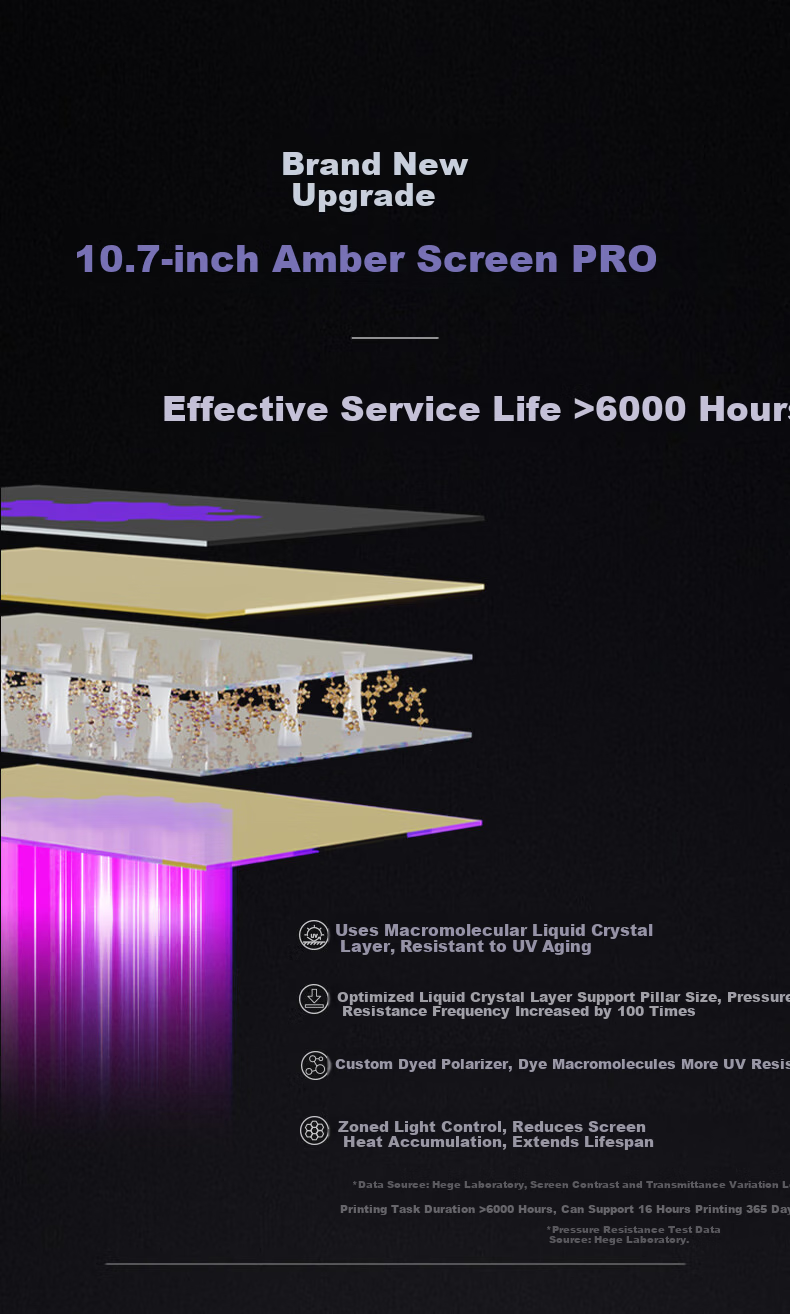

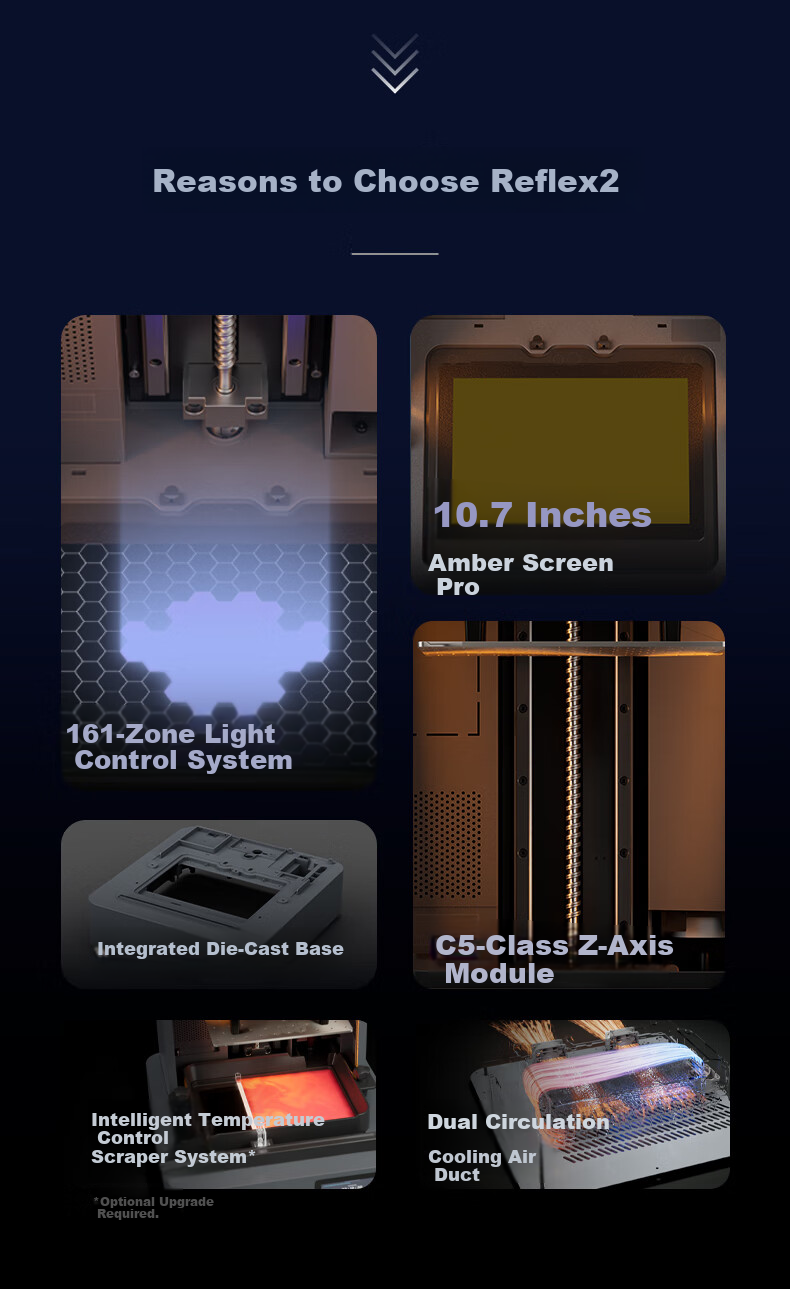

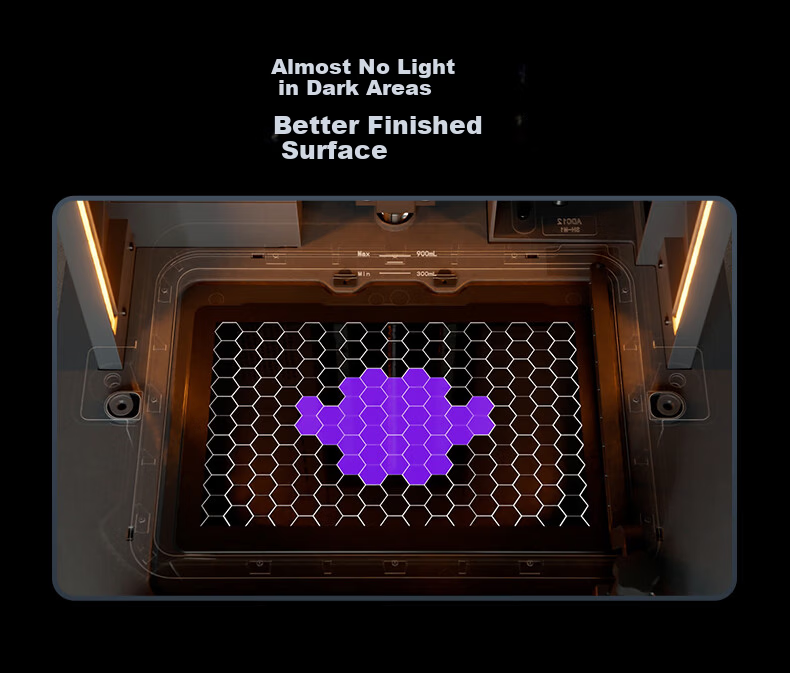

10.7-inch Amber Screen Pro with 161-zone light control system for precise exposure and reduced heat accumulation, extending screen lifespan beyond 6000 hours.

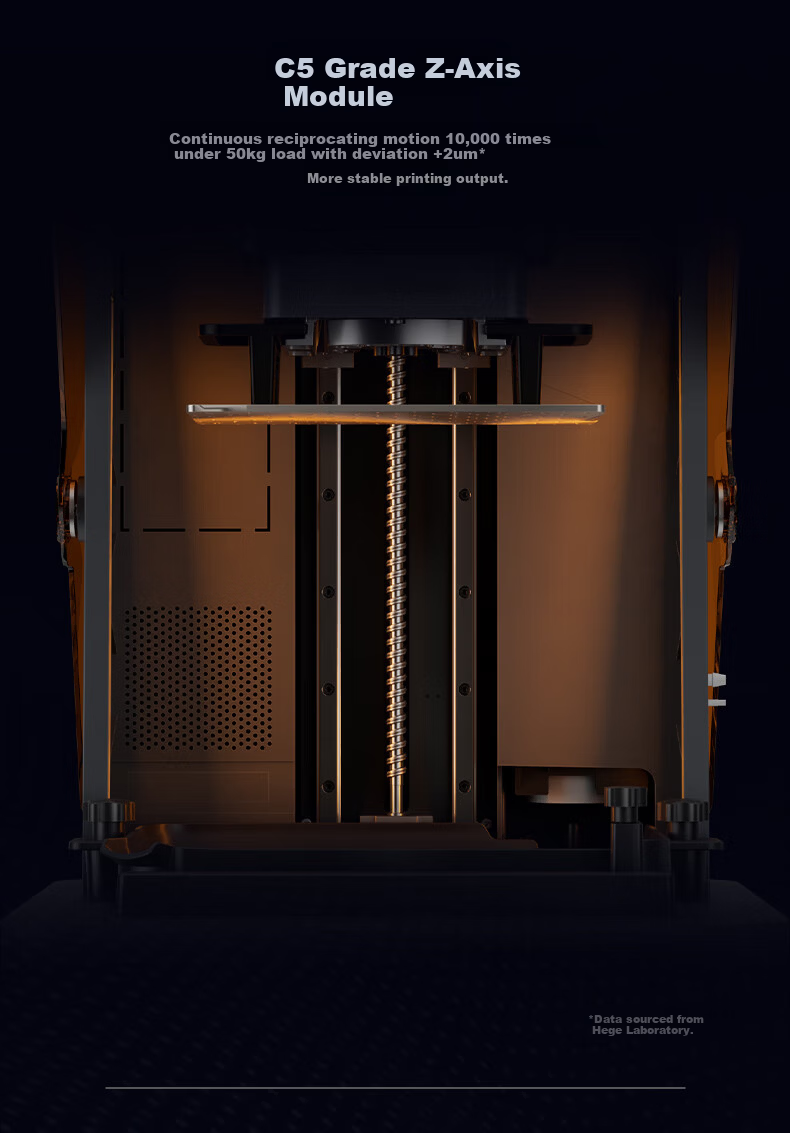

C5-grade Z-axis module with 50kg load capacity and ±2 μm motion deviation over 10,000 cycles for stable and precise printing.

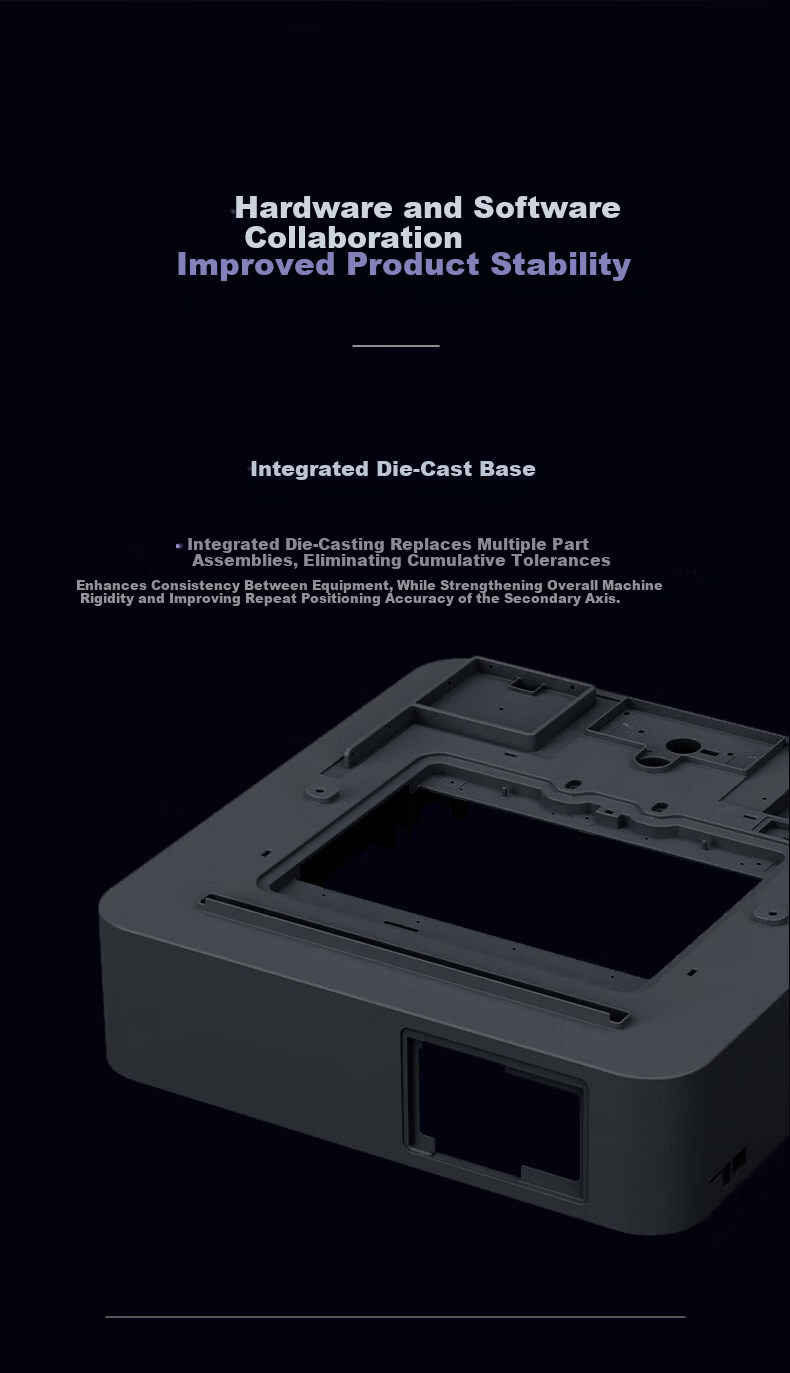

Integrated die-cast base platform replacing multi-part assembly to eliminate cumulative tolerance and improve machine rigidity and repeatability.

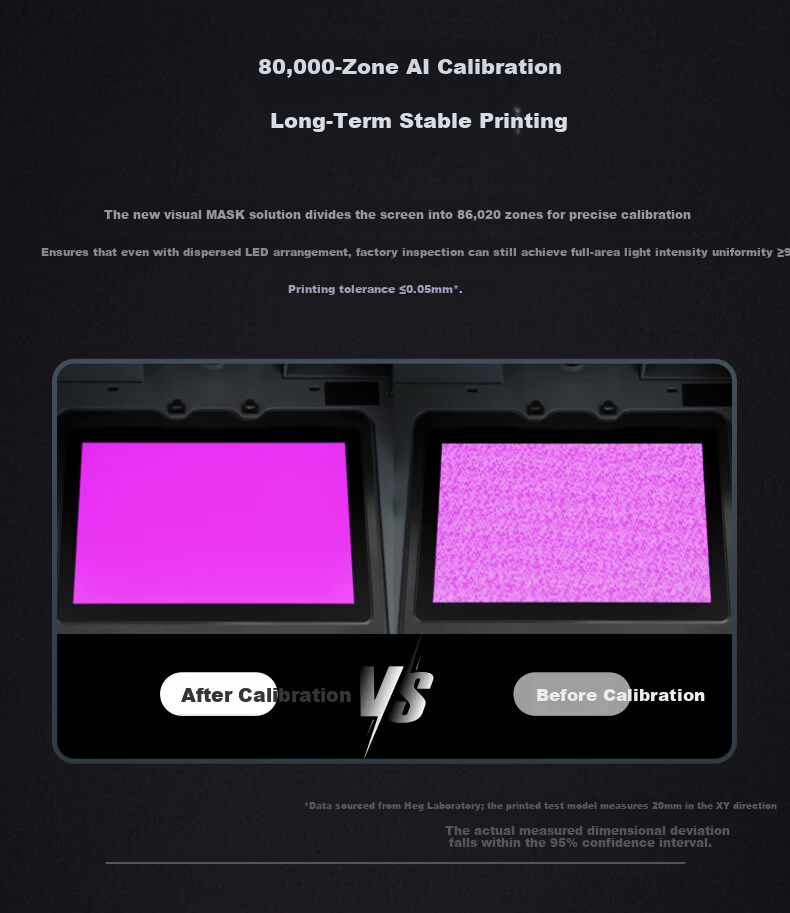

AI-driven 86,020-zone calibration ensuring uniform light intensity ≥94% and printing tolerance ≤0.05 mm.

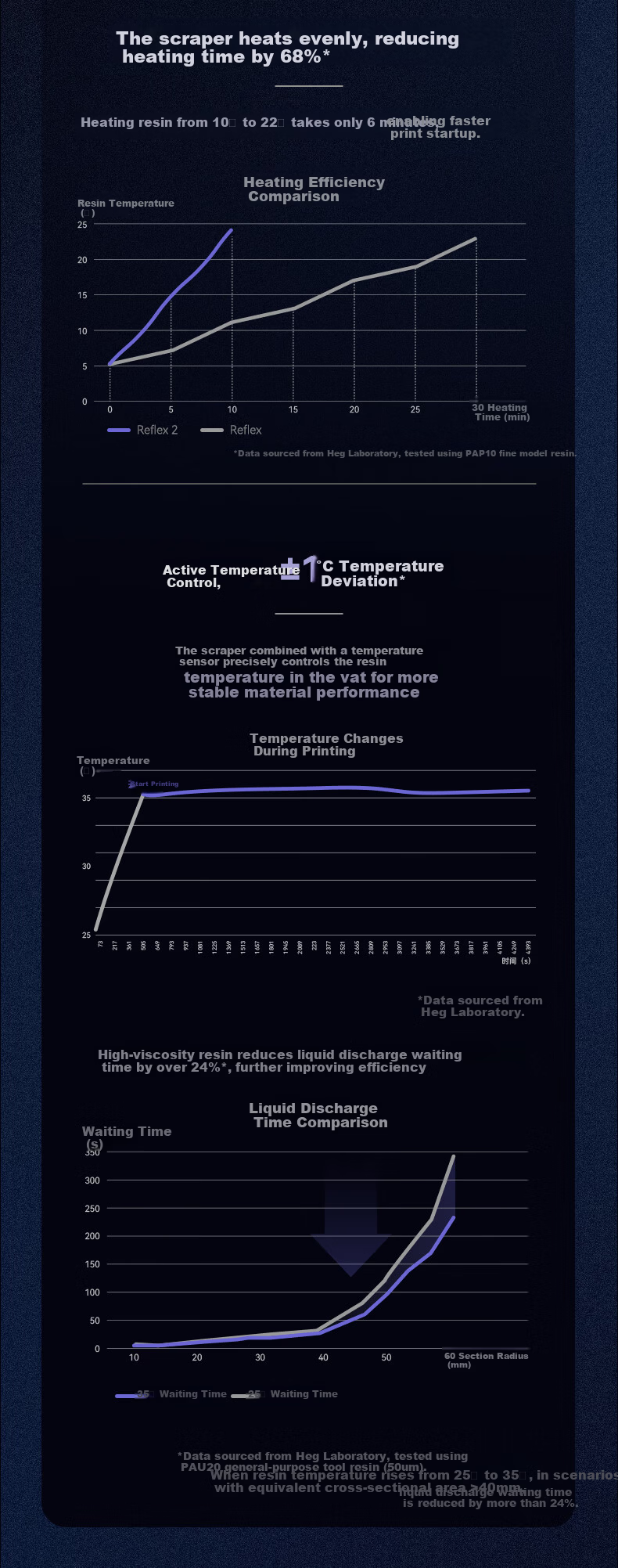

Intelligent temperature control with dual circulation and scraper heating system reducing heating time by 68%, maintaining ±1°C temperature stability.

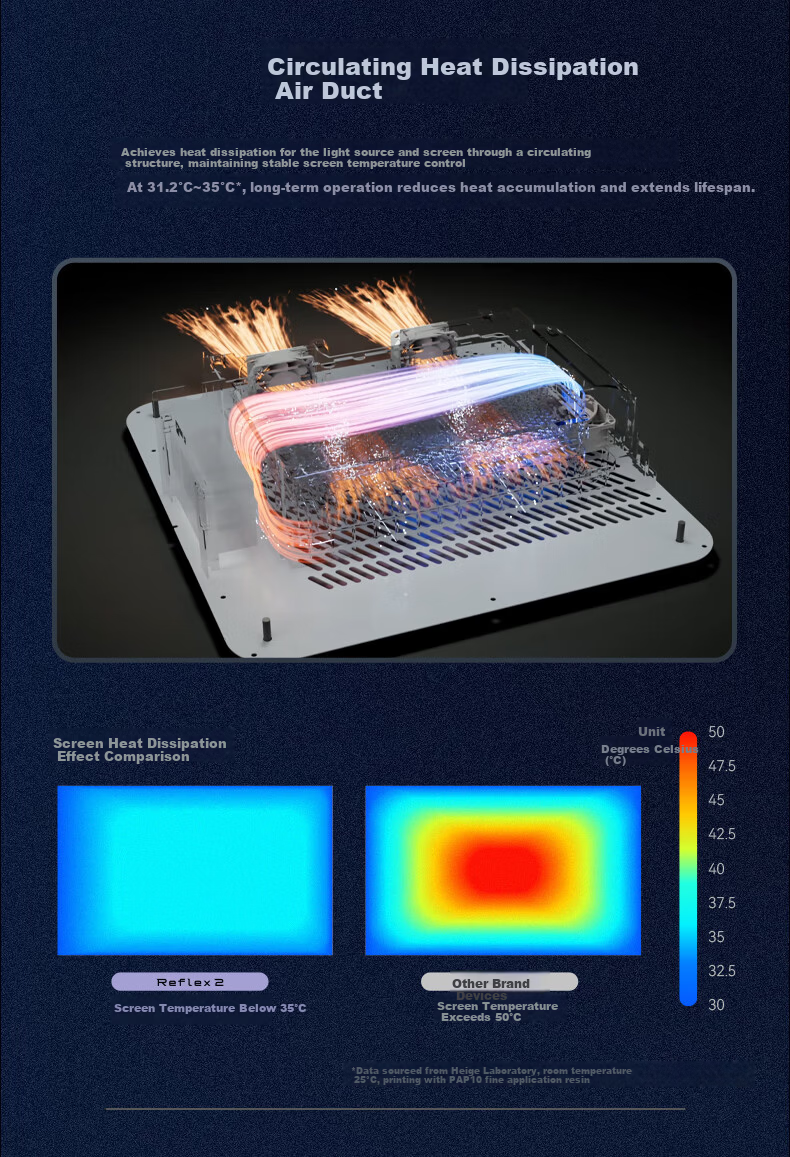

Circulating cooling air duct maintaining screen temperature between 31.2°C and 35°C to reduce heat buildup and extend component life.

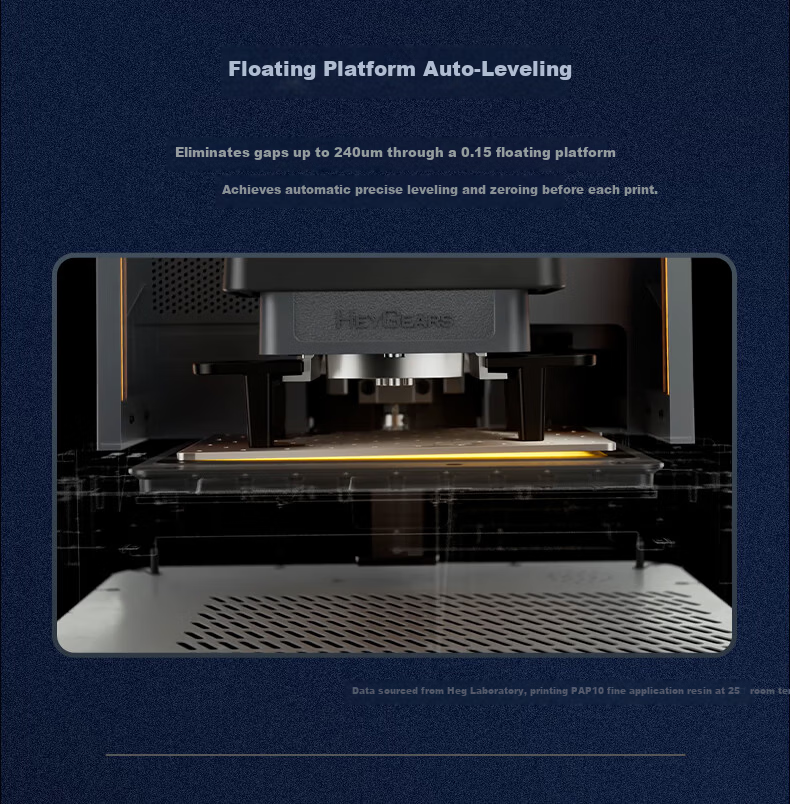

Floating platform auto-leveling system compensating up to 240 μm gap with 0.15 mm floating platform for precise first-layer adhesion.

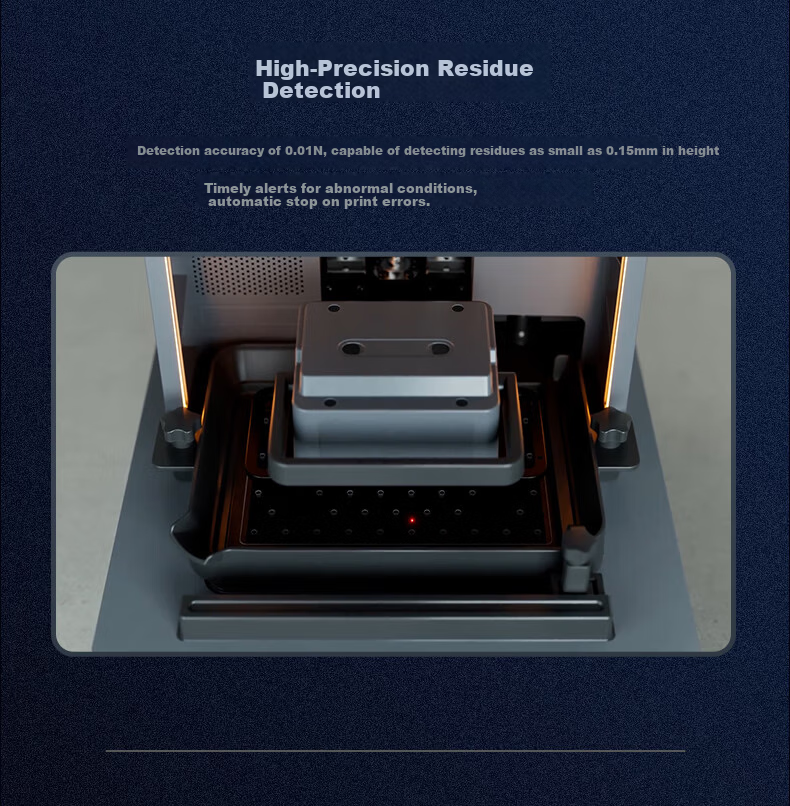

High-precision residue detection with 0.01 N sensitivity capable of detecting residues as small as 0.15 mm height, automatically pausing print on error.

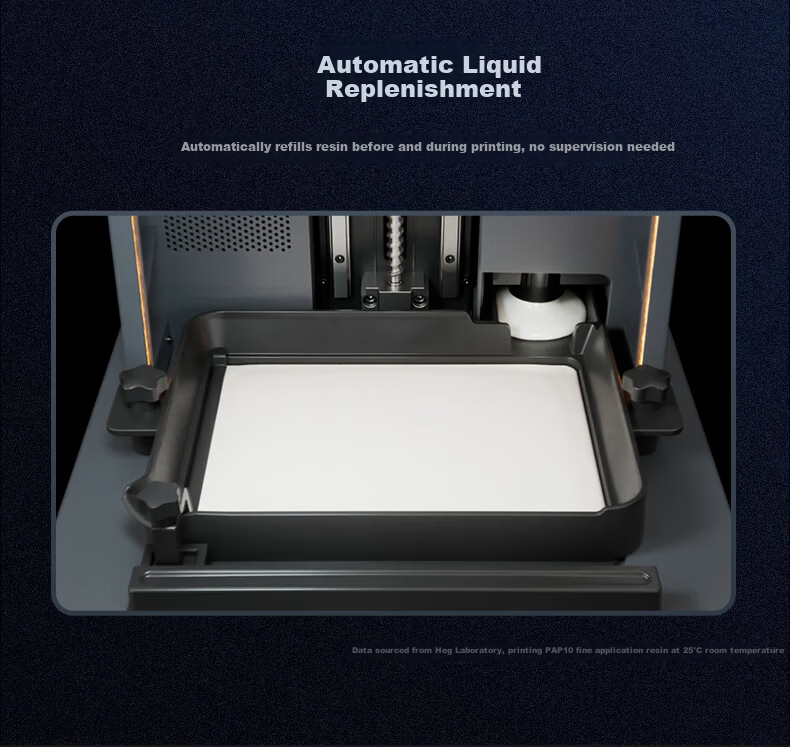

Automatic resin refill during printing and pre-printing for unattended operation.

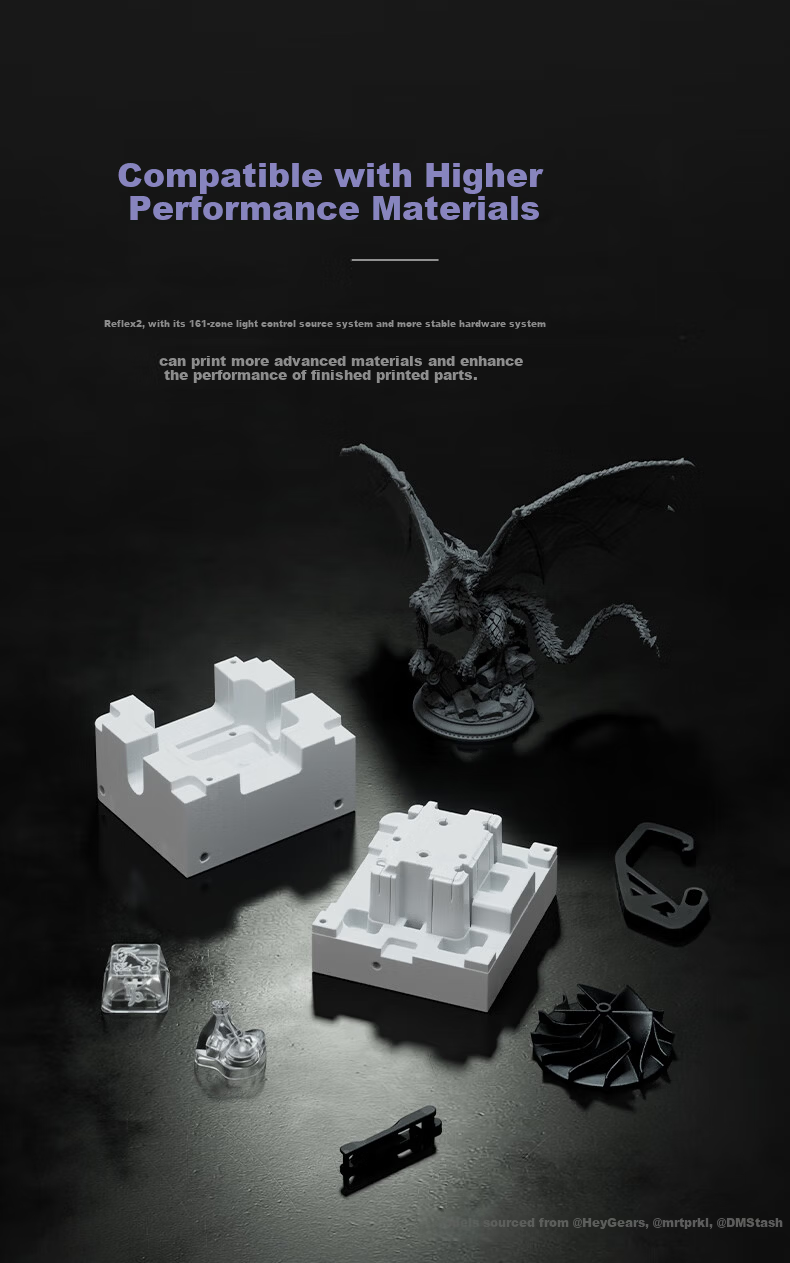

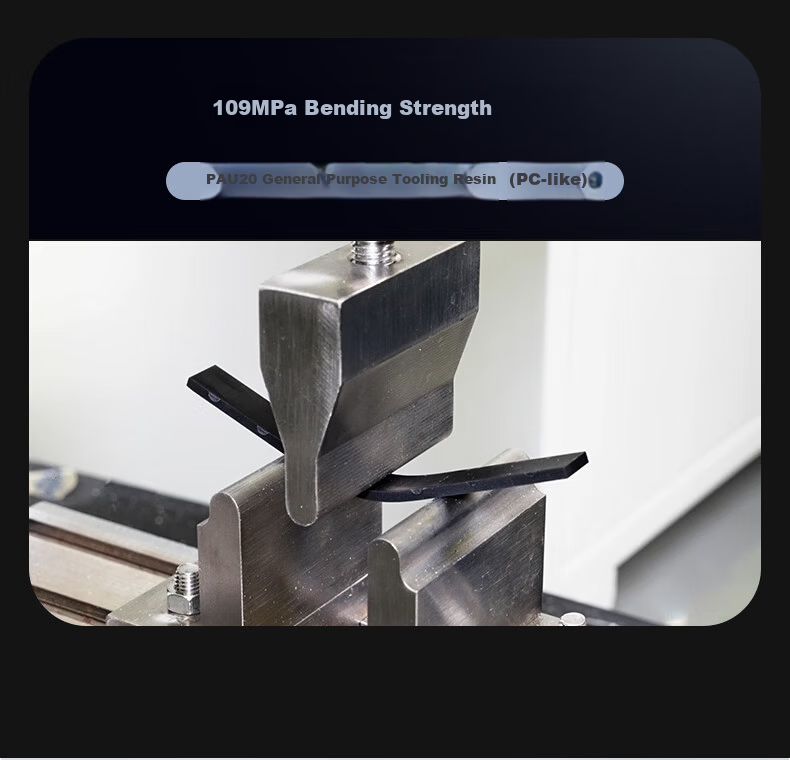

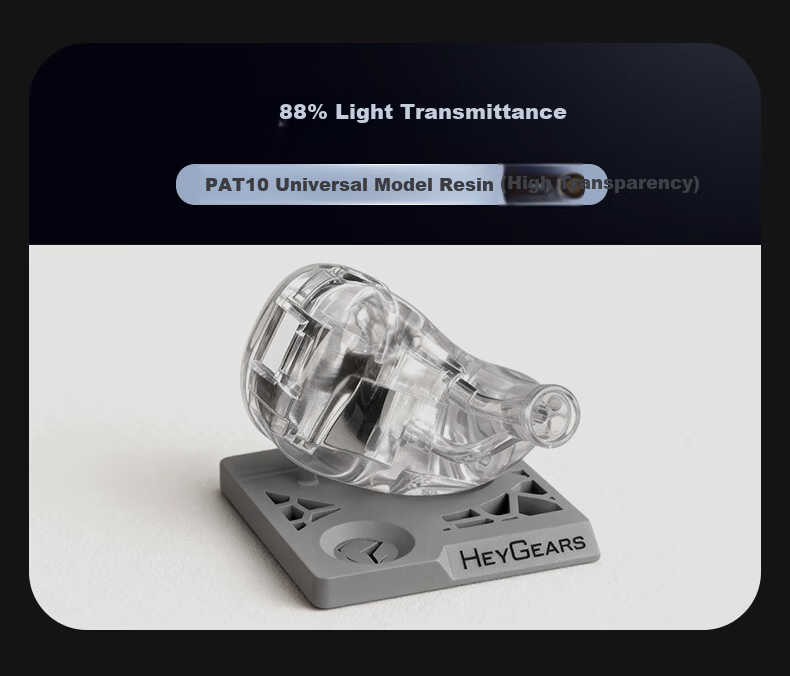

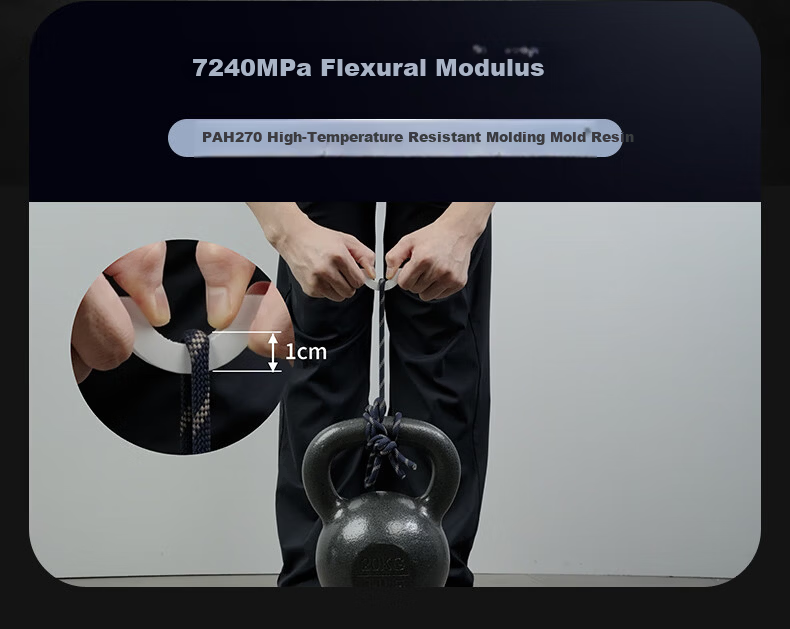

Compatible with advanced materials including PAH270 high-temperature molding resin (7240 MPa flexural modulus), PAT10 high-transparency general model resin (88% light transmittance), and PAU20 general tool resin (109 MPa flexural strength).
Heating resin from 10°C to 22°C in 6 minutes, 68% faster than previous models.
Resin drainage time reduced by over 24% at elevated temperatures (35°C vs 25°C) for high-viscosity resins.
Screen contrast and transmittance variation less than 10% over lifespan.
Printing duration exceeding 6000 hours supports continuous 16-hour daily operation for a full year.
Printing accuracy validated within 95% confidence interval for 20 mm test models.
All performance data sourced from HeyGears Laboratory under controlled conditions using PAP10 fine-detail resin unless otherwise specified.
