635nm (laser line and horizontal line), 650nm (point laser)
Laser Class
Class II
Accuracy
±1.5 mm/10 m, ±1.5 mm/0 m, ±1 mm line width
Measurement Range
Up to 650 m (point laser)
Lithium battery capacity
2400mAh, 3000mAh, 300mAh variants
USB charging port
Type-C interface
Charging voltage
5V/1A
Charging time
Approx. 3.5 to 4.5 hours
Battery life
3 to 7 hours continuous use
Battery cycle life
About 1200 cycles
Waterproof and dustproof design (IP54 rating)
Flame retardant materials compliant with GB47061 and GB4705.1 standards
Automatic self-leveling with ±3° tilt alarm (buzzer alert)
Remote intelligent control with adjustable laser line thickness
360° horizontal and vertical laser projection with micro-adjustment base
Multi-line projection including horizontal, vertical, and cross lines (up to 16 lines)
Slant line projection function with 180° adjustment
High precision optical glass lens for enhanced light transmission and low energy consumption
Mechanical pendulum integrated for stable leveling under vibration
Additional details
Multiple protections
shockproof, dustproof, waterproof, and drop resistant
Compatible with tripods and wall mounting accessories
Intelligent chip for precise calibration and data accuracy
Large lithium battery for extended standby and operation time
LED indicators for charging status (red light during charging, green when full)
Overvoltage and undervoltage protection with indicator alerts
Suitable for indoor and outdoor use with high laser brightness visible under sunlight
Additional details

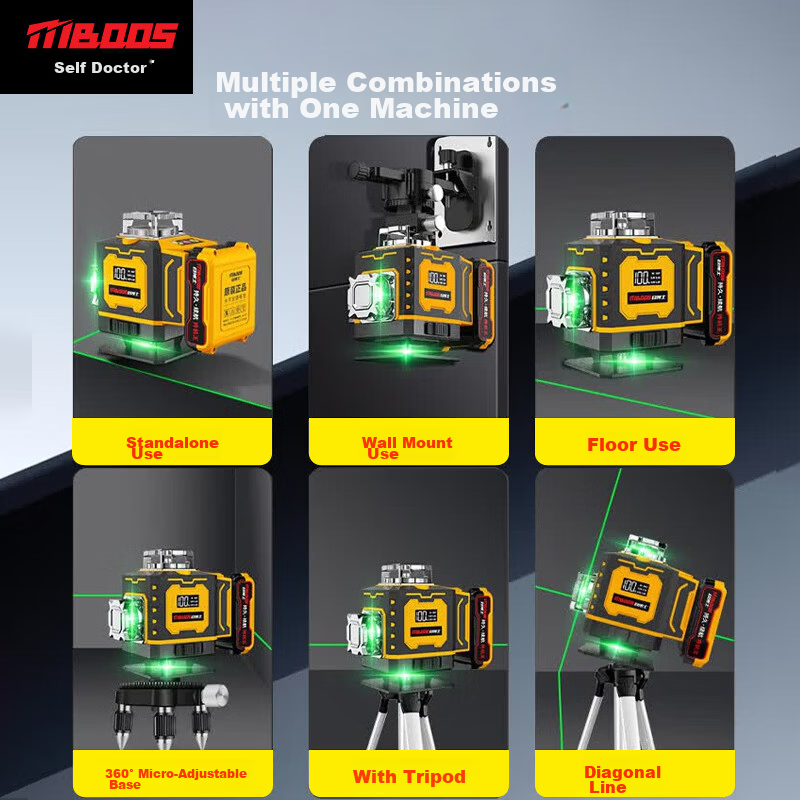

Multiple installation modes
standalone, wall-mounted, floor use
Complies with national safety and quality standards for household and professional use
Additional details
Operating Temperature Range
-10°C to +45°C
Product Certification
Professional institutional certification ensuring quality and safety compliance
Micro-adjustment knobs
Wall mounting steel plates
Free lifting platform for laser projection adjustment
Muboshi level meters are precision laser measuring tools designed for professional and household use, featuring advanced German Osram laser sources, robust waterproof and dustproof construction, intelligent self-leveling systems, and versatile multi-line laser projection capabilities. With long battery life, rapid charging, and comprehensive safety certifications, these instruments provide reliable, accurate, and efficient measurement solutions for various construction and surveying applications.
