Liyu Industrial Grade 12.5MM Large Hex Short Socket Chrome Vanadium Steel Socket Automotive Repair Tool Accessory 13MM

Forging and heat treatment technology applied

Upgraded blind insertion interface with recessed design for faster hex bolt and nut engagement

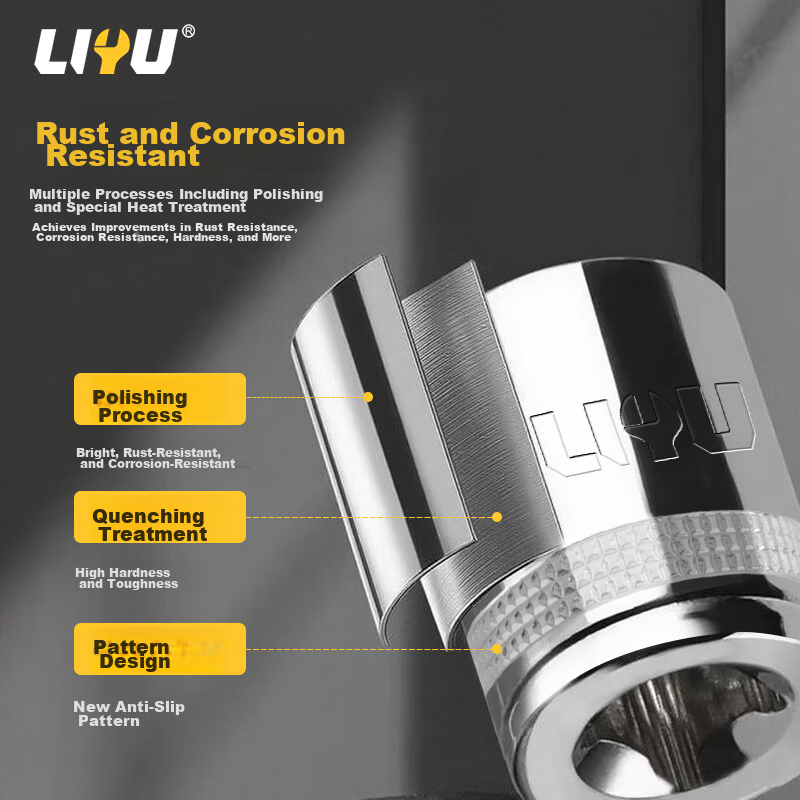

Electroplating process for corrosion and rust resistance

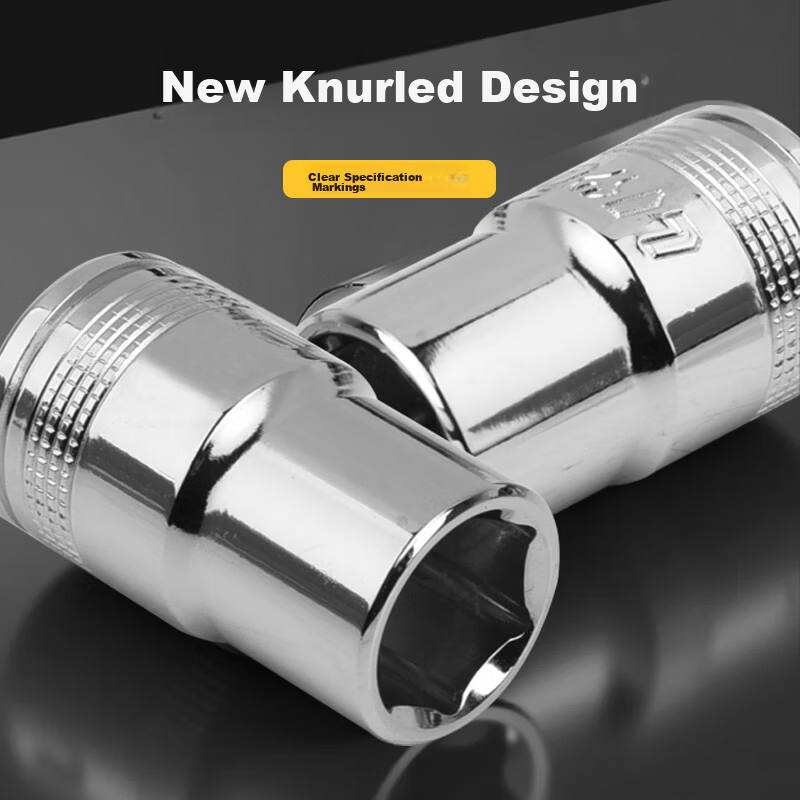

Anti-slip concave-convex edge design to prevent slipping

Precision polished electroplating for rust prevention

New anti-slip pattern design

| Specification (mm) | Total Length (mm) | Hex Outer Diameter (mm) | Square Outer Diameter (mm) | Working Depth (mm) | Weight (kg) |

|--------------------|-------------------|-------------------------|----------------------------|--------------------|-------------|

| 10 | 38 | 15.3 | 21.9 | 8 | 0.05 |

| 12 | 38 | 17.8 | 21.9 | 10 | 0.05 |

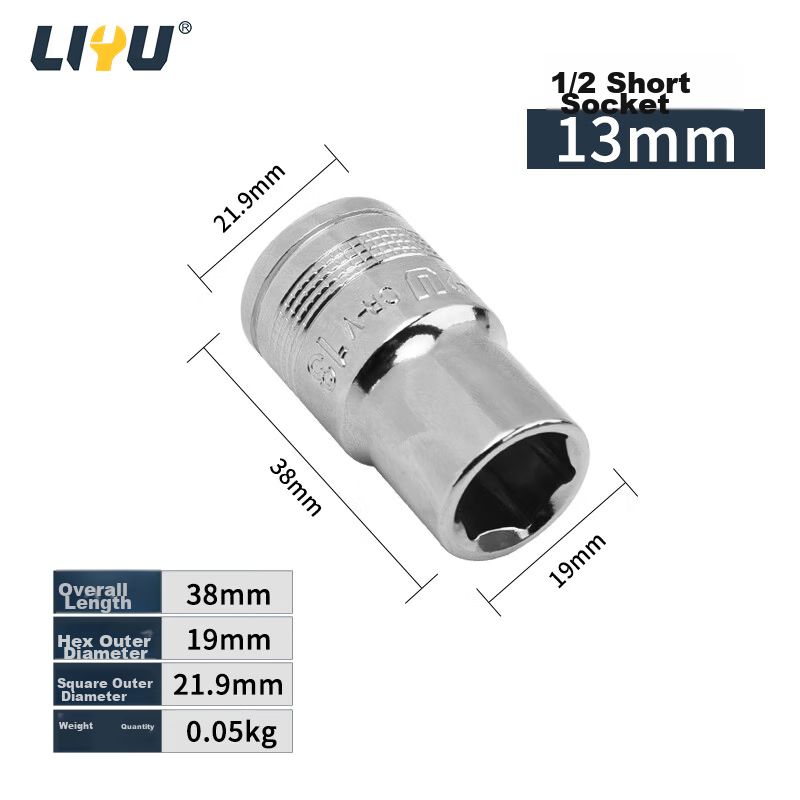

| 13 | 38 | 19 | 21.9 | 10 | 0.06 |

| 14 | 38 | 20.3 | 21.9 | 12 | 0.06 |

| 15 | 38 | 20.5 | 21.9 | 12 | 0.06 |

| 16 | 38 | 20.5 | 21.9 | 12 | 0.07 |

| 17 | 38 | 23.7 | 22 | 12 | 0.08 |

| 18 | 38 | 25.9 | 23 | 13 | 0.08 |

| 19 | 38 | 25.9 | 23 | 14 | 0.06 |

| 21 | 38 | 27.7 | 24.5 | 15 | 0.09 |

| 22 | 38 | 29.6 | 26 | 16 | 0.11 |

| 24 | 38 | 31.7 | 26 | 17 | 0.16 |

| 27 | 38 | 35.6 | 30 | 20 | 0.19 |

| 30 | 44 | 39.9 | 32 | 21 | 0.20 |

| 32 | 44 | 41.9 | 34 | 22 | N/A |

All parameters are manually measured and may have slight deviations.

Actual product specifications shall prevail.
