MEPL JD | Modern Product Catalog

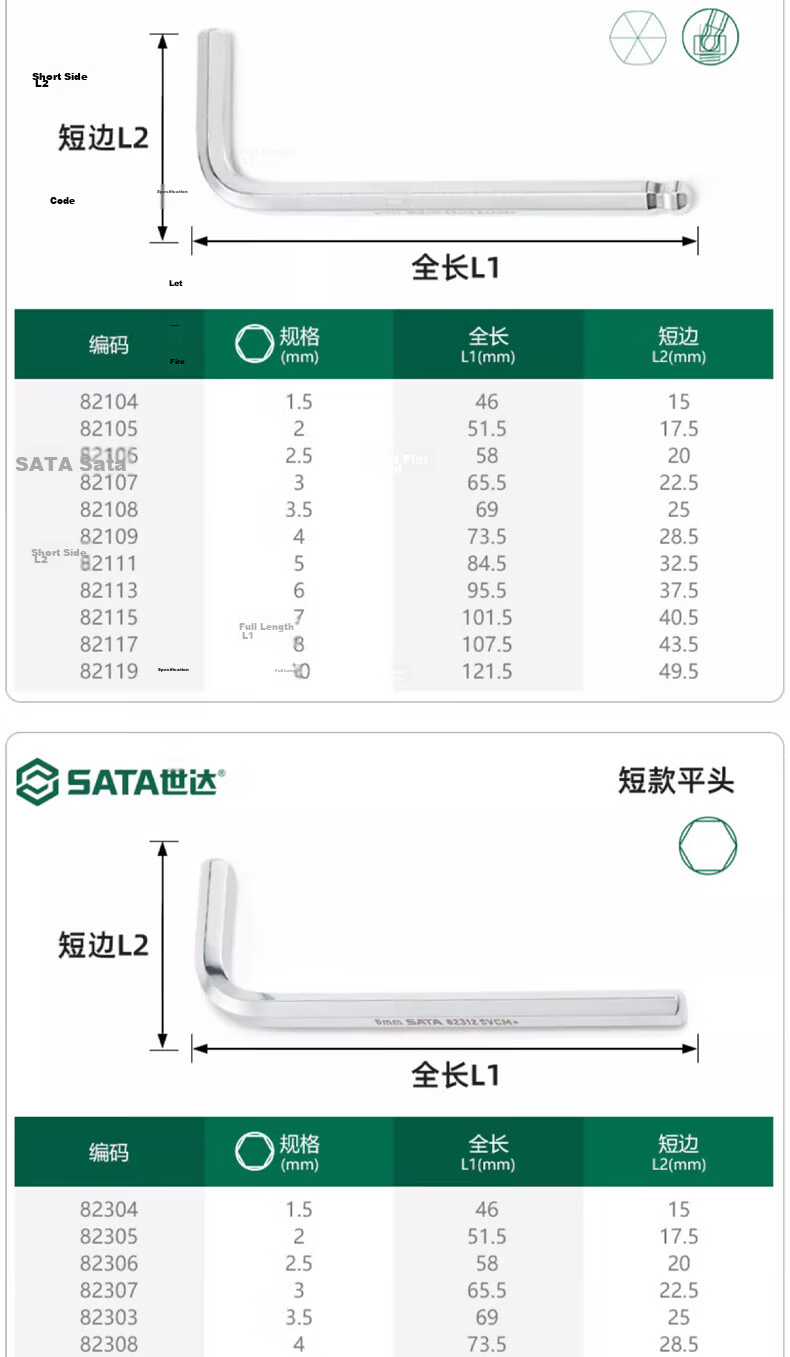

Sizes and Dimensions (Length L1 / Short side L2 in mm)

Size	Unfolded dimensions
1.5 mm	L1=46, L2=15 (Code: 82104)
2 mm	L1=51.5, L2=17.5 (Code: 82105)
2.5 mm	L1=58, L2=20 (Code: 82106)
3 mm	L1=65.5, L2=22.5 (Code: 82107)
3.5 mm	L1=69, L2=25 (Code: 82108)
4 mm	L1=73.5, L2=28.5 (Code: 82109)
5 mm	L1=84.5, L2=32.5 (Code: 82111)
6 mm	L1=95.5, L2=37.5 (Code: 82113)
8 mm	L1=101.5, L2=40.5 (Code: 82115)
10 mm	L1=107.5, L2=43.5 (Code: 82117)
10 mm	L1=121.5, L2=49.5 (Code: 82119)

Sizes and Dimensions

Size	Unfolded dimensions
1.5 mm	L1=46, L2=15 (Code: 82304)
2 mm	L1=51.5, L2=17.5 (Code: 82305)
2.5 mm	L1=58, L2=20 (Code: 82306)
3 mm	L1=65.5, L2=22.5 (Code: 82307)
3.5 mm	L1=69, L2=25 (Code: 82303)
4 mm	L1=73.5, L2=28.5 (Code: 82308)

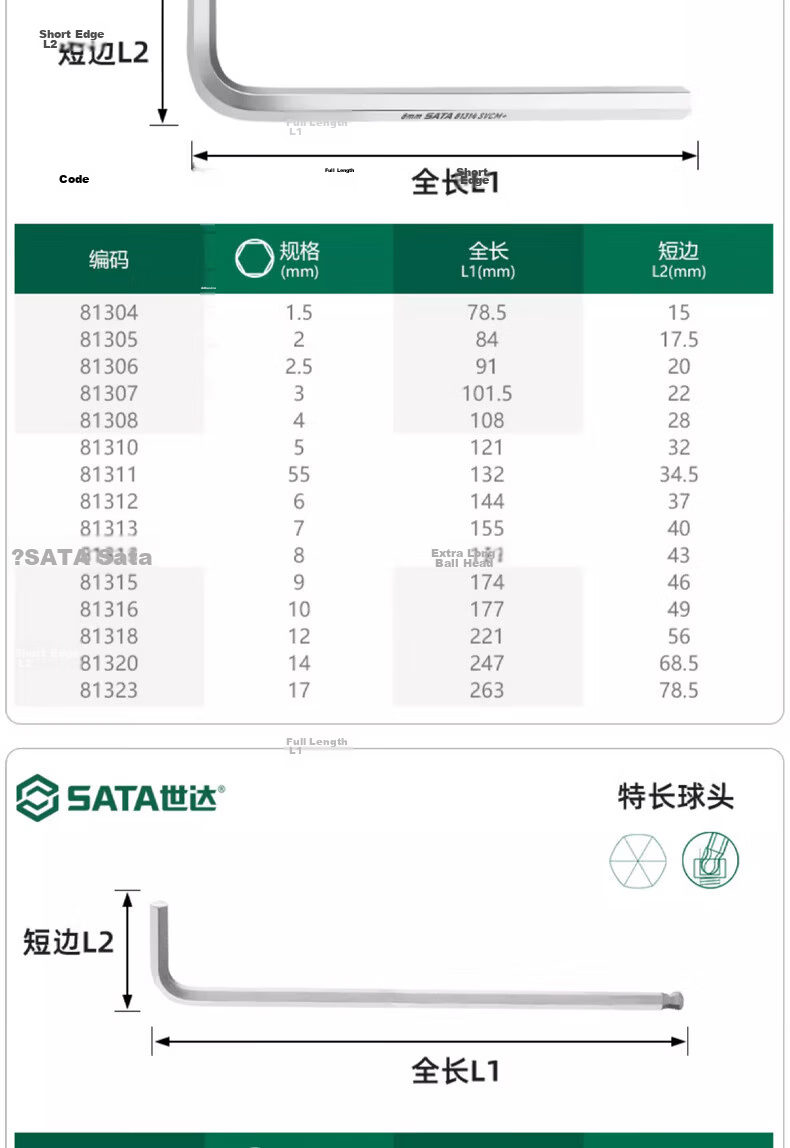

Sizes and Dimensions

Size	Unfolded dimensions
1.5 mm	L1=78.5, L2=15 (Code: 81304)
2 mm	L1=84, L2=17.5 (Code: 81305)
2.5 mm	L1=91, L2=20 (Code: 81306)
3 mm	L1=101.5, L2=22 (Code: 81307)
4 mm	L1=108, L2=28 (Code: 81308)
5 mm	L1=121, L2=32 (Code: 81310)
6 mm	L1=132, L2=34.5 (Code: 81311)
7 mm	L1=144, L2=37 (Code: 81312)
8 mm	L1=155, L2=40 (Code: 81313)
9 mm	L1=166, L2=43 (Code: 81314)
10 mm	L1=174, L2=46 (Code: 81315)
10 mm	L1=177, L2=49 (Code: 81316)
12 mm	L1=221, L2=56 (Code: 81318)
14 mm	L1=247, L2=68.5 (Code: 81320)
17 mm	L1=263, L2=78.5 (Code: 81323)

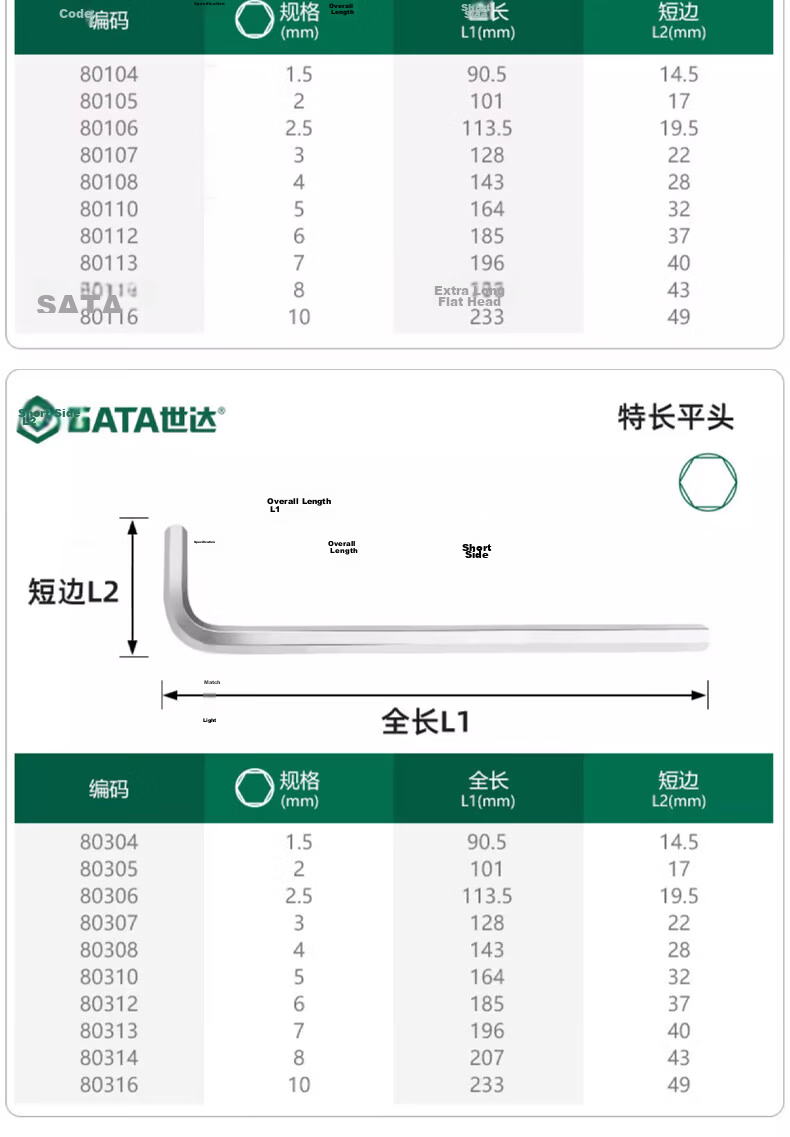

Sizes and Dimensions

Size	Unfolded dimensions
1.5 mm	L1=90.5, L2=14.5 (Code: 80104)
2 mm	L1=101, L2=17 (Code: 80105)
2.5 mm	L1=113.5, L2=19.5 (Code: 80106)
3 mm	L1=128, L2=22 (Code: 80107)
4 mm	L1=143, L2=28 (Code: 80108)
5 mm	L1=164, L2=32 (Code: 80110)
6 mm	L1=185, L2=37 (Code: 80112)
7 mm	L1=196, L2=40 (Code: 80113)
8 mm	L1=207, L2=43 (Code: 80114)
10 mm	L1=233, L2=49 (Code: 80116)

Sizes and Dimensions

Size	Unfolded dimensions
1.5 mm	L1=90.5, L2=14.5 (Code: 80304)
2 mm	L1=101, L2=17 (Code: 80305)
2.5 mm	L1=113.5, L2=19.5 (Code: 80306)
3 mm	L1=128, L2=22 (Code: 80307)
4 mm	L1=143, L2=28 (Code: 80308)
5 mm	L1=164, L2=32 (Code: 80310)
6 mm	L1=185, L2=37 (Code: 80312)
7 mm	L1=196, L2=40 (Code: 80313)
8 mm	L1=207, L2=43 (Code: 80314)
10 mm	L1=233, L2=49 (Code: 80316)
