Mingfan MS-02U-285HX New Core Ultra 9-285HX Mini PC Gaming Office Design Mini Desktop AI High-Performance Mini Computer
Specifications
Suitable Scenarios design and drafting
Case size 3-9.9L
Processor Intel Core Ultra 9
Hard disk capacity 1TB SSD
System Windows 11
Energy efficiency rating Grade 1 energy efficiency
Screen size No display screen
Graphics card model Integrated graphics
Variants / Sale Attributes Specifications: MS-02（Ultra 9-285HX）
version: 32G+1TB
Package Contents Mini PC*1, power cable*1, HDMI cable*1, SSD heatsink*1, mica sheet*1, disassembly clip*1, user manual*1
Product Description Product Specifications
MINISFORUM (), global leader in AI mini computers, recognized for innovation and market leadership (2024-2026).
Overview

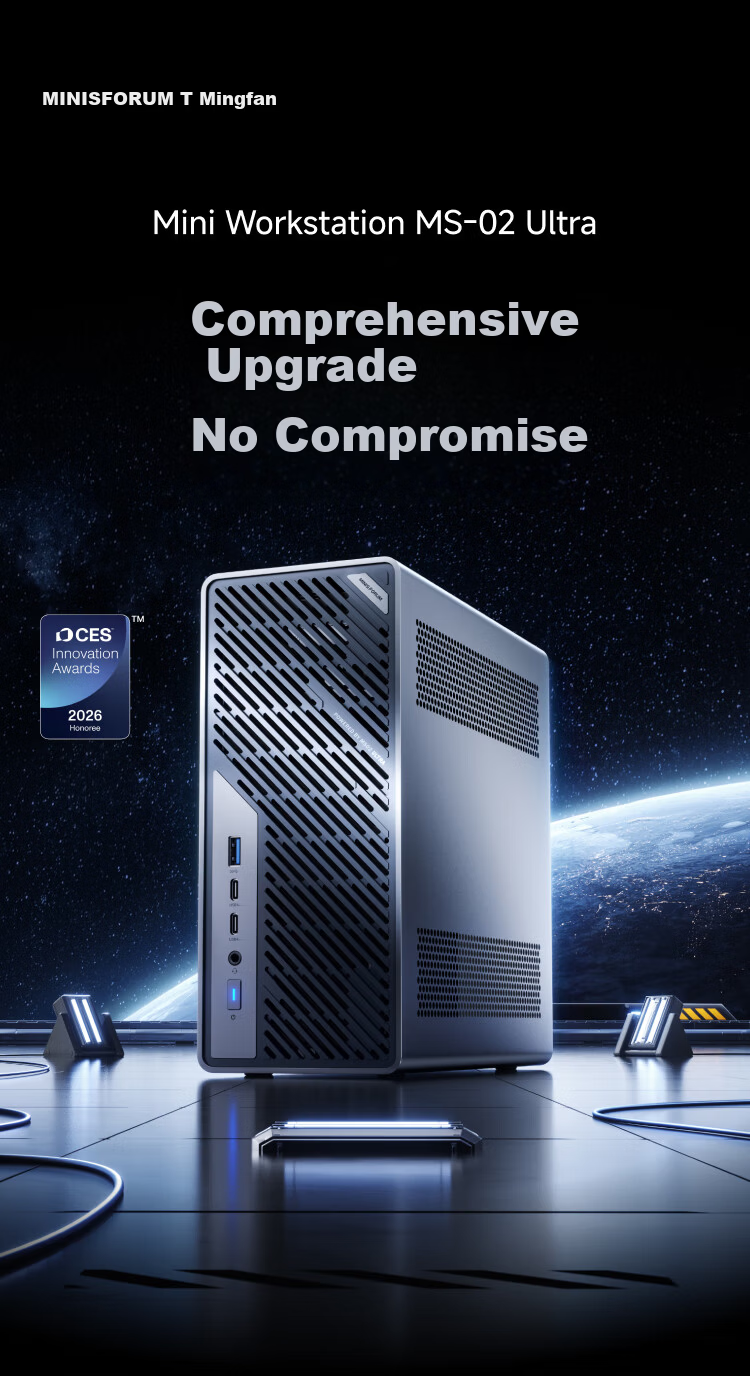

Mini Workstation MS-02 Ultra Series MS-02 Ultra 285HX, MS-02 Ultra 275HX, MS-02 Ultra 235HX.
MS-02 Ultra 285HX Intel Coreâ„¢ Ultra 9285HX, 24 cores (8 performance + 16 efficiency cores), 24 threads, up to 5.4 GHz, integrated 13 TOPS NPU.
MS-02 Ultra 275HX Intel Coreâ„¢ Ultra 9275HX, 24 cores/24 threads, up to 5.5 GHz.
MS-02 Ultra 235HX Intel Coreâ„¢ Ultra 9235HX, 14 cores/14 threads, up to 5.1 GHz. 4x DDR5 SO-DIMM slots.
MS-02 Ultra 285HX supports ECC memory, up to 256GB.
MS-02 Ultra 275HX/235HX do not support ECC.
Additional details Similar Products
Type
Mini PC

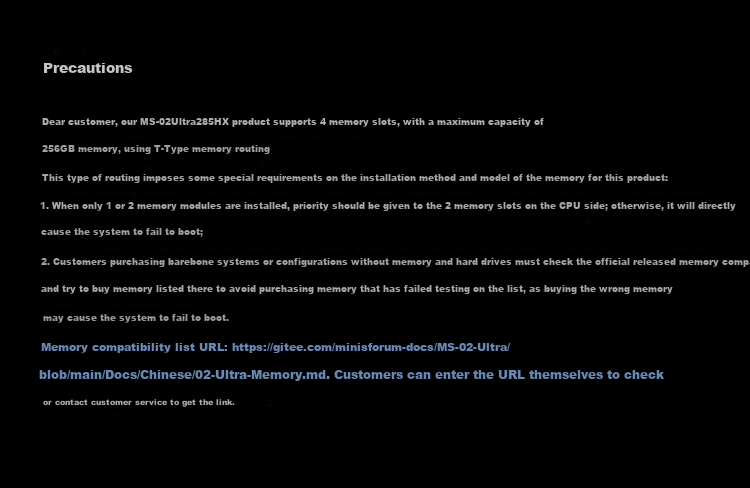

Special memory installation requirements for MS-02 Ultra 285HX when using 1 or 2 modules, install in CPU-side slots first. Memory compatibility list available online.
Additional details

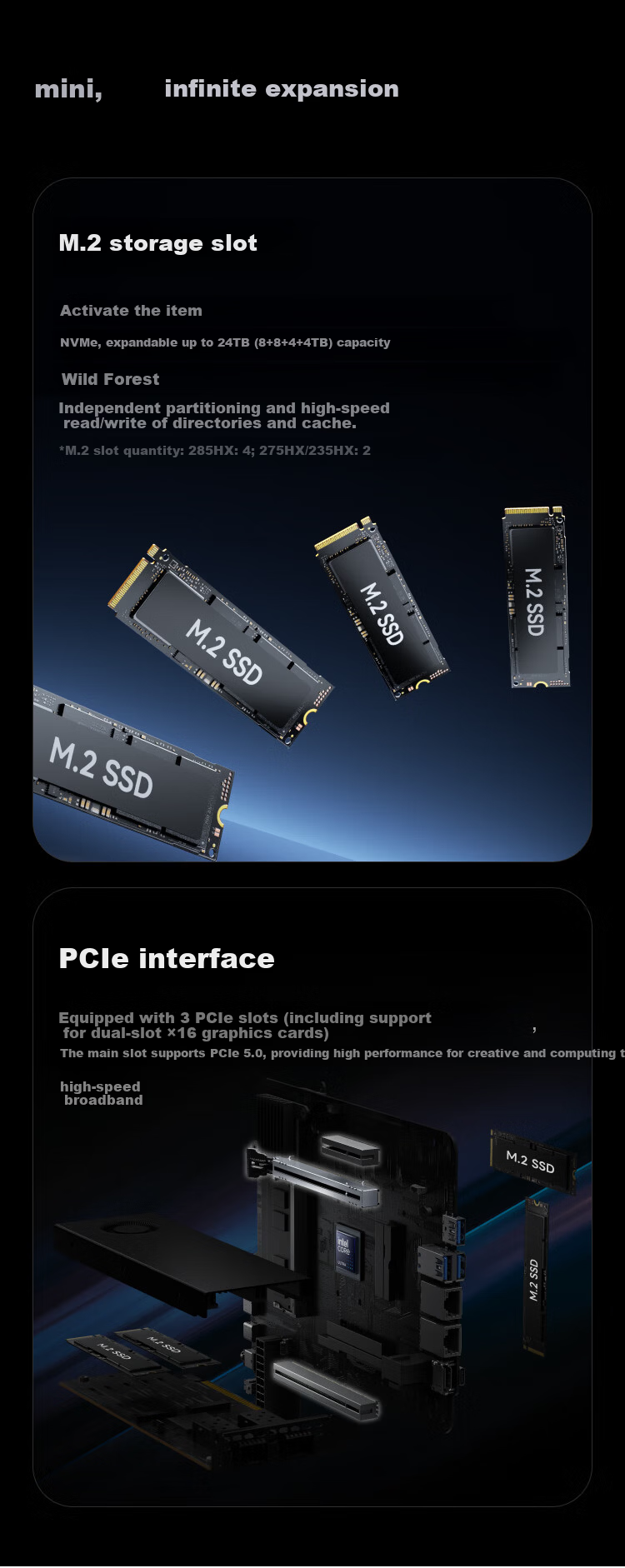

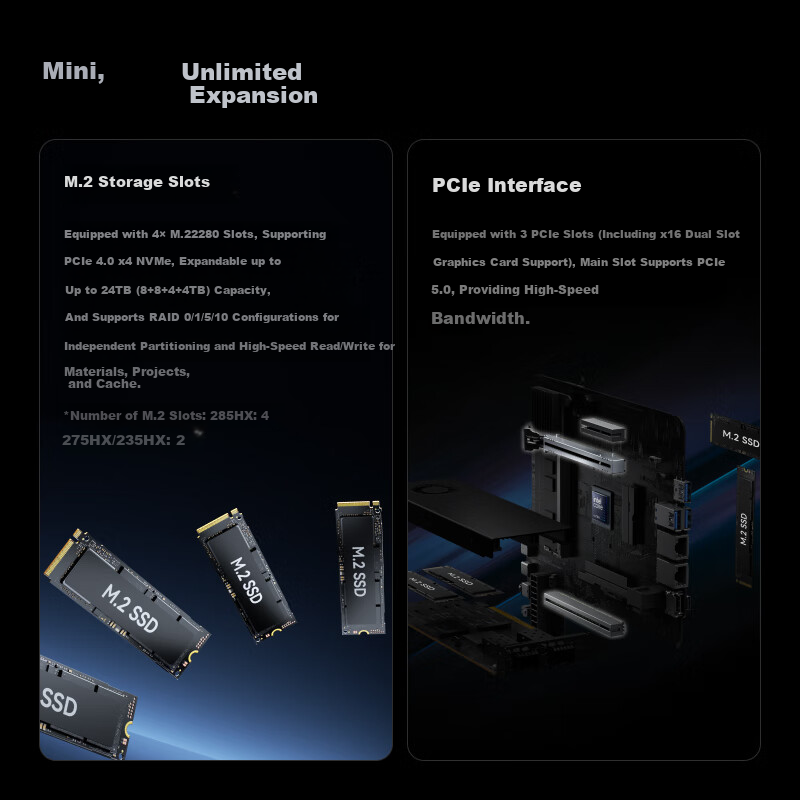

MS-02 Ultra 285HX 4x M.2 2280 slots supporting PCIe 4.0 x4 NVMe SSDs, expandable up to 24TB total, supports RAID 0/1/5/10.
MS-02 Ultra 275HX/235HX 2x M.2 slots.
RAID support RAID 0, 1, 5, 10 for high-speed and data redundancy. Integrated graphics with Intel Core Ultra processors.
Additional details
PCIe expansion 3 slots (including PCIe x16 dual-slot GPU support), main slot supports PCIe 5.0.
MS-02 Ultra 285HX Dual 25GbE SFP+ ports (Intel E810), 10GbE RJ45 (Realtek RTL8127), 2.5GbE RJ45 (Intel 1226-LM), Wi-Fi 7, Bluetooth 5.4.
MS-02 Ultra 275HX/235HX 10GbE RJ45 (Realtek RTL8127), 2.5GbE RJ45 (Intel 1226-V), Wi-Fi 7, Bluetooth 5.4. Features intelligent bandwidth switching and multi-layer network architecture.
Intel vPro support on 285HX model only.
1x HDMI 2.1 FRL (supports up to 8K@60Hz).
USB4 Type-C ports with DisplayPort 2.0 Alt Mode support (up to 8K@60Hz and 4K@120Hz).
Additional details

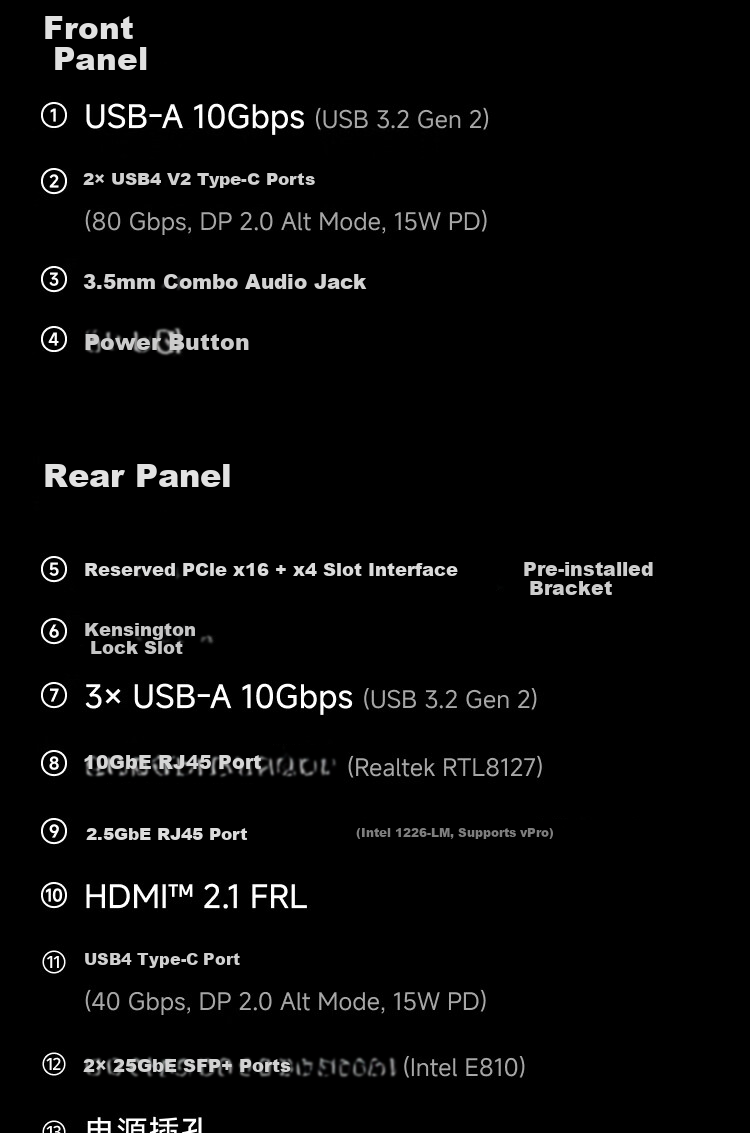

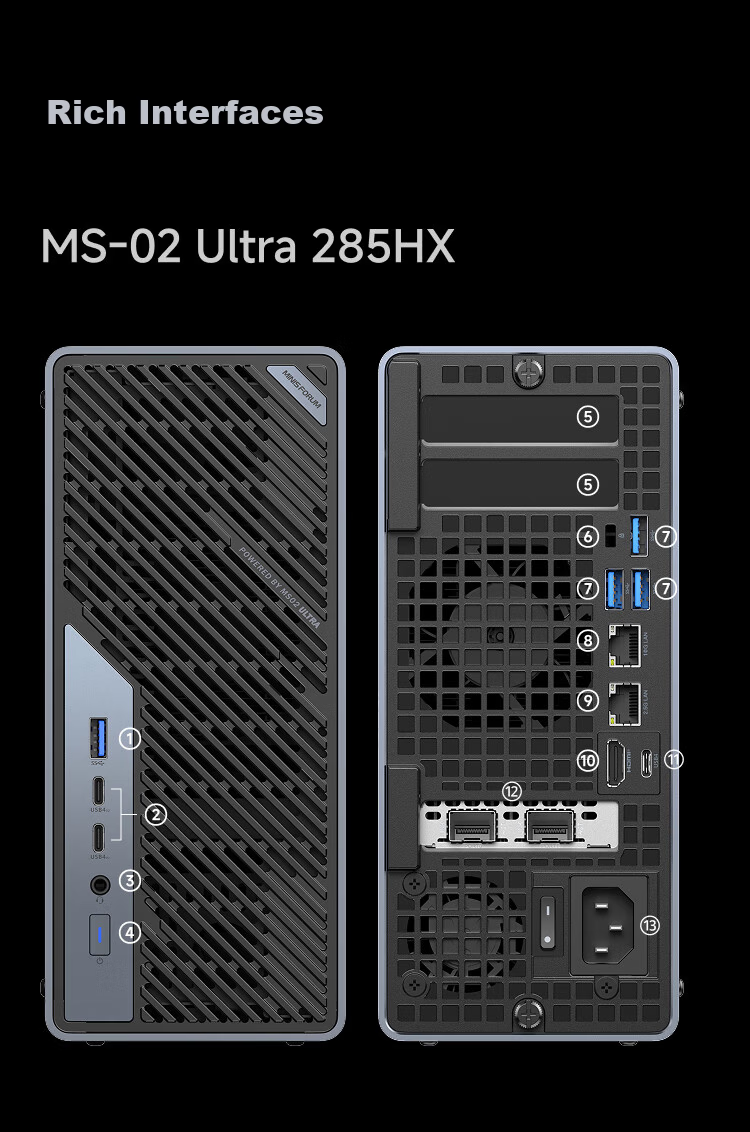

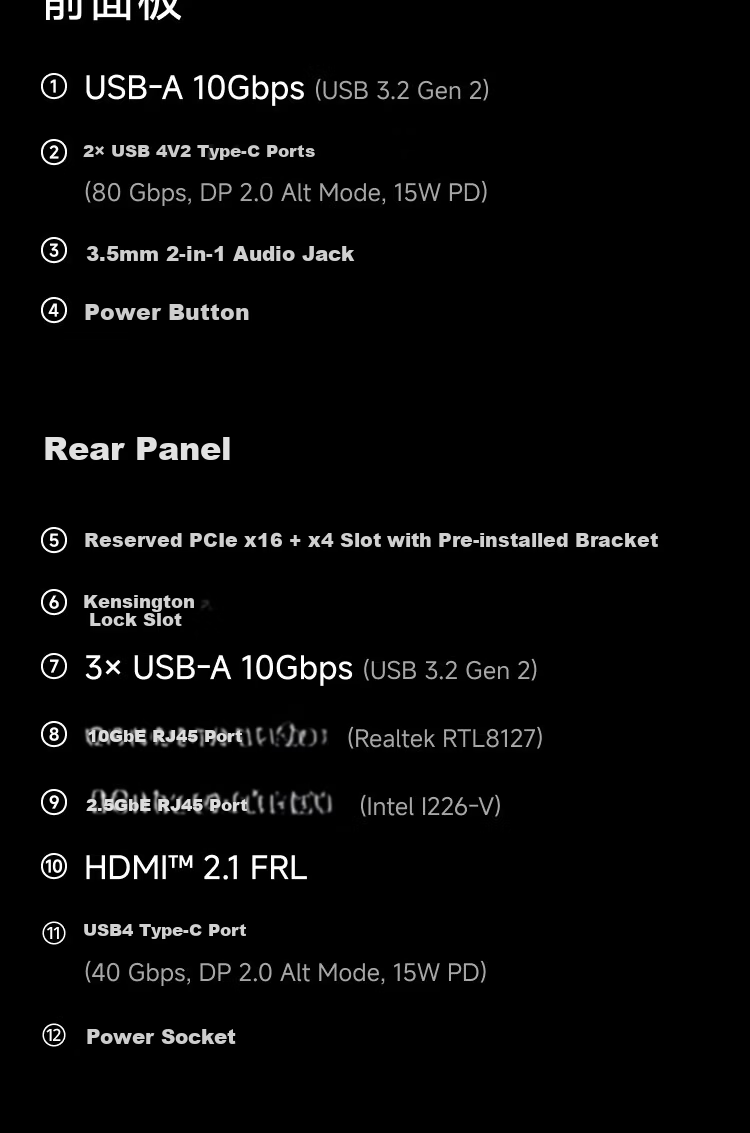

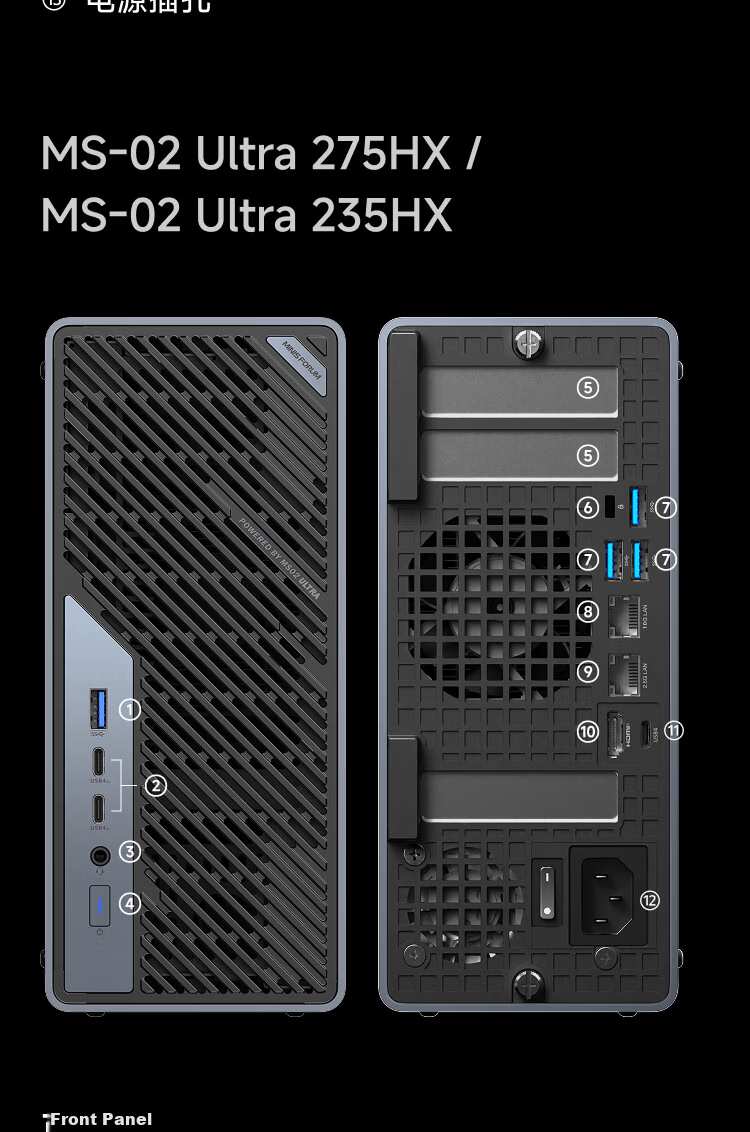

Front Panel 2x USB4 V2 Type-C (80Gbps, 15W PD), 1x USB-A 10Gbps (USB 3.2 Gen2), 3.5 mm combo audio jack, power button.
Rear Panel (285HX) 3x USB-A 10Gbps, 1x USB4 Type-C (40Gbps, 15W PD), 2x 25GbE SFP+ ports, 10GbE RJ45, 2.5GbE RJ45, HDMI 2.1 FRL, PCIe x16+x4 slot reserved, security lock slot.
Rear Panel (275HX/235HX) Similar ports excluding 25GbE SFP+. Built-in 350W power supply.
Advanced cooling system with six heat pipes, dual fans, and server-grade airflow design.
Supports CPU peak power up to 140W and 100W TDP.
Noise level as low as 36dB under load.
Additional details
Dimensions Approx. 221.5 mm (W) x 235 mm (H).
Weight 3.45 kg (285HX), 3.25 kg (275HX/235HX). Windows 11 Pro pre-installed.
ECC memory automatic error correction (285HX only).
BIOS-level KVM remote control and out-of-band management.
RAID storage architecture for enterprise-level data security.
Supports Intel vPro technology (285HX only).
Supports AI acceleration with integrated NPU.
High-performance workstation-grade reliability and stability.
Additional details

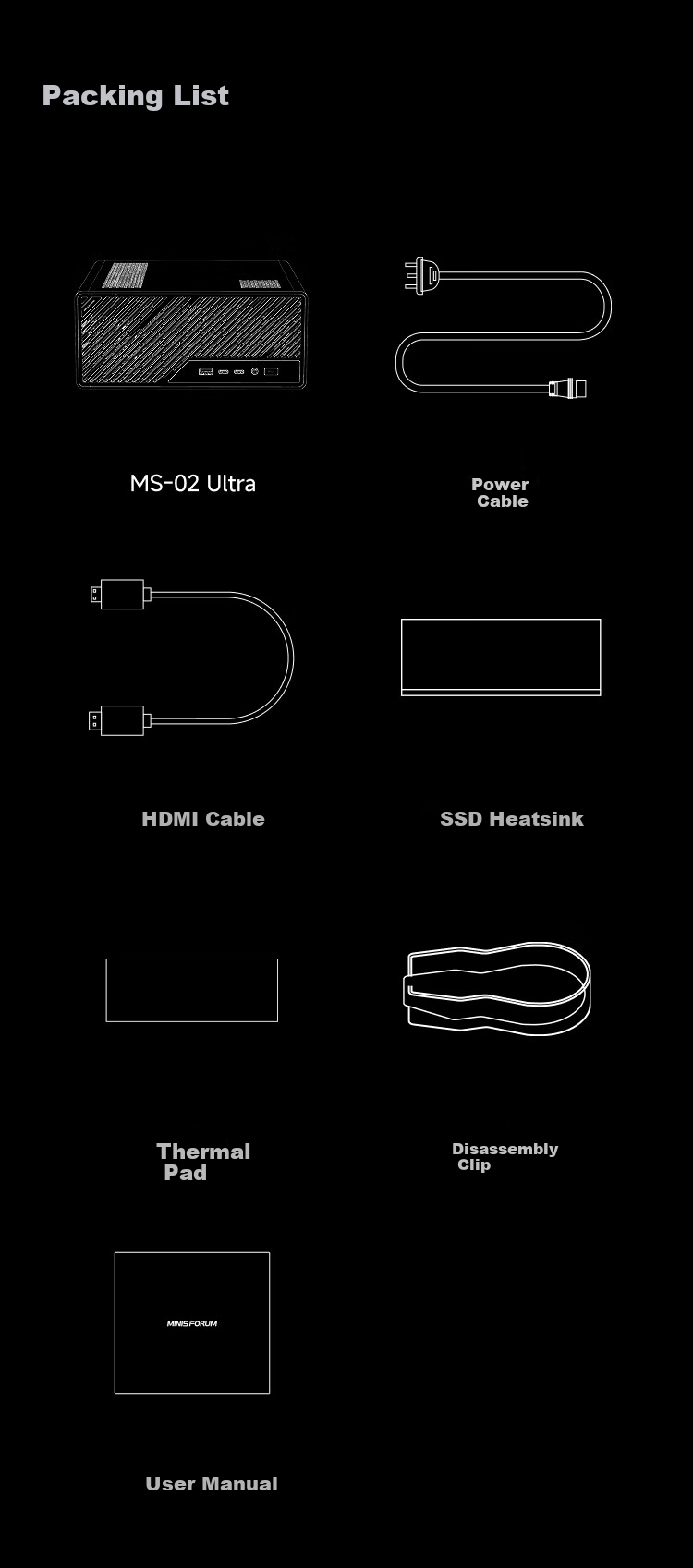

Packaging includes MS-02 Ultra unit, power cable, HDMI cable, SSD heatsink, thermal pad, disassembly clip, user manual. Memory installation must follow specific guidelines for MS-02 Ultra 285HX.
Refer to official memory compatibility list to ensure system stability.
Additional details

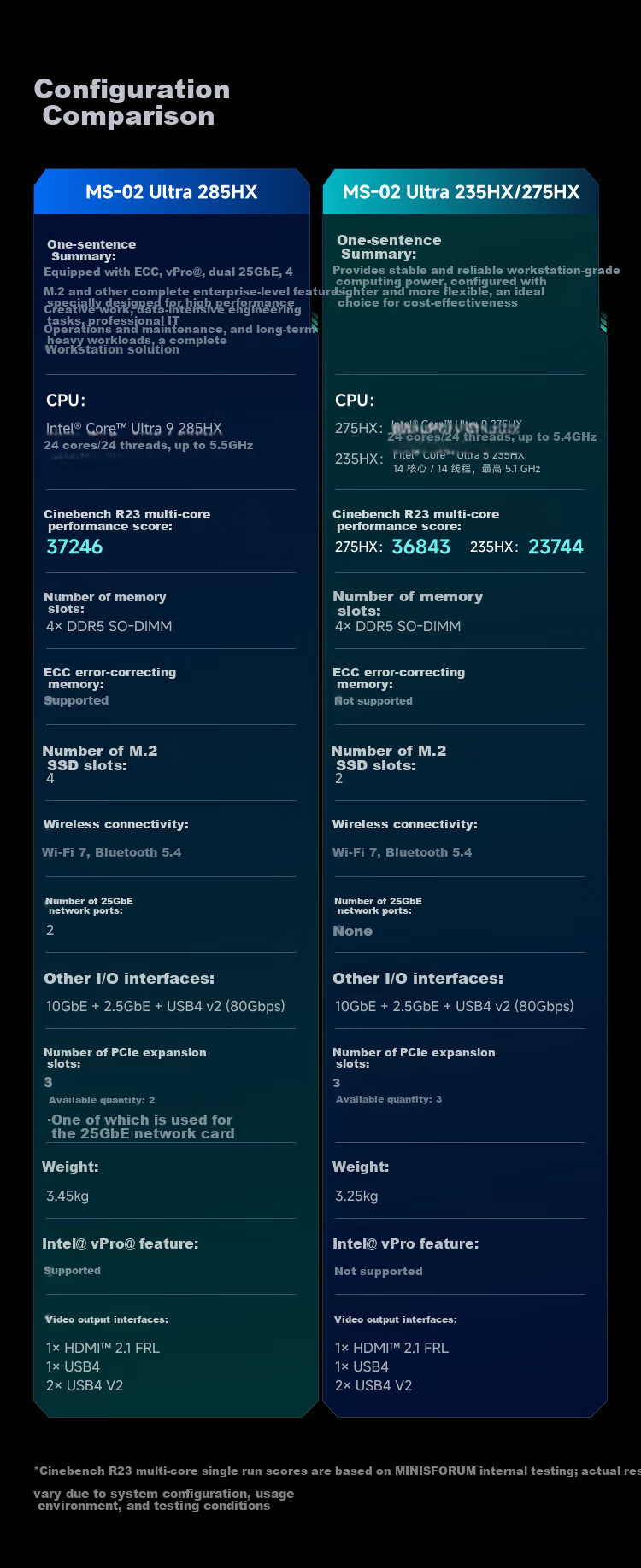

Performance benchmarks (Cinebench R23) vary by model 285HX ~37246, 275HX ~36843, 235HX ~23744 (multi-core scores). This product is designed for creative work, data-intensive engineering tasks, professional IT operations, and long-duration heavy workloads, providing a compact yet powerful mini workstation solution.
