Durable, thickened rubber tire with anti-slip tread pattern
Vertical positioning pin for precise start point marking
Foldable and retractable design for easy storage and portability
Suitable for various terrains and applications including land surveying, road construction, cable laying, farmland development, engineering, and garden measurement

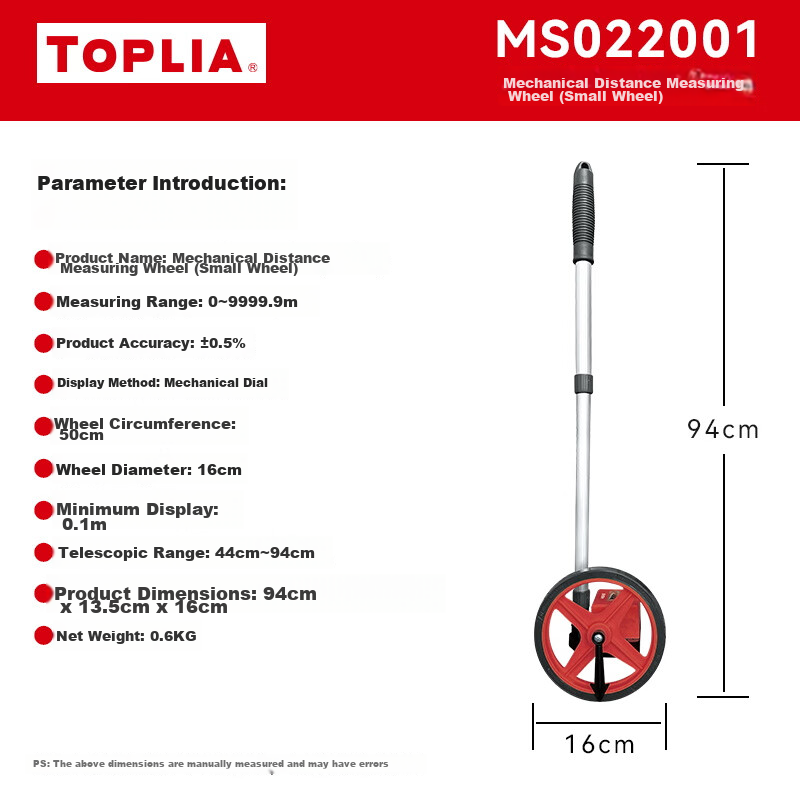

| Retractable Range | 44 cm to 94 cm (retractable) | 49.5 cm to 96 cm (foldable) |
| Measurement Accuracy | ±0.5% | ±0.5% |
| Measurement Range | 0–9999.9 m/ft | 0–9999.9 m/ft |
| Material | PC + ABS + POM | ABS + Aluminum Rod |
| Display Type | Mechanical dial | Mechanical dial |
| Drive Mechanism | Gear-driven | Gear-driven |
| Minimum Display Unit | 0.1 m / 0.1 ft | 0.1 m / 0.1 ft |
| Aluminum Rod Diameter | 16/19/22 mm | 22 mm |
| Product Dimensions | 94 x 13.5 x 16 cm | 49.5 x 32 x 17 cm |
| Net Weight | 0.6 kg | 1.16 kg |

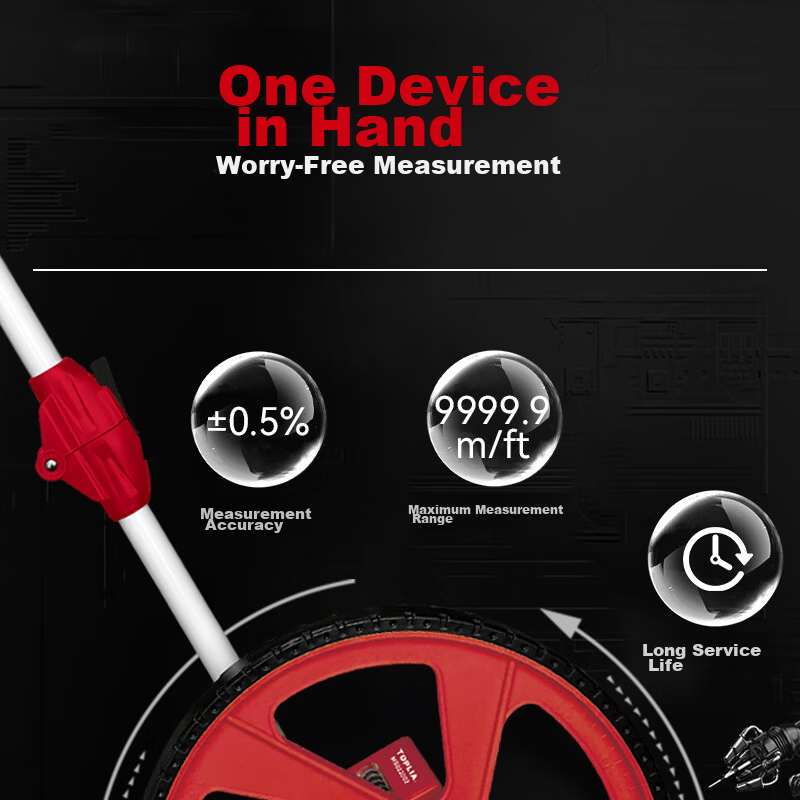

Large measurement range up to 9999.9 meters

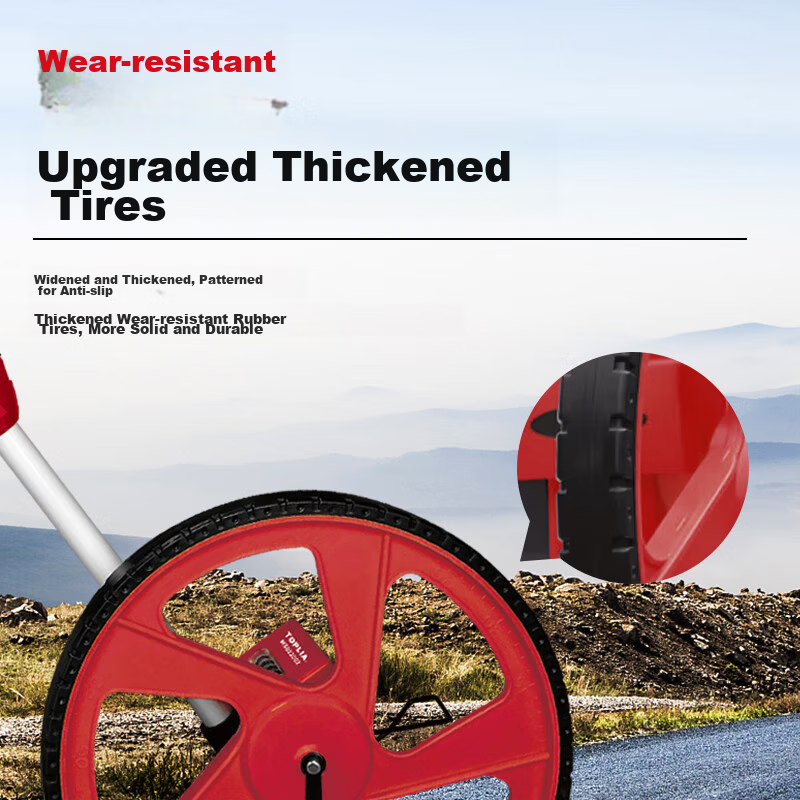

Thickened, wear-resistant rubber tire with widened and anti-slip tread for enhanced durability and stability
Precision-machined gear counter ensures accurate and reliable measurement readings

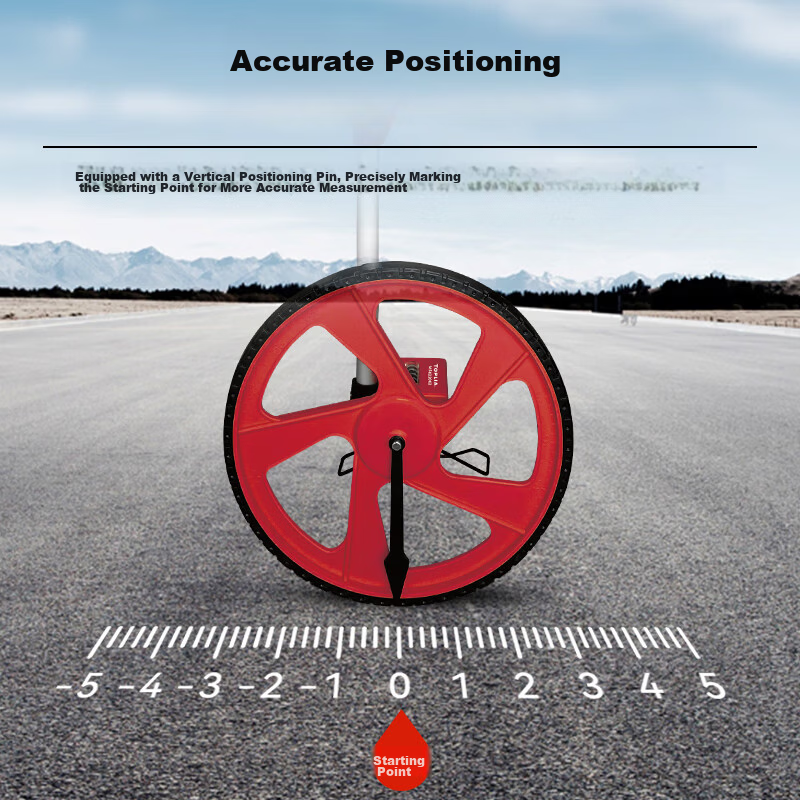

Vertical positioning pin allows accurate marking of the starting point for improved measurement precision
Mechanical dial display for easy reading of measurements
Foldable (large wheel) and retractable (small wheel) designs for convenient storage and transport
One-button reset for quick zeroing of the counter
Additional details
1. Wall-to-wall measurement
Place the measuring wheel on the ground with the rear wheel against the starting surface; roll the wheel straight until it reaches the end surface; record the dial reading and add the wheel diameter (2R) for the correct distance.
2. Wall-to-point measurement
Place the wheel on the ground with the rear wheel against the starting surface; roll until the positioning pin aligns with the endpoint; record the dial reading and add the wheel radius (R) for the correct distance.
3. Point-to-point measurement
Place the wheel on the ground with the positioning pin aligned to the start point; roll until the pin aligns with the endpoint; record the dial reading as the correct distance.
Do not disassemble the device unless you are a professional.
Avoid strong impacts, shocks, or drops to prevent damage.
Clean the rubber parts after use to prevent corrosion and extend service life.
Remove batteries if the device will not be used for a long time to avoid leakage.
