UNV Technology 5-Port 100Mbps Industrial Enterprise Ethernet Switch LSW-1105

UNV Technology 5-Port 100Mbps Industrial Enterprise Ethernet Switch LSW-1105

CN¥28.00

SKU: 100309278960

Status:In Stock (19)

ID: 100309278960

Weight: 140.00 g

Dims:94x86x54 mm

Specifications

Network Management Type: Non-managed
Number of Ports: 5 ports
Power over Ethernet (PoE): Non-POE power supply
Cooling method: Natural heat dissipation
Uplink port rate: 100Mbps
Port Type: Electrical port
Downlink Port Rate: Thousands of megabytes

Variants / Sale Attributes

Color: 5port 100Mbps switch

Version: Plug and play | Silent design | Green and energysaving

Package Contents

Not available

Product Description

Product Specifications

Overview

Brand: UNV (Uniview)

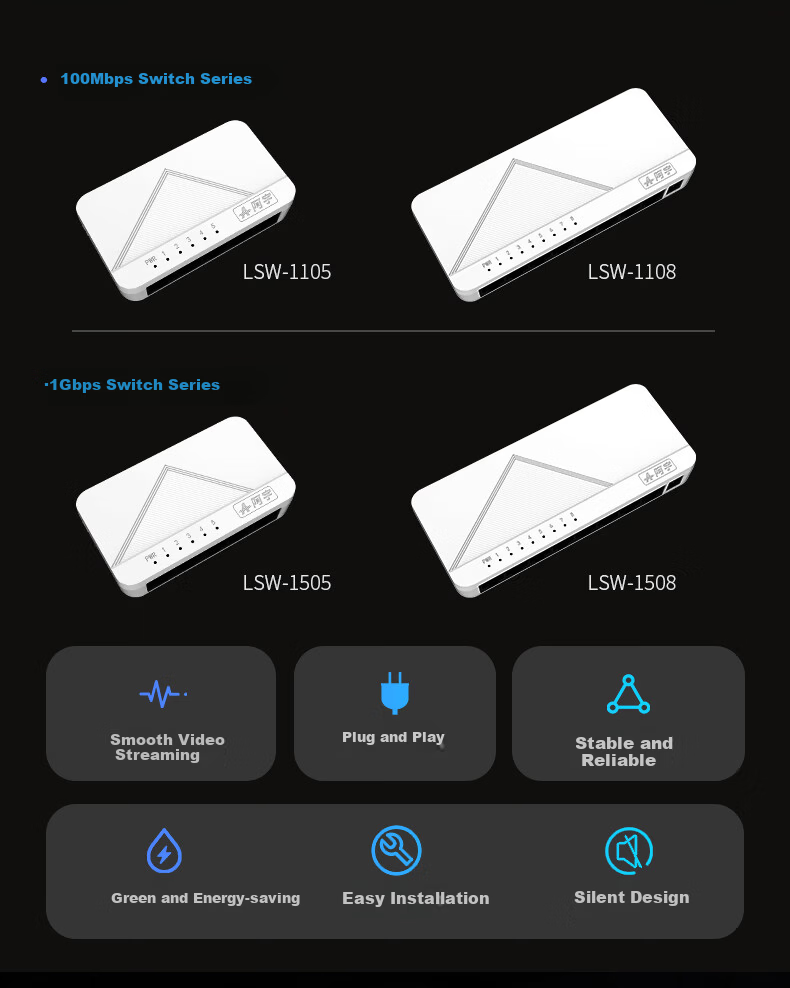

100Mbps Plastic Shell Switch Series: LSW-1105 (5-port), LSW-1108 (8-port)
Gigabit Plastic Shell Switch Series: LSW-1505 (5-port), LSW-1508 (8-port)

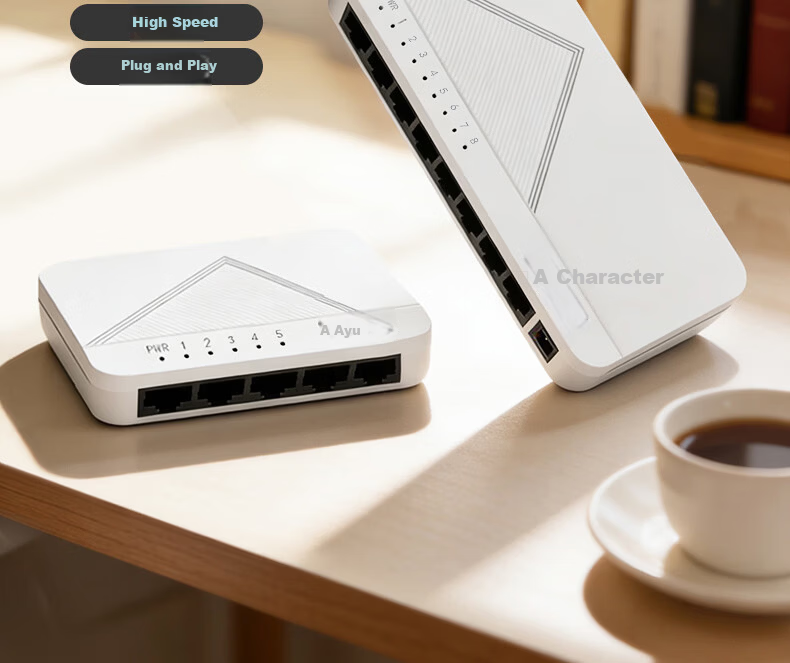

Compact and versatile design suitable for home and office use

Stable and high-speed data forwarding with plug-and-play functionality

Supports 5 or 8 port access configurations

Green energy-saving design with low power consumption

Silent operation with no fan

Additional details

Easy installation: desktop or wall-mounted

Compatible with computers, printers, IP cameras, smart TVs, and other network devices

Similar Products

In Stock

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

In Stock

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

Supports full-duplex and half-duplex auto-negotiation

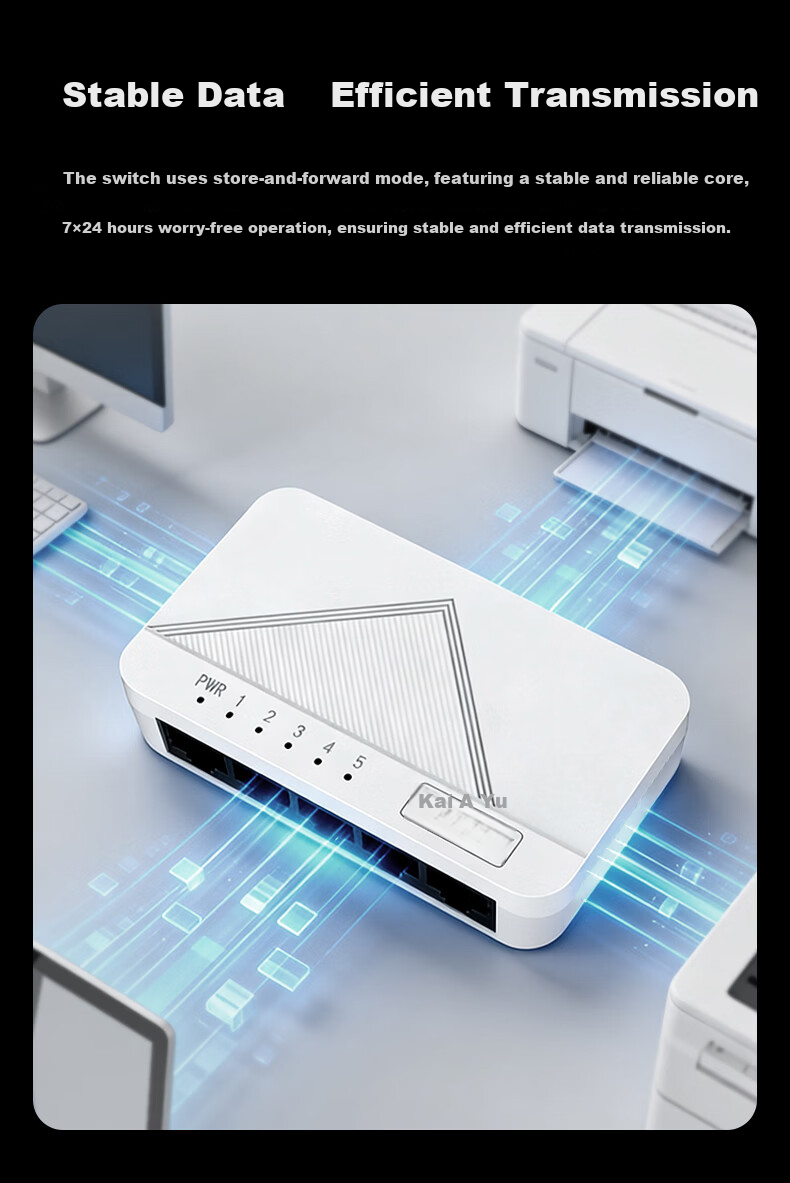

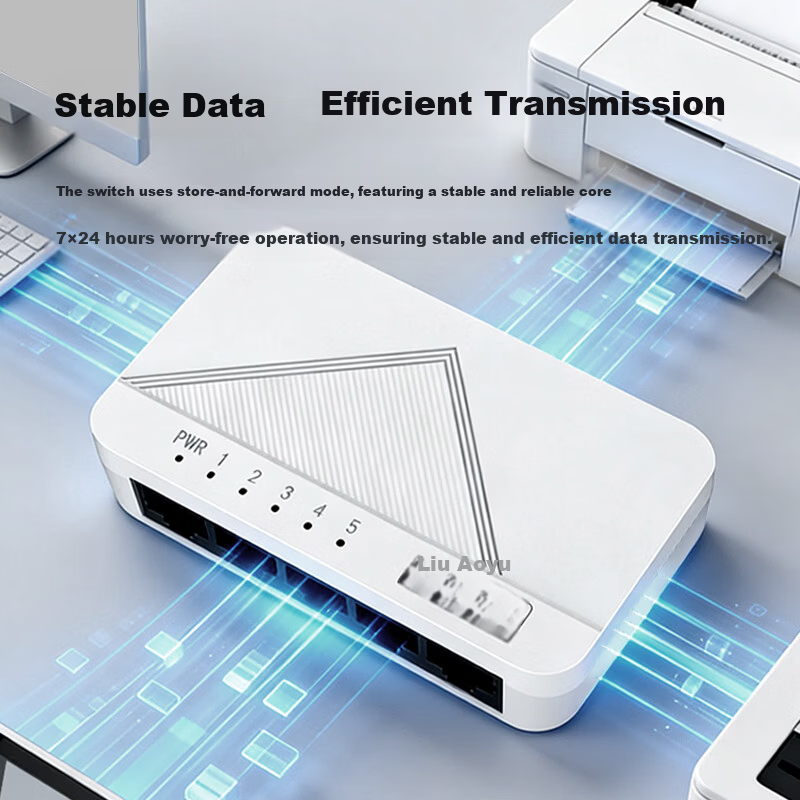

Storage and forwarding switching mode for stable and efficient data transmission

7×24 hours continuous operation capability

Additional details

Built-in professional lightning protection: 4KV ESD and 2KV surge protection

Supports jumbo frames up to 15K bytes

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet, for gigabit models)

IEEE 802.3x (Flow control)

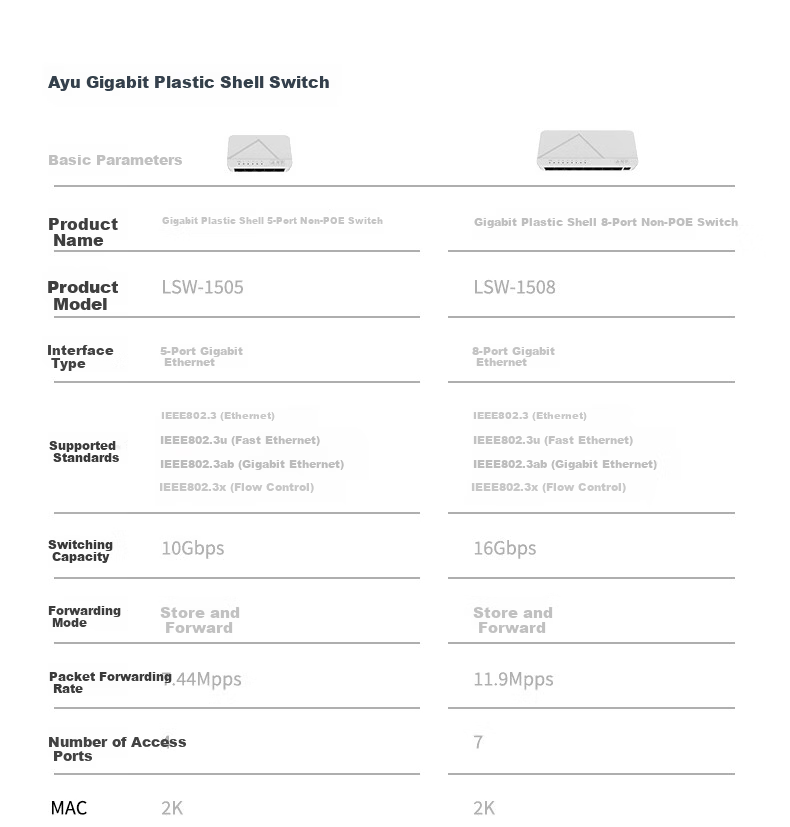

1. Gigabit Plastic Shell Switches

Additional details

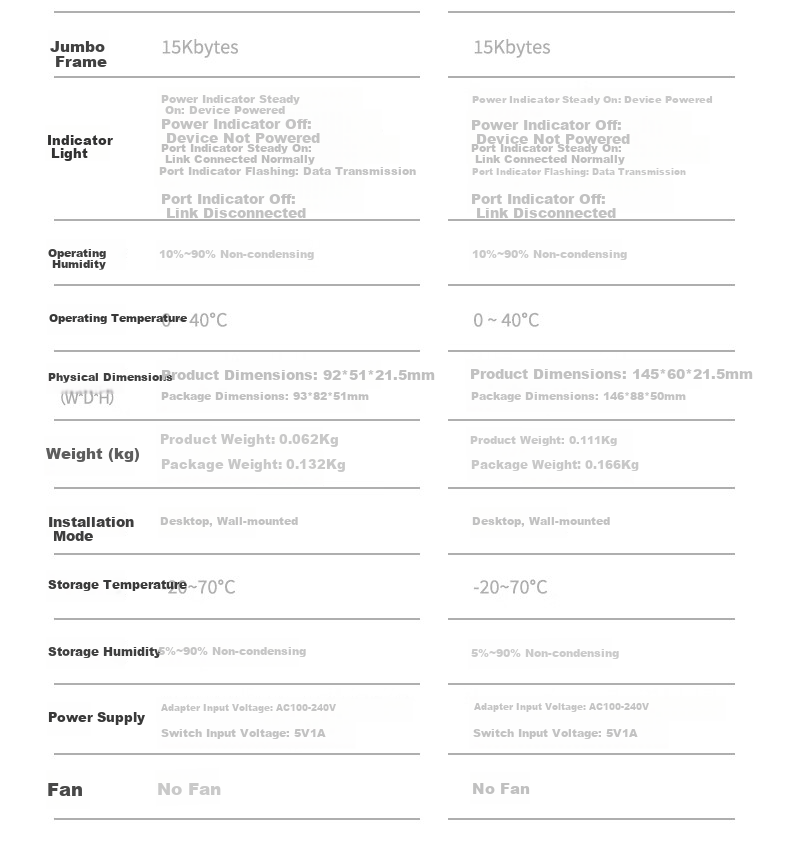

Model: LSW-1505
Ports: 5 x Gigabit Ethernet (10/100/1000 Mbps)
Switching Capacity: 10 Gbps
Forwarding Rate: 7.44 Mpps
MAC Address Table: 2K entries
Access Ports: 4

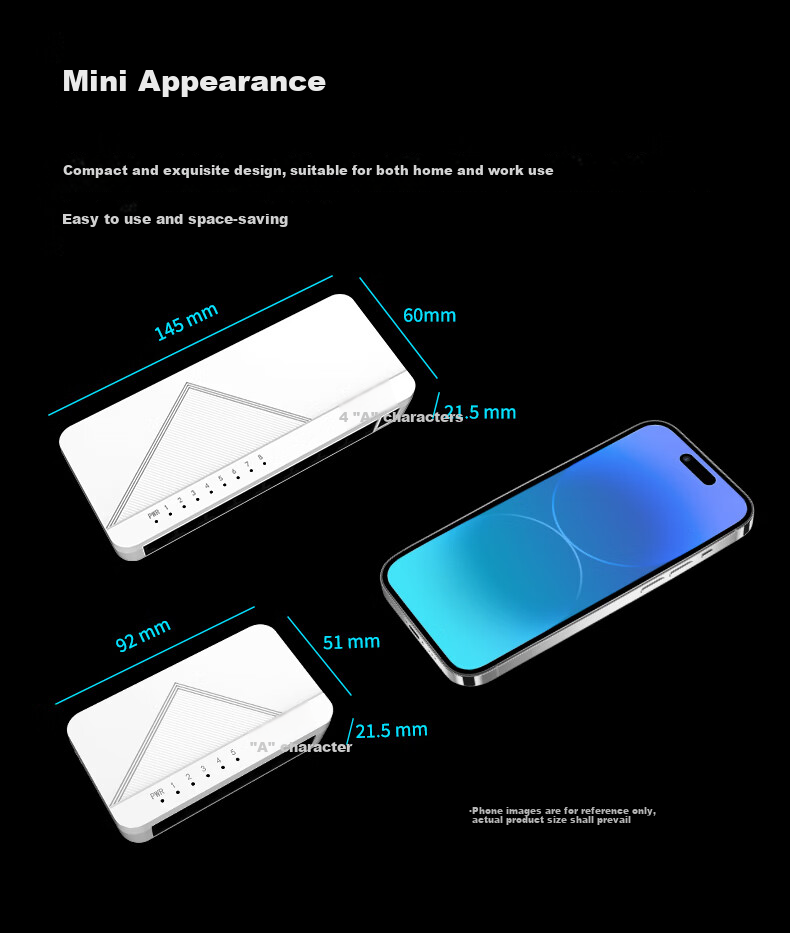

Dimensions (W×D×H): 92 × 51 × 21.5 mm
Weight: 0.062 kg (product), 0.132 kg (packaged)

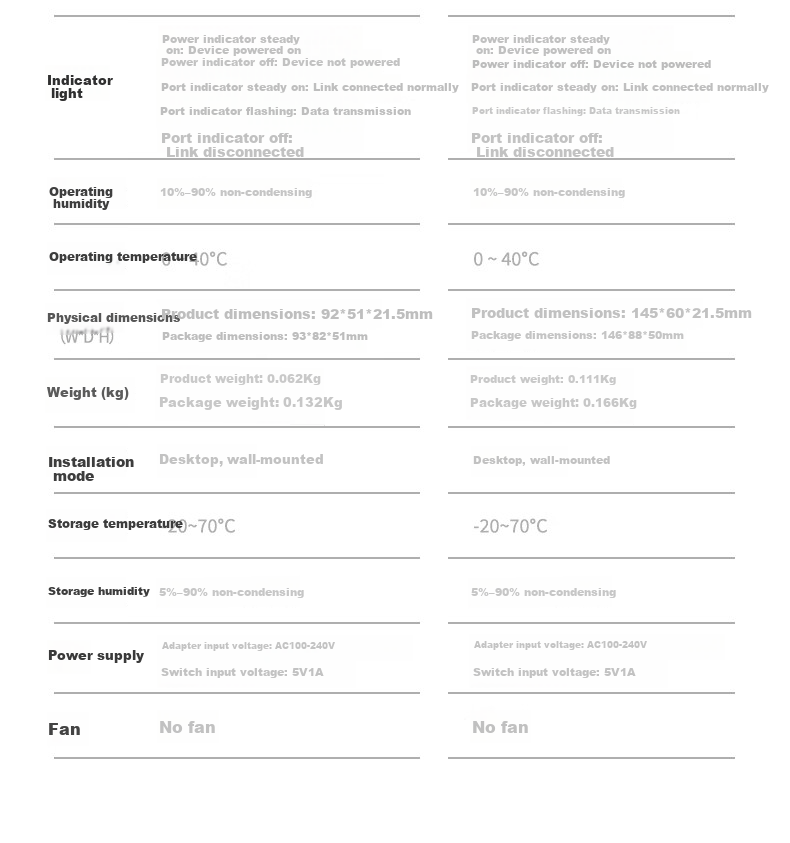

Operating Temperature: 0 to 40 °C
Operating Humidity: 10% to 90% non-condensing
Storage Temperature: -20 to 70 °C
Storage Humidity: 5% to 90% non-condensing
Power Input: Adapter AC 100-240V; Switch input 5V 1A
Installation: Desktop or wall mount
Indicators: Power LED (steady on = powered), Port LEDs (steady on = link, blinking = data transfer, off = no link)
Fan: None
Model: LSW-1508
Ports: 8 x Gigabit Ethernet (10/100/1000 Mbps)
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
MAC Address Table: 2K entries
Access Ports: 7
Dimensions (W×D×H): 145 × 60 × 21.5 mm
Weight: 0.111 kg (product), 0.166 kg (packaged)

Other specifications same as LSW-1505

2. 100Mbps Plastic Shell Switches

Additional details

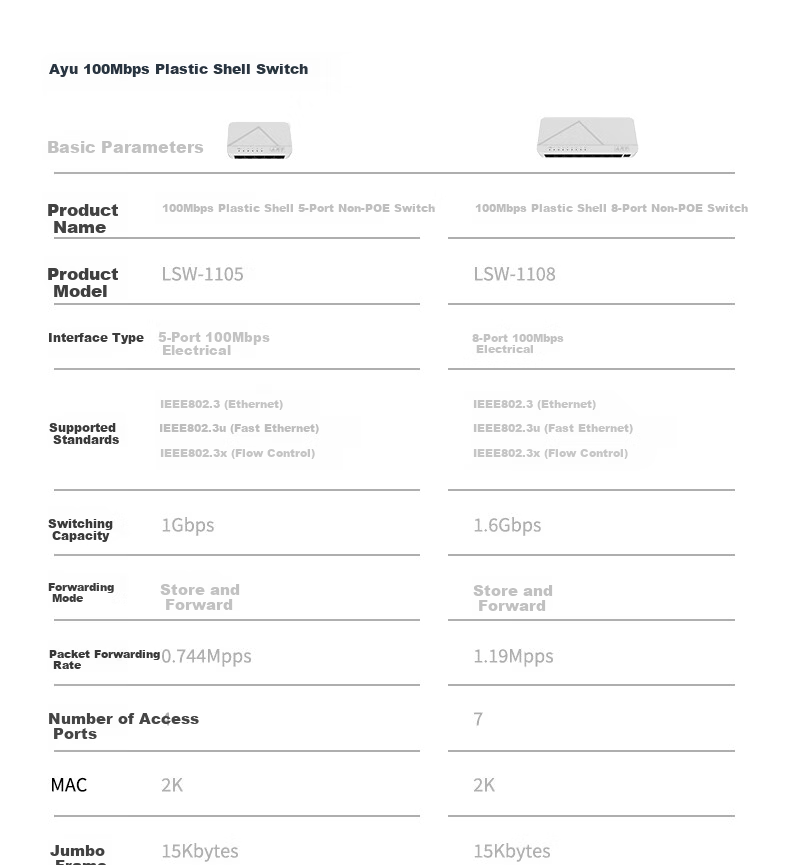

Model: LSW-1105
Ports: 5 x 10/100 Mbps Ethernet
Switching Capacity: 1 Gbps
Forwarding Rate: 0.744 Mpps
MAC Address Table: 2K entries
Access Ports: 4
Dimensions (W×D×H): 92 × 51 × 21.5 mm
Weight: 0.062 kg (product), 0.132 kg (packaged)
Operating Temperature: 0 to 40 °C
Operating Humidity: 10% to 90% non-condensing
Storage Temperature: -20 to 70 °C
Storage Humidity: 5% to 90% non-condensing
Power Input: Adapter AC 100-240V; Switch input 5V 1A
Installation: Desktop or wall mount
Indicators: Power LED (steady on = powered), Port LEDs (steady on = link, blinking = data transfer, off = no link)
Fan: None
Model: LSW-1108
Ports: 8 x 10/100 Mbps Ethernet
Switching Capacity: 1.6 Gbps
Forwarding Rate: 1.19 Mpps
MAC Address Table: 2K entries
Access Ports: 7
Dimensions (W×D×H): 145 × 60 × 21.5 mm
Weight: 0.111 kg (product), 0.166 kg (packaged)

Other specifications same as LSW-1105

Supports jumbo frames up to 15K bytes

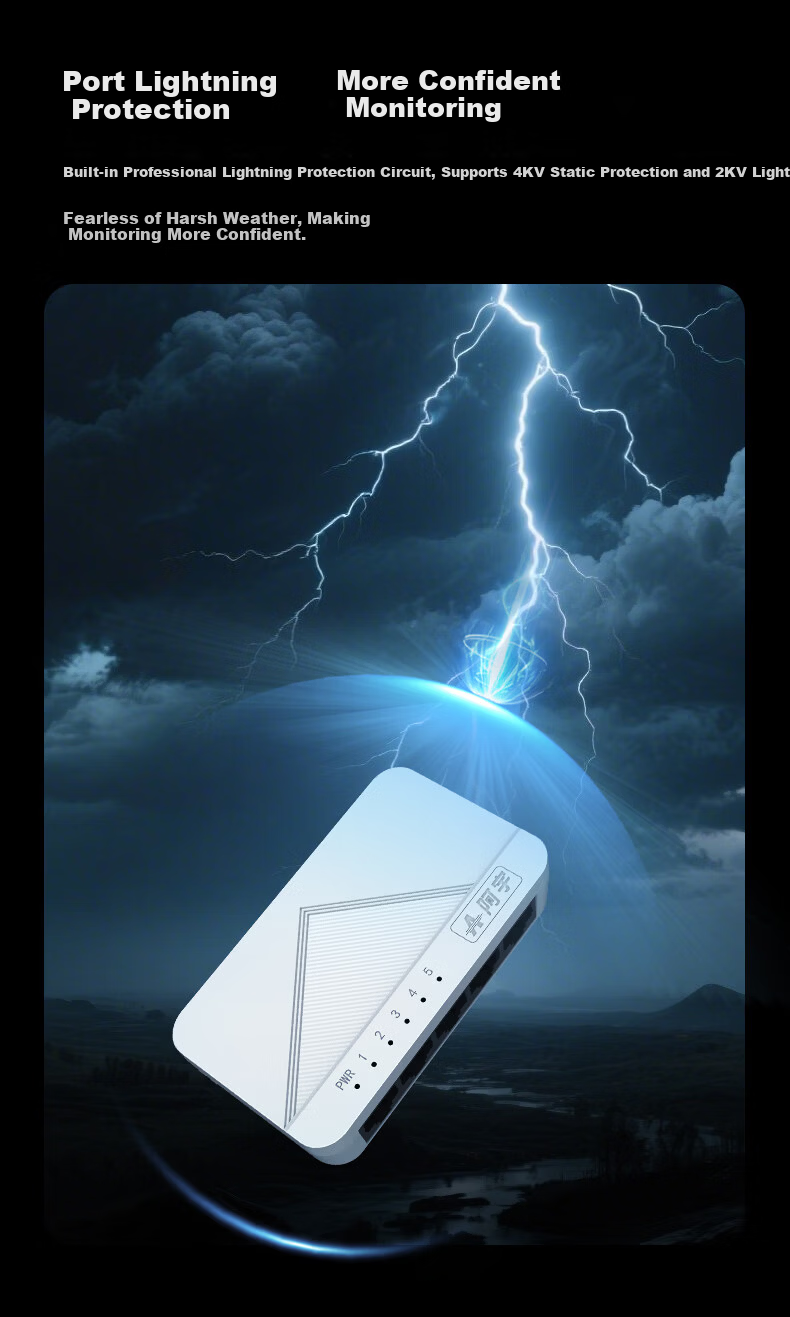

Port lightning protection ensures reliable monitoring in harsh weather

Linear speed increase without packet loss or delay

Suitable for home, small office, campus, factory, and security applications

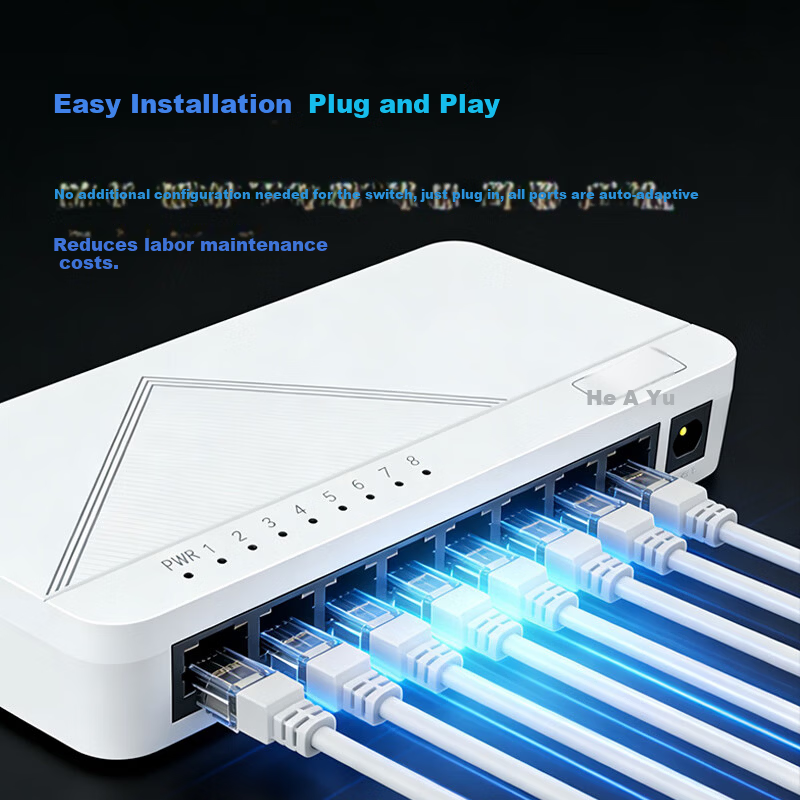

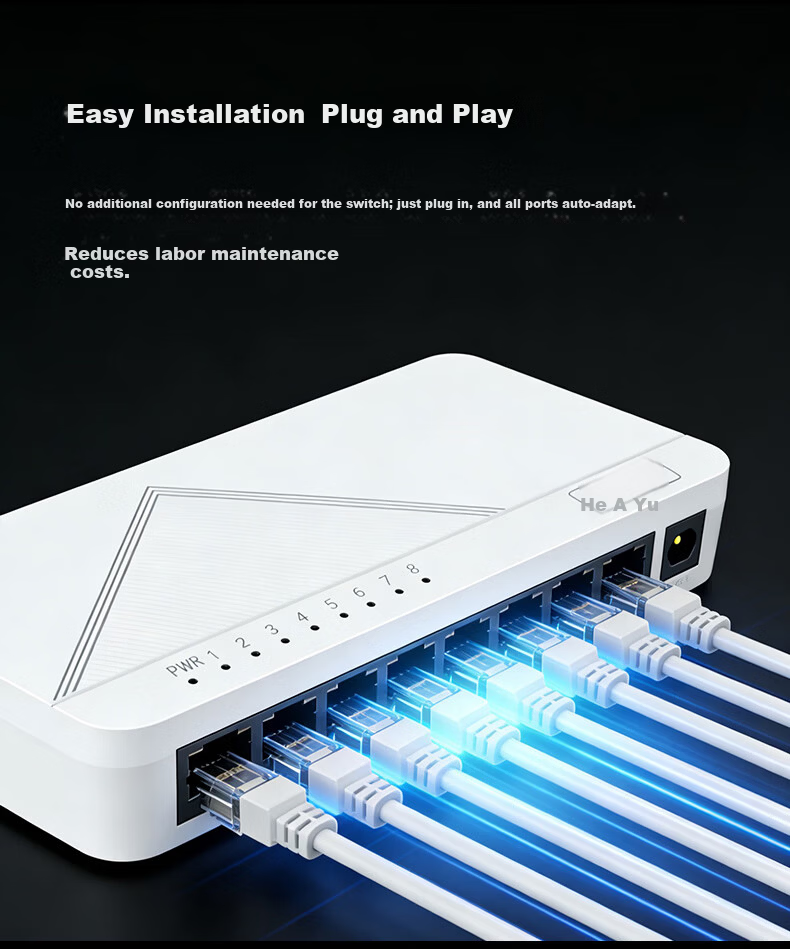

Plug and play with no additional configuration required

Supports full compatibility with various network devices

Dimensions and weights are approximate; actual product specifications may vary.
