Back to CatalogLoxin ESP Development Board ESP32-C3-WROOM-02-N4 Main Chip ESP32-C3 Student IoT ESP Development Board
Package Contents
One main product
Product Description

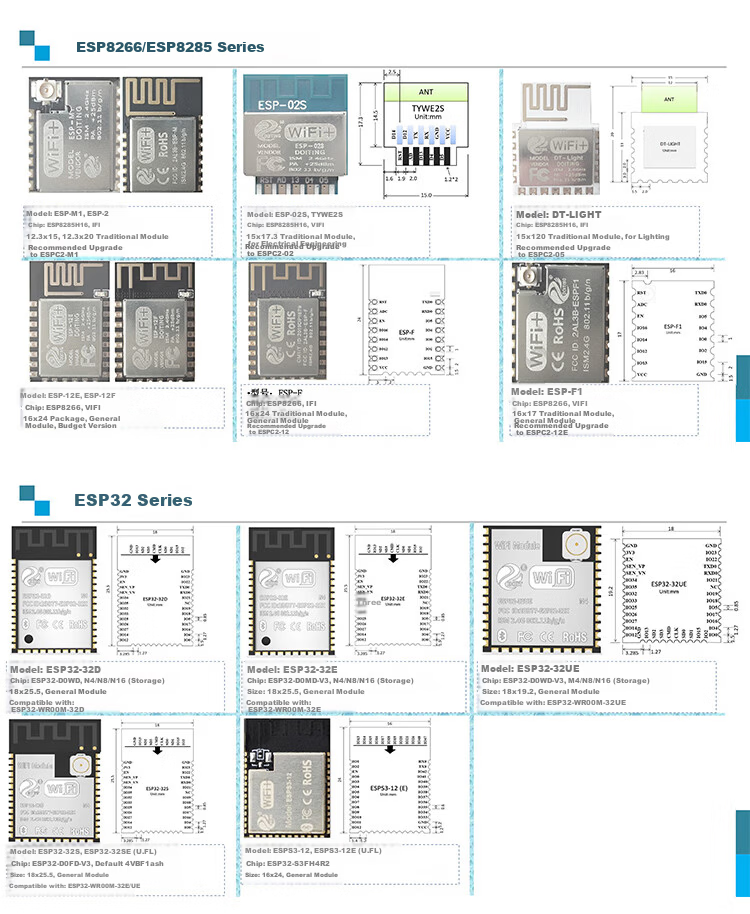

ESP8266/ESP8285 Series
| Item | Detail |
|---|
| Models | ESP-02S, TYWE2S, ESP-M1, ESP-2, DT-LIGHT, ESP-12E, ESP-12F, ESP-F1 |
| Chipsets | ESP8285H16, ESP8266 |
| Package Sizes | 12.3x15 mm, 12.3x20 mm, 15x17.3 mm, 15x120 mm, 16x24 mm, 16x17 mm |
| Features | Traditional modules, general-purpose modules, low-cost versions, modules for electrical and lighting applications |
| Recommended Upgrades | ESPC2-M1, ESPC2-02, ESPC2-05, ESPC2-12, ESPC2-12E |
Similar Products
In Stock
Out of Stock
In Stock
| Models | ESP32-32D, ESP32-32E, ESP32-32UE, ESP32-32S, ESP32-32SE (U.FL), ESPS3-12, ESPS3-12E (U.FL) |
| Chipsets | ESP32-D0WD, ESP32-D0MD-V3, ESP32-D0FD-V3, ESP32-S3FH4R2 |
| Storage Options | N4/N8/N16 (various storage capacities) |
| Package Sizes | 18x25.5 mm, 18x19.2 mm, 16x24 mm |
| Features | General-purpose modules, compatibility with ESP32-WR00 M series modules |

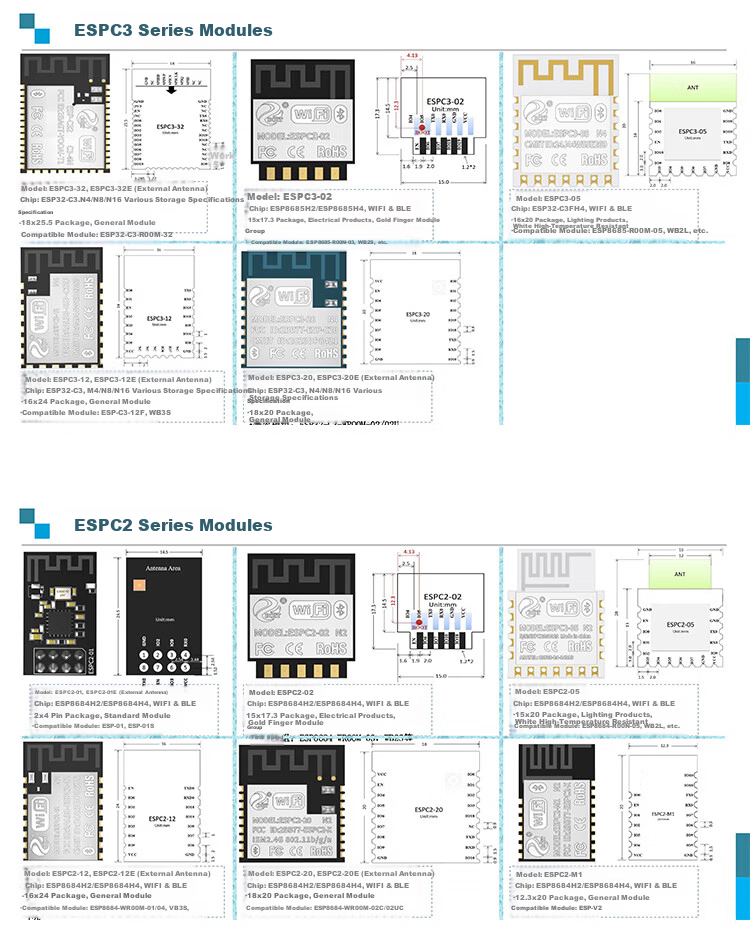

ESPC3 Series
| Item | Detail |
|---|
| Models | ESPC3-02, ESPC3-05, ESPC3-12, ESPC3-12E (external antenna), ESPC3-20, ESPC3-20E (external antenna) |
| Chipsets | ESP32-C3, ESP8685H2, ESP8685H4, ESP32-C3FH4 |
| Storage Options | N4/N8/N16 |
| Package Sizes | 18x25.5 mm, 15x17.3 mm, 16x20 mm, 16x24 mm, 18x20 mm |
| Features | General-purpose modules, modules for electrical and lighting applications, high-temperature resistant white modules |
| Compatible Modules | ESP32-C3-R00 M-32, ESP8685-R00 M-05, ESP8685-R00N-03, WB2L, WB2S, WB3S |
ESPC2 Series
| Item | Detail |
|---|
| Models | ESPC2-01, ESPC2-01E (external antenna), ESPC2-02, ESPC2-05, ESPC2-12, ESPC2-12E (external antenna), ESPC2-20, ESPC2-20E (external antenna), ESPC2-M1 |
| Chipsets | ESP8684H2, ESP8684H4 |
| Features | WiFi & BLE support, 2x4 pin package, modules for electrical and lighting applications, white high-temperature resistant modules |
| Package Sizes | 15x17.3 mm, 15x20 mm, 16x24 mm, 18x20 mm, 12.3x20 mm |
| Compatible Modules | ESP-01, ESP-01S, ESP8684-R00N-05, ESP8684-WR00 M series, ESP-V2 |

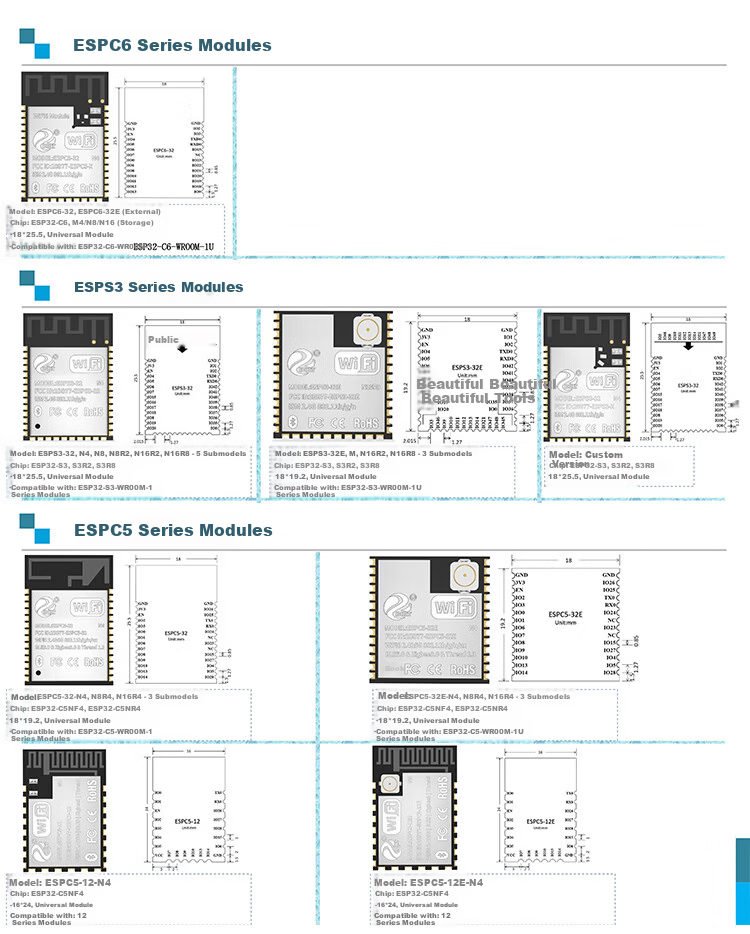

ESPC6 Series
| Item | Detail |
|---|
| Models | ESPC6-32, ESPC6-32E (external antenna) |
| Chipset | ESP32-C6 |
| Storage Options | M4/N8/N16 |
| Package Size | 18x25.5 mm |
| Compatible Modules | ESP32-C6-WR00 M-1, ESP32-C6-WR00 M-1U |
ESPS3 Series
| Item | Detail |
|---|
| Models | ESPS3-32, ESPS3-32E |
| Chipsets | ESP32-S3 S3R2, S3R8 |
| Storage Options | N4, N8, N8R2, N16R2, N16R8 |
| Package Sizes | 18x25.5 mm, 18x19.2 mm |
| Compatible Modules | ESP32-S3-WR00 M-1 series, ESP32-S3-WR00 M-1U series |
ESPC5 Series
| Item | Detail |
|---|
| Models | ESPC5-32-N4, N8R4, N16R4; ESPC5-32E-N4, N8R4, N16R4; ESPC5-12-N4, ESPC5-12E-N4 |
| Chipsets | ESP32-C5NF4, ESP32-C5NR4 |
| Package Size | 18x19.2 mm, 16x24 mm |
| Compatible Modules | ESP32-C5-WR00 M-1 series, ESP32-C5-WR00 M-1U series, 12 series modules |
WiFi and BLE connectivity
Various storage configurations (N4, N8, N16, M4)
Multiple package sizes tailored for general, electrical, and lighting applications
Compatibility with multiple ESPRESSIF module series for easy upgrades and replacements
High-temperature resistant modules available for lighting applications
External antenna options available for enhanced connectivity
Dimensions are in millimeters (mm).
