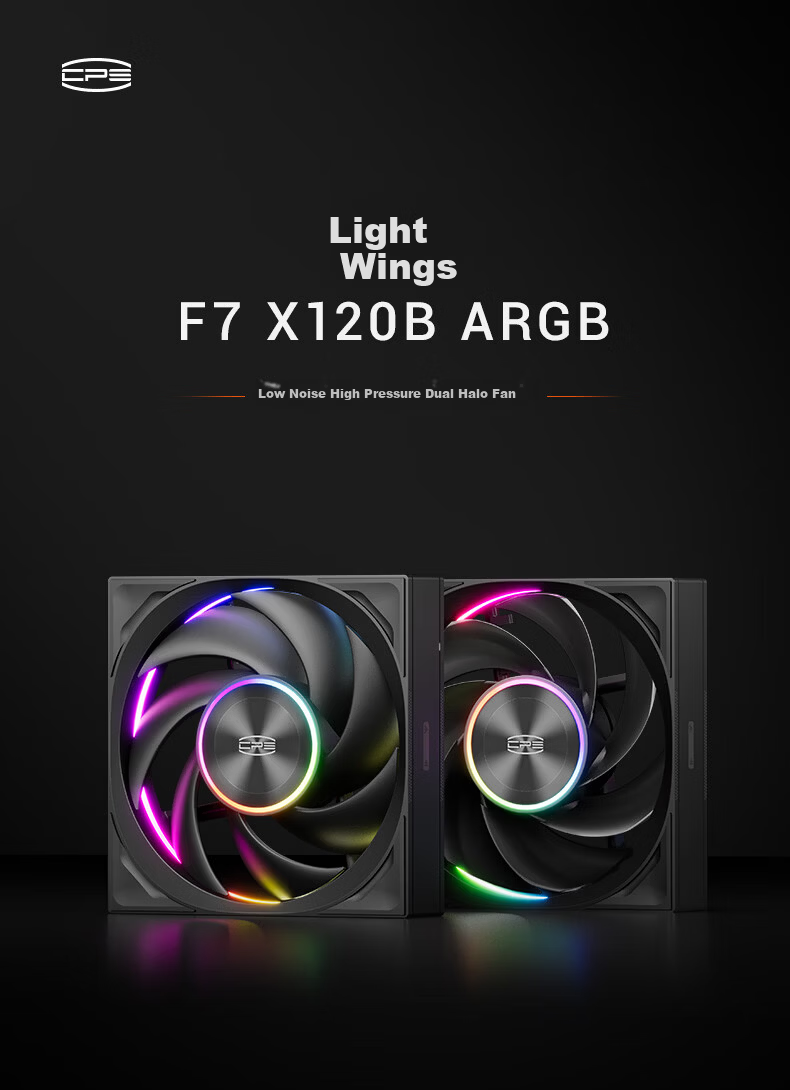

Back to CatalogPCCOOLER Wing F7 X120B ARGB Black 12cm Case Fan High Air Pressure Dual Ring Fan RGB Sync PWM Temperature Control Dual Ball Bearing
Specifications
- Type
- chassis fan
- Lighting Effects
- ARGB
- Number of heat pipes
- No
- Fan connection method
- Wired connection
Variants / Sale Attributes
Color: [Nonblock Version Genuine Leaf Single Pack] Black
Package Contents
Fan x1, Case screws x4, Water cooling radiator screws x4
Product Description

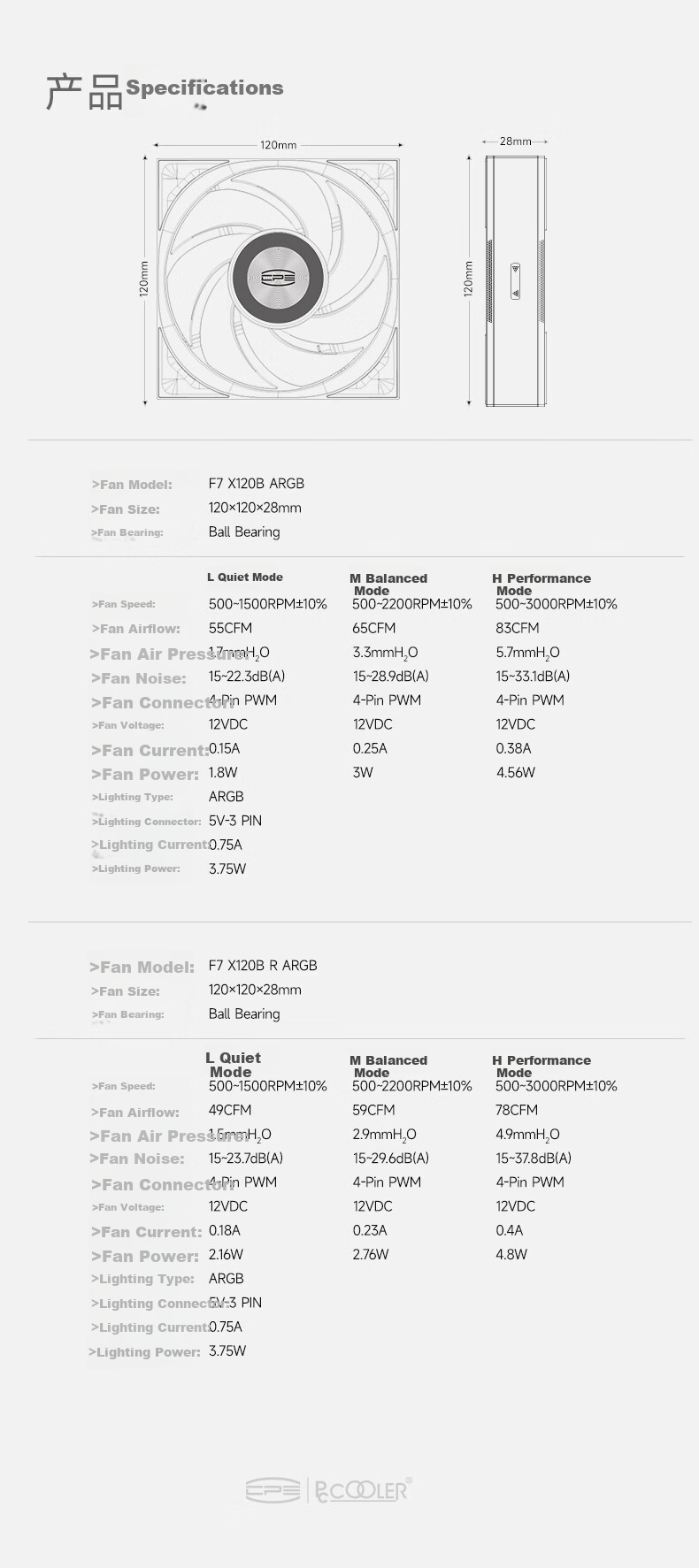

Product Specifications
Overview
- Brand
- PCCOOLER
- Model Series
- Guangyi F7 X120B ARGB
- Product Type
- Low-noise, high static pressure dual-ring ARGB fan
- Fan Dimensions
- 120 × 120 × 28 mm

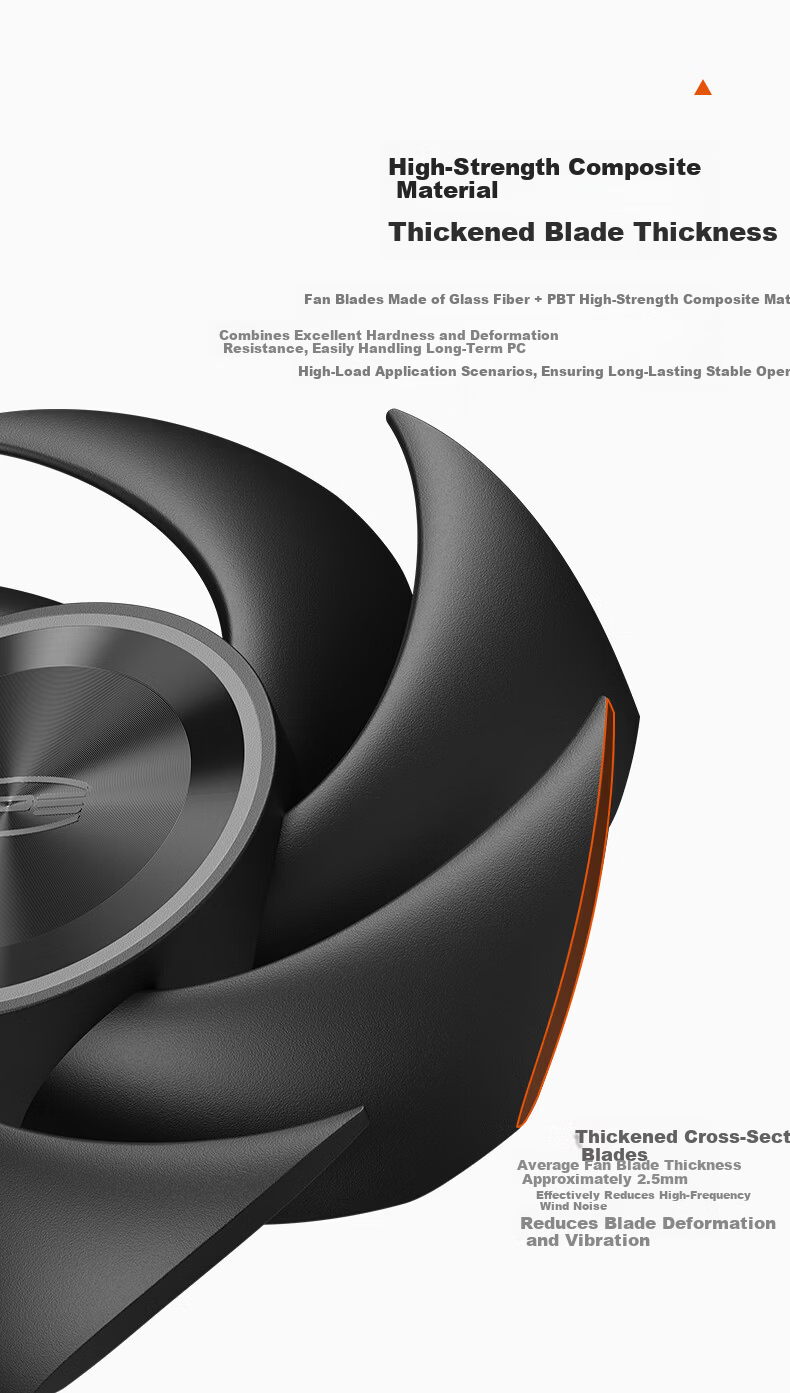

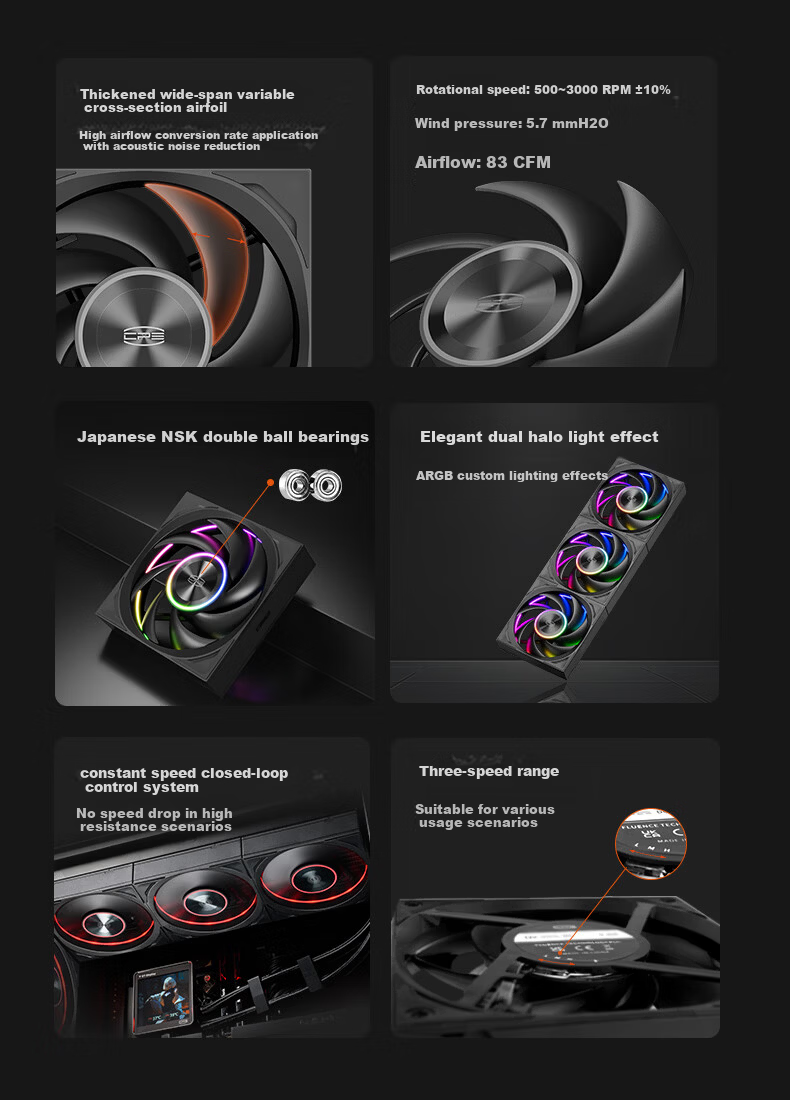

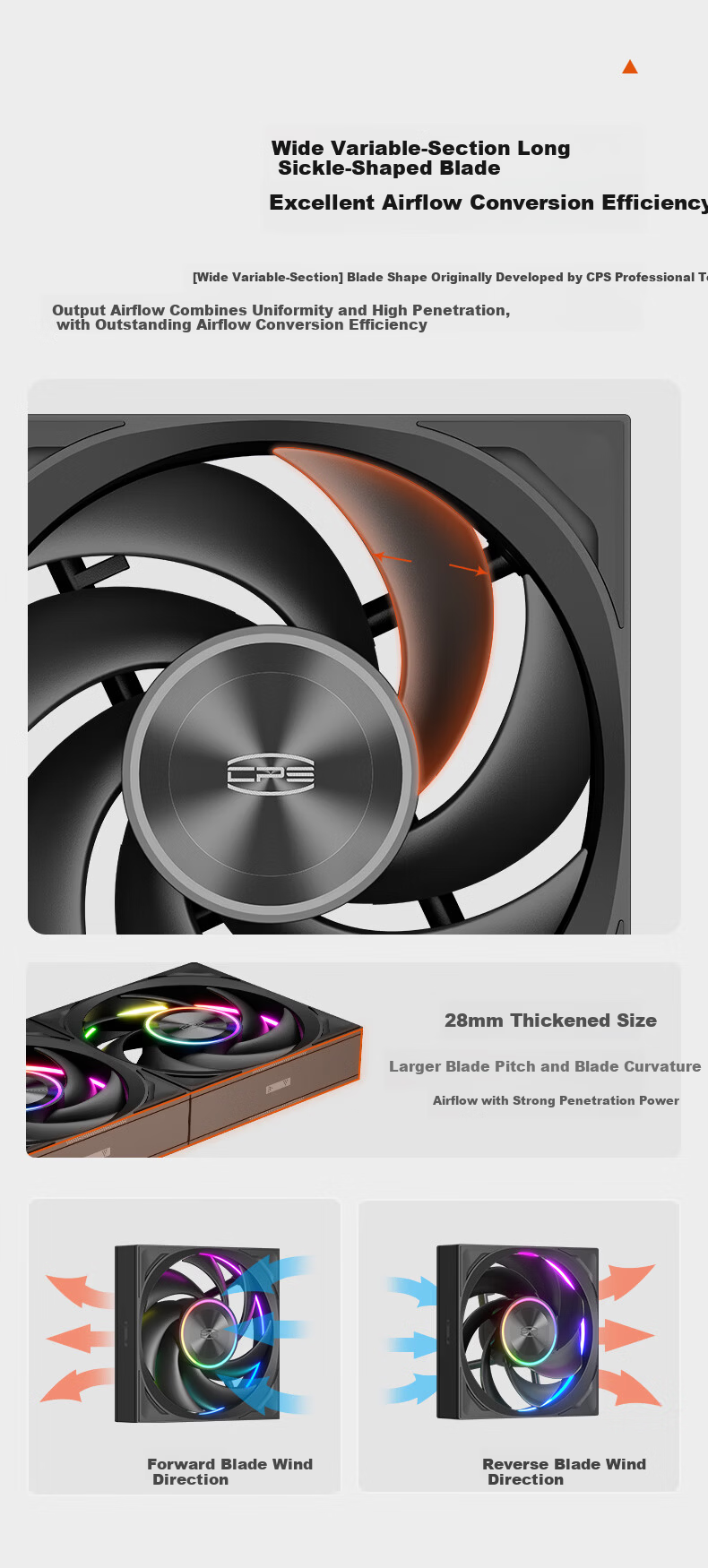

Thickened wide variable cross-section long sickle-shaped blades
Blade thickness approx. 2.5 mm
Glass fiber + PBT high-strength composite material for durability and reduced deformation
Positive and reverse blade direction options available
Similar Products
Out of Stock
In Stock

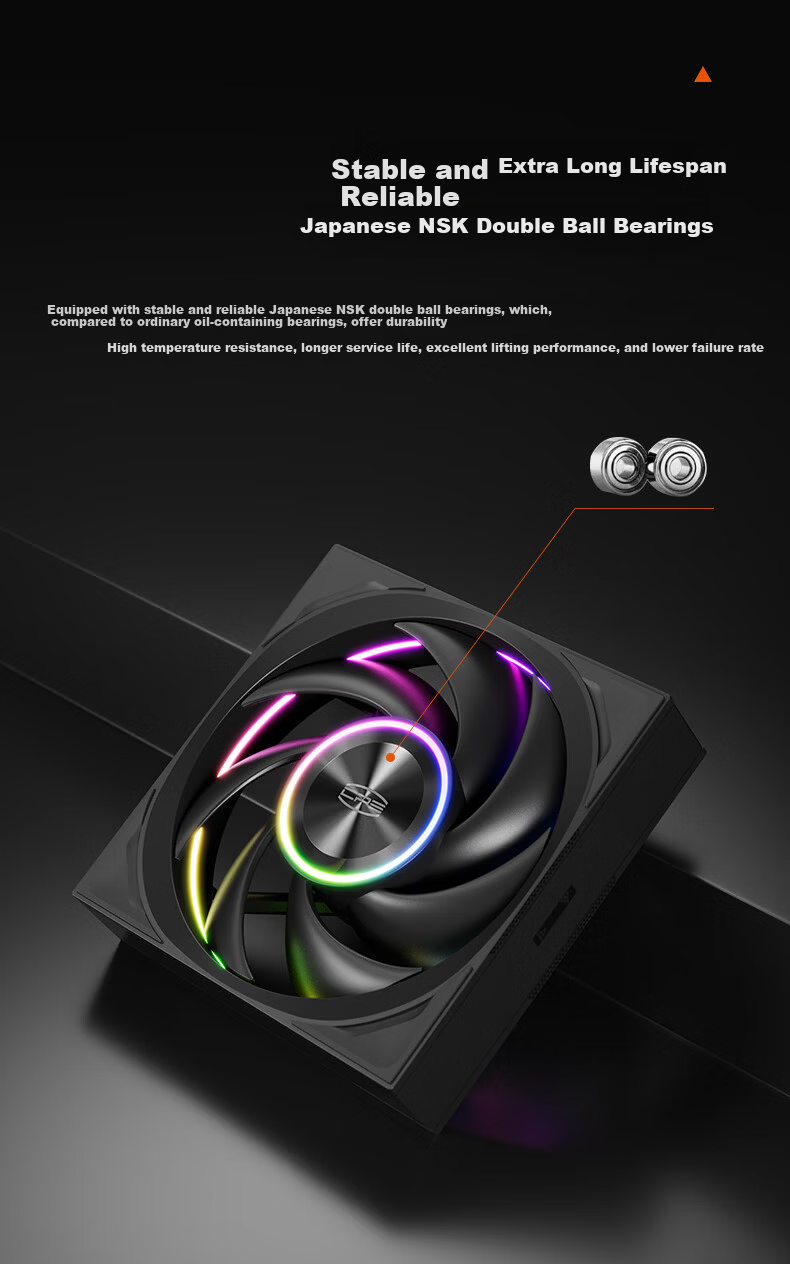

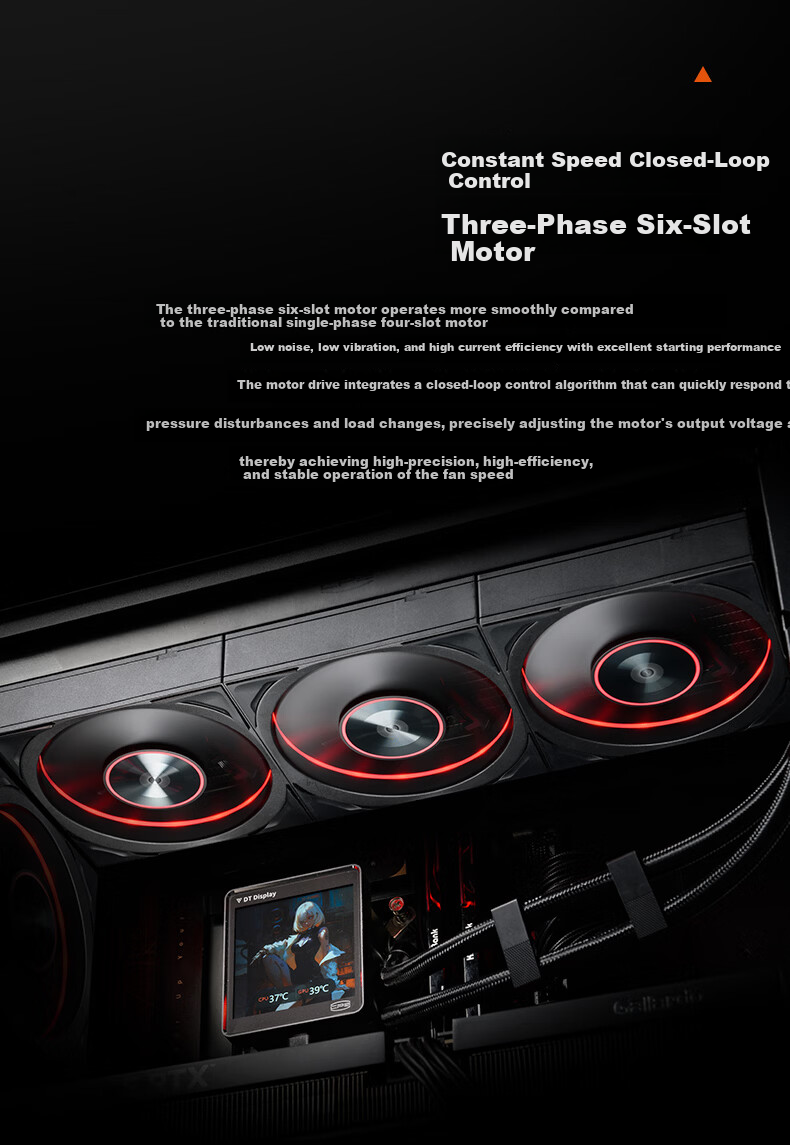

Three-phase six-slot motor for stable operation, low noise, low vibration, and high efficiency
Integrated closed-loop control algorithm for precise speed regulation under varying loads and pressure disturbances
Additional details

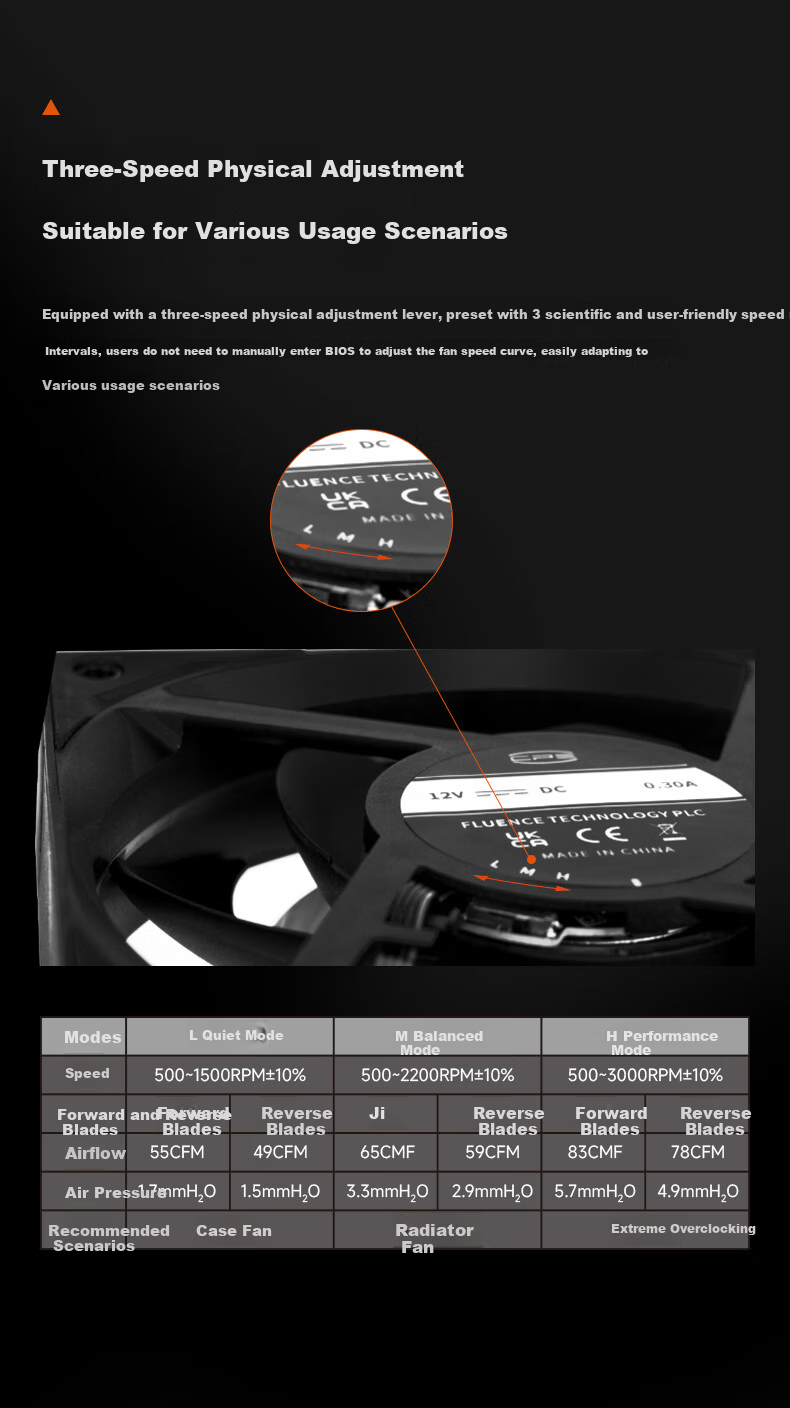

- Three physical speed settings via toggle switch
- Quiet (L), Balanced (M), Performance (H)
Speed ranges
| Item | Detail |
|---|
| Quiet mode | 500–1500 RPM ±10% |
| Balanced mode | 500–2200 RPM ±10% |
| Performance mode | 500–3000 RPM ±10% |
Stable speed under high resistance scenarios
Additional details
- Maximum airflow
- up to 83 CFM (varies by model and mode)
- Maximum static pressure
- up to 5.7 mmH2O (varies by model and mode)

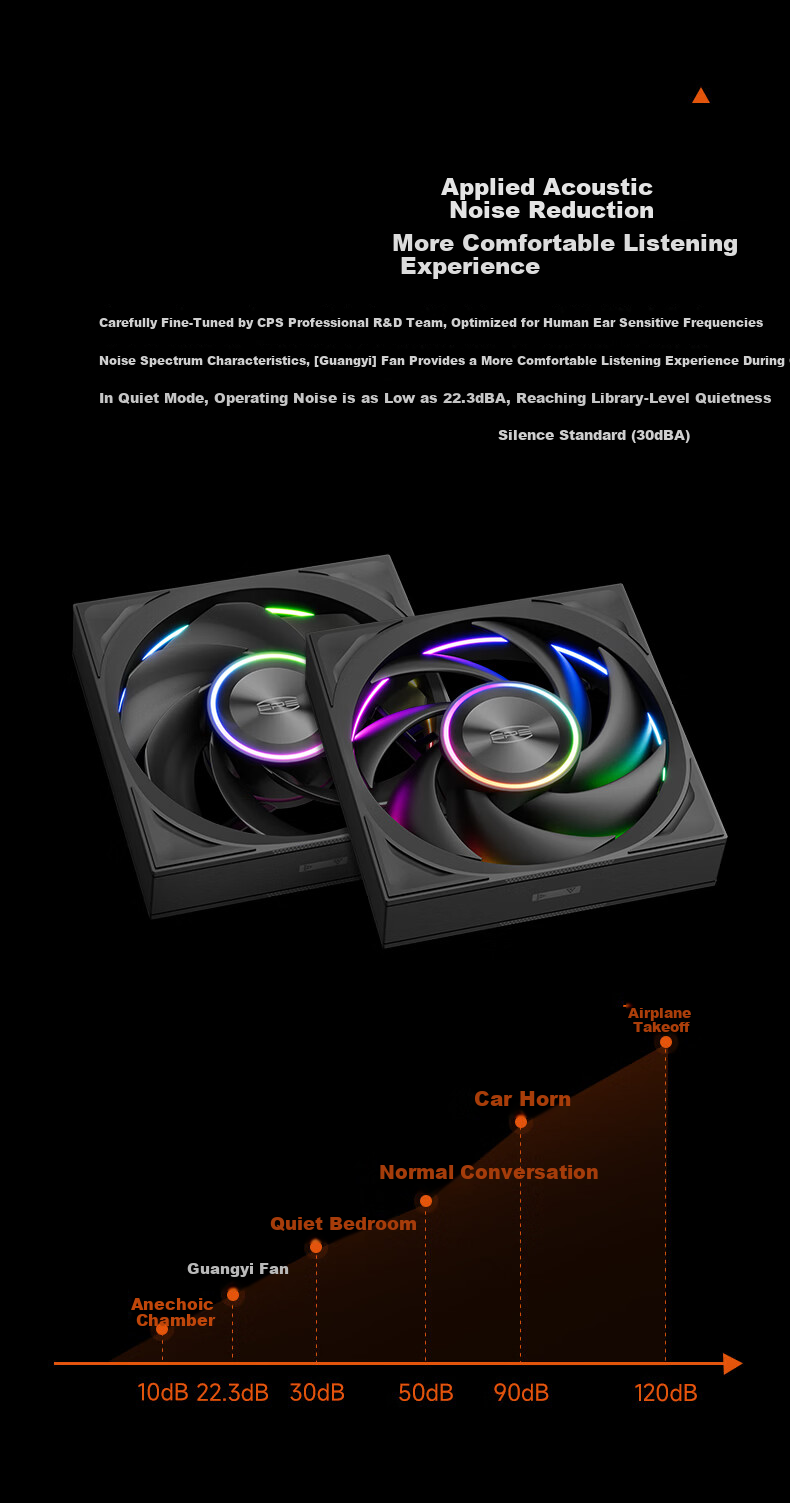

Quiet mode noise as low as 22.3 dBA (library-level quiet)
Noise ranges
| Item | Detail |
|---|
| Quiet mode | 15–22.3 dBA |
| Balanced mode | 15–29.6 dBA |
| Performance mode | 15–37.8 dBA |
Acoustic noise spectrum optimized for comfortable human hearing

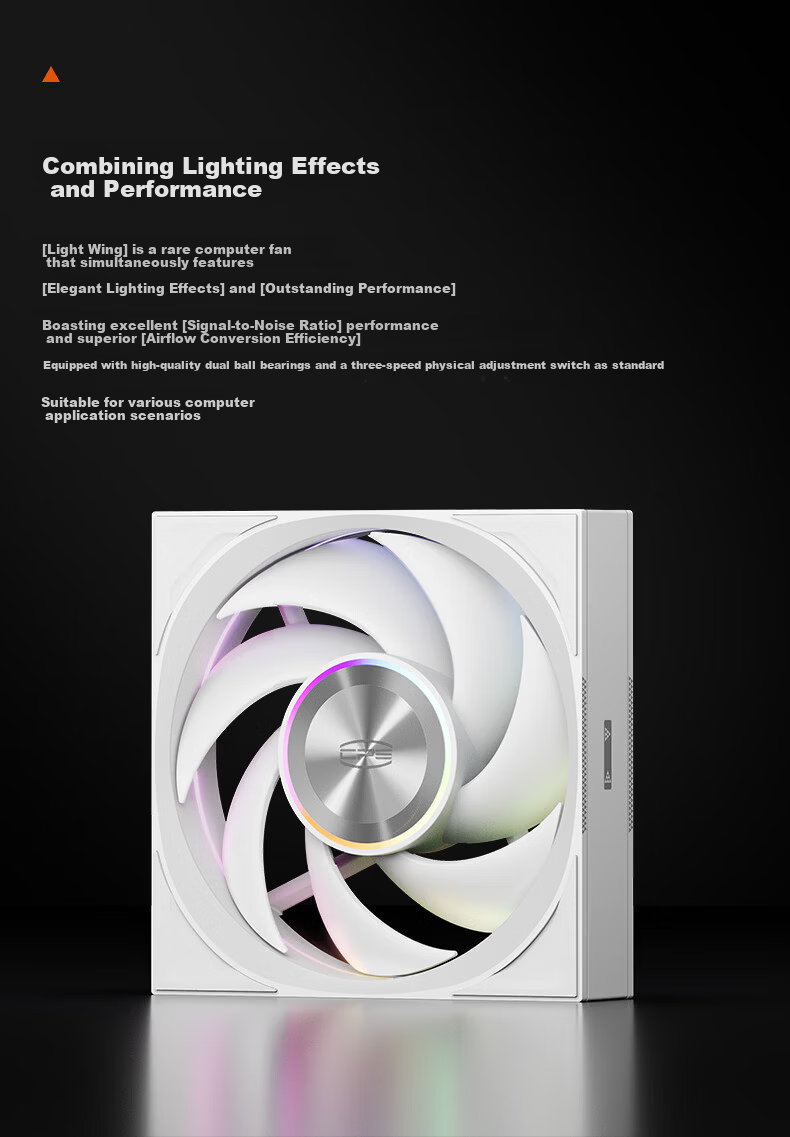

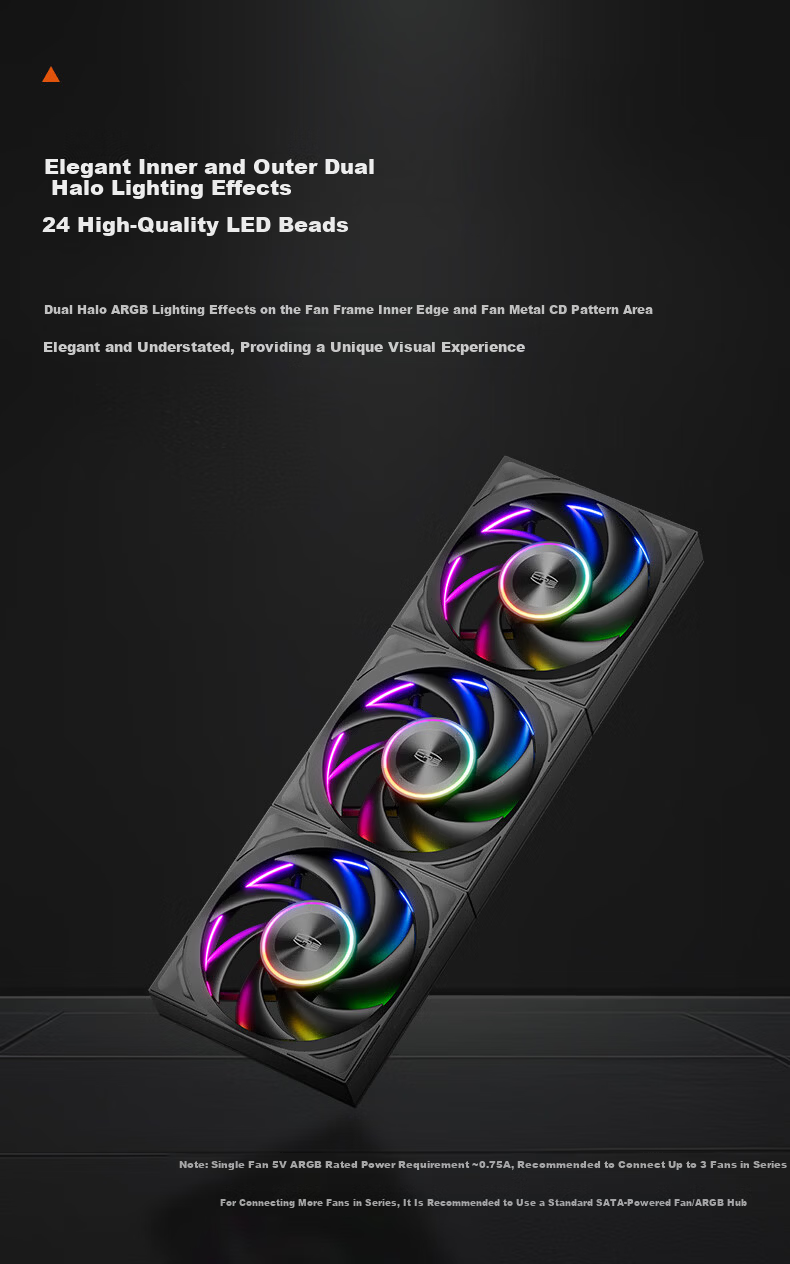

Dual-ring ARGB lighting with 24 high-quality LEDs on fan frame inner edge and metal CD pattern area
Elegant and subtle lighting effects with customizable ARGB control
Additional details
- Lighting interface
- 5V 3-pin ARGB connector
- Lighting current
- 0.75A per fan
- Lighting power
- 3.75W per fan
- Fan voltage
- 12 V DC
Fan current
| Item | Detail |
|---|
| Quiet mode | approx. 0.15–0.18 A |
| Balanced mode | approx. 0.23–0.25 A |
| Performance mode | approx. 0.38–0.40 A |
Fan power consumption
| Item | Detail |
|---|
| Quiet mode | approx. 1.8–2.16 W |
| Balanced mode | approx. 2.76–3.0 W |
| Performance mode | approx. 4.56–4.8 W |
High airflow conversion efficiency with uniform and penetrating airflow
Acoustic noise reduction technology developed by CPS professional team
Physical three-speed adjustment switch for easy tuning without BIOS
Stable operation under various PC usage scenarios including case fan, radiator fan, and extreme overclocking

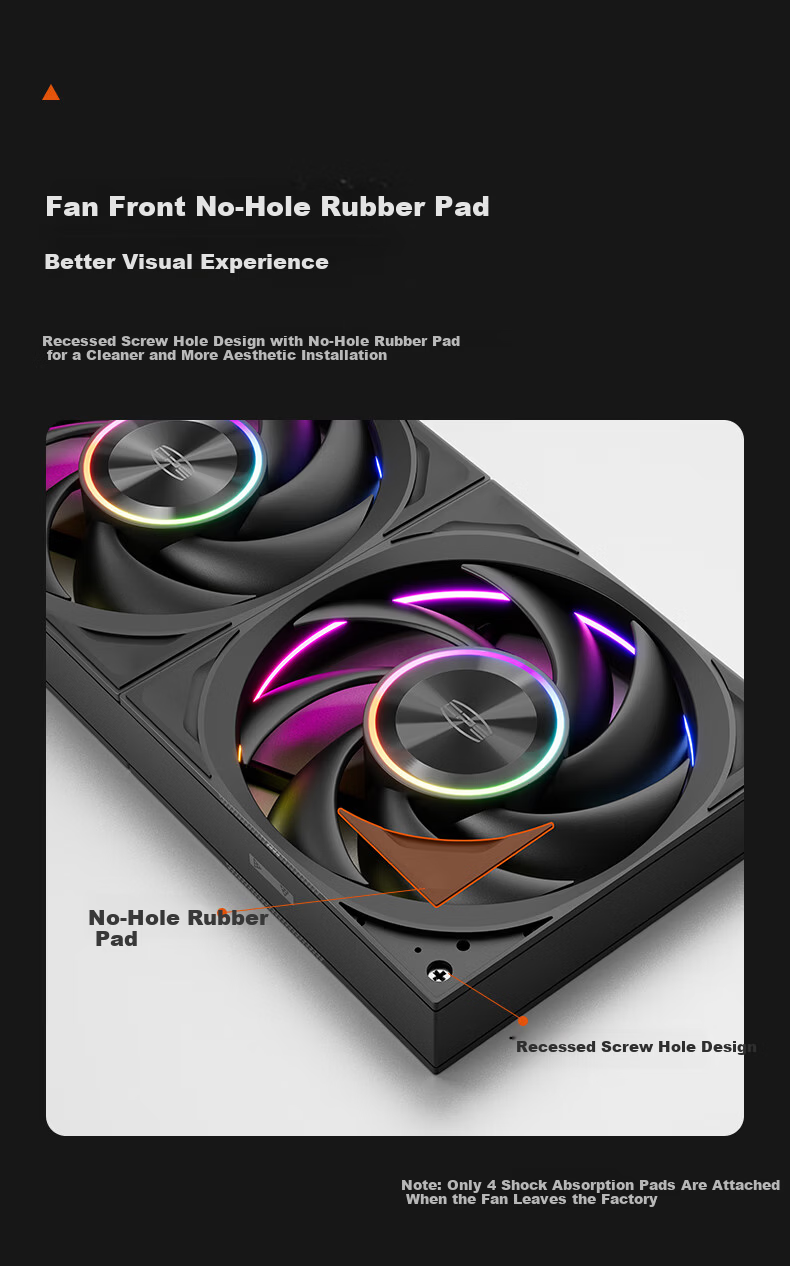

No-hole rubber pads and recessed screw holes for clean and aesthetic installation
Additional details

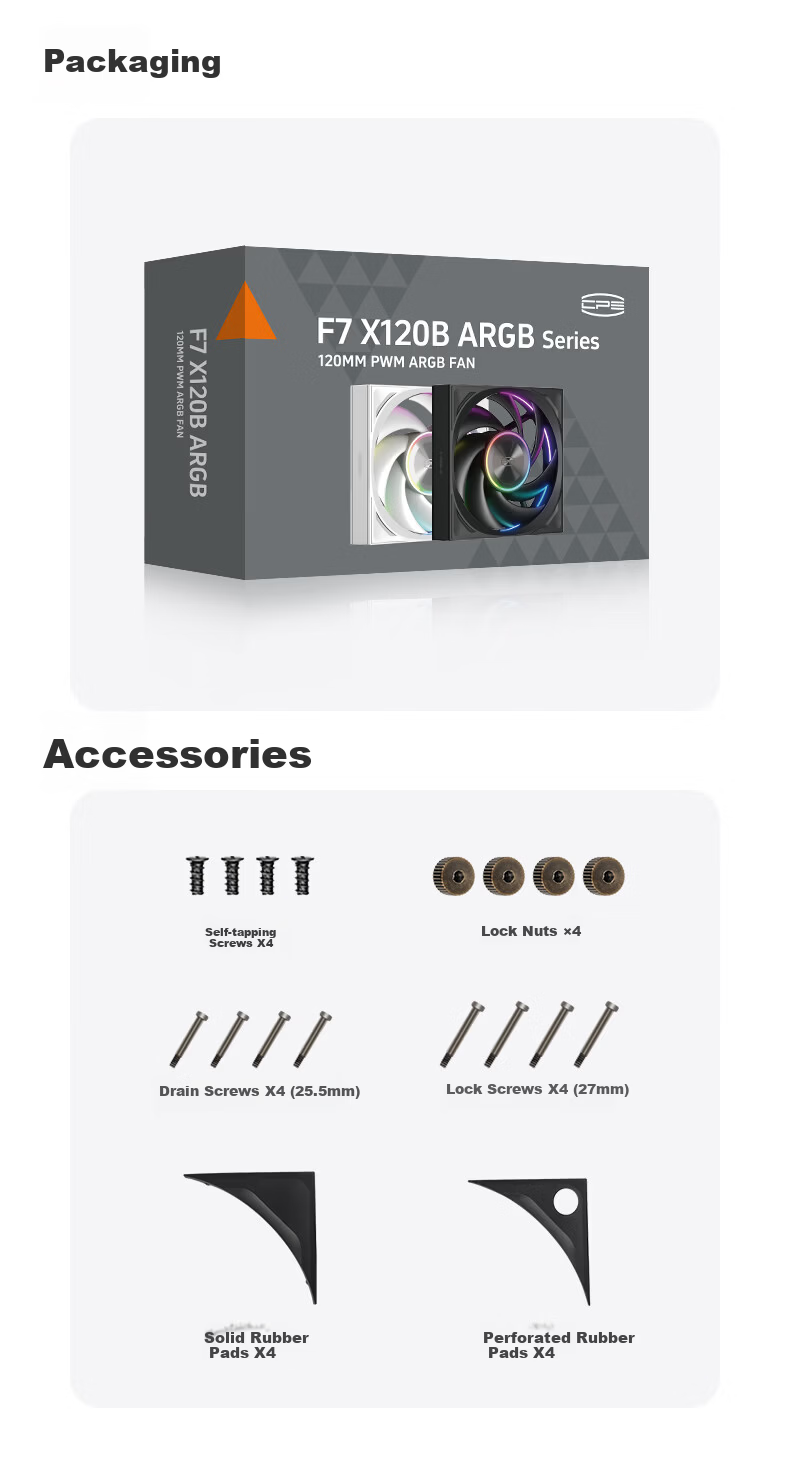

- Packaging includes
- 4 self-tapping screws, 4 locking nuts, 4 radiator screws (25.5 mm), 4 locking screws (27 mm), 4 no-hole rubber pads, 4 hole-opening rubber pads

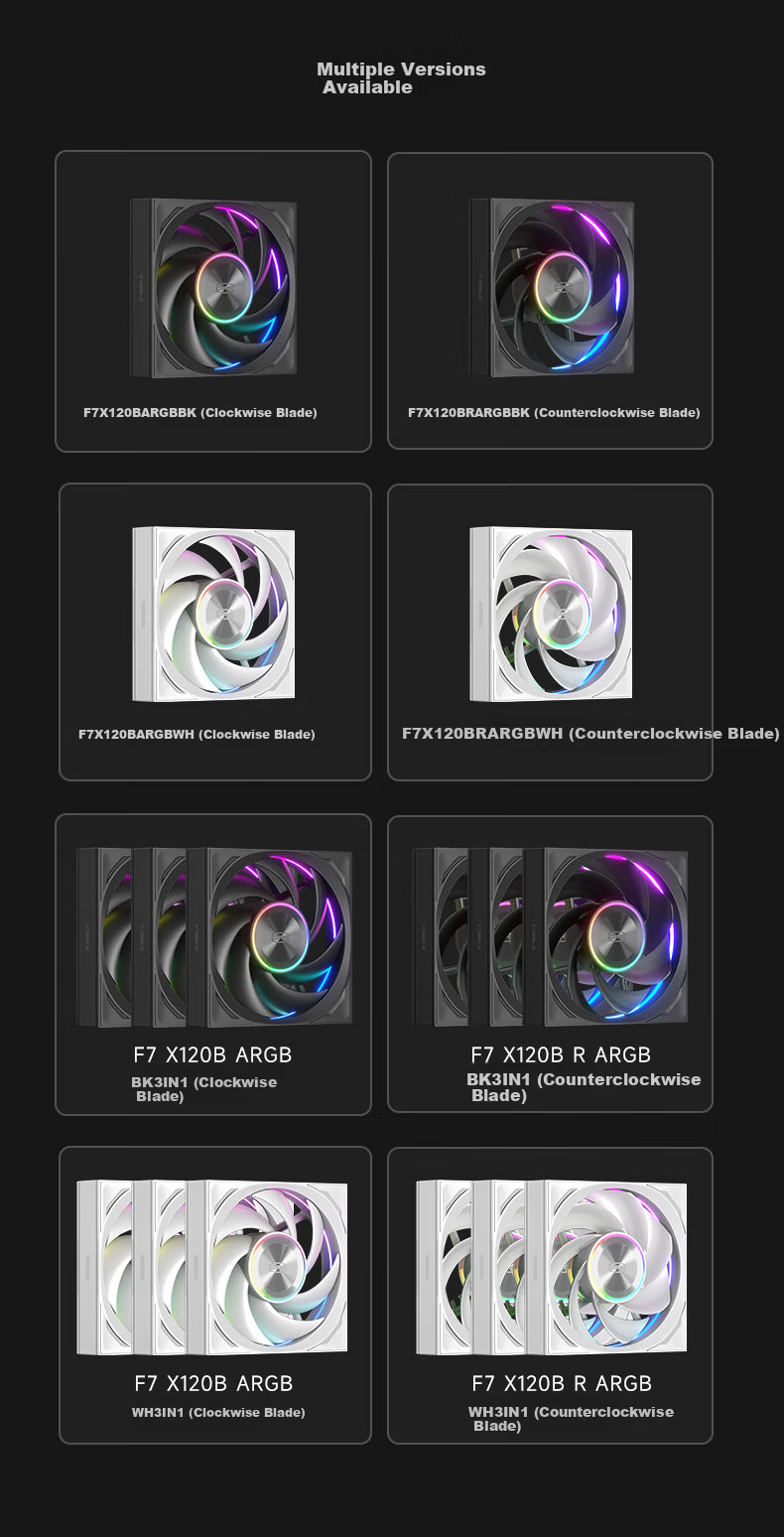

F7X120BARGB (positive blade)
F7X120BRARGB (reverse blade)
F7X120BARGBBK (black positive blade)
F7X120BRARGBBK (black reverse blade)
F7X120BARGBWH (white positive blade)
F7X120BRARGBWH (white reverse blade)
BK3IN1 (black positive blade 3-pack)
BK3IN1 (black reverse blade 3-pack)
WH3IN1 (white positive blade 3-pack)
WH3IN1 (white reverse blade 3-pack)
Extreme overclocking environments
Maximum recommended daisy chain of 3 fans per 5V ARGB header due to 0.75A lighting current per fan
For more fans, use official SATA power or ARGB hubs
