BOSCH High-Speed Metal Twist Drill Bit 3.2mm HSS-G (2 Pieces)

● Recommended use

○ Can be used

× Not recommended

1. Do not exceed the product’s applicable range.

2. Maintain drill speed below 1000 RPM to avoid damage; larger diameters require slower speeds.

3. Always wear protective eyewear during drilling operations.

1. Keep drill bits clean by removing debris and residue after use.

2. Apply a small amount of machine oil to prevent rust when not in use.

3. Do not alter the drill bit shape or perform unauthorized grinding to avoid breakage.

| Diameter (mm) | Working Length (mm) | Overall Length (mm) | Quantity per Pack (pcs) | Order Code |

|---------------|---------------------|---------------------|------------------------|---------------|

| 1.0 | 12 | 34 | 10 | 2608595049 |

| 1.1 | 14 | 36 | 10 | 2608585467 |

| 1.2 | 16 | 88 | 10 | 2608585468 |

| 1.3 | 16 | 38 | 10 | 2608585469 |

| 1.4 | 18 | 40 | 10 | 2608585470 |

| 1.5 | 18 | 40 | 10 | 2608595050 |

| 1.6 | 20 | 43 | 10 | 2608585471 |

| 1.7 | 20 | 43 | 10 | 2608585472 |

| 1.8 | 22 | 46 | 10 | 2608585473 |

| 1.9 | 22 | 46 | 10 | 2608585474 |

| 2.0 | 24 | 49 | 10 | 2608595051 |

| 2.1 | 24 | 49 | 10 | 2608585475 |

| 2.2 | 27 | 53 | 10 | 2608595052 |

| 2.3 | 27 | 53 | 10 | 2608585476 |

| 2.4 | 30 | 57 | 10 | 2608585477 |

| 2.5 | 30 | 57 | 10 | 2608595053 |

| 2.6 | 30 | 57 | 10 | 2608585478 |

| 2.7 | 33 | 61 | 10 | 2608585479 |

| 2.8 | 33 | 61 | 10 | 2608595054 |

| 2.9 | 33 | 61 | 10 | 2608585480 |

| 3.0 | 33 | 61 | 10 | 2608595055 |

| 3.1 | 36 | 65 | 10 | 2608585481 |

| 3.2 | 36 | 65 | 10 | 2608595056 |

| 3.3 | 36 | 65 | 10 | 2608595057 |

| 3.4 | 39 | 70 | 10 | 2608585482 |

| 3.5 | 39 | 70 | 10 | 2608595058 |

| 3.6 | 39 | 70 | 10 | 2608595332 |

| 3.7 | 39 | 70 | 10 | 2608585483 |

| 3.8 | 43 | 75 | 10 | 2608585484 |

| 3.9 | 43 | 75 | 10 | 2608585485 |

| 4.0 | 43 | 75 | 10 | 2608595059 |

| 4.1 | 43 | 75 | 10 | 2608585486 |

| 4.2 | 43 | 75 | 10 | 2608595060 |

| 4.3 | 47 | 80 | 10 | 2608585487 |

| 4.4 | 47 | 80 | 10 | 2608595333 |

| 4.5 | 47 | 80 | 10 | 2608595061 |

| 4.6 | 47 | 80 | 10 | 2608585488 |

| 4.7 | 47 | 80 | 10 | 2608585489 |

| 4.8 | 52 | 86 | 10 | 2608595334 |

| 4.9 | 52 | 86 | 10 | 2608585490 |

| 5.0 | 52 | 86 | 10 | 2608595062 |

| 5.1 | 52 | 86 | 10 | 2608585491 |

| 5.2 | 52 | 86 | 10 | 2608595063 |

| 11.1 | 94 | 142 | - | 2608585530 |

| 11.2 | 94 | 142 | 5 | 2608585531 |

| 11.3 | 94 | 142 | 5 | 2608585532 |

| 11.4 | 94 | 142 | 5 | 2608585533 |

| 11.5 | 94 | 142 | 5 | 2608595080 |

| 11.6 | 94 | 142 | 5 | 2608585534 |

| 11.7 | 94 | 142 | 5 | 2608585535 |

| 11.8 | 94 | 142 | 5 | 2608585536 |

| 11.9 | 94 | 142 | 5 | 2608585537 |

| 12.0 | 101 | 151 | 5 | 2608595081 |

| 12.1 | 101 | 151 | 5 | 2608585538 |

| 12.2 | 101 | 151 | 5 | 2608585539 |

| 12.3 | 101 | 151 | 5 | 2608585540 |

| 12.4 | 101 | 151 | 5 | 2608585541 |

| 12.5 | 101 | 151 | 5 | 2608595082 |

| 12.6 | 101 | 151 | 5 | 2608585542 |

| 12.7 | 101 | 151 | 5 | 2608585543 |

| 12.8 | 101 | 151 | - | 2608585544 |

| 12.9 | 101 | 151 | - | 2608585545 |

| 13.0 | 101 | 151 | 5 | 2608595083 |

| 14.0 | 108 | 160 | 4 | 2608585593 |

| 15.0 | 114 | 169 | - | 2608585594 |

| 16.0 | 120 | 178 | 4 | 2608585595 |

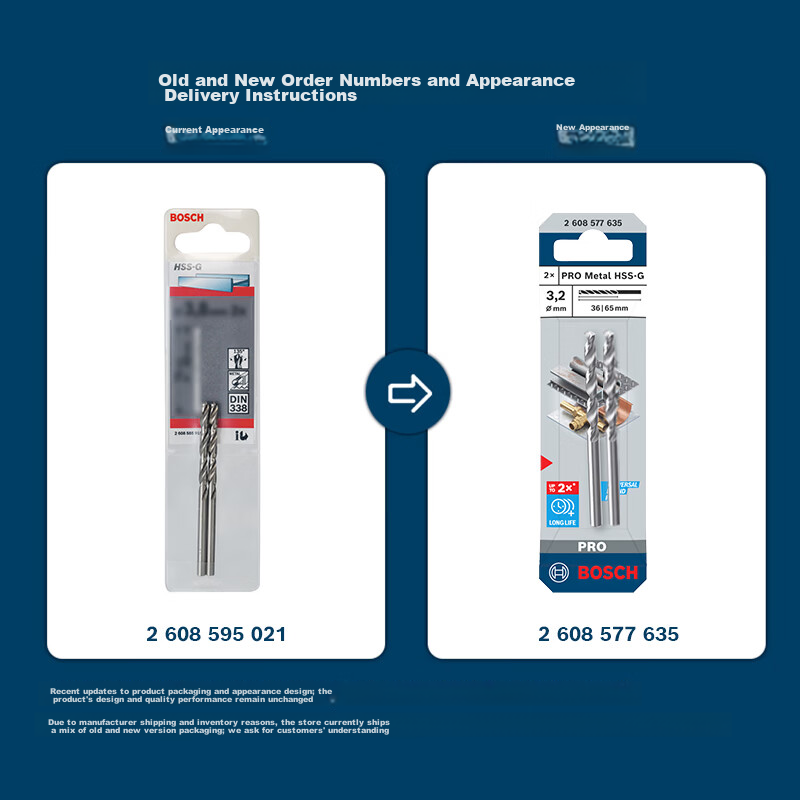

Older order codes are also available for mixed sets and individual sizes.

End of Specifications.
