NVIDIA Jetson AGX Orin 64GB Developer Kit YLB Server-Grade Development Board Kit

Official original Jetson AGX Orin Developer Kit

Core module delivers up to 275 TOPS AI performance, approximately 8 times that of Jetson AGX Xavier

Power configurable between 15W and 60W

Module dimensions identical to Jetson AGX Xavier (71.65mm x 100mm)

Suitable for robotics and autonomous machine applications

1792-core NVIDIA Ampere architecture GPU with 64 Tensor Cores (32GB model)

2048-core NVIDIA Ampere architecture GPU with 56 Tensor Cores (64GB model)

8-core Arm Cortex-A78AE v8.2 64-bit, 3MB L2 + 6MB L3 cache (32GB model)

12-core Arm Cortex-A78AE v8.2 64-bit, 2MB L2 + 4MB L3 cache (64GB model)

2x NVDLA v2

1x PVA v2

32GB or 64GB 256-bit LPDDR5

64GB eMMC 5.1

Up to 6 cameras (16 via virtual channels)

16 lanes MIPI CSI-2 D-PHY 2.1 (up to 40 Gbps) / C-PHY 2.0 (up to 164 Gbps)

x16 PCIe slot supporting x8 PCIe Gen4

M.2 M-Key slot with x4 PCIe Gen4

M.2 E-Key slot with x1 PCIe Gen4

2x USB Type-C (USB 3.2)

4x USB Type-A (USB 3.2)

1x USB Micro-B (USB 2.0)

1x DisplayPort 1.4a with MST support

RJ45 Ethernet port supporting up to 10 GbE

40-pin header (I2C/GPIO/SPI/CAN/I2S/UART/DMIC)

12-pin automation header

10-pin audio panel header

10-pin JTAG header

4-pin fan header

2-pin RTC battery backup connector

DC power jack

Force recovery and reset buttons

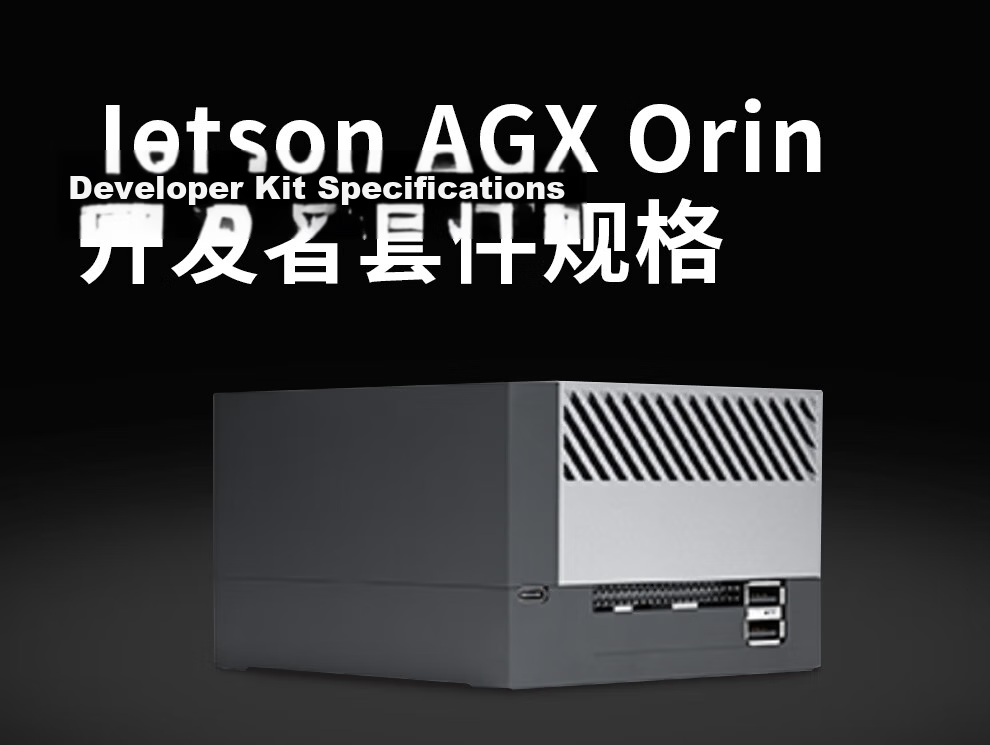

110mm x 110mm x 71.65mm

Power adapters (UK, EU, US standards)

Type-C data cable (with protocol support)

HDMI to DisplayPort cable (in some packages)

Solid-state drives (1TB or 2TB, brand unspecified) in select bundles

User manual

Intelligent robotics

Healthcare

Autonomous machines

Jetson AGX Orin Developer YLB Kit shares identical form factor and carrier board design with official Jetson AGX Orin Developer Kit

Multiple memory configurations available (32GB or 64GB)

Various bundled options with SSD storage and accessories to suit different development needs
