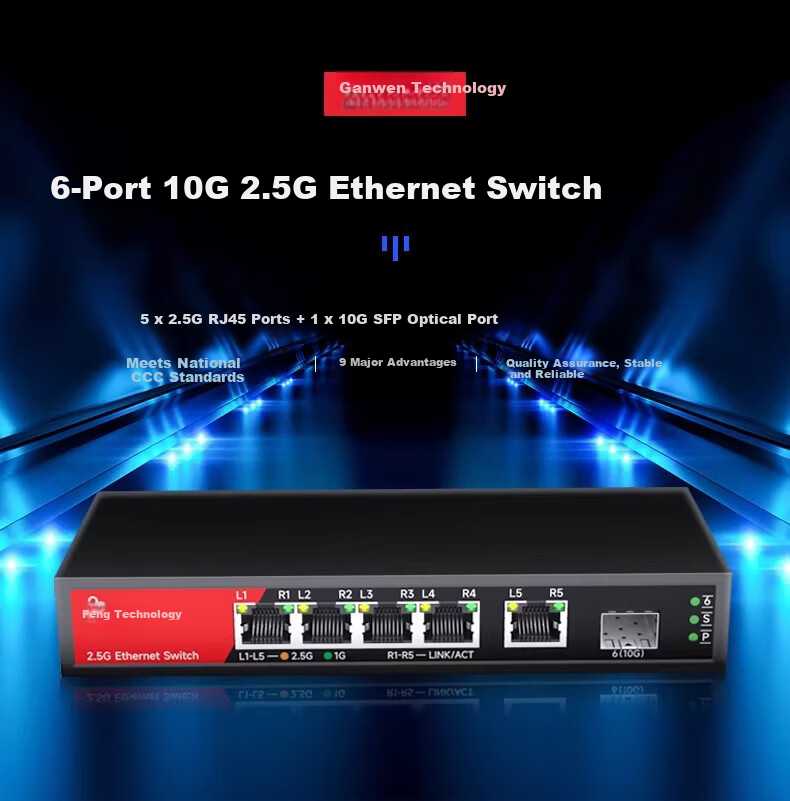

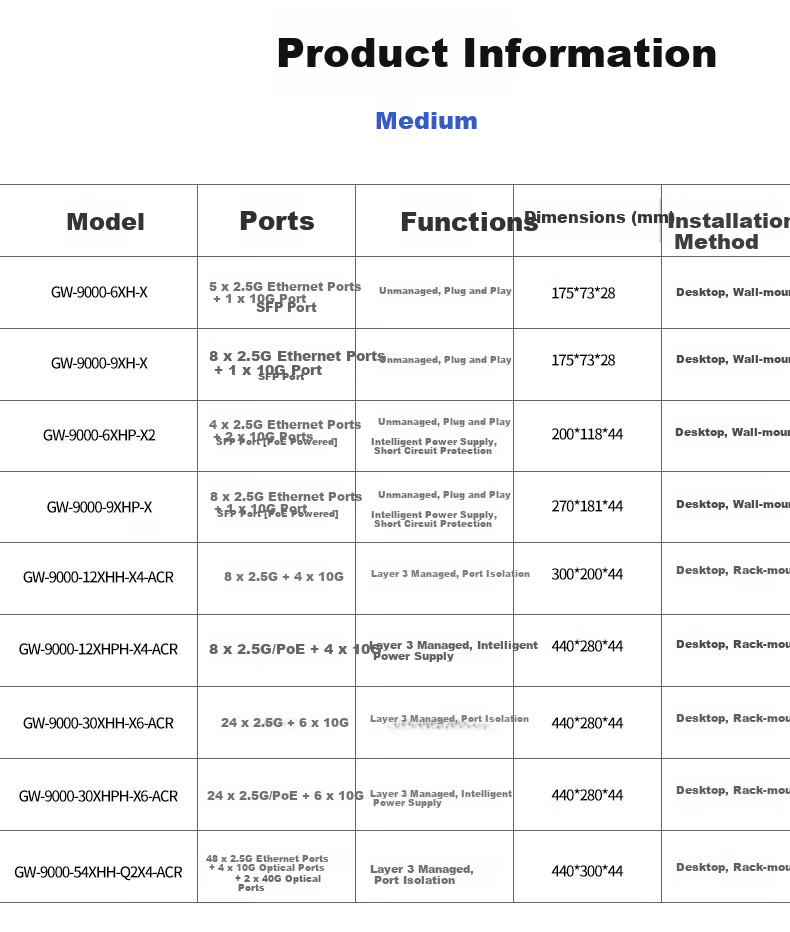

5 x 2.5 G RJ45 ports + 1 x 10 G SFP port, unmanaged, plug and play, dimensions 175 x 73 x 28 mm, desktop/wall-mount
GW-9000-9XH-X
8 x 2.5 G RJ45 ports + 1 x 10 G SFP port, unmanaged, plug and play, dimensions 175 x 73 x 28 mm, desktop/wall-mount
GW-9000-6XHP-X2
4 x 2.5 G RJ45 ports + 2 x 10 G SFP ports, unmanaged, plug and play, PoE power supply, smart power management, short circuit protection, dimensions 200 x 118 x 44 mm, desktop/wall-mount
8 x 2.5 G RJ45 ports + 1 x 10 G SFP port, unmanaged, plug and play, PoE power supply, smart power management, short circuit protection, dimensions 270 x 181 x 44 mm, desktop/wall-mount
GW-9000-12XHH-X4-ACR
8 x 2.5 G + 4 x 10 G ports, Layer 3 managed, port isolation, dimensions 300 x 200 x 44 mm, desktop/rack-mount
GW-9000-12XHPH-X4-ACR
8 x 2.5 G PoE + 4 x 10 G ports, Layer 3 managed, smart power supply, dimensions 440 x 280 x 44 mm, desktop/rack-mount
GW-9000-30XHH-X6-ACR
24 x 2.5 G + 6 x 10 G ports, Layer 3 managed, port isolation, dimensions 440 x 280 x 44 mm, desktop/rack-mount
GW-9000-30XHPH-X6-ACR
24 x 2.5 G PoE + 6 x 10 G ports, Layer 3 managed, smart power supply, dimensions 440 x 280 x 44 mm, desktop/rack-mount
GW-9000-54XHH-Q2X4-ACR
48 x 2.5 G RJ45 ports + 4 x 10 G SFP ports + 2 x 40 G optical ports, Layer 3 managed, port isolation, dimensions 440 x 300 x 44 mm, desktop/rack-mount

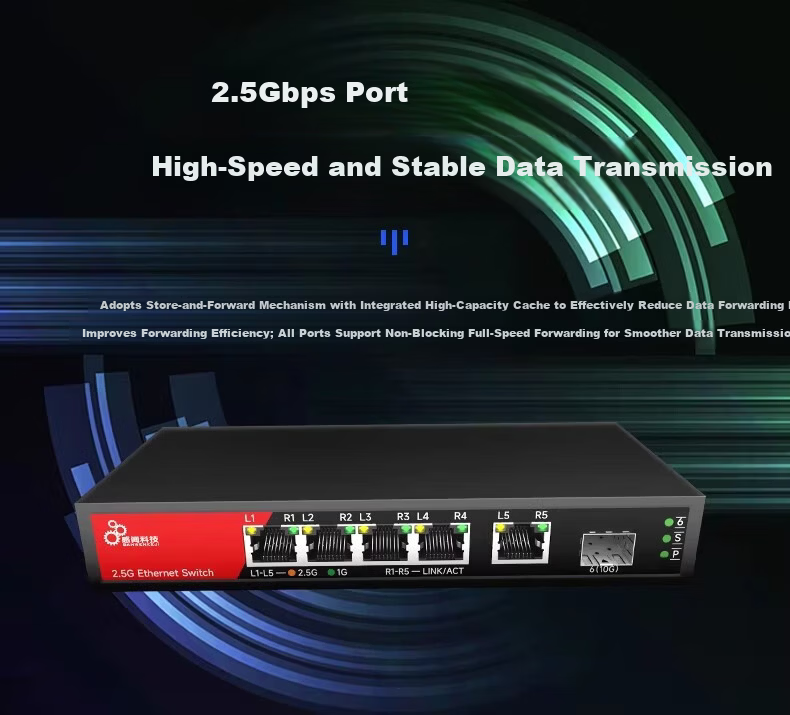

2.5G high-speed data transmission ports with stable performance
Store-and-forward switching mechanism with integrated high-capacity buffer to reduce latency and improve forwarding efficiency
Non-blocking full-speed forwarding on all ports for smooth data transmission
Plug and play with auto-adaptive ports, no configuration required

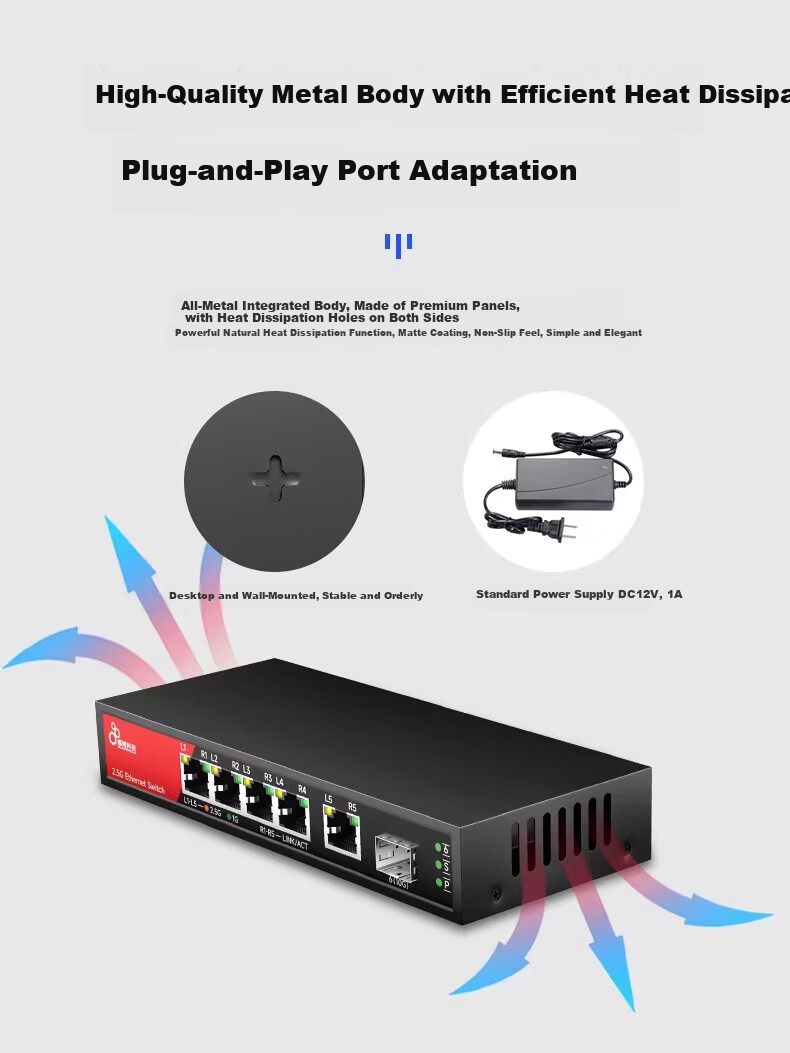

High-quality full metal chassis with strong heat dissipation, natural cooling design with side ventilation holes and matte coating for anti-slip and elegant appearance
Desktop and wall-mount installation options; some models support rack mounting
Additional details
Standard power supply
DC 12V 1A

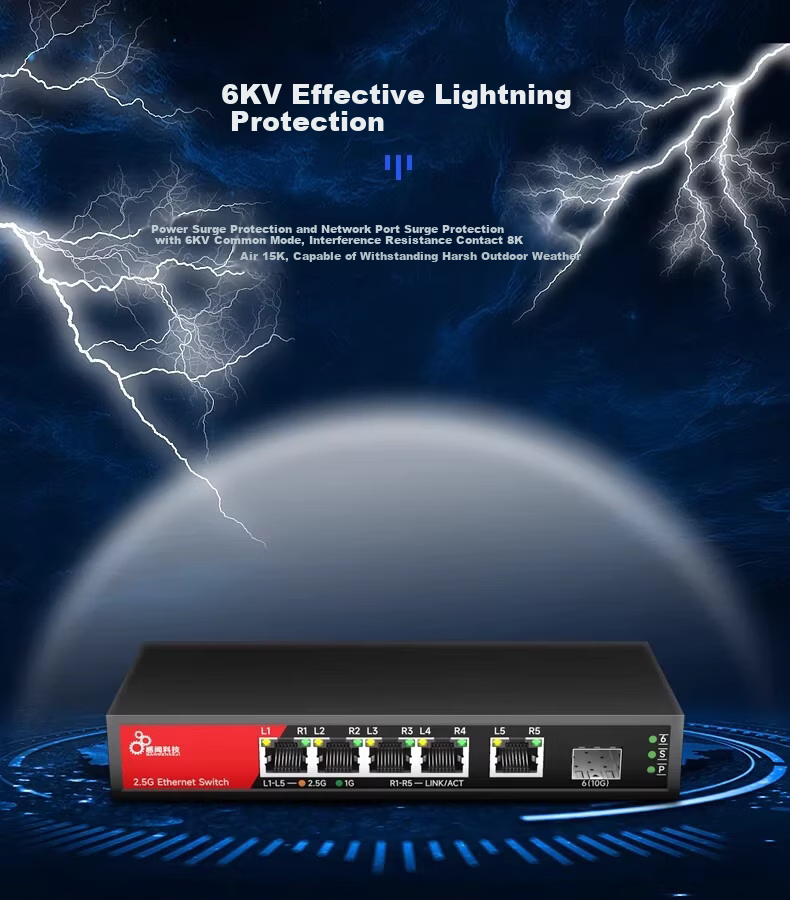

Lightning protection up to 6KV for power surge and network port surge protection; anti-interference contact 8KV, air 15KV, suitable for harsh outdoor environments
Optical ports are backward compatible with lower speeds
Supports multi-brand CAT stick compatibility
3-year warranty and technical support provided
Additional details

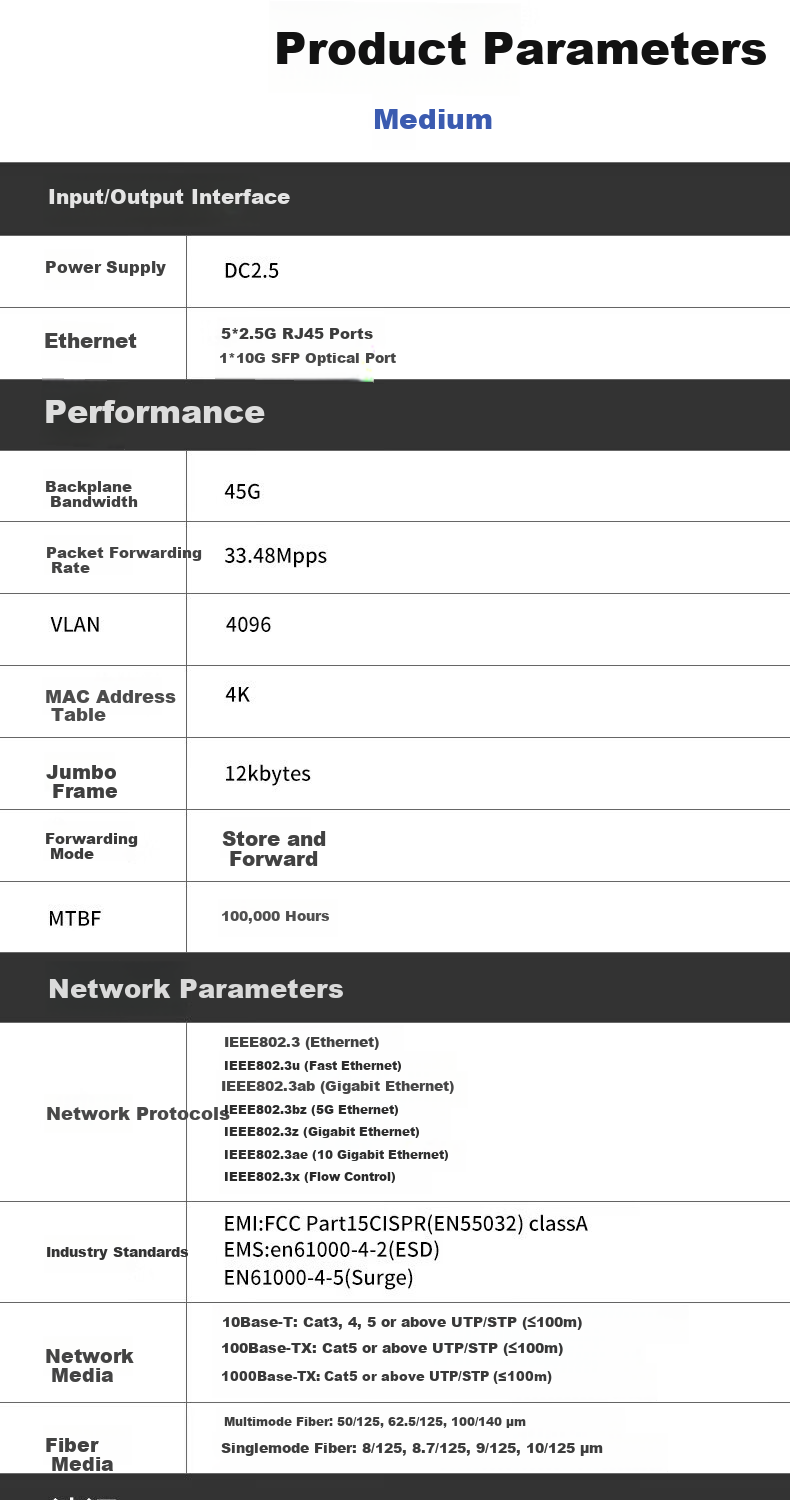

Backplane bandwidth
45 Gbps
Packet forwarding rate
33.48 Mpps
VLAN support
4096 entries
MAC address table size
4K entries
Jumbo frame support
up to 12 KB
Forwarding mode
Store-and-forward
MTBF
100,000 hours
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3bz (2.5G Ethernet)
IEEE 802.3z (Gigabit Ethernet)
IEEE 802.3ae (10G Ethernet)
IEEE 802.3x (Flow Control)
Additional details
EMI
FCC Part 15, CISPR (EN55032) Class A
EMS
EN61000-4-2 (ESD), EN61000-4-5 (Surge)
10Base-T
Cat3, Cat4, Cat5 or above UTP/STP (≤100 m)
100Base-TX
Cat5 or above UTP/STP (≤100 m)
1000Base-TX
Cat5 or above UTP/STP (≤100 m)
Multimode fiber
50/125, 62.5/125, 100/140 μm
Single-mode fiber
8/125, 8.7/125, 9/125, 10/125 μm

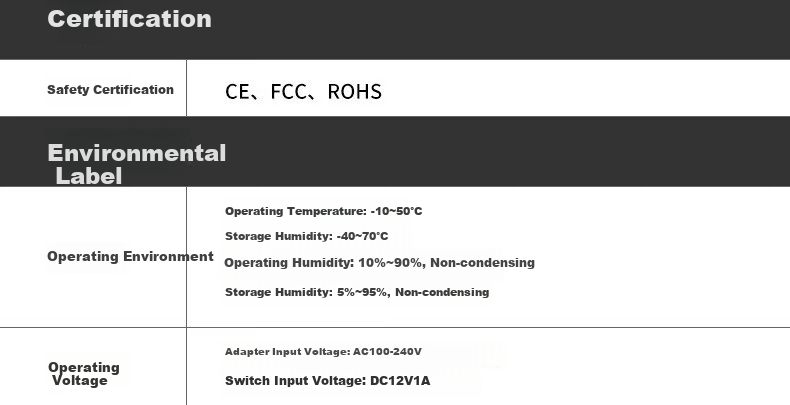

CE, FCC, RoHS
Additional details
Operating temperature
-10°C to 50°C
Storage temperature
-40°C to 70°C
Operating humidity
10% to 90% non-condensing
Storage humidity
5% to 95% non-condensing
Adapter input voltage
AC 100-240V
Switch input voltage
DC 12V 1A

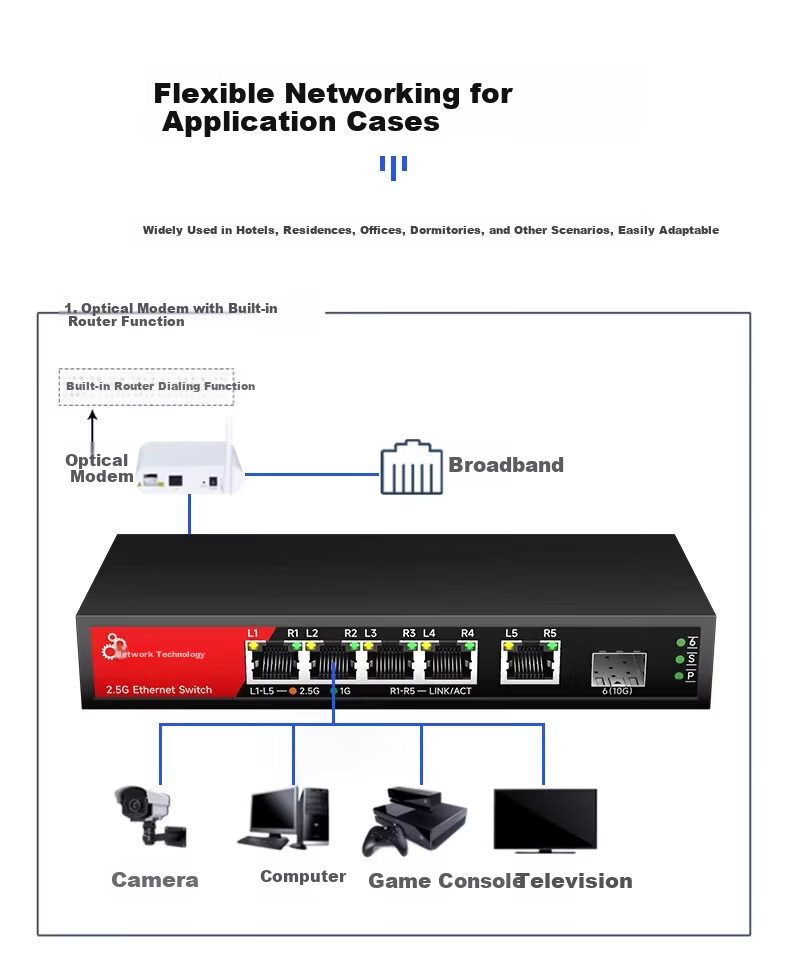

Flexible network deployment suitable for hotels, residences, offices, dormitories, and other scenarios
Compatible with optical modems with built-in routing and dial-up functions
Ideal for connecting cameras, computers, gaming consoles, TVs, and other devices requiring 2.5G or 10G Ethernet connectivity
