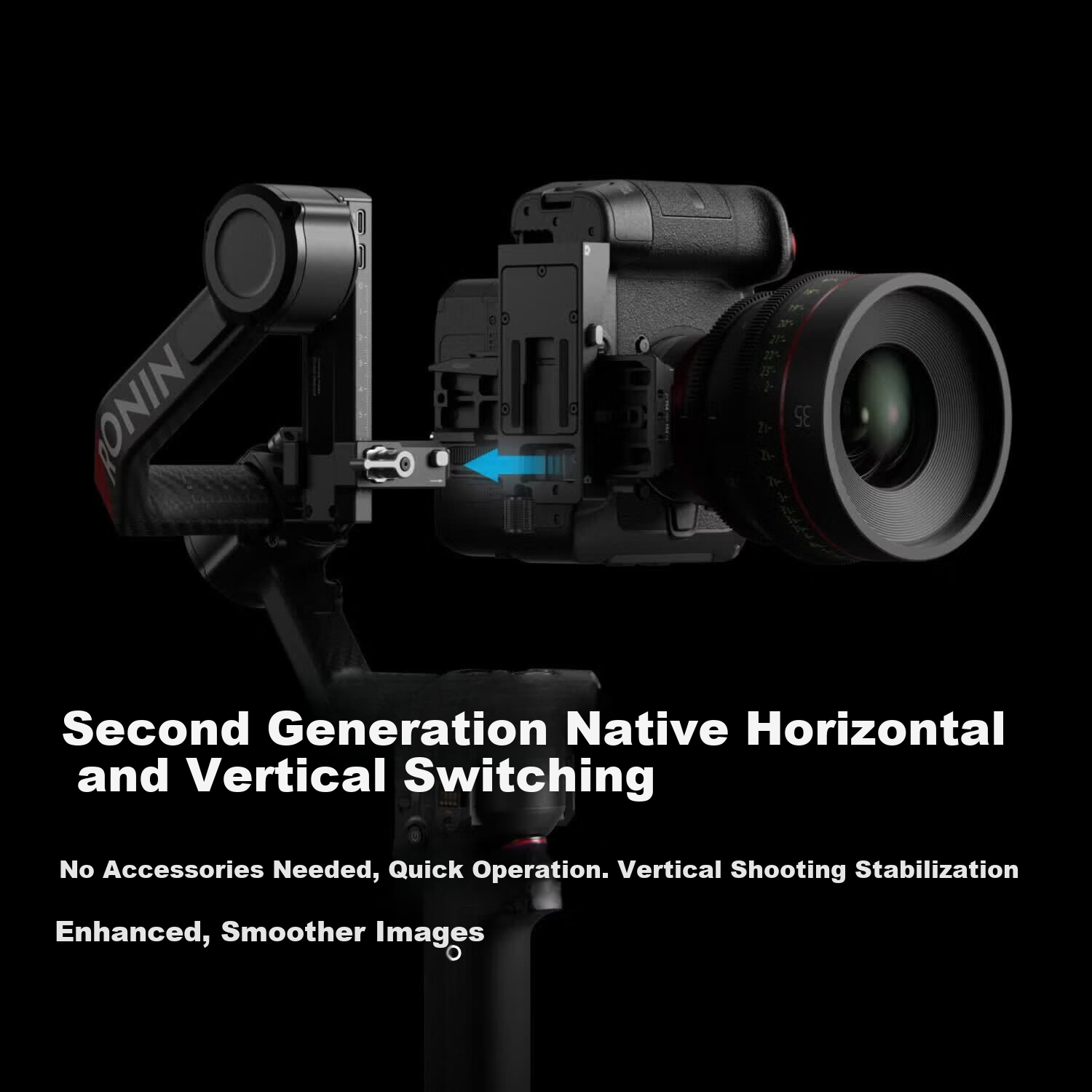

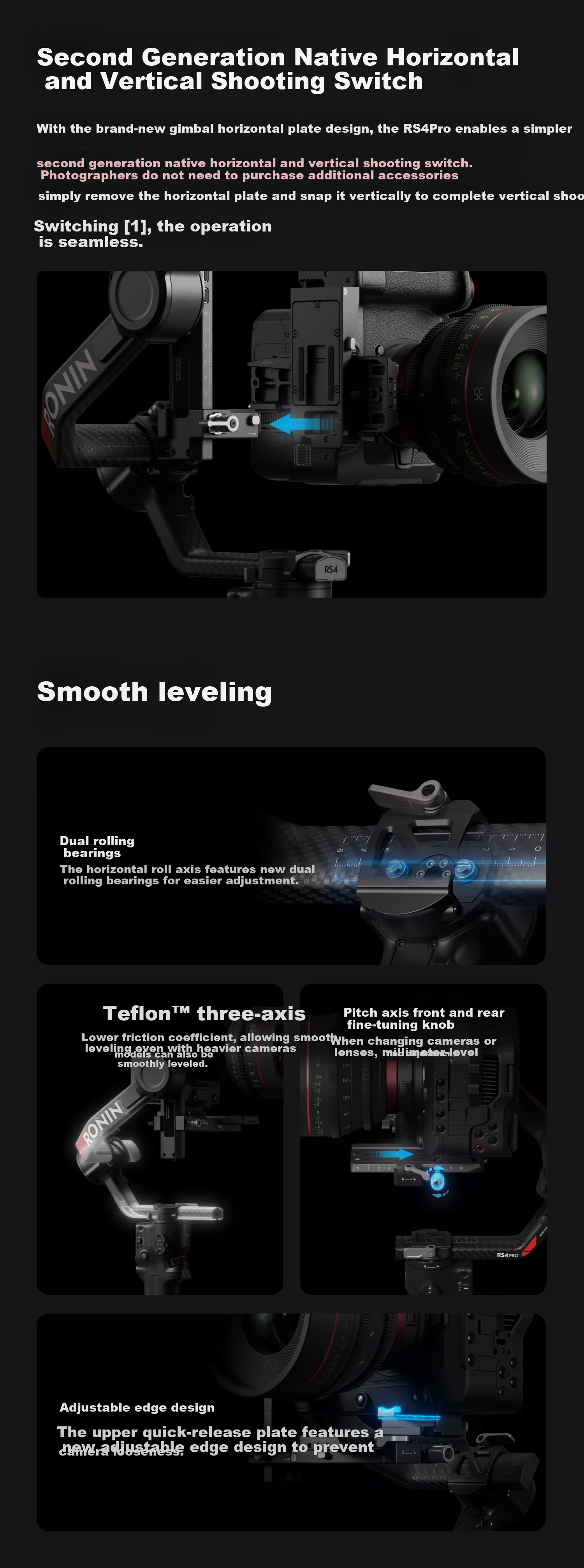

Second-generation native horizontal and vertical shooting switch enabled by new horizontal plate design; vertical shooting achieved by removing and reattaching the horizontal plate vertically without extra accessories.
Smooth leveling with dual ball bearings on roll axis for easier adjustment.
Teflon™ coated three-axis system with pitch axis fine-tuning knobs for minimal friction, enabling millimeter-level precise leveling even with heavier cameras or lens changes.
Adjustable stopper design on upper quick-release plate to prevent camera looseness.
Additional details
Team collaboration support
gimbal operator can control RS4 Pro via DJI Master Wheels, DJI Ronin 4D controller, DJI high-brightness monitor, etc.
Focus operator can use LiDAR oscilloscope on high-brightness monitor for intelligent focus assistance and precise focus control with FocusPro wheel.
Bluetooth wireless direct connection technology supports wireless shutter and zoom control.
Quick and flexible operation for creative shooting.
DJI RSBG70 large-capacity battery handle extends RS4 Pro runtime up to 29 hours.
USB-C port at bottom supports up to 18W charging for camera and accessories.
Additional details
Maximum external power output
45W.
PD fast charging fully charges battery in approximately 2.5 hours.

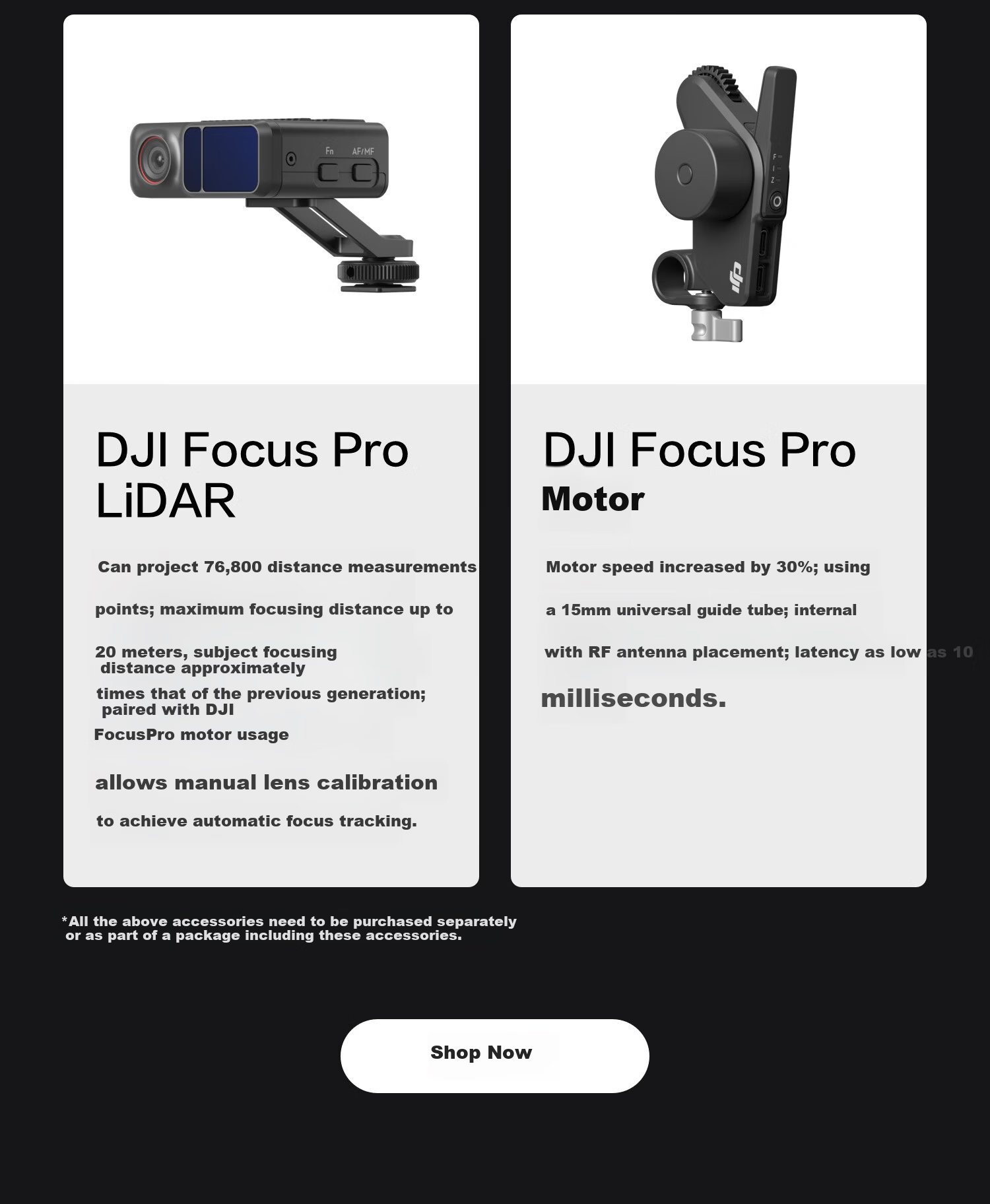

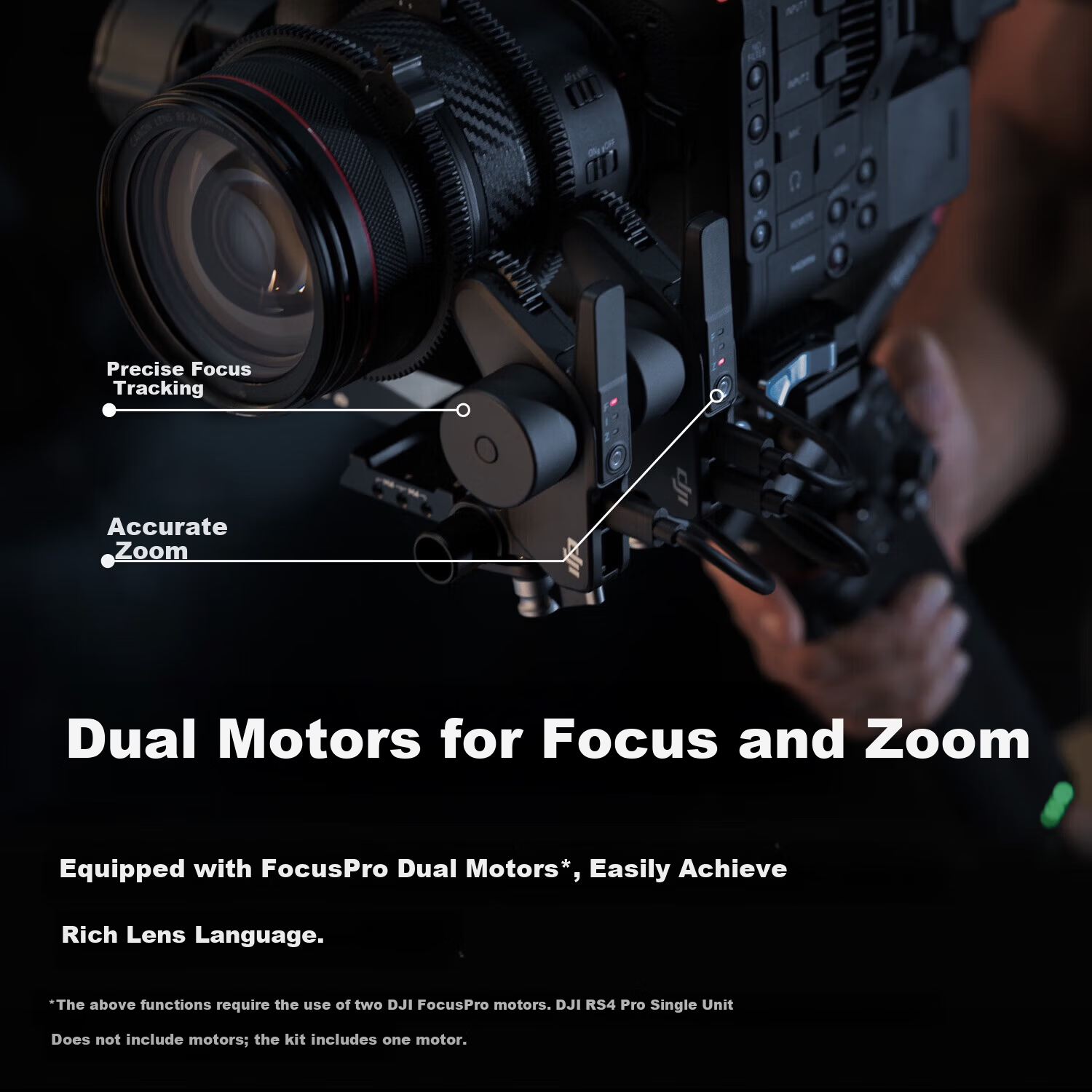

FocusPro motor with LiDAR projects 76,800 distance measurement points.
Motor speed increased by 30%.
Maximum focusing distance up to 20 meters; human subject focus distance approximately 15 meters with 15mm universal guide tube.
Low latency down to 10ms, three times faster than previous generation.
Supports automatic focus for manually calibrated lenses.

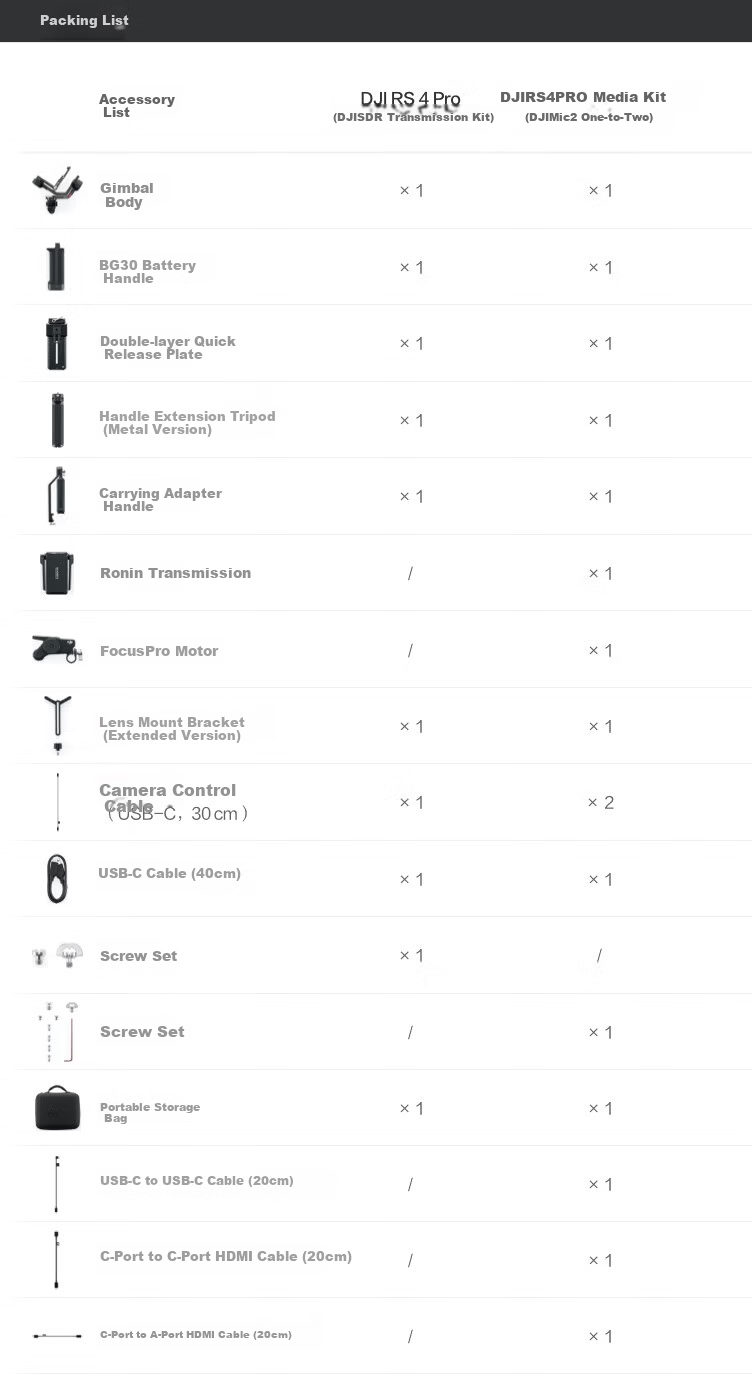

Accessories sold separately or included in specific kits.
RS4 Pro gimbal main unit x1
BG30 battery handle x1
Dual-layer quick-release plate x1
Metal handle extension tripod x1
Carry handle adapter x1
Ronin transmission system x1
FocusPro motor x1
Extended lens support bracket x1
Camera control cables (USB-C 30cm x1, USB-C 40cm x1)
USB-C to USB-C cable (20cm) x1
USB-C to USB-C HDMI cable (20cm) x1
USB-C to A HDMI cable (20cm) x1
Screw set x1
Portable carrying case x1
Additional details

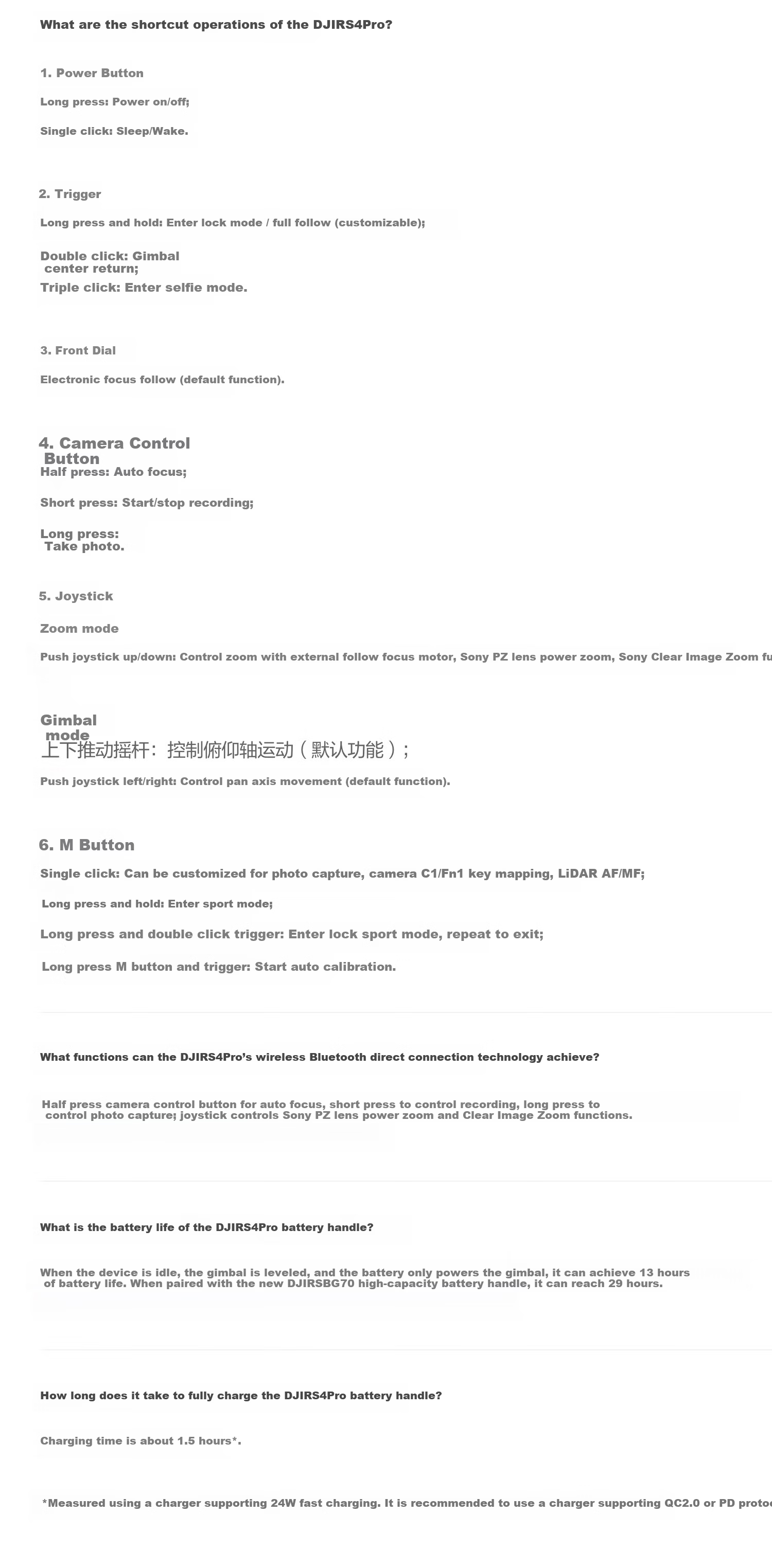

1. Power button
long press to power on/off; single press to sleep/wake.
2. Trigger
long press to enter lock mode/full follow (customizable); double press to center gimbal; triple press to selfie mode.
3. Front dial
electronic focus (default).
4. Camera control button
half press autofocus; short press start/stop recording; long press photo capture.
5. Joystick
vertical push for zoom control (external focus motor, Sony PZ lens electronic zoom, Clear Image Zoom); horizontal push for pan axis control.
6. M button
single press customizable (photo, camera C1/Fn1 mapping, LiDAR AF/MF); long press to enter sport mode; long press + double trigger for lock sport mode; long press + trigger for auto calibration.
Half press camera control button for autofocus.
Short press to control recording.
Long press to control photo capture.
Joystick controls Sony PZ lens electronic zoom and Clear Image Zoom.
13 hours runtime with gimbal powered only by battery in static balanced state.
Up to 29 hours runtime with DJI RSBG70 large-capacity battery handle.
Approximately 1.5 hours to full charge using 24W fast charger.
Recommended chargers support QC2.0 or PD protocols.

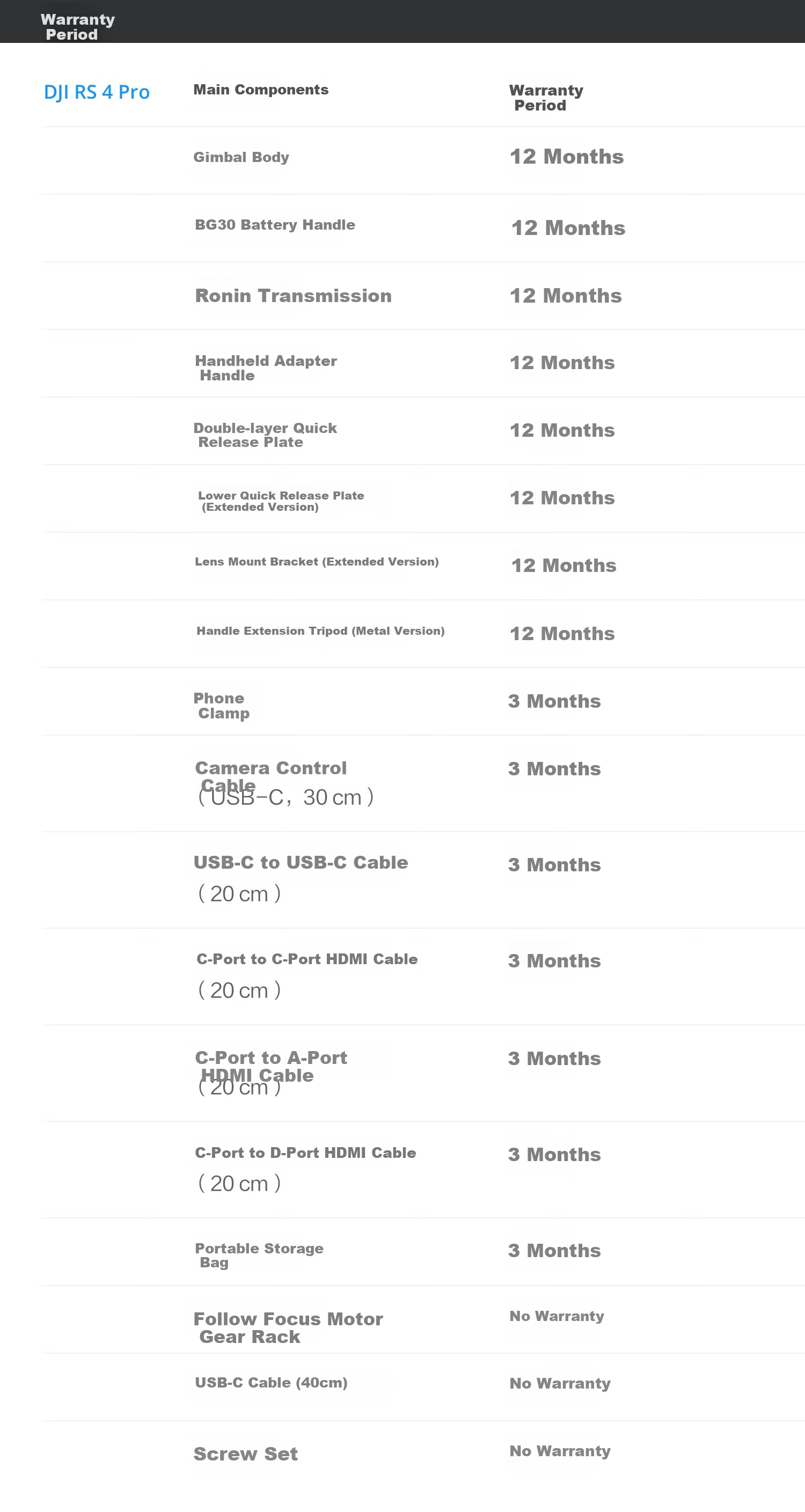

Main components (gimbal body, BG30 battery handle, Ronin transmission, carry handle adapter, dual-layer quick-release plate, extended lower quick-release plate, extended lens support bracket, metal handle extension tripod): 12 months.
Phone clamp, camera control cables (USB-C 30cm), USB-C to USB-C cable (20cm), USB-C to USB-C HDMI cable (20cm), USB-C to A HDMI cable (20cm), USB-C to D HDMI cable (20cm), portable carrying case: 3 months.
Additional details
Focus motor gear rack, USB-C cable (40cm), screw set
