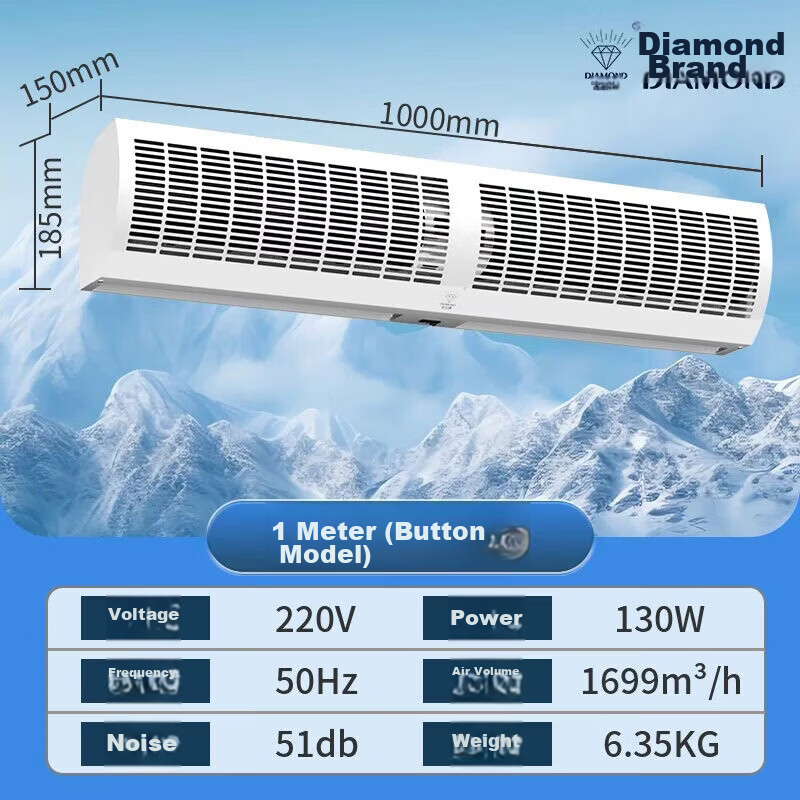

DIAMOND Air Curtain Machine for Mall and Supermarket, Wall-Mounted Air Door Fan 1.0m Button Model FM3010-G

Air volume

3600 m³/h

Power

200W (varies by model)

Voltage

220V / 50Hz

Noise level

≤50dB (low noise operation)

Wind speed

7-11 m/s

Energy efficient, complies with new national standards, approximately 1 kWh consumption

Ivory white color with smooth rounded body lines for elegant and soft appearance

Full metal construction with durable finish

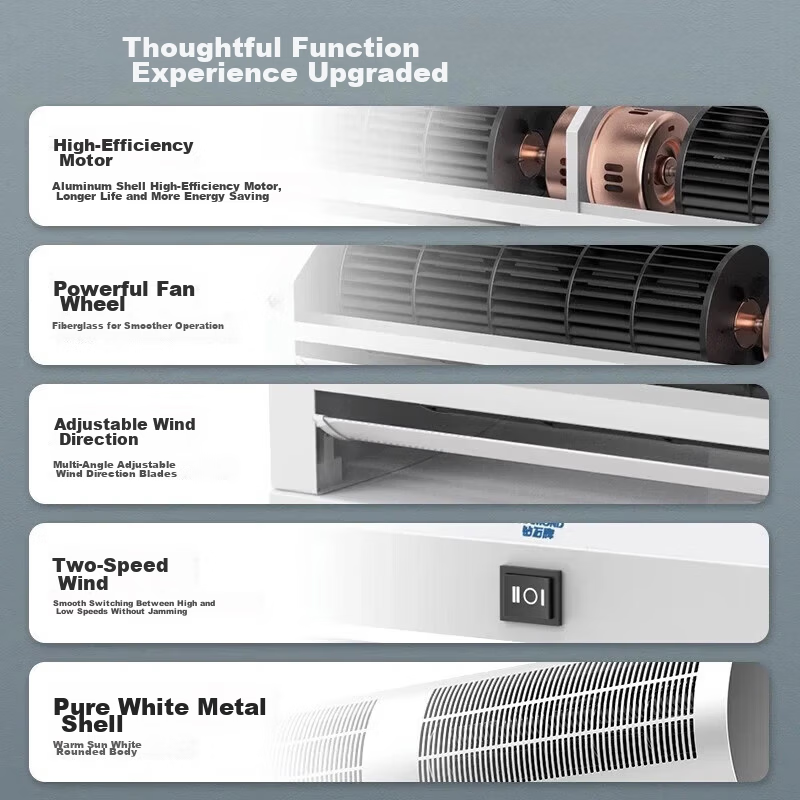

Large diameter noise-reducing fan wheel with multi-wing design for even airflow and low noise

Straight airflow path for smooth and quiet operation

For door widths of 3m, two 1.5m units can be installed side by side

Suitable for door header heights of 1.5m

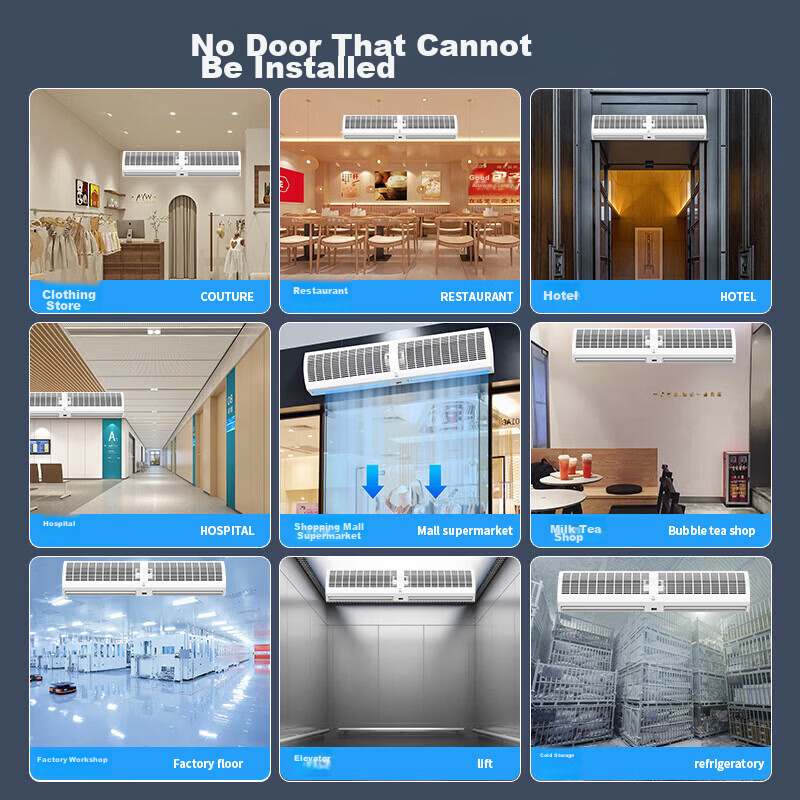

Large shopping centers, convenience stores, clothing shops

Hotels, restaurants, hospitals, schools, business halls

Cold storage and factory workshops

| Model | Voltage/Frequency | Power (W) | Wind Speed (m/s) | Noise (dB) | Dimensions (mm) |

|-----------|-------------------|-----------|------------------|------------|-----------------------|

| FM3006-G | 220V / 50Hz | 7-11 | ≤49 | 60x150x185 |

| FM3009-G | 220V / 50Hz | 120 | 7-11 | ≤50 | 900×150×185 |

| FM3010-G | 220V / 50Hz | 130 | 7-11 | ≤51 | 1000×150×185 |

| FM3012-G | 220V / 50Hz | 155 | 7-11 | ≤51 | 1200×150×185 |

| FM3015-G | 220V / 50Hz | 180 | 7-11 | ≤52 | 1500×150×185 |

| FM3018-G | 220V / 50Hz | 200 | 7-11 | ≤52 | 1800×150×185 |

| FM3020-G | 220V / 50Hz | 220 | 7-11 | ≤52 | 2000×150×185 |

Actual product appearance and specifications may vary. Installation should be performed according to provided guidelines.
