Haier Smart Toilet Seat with One-Touch Knob, Four-Season Temperature Control, Curved Water Tank Compatible with Fully Automatic X-S5
Specifications
Is the cover slow-closing? cover plate slow down
Functions antibacterial, Nozzle self-cleaning, children's cleaning, night light illumination, Heated seat cushion
Material PP plastic
Control method remote control control, Knob type
CCC Compulsory Certification Yes
Shape V-type
installation size type Large size (length ≥ 505mm)
Rinse heating method Variants / Sale Attributes Style: [Compatible with Curved Concave Water Tank] S5
Size: [Free OnSite Installation]
Package Contents One main unit, one fixed plate (already installed at the bottom of the product), one water inlet pipe, two sets of installation screws, one remote control, one three-way connector, two AAA batteries, one instruction manual.
Product Description Product Specifications
Compatible with 95% of household toilets including straight edge, curved edge, narrow edge, and wall-mounted toilets.
Suitable for wall-mounted toilets, vertical tank toilets, curved tank toilets.
Specially designed for curved toilets with large edging for perfect fit.
Compatible with old toilets for easy upgrade to smart toilet.
Slim integrated design with minimalist aesthetics.
Smooth curved contours.
Thin body design to avoid bulky appearance.
Similar Products
Instantaneous
Water efficiency rating Level 2
Is the seat cushion slow down? Seat cushion slow down Additional details

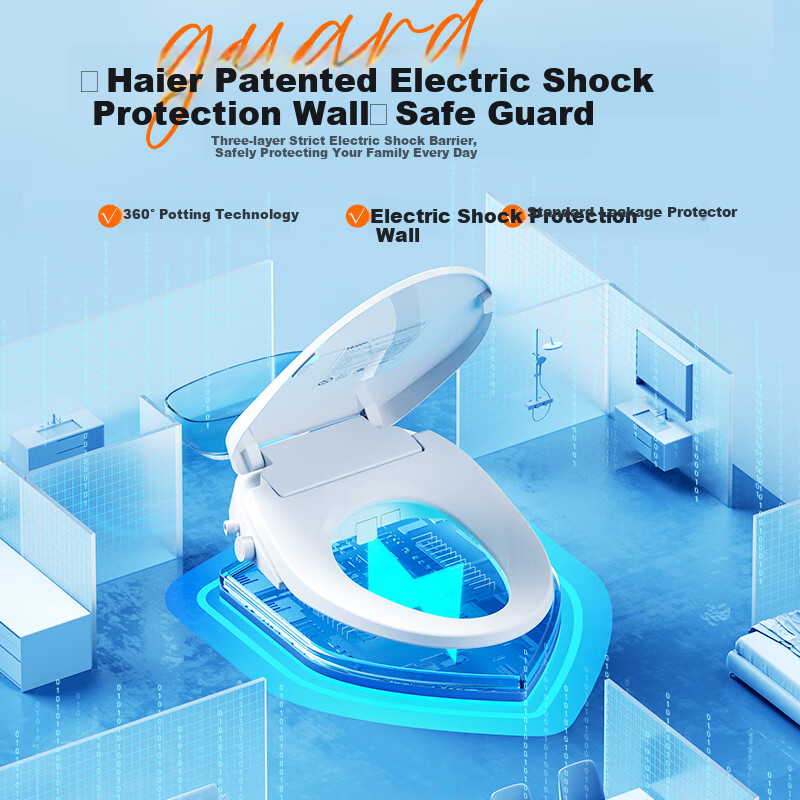

Haier patented electric leakage protection wall (Patent No. ZL201621238188.4). Triple-layer strict electric leakage barrier.
360° glue filling process for electric protection.
Standard leakage protector reduces voltage to below 5V during leakage.
Physical high resistance barrier between smart toilet and human body.
Ensures user safety with imperceptible leakage voltage.
Four-season adaptive temperature system with precise automatic sensing.
Intelligent adjustment of seat temperature, water temperature, and air temperature based on ambient temperature.
Seat temperature and water temperature adjustable in multiple levels according to ambient temperature ranges (10°C to 31°C+).
Additional details
Water temperature settings room temperature, 35°C, 36°C, 37°C, 38°C, 39°C.
Seat temperature settings room temperature, 31°C, 33°C, 35°C, 37°C, 39°C. AI intelligent temperature control with dual frequency water and electricity system.
Instant heating technology with ±0.5°C temperature accuracy.
Advanced ceramic heating element for continuous stable water temperature.
Haier third-generation frequency conversion constant temperature technology to avoid temperature fluctuations.
Unique one-button rotary knob design.
Moisture-proof and waterproof.
Red and white dual-color light ring for aesthetic appeal.
One-button control for rear wash, feminine wash, and stop functions.
Multiple cleaning modes for family care Gentle feminine wash for menstrual and pregnancy care with multi-hole spray design. Refreshing rear wash with water-air mixture and acupoint massage. Moving wash with alternating water flow massage. Gentle child wash with soft water flow for delicate skin. Upgraded stainless steel curved spray rod with antibacterial properties.
Self-cleaning nozzle before and after use.
Spray rod positioned further back to prevent contamination.
Certified by Japan SIAA with antibacterial rate >99%.
Full automatic cleaning system.
1. Inlet filter for large particles, rust, and debris.
2. Self-cleaning fine filter inside three-way component for small particles and colloids.
3. Fine filter inside toilet lid to prevent clogging and contamination.
Maintenance-free, no replacement required.
One of the first products with national mandatory 3C certification.
CCC and 3C certified for safety assurance.
IPX4 waterproof rating for splash protection.
Soft night light for comfortable nighttime use.
Large ergonomic 3D seat design for comfort during prolonged use.
Silent damping slow-close lid to prevent noise and damage.

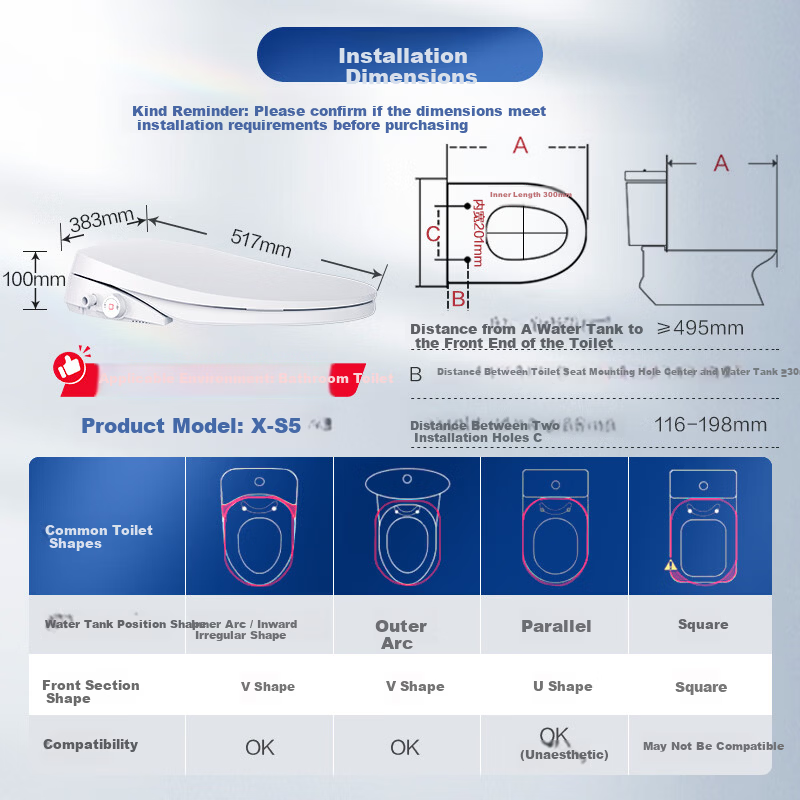

Power outlet within 1.5 meters of toilet.
Water inlet valve within 0.65 meters.
Use municipal tap water only; recycled or polluted water prohibited.
Minimum 10cm space on right side for control panel.
Three-hole power socket on right side within 0.5 meters.
If no power outlet, electrical modification required.
Contact customer service for installation assistance and verification.
Provide toilet top view photo and measurements for compatibility check.
Additional details
Patent No. ZL201621238188.4
Patent Name Waterway leakage protection device and anti-electric shock smart toilet seat. Professional installation service available.
Customer support for installation queries and compatibility confirmation.
