H3C S5590-28T8XC-EI High Port Density Layer 3 Core Switch 28 Gigabit Ports with 4 Optical-Electrical Multiplex + 8 10-Gigabit Optical Expandable Slots, Power Supply and Fan Sold Separately

1 Console port

1 Management Ethernet port

1 USB port

1 Expansion card slot

2-port 1/10G SFP+ interface card

4-port 1/10G SFP+ interface card

8-port 1/10G SFP+ interface card

2-port 25G SFP28 interface card

4-port 25G SFP28 interface card

8-port 10G multi-rate electrical interface card

8-port 1/2.5/10/25G SFP28 interface card

2-port 40G QSFP+ interface card

4-port 40G QSFP+ interface card

2-port 40/100G QSFP28 interface card

mini-iMC expansion card

Eagle Eye scanner expansion card

Firewall expansion card

Hot-swappable dual power modules supported

Overcurrent, overvoltage, and overheat protection

MACsec hardware encryption for secure MAC layer data transmission and reception, including data encryption, frame integrity check, and source authentication

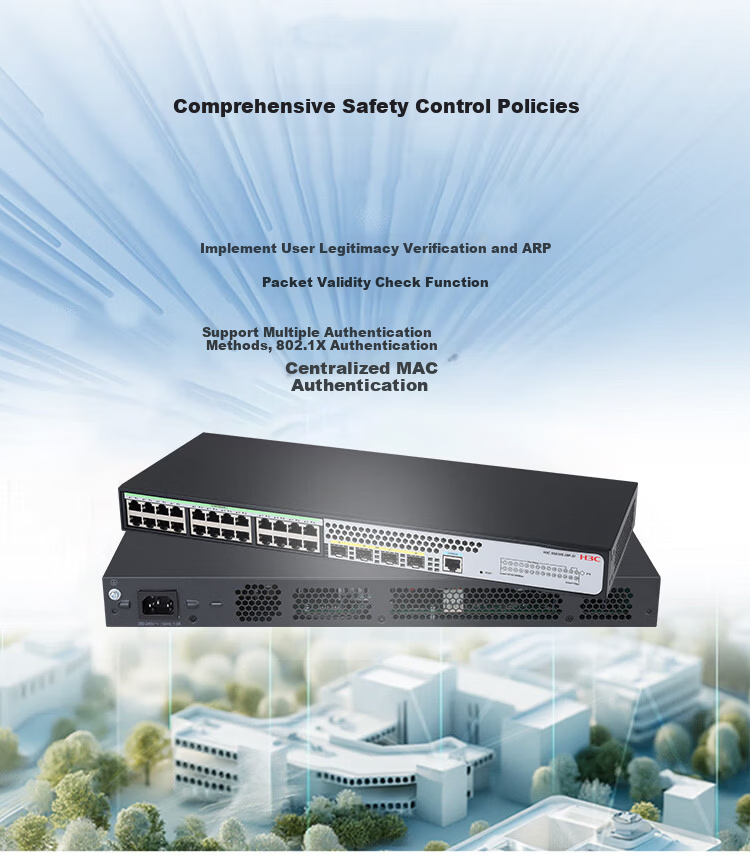

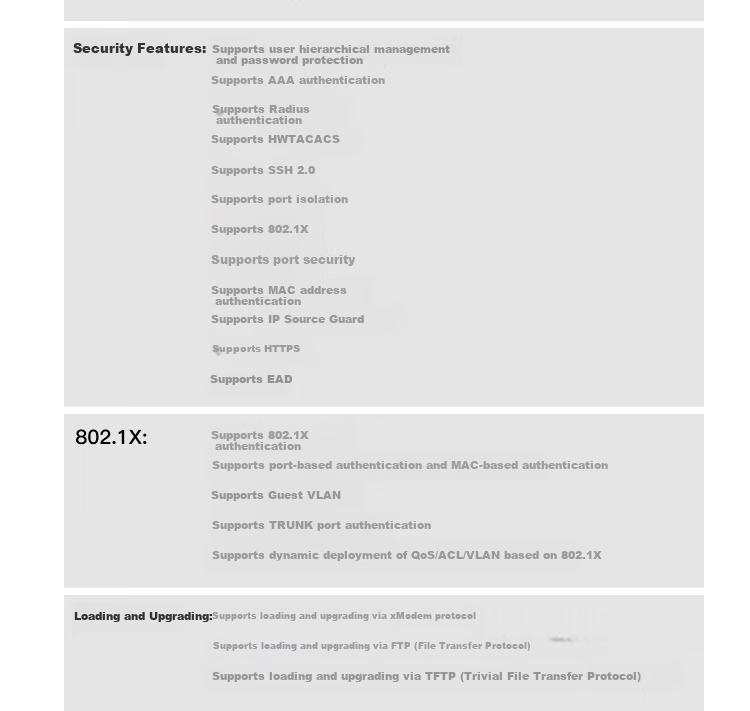

Supports comprehensive security policies

Device-level and link-level multiple reliability protections

Professional built-in lightning protection supporting up to 10KV

Supports hot-swappable dual power supplies and modular fans

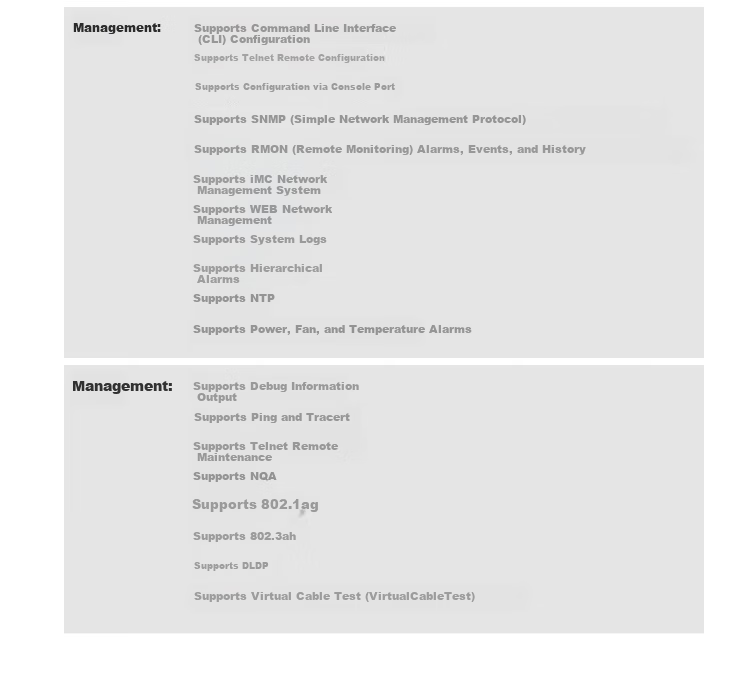

Supports SNMP v1/v2/v3

Supports SPAN/RSPAN and multiple mirror observation ports

Supports iMC intelligent management center

Supports CLI, Telnet, Console, FTP, TFTP, XModem for upgrades and configuration

Supports Syslog, hierarchical alarms, debugging output, NTP, and hardware alarms for power, fan, and temperature

Supports USB for file upload/download and firmware upgrade

Supports Python script management and NETCONF protocol

Supports cloud and local management platforms

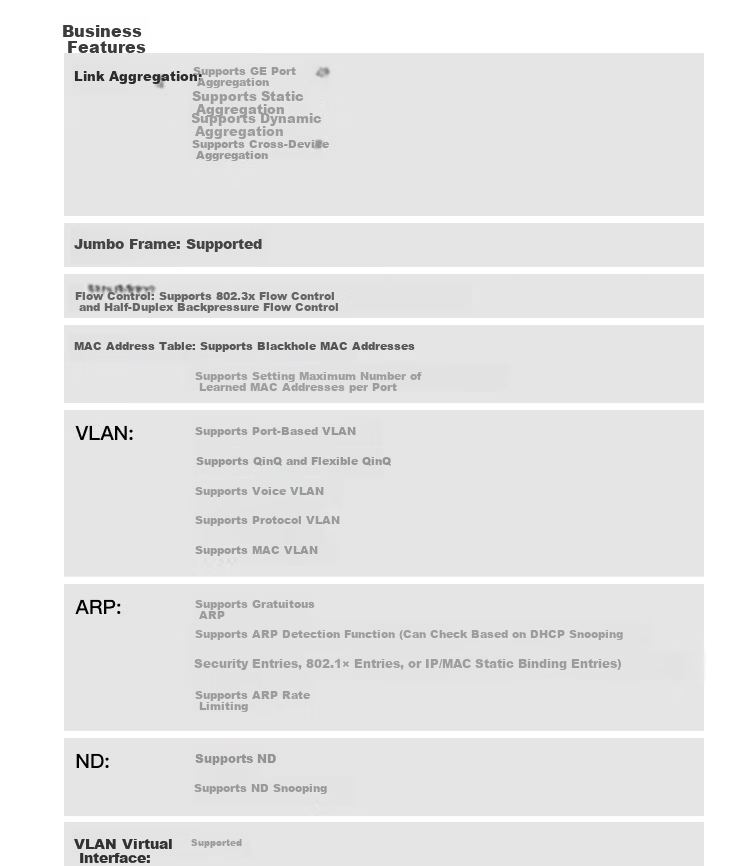

Jumbo frame support up to 13312 bytes

Supports IEEE 802.3x flow control (full duplex)

Storm suppression based on port rate percentage, PPS, and bps

Supports MAC address table with static, dynamic, blackhole MAC addresses, source MAC filtering, and max MAC learning per port

Supports 802.1Q VLAN, up to 4K VLANs

Supports port-based VLAN, QinQ, flexible QinQ, Guest VLAN, Voice VLAN, policy VLAN

Supports STP, RSTP, MSTP, PVST, MVRP

Supports STP/RSTP/MSTP/PVST with Root Protection and BPDU Protection

Supports G.8032 Ethernet Ring Protection (ERPS) with switching time ≤ 50 ms

Supports SmartLink tree topology and multi-instance

Supports RRPP ring topology and multi-instance

Supports port single detection, loop protection, edge port, BPDU protection

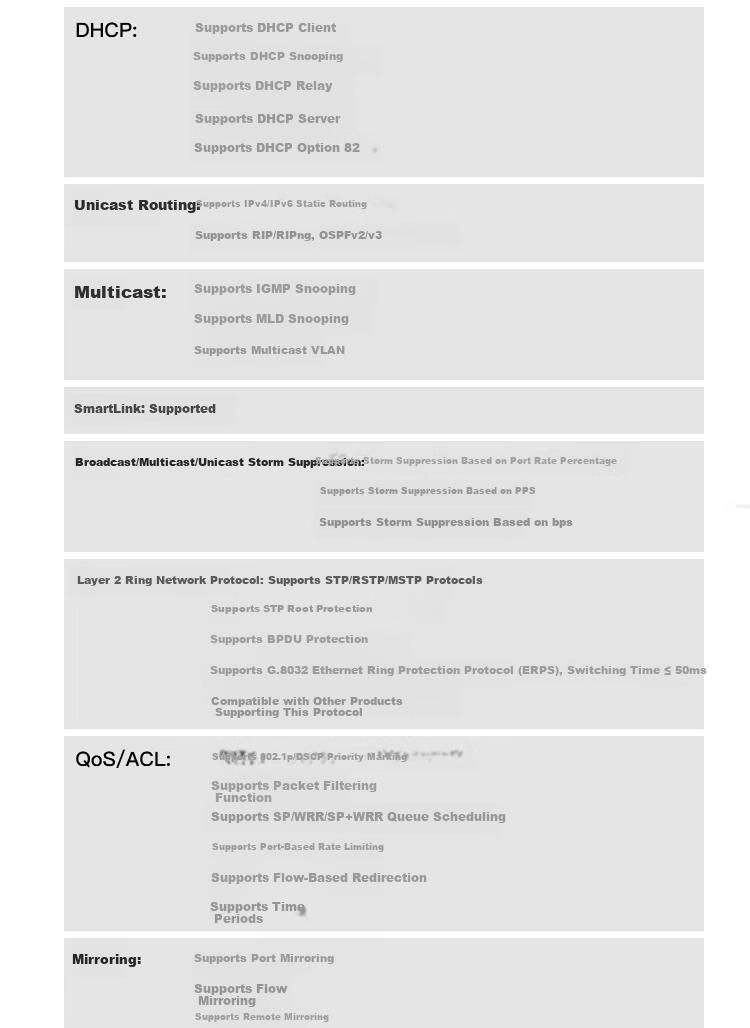

DHCPv4/v6 Client, Server, Relay

DHCP Snooping and DHCPv6 Snooping

Supports option 82 for DHCP Snooping and Relay

Supports distributed device management, distributed link aggregation, distributed elastic routing

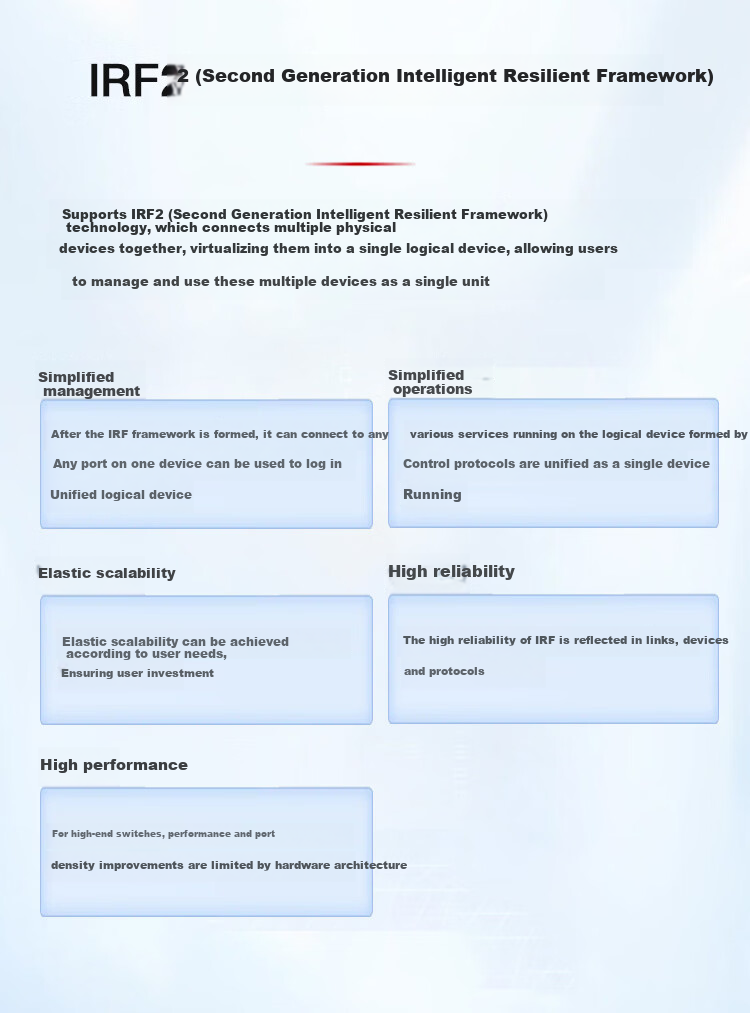

Supports stacking via standard Ethernet interfaces, local and remote stacking

Supports up to 9 devices in a stack

Supports IPv4/IPv6 static routing and dual stack

Supports RIP v1/v2, RIPng, OSPF v1/v2, OSPFv3, BGP4, BGP4+ for IPv6, IS-IS, IS-ISv6

Supports equal-cost multi-path routing, policy routing

Supports VRRP/VRRPv3

Supports OSPF multi-process, MD5 authentication, STUB/NSSA areas

Supports route cost configuration and inter-area route filtering

Full IPv4/IPv6 dual stack support

Supports Neighbor Discovery (ND), PMTU, IPv6 Ping, Traceroute, Telnet, TFTP

Supports manual and automatic tunnels, IPv4 over IPv6 tunnel, 6to4, ISATAP, GRE tunnels

Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2

Supports PIM Snooping, MLD Proxy, multicast VLAN

Supports multicast load balancing on aggregated ports

Supports port-based multicast traffic statistics

Supports IGMP v1/v2/v3, MLD v1/v2, PIM-DM, PIM-SM, PIM-SSM

Supports MSDP and MSDP for IPv6

Supports MBGP and MBGP for IPv6

Supports local and remote port mirroring, ERSPAN

Supports GRE tunnel decapsulation and encapsulation

Supports source port identification, packet truncation, timestamp and Ethernet header addition

Supports packet modification (MAC/IP address) before replication

Supports Layer 2 to Layer 4 packet filtering

Classification based on source/destination MAC, source/destination IP (IPv4/IPv6), TCP/UDP ports, VLAN

Supports time-range ACLs, bidirectional ACL policies

Supports 8 queues per port

Supports ACL deployment per VLAN

Supports ingress and egress rate limiting

Supports packet redirection, 802.1p and DSCP remarking

Supports Committed Access Rate (CAR)

Supports network slicing

Supports MPLS MCE, L3VPN, L2VPN, SR, TE

Supports OpenFlow 1.3 standard

Supports multiple controllers (equal and master-slave modes)

Supports multi-table pipeline, group table, and meter

Supports hot patching for online upgrades

Supports hardware BFD for VRRP, IS-IS, BGP, RIP, OSPF, static routing with minimum detection interval of 3 ms

Supports Y.1731 OAM, Telemetry visualization

Supports iNQA intelligent network quality analysis with real-time packet loss statistics at network and device levels

Supports LED indicators with location identification via flashing

Leakage current meets UL60950-1, EN60950-1, IEC60950-1, GB4943 standards

The H3C S5590-28T8XC-EI is a high-performance, high-density Layer 3 core switch designed for enterprise and data center networks. It offers robust security features including MACsec encryption, advanced reliability with multiple protection mechanisms, professional lightning protection, and flexible management options. The switch supports extensive Layer 2 and Layer 3 protocols, advanced QoS, MPLS, and SDN capabilities, making it suitable for complex and scalable network environments. Its energy-efficient design and comprehensive management features ensure stable, secure, and green operation.
