Midea Wall-Mounted Pipeline Water Purifier Companion Home Water Dispenser True Boiling 6-Stage Temperature Control Full Flow Matching Water Purifier Companion MG239-R
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Mideaβ€’Wall-Mounted Pipeline Machine

Midea Wall-Mounted Pipeline Water Purifier Companion Home Water Dispenser True Boiling 6-Stage Temperature Control Full Flow Matching Water Purifier Companion MG239-R

CNΒ₯1,598.85
SKU: 100346481840
Status:Out of Stock
ID: 100346481840
Weight: 4960.00 g
Dims:482x406x240 mm

Specifications

Sanitary License for Products Related to Water Hygiene and Safety
Yes
Installation
Wall-mounted
Water flow rate (room temperature)
0-1L/min
Pressure tank
No pressure tank

Package Contents

Pipeline machine *1, water connection box *1, instruction manual *1, hook *1, 3/8 inch PE pipe, 2-point clip *1, 3-point clip *4, screw adhesive pellets *5, 3/8 elbow plug *1, three-to-two elbow joint *1, three-way quick connector *1

Product Description

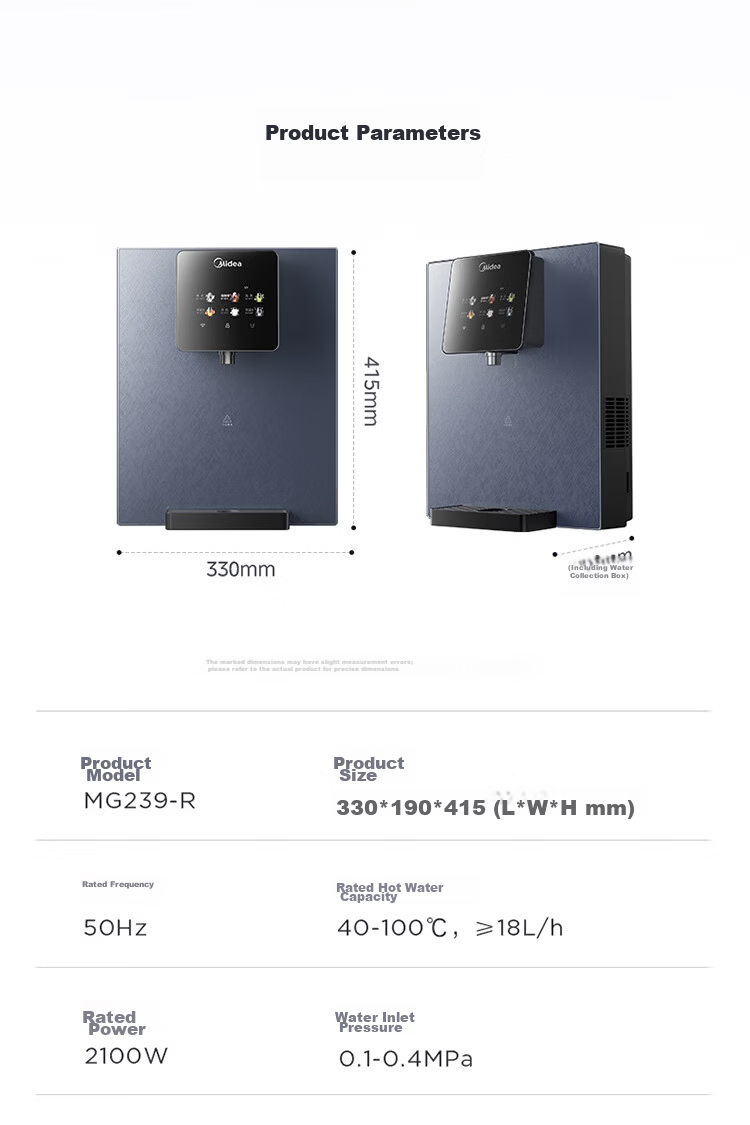

Product Specifications

Overview

Brand
Midea
Model
MG239-R
Dimensions (LΓ—WΓ—H)
330 mm Γ— 190 mm Γ— 415 mm (including drip tray)
Rated Frequency
50Hz
Rated Power
2100W
Water Inlet Pressure
0.1–0.4MPa
Heating Temperature Range
40–100℃
Rated Hot Water Output

Similar Products

In Stock
CASDON Wall-Mounted Pipeline Water Dispenser Household Direct Drinking Machine Refrigeration and Heating Integrated Water Cooler Ice Spring KG1Pro Yang Mi Edition
CASDONWall-Mounted Pipeline Machine

CASDON Wall-Mounted Pipeline Water Dispenser Household Direct Drinking Machine Refrigeration and Heating Integrated Water Cooler Ice Spring KG1Pro Yang Mi Edition

KG1Pro hot and cold | compatible with bottled water

CNΒ₯2,299.51

View
In Stock
CASDON Wall-Mounted Direct Drinking Water Dispenser with Refrigeration And Heating Functions, Integrated Beverage Machine for Home Use, Sideboard Model KG1, Yang Mi's Choice
CASDONWall-Mounted Pipeline Machine

CASDON Wall-Mounted Direct Drinking Water Dispenser with Refrigeration And Heating Functions, Integrated Beverage Machine for Home Use, Sideboard Model KG1, Yang Mi's Choice

KG1 Ice Spring Series

CNΒ₯2,099.00

View
In Stock
3M Instant Hot Water Dispenser, Water Purifier, Quick Heating, Smart Touch Control, Precise Water Output, Full Flow Rate, Wall-Mounted WHS200-BL
3MWall-Mounted Pipeline Machine

3M Instant Hot Water Dispenser, Water Purifier, Quick Heating, Smart Touch Control, Precise Water Output, Full Flow Rate, Wall-Mounted WHS200-BL

CNΒ₯1,709.01

View
β‰₯18L/h

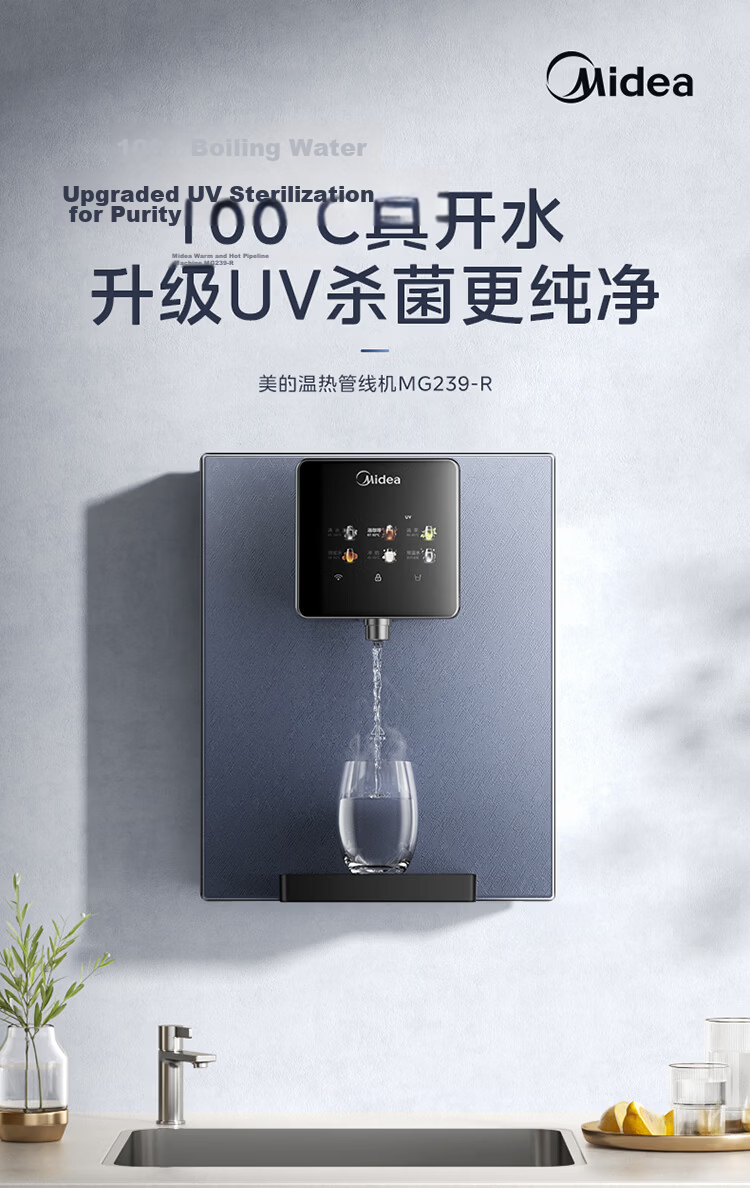

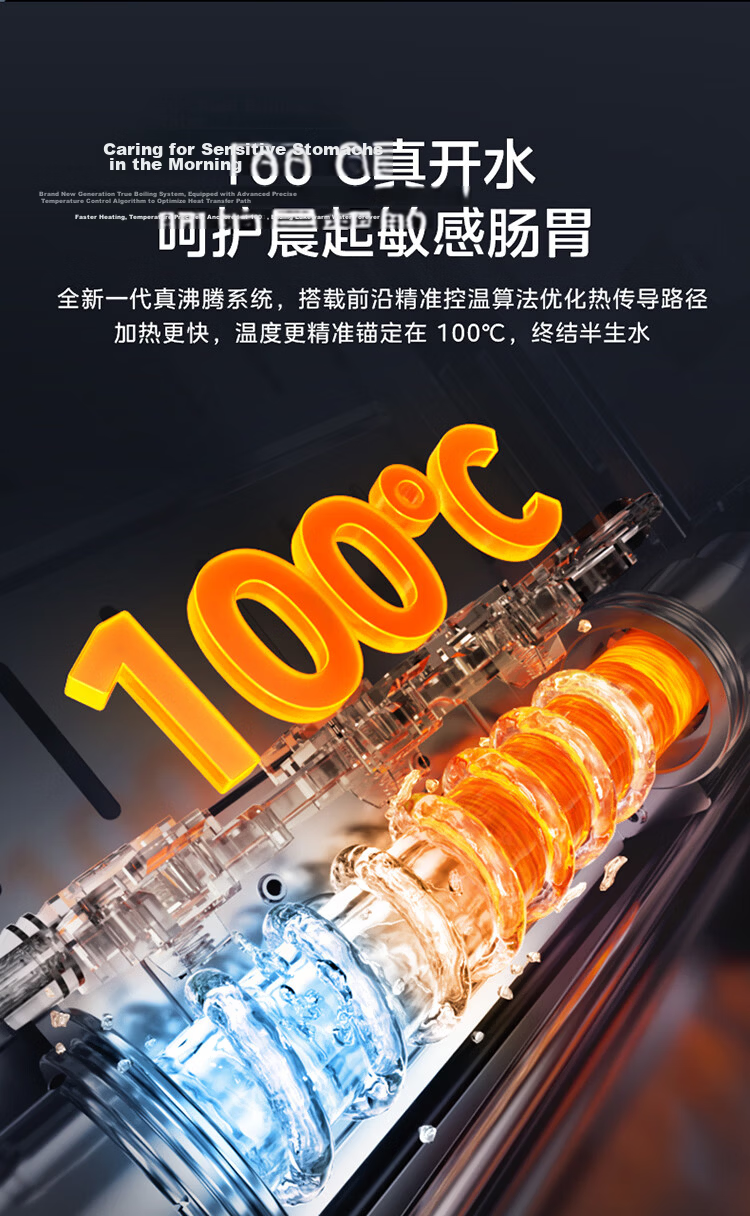

True 100℃ Boiling Water
Equipped with a next-generation boiling system and precise temperature control algorithm to ensure rapid heating and accurate temperature anchoring at 100℃, eliminating underheated water.
Upgraded UV Sterilization
Deep UV sterilization technology providing 99.9% bacteria elimination for purer water.

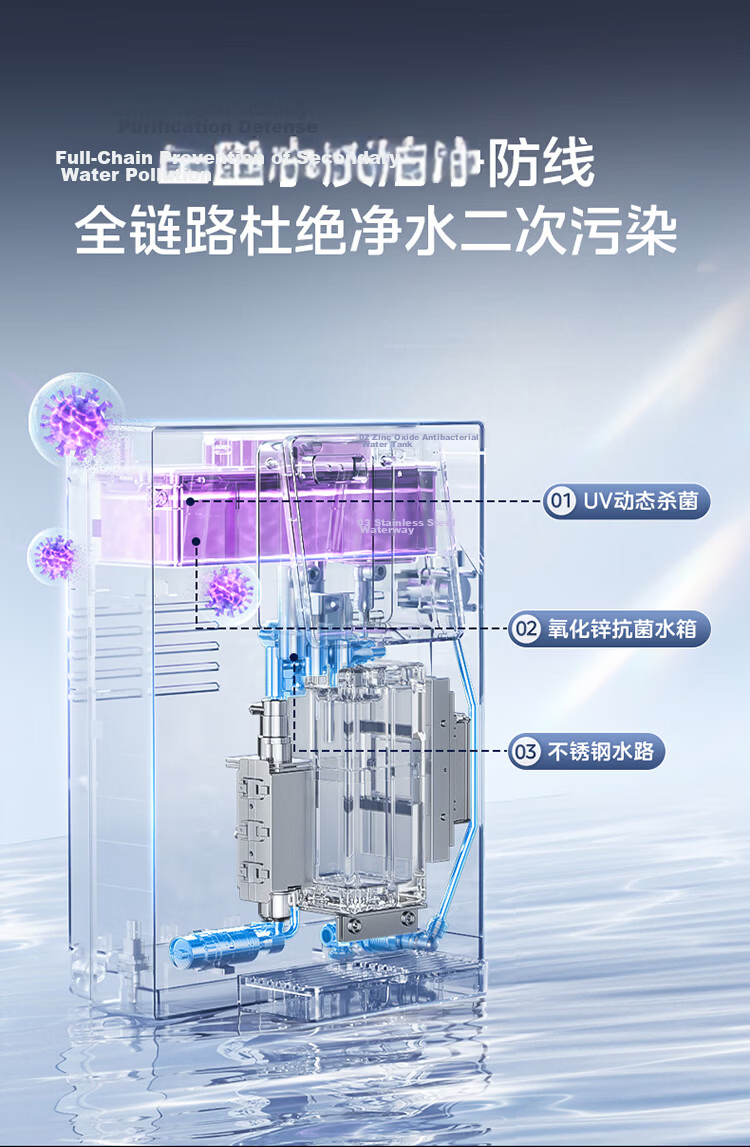

1. Dynamic UV Sterilization

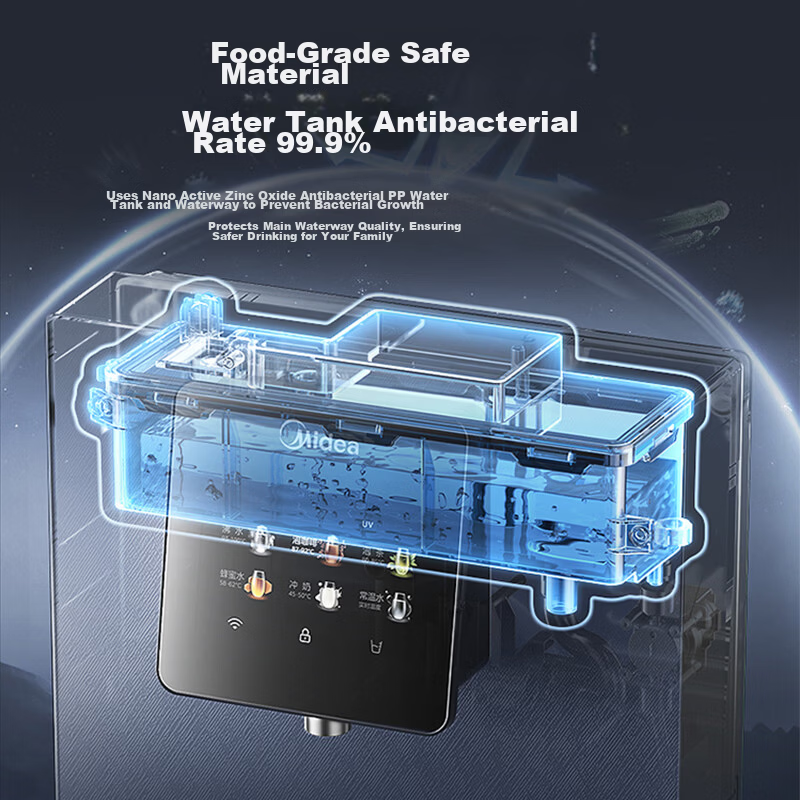

2. Zinc Oxide Antibacterial Water Tank

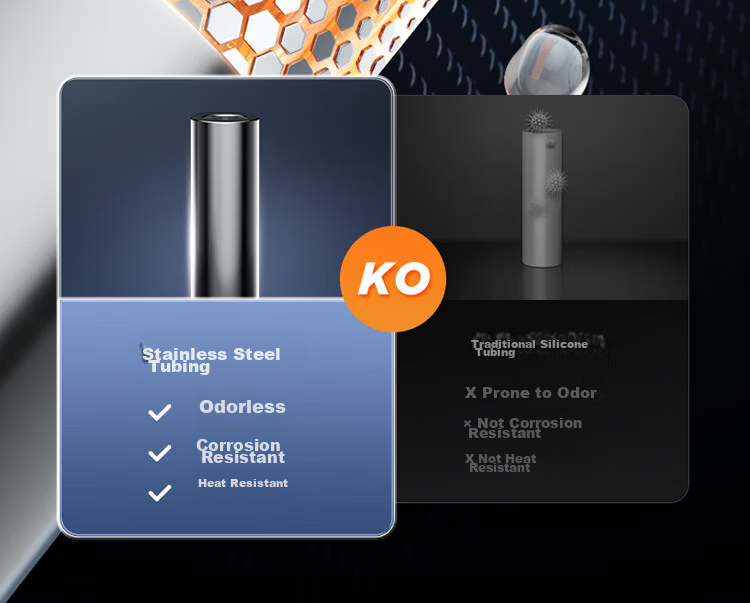

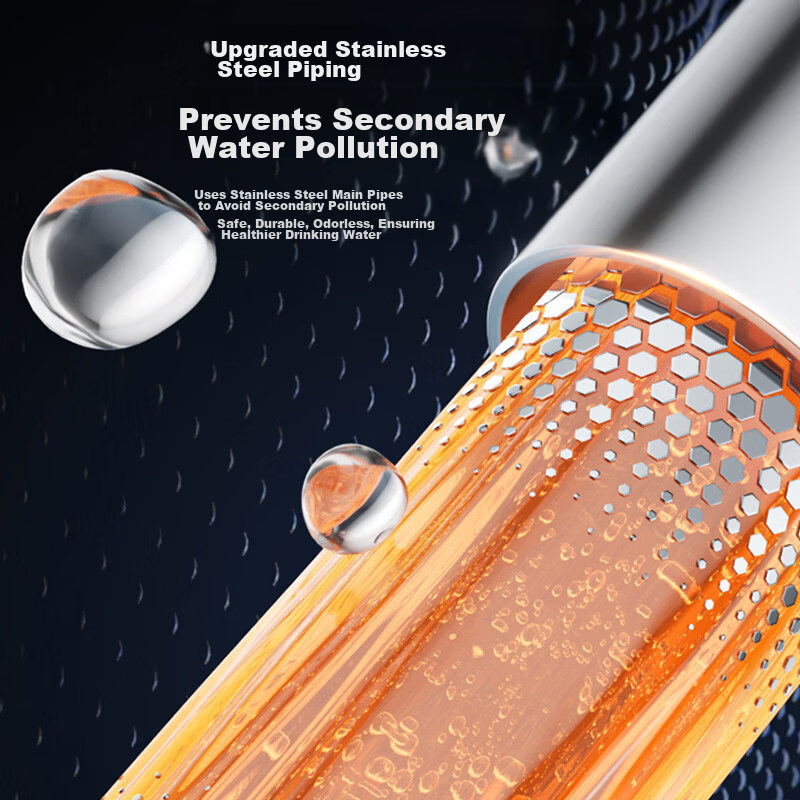

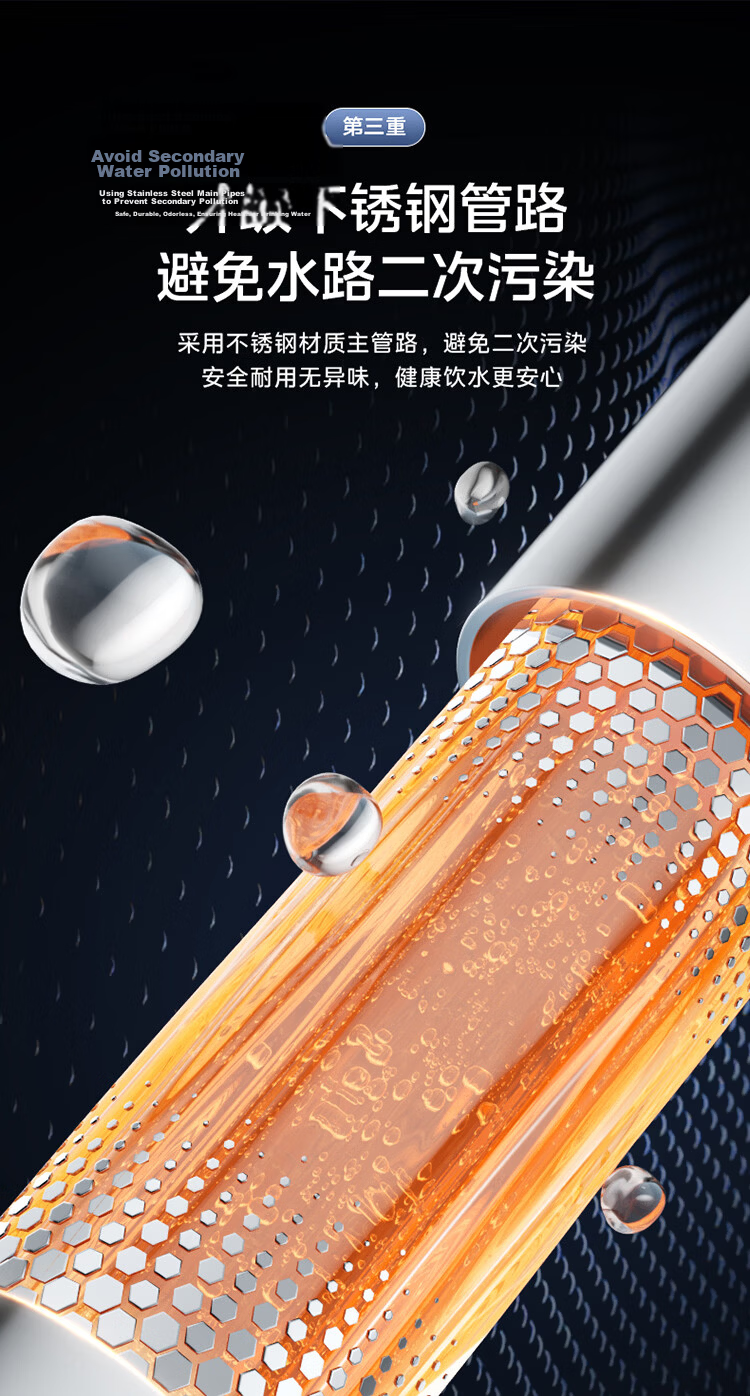

3. Upgraded Stainless Steel Water Pipes to prevent secondary pollution, corrosion, odors, and withstand high temperatures.

Additional details

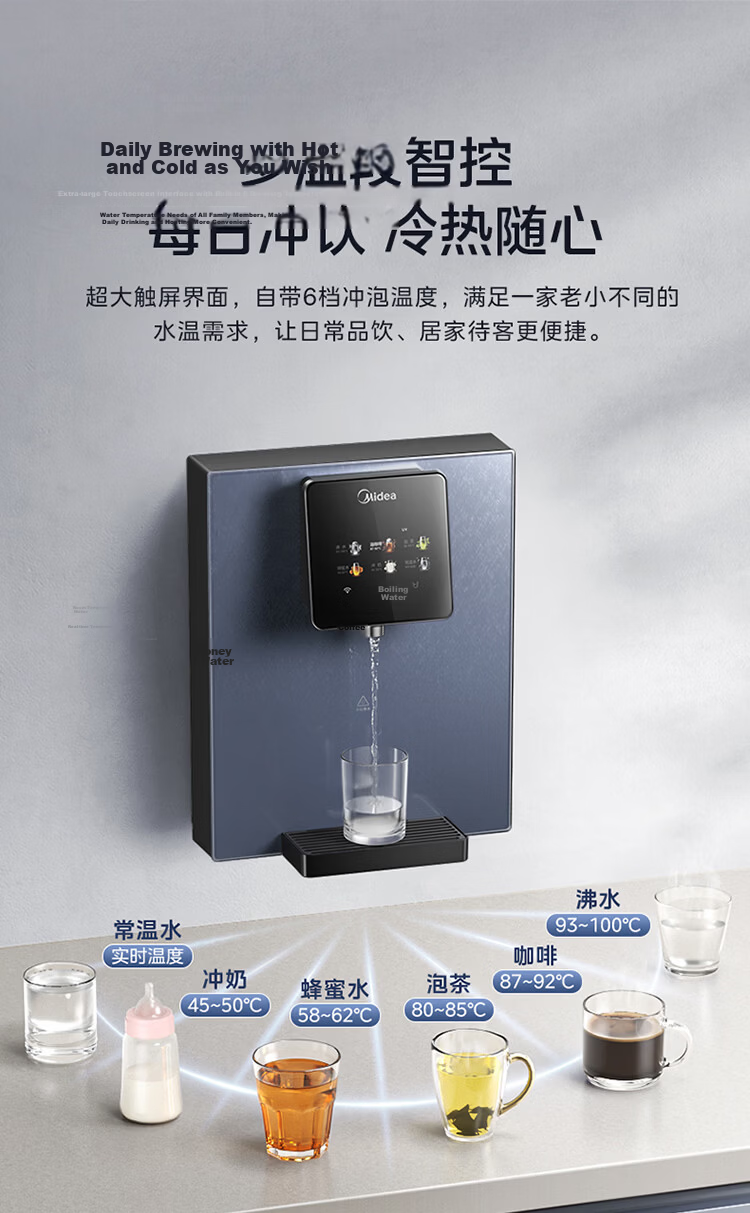

Multi-Temperature Control
Six preset temperature settings (45–50℃, 58–62℃, 80–85℃, 87–92℃, 93–100℃) suitable for various beverages such as coffee, milk, tea, and honey water.

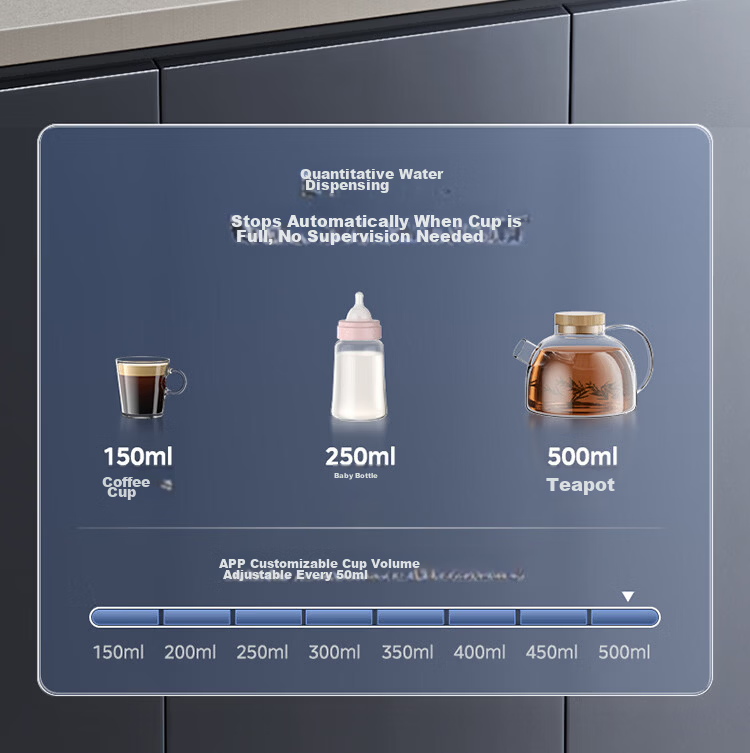

Quantitative Water Dispensing
Pre-set cup volumes (150ml, 250ml, 500ml) and customizable volumes via app in 50ml increments for coffee cups, baby bottles, and teapots.

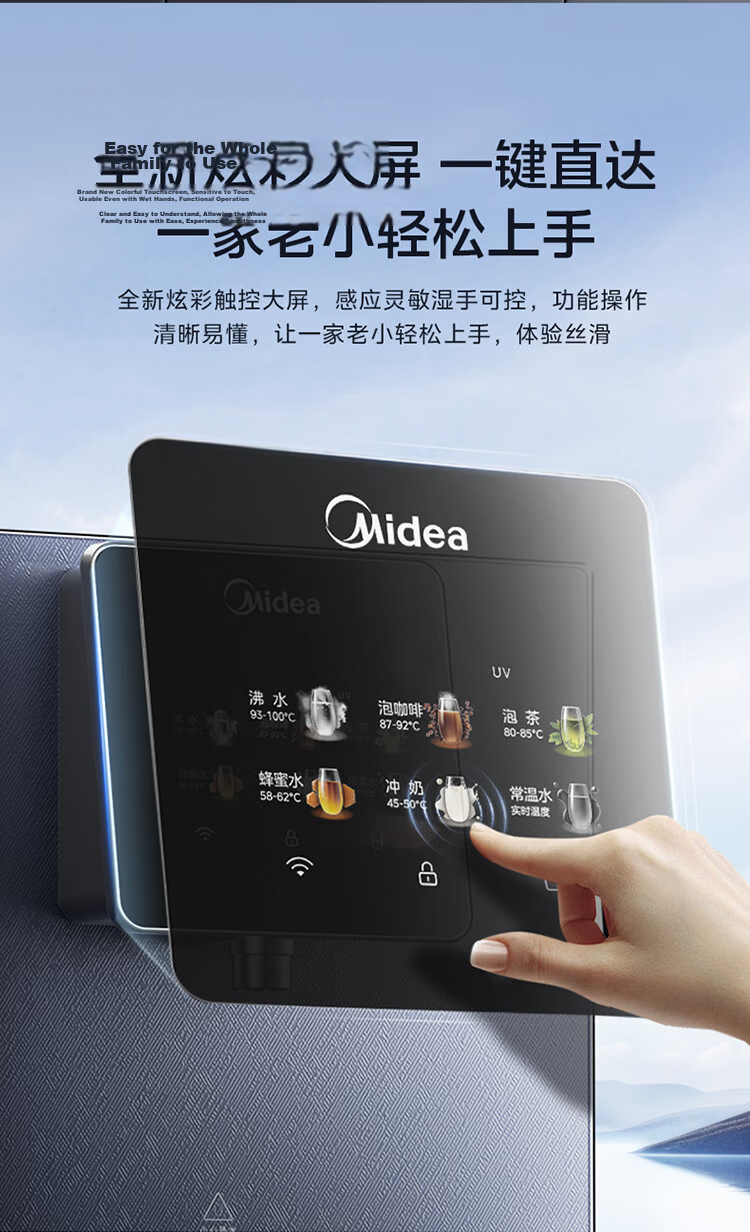

Large Color Touchscreen
Responsive, easy-to-use interface with wet-hand operability, suitable for all family members.

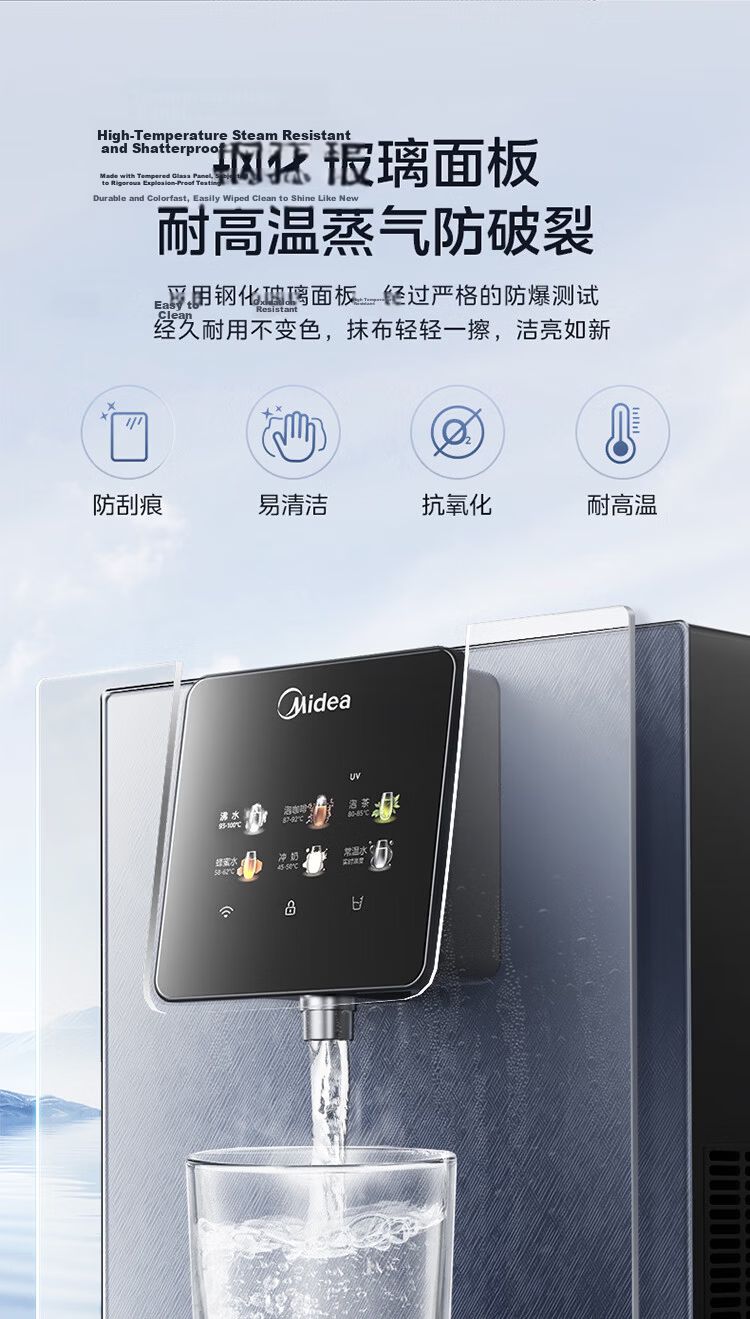

Tempered Glass Panel
High-temperature resistant, anti-scratch, anti-oxidation, easy to clean, and durable.

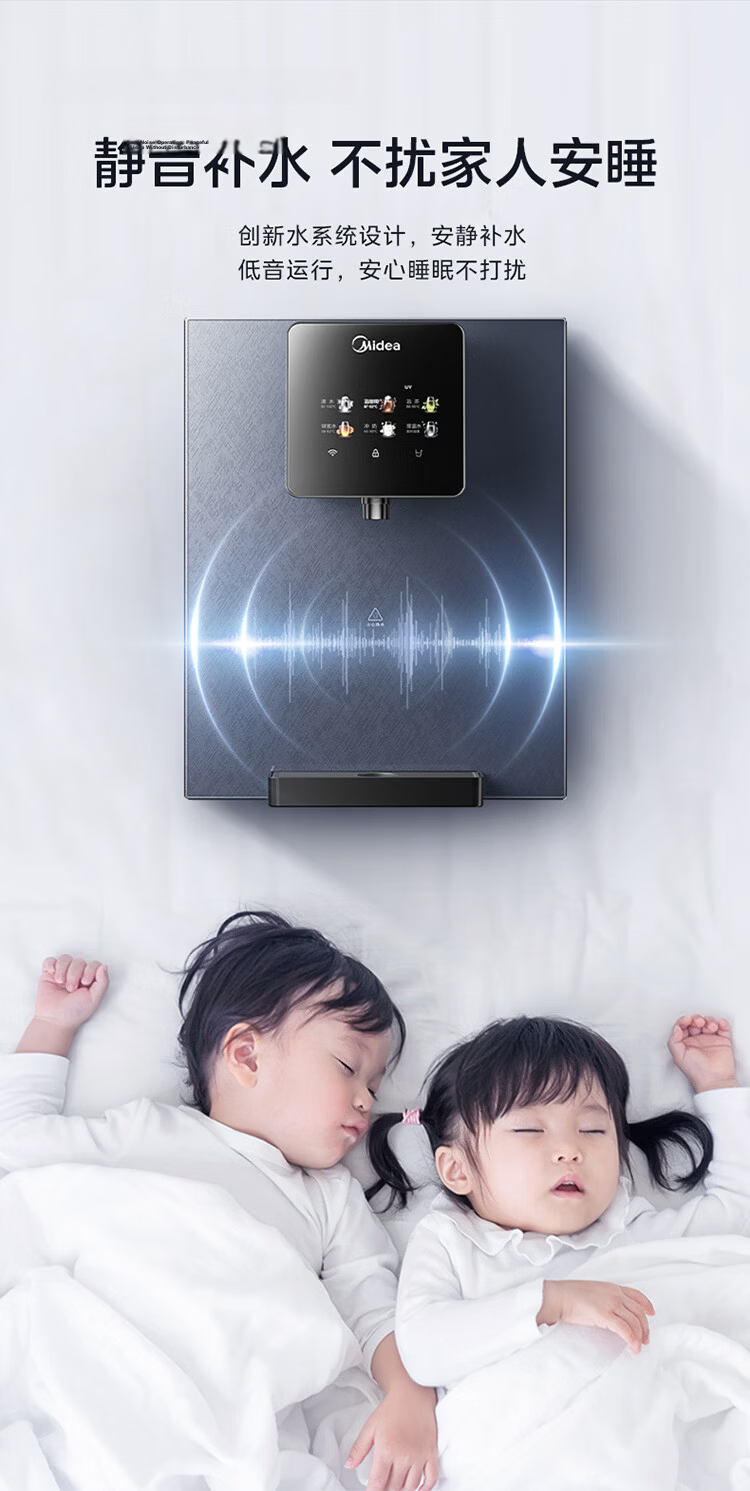

Silent Water Refill System
Low noise operation ensures no disturbance during sleep.

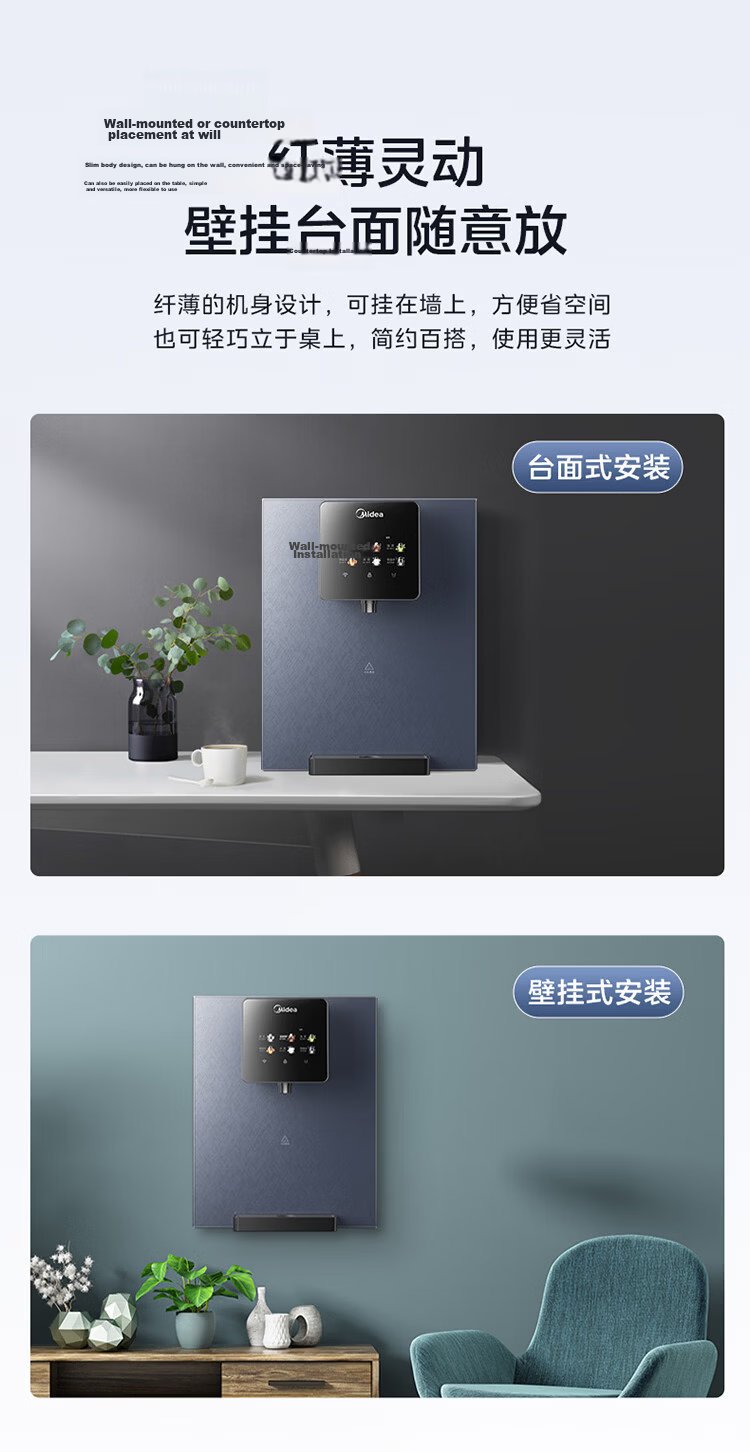

Slim and Flexible Installation
Wall-mount or countertop placement options for space-saving and versatile use.

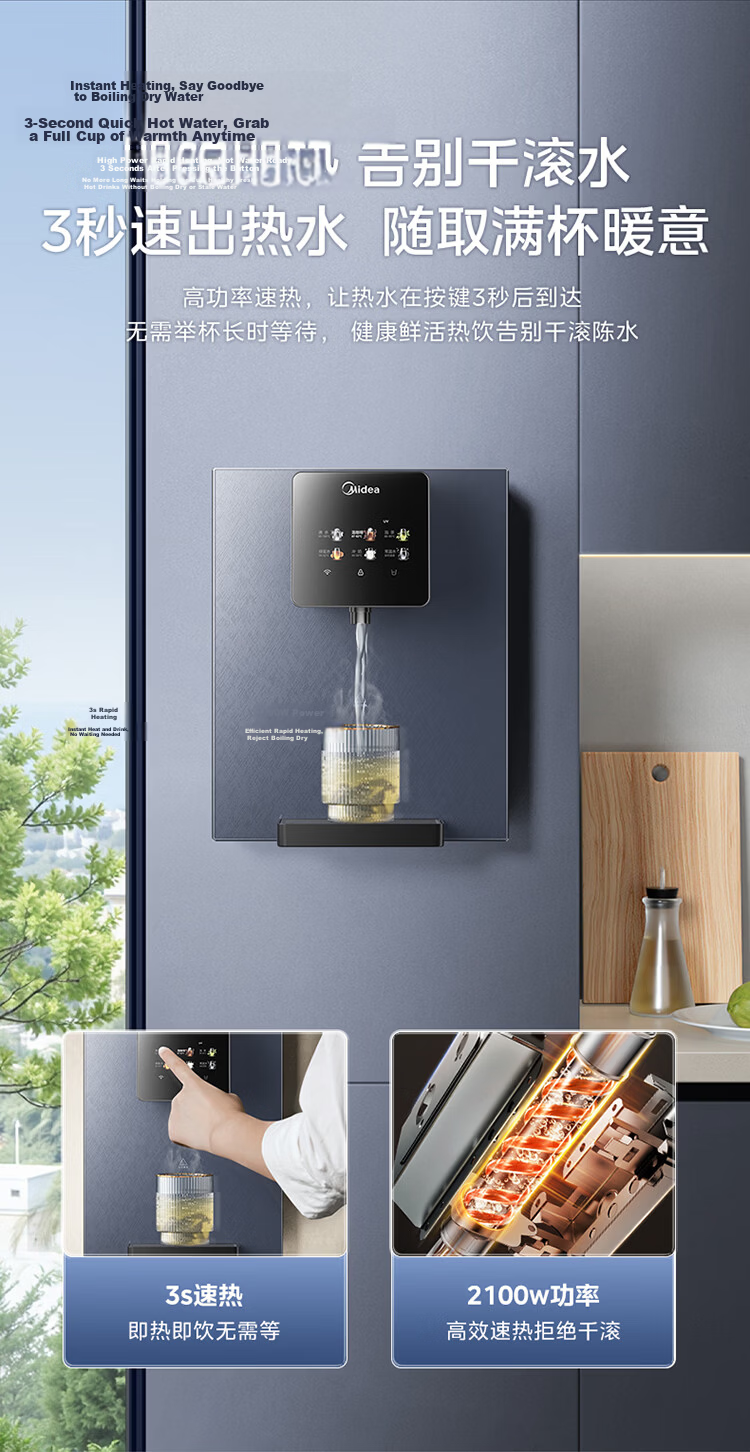

Fast Heating
3-second instant hot water delivery with 2100W power, avoiding dry-boil and stale water.
Safety and Hygiene
Antibacterial water tank and stainless steel piping ensure safe and odor-free drinking water.

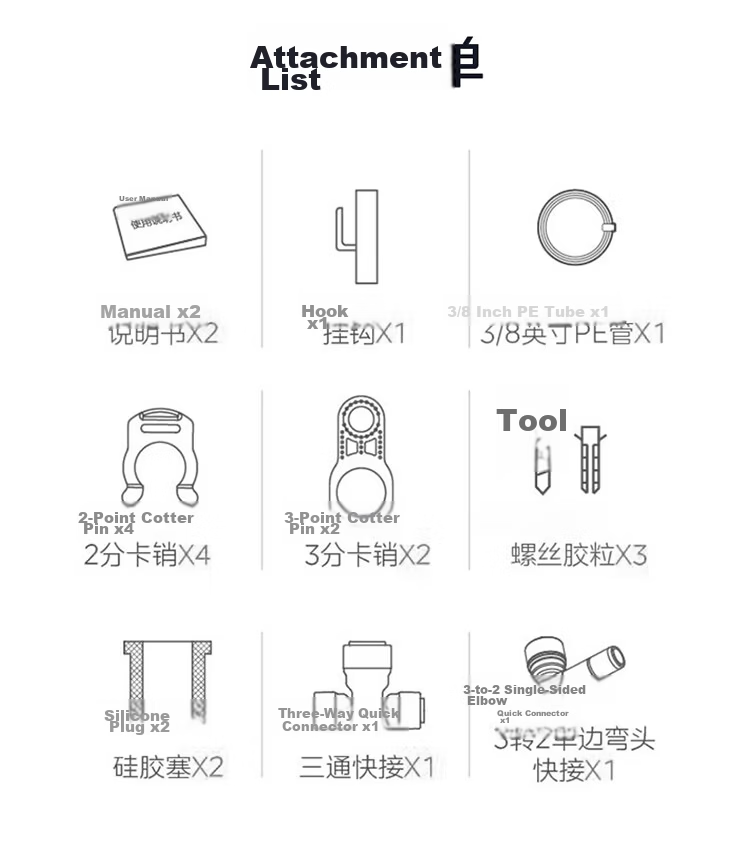

User Manual Γ—2

Mounting Hook Γ—1

3/8 inch PE Pipe Γ—1

2-point Clip Γ—4

3-point Clip Γ—2

Screws and Plastic Anchors Γ—3

3-to-2 Single Elbow Connector Γ—1

Silicone Plugs Γ—2

Three-way Quick Connector Γ—1

Quick Connector Γ—1

Metal Mounting Bracket

Additional details

Recommended PPR pipe diameter
4 points for pre-embedded pipes to ensure compatibility.

Avoid 90-degree bends in piping to facilitate installation and maintenance.

Compatible with RO reverse osmosis water purifiers (preferably with pressure tanks); not recommended for ultra-filtration purifiers in high hardness water areas due to scaling risk.

The unit supports connection to both pressure tank and tankless RO systems without causing frequent purifier cycling.

1. Due to rapid heating and environmental factors (voltage, water temperature, altitude), actual water outlet temperature may be slightly lower than displayed.

2. All water-contact parts are pre-tested, cleaned, dried, and disinfected before shipment; minor water stains on new units are normal.

3. If unused for extended periods, drain all water from the pipes; do not invert the machine during drainage to avoid circuit damage.

Additional details

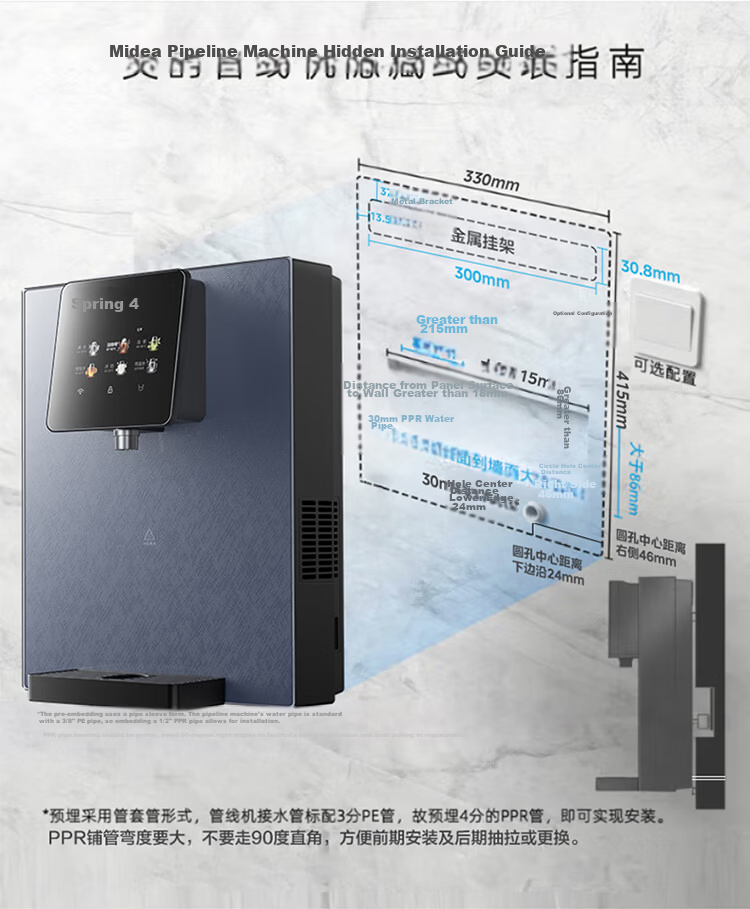

Wall mount bracket width
300 mm
Mounting hole center distances
Right side 46 mm, bottom edge 24 mm
Minimum clearance from panel surface to wall
>18 mm
Minimum clearance for PPR pipe
>86 mm

Suitable for boiling water, honey water, coffee, milk, tea, and other daily hot water needs with precise temperature control and hygienic water quality assurance.
