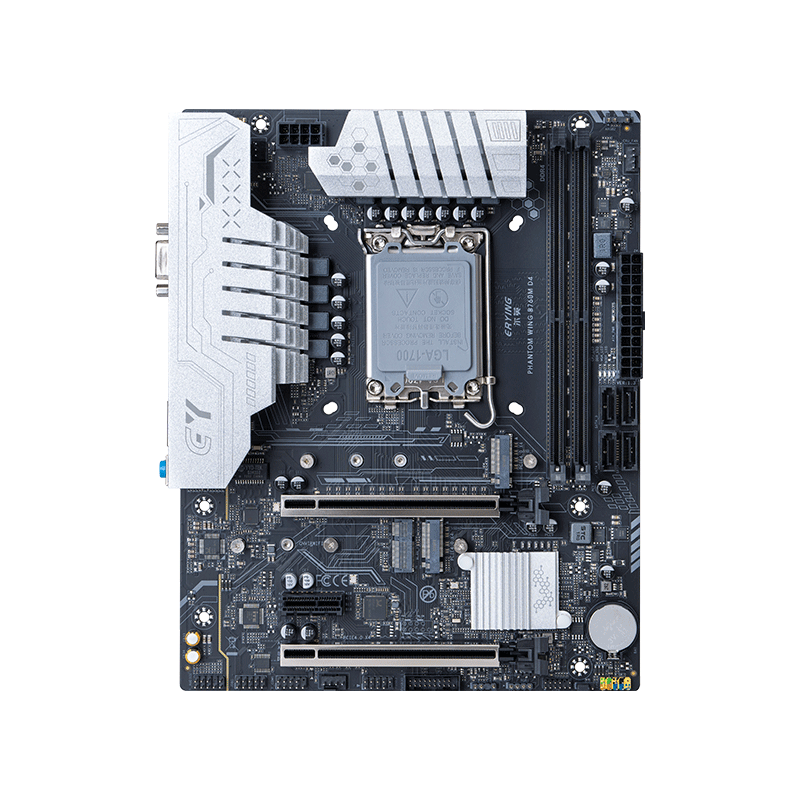

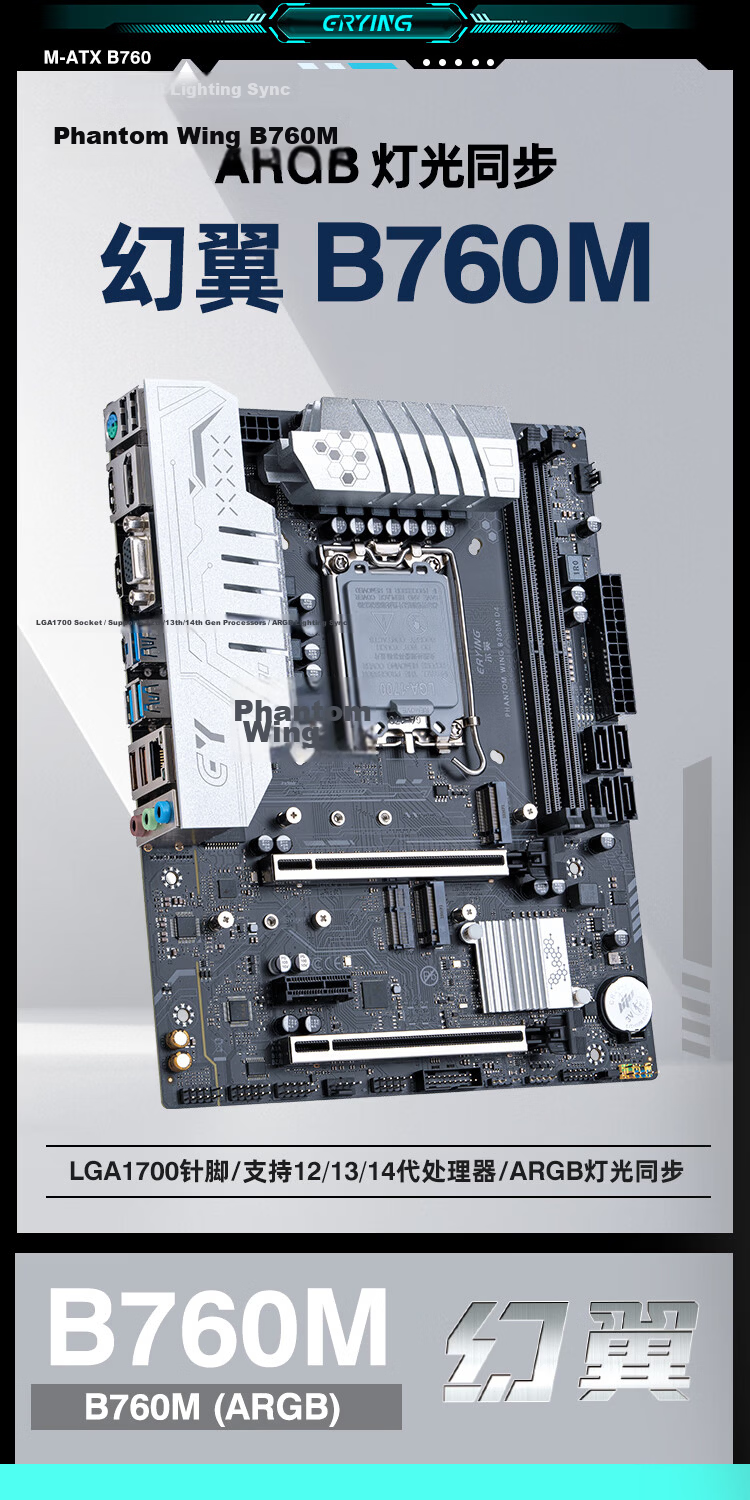

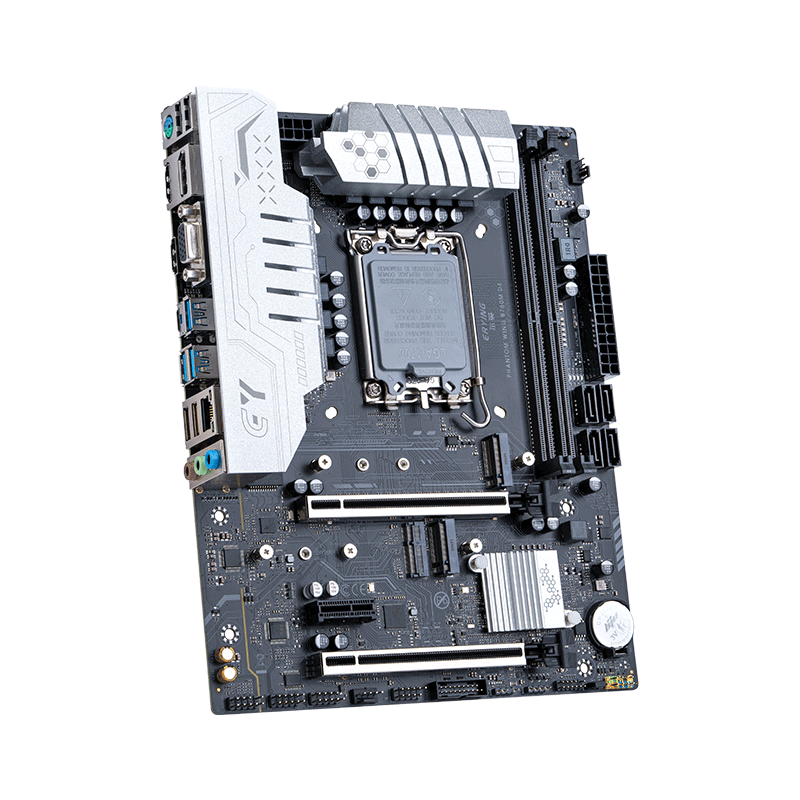

Ering B760M Phantom Wing Motherboard Computer Host Assembly Synchro ARGB Cooling Armor Desktop DIY Assembly Computer Set D4 Memory B760M-DDR4 Black

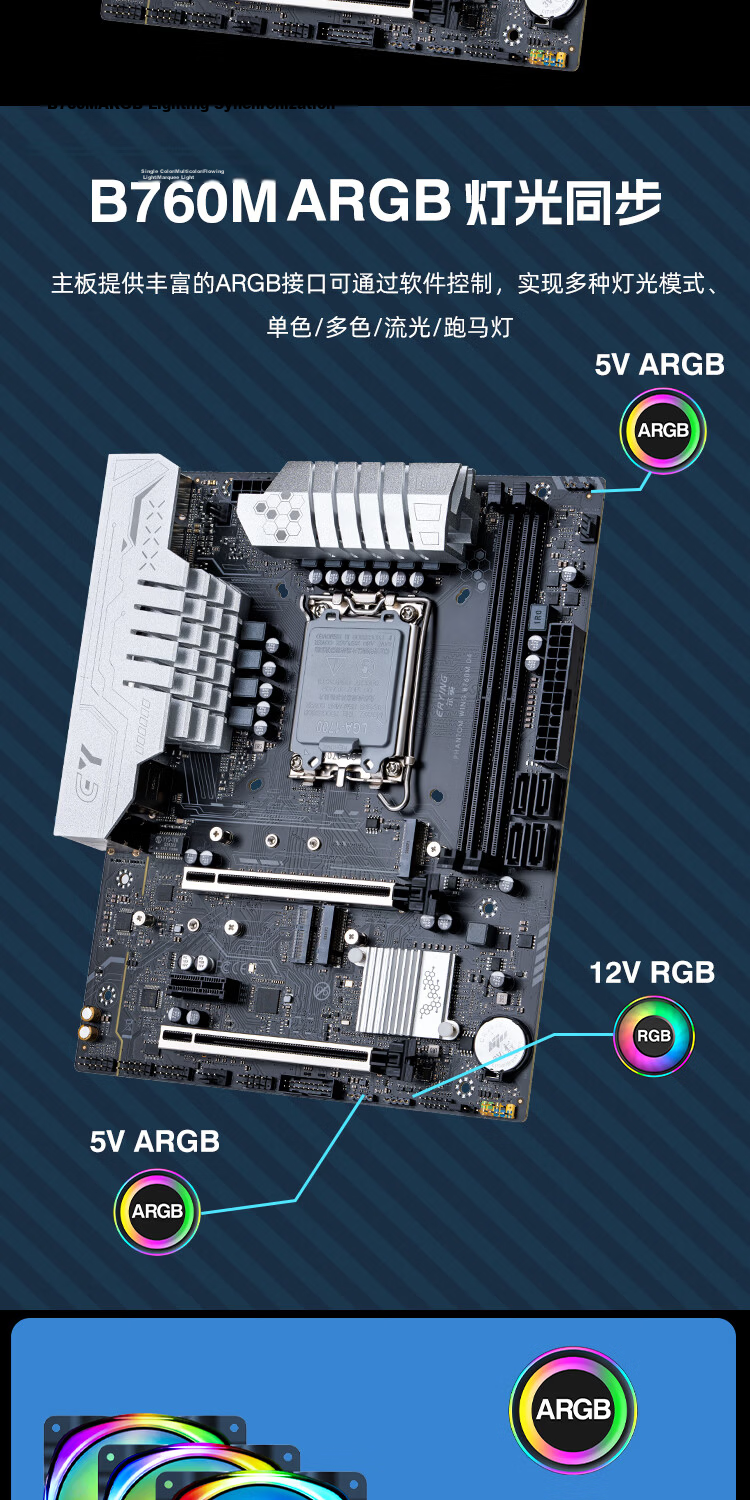

ARGB Lighting

• Full ARGB lighting synchronization supported
• Multiple lighting modes: single color, multi-color, flowing light, marquee
• Onboard ARGB headers: 2 x 5V 3-pin ARGB, 1 x 12V 4-pin RGB
• Software control for lighting effects and hardware support for lighting synchronization

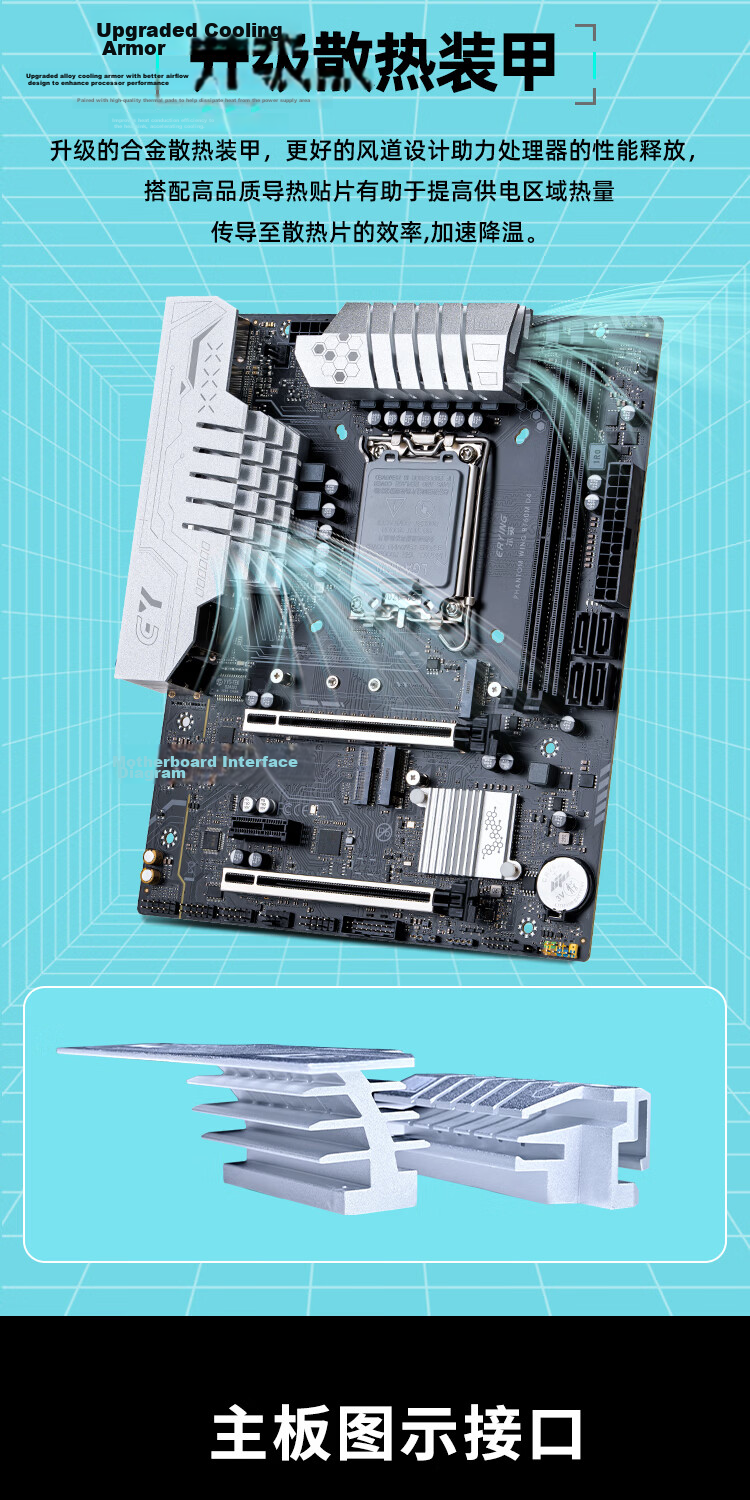

Cooling

• Upgraded alloy heat shield with improved airflow design
• High-quality thermal pads to enhance heat dissipation from power delivery area to heatsink

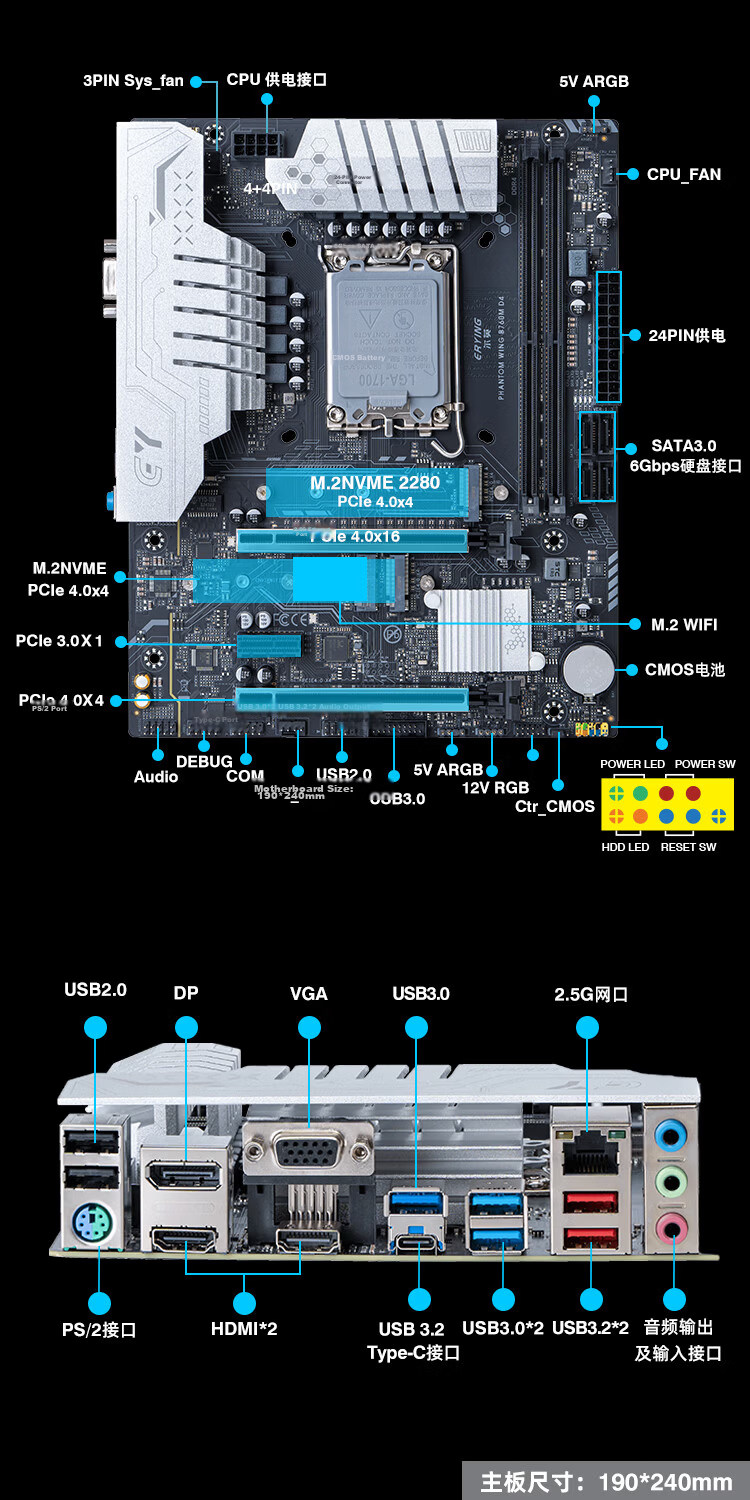

Expansion and Connectivity

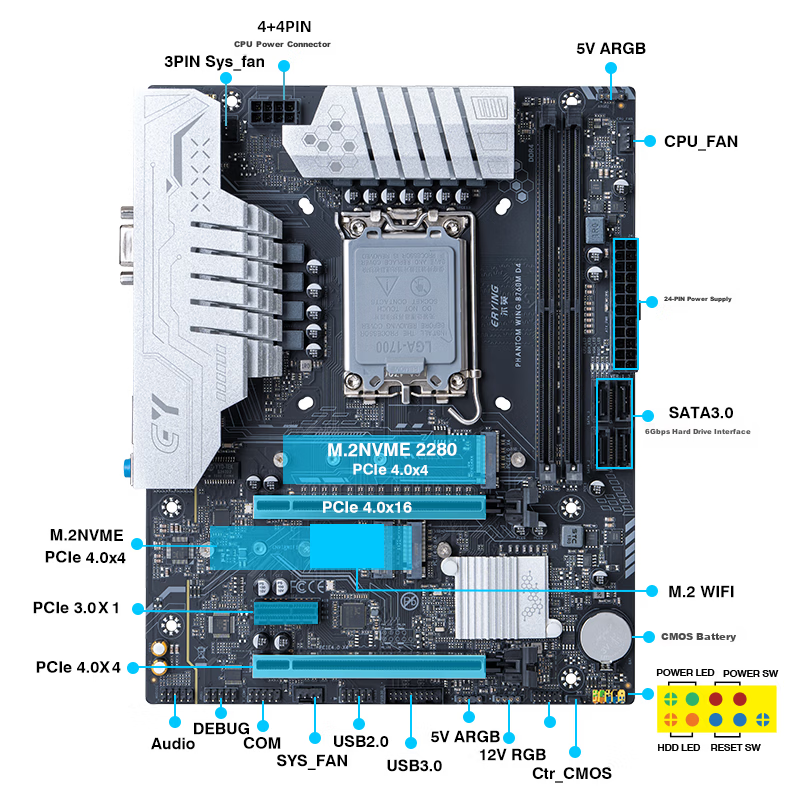

• Storage Interfaces: M.2 NVMe 2280 slots, 6Gbps SATA ports
• PCIe: PCIe 3.0 x1 slot

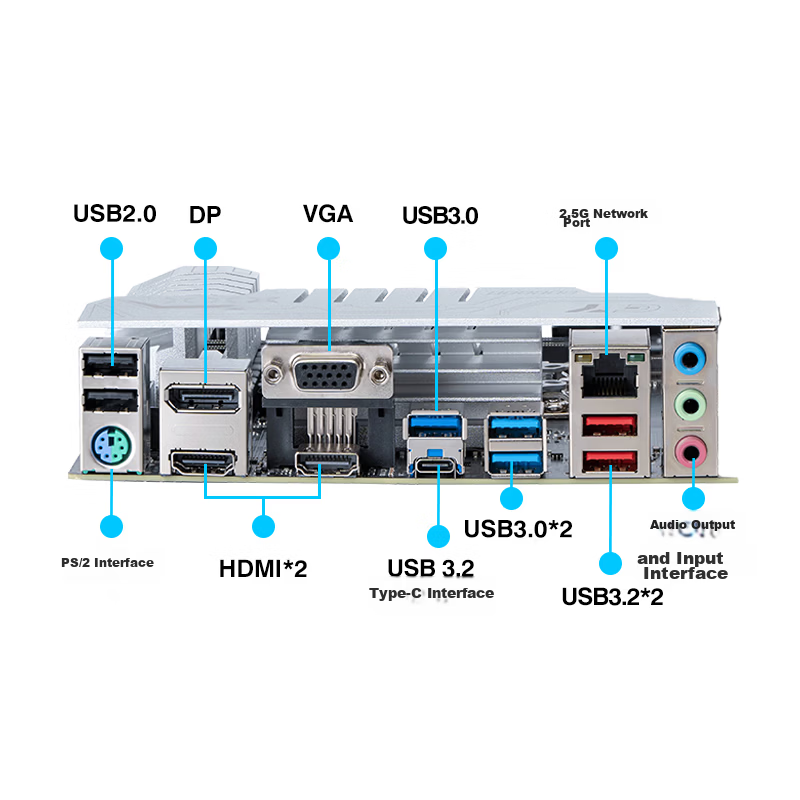

• Network: 2.5G RJ45 Ethernet port with up to 2500 Mbps bandwidth
• USB Ports:
• 1 x USB 3.2 Type-C (10Gbps)
• Multiple USB 3.0 and USB 2.0 ports
• Video Outputs: 2 x HDMI, 1 x DisplayPort, 1 x VGA
• Audio:
• Realtek ALC897 codec
• Front panel audio connectors: Mic-in (pink), Line-out (light green), Line-in (blue)
• Other Interfaces:
• PS/2 port
• CMOS battery and clear CMOS button
• Debug LED
• System fan headers (3-pin SYS_FAN, CPU_FAN)

Additional details

Additional Features

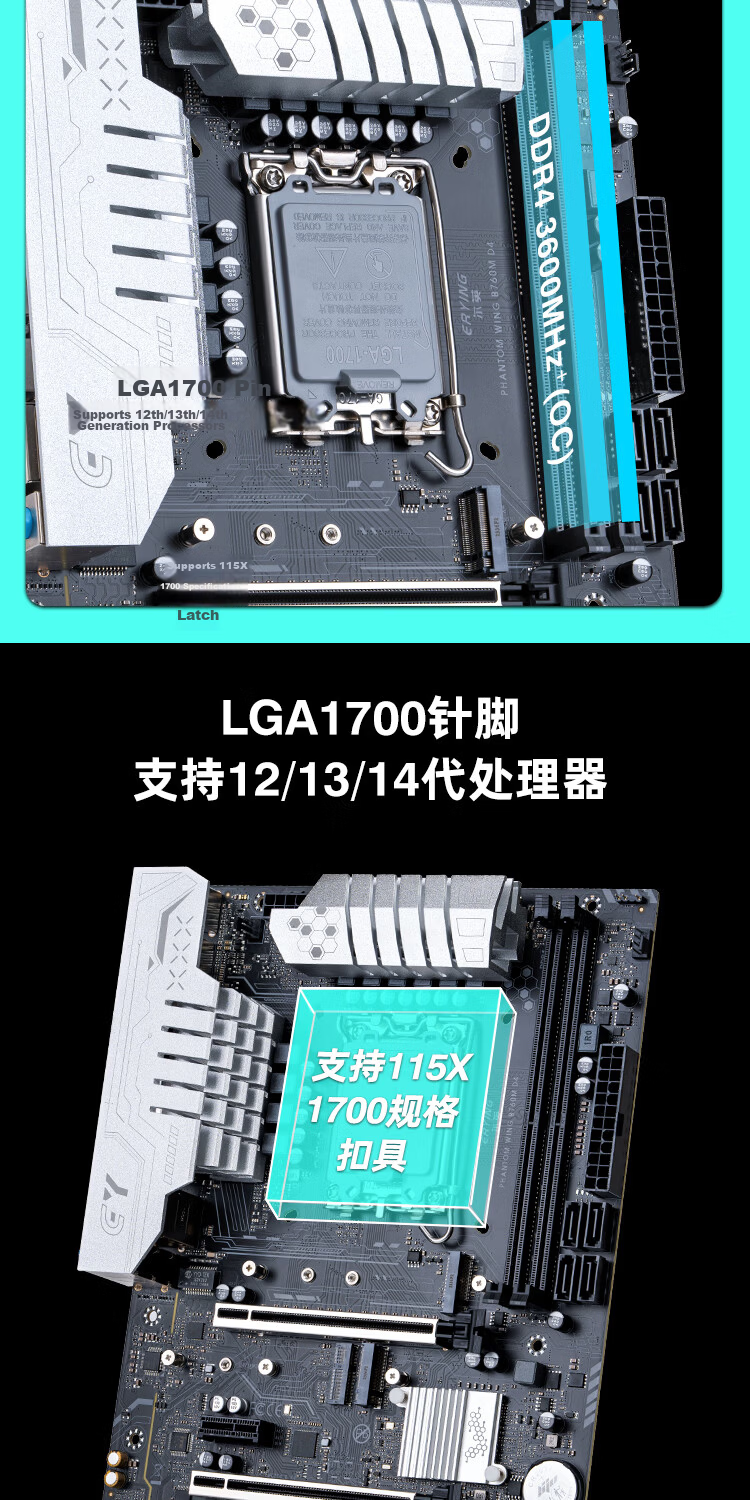

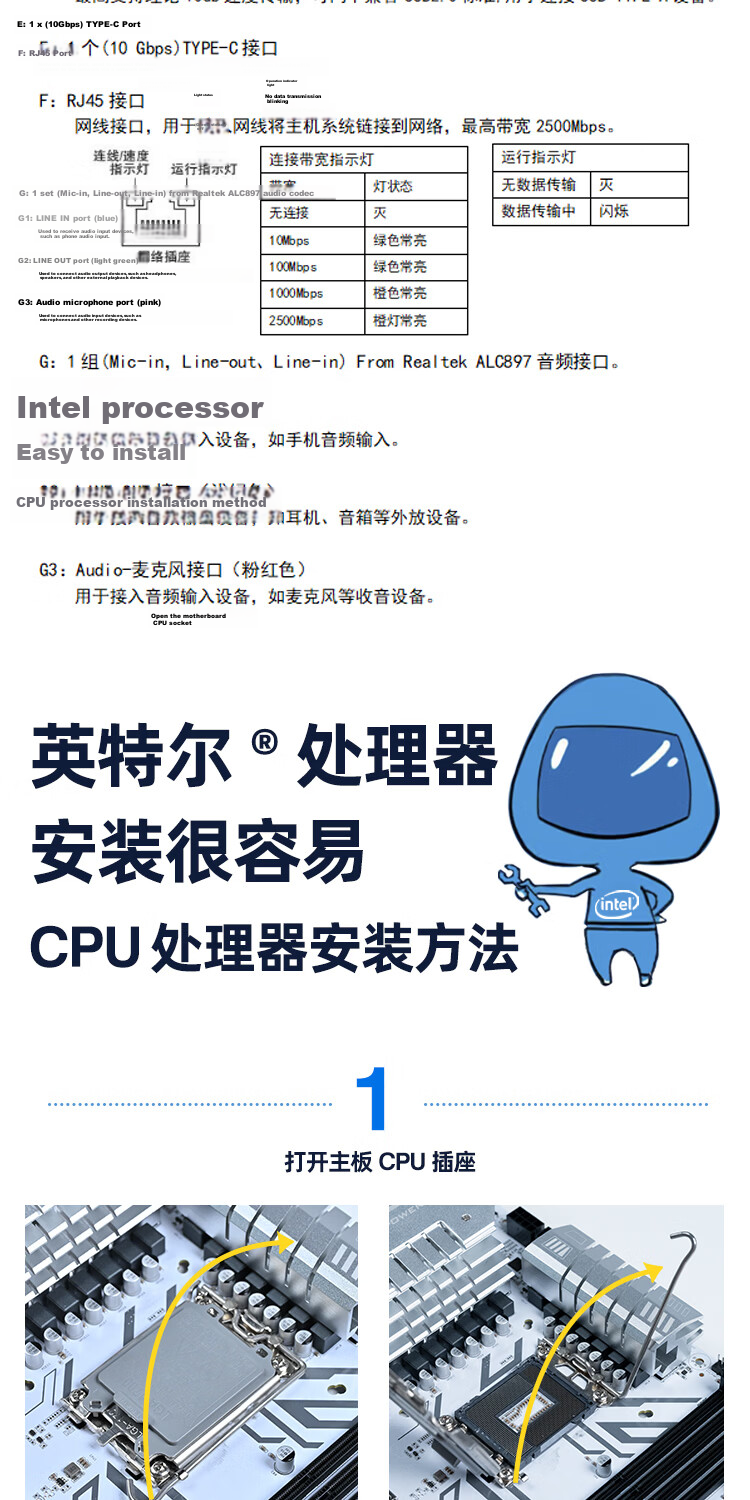

• Supports Intel CPU installation with easy-to-use CPU socket mechanism
• Supports 115X and 1700 mounting specifications
• Enhanced power connectors: 24-pin main power, CPU power connectors

Software

• ARGB lighting control software included for customizable lighting effects
