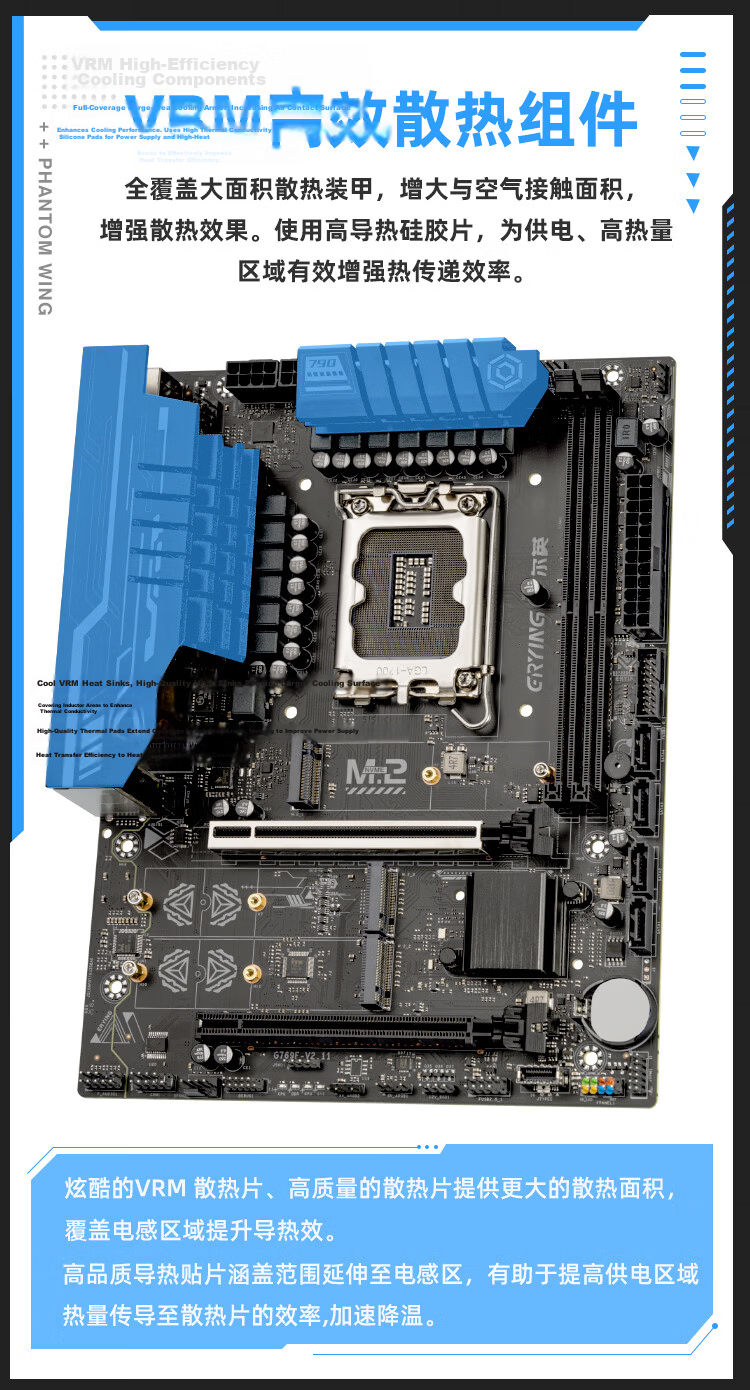

Full coverage large heat spreader with high thermal conductivity thermal pads for VRM and inductors

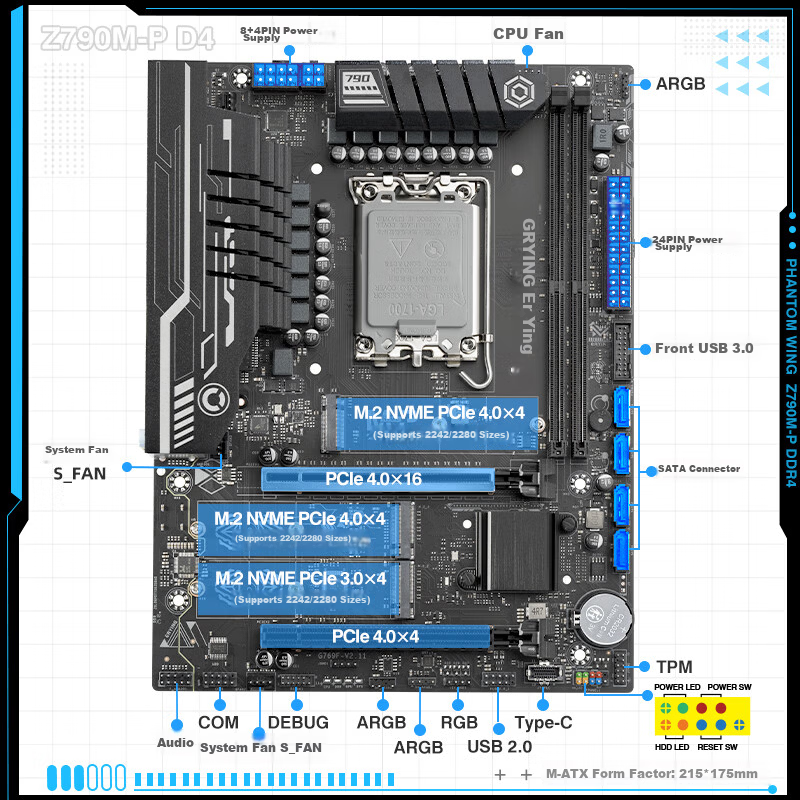

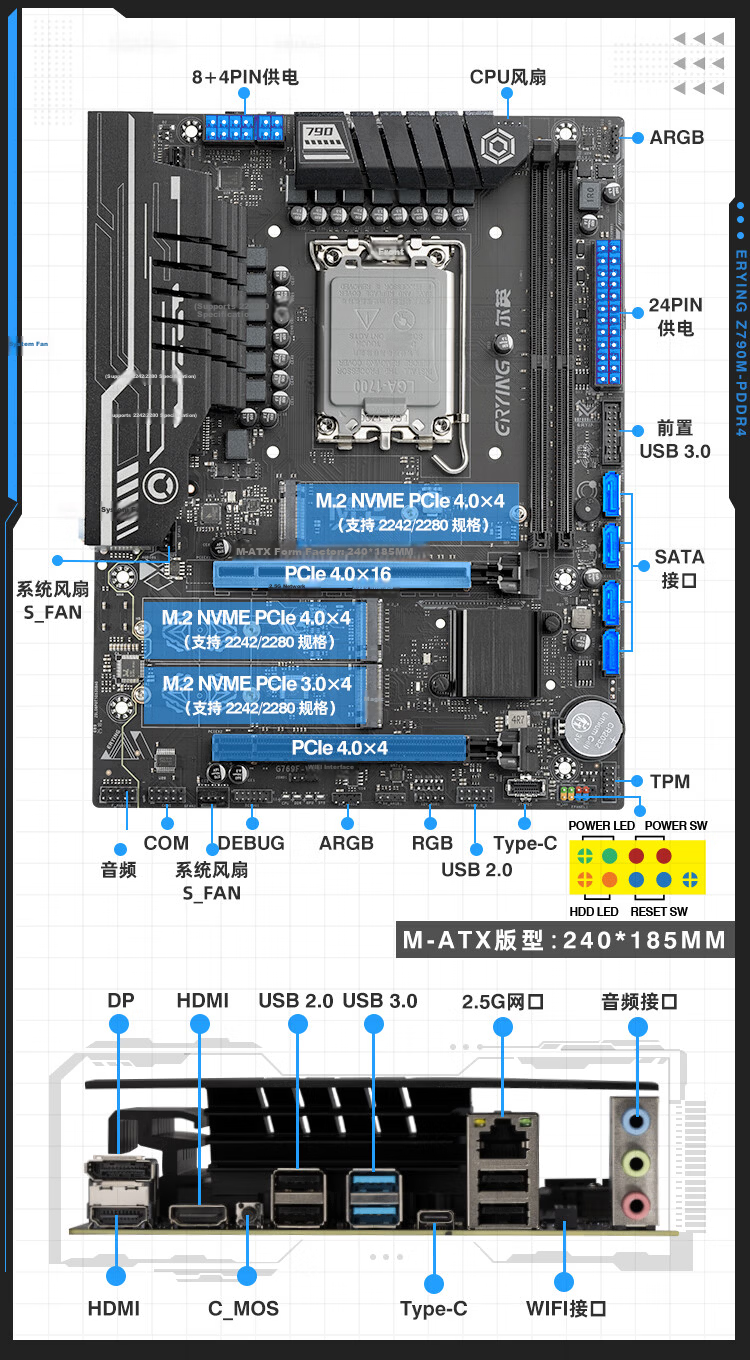

1 x PCIe 4.0 x16 (reinforced alloy slot)
1 x PCIe 4.0 x4
3 x M.2 slots
M.2_1 & M.2_3 support PCIe 4.0 x4 (2242/2280 form factor)
M.2_2 supports PCIe 3.0 x4 (2242/2280 form factor)

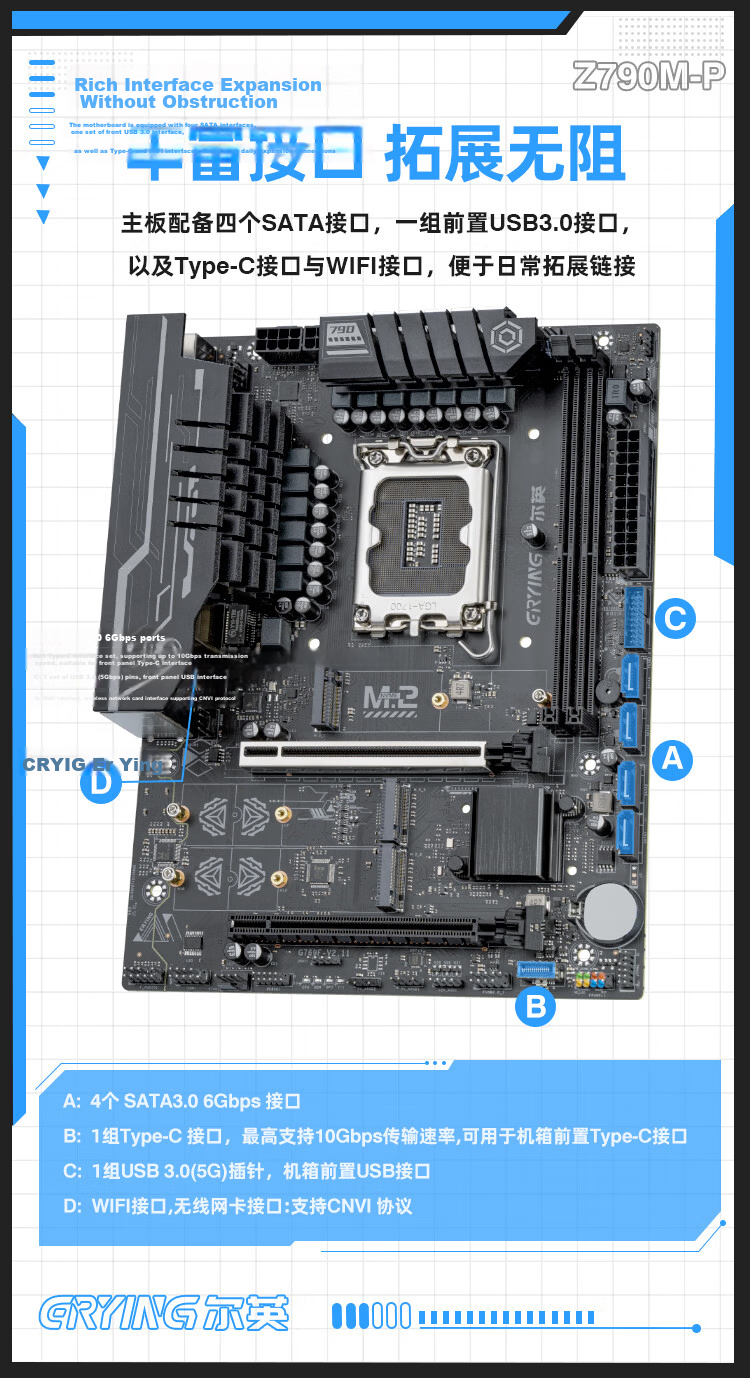

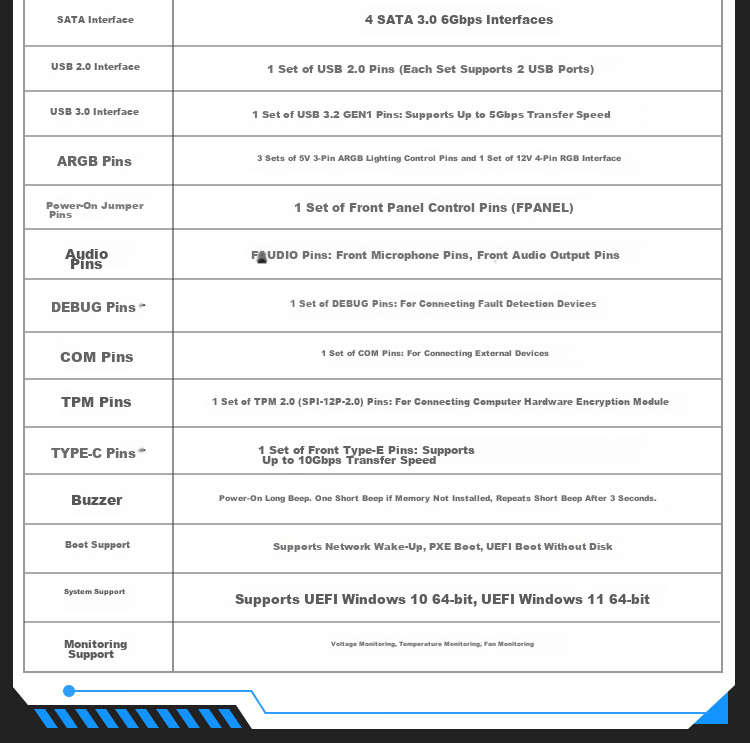

4 x SATA 3.0 6Gbps ports
Additional details
Front Panel USB
1 x USB 3.2 Gen1 (5Gbps) header
Front Panel Type-C
1 x USB 3.2 Gen2 Type-C header (10Gbps)
USB 2.0
1 header (supports 2 ports)

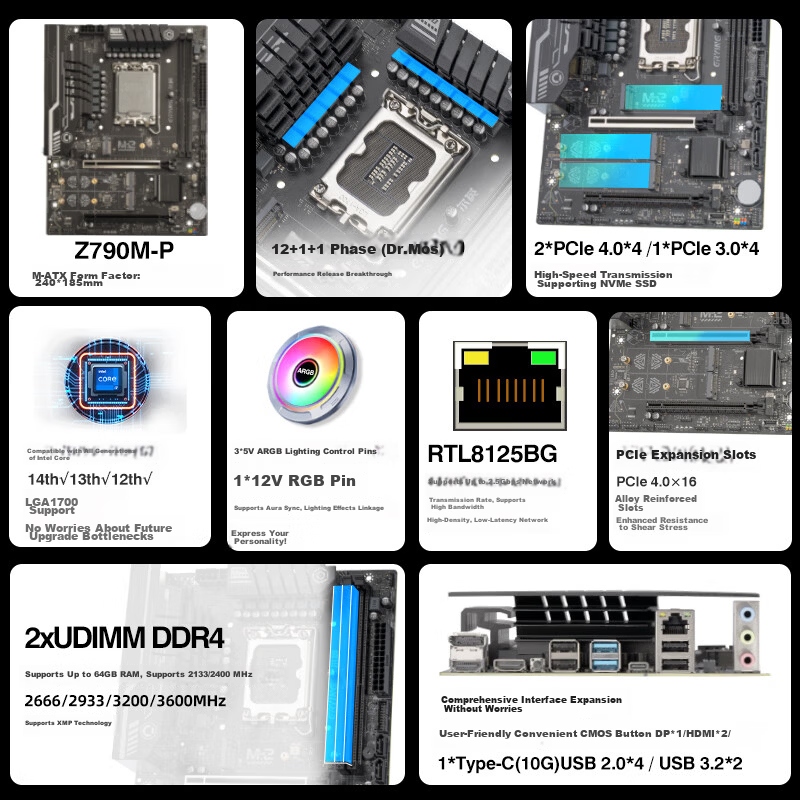

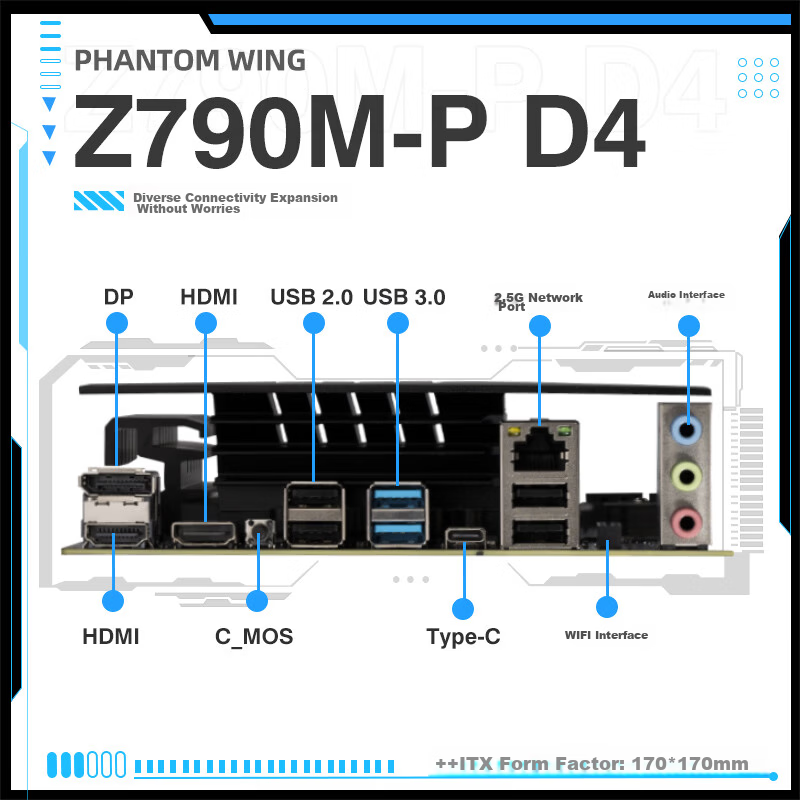

Rear I/O
2 x USB 3.2 Gen2 Type-A
4 x USB 2.0
1 x USB Type-C (10Gbps)
Supports ASUS Aura Sync RGB lighting synchronization

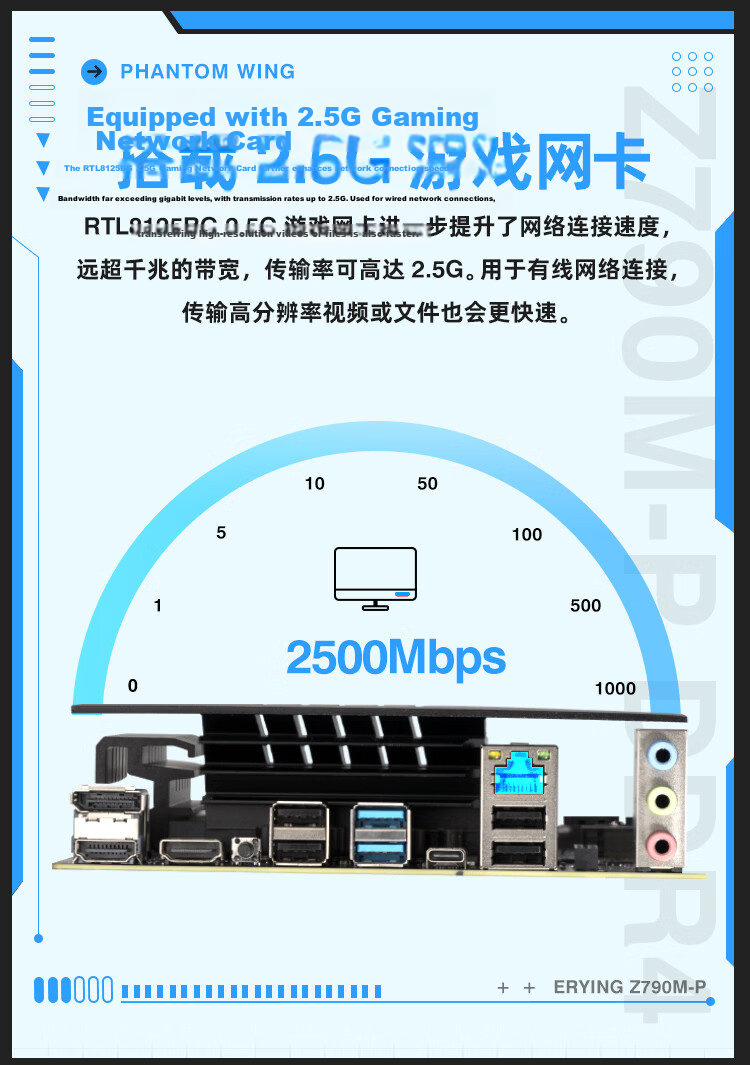

1 x Realtek RTL8125BG 2.5Gbps Ethernet controller
Wi-Fi interface supporting CNVi protocol (wireless card not included)
High definition audio interface with front panel audio header
1 x DisplayPort
2 x HDMI ports
1 x CPU fan header (smart fan control supported)
3 x System fan headers (SFAN1, SFAN2 with smart control, SFAN3 without)

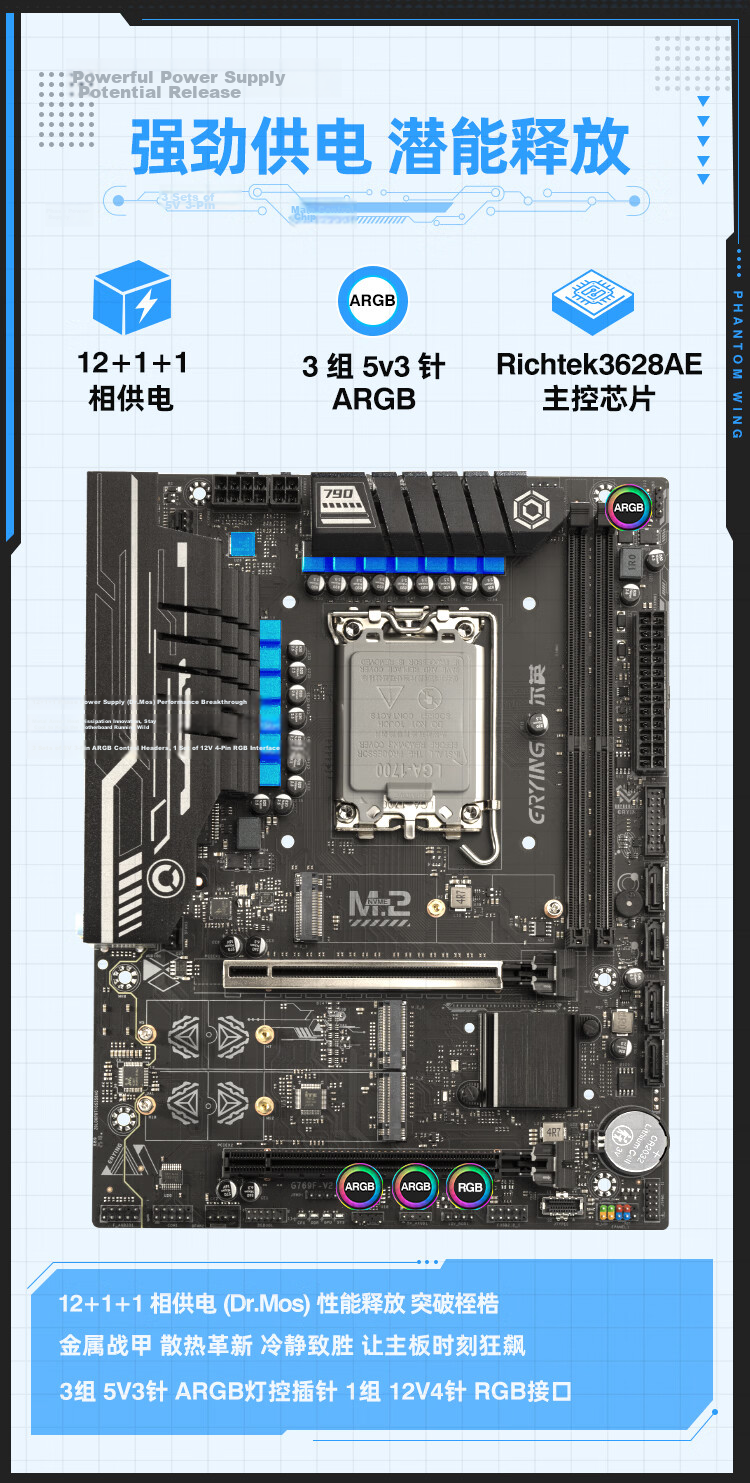

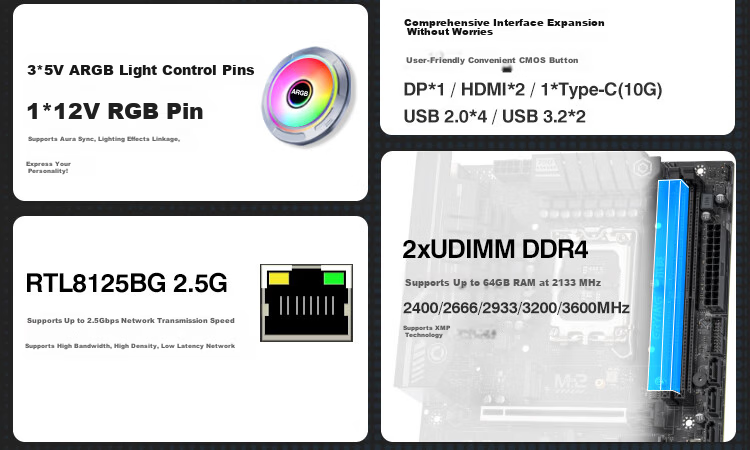

3 x 5V 3-pin ARGB headers
1 x 12V 4-pin RGB header
CMOS clear button on rear I/O
Debug LED header for troubleshooting
TPM 2.0 header (SPI 12P) for hardware security module
COM port header for external device connection
Power and reset switch headers
Supports network wake-up, PXE boot, and UEFI boot
Compatible with Windows 10 64-bit and Windows 11 64-bit UEFI systems
Voltage, temperature, and fan speed monitoring supported
Beep codes for system status (e.g., one long beep on power on, short beeps for memory errors)

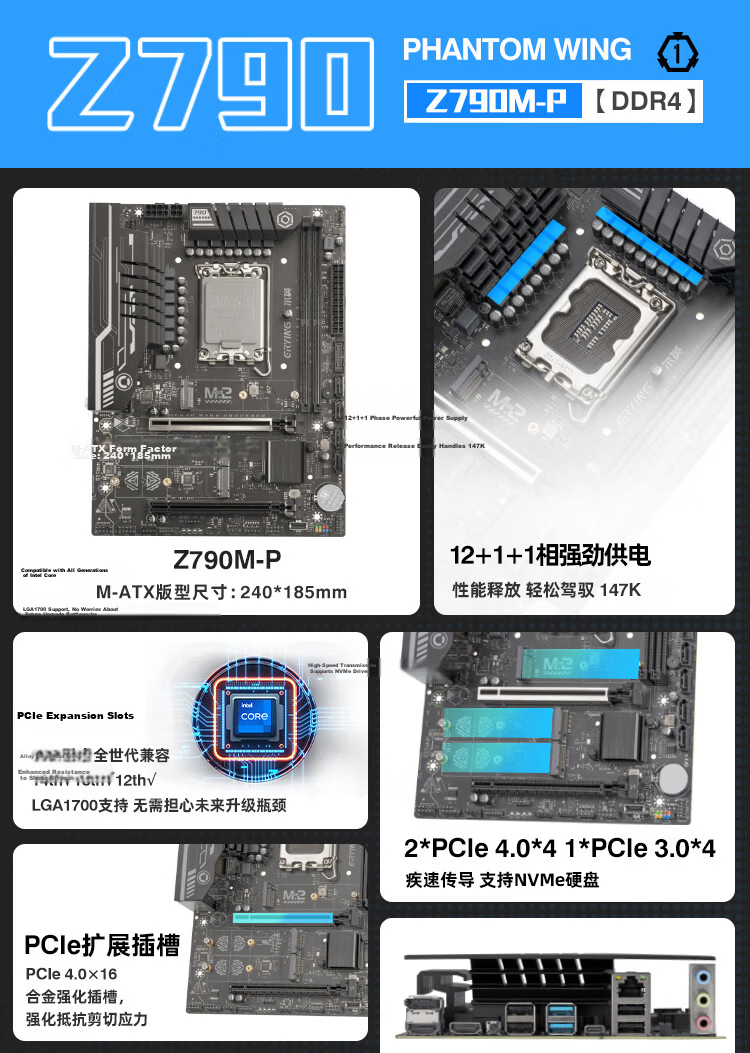

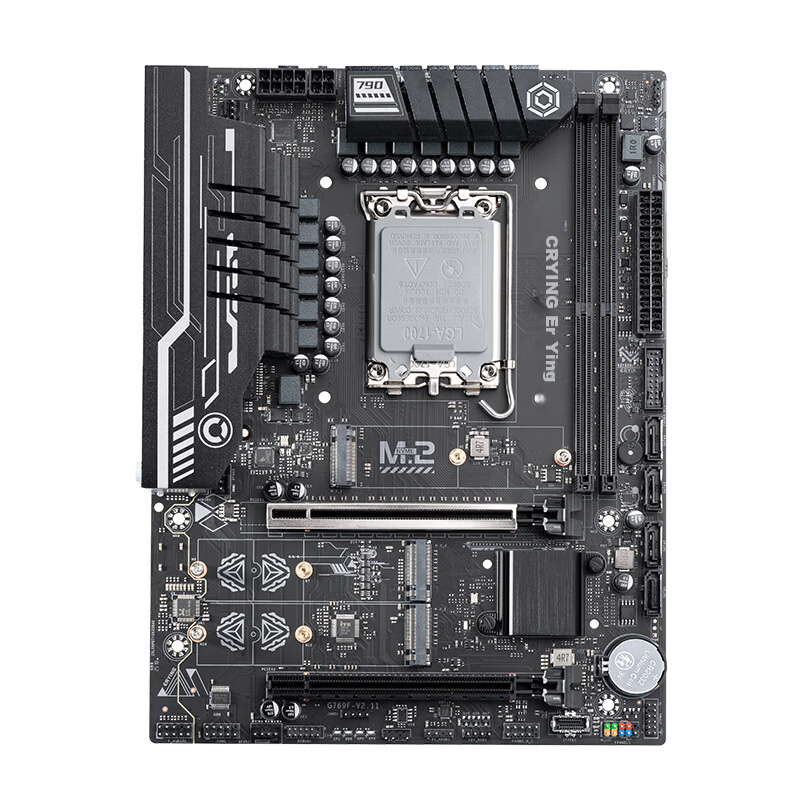

The ERYING PHANTOM WING Z790M-P is a high-performance Micro-ATX motherboard designed for Intel 12th to 14th generation processors with DDR4 memory support. It features robust 12+1+1 phase power delivery with advanced cooling solutions, multiple PCIe 4.0 expansion slots, high-speed M.2 storage support, comprehensive USB and display connectivity, and 2.5Gbps wired networking. The board also offers extensive RGB lighting control and system monitoring features, making it suitable for gaming and high-demand computing environments.
