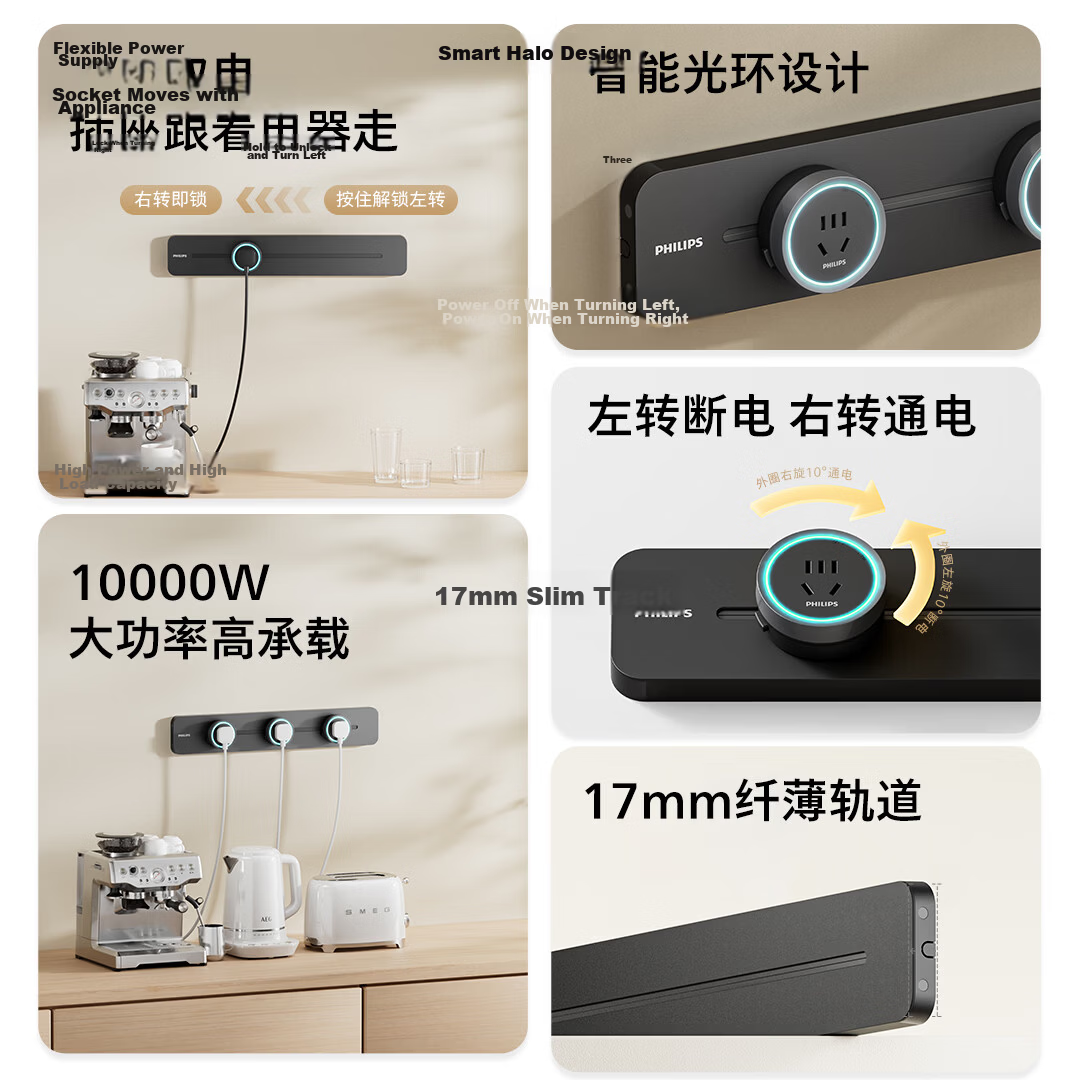

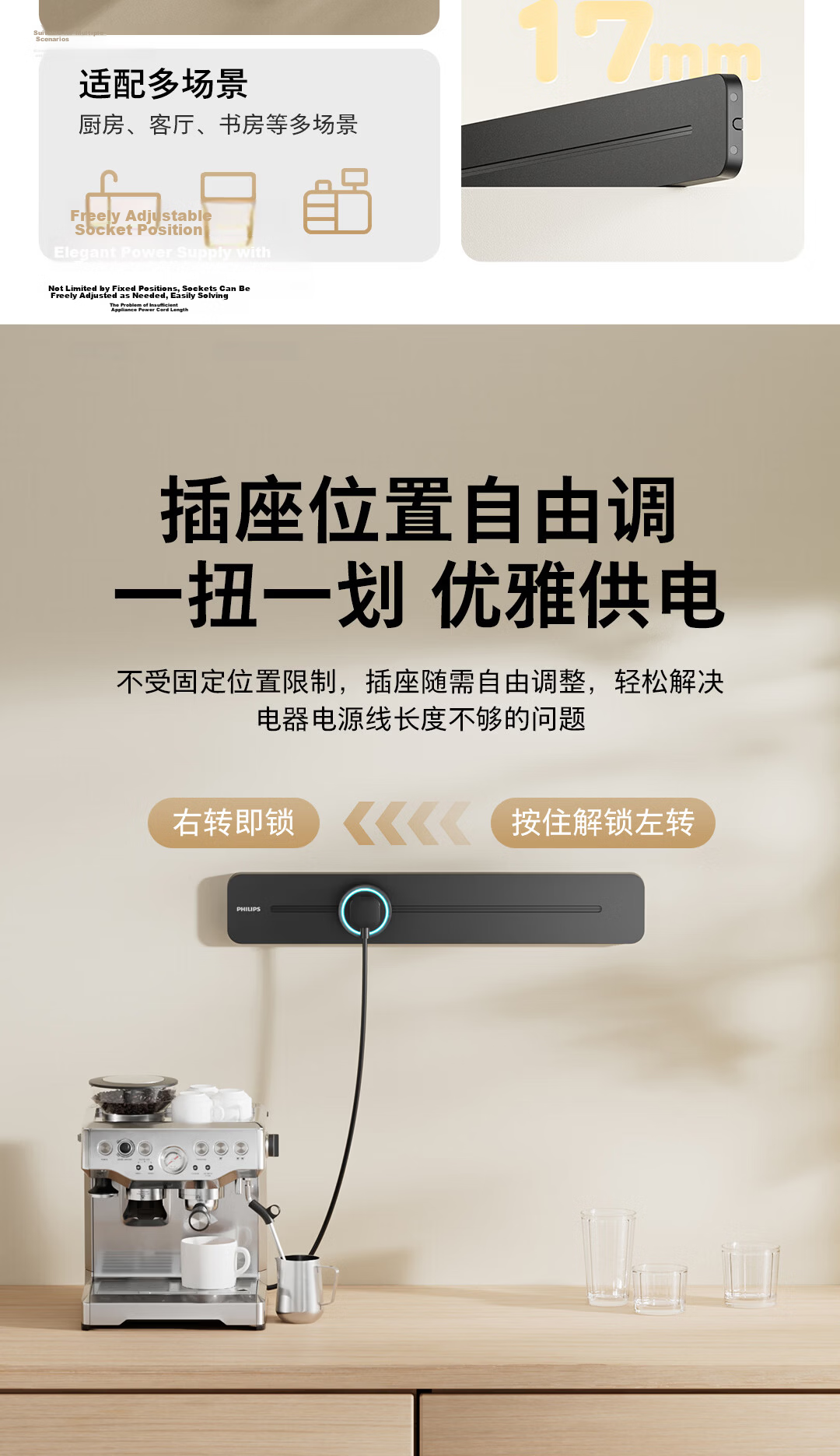

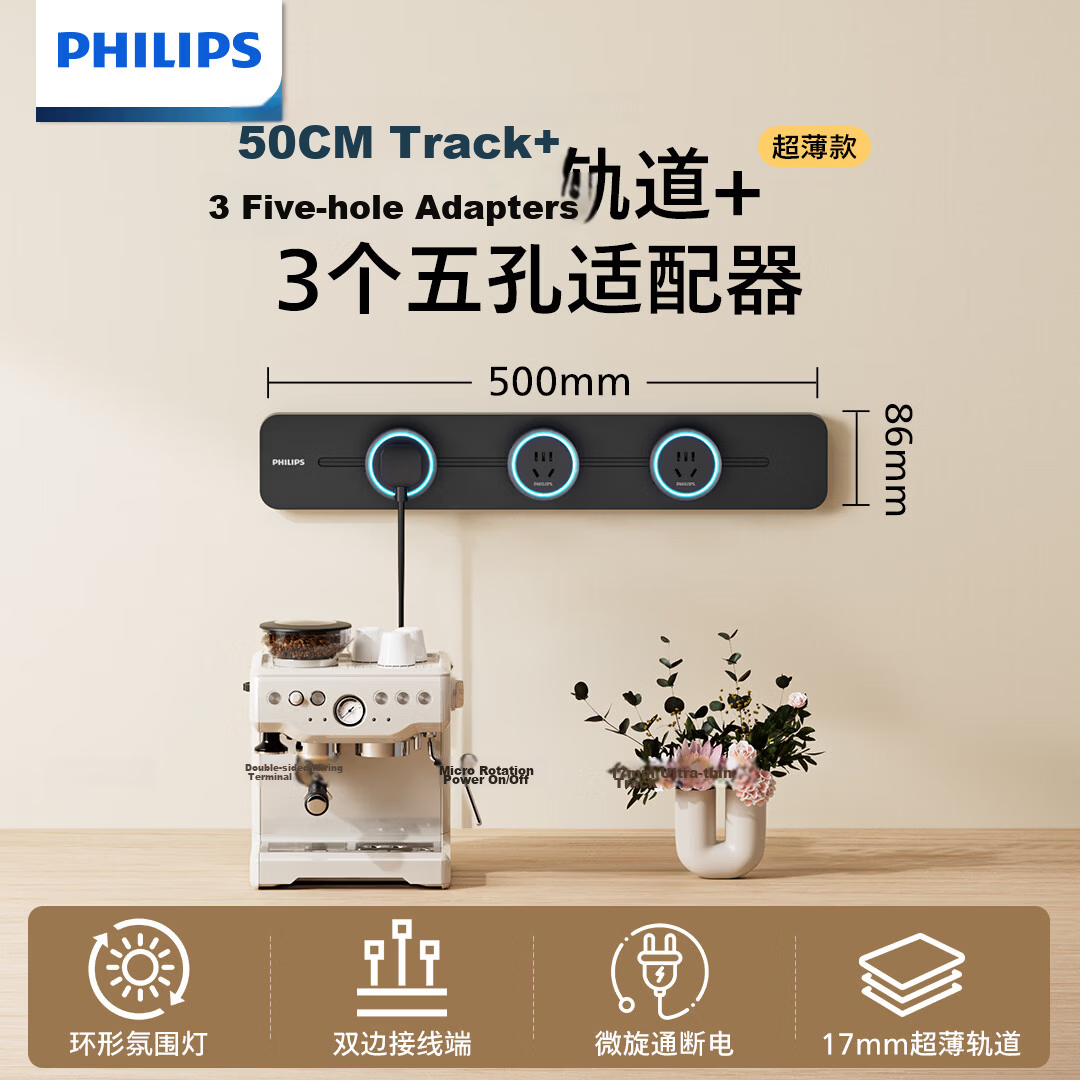

Socket positions can be freely adjusted along the track to follow appliances, allowing flexible addition of adapters and layout changes without fixed position limitations.

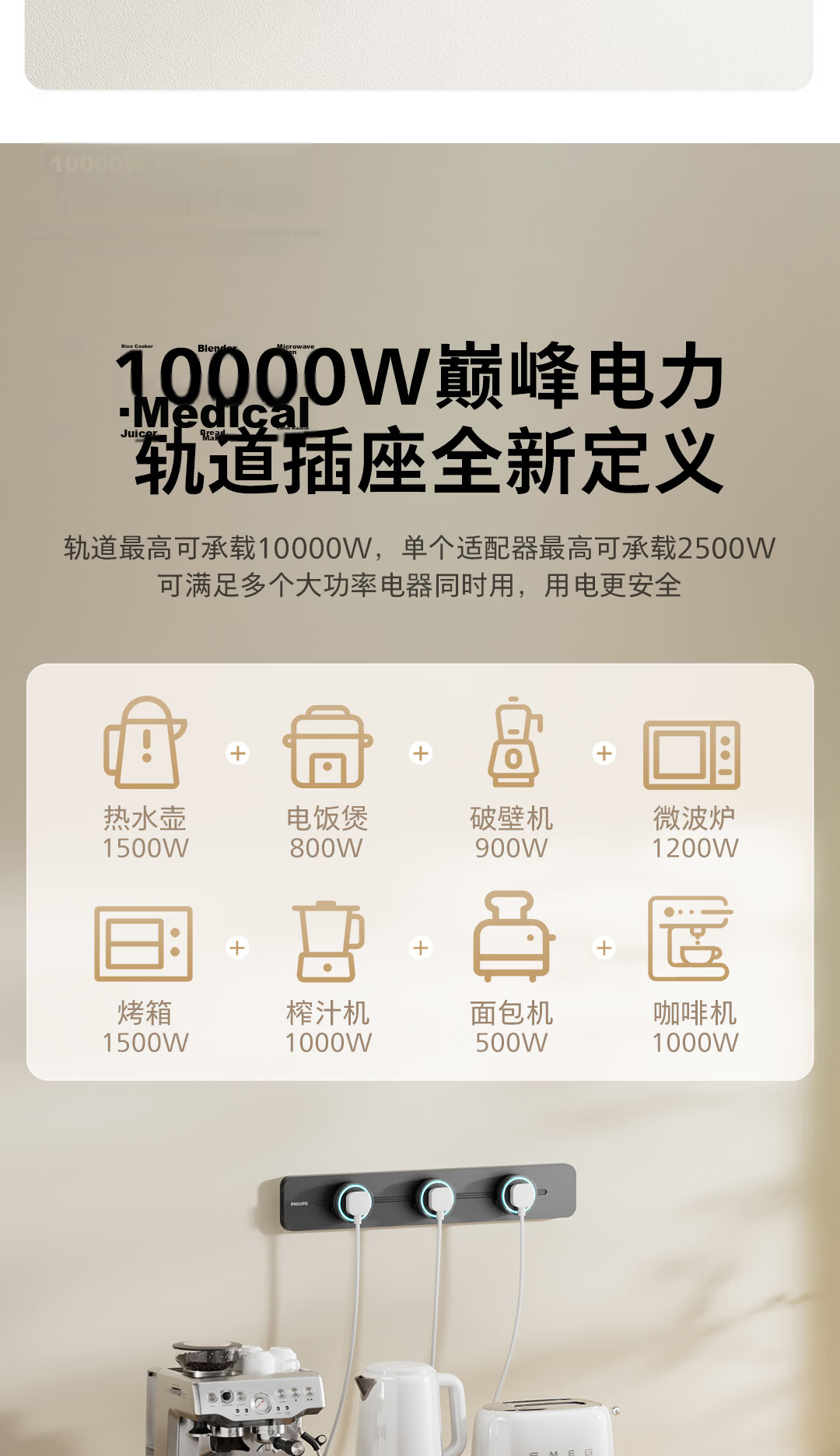

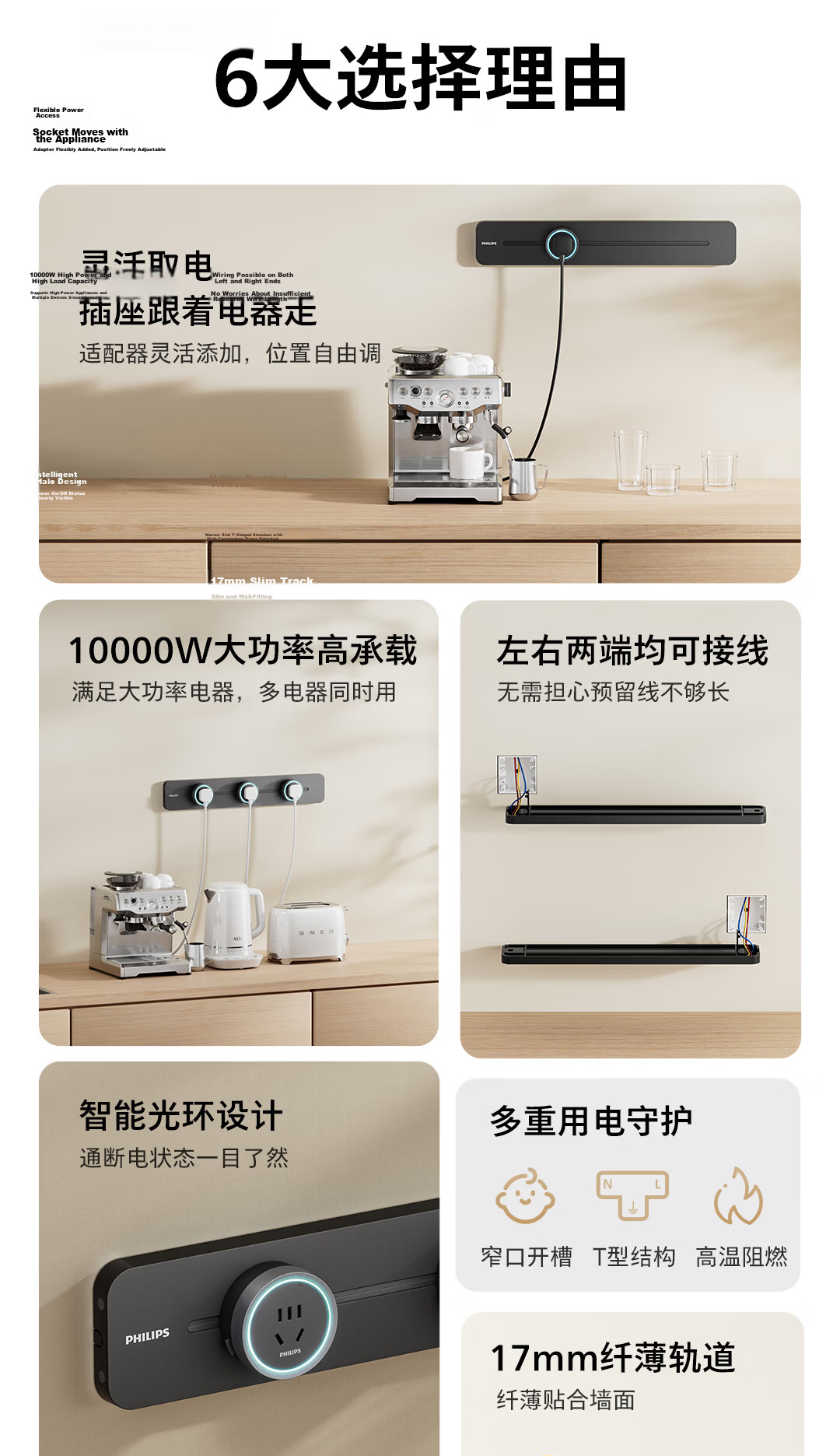

High Power Capacity
Supports up to 10000W total load on the track; each adapter supports up to 2500W, suitable for multiple high-power appliances used simultaneously (e.g., electric kettle, rice cooker, blender, microwave, oven, juicer, bread maker, coffee machine).

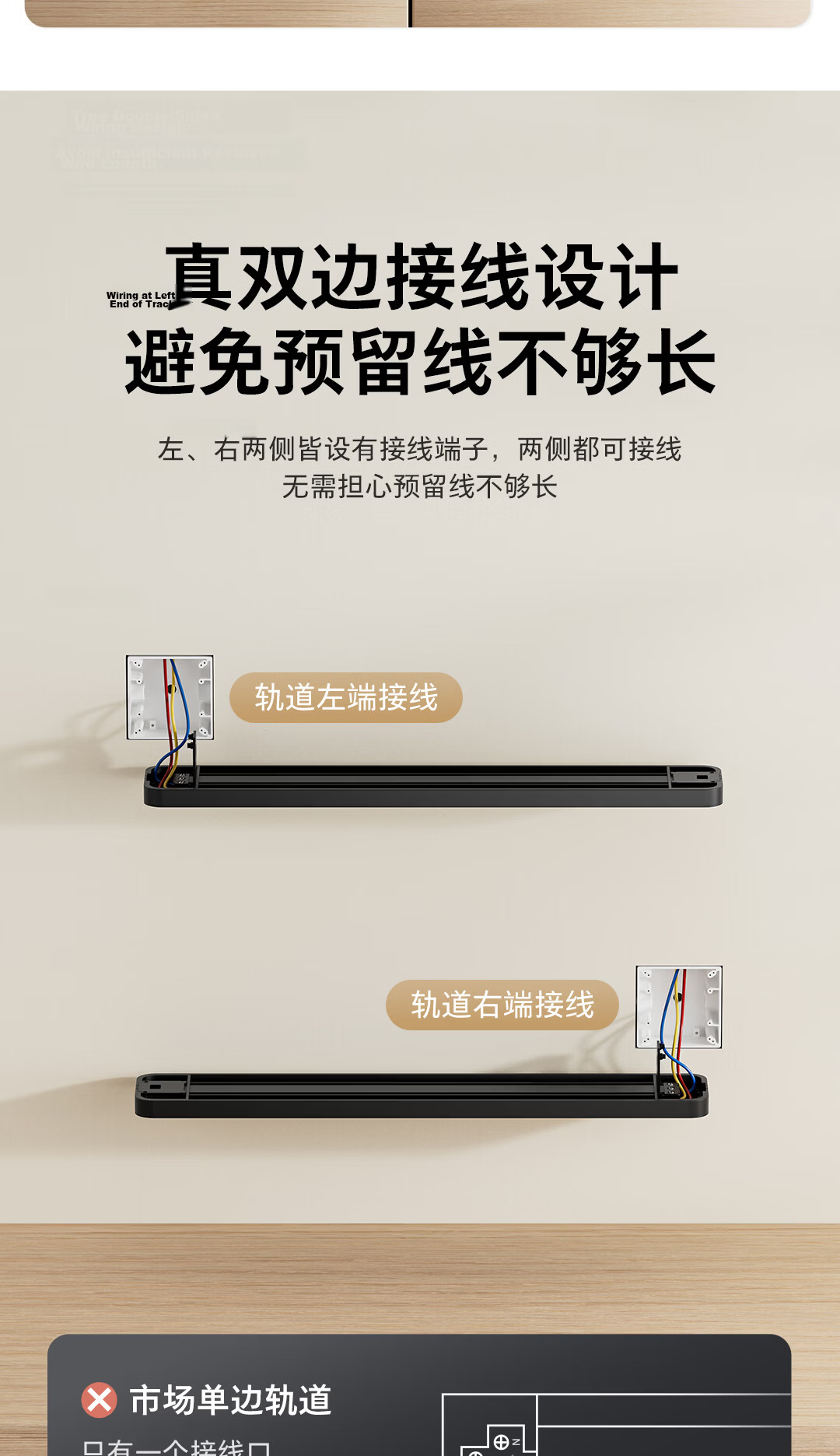

Dual-Side Wiring Terminals
Wiring terminals are available on both left and right ends of the track to accommodate wiring constraints and avoid issues with insufficient wire length.

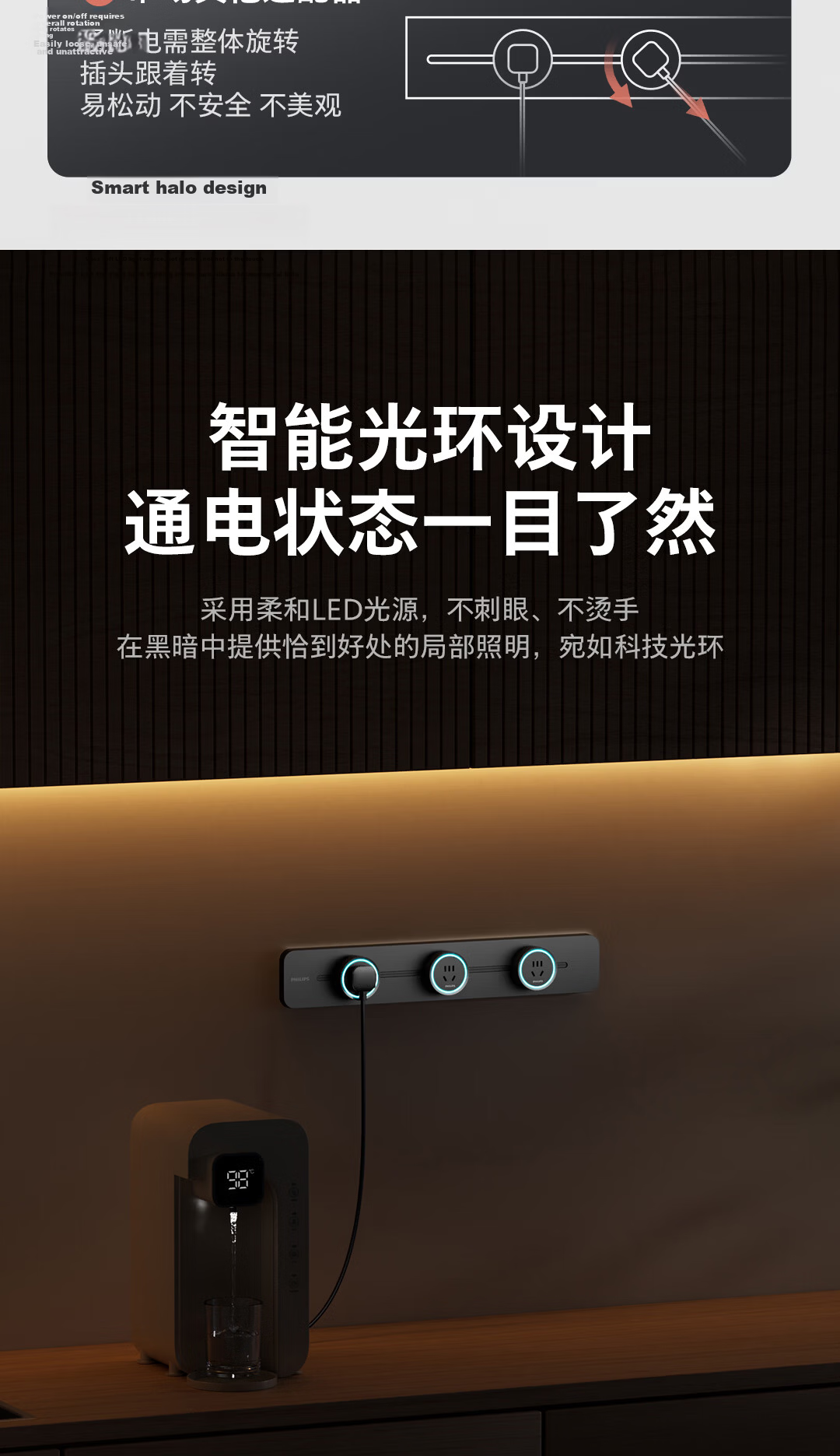

Intelligent Halo Design
Soft LED indicator ring shows power on/off status clearly without glare or heat, providing subtle local lighting in dark environments and enhancing home technology ambiance.

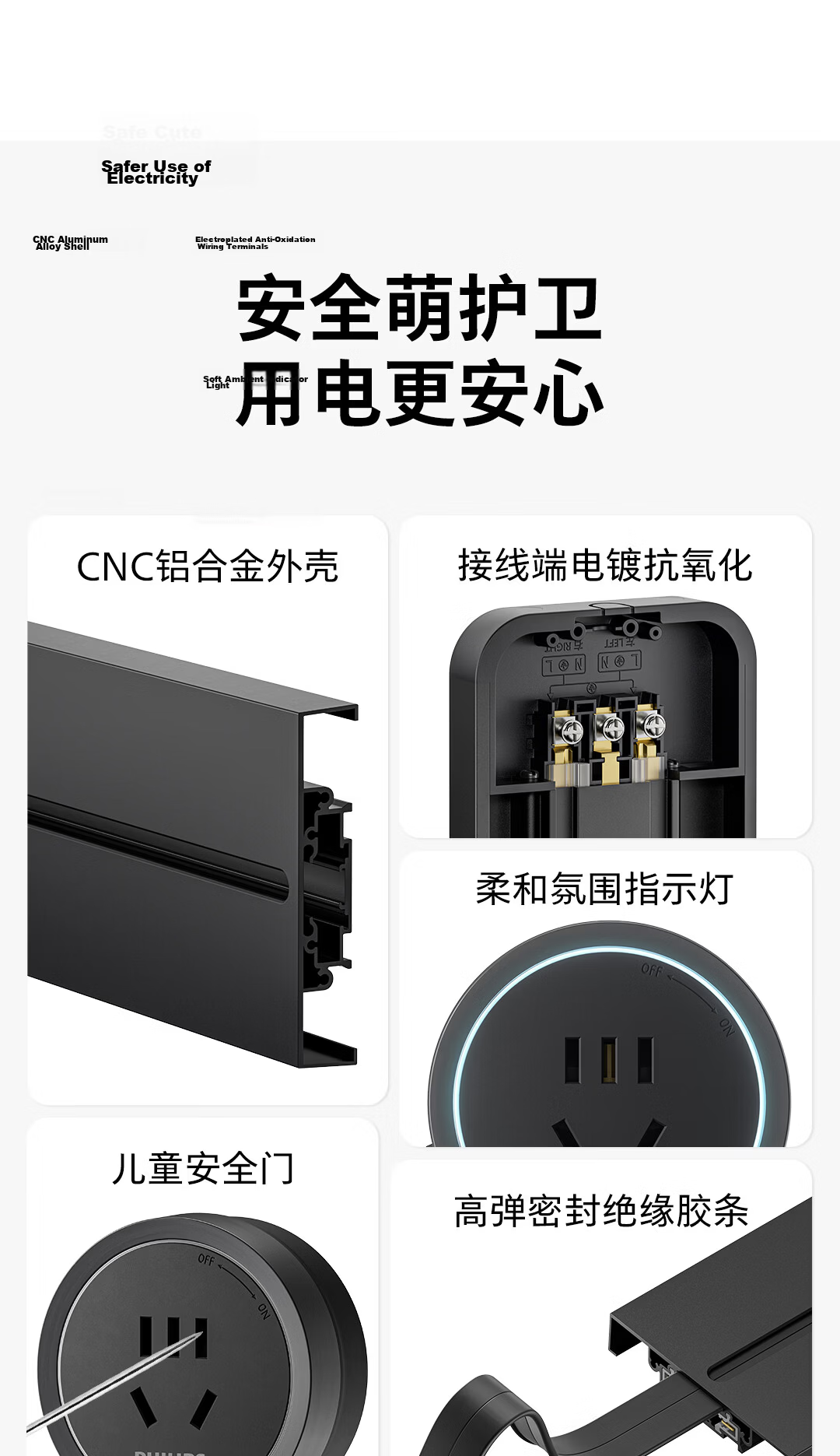

Safety Design

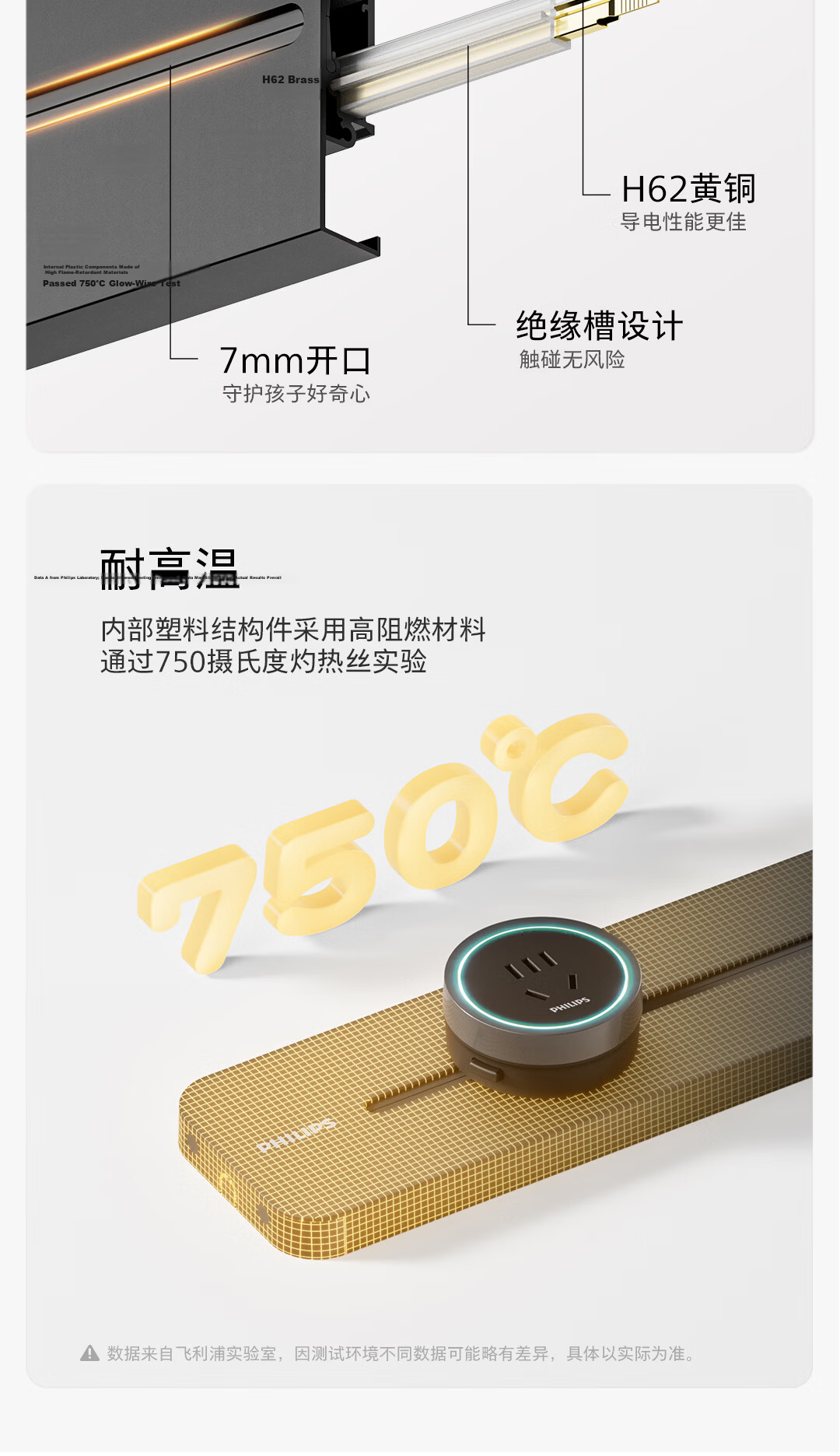

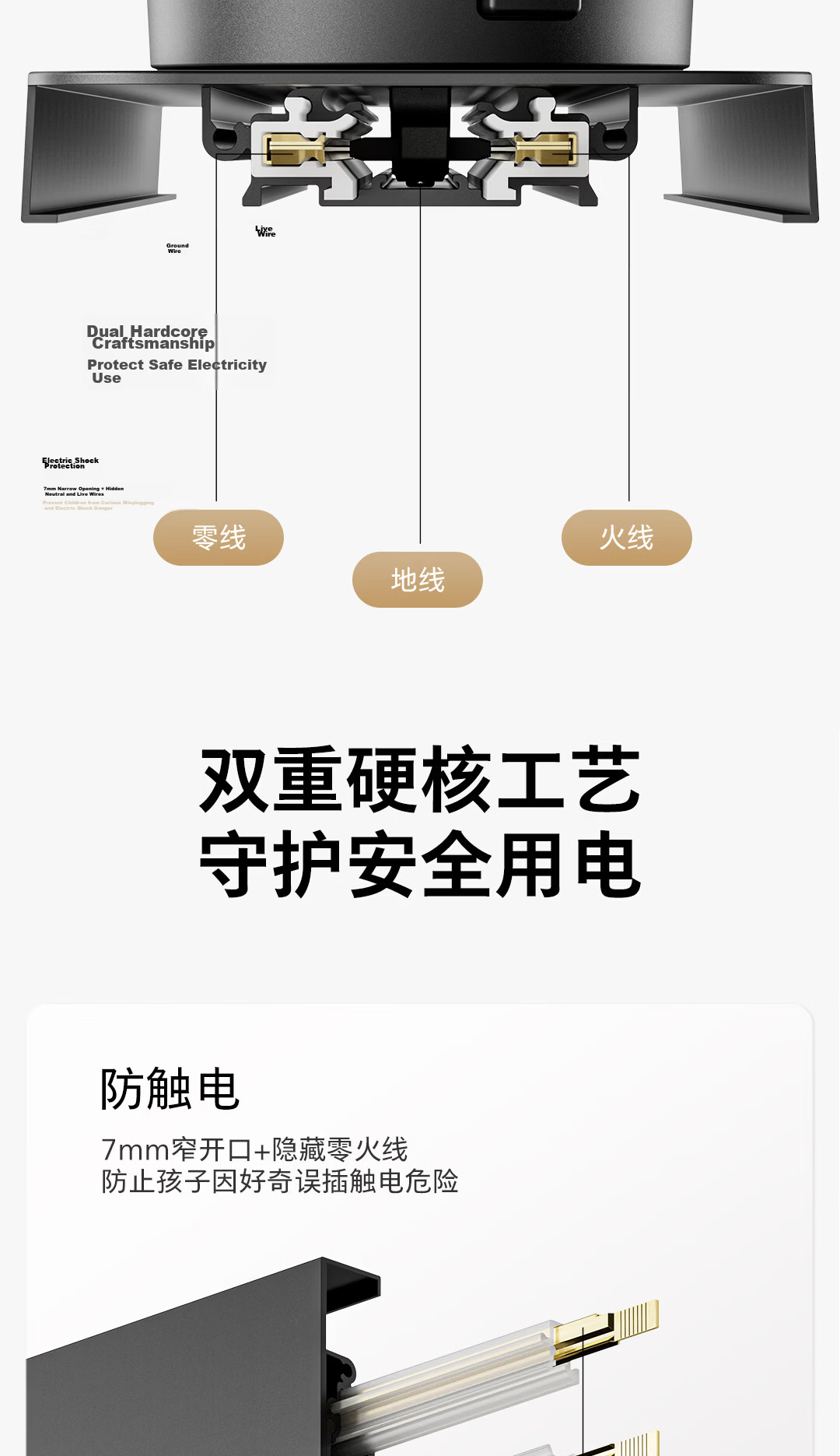

Integrated T-shaped structure with narrow 7mm slot and hidden live/neutral wires to prevent accidental electric shock.
Use of H62 brass for superior conductivity.
High flame-retardant internal plastic components tested to withstand 750°C glow wire test.
CNC aluminum alloy housing with anti-oxidation plated wiring terminals.
Child safety shutters and high-elastic sealing insulating strips.
Metal intrusion protection and insulation grooves tightly wrap live and neutral wires to isolate from the casing.
Additional details

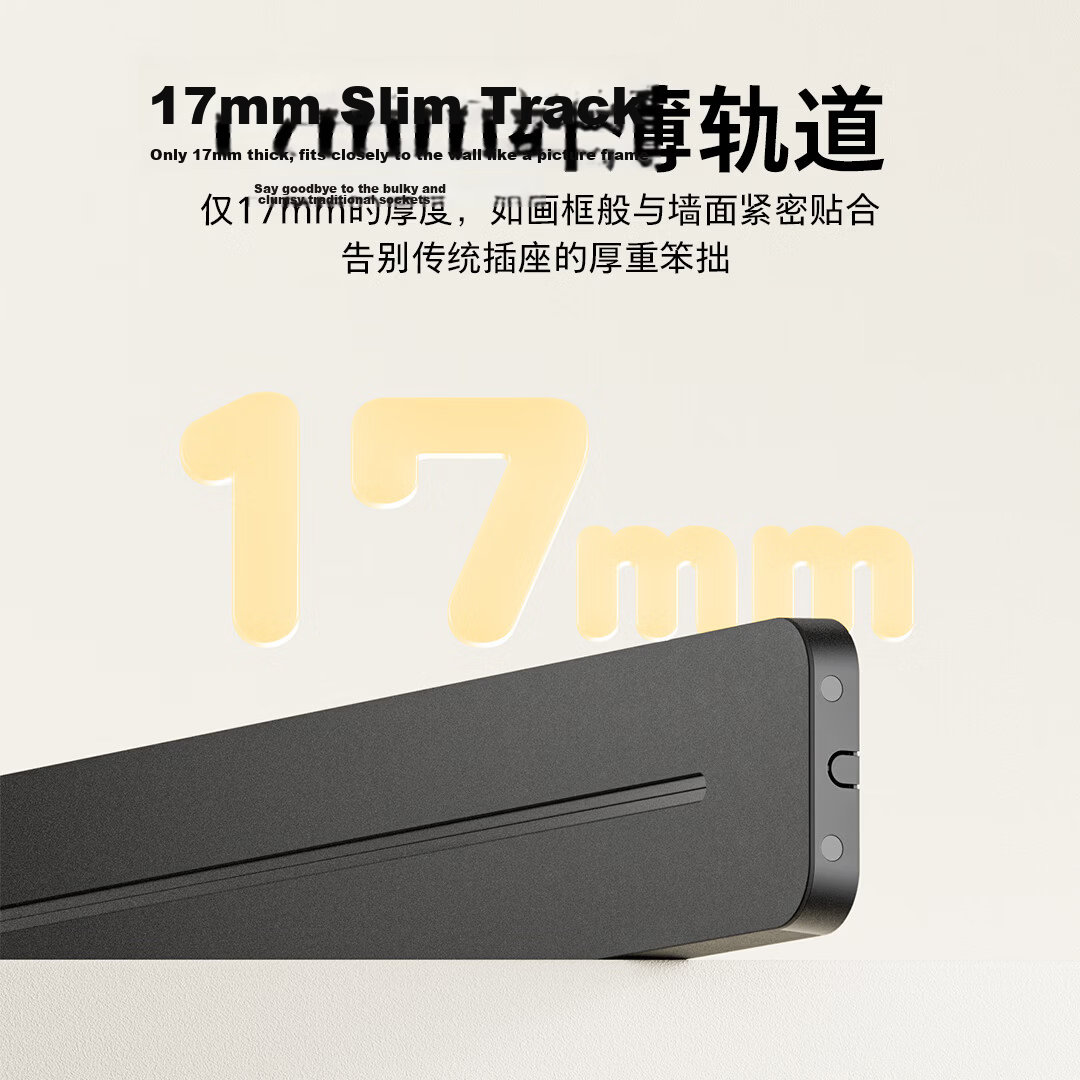

Slim Profile

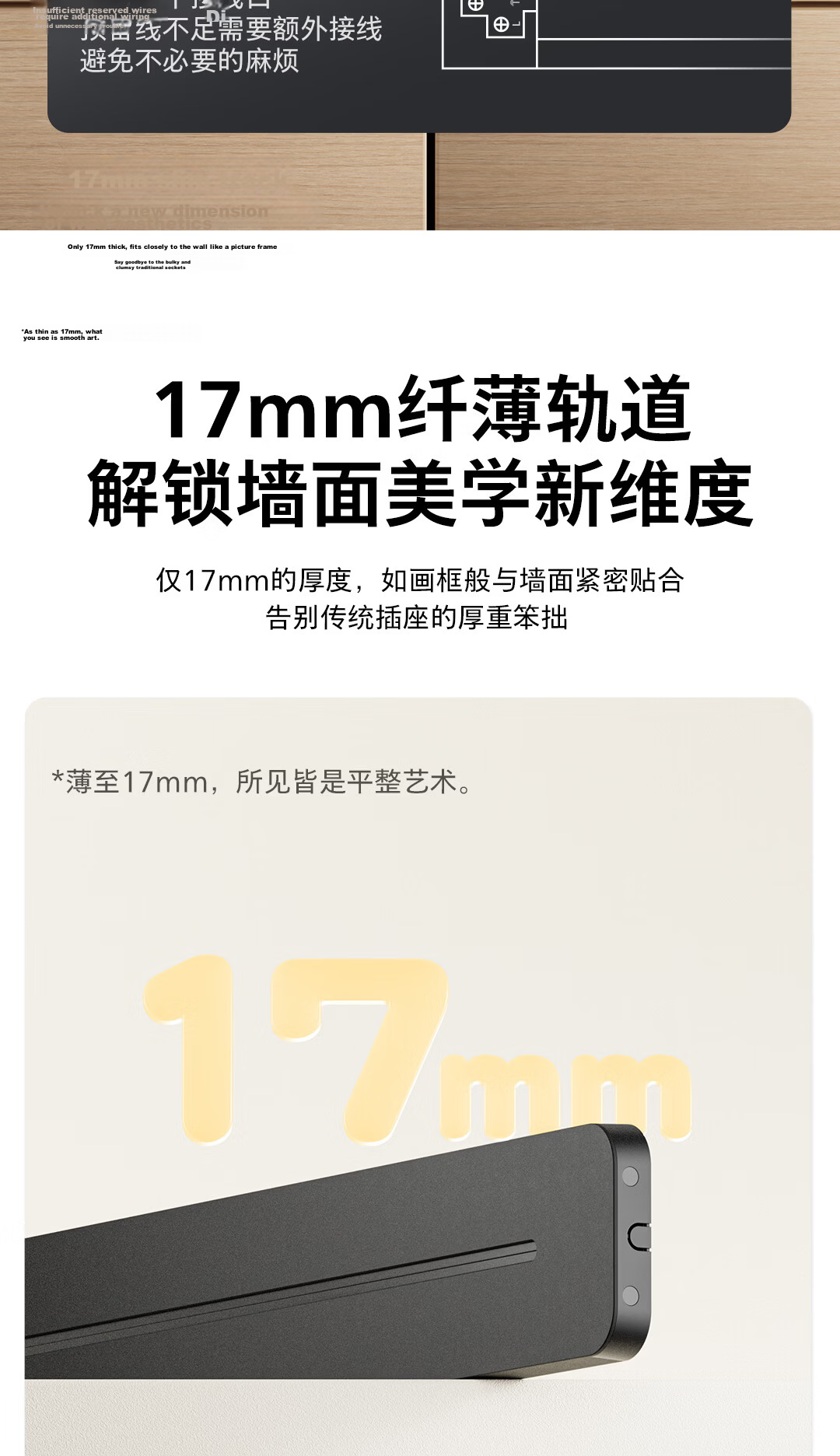

17 mm thin track design fits closely to the wall like a picture frame, improving wall aesthetics and eliminating bulky traditional sockets.
Easy Installation

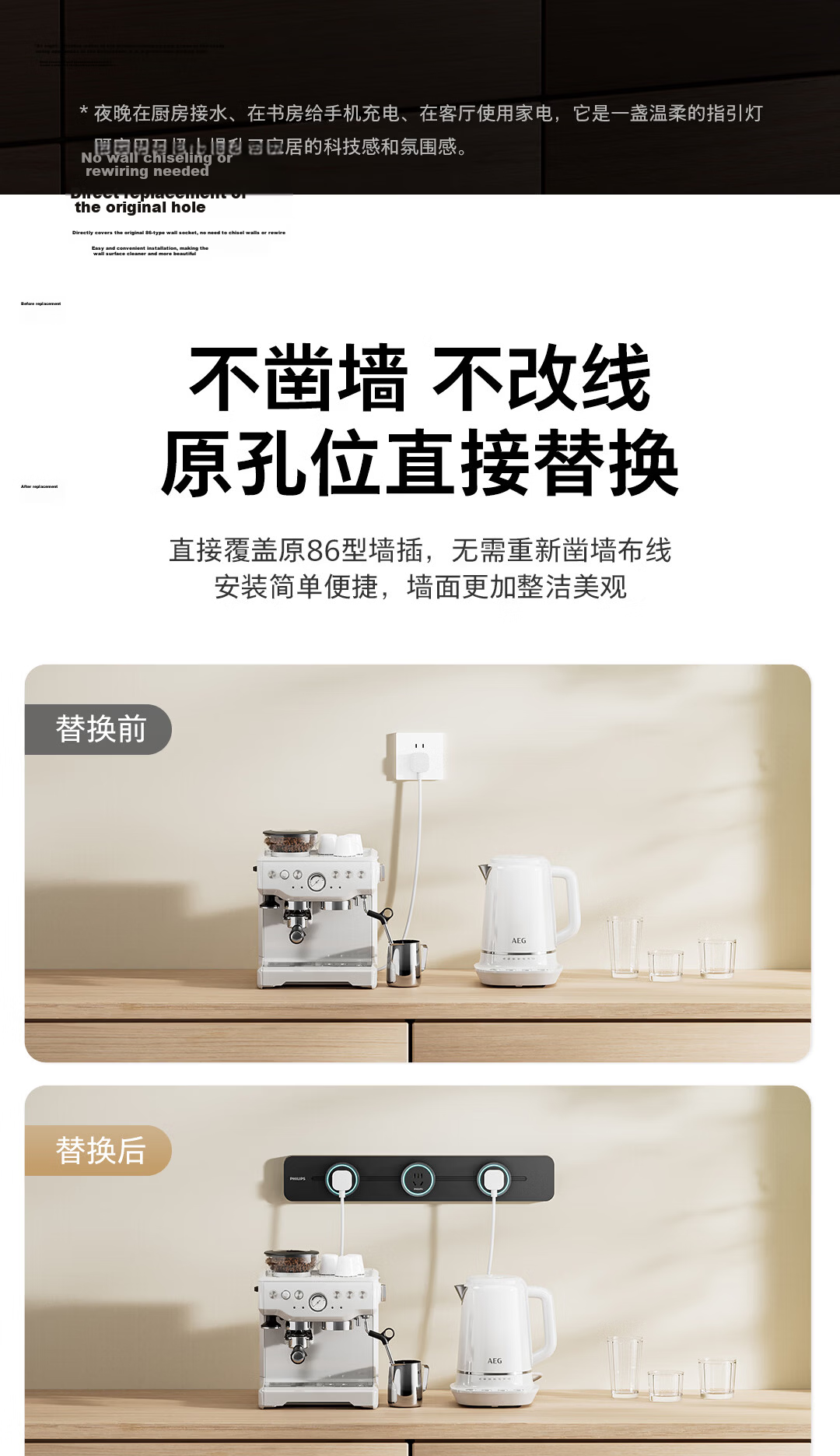

Direct replacement of standard 86-type wall sockets without wall chiseling or rewiring; installation involves mounting the backplate level, wiring live/neutral/ground according to markings, and pressing the track onto the backplate.

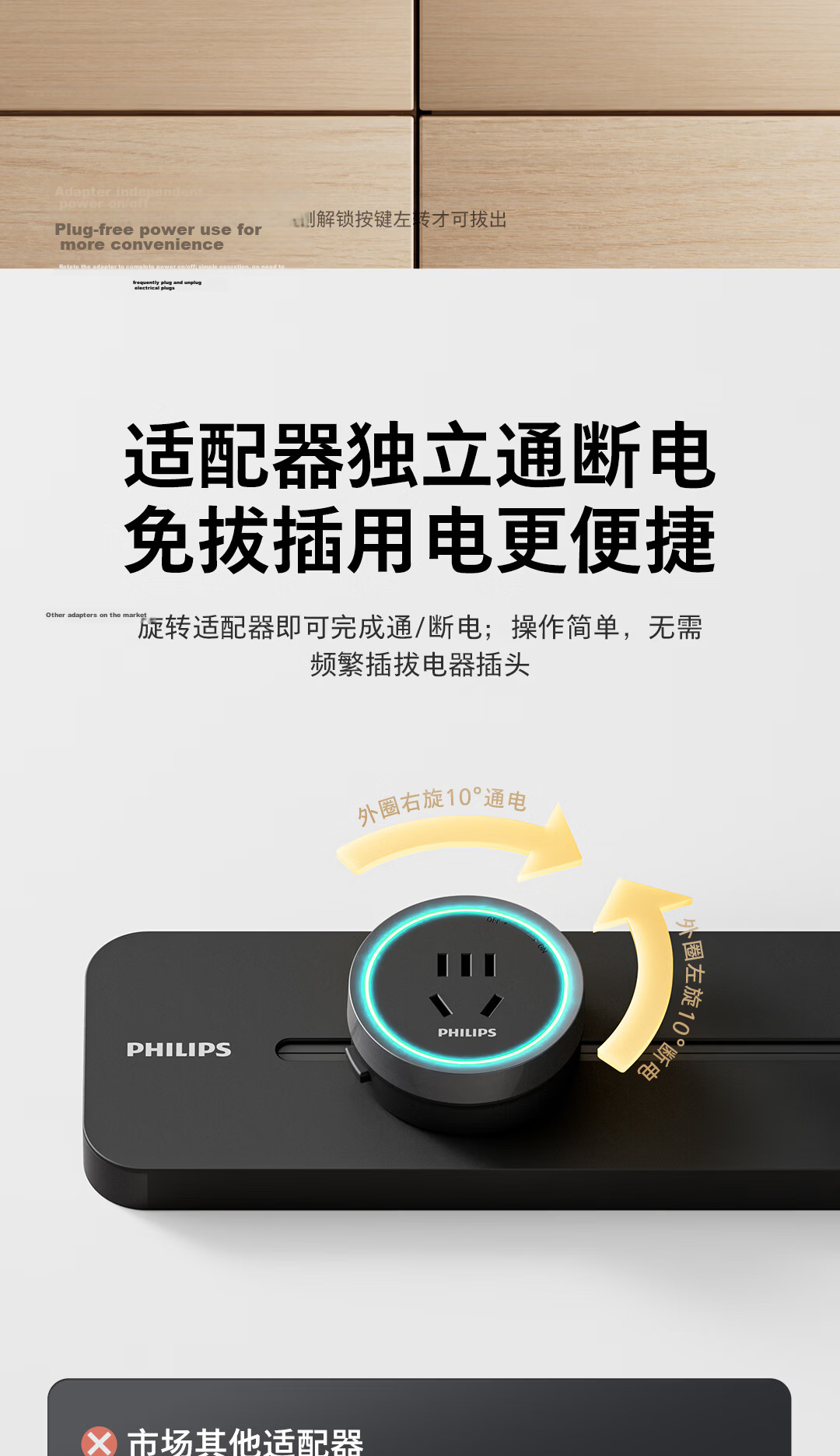

Adapter Operation

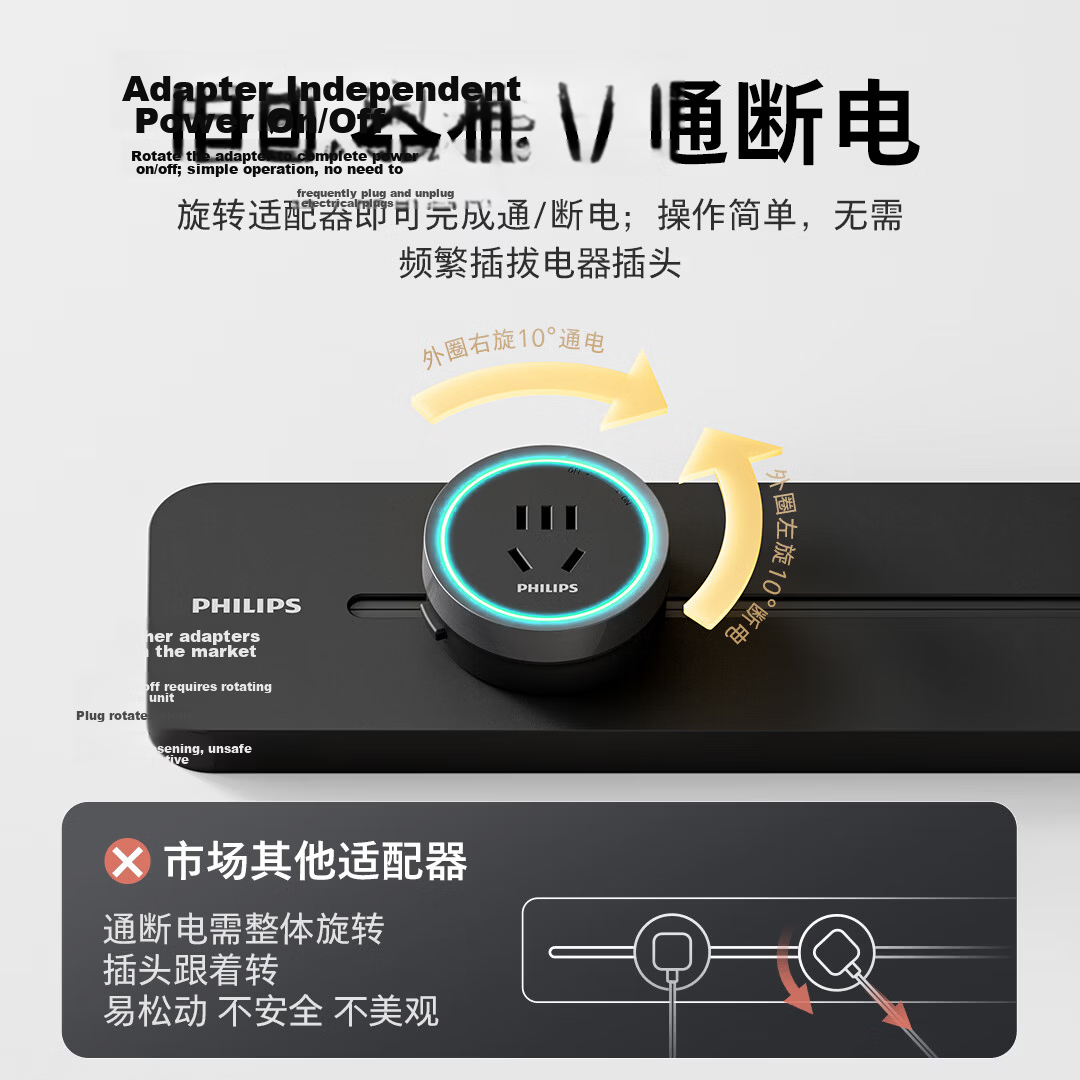

Rotating switch on adapter enables independent power on/off without unplugging; press unlock button on adapter side to remove under power-off condition; right turn to lock, left turn to unlock.
Compatibility
Compatible with PHILIPS and other market adapters; overall power on/off requires rotating the adapter, with plug rotating together.

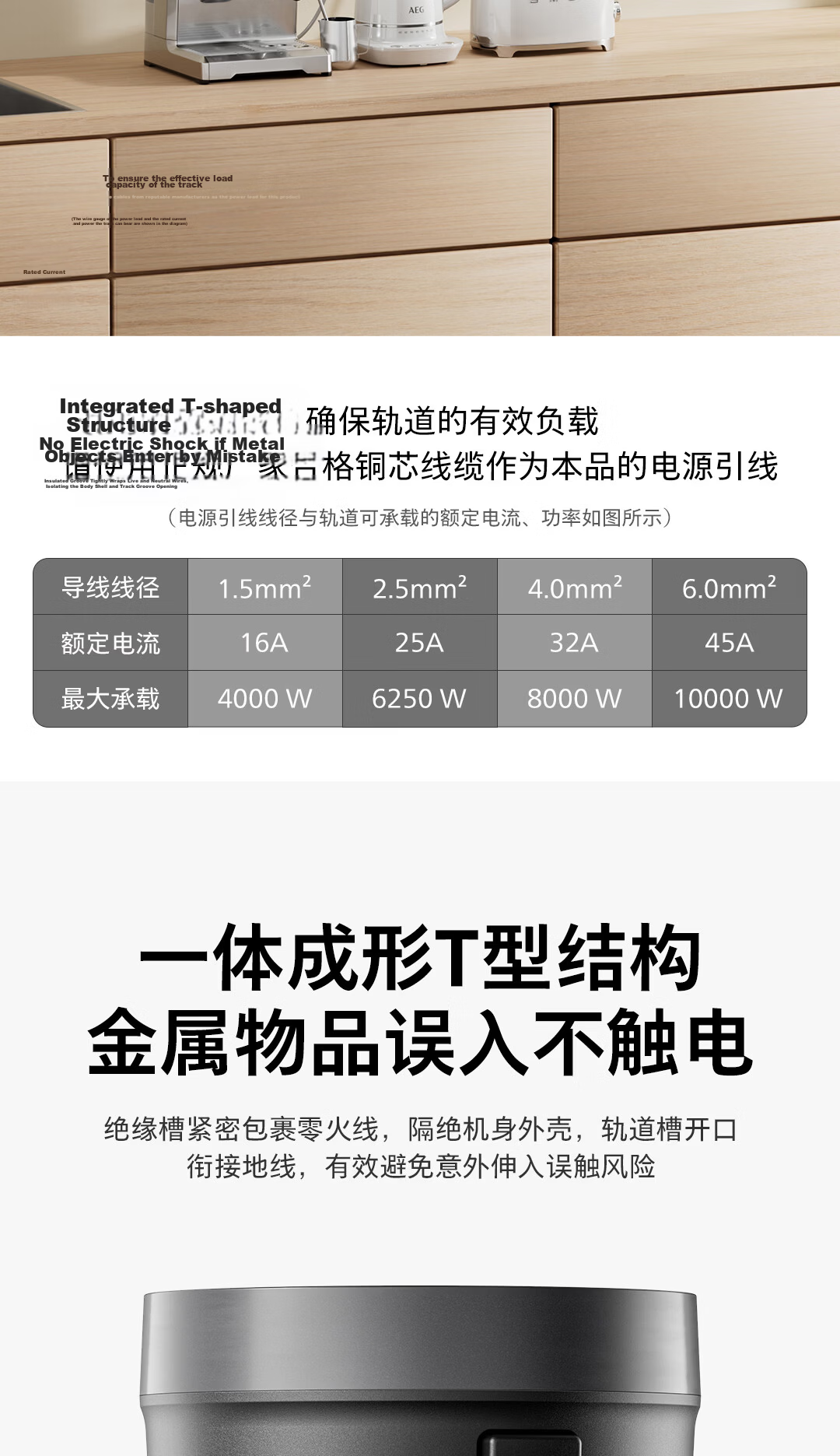

Recommended use of qualified copper core cables matching rated current and power
Wire Diameter & Rated Current & Max Load:
1.5 mm² — 16A — 4000W
2.5 mm² — 25A — 6250W
4.0 mm² — 32A — 8000W
6.0 mm² — 45A — 10000W
Suitable for multiple scenarios including kitchen, living room, study room, etc., providing elegant and flexible power supply solutions that adapt to appliance placement and power cord length limitations.

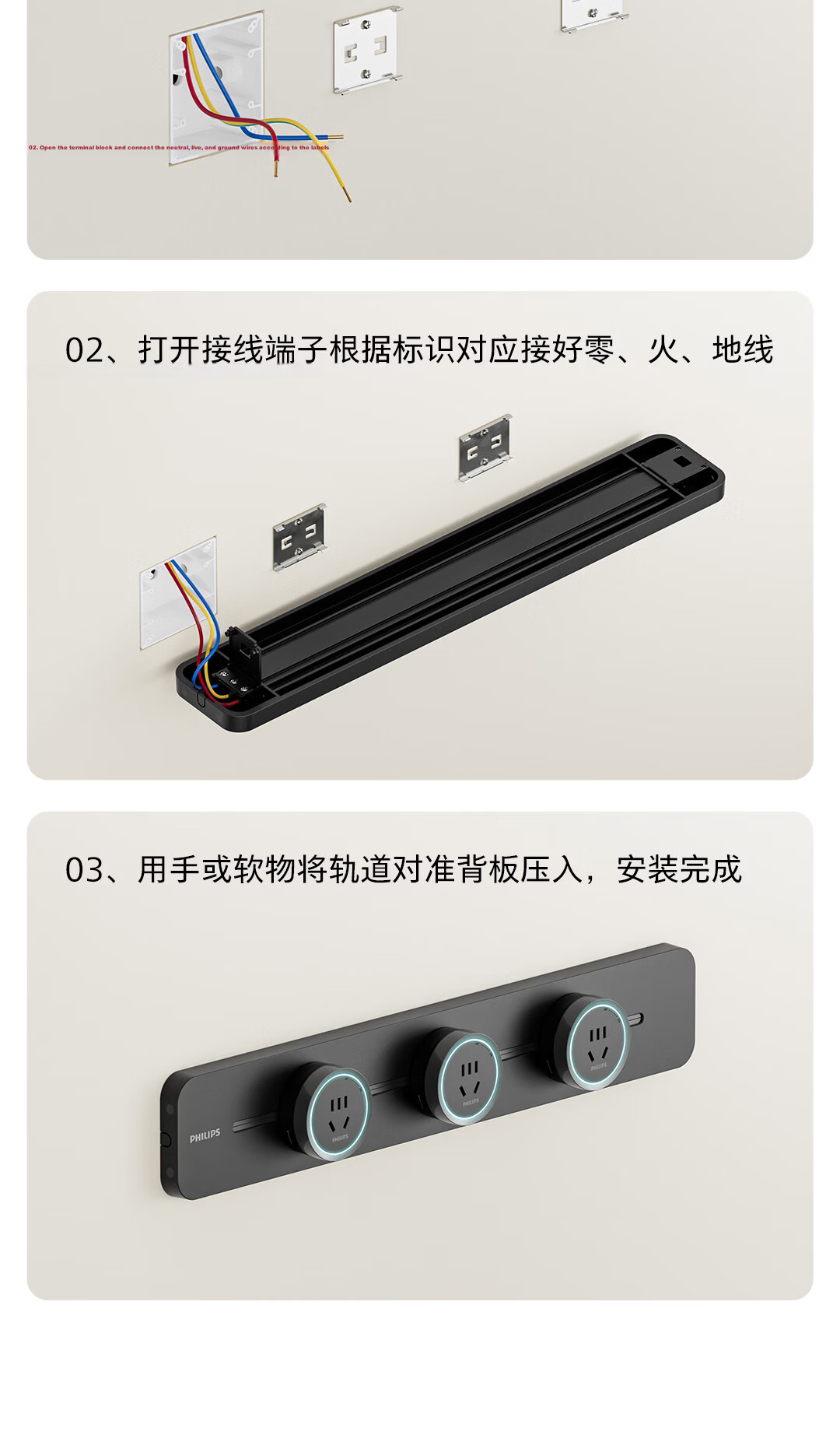

1. Fix the backplate at the desired position ensuring it is level.
2. Connect live, neutral, and ground wires to terminals according to markings.
3. Align and press the track onto the backplate until secured.

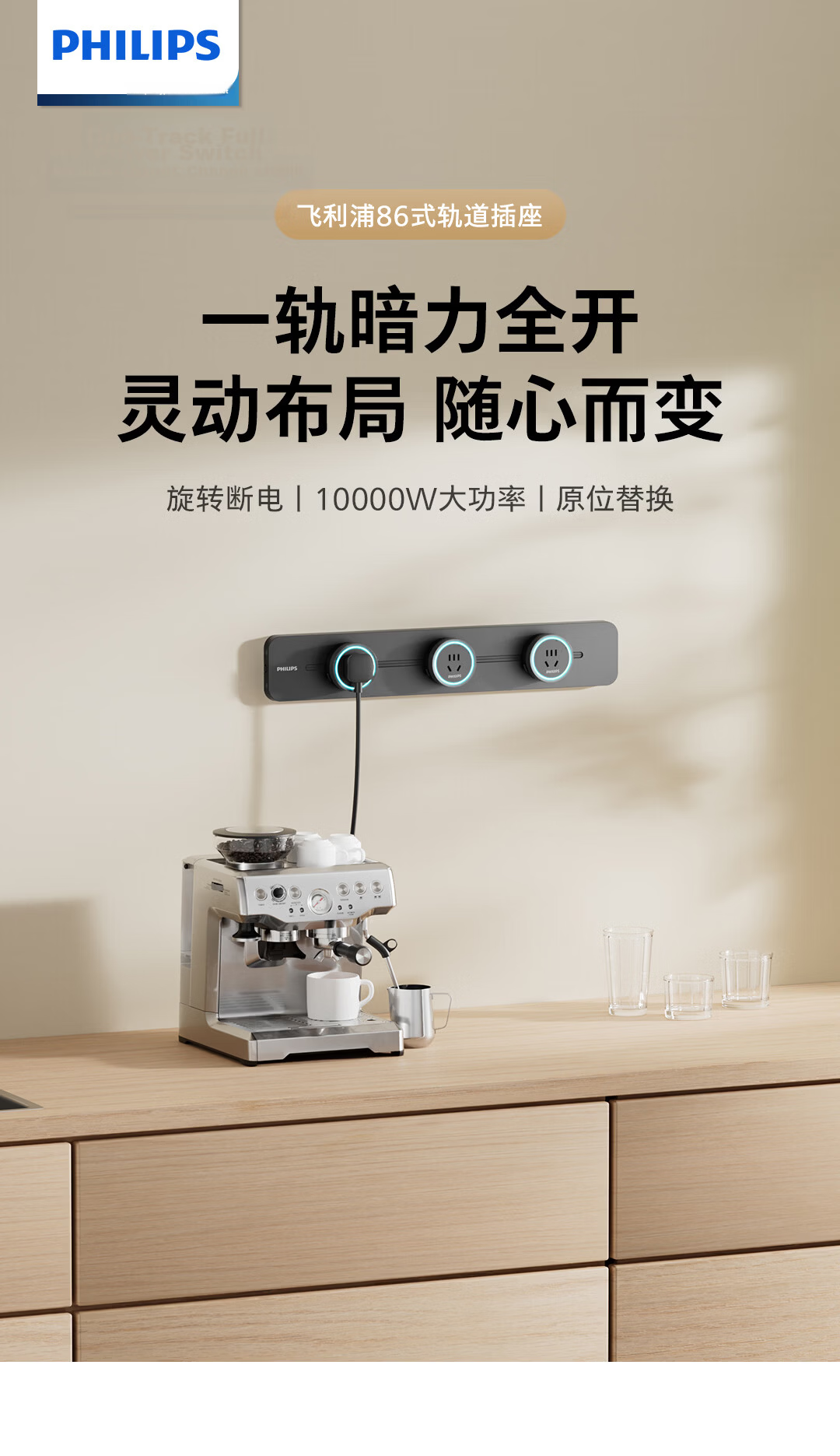

This product redefines track socket power supply with high load capacity, safety, flexibility, and aesthetic design.
