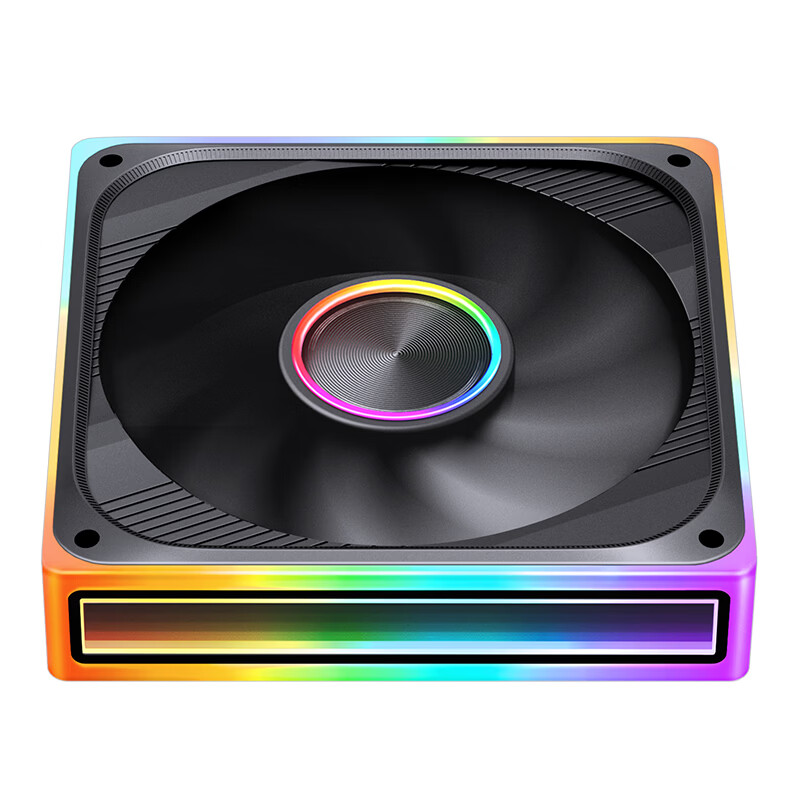

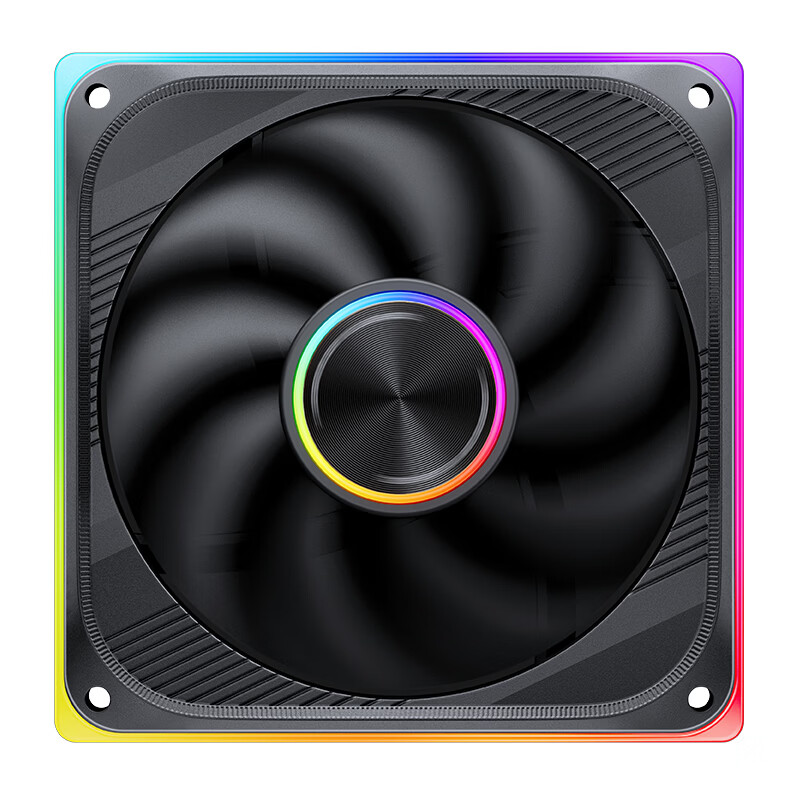

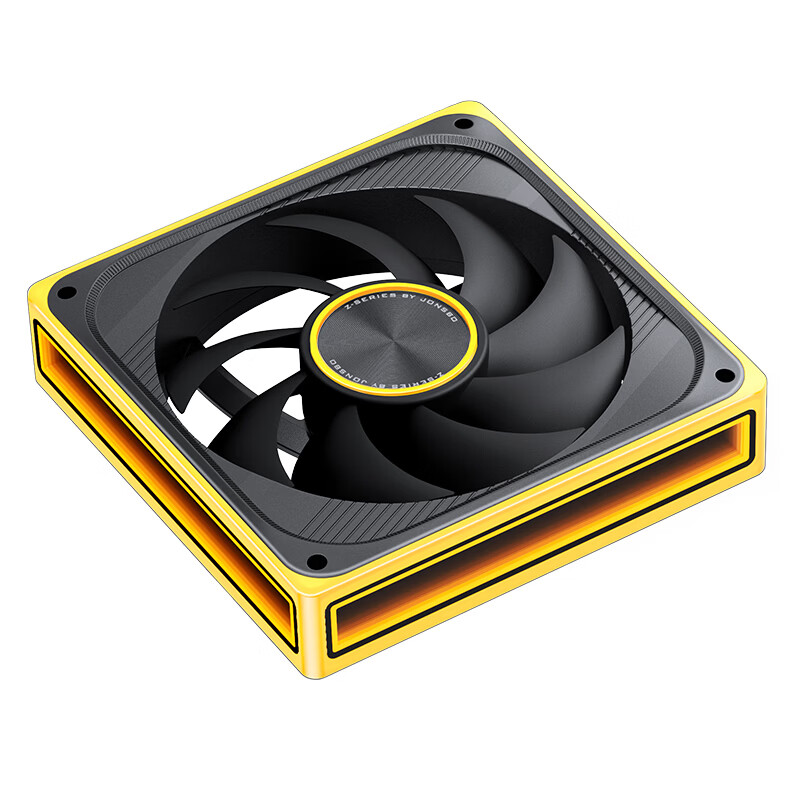

JONSBO ZE-120B ARGB Black 12CM Case Fan (Four-Sided Layered Mirror Full-Width Lighting / Motherboard Sync Lighting / CD Pattern Aluminum Nameplate / PWM Male-Female Connector)

JONSBO•radiator

JONSBO ZE-120B ARGB Black 12CM Case Fan (Four-Sided Layered Mirror Full-Width Lighting / Motherboard Sync Lighting / CD Pattern Aluminum Nameplate / PWM Male-Female Connector)

CN¥35.00

SKU: 100360098564

Status:In Stock (8)

ID: 100360098564

Weight: 210.00 g

Dims:149x125x28 mm

Specifications

Type: chassis fan
Lighting Effects: ARGB
Number of heat pipes: No

Variants / Sale Attributes

Color: ZE120B ARGB Right Blade

Package Contents

fan * 1

Product Description

Product Specifications

Overview

Brand: JONSBO
Series: ZE-120/240/360 MIRROR SERIES ARGB Fans
Thickness: 28 mm

Integrated youth edition with four-sided layered mirror design

Easy installation with 4 screws

One-line connection to motherboard for simplified cabling

Central CD-patterned nameplate on fan hub

Multiple versions available

ZE-120B (Black, forward blade)
ZE-120W (White, forward blade)
ZE-240B/BR (Black, forward/reverse blade)
ZE-240W/WR (White, forward/reverse blade)

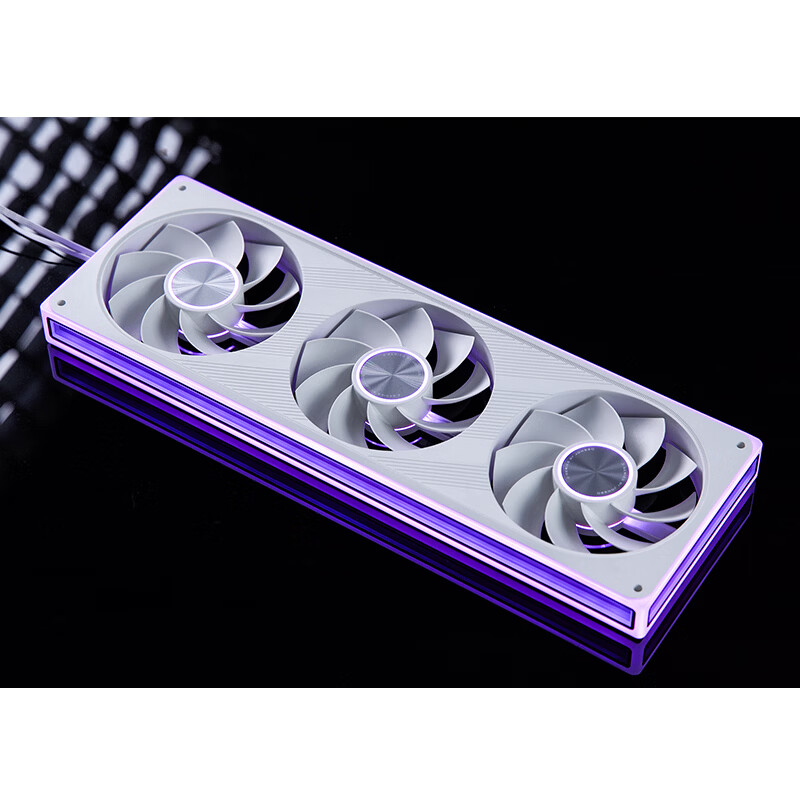

ZE-360B/BR (Black, forward/reverse blade)
ZE-360W/WR (White, forward/reverse blade)

Integrated fan with full-length lighting effect, 360° mirror effect visible from all sides

Surface features delicate diagonal stripes for a minimalist style

Similar Products

Out of Stock

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

thermalrightradiator

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

AS120 VISION ARGB Black

CN¥129.90

In Stock

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

SAMAradiator

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black

CN¥529.00

ARGB lighting synchronized with motherboard or controller via 3Pin 5V interface

Supports asynchronous lighting effects with optional JONSBO AS10 asynchronous controller (sold separately)

PWM ARGB fans with low noise and fine tuning for balance between performance and quiet operation

Hydraulic bearing for durability

Simplified wiring with one cable connecting to motherboard for neat cable management

Additional details

Dimensions: 120 x 120 x 28 mm
Speed: 700-1800 ±10% RPM (forward and reverse blade)
Airflow: 18.75-47.71 CFM (forward blade), 19.46-44.58 CFM (reverse blade)
Static Pressure: 0.33-1.86 mmH2O (forward), 0.29-1.71 mmH2O (reverse)
Noise Level: 16.4-30.7 dB(A) (forward), 17.3-31.6 dB(A) (reverse)
Rated Voltage: Fan 12V, LED 5V
Rated Current: Fan 0.15A, LED 0.63A (both blade types)
Power Consumption: Fan 1.80W, LED 3.15W
MTTF: ≥20,000 hours at 25°C
Connectors: PWM 4-pin, ARGB 3-pin
Bearing Type: Hydraulic bearing
LED Quantity: 32 LEDs around perimeter + 9 LEDs on hub (total 41 LEDs)

Compatible with motherboards or controllers supporting corresponding LED count and specifications

Additional details

Dimensions: 242 x 123 x 28 mm
Speed: 700-1800 ±10% RPM (forward and reverse blade)
Airflow: 18.75-47.71 CFM (forward blade), 19.46-44.58 CFM (reverse blade)
Static Pressure: 0.33-1.86 mmH2O (forward), 0.29-1.71 mmH2O (reverse)
Noise Level: 16.4-30.7 dB(A) (forward), 17.3-31.6 dB(A) (reverse)
Rated Voltage: Fan 12V, LED 5V
Rated Current: Fan 0.26A, LED 1.08A (both blade types)
Power Consumption: Fan 3.12W, LED 5.40W
MTTF: ≥20,000 hours at 25°C
Connectors: PWM 4-pin, ARGB 3-pin
Bearing Type: Hydraulic bearing
LED Quantity: 52 LEDs around perimeter + 18 LEDs on hub (total 70 LEDs)

Compatible with motherboards or controllers supporting corresponding LED count and specifications

Additional details

Dimensions: 362 x 123 x 28 mm
Speed: 700-1800 ±10% RPM (forward and reverse blade)
Airflow: 18.75-47.71 CFM (forward blade), 19.46-44.58 CFM (reverse blade)
Static Pressure: 0.33-1.86 mmH2O (forward), 0.29-1.71 mmH2O (reverse)
Noise Level: 16.4-30.7 dB(A) (forward), 17.3-31.6 dB(A) (reverse)
Rated Voltage: Fan 12V, LED 5V
Rated Current: Fan 0.38A, LED 1.50A (both blade types)
Power Consumption: Fan 4.56W, LED 7.50W
MTTF: ≥20,000 hours at 25°C
Connectors: PWM 4-pin, ARGB 3-pin
Bearing Type: Hydraulic bearing
LED Quantity: 68 LEDs around perimeter + 27 LEDs on hub (total 95 LEDs)

Compatible with motherboards or controllers supporting corresponding LED count and specifications

Additional details

Fan blade direction options: forward blade (positive airflow) and reverse blade (reverse airflow)

Front and rear airflow directions are clearly defined for installation

Lighting effects can be synchronized with motherboard software or controlled asynchronously with optional controller

Designed for quiet operation with PWM speed control and hydraulic bearing durability
