JONSBO XA-240W Shadow Blade White 12CM x2 Case Fans (Dual Frame Lighting/Color Block Design/2-in-1/ARGB Sync/PWM Male-Female Connectors)

JONSBO•radiator

JONSBO XA-240W Shadow Blade White 12CM x2 Case Fans (Dual Frame Lighting/Color Block Design/2-in-1/ARGB Sync/PWM Male-Female Connectors)

CN¥109.00

SKU: 100367024866

Status:In Stock (3)

ID: 100308159832

Weight: 720.00 g

Dims:301x160x40 mm

Specifications

Type: chassis fan
Lighting Effects: ARGB
Number of heat pipes: No

Variants / Sale Attributes

Color: XA240W White Direct Blade Fan

Package Contents

Fan*1/Screw pack*1

Product Description

Overview

Brand: JONSBO
Model: XA-240
Fan Size: 120 mm × 2 (dual fan unit)
Dimensions: 242 mm (L) × 123 mm (W) × 28 mm (H)

XA-120B (Black, standard blade)

XA-120W (White, standard blade)

XA-240B/BR (Black, standard blade/reverse blade)

XA-240W/WR (White, standard blade/reverse blade)

XA-360B/BR (Black, standard blade/reverse blade)

XA-360W/WR (White, standard blade/reverse blade)

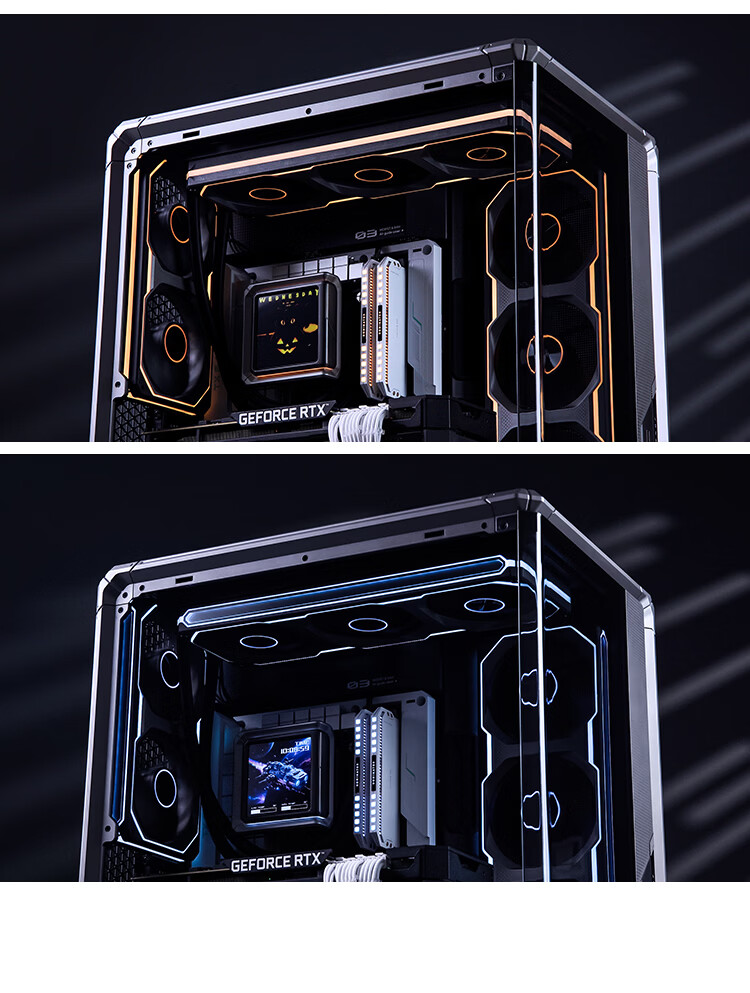

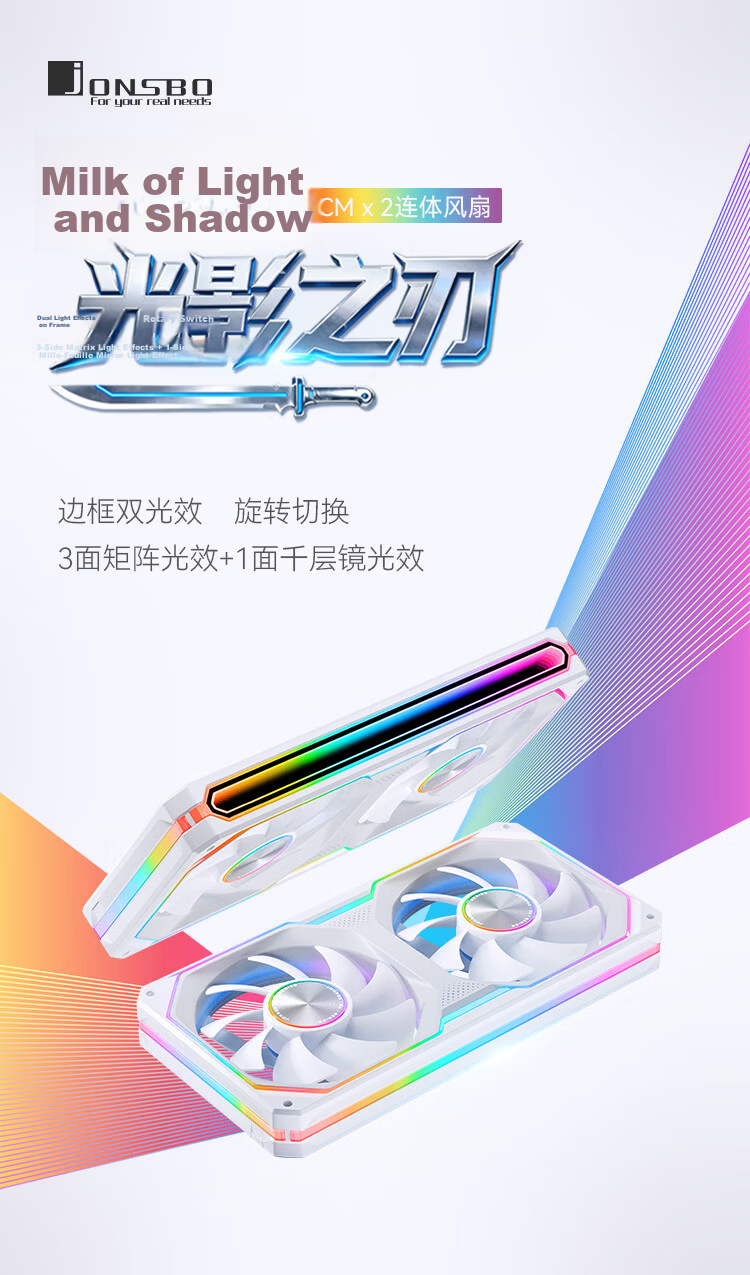

"Light Shadow Milk" theme with dual light effects on frame edges

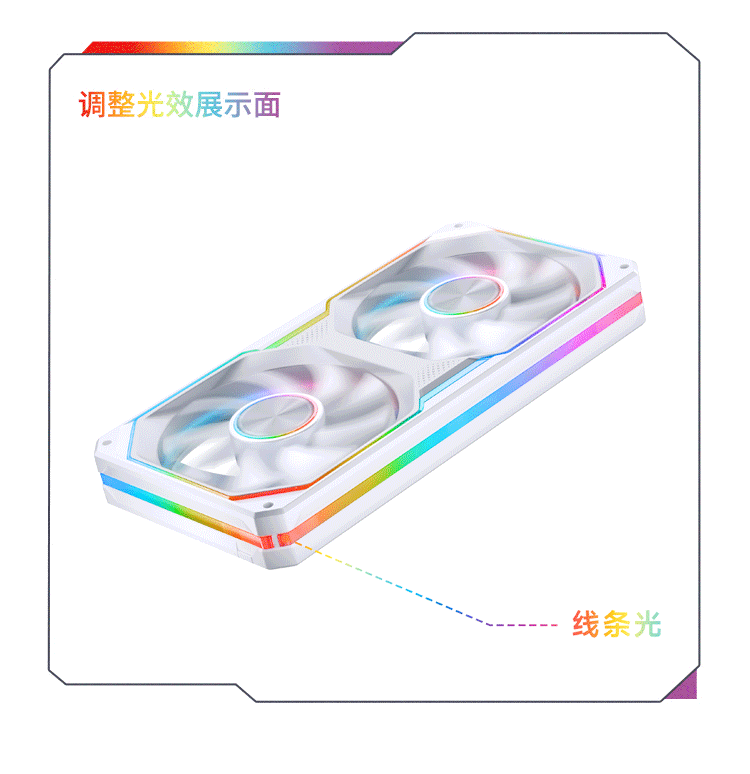

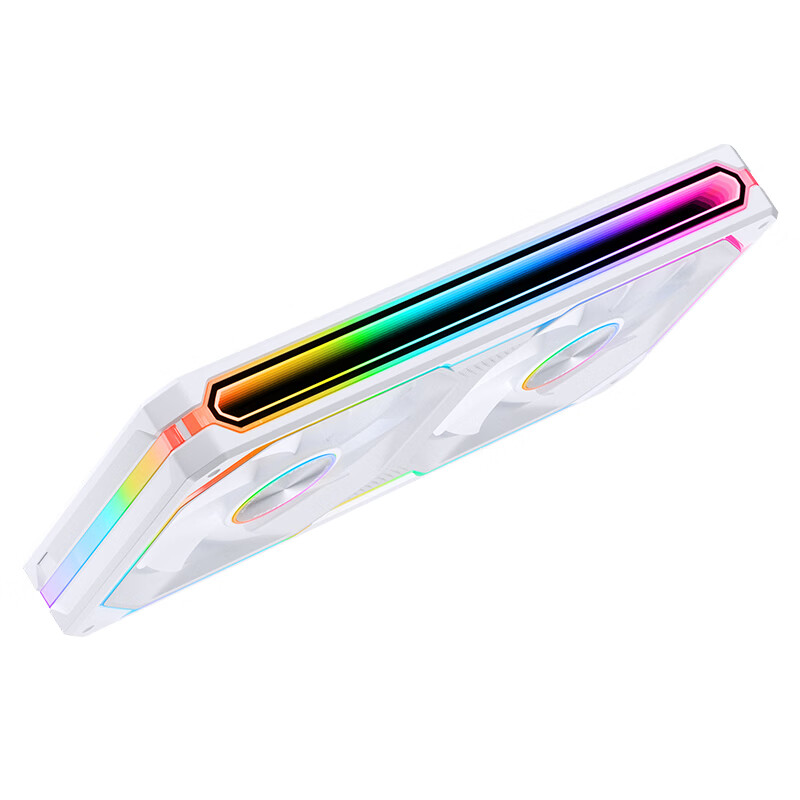

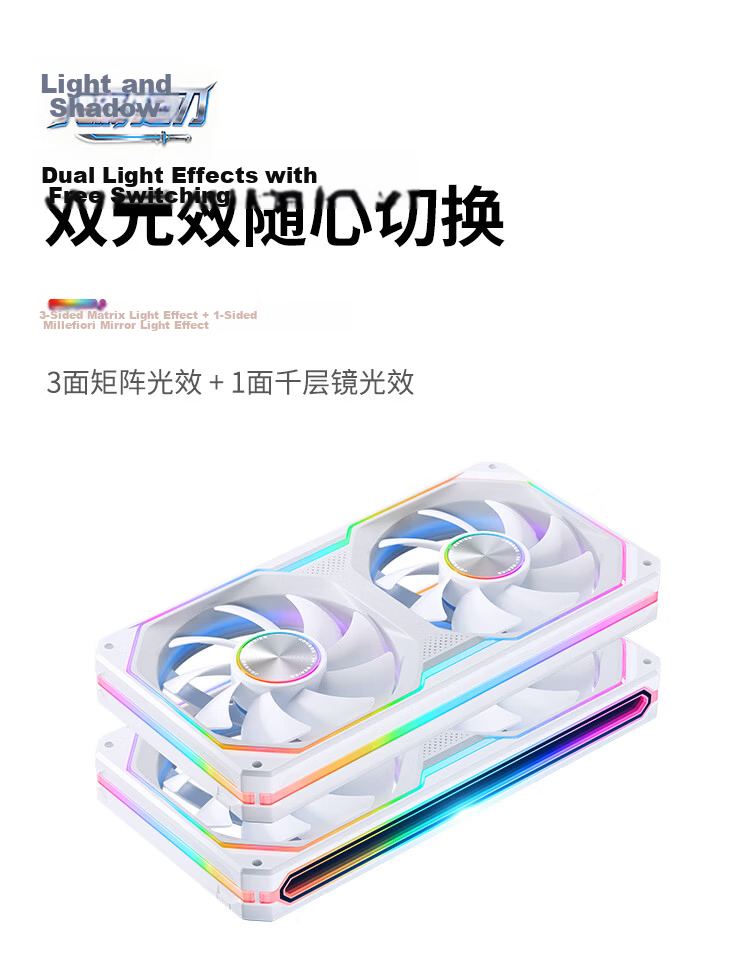

Rotatable switching between 3-side matrix lighting and 1-side multilayer mirror lighting effects

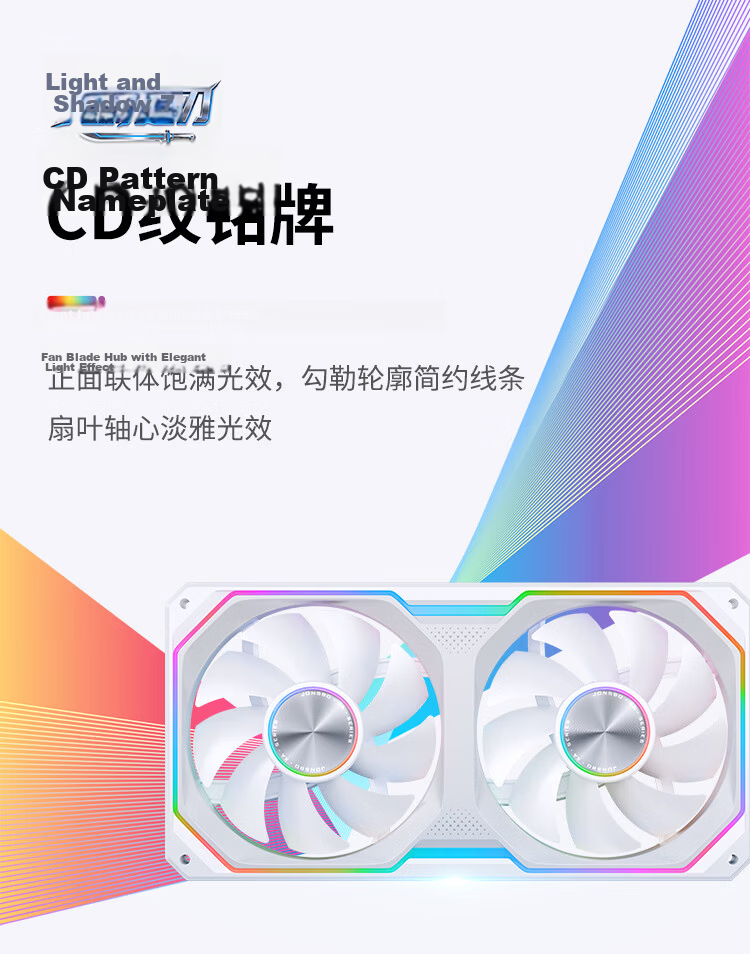

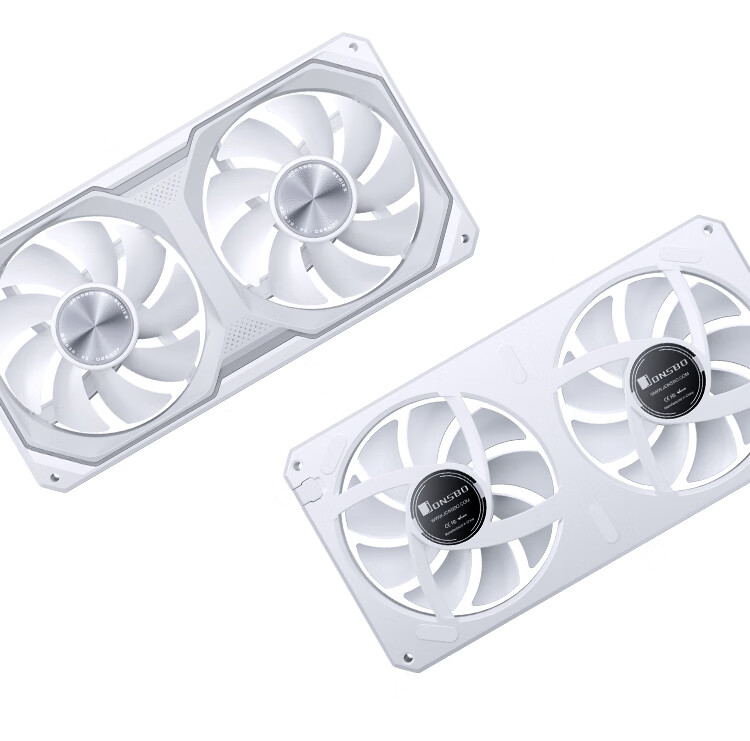

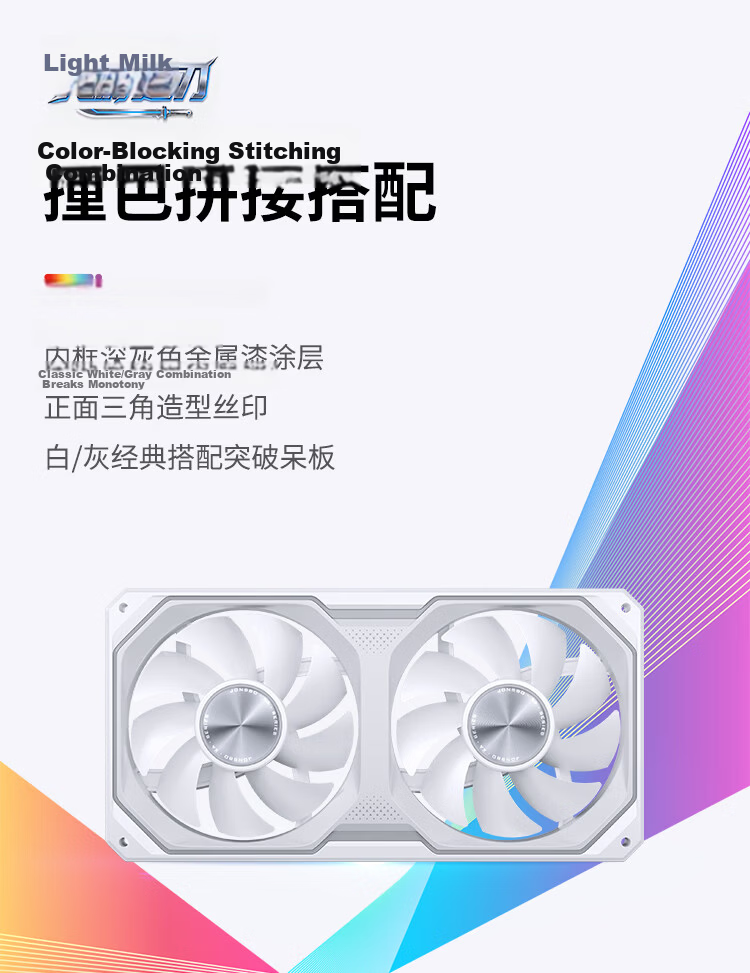

Color-blocking design with deep gray metallic paint inner frame and triangular silk-screen on front panel

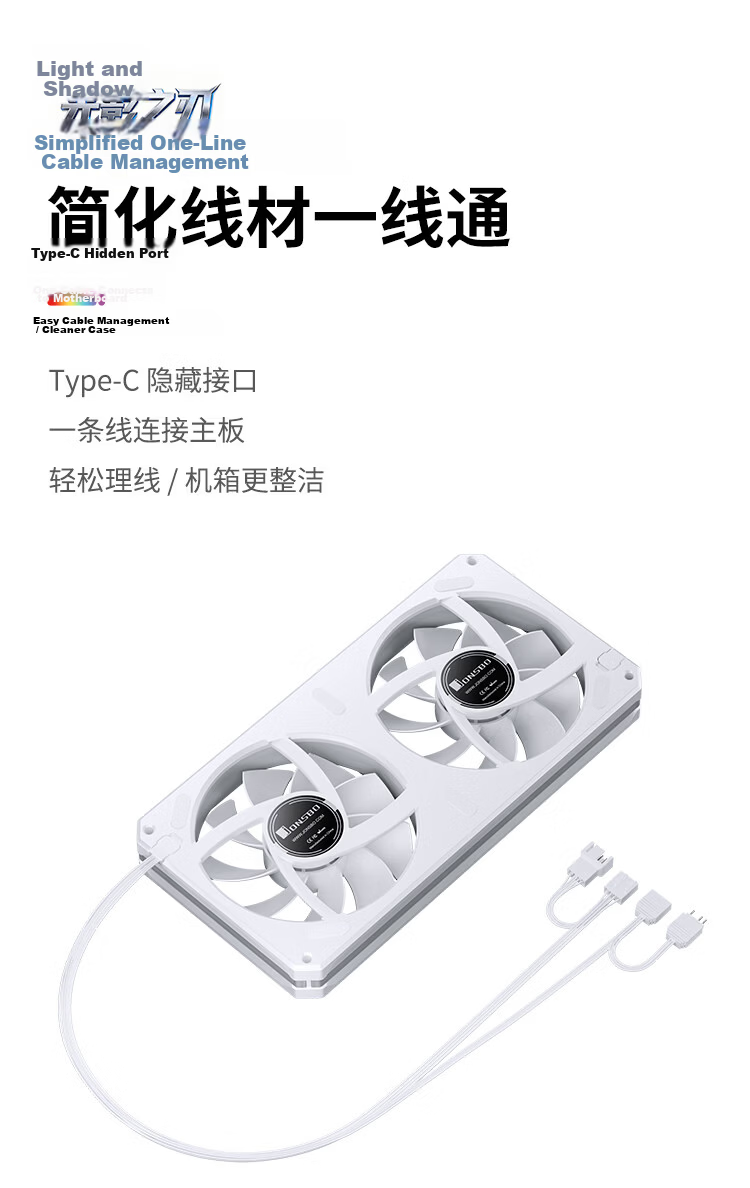

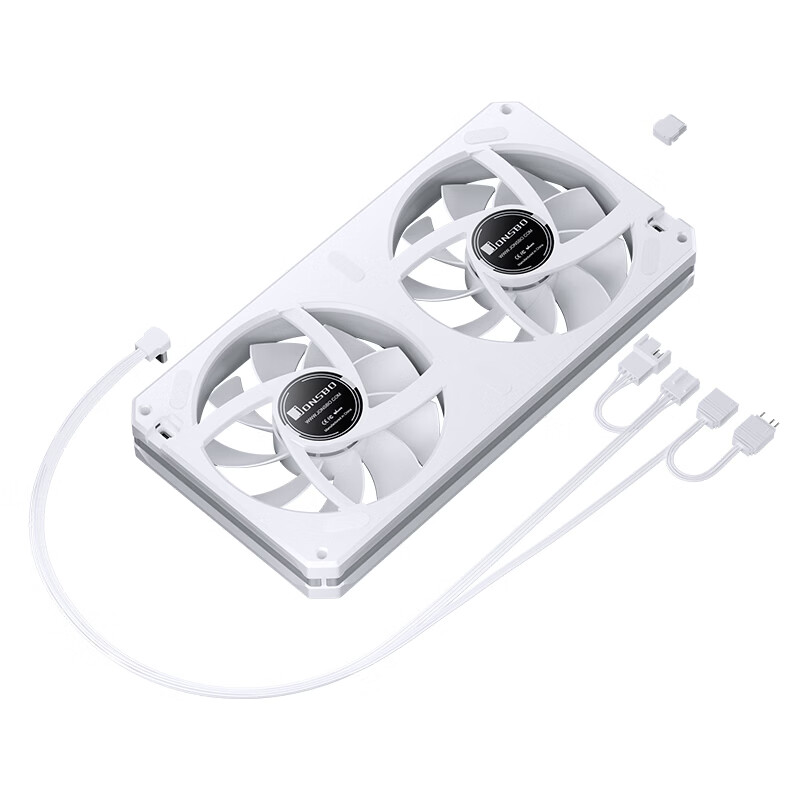

Simplified cabling with single Type-C hidden interface for motherboard connection

Similar Products

Out of Stock

thermalrightradiator

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

AS120 VISION ARGB Black

CN¥129.90

View

In Stock

SAMAradiator

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black

CN¥529.00

View

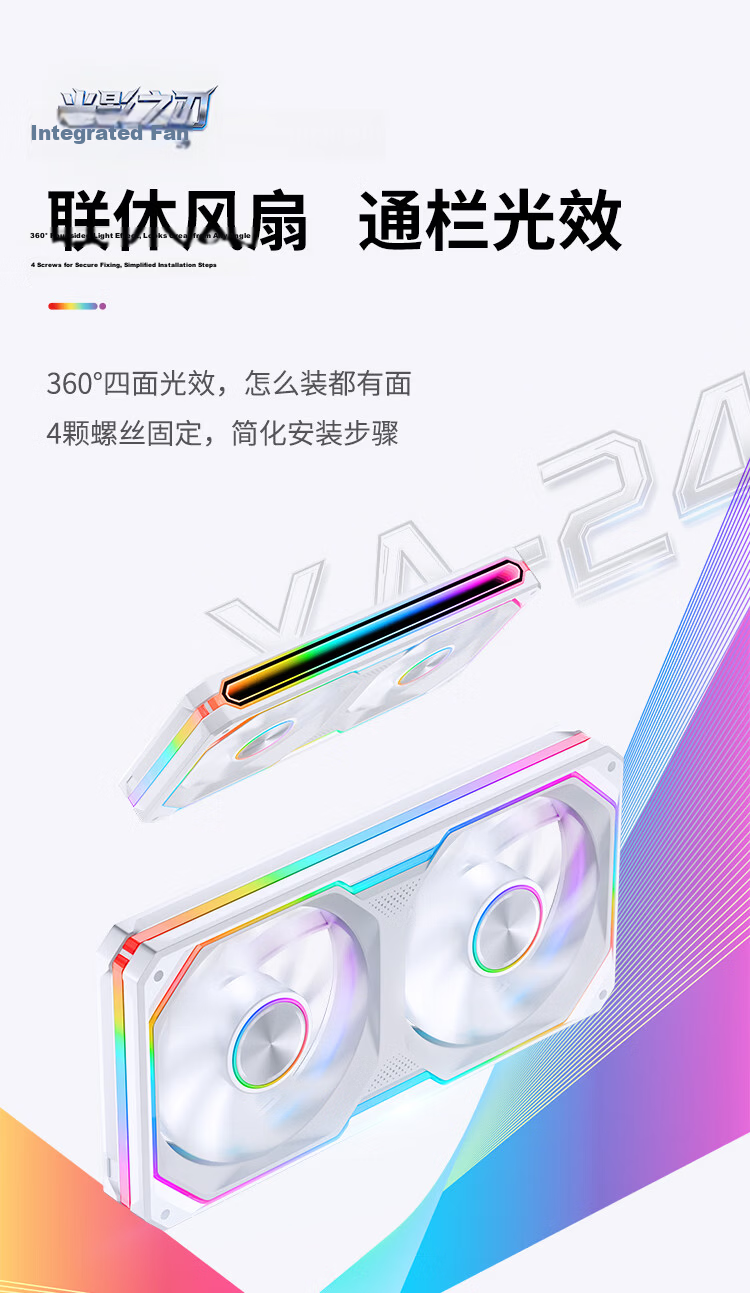

Integrated dual-fan unit with full-length lighting and 360° four-sided illumination

Installation simplified with 4 screws fixation

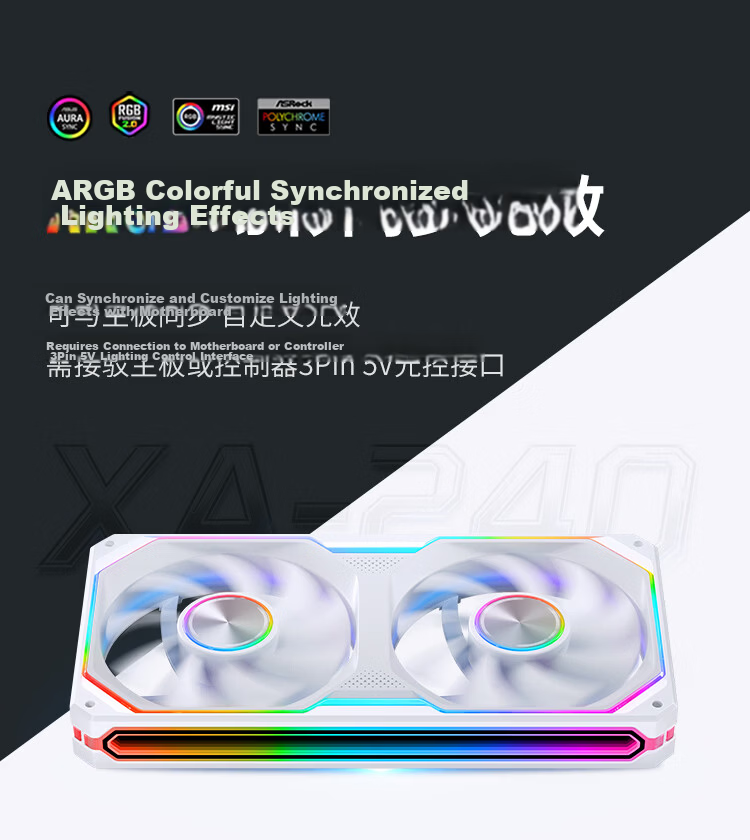

ARGB addressable RGB lighting synchronized with motherboard or controller via 3-pin 5V ARGB interface

Additional details

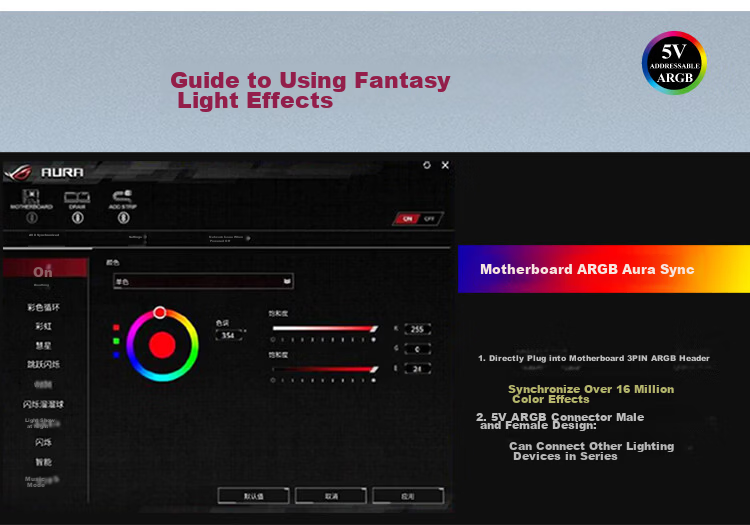

Supports major lighting control systems: ADDRESSABLE, ARGB, AURA, and full 8-synchronization modes

Lighting modes include static, breathing, wave, and more with over 16 million colors

54 LEDs around the frame plus 18 LEDs on the shaft for extended lighting effects

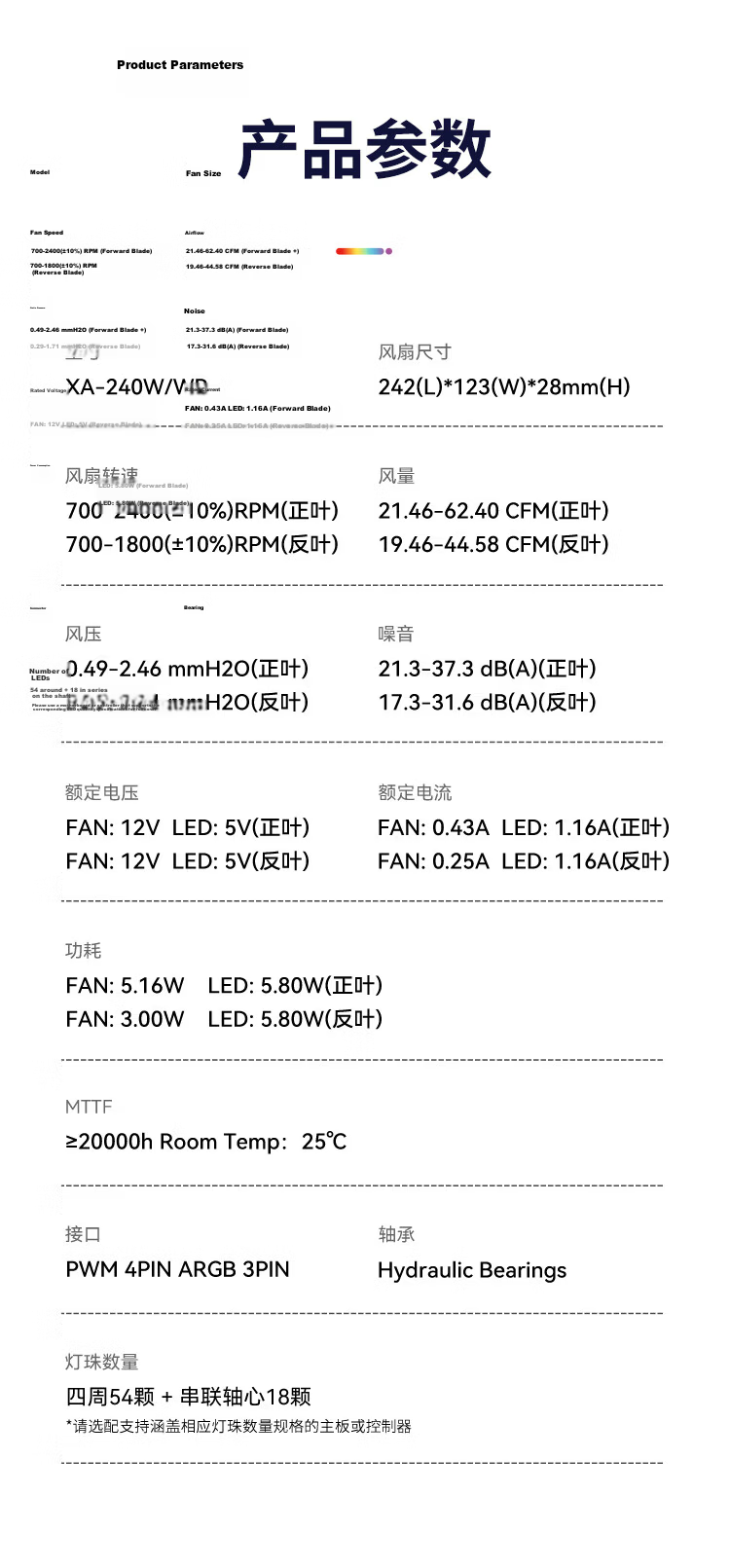

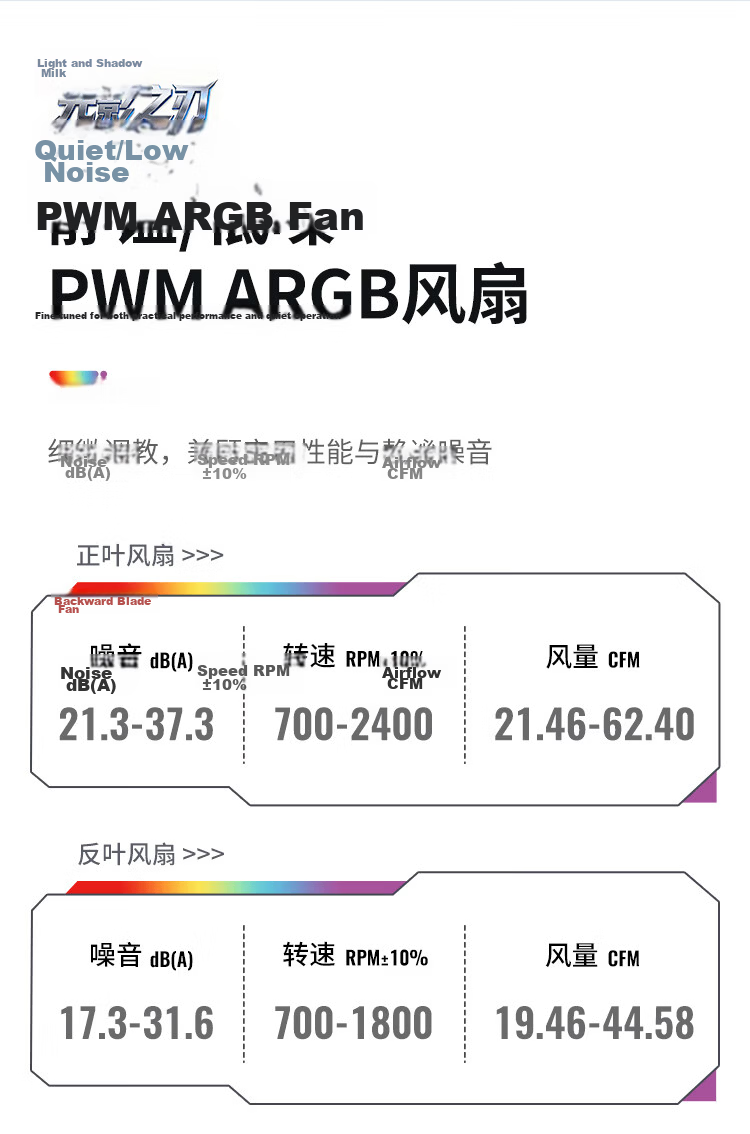

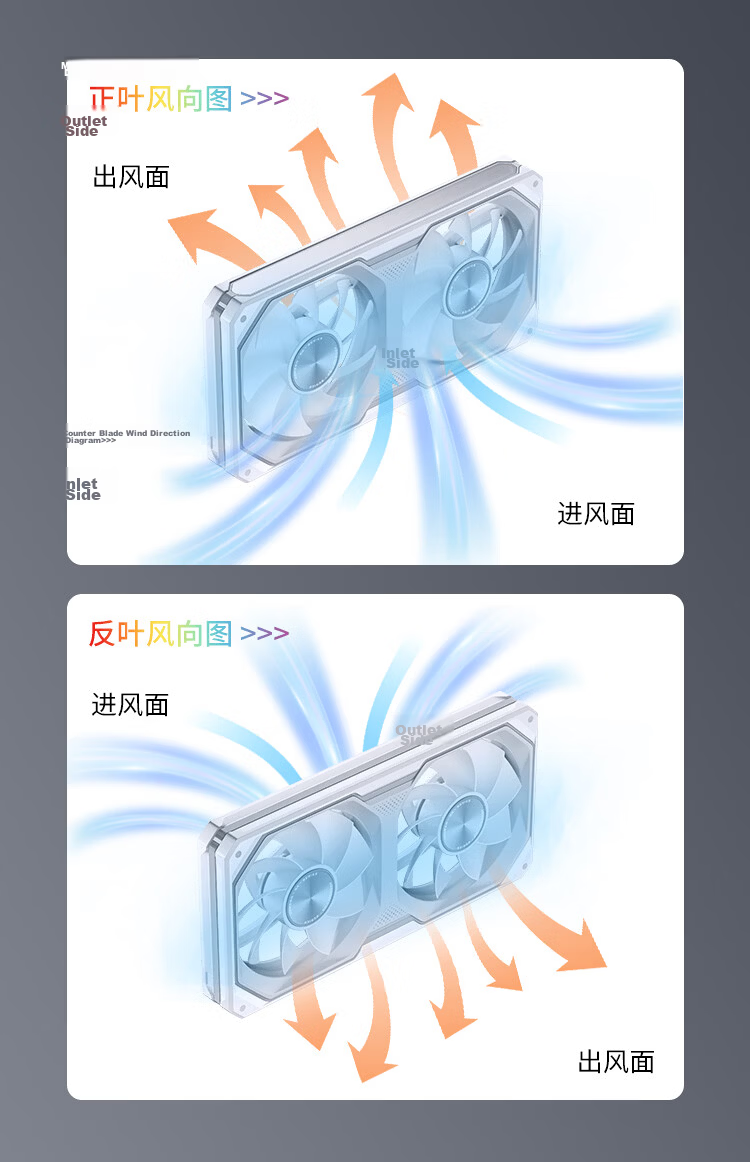

Standard Blade Fan (Positive Blade)

Item	Detail
Speed	700-2400 ±10% RPM
Airflow	21.46-62.40 CFM
Static Pressure	0.49-2.46 mmH2O
Noise Level	21.3-37.3 dB(A)

Reverse Blade Fan

Item	Detail
Speed	700-1800 ±10% RPM
Airflow	19.46-44.58 CFM
Static Pressure	0.29-1.71 mmH2O
Noise Level	17.3-31.6 dB(A)

Additional details

Rated Voltage: Fan 12V, LED 5V

Rated Current

Item	Detail
Standard Blade	Fan 0.43A, LED 1.16A
Reverse Blade	Fan 0.25A, LED 1.16A

Power Consumption

Item	Detail
Standard Blade	Fan 5.16W, LED 5.80W
Reverse Blade	Fan 3.00W, LED 5.80W

Additional details

MTTF (Mean Time To Failure): ≥ 20,000 hours at 25°C room temperature

PWM 4-pin fan connector

ARGB 3-pin lighting connector

Compatible with motherboards or controllers supporting the specified LED count and ARGB lighting standards

Quiet operation with PWM control balancing performance and noise levels
