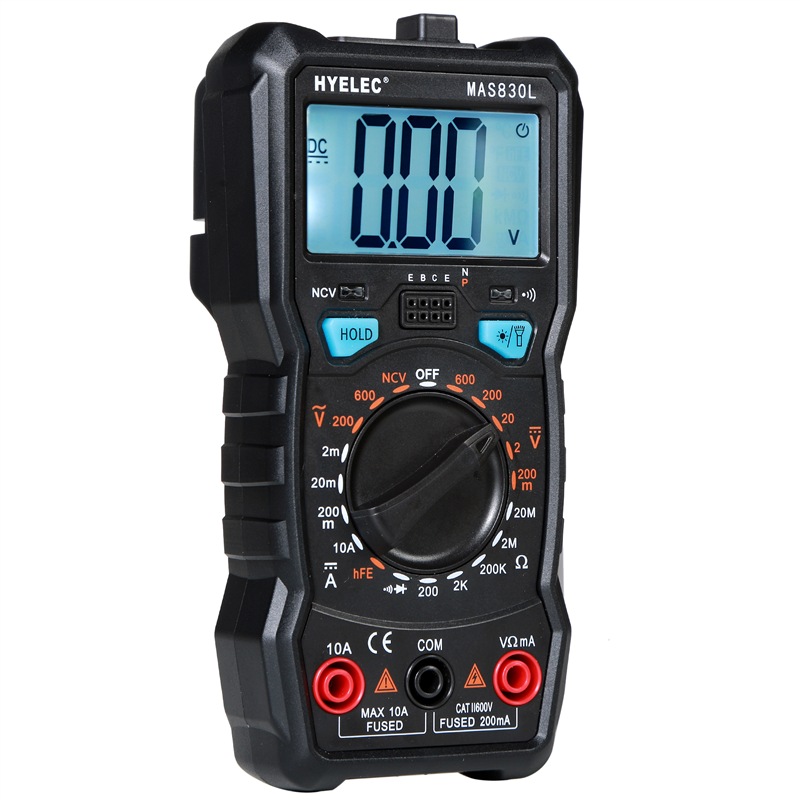

HYELEC MAS830L Digital Multimeter

HYELEC•Multimeter

HYELEC MAS830L Digital Multimeter

CN¥39.00

SKU: 1163678

Status:In Stock (30)

ID: 1163678

Weight: 360.00 g

Dims:172x112x52 mm

Specifications

Functions: voltage, Resistor, electric current, diode, On/Off (buzzing), backlight, Fire line detection, Fireline judgment, Smart NCV
testing principles: Relative value measurement
Precision: three and a half
Category: digital multimeter
Measuring range: Manual range

Variants / Sale Attributes

Model: Economical overload protection

Package Contents

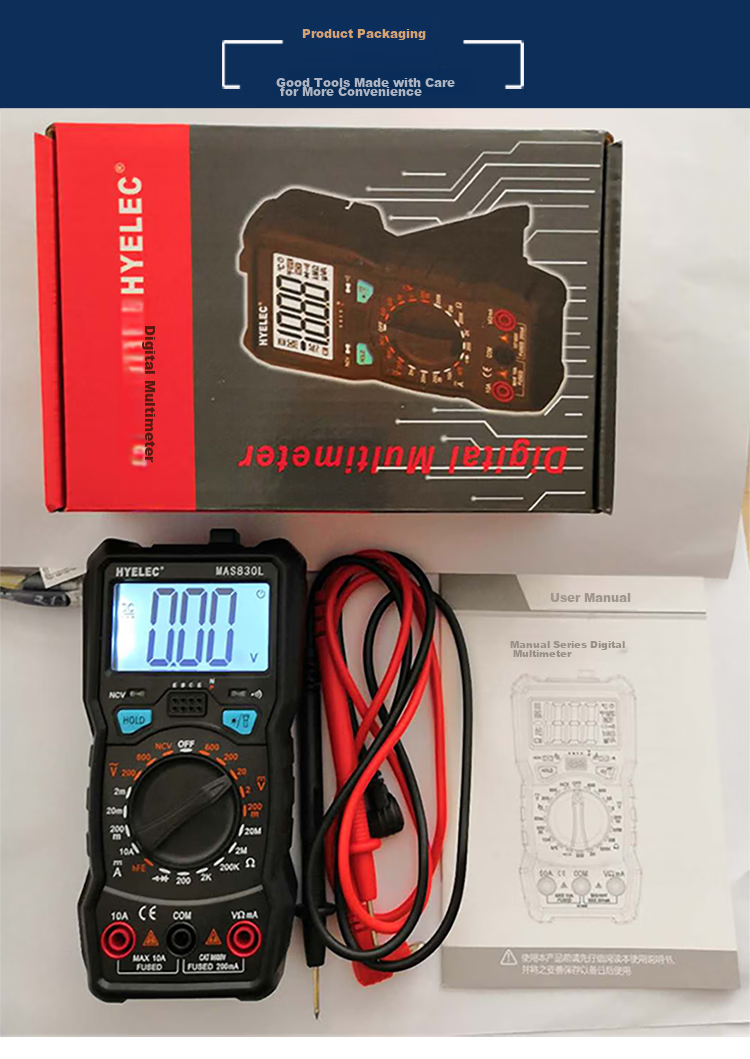

Main unit ×1, AAA batteries ×3, test probes ×2, instruction manual ×1, warranty card ×1

Product Description

Product Specifications

Overview

Brand: HYELEC
Model: MAS830L

Intelligent flame retardant digital multimeter

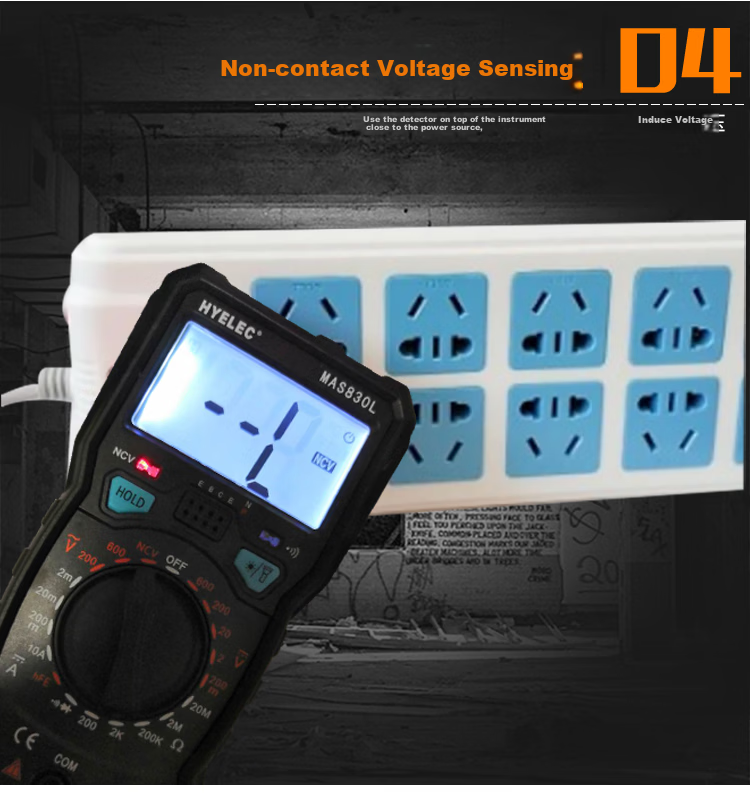

Non-contact voltage (NCV) detection

Large anti-burn LCD screen with backlight

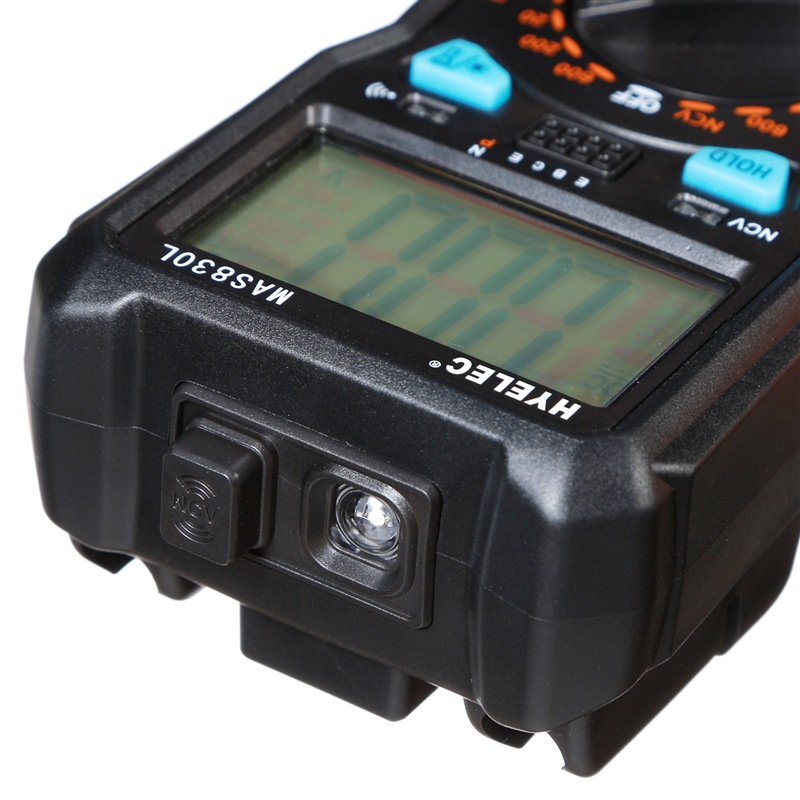

Built-in flashlight for illumination

Auto power off to save battery

Data hold function

Auto range selection

Magnetic back attachment for hands-free operation

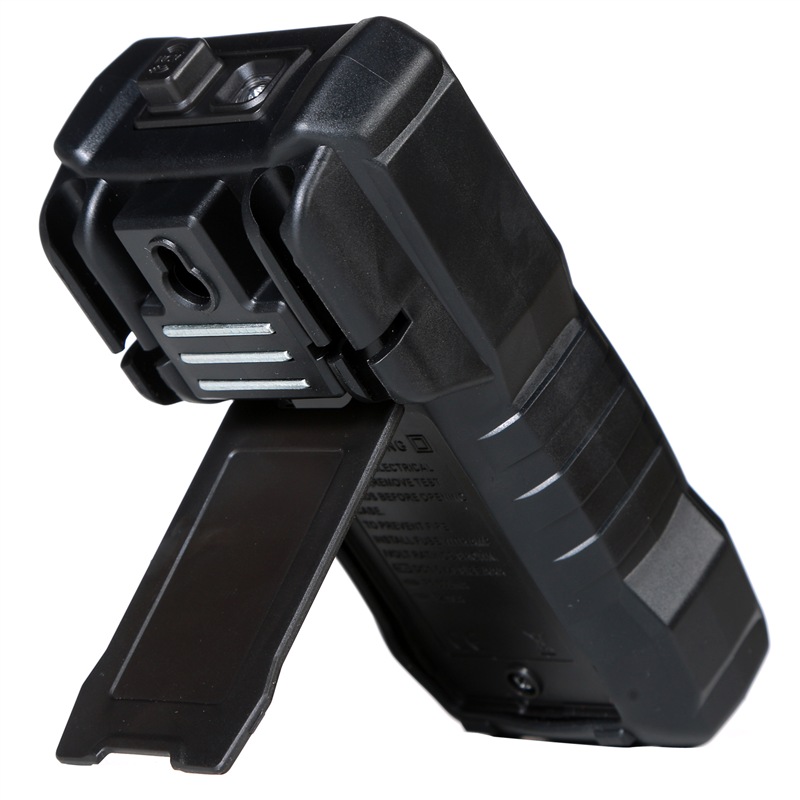

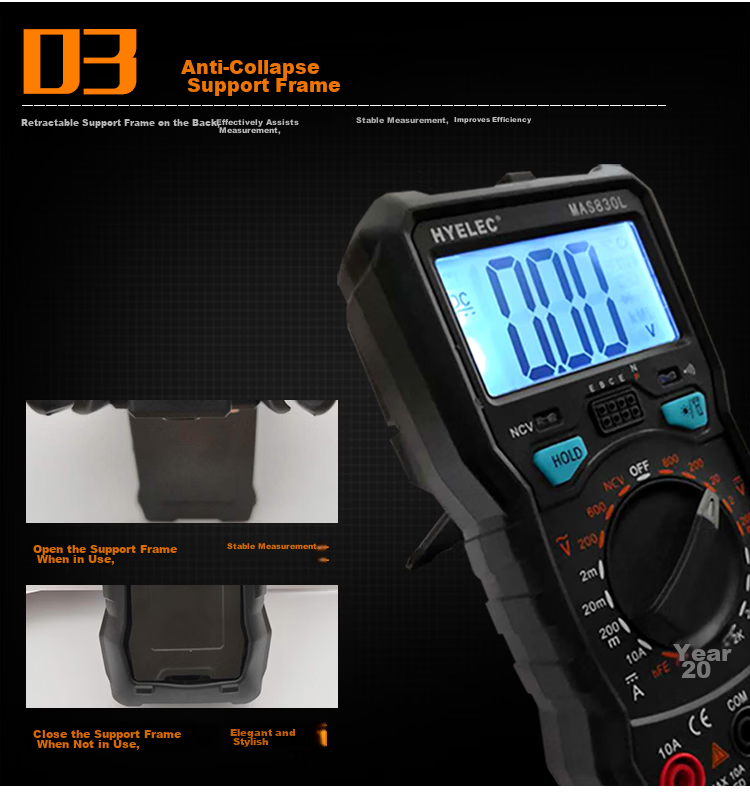

Foldable stand for stable measurement

CE certified

Additional details

DC Voltage (DCV): 200mV (0.1mV resolution), 2V (1mV), 20V (10mV), 200V (100mV), 600V (1V)

Similar Products

In Stock

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

CHNTMultimeter

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

ZTW0103D Upgraded Version [LCD Backlight]

CN¥89.00

In Stock

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

CHNTMultimeter

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

ZTY0121A Standard Model [High-Definition Large Screen]

CN¥59.00

AC Voltage (ACV)

200V (100mV), 600V (1V)

DC Current (DCA)

2mA (1μA), 20mA (10μA), 200mA (100μA), 10A (10mA)

Resistance (Ω)

200Ω, 2kΩ, 20kΩ, 200kΩ, 2 MΩ, 20 MΩ

hFE transistor test socket

Continuity buzzer and diode test

Non-contact voltage detection indicator and infrared receiver window

Additional details

DC Voltage: ±(0.5% reading + 5 digits)
AC Voltage: ±(1% reading + 10 digits)
DC Current: ±(1% reading + 5 digits) for mA range, ±(3% reading + 10 digits) for 10A range
Resistance: ±(1% reading + 3 digits)

1999 count LCD with backlight

Overload indication ("OL")

Low battery indicator

Automatic polarity indication

CAT II 600V rating

Additional details

Maximum input voltage: 600V AC/DC

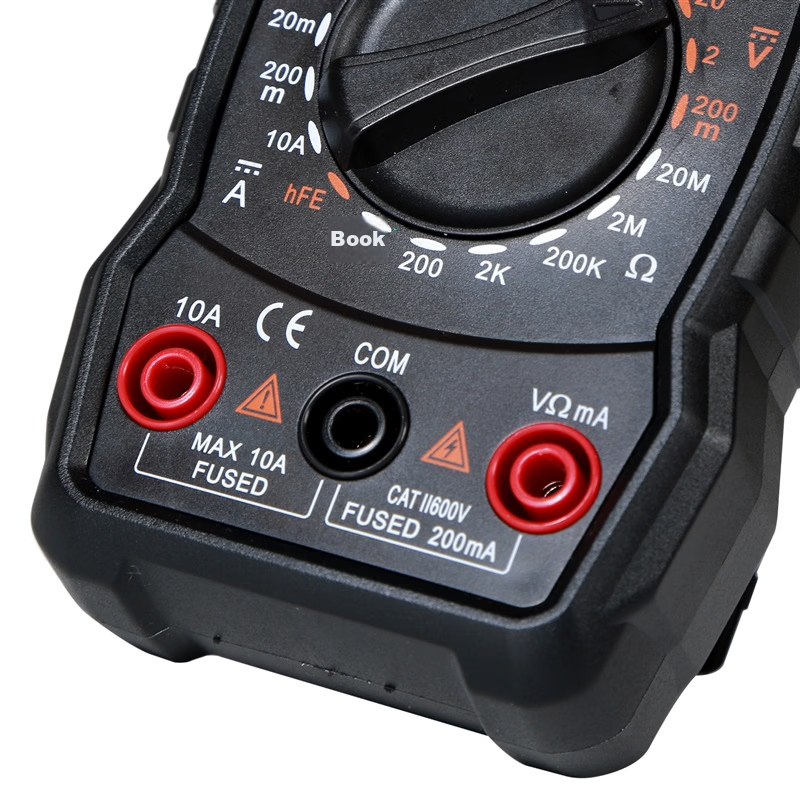

Fuse protection: 200mA/250V for mA range, 10A/250V for 10A range
Operating temperature: 0~40°C, <80% RH
Storage temperature: -10~60°C, <70% RH
Altitude: <2000 m

3 x 1.5V AAA batteries

Additional details

Size: 147 mm (L) x 71 mm (W) x 45 mm (H)
Weight: Approx. 220 g (without batteries)

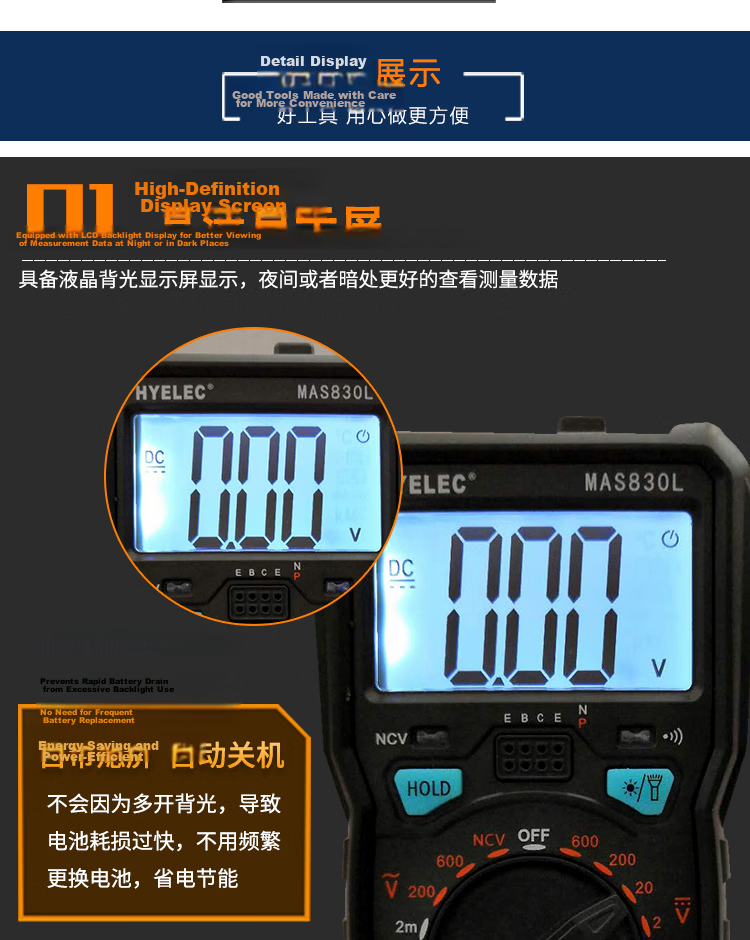

High definition LCD display for clear readings in dark environments

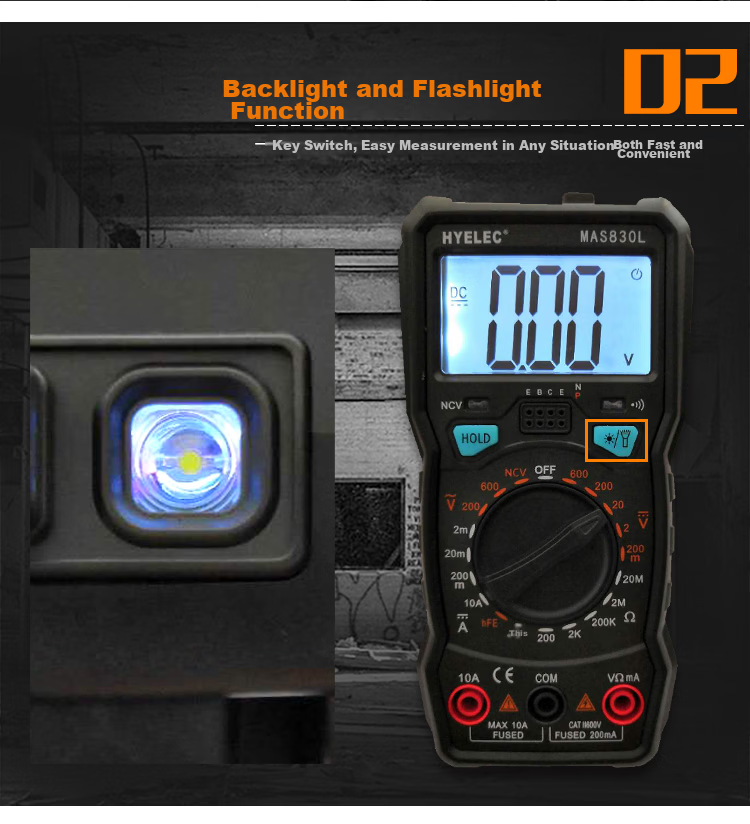

Backlight and flashlight function with easy key switching

Foldable stand for stable and efficient measurements

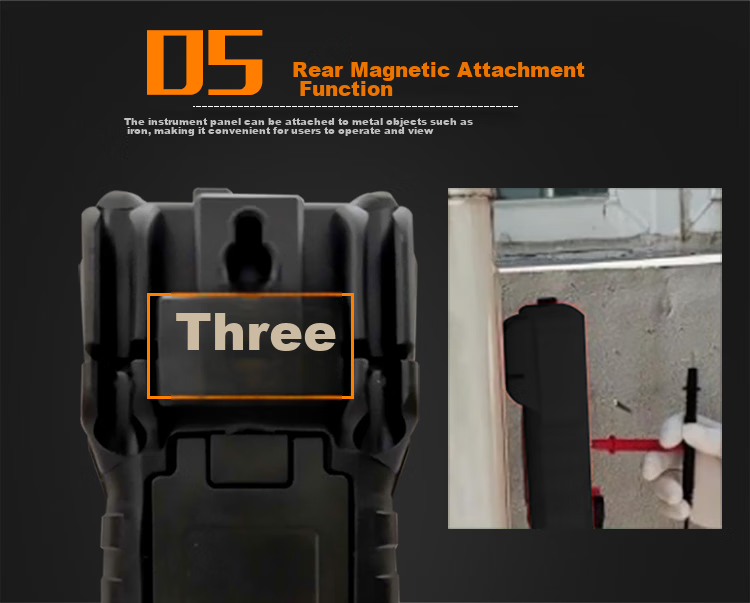

Magnetic back for convenient attachment to metal surfaces

Auto screen off to prevent battery drain

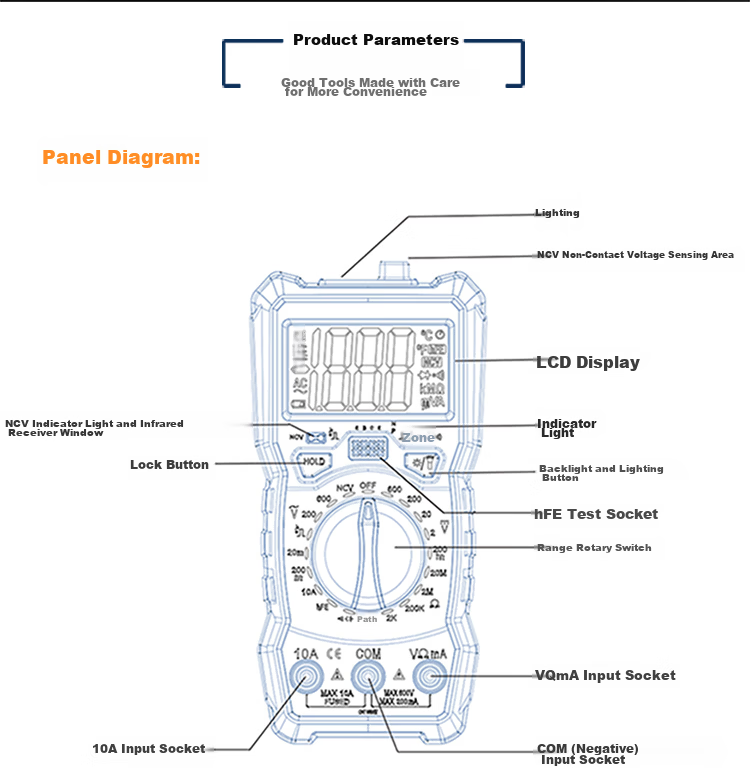

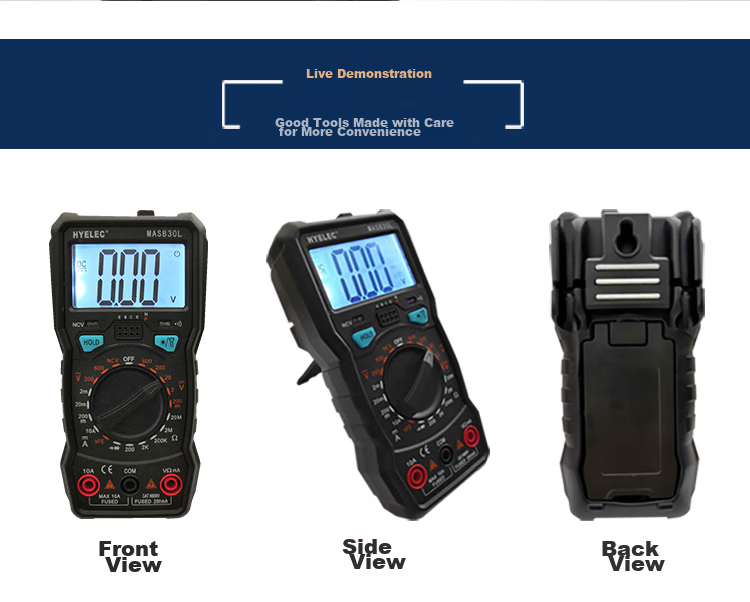

User-friendly panel layout with clear indication zones for NCV, hold, backlight, and function selection

HYELEC MAS830L Digital Multimeter

User manual

1. Intelligent and accurate measurement capabilities

2. Large anti-burn backlit LCD screen

3. Non-contact voltage detection for safety

4. Built-in flashlight and magnetic back for convenience

5. Durable design with foldable stand and flame retardant materials

null
