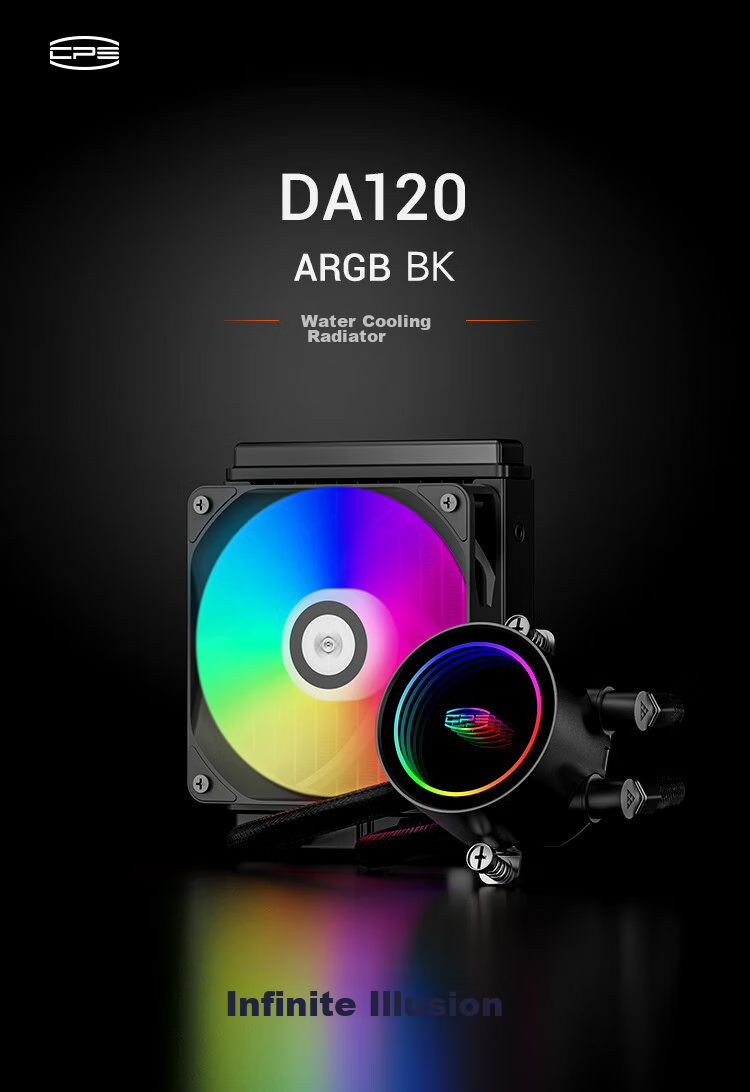

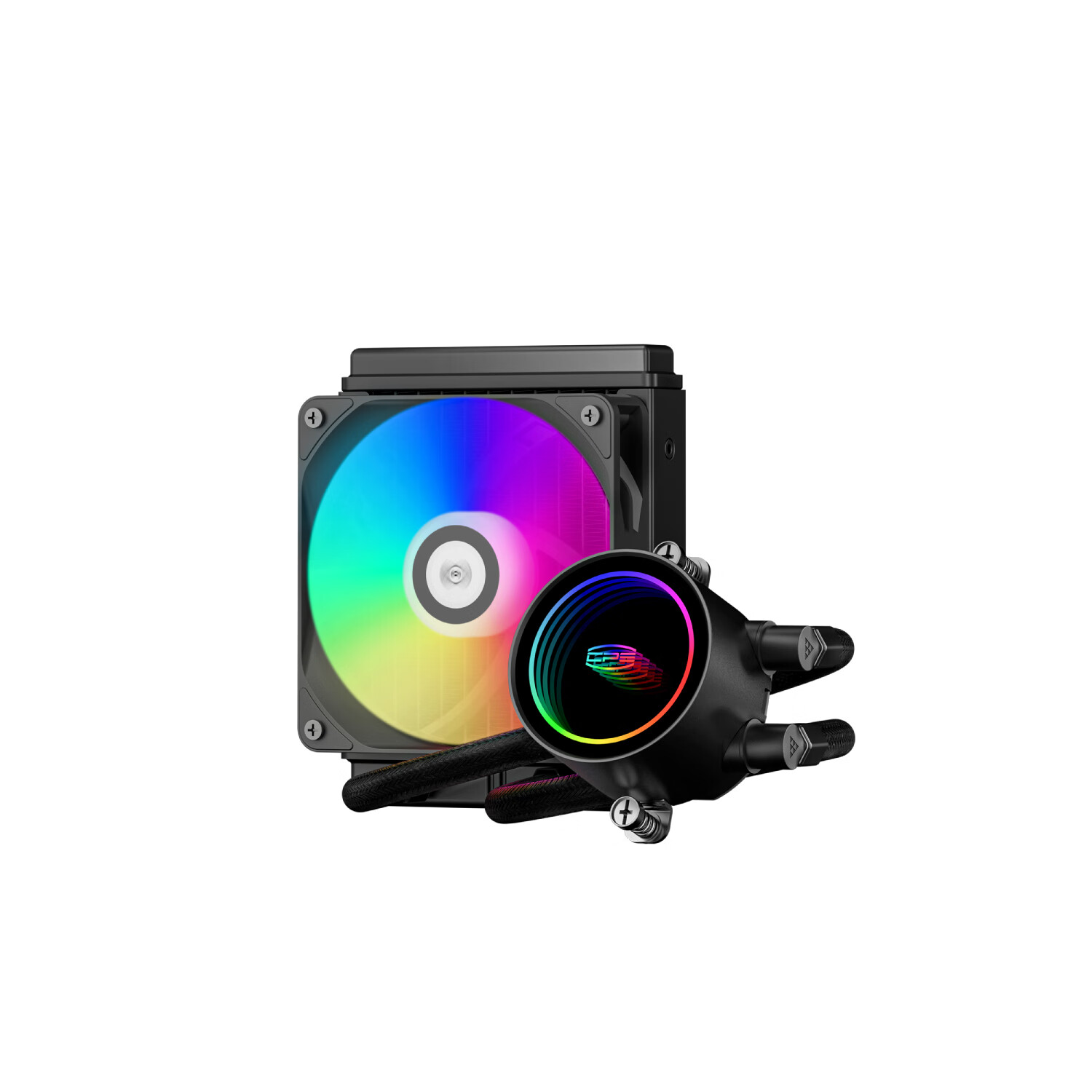

PCCOOLER Jumbo Wave 120 DA120 All-In Liquid CPU Cooler ARGB/RGB Lighting/Integrated Design/Supports 1200/1700/AM5/Standard Thermal Paste Included

PCCOOLER•radiator

PCCOOLER Jumbo Wave 120 DA120 All-In Liquid CPU Cooler ARGB/RGB Lighting/Integrated Design/Supports 1200/1700/AM5/Standard Thermal Paste Included

CN¥159.00

SKU: 3762171

Status:In Stock (12)

ID: 3762171

Weight: 1135.00 g

Dims:240x196x155 mm

Specifications

Air-cooled base: Brazing with copper base
Air-cooled base: Reflow soldering process
Number of heat pipes: No
Water cooling type: 120 radiator
Type: All-in-one liquid cooler
Compatible interface: INTEL LGA1700, AMD AM4, INTEL LGA1200, AMD AM5
Lighting Effects: ARGB
Fan connection method

Variants / Sale Attributes

Color: Jiwan 120 - Color-Changing Light

Package Contents

Water cooling radiator X1, fan X1, thermal paste X1, mounting hardware kit X1, user manual X1, warranty card X1

Product Description

Overview

Brand: PCCOOLER
Model: DA120ARGBBK
Type: Liquid CPU Cooler

Features

Infinite Dream

Additional details

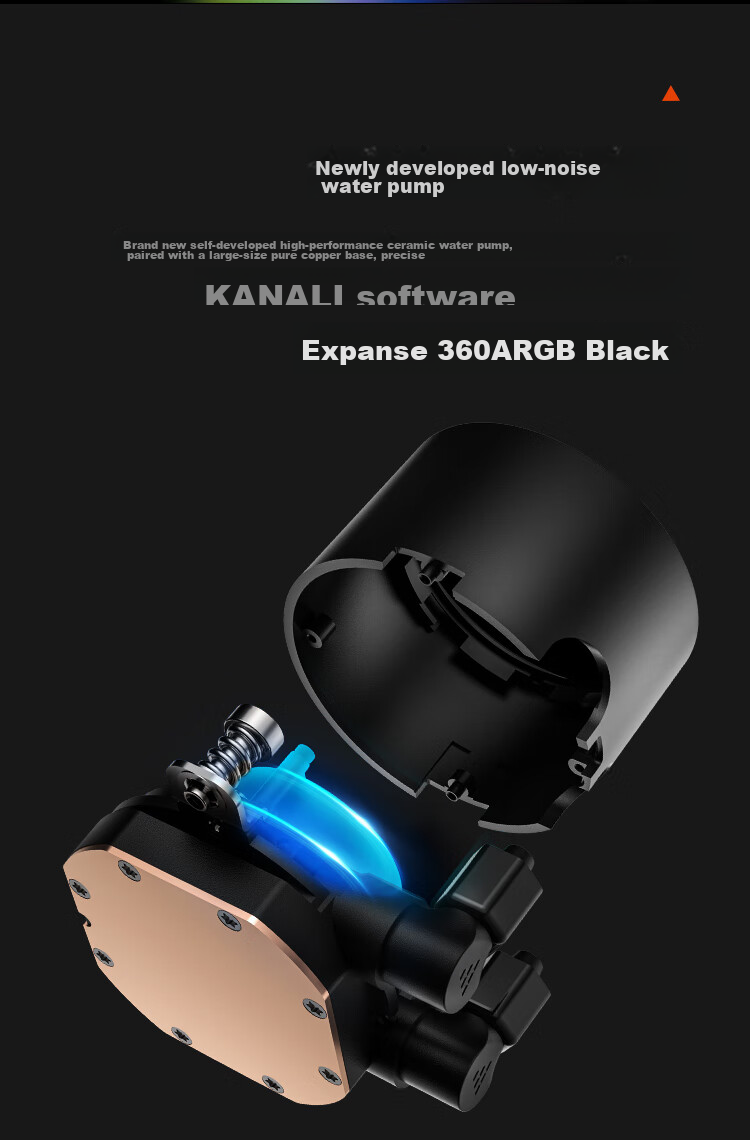

Pump: Newly developed low-noise water pump, high-performance ceramic water pump

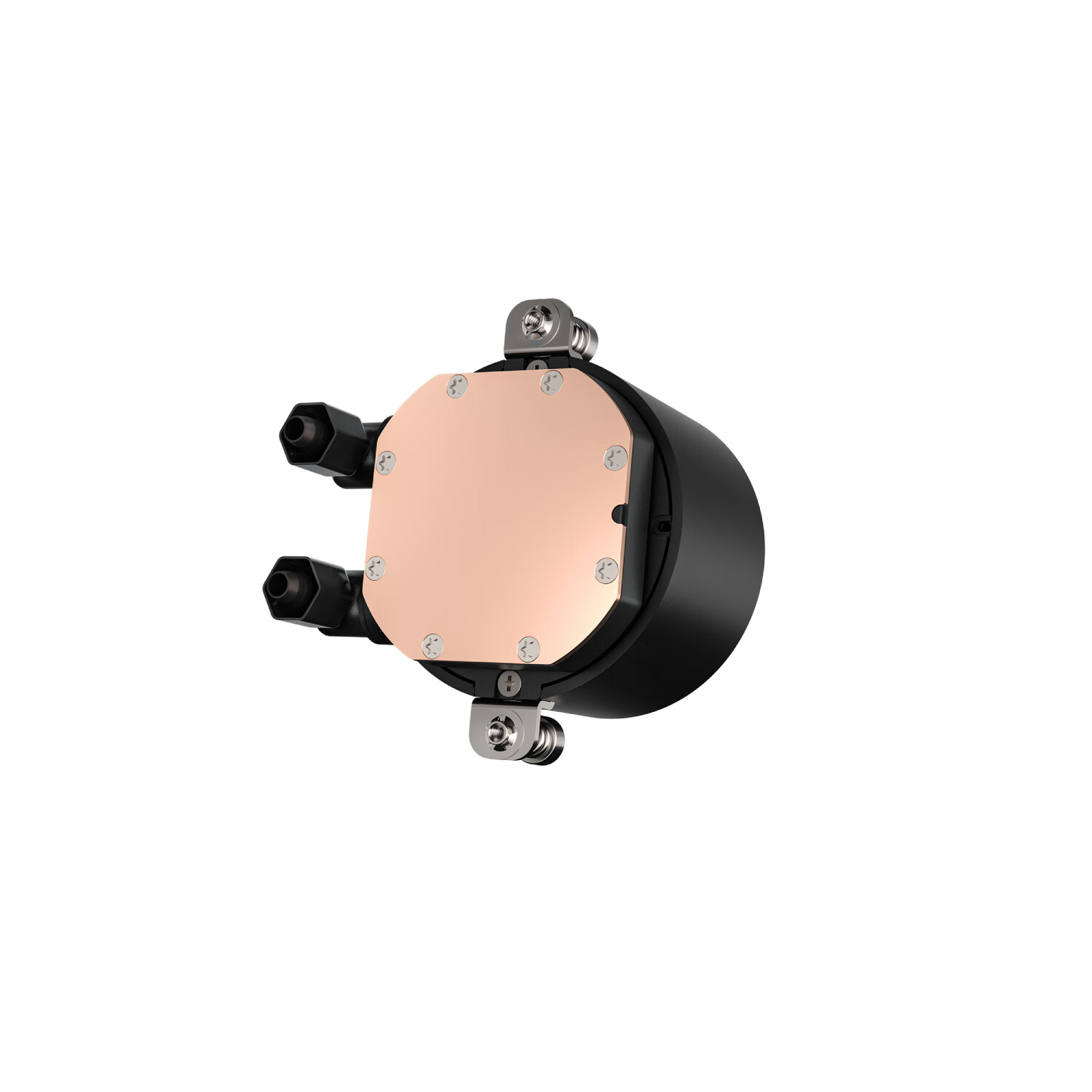

Base Plate: Large-size pure copper base plate for precise coverage of CPU core heat source

Similar Products

Out of Stock

thermalrightradiator

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

AS120 VISION ARGB Black

CN¥129.90

View

In Stock

SAMAradiator

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black

CN¥529.00

View

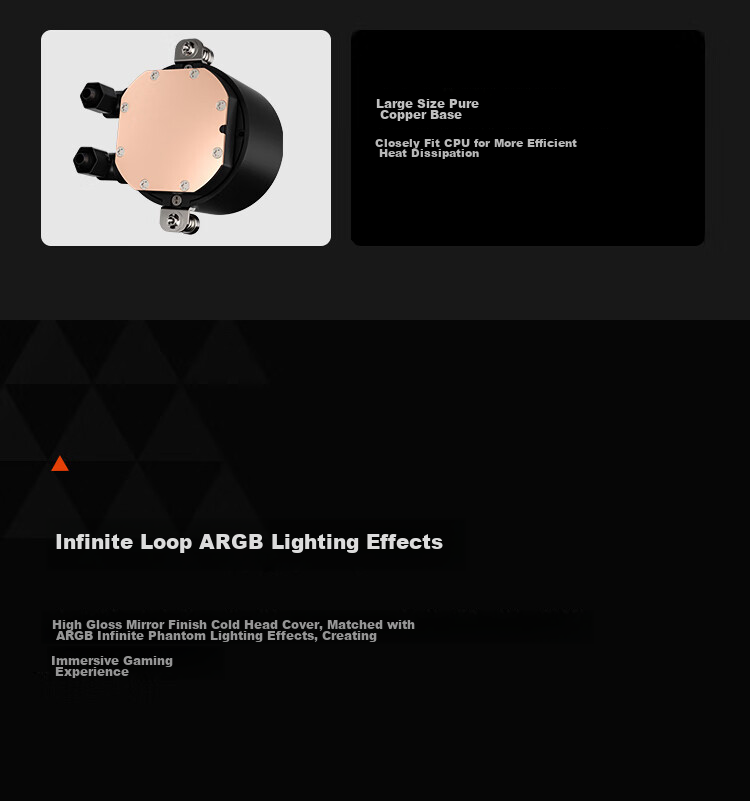

Cooling

High-efficiency heat dissipation with large-size pure copper base plate

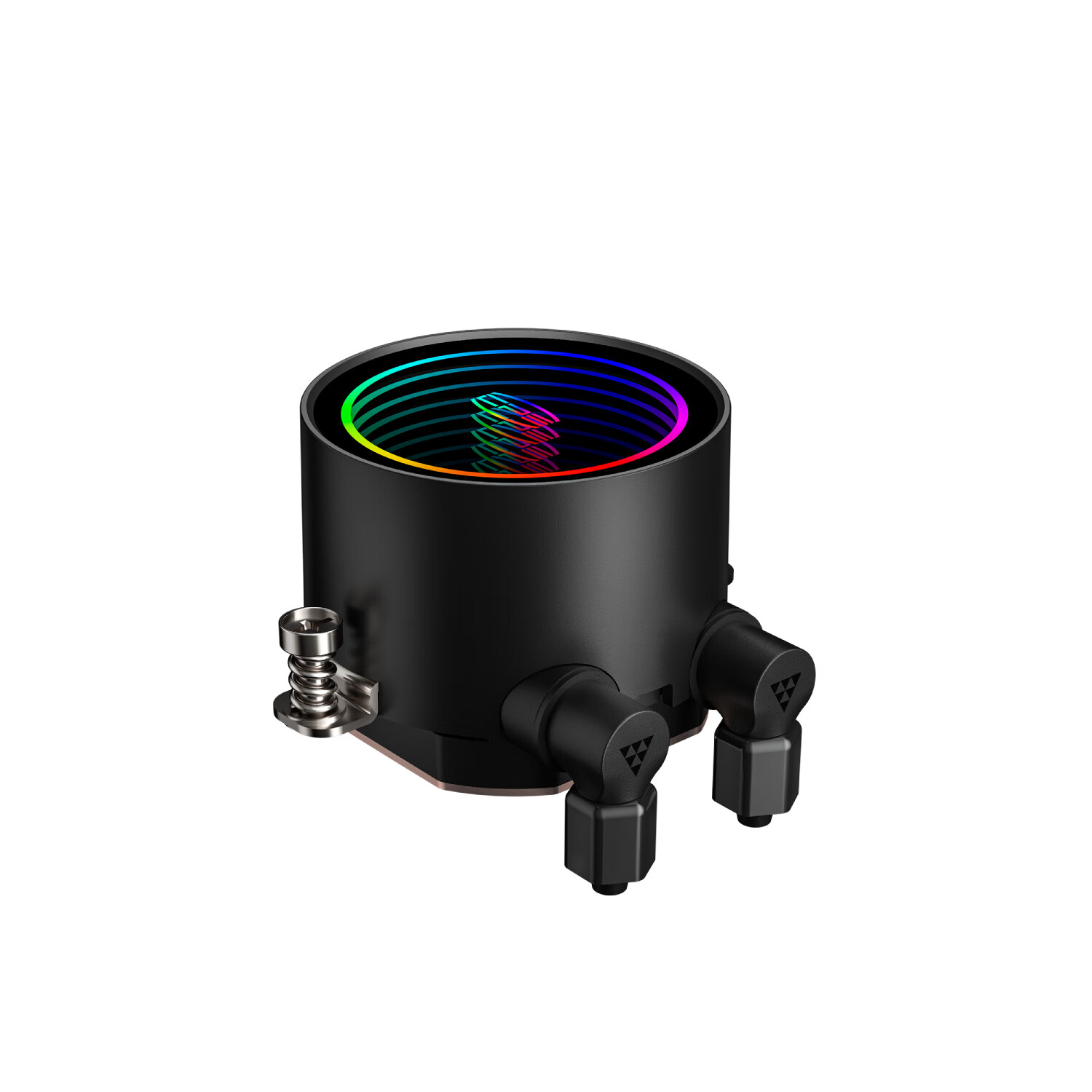

ARGB Lighting

Infinite loop ARGB lighting effects with high-gloss mirror finish cold head cover

Radiator

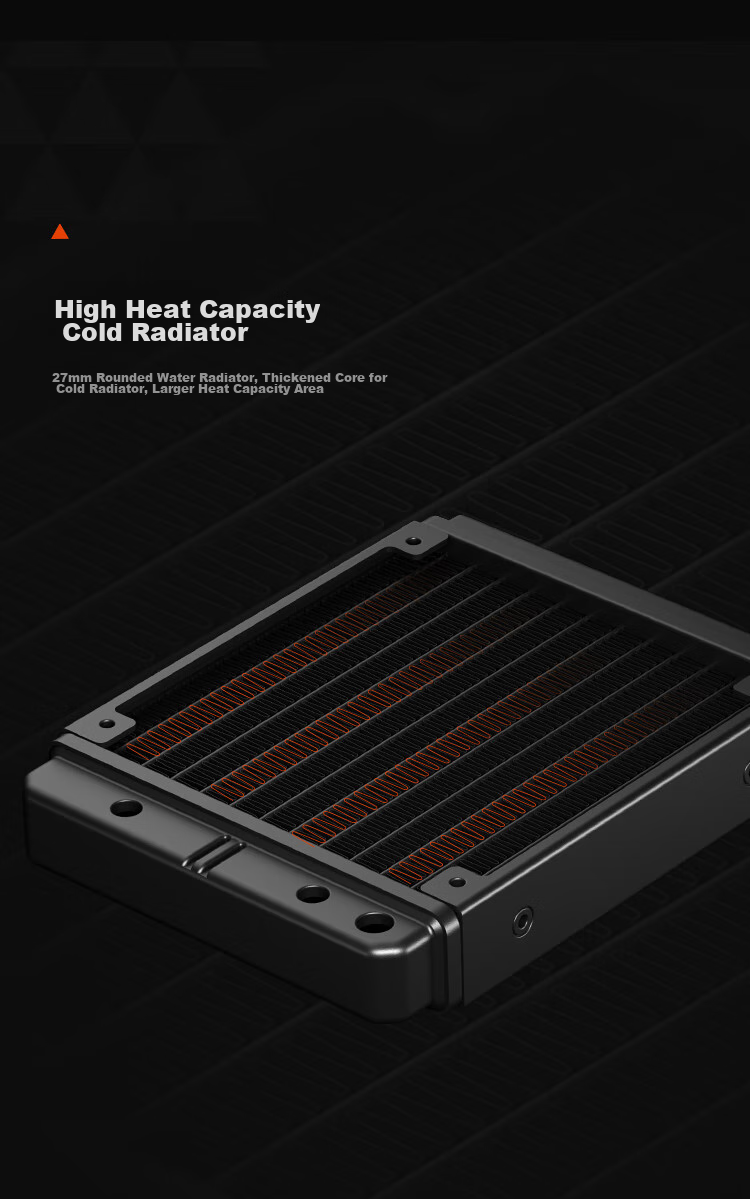

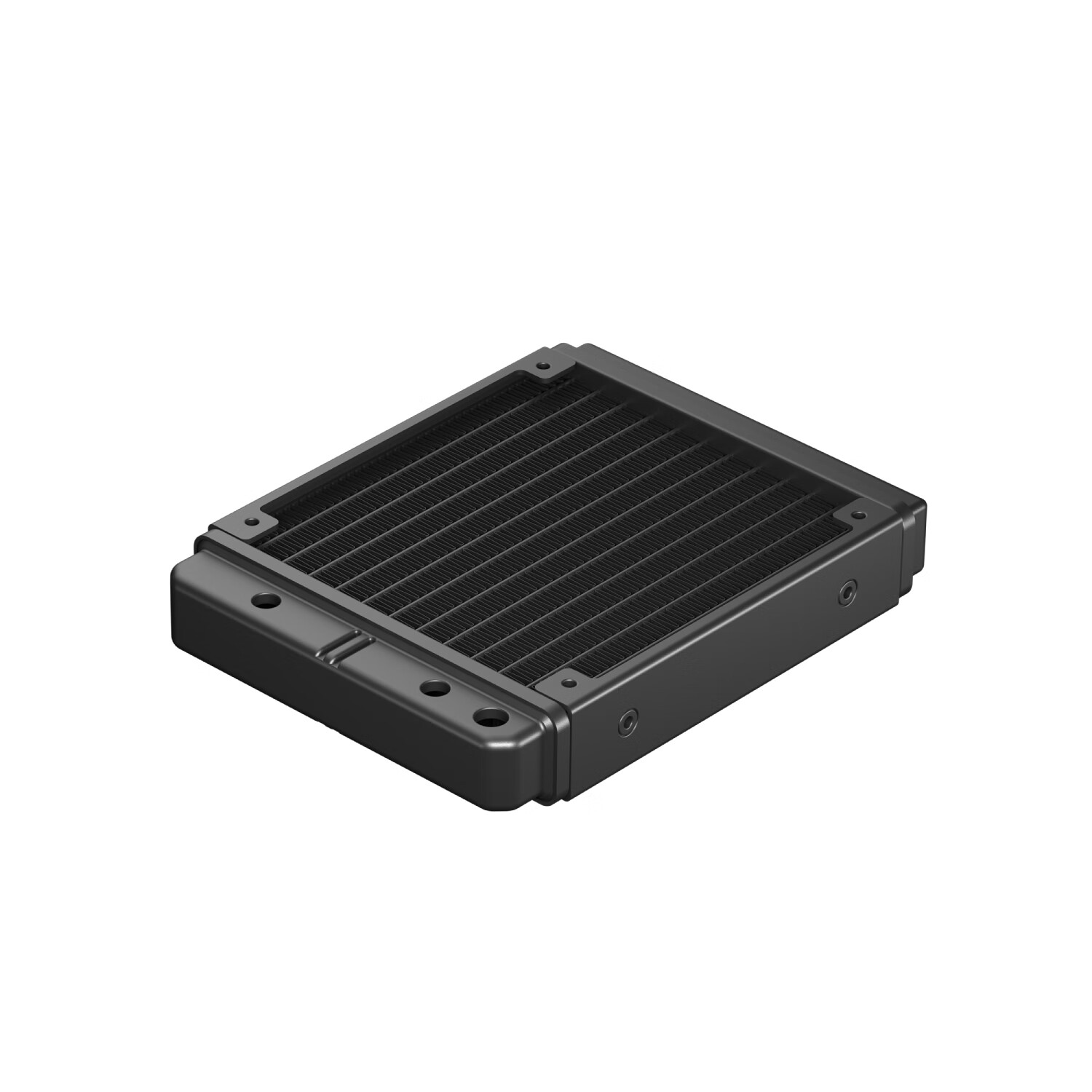

High heat capacity radiator with 27 mm rounded corner waterway and thickened core for increased heat dissipation area

Tubing

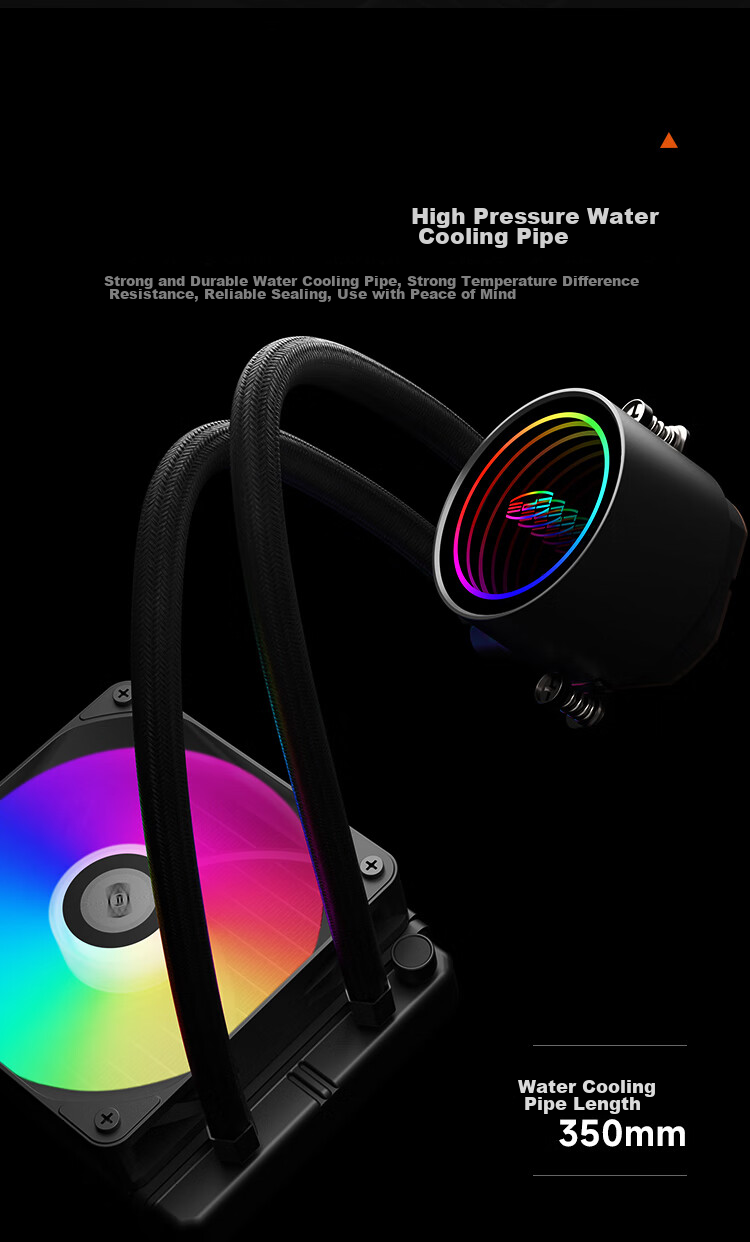

High-pressure resistant and durable 350 mm length water cooling tube

Compatibility

Supports mainstream platforms including Intel and AMD (LGA115X/1200/1700/1800/20XX, AM4/AM5)

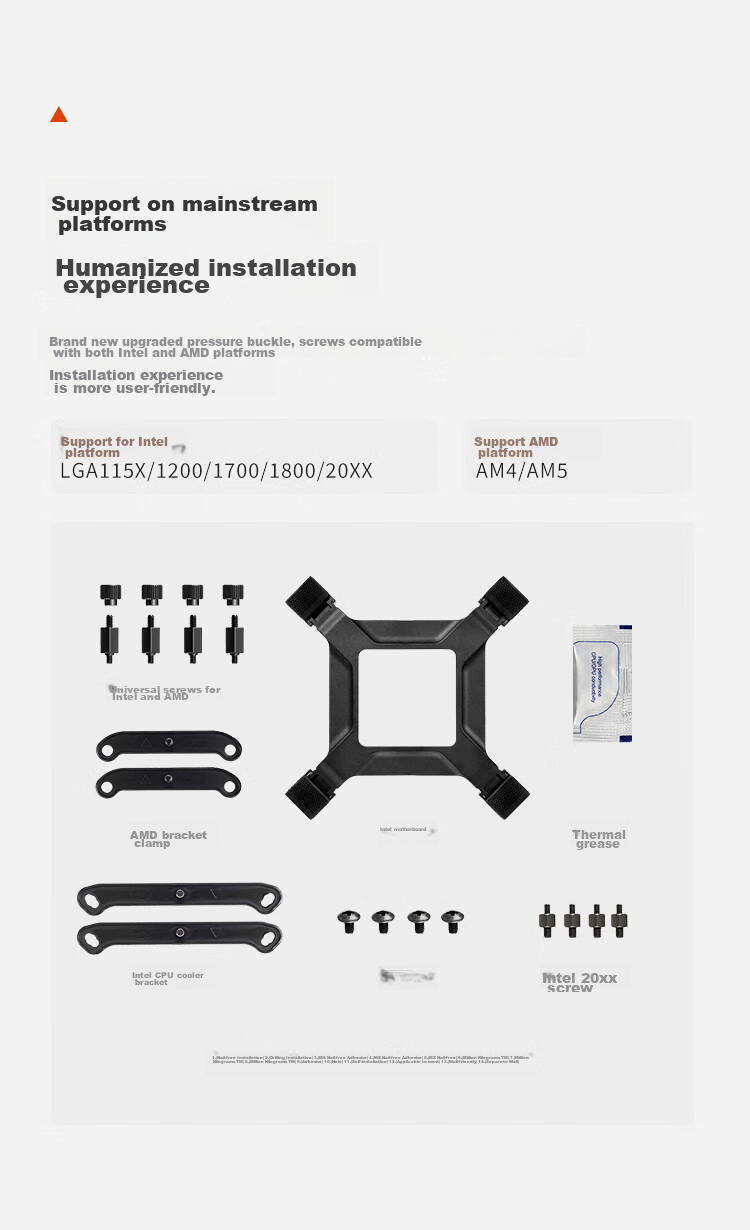

Installation

User-friendly installation experience with upgraded pressure fasteners and universal screws for Intel and AMD platforms

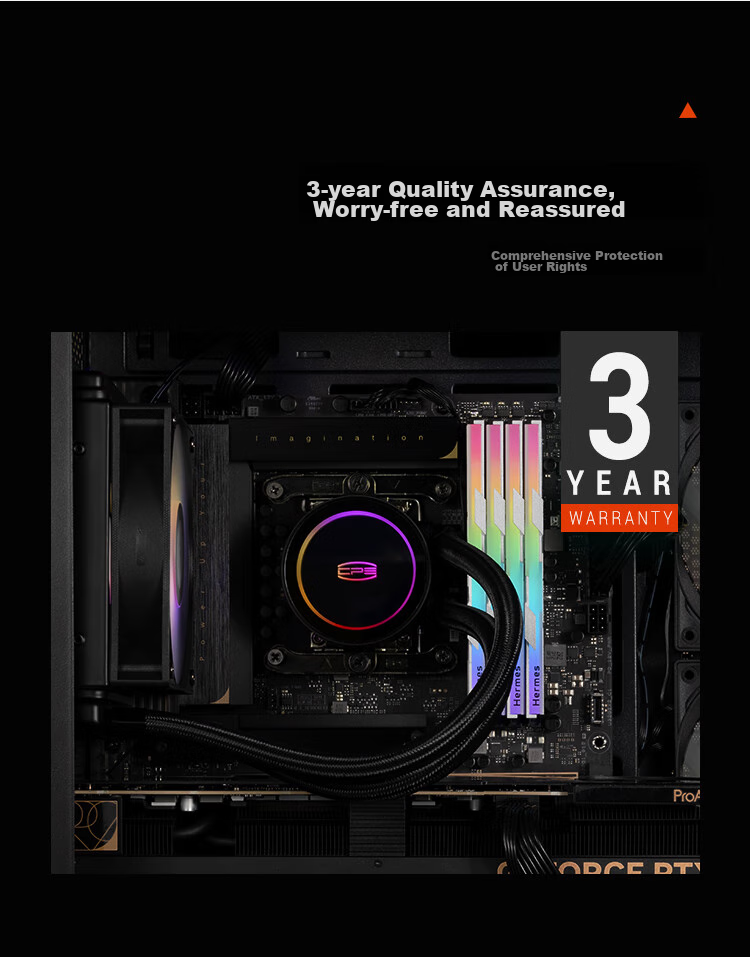

Warranty

3-year warranty for peace of mind

Dimensions

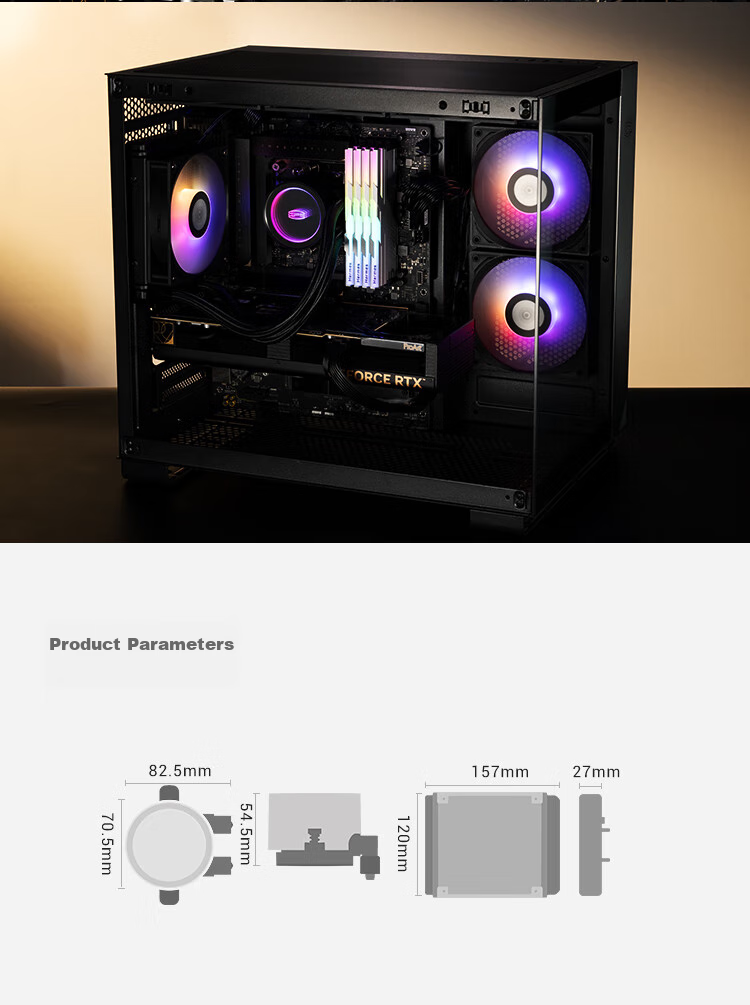

82.5 mm x 157 mm x 27 mm (LxWxH)

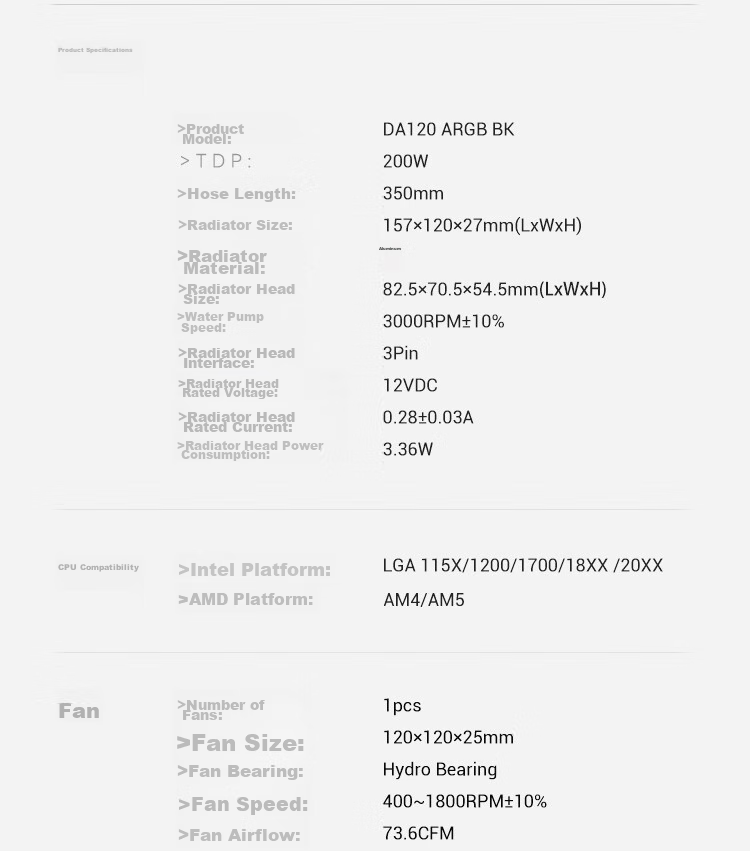

Specifications

Item	Detail
TDP	200W
Tube Length	350 mm
Radiator Size	157×120×27 mm (LxWxH)
Radiator Material	Aluminum
Cold Head Size	82.5x70.5×54.5 mm (LxWxH)
Pump Speed	3000RPM±10%
Cold Head Interface	3Pin
Cold Head Rated Voltage	12VDC
Cold Head Rated Current	0.28±0.03A
Cold Head Power Consumption	3.36W
CPU Compatibility	—
Intel Platform	LGA115X/1200/1700/18XX/20XX
AMD Platform	AM4/AM5
Fan	—
Quantity	1pcs
Size	120×120×25 mm
Bearing	Hydro Bearing
Speed	400~1800RPM+10%
Airflow	73.6CFM

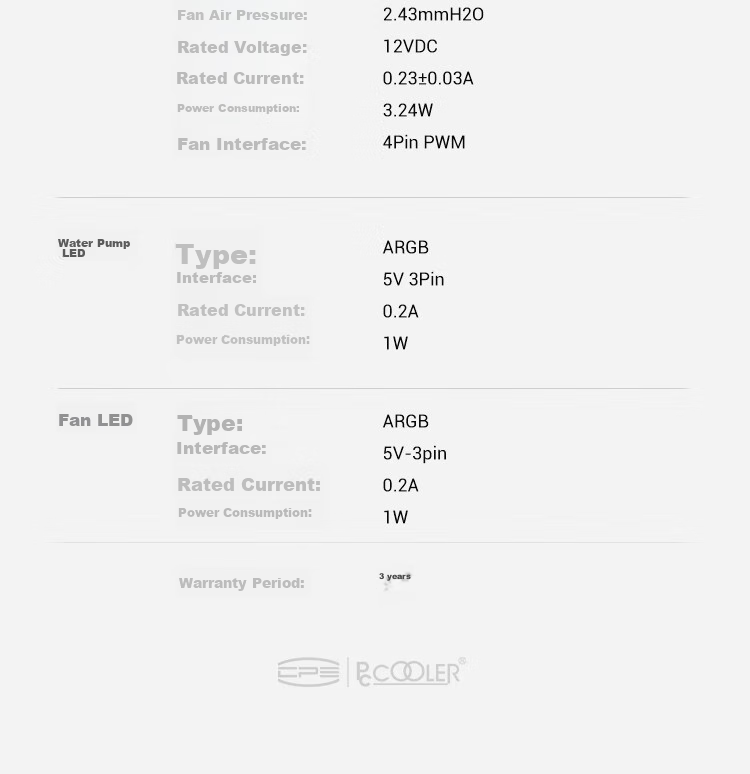

Air Pressure	2.43mmH20
Rated Voltage	12VDC
Rated Current	0.23±0.03A
Power Consumption	3.24W
Fan Interface	4PinPWM
Pump LED	—
Type	ARGB
Interface	5V3Pin
Rated Current	0.2A
Power Consumption	1W
Fan LED	—
Type	ARGB
Interface	5V-3pin
Rated Current	0.2A
Power Consumption	1W

Additional details

Warranty Period: 3 years

AMD platform requires the use of the original backplate provided by the motherboard.
