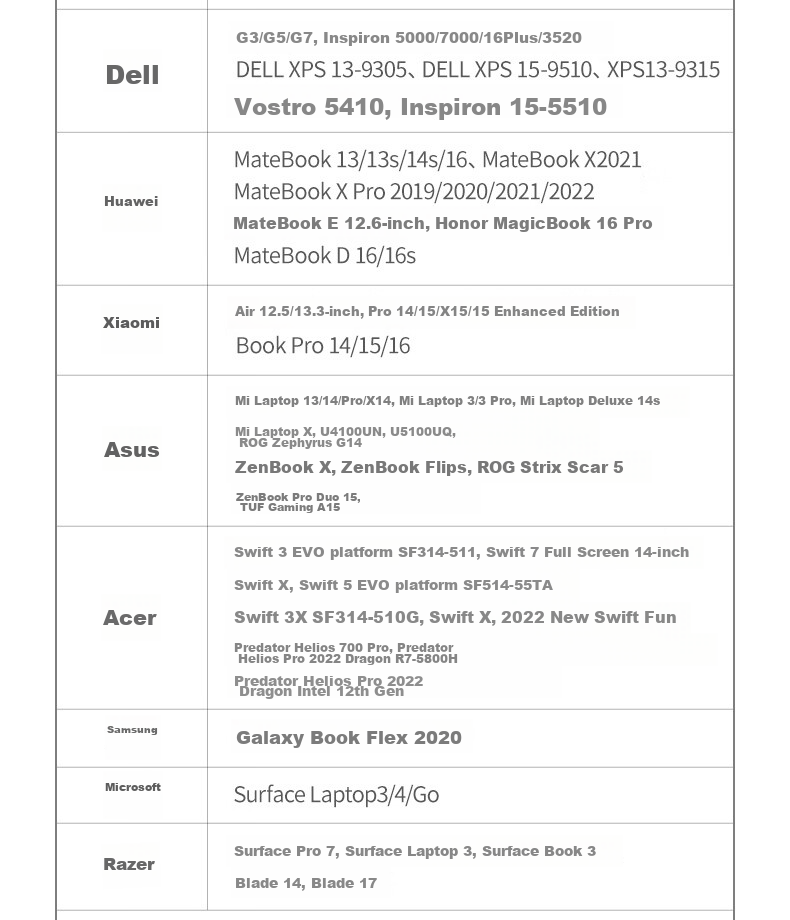

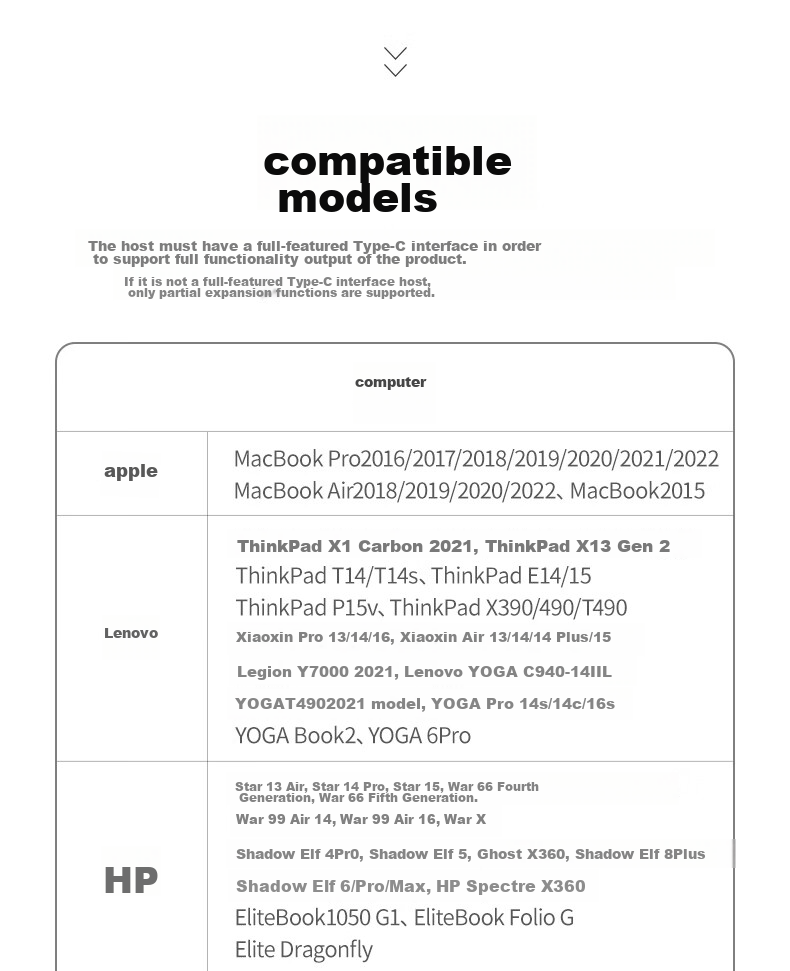

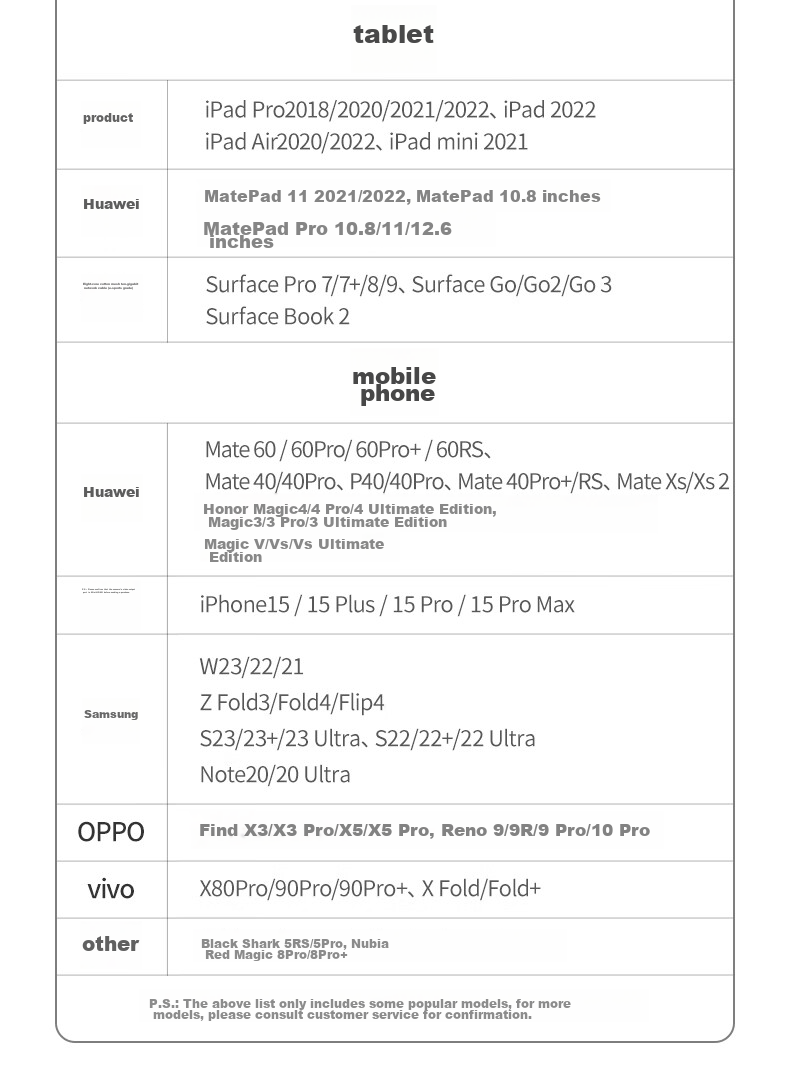

Type-C interface laptops and tablets including Apple MacBook series, Lenovo ThinkPad series, HP, Dell, Huawei MateBook, Xiaomi, ASUS laptops; tablets such as Apple iPad, Huawei MatePad, Microsoft Surface; smartphones including iPhone 15 series, Huawei Mate 60 series, Samsung Galaxy S20/S10+, S22 Ultra, OPPO Reno3, Honor V20, and others.
HDMI
1 port supporting 4K@30Hz resolution
VGA
1 port supporting 1080P resolution
Ethernet
1 Gigabit RJ45 port supporting 10/100/1000 Mbps
USB 3.0
3 ports with theoretical transfer speed up to 5 Gbps
SD Card Slot
Supports SD card reading/writing with speeds up to 104 MB/s
TF Card Slot
Supports TF card reading/writing with speeds up to 80 MB/s
PD Charging Port
USB-C PD 3.0 protocol supporting up to 100W power delivery (max output approx. 95W after dock power consumption)

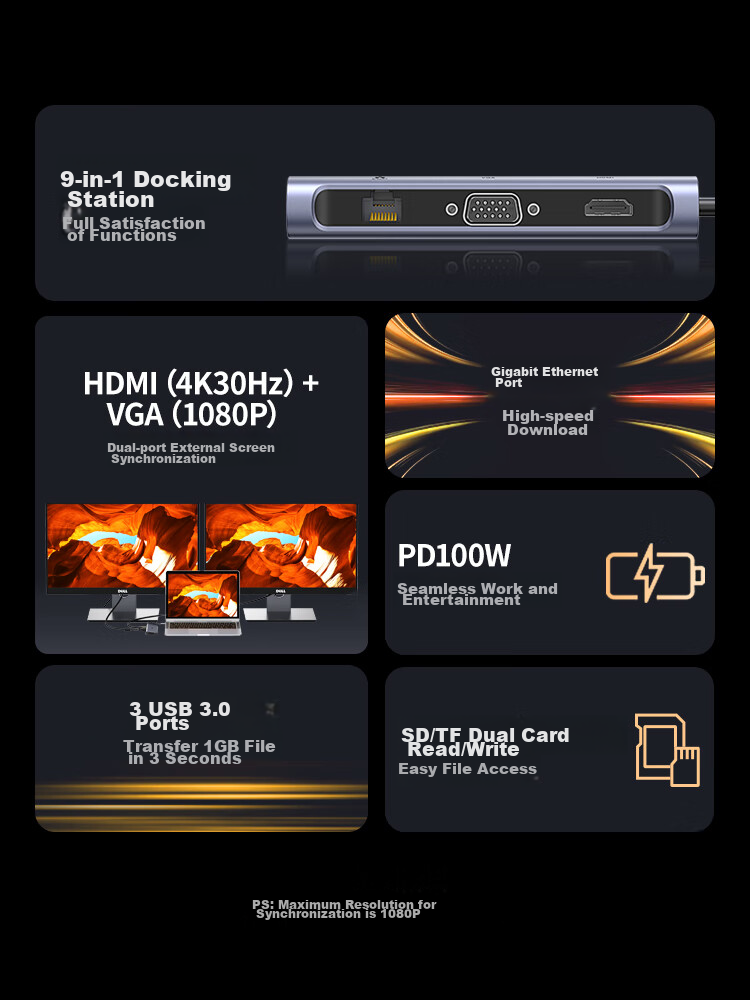

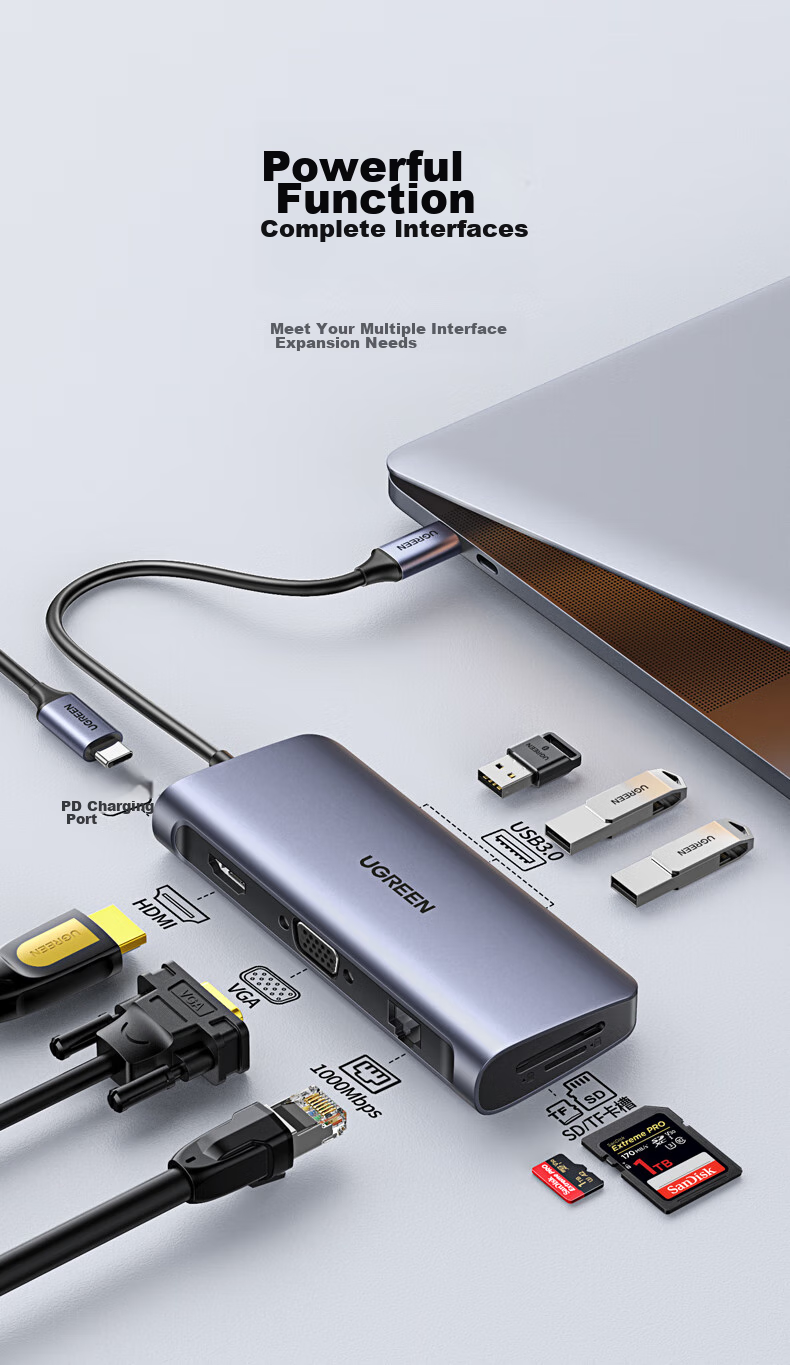

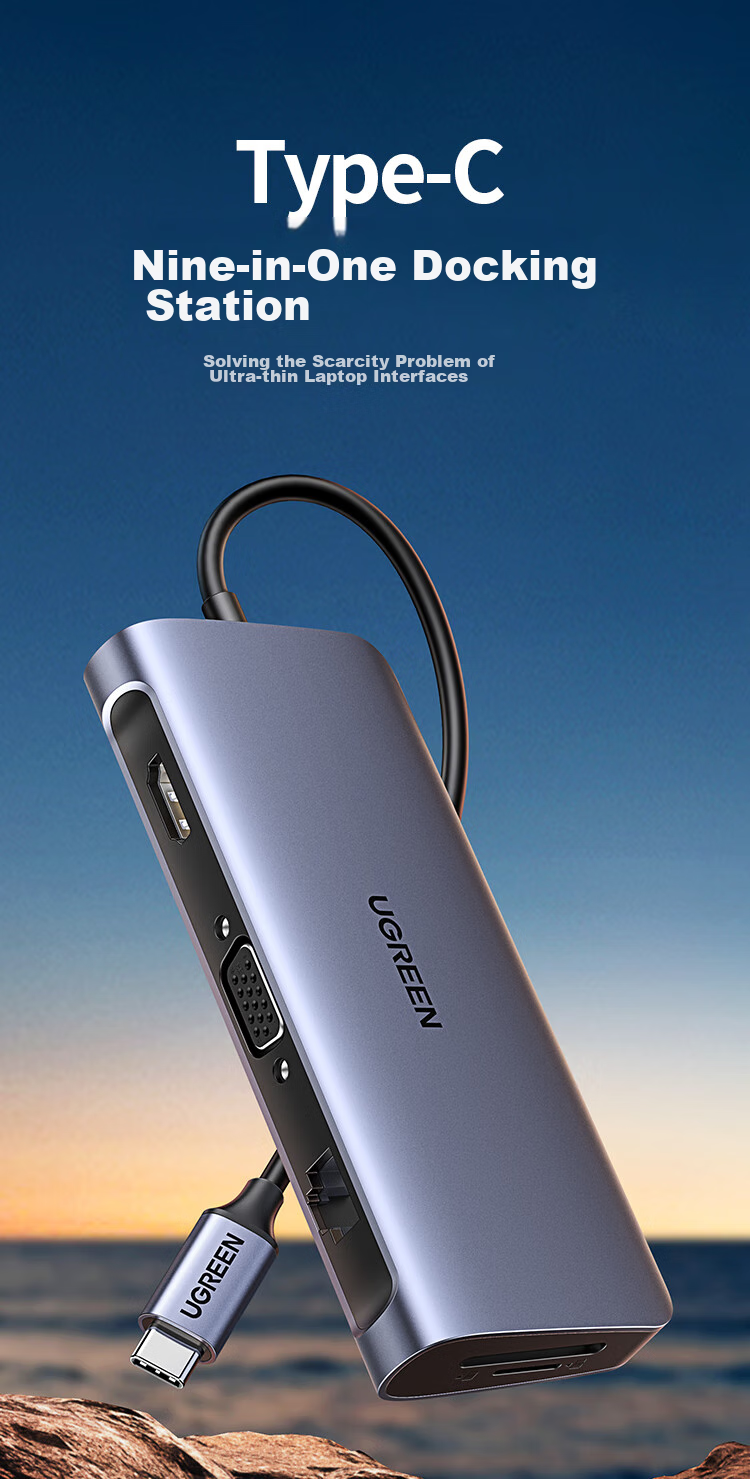

9-in-1 multifunctional expansion dock supporting data transfer, video output, network connectivity, and fast charging

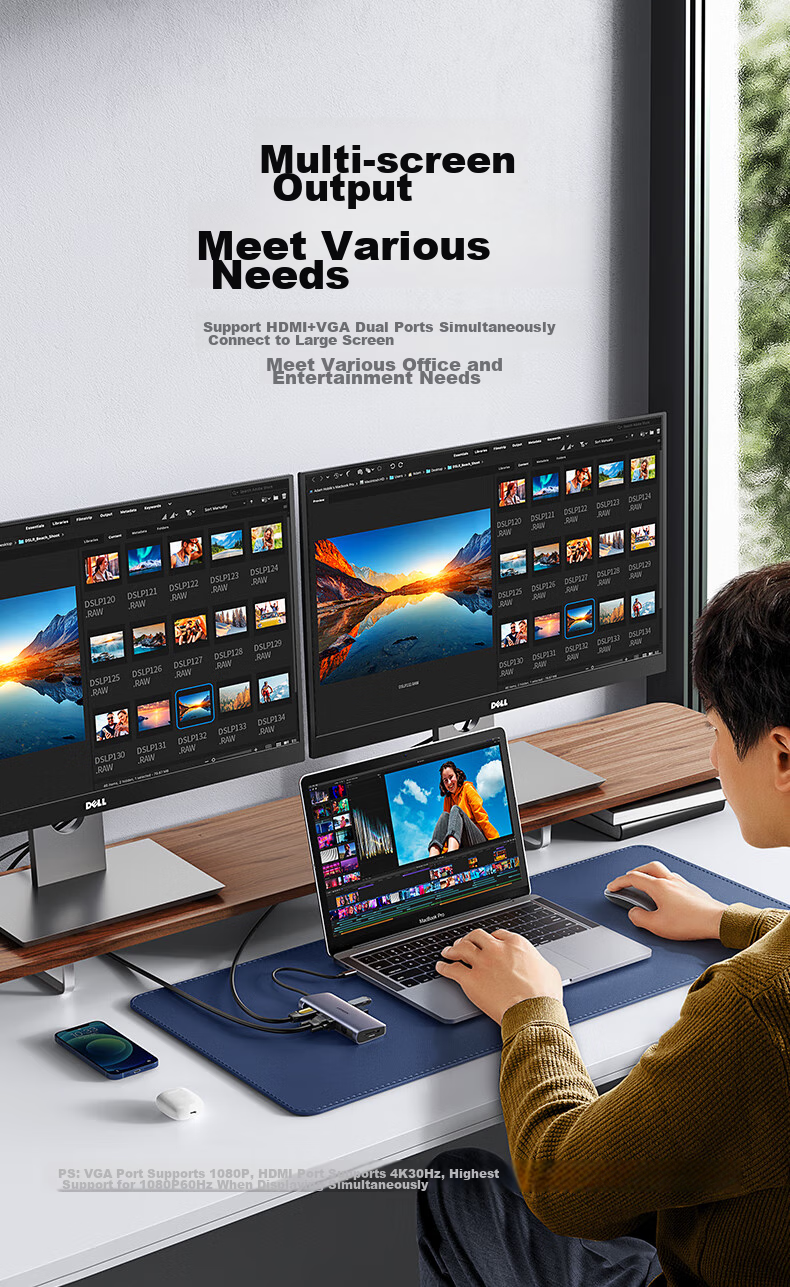

Dual external display support with HDMI (4K@30Hz) + VGA (1080P); simultaneous dual-screen mode supports max 1080P resolution

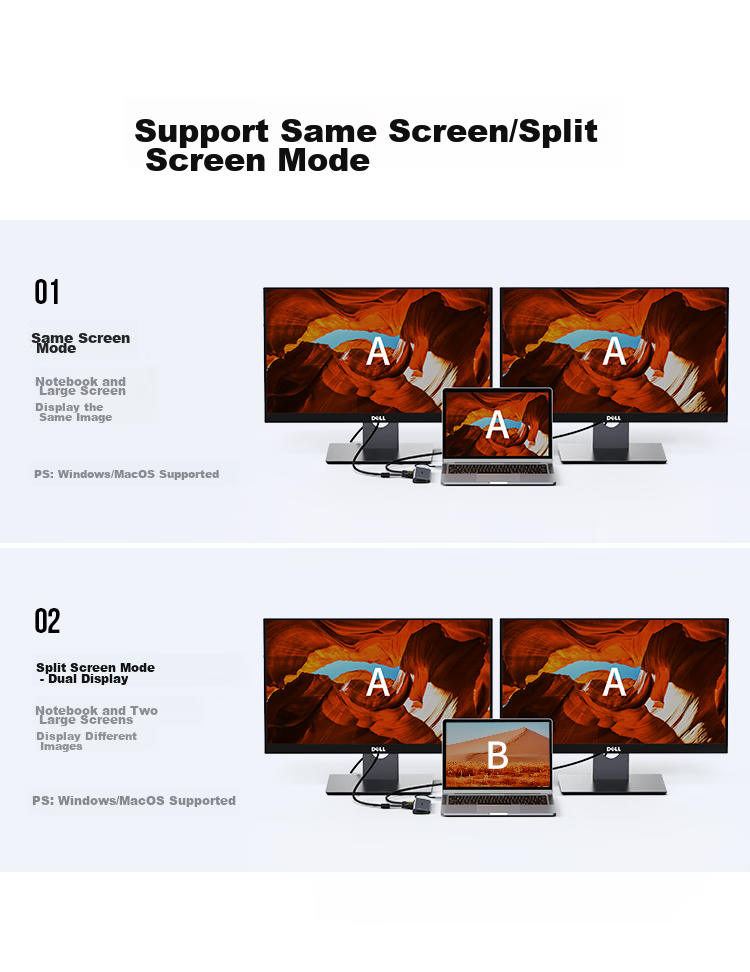

Supports mirror (same screen) and extended (different screen) display modes on Windows and macOS
True Gigabit Ethernet for stable and fast wired network connection with low latency
Additional details
High-speed data transfer
USB 3.0 ports with up to 5 Gbps theoretical speed; 1GB file transfer in Approx. 3 seconds (tested with Kingston 500GB M.2 SSD and MacBook Pro)
SD/TF card dual-slot simultaneous read/write without driver installation, plug and play

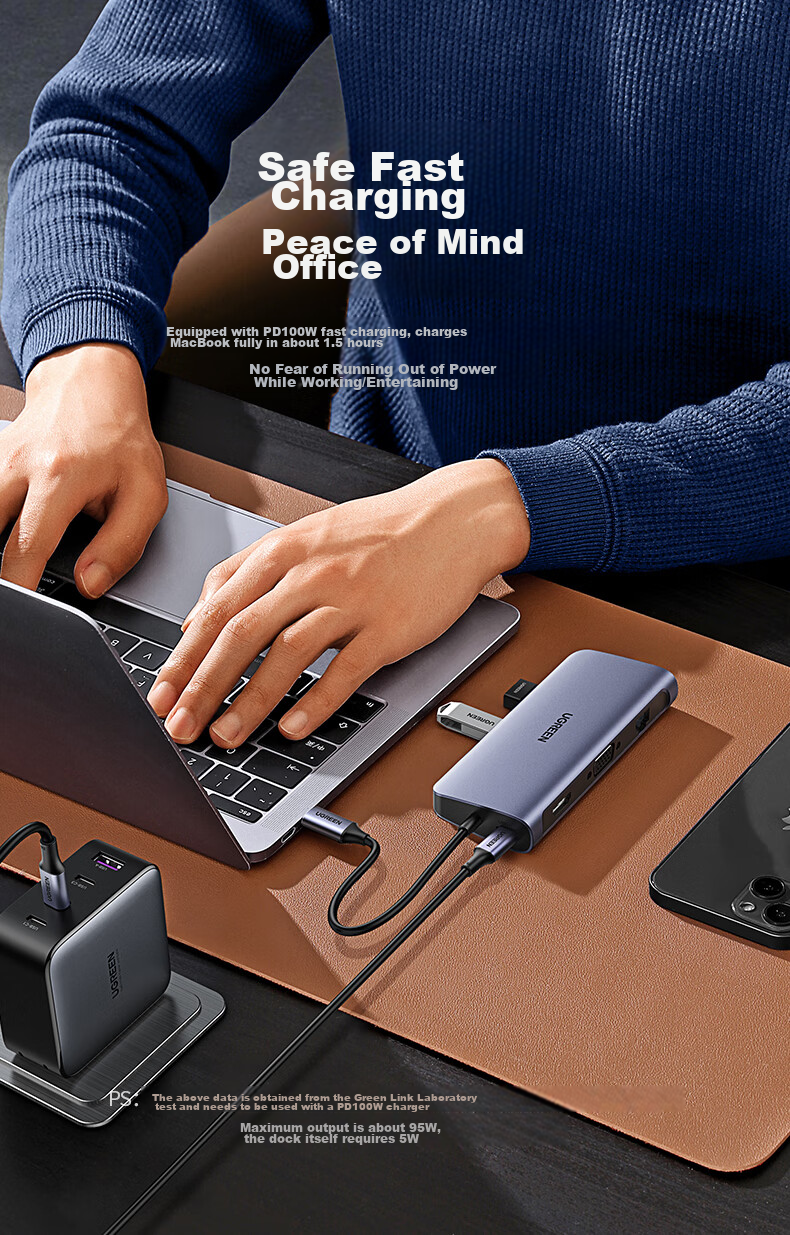

PD 100W fast charging supports quick charging of compatible laptops (e.g., MacBook fully charged in ~1.5 hours with 100W charger)

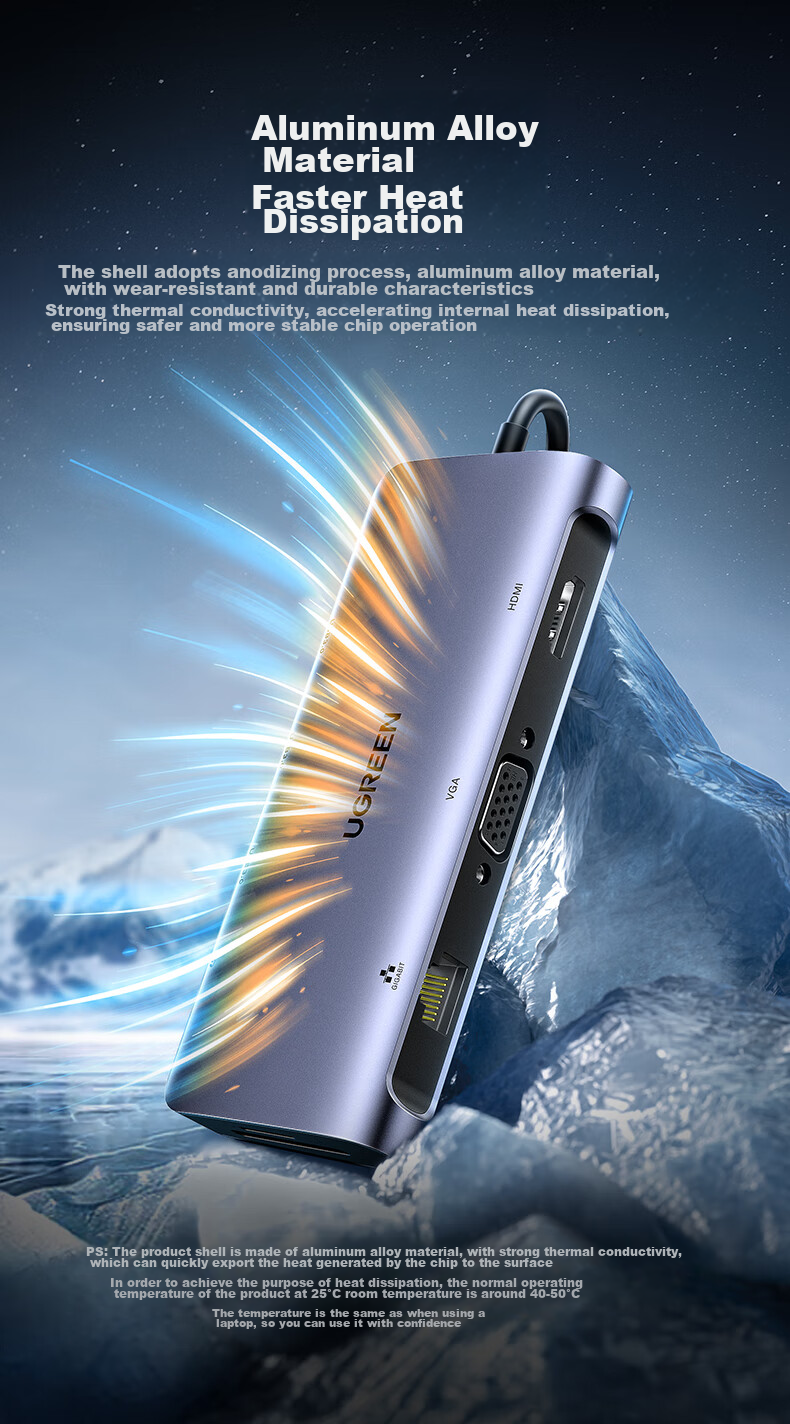

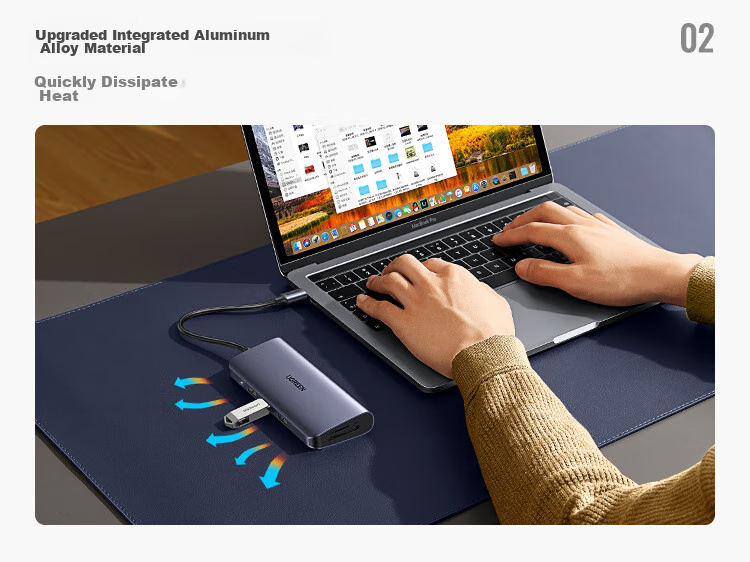

Aluminum alloy shell with excellent heat dissipation maintaining operating temperature around 40-50°C under normal use
Independent chipset design for low latency and stable performance
Plug and play, no driver installation required
CE (European Union)
FCC (United States)
RoHS
UKCA
EMC
BBCTC (Testification of Conformity)
HDMI Licensing Member
Actual transfer speeds and charging performance may vary depending on device, environment, and usage conditions
VGA port supports up to 1080P resolution; HDMI supports up to 4K@30Hz; simultaneous dual display max resolution is 1080P@60Hz
Compatible with full-function Type-C host devices; some devices with limited Type-C functionality may not support all features
Product temperature under full load meets national safety standards (max 52°C at 25°C ambient)
Weight and dimensions are approximate and may vary slightly due to manual measurement and production batches
