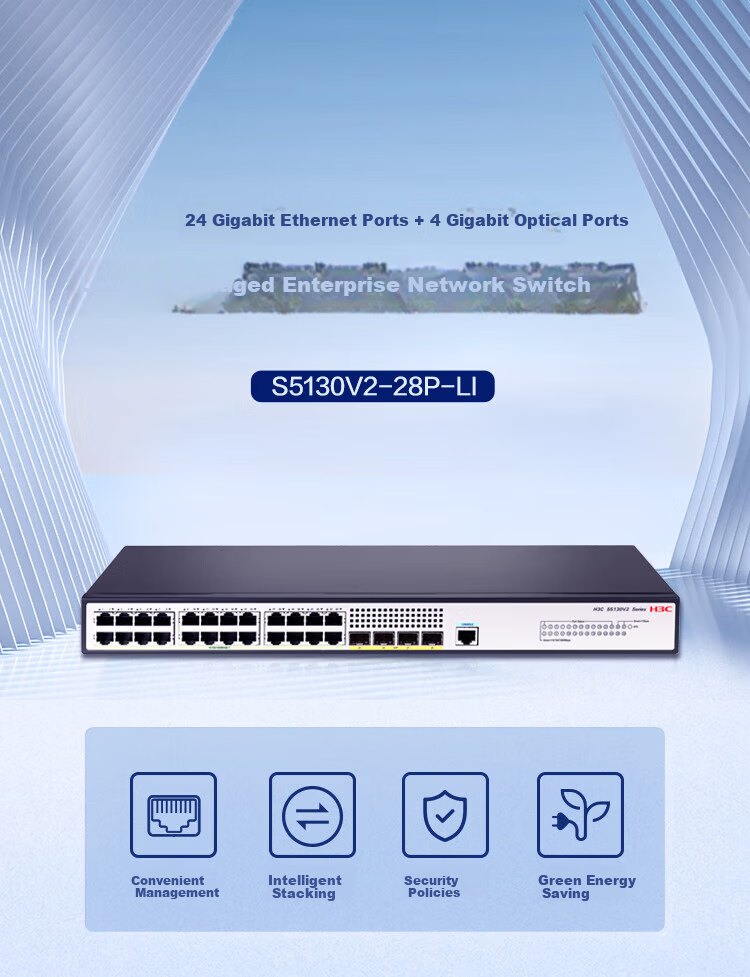

H3C S5130V2-28P-LI 24-Port Gigabit Ethernet + 4 Gigabit SFP Layer 3 Managed Enterprise Network Switch Noise-Reduction IPv6/Stacking/Link Aggregation
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
H3C•Switch

H3C S5130V2-28P-LI 24-Port Gigabit Ethernet + 4 Gigabit SFP Layer 3 Managed Enterprise Network Switch Noise-Reduction IPv6/Stacking/Link Aggregation

CNÂ¥1,329.00
SKU: 5176349
Status:Out of Stock
ID: 5176349
Weight: 2920.00 g

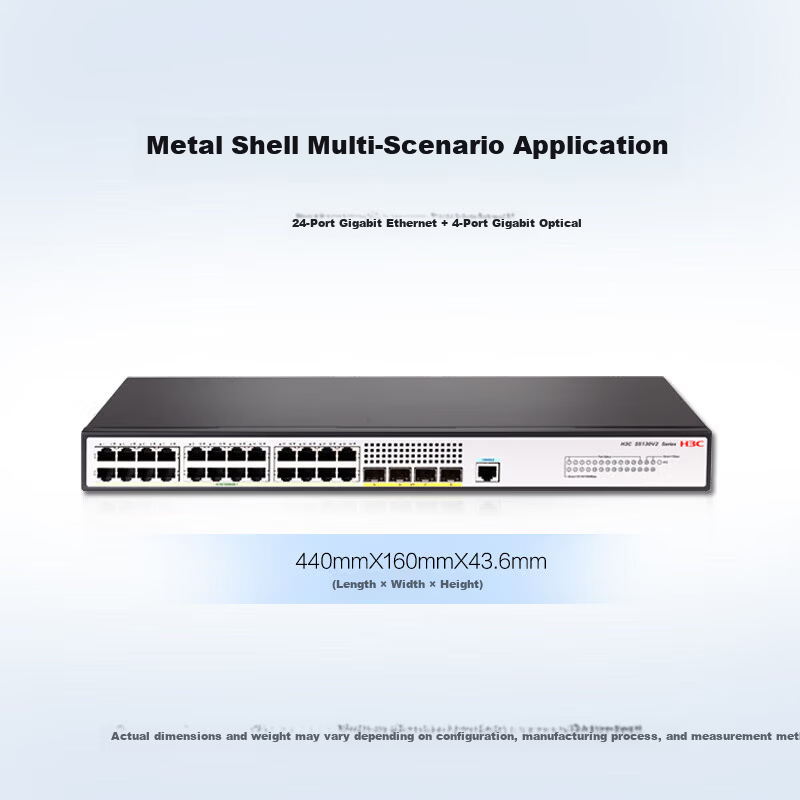

Dims:548x278x92 mm

Specifications

Downlink Port Rate
Gigabit
Uplink port rate
Gigabit
Network Management Type
Network management
Number of Ports
24 ports
Set
Single product
Cloud-managed switch
Cloud management not supported
Port Type
Electrical and optical ports
Power over Ethernet (PoE)
Non-POE power supply

Variants / Sale Attributes

Color: 24 Gigabit Ethernet + 4 Gigabit Optical | Layer 3 Lite Network Management
Worry-free choice: Official Direct Sales | JD Logistics | WorryFree AfterSales Service

Package Contents

Main unit *1, power cord *1, ground wire *1, installation accessories *1 set, all-in-one documentation *1 (Note: Packaging may vary between batches; please refer to the actual received goods!)

Product Description

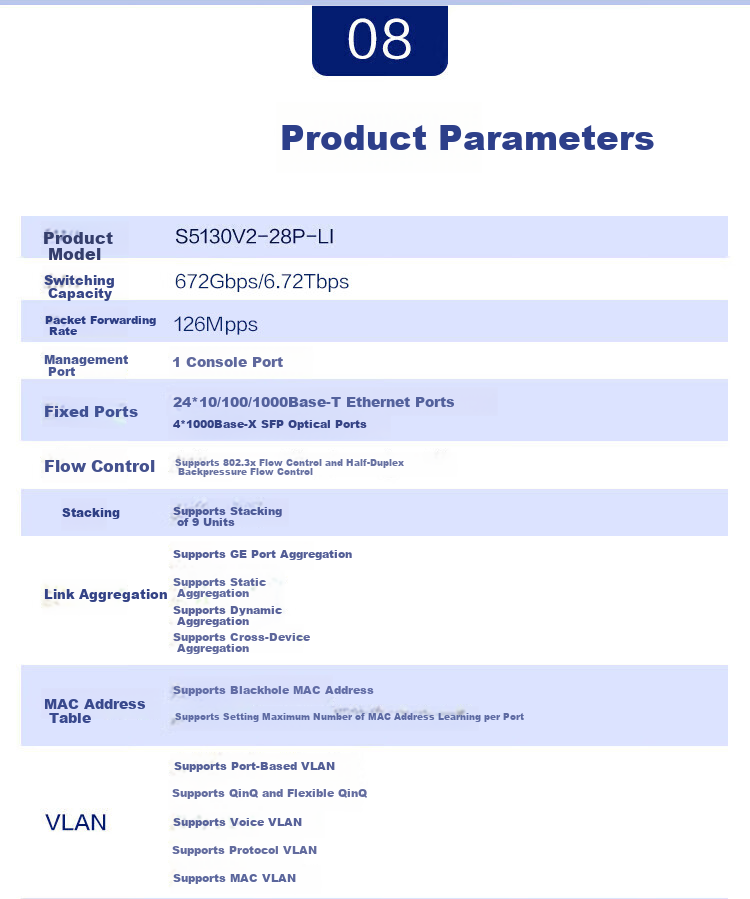

Product Specifications

Overview

Brand
H3C
Model
S5130V2-28P-LI

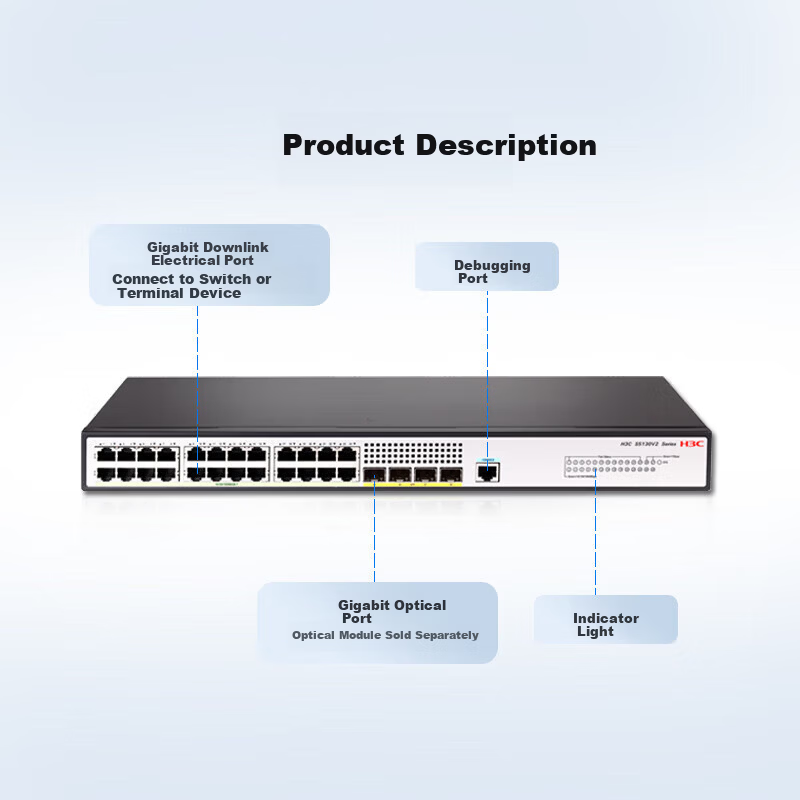

Ports
24 x 10/100/1000Base-T Ethernet ports, 4 x 1000Base-X SFP optical ports
Management Port
1 x Console port

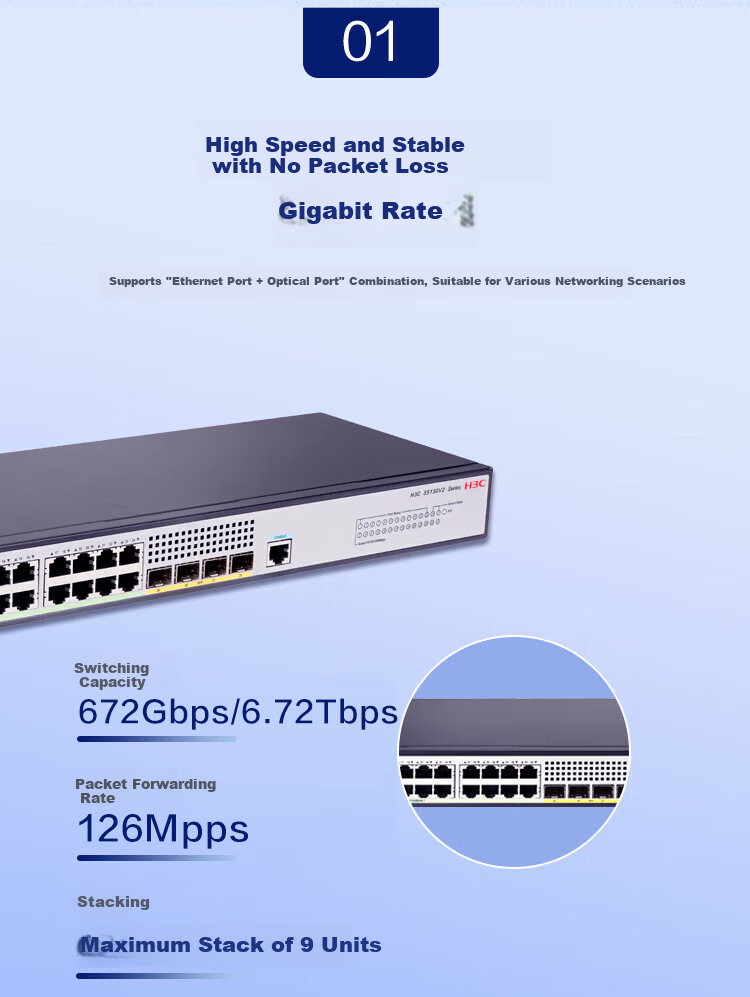

Switching Capacity
672 Gbps / 6.72 Tbps
Packet Forwarding Rate
126 Mpps
Stacking
Supports up to 9 units stacked

Similar Products

In Stock
Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch
Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CNÂ¥580.50

View
In Stock
Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10
SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CNÂ¥179.00

View
Cooling method
Natural heat dissipation
Downlink Interface Type
Ethernet Switch
Suitable Scenarios
Aggregation switches
Flow Control
Supports IEEE 802.3x flow control and half-duplex backpressure flow control
Link Aggregation
Supports static, dynamic, cross-device aggregation, and GE port aggregation
MAC Address Table
Supports configurable maximum MAC addresses per port, supports blackhole MAC address

High-speed stable forwarding with zero packet loss at gigabit rates

Supports combination of Ethernet and optical ports for flexible networking scenarios

Switching latency ≤ 50 ms

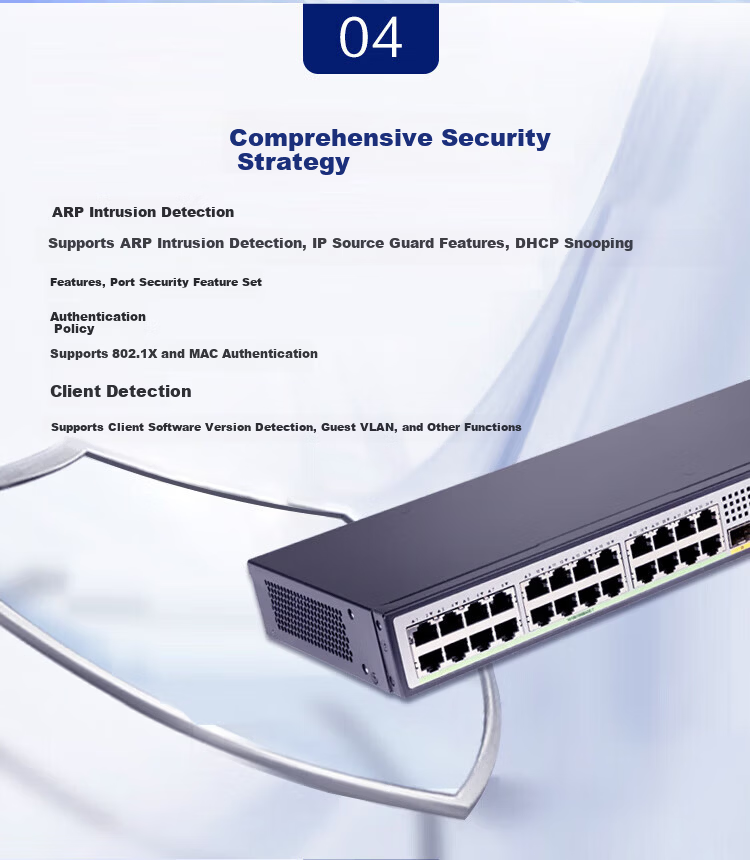

Comprehensive security policies including ARP intrusion detection, IP Source Guard, DHCP Snooping

Port security features and authentication policies supporting 802.1X and MAC authentication

Client detection with software version verification and Guest VLAN support

Supports AAA authentication, RADIUS, HWTACACS, SSH 2.0, HTTPS, and EAD

Supports port isolation and IP Source Guard

Additional details

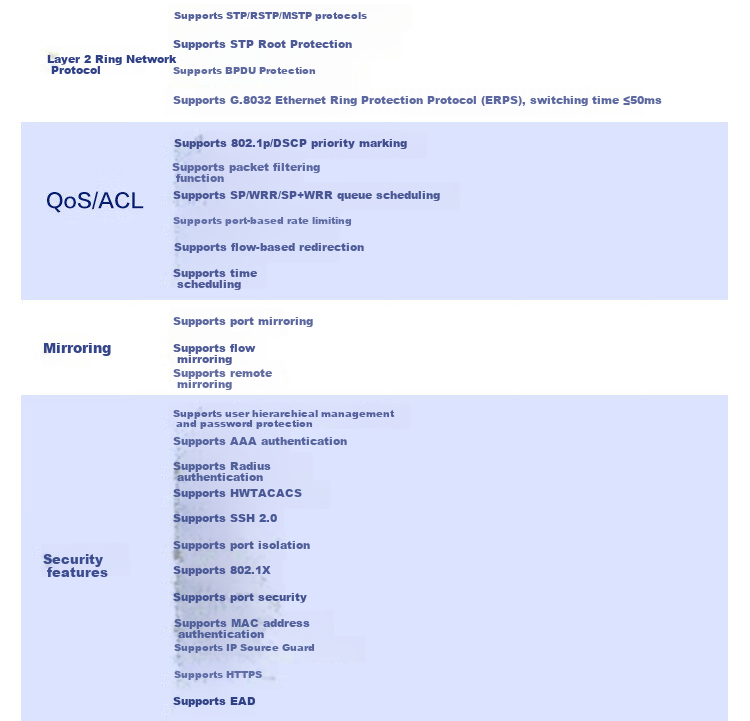

VLAN
Supports port-based VLAN, QinQ, flexible QinQ, Voice VLAN, protocol VLAN, MAC VLAN
Spanning Tree Protocols
STP, RSTP, MSTP with Root Protection and BPDU Protection
Ethernet Ring Protection
Supports G.8032 ERPS protocol
QoS & ACL
Supports 802.1p/DSCP priority marking, SP/WRR/SP+WRR queue scheduling, port-based rate limiting, flow-based redirection, and time-based policies
Mirroring
Supports port mirroring, flow mirroring, and remote mirroring

Green energy-saving design

Supports user hierarchical management and password protection

Intelligent stacking for simplified management

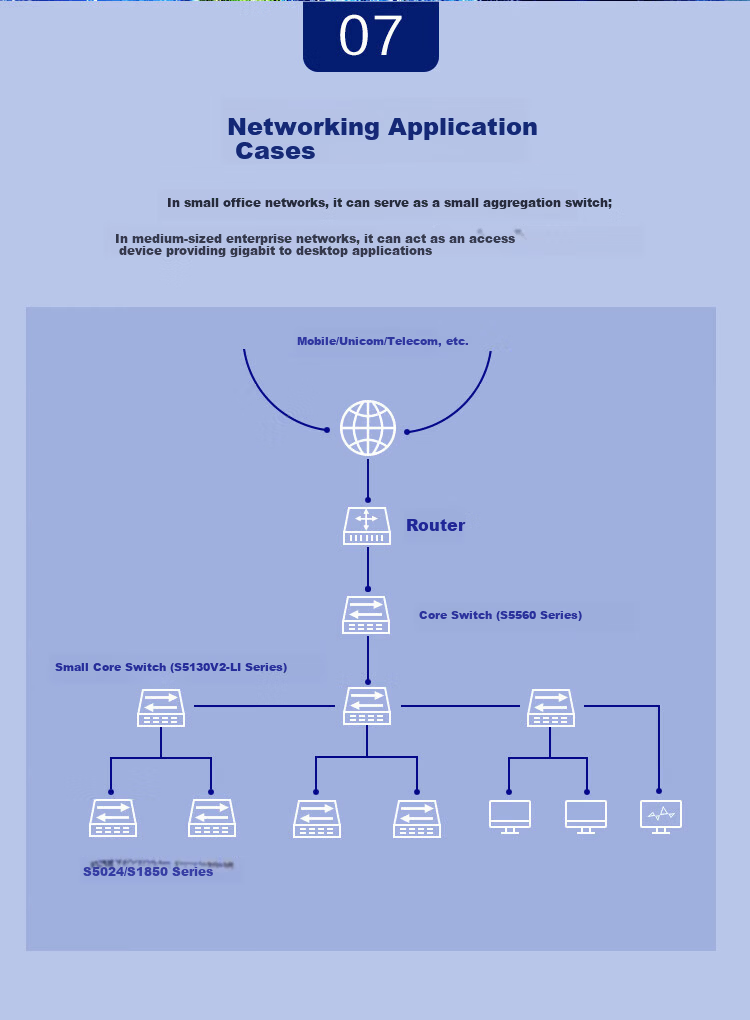

Suitable as a small aggregation switch in small office networks

Acts as an access device providing gigabit connectivity to desktops in medium-sized enterprise networks

Compatible with routers and core switches such as H3C S5560 series, small core switches S5130V2-LI series, and S5024/S1850 series for integrated network solutions
