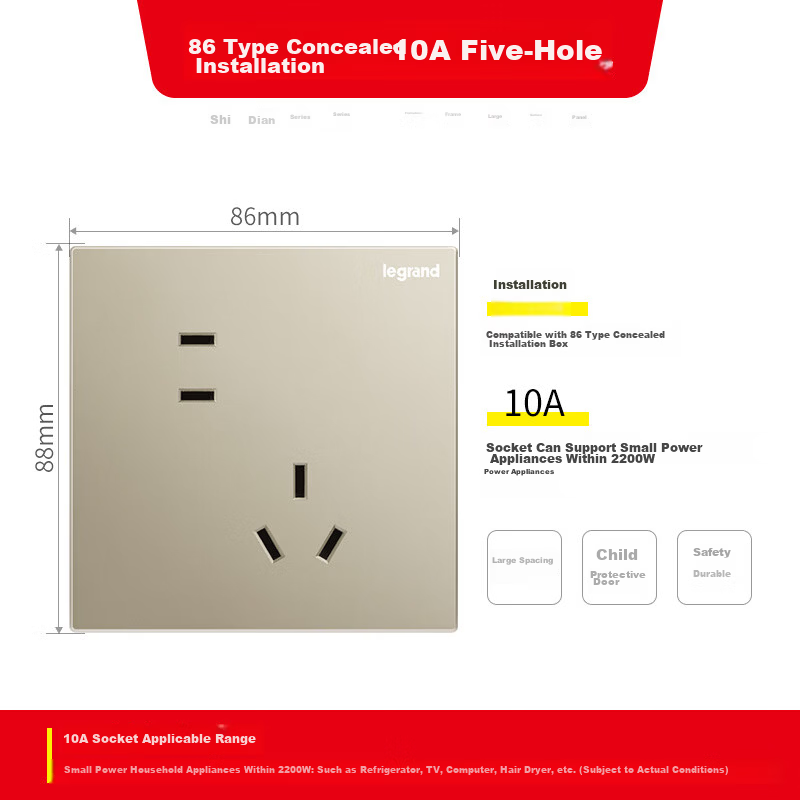

LEGRAND Switch Socket Panel Classic Milan Gold 10A Angled Five-Hole Socket Wall Socket 86 Type Five-Hole Single Unit

Comfortable tactile feedback with press-to-operate mechanism

Noise reduction back panel design for quieter operation

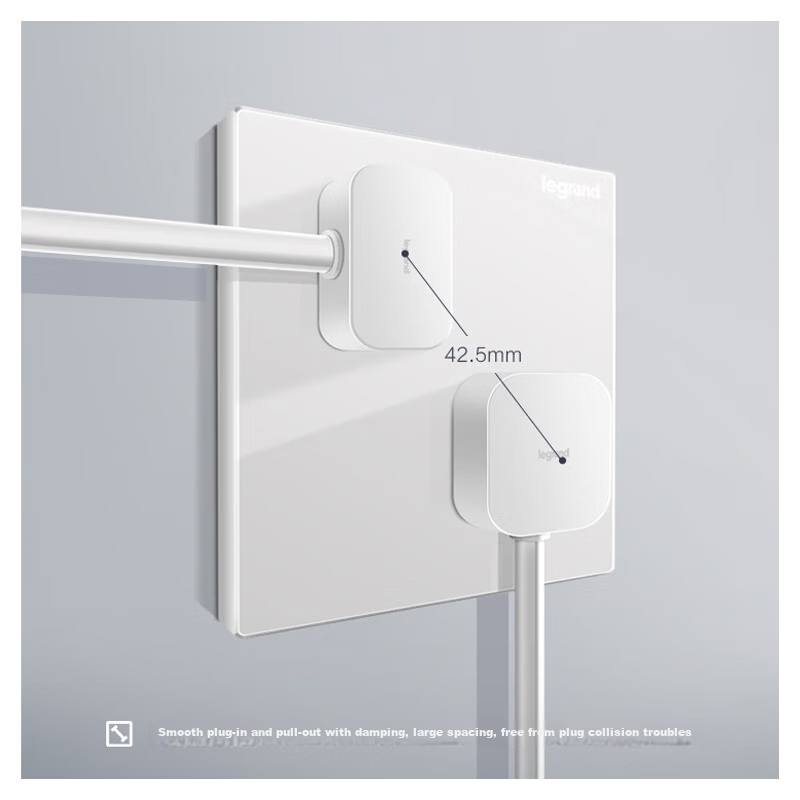

Smooth plug insertion/removal with damping and wide spacing (42.5mm) to prevent plug collision

Five-hole protective shutter for enhanced safety

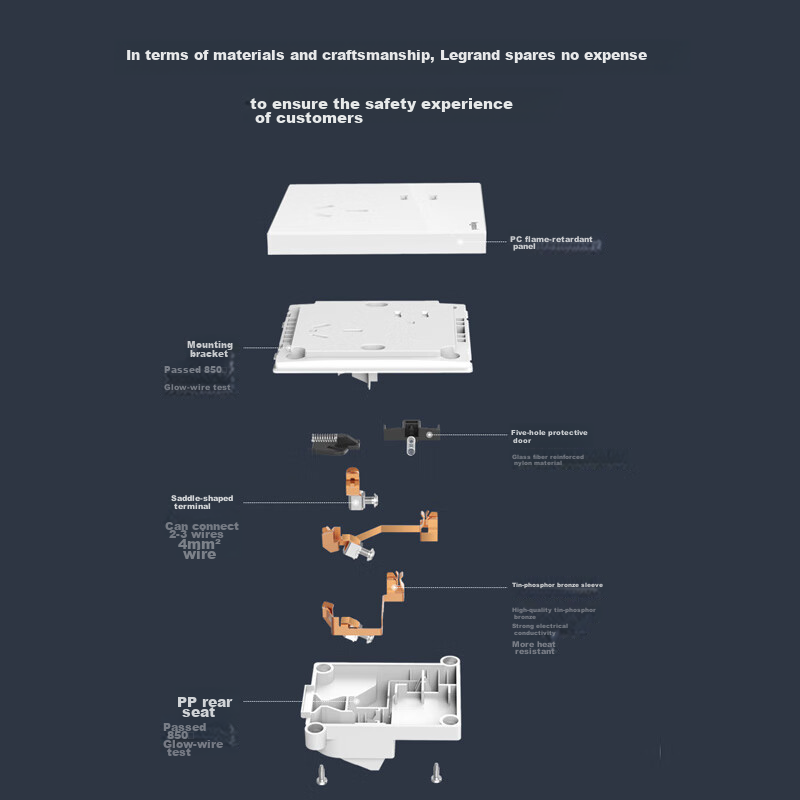

Fiberglass reinforced nylon material for mounting frame

Saddle-type terminals accommodate 2-3 wires up to 4mm²

High-quality tin-phosphor bronze contacts for superior conductivity and heat resistance

Passed 10,000 electrical plug-in/out cycles and temperature rise tests meeting national standards (max 45K, samples tested between 14K-21K)

Imported PC mounting frame with honeycomb structure for stability and heat resistance

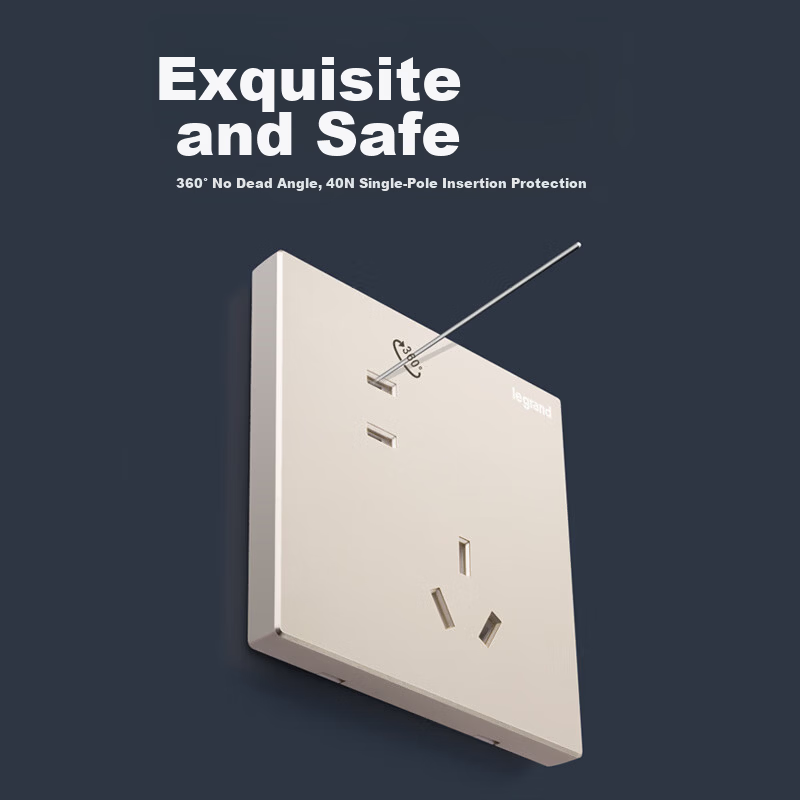

40N single-pole insertion protection, 360° no dead angle safety design

Complies with international environmental standards including RoHS, PEP, ECO, PASS, NPS, PORT certifications

Extended product lifespan to minimize environmental impact

16A plugs and sockets have larger dimensions than 10A; cabinet air conditioners typically require dedicated switches or outlets, not sockets

All data sourced from LEGRAND CNAS National Certified Laboratory

Testing adheres to national standards; minor deviations possible due to objective factors

Individually packaged with anti-counterfeit and scratch-resistant features

QR code for product authenticity verification and detailed product information

LEGRAND – Intelligent electrical manufacturing with dedication to quality and user safety
