TP-LINK 5G Dual-Band Wireless Gigabit AP [Ultra-Thin Panel], Enterprise-Level Whole-House WiFi Access for Hotels And Villas, POE Power Supply AC Management TL-AP1202GI Thin Model

TP-LINK•Data communication network equipment

TP-LINK 5G Dual-Band Wireless Gigabit AP [Ultra-Thin Panel], Enterprise-Level Whole-House WiFi Access for Hotels And Villas, POE Power Supply AC Management TL-AP1202GI Thin Model

CN¥229.00

SKU: 6959092

Status:In Stock (9)

ID: 6959092

Weight: 185.00 g

Dims:139x129x59 mm

Specifications

Wireless protocols: Wi-Fi 5
Power Supply Method: POE power supply
WAN port: No interface
Game Acceleration: No
Coverage: 90-120㎡
Type: Install AP
WAN port type: Other
LAN output port: Gigabit Ethernet port

Variants / Sale Attributes

Color: 1200M | Haoyuebai | Gigabit Model

尺码: 单只 | 搭配使用

Package Contents

host, quick installation guide, parameter record label, screw

Product Description

Overview

Brand: TP-LINK
Model: TL-AP1202GI-PoE

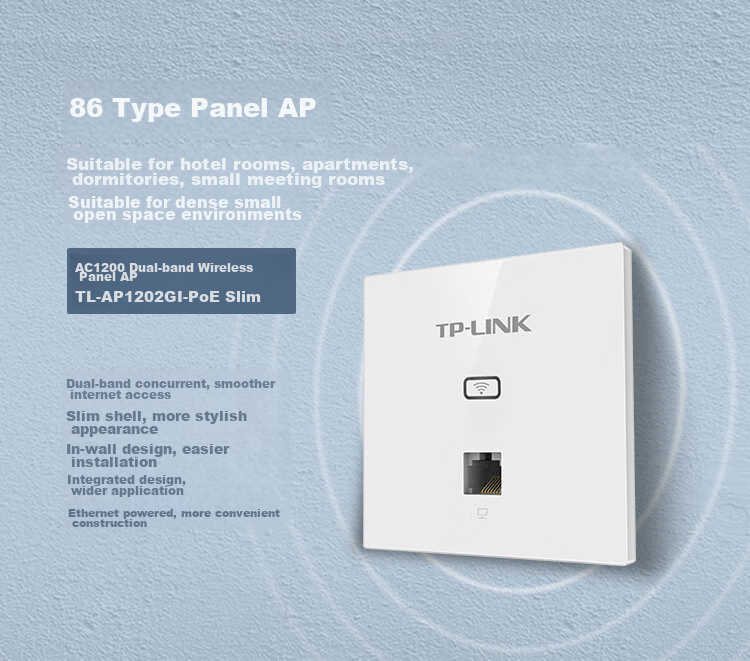

Description: AC1200 dual-band wireless panel AP suitable for hotel rooms, apartments, dormitories, small meeting rooms, and other densely populated small spaces.

Features

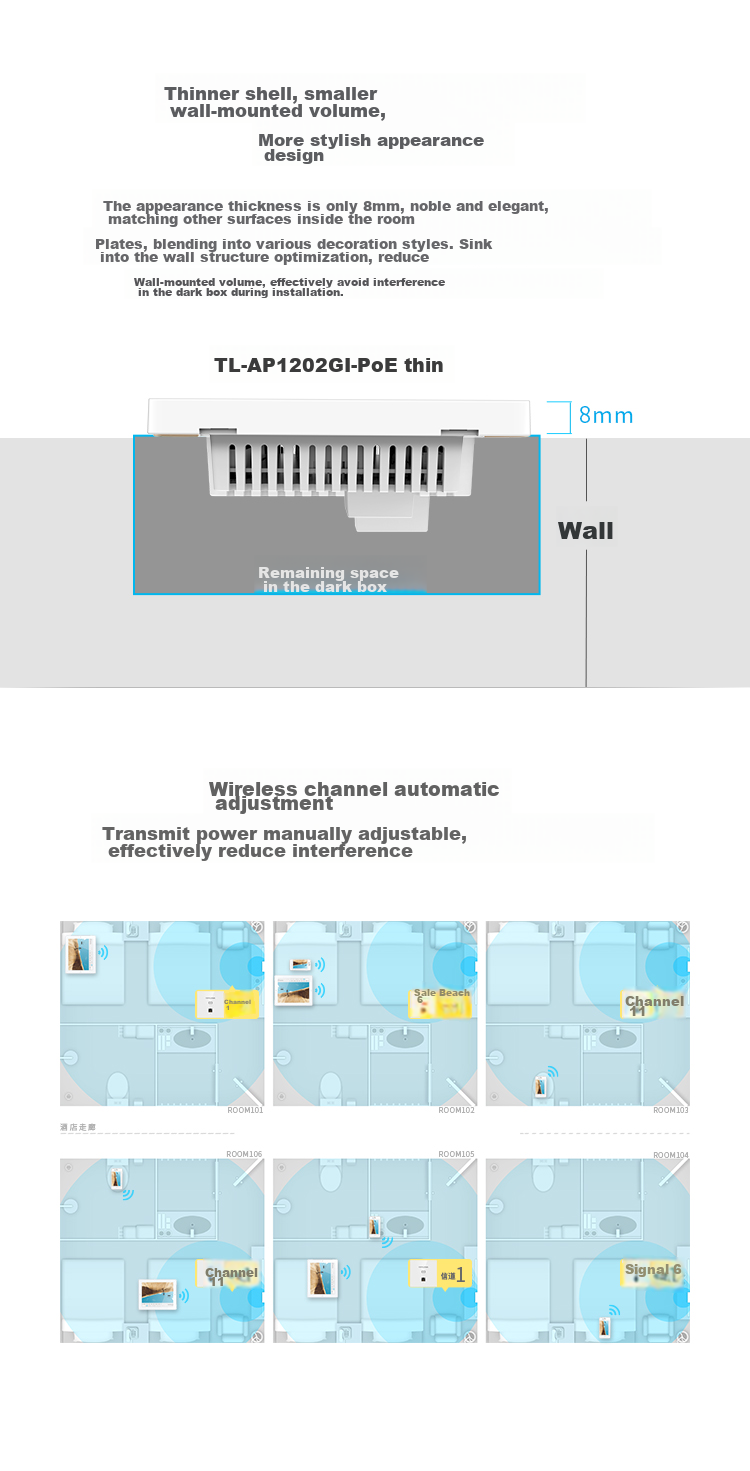

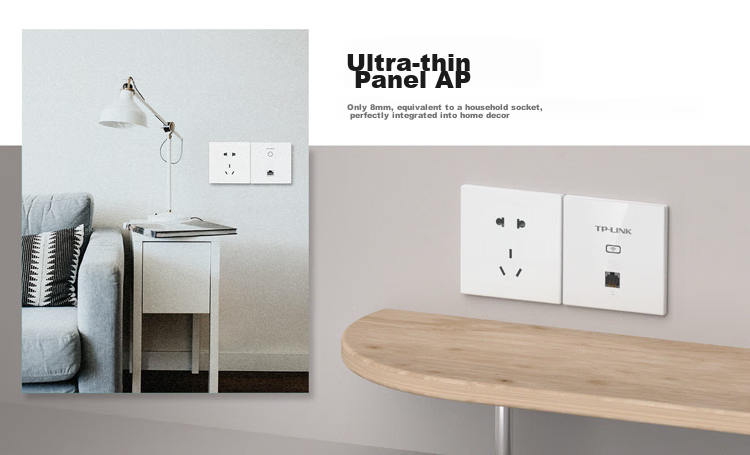

Thin design with a thickness of only 8mm, suitable for wall installation.
Dual-band concurrent for smoother internet access.

Similar Products

Out of Stock

MERCURYData communication network equipment

MERCURY WiFi7 Ceiling AP BE3600 High-Speed Stable MC7AP3600HP

WiFi7 | 3600M | 3600HP Series

CN¥389.00

View

In Stock

TP-LINKData communication network equipment

TP-LINK Wi-Fi 7 Wireless Panel AP BE3600 Dual Band Dual 2.5G Ports Whole Home WiFi Kit Perfect for 2000M Broadband TL-7AP3622HI-PoE

Single | Dual 2.5G | TL7AP3622HIPoE

CN¥539.00

View

Stylish and sleek appearance.

Ethernet powered for easy installation.

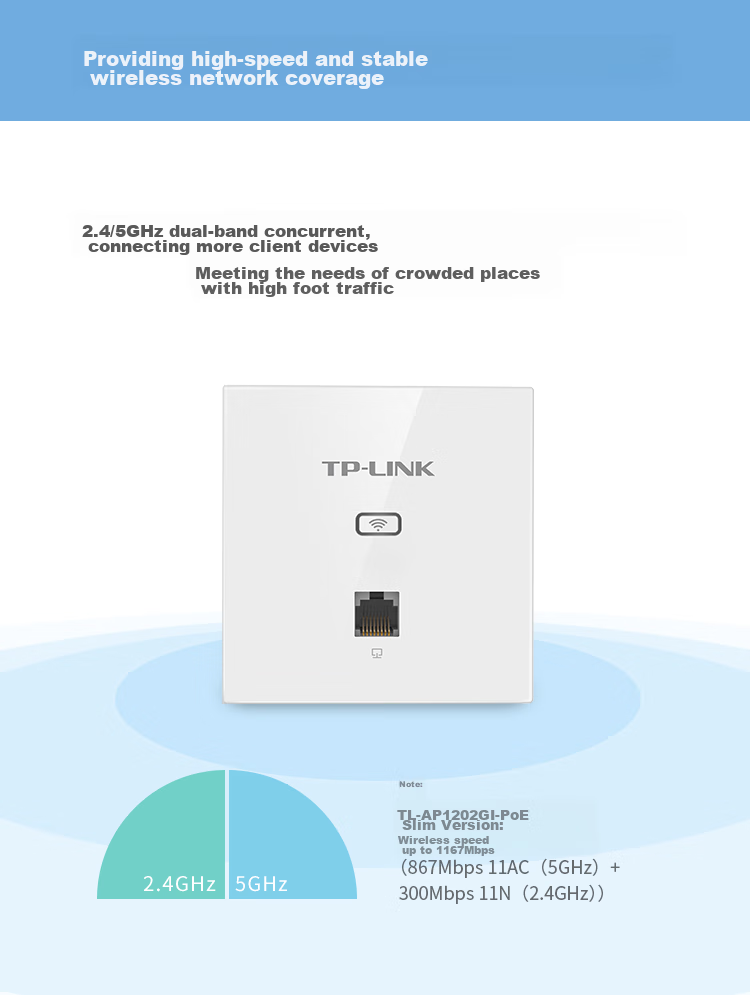

High wireless speed of up to 1167Mbps (867Mbps 11AC 5GHz + 300Mbps 11N 2.4GHz).

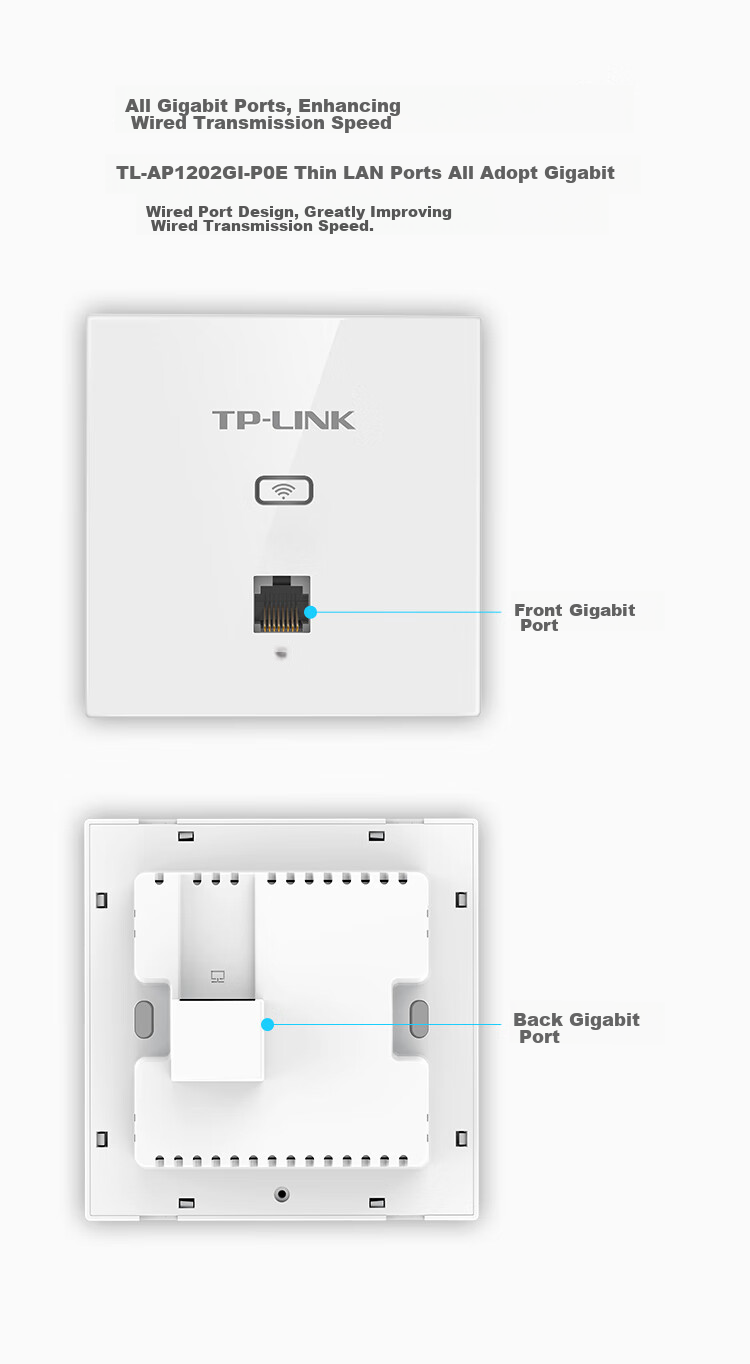

All Gigabit ports for improved wired transmission speed.

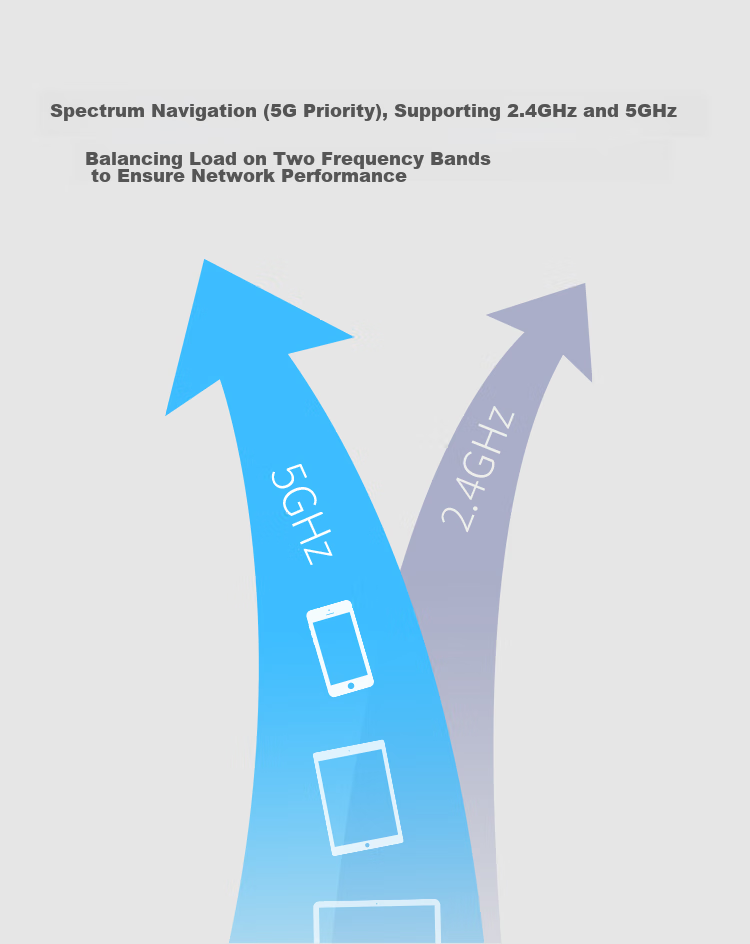

Spectrum navigation for balanced load between 2.4GHz and 5GHz bands.

Automatic wireless channel adjustment and manual transmission power adjustment.

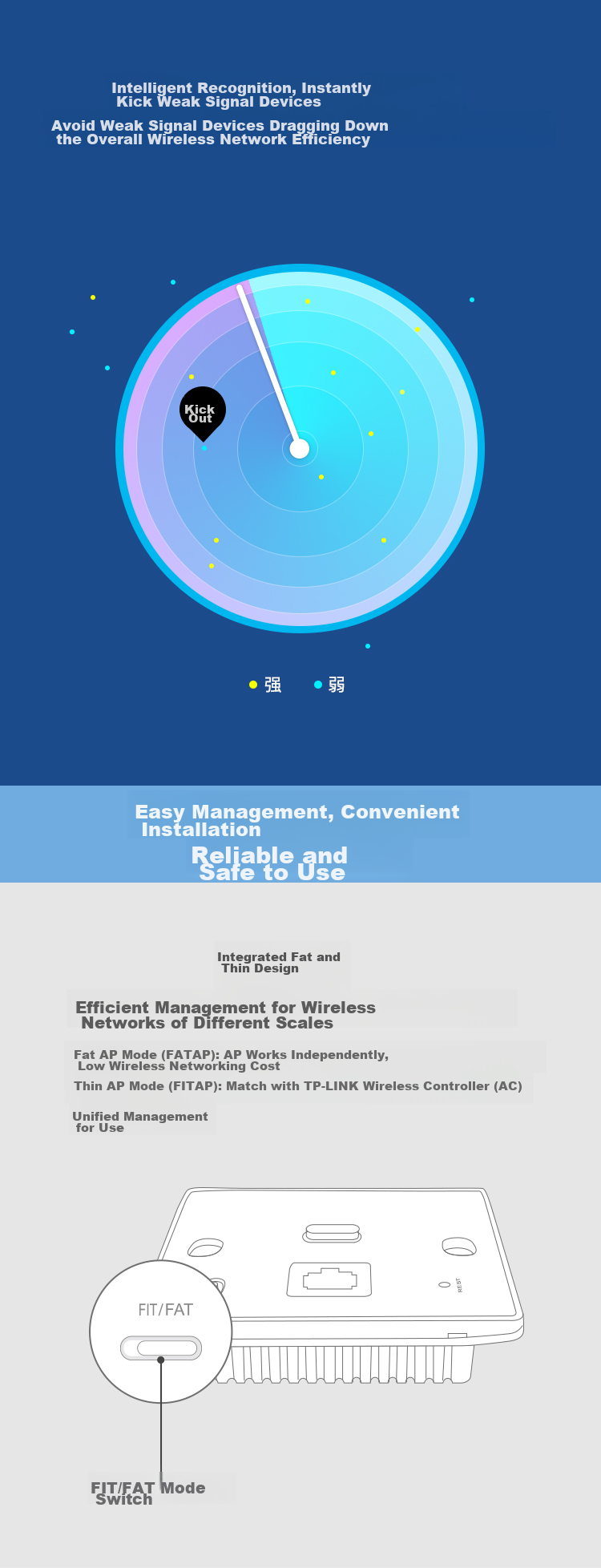

Intelligent device recognition to optimize network efficiency.

Supports both FAT AP mode for independent operation and FIT AP mode for unified management with TP-LINK wireless controller (AC).

Standard PoE power supply for convenient installation.

Easy installation with standard 86mm panel design.

Built-in hardware protection circuit and MAC address whitelist support for enhanced security.

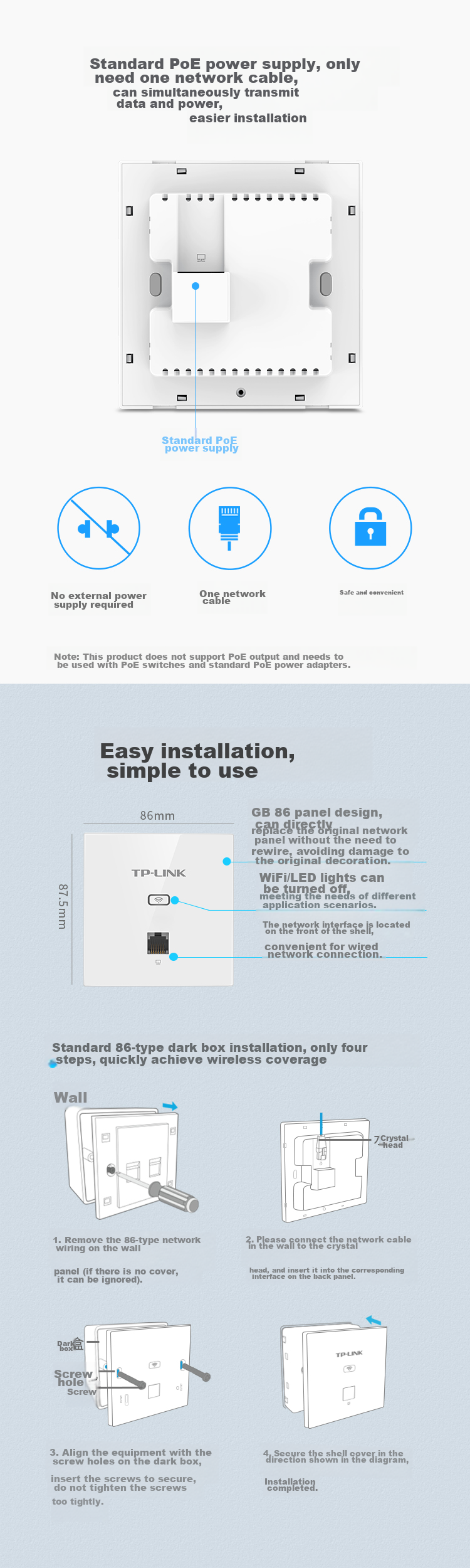

1. Remove the existing 86-type network panel from the wall.

2. Connect the wall cable to the crystal panel and insert it into the corresponding interface on the back panel.

3. Align the device with the screw holes on the dark box.

4. Secure the shell cover with screws to complete the installation.

Power Consumption

TL-AP1202GI-PoE: 8.76W

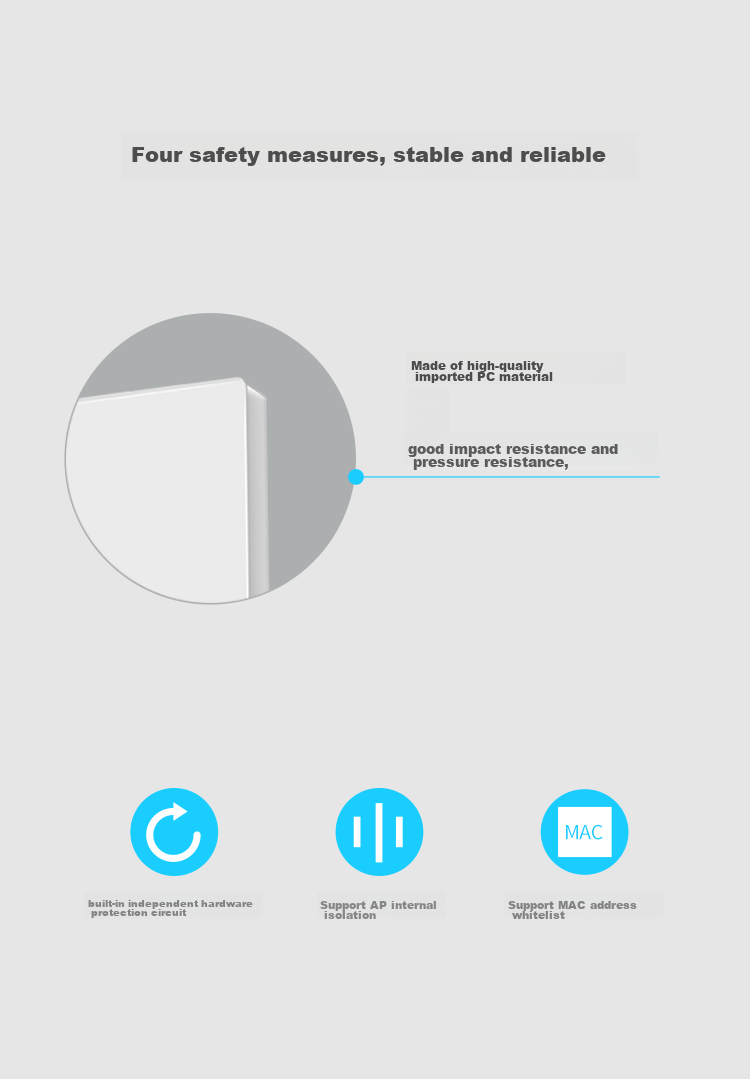

Safety Measures

Made of high-quality imported PC materials for impact and pressure resistance.
Built-in independent hardware protection circuit and support for MAC address whitelist.

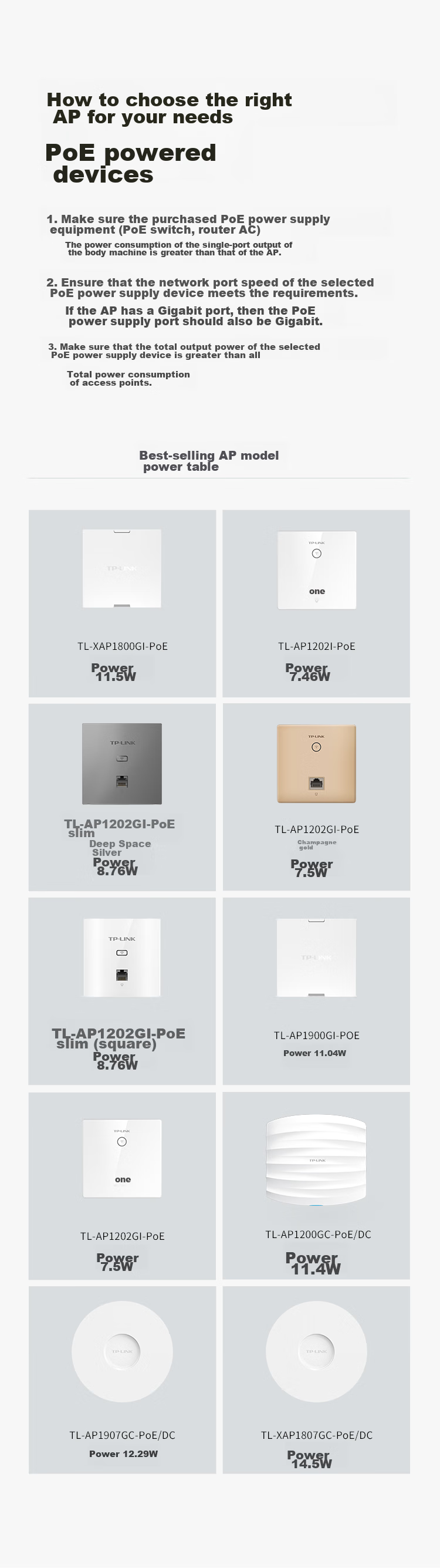

1. Ensure the PoE power supply device's output power is greater than the AP's power consumption.

2. Match the network port speed of the PoE power supply device with the AP's requirements.

3. Ensure the total power output of the PoE power supply device exceeds the total power consumption of all connected APs.

Best-selling AP Models Power Consumption Table

Item	Detail
TL-XAP1800GI-PoE	11.5W
TL-AP12021-PoE	7.46W
TL-AP1202GI-PoE (Slim)	8.76W
TL-AP1202GI-PoE (Champagne Gold)	7.5W
TL-AP1202GI-PoE (Slim Square)	8.76W
TL-AP1900GI-POE	11.04W
TL-AP1202GI-PoE	7.5W
TL-AP1200GC-PoE/DC	11.4W
TL-AP1907GC-PoE/DC	12.29W
TL-XAP1807GC-PoE/DC	14.5W
