BAOSHIAN GTYQ-DX101 Combustible Gas Alarm Detector Industrial Gas Detector Combustible Gas Detector

BAOSHIAN•Gas detector

BAOSHIAN GTYQ-DX101 Combustible Gas Alarm Detector Industrial Gas Detector Combustible Gas Detector

CN¥438.00

SKU: 7804050

Status:In Stock (4)

ID: 7804050

Weight: 1520.00 g

Dims:220x208x120 mm

Specifications

How it works: Online
Gas detection: Combustible gas, oxygen, carbon dioxide, hydrogen gas, Carbon monoxide, Chlorine gas, ammonia, Hydrogen sulfide
Whether to bring a pump: Without pump
Customizable or not: Customizable

Variants / Sale Attributes

Model: flammable (EX)

Package Contents

Gas alarm detector set *1

Product Description

Product Specifications

Overview

Brand: BAOSHIAN
Product Series: Industrial Gas Detectors – BOSEANTECHNOLOGY

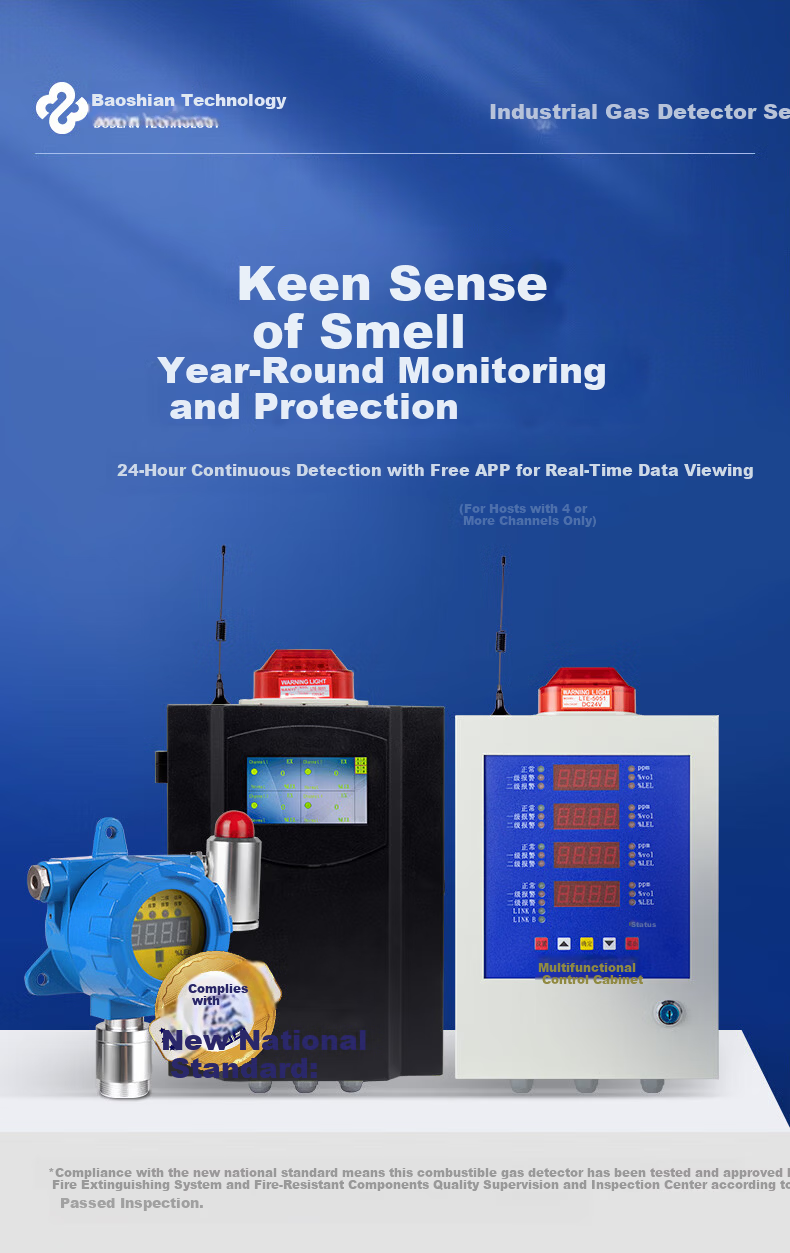

Sensitive detection with year-round monitoring and 24-hour continuous detection

Real-time data viewing via APP (available for 4-channel and above controllers)

Multifunctional control cabinet compliant with new national standard GB15332.1-2019 for combustible gas sensors, certified by National Fixed Fire Extinguishing System and Fire-Resistant Components Quality Supervision and Inspection Center

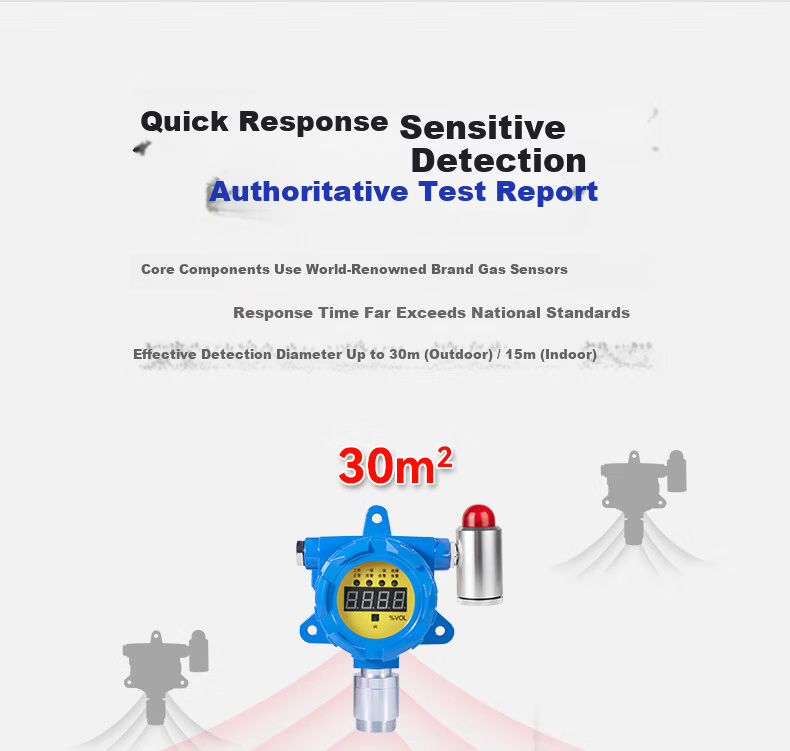

Rapid response and high sensitivity with authoritative test reports

Core components use world-renowned gas sensors with response times superior to national standards

Additional details

Effective detection diameter: up to 30 m outdoors / 15 m indoors (30 m² coverage)

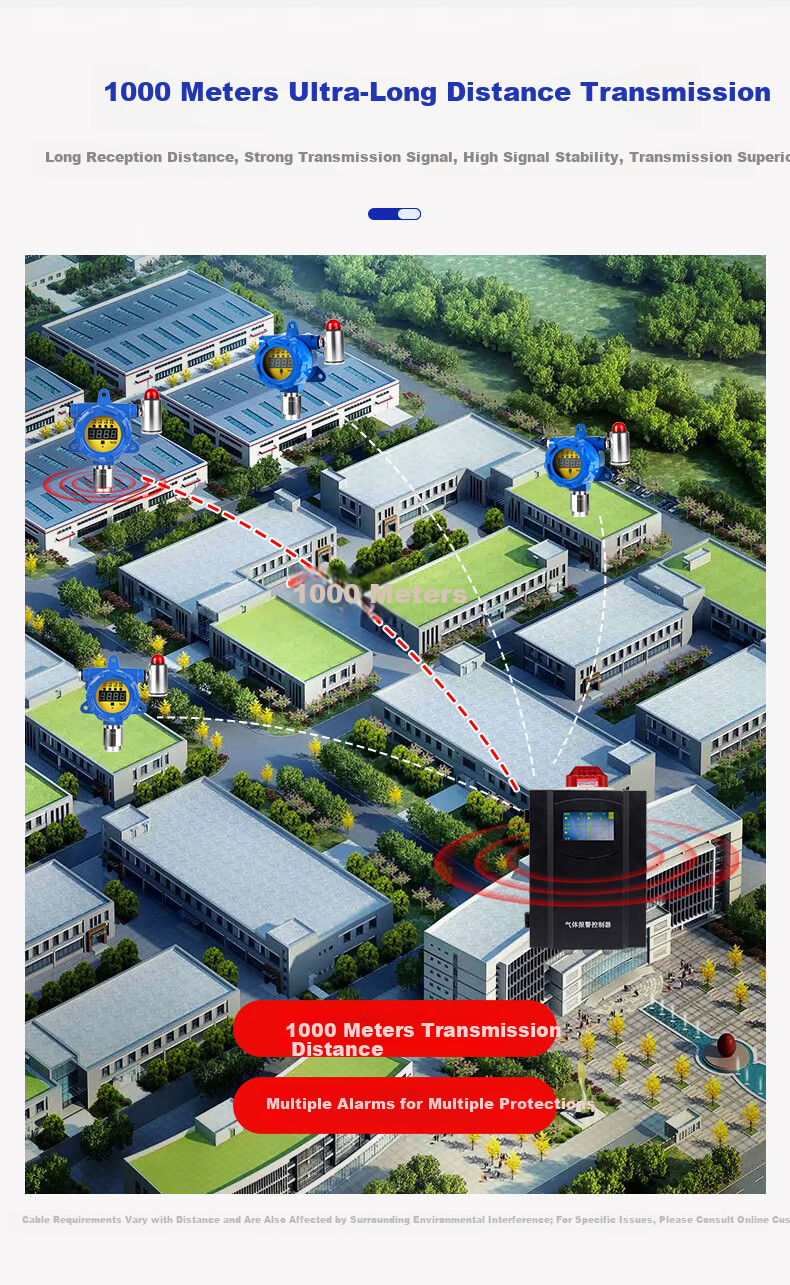

Ultra-long transmission distance up to 1000 meters with strong, stable signal superior to competitors

Similar Products

In Stock

BAOSHIAN Portable Pump Gas Detector, Four-In Toxic Harmful Gases, Combustible Gas, Oxygen, Carbon Monoxide, Hydrogen Sulfide

BAOSHIANGas detector

BAOSHIAN Portable Pump Gas Detector, Four-In Toxic Harmful Gases, Combustible Gas, Oxygen, Carbon Monoxide, Hydrogen Sulfide

Pump-suction four-in-one

CN¥898.00

In Stock

Xima Oxygen Detector, Oxygen O2 Concentration Meter, Handheld Air Oxygen Content Tester AS8801

Gas detector

Xima Oxygen Detector, Oxygen O2 Concentration Meter, Handheld Air Oxygen Content Tester AS8801

AS8801 Oxygen Detector (0-30%VOL)

CN¥528.00

Multiple alarms and multi-layer protection; cable requirements vary with distance and environment (consult customer service for details)

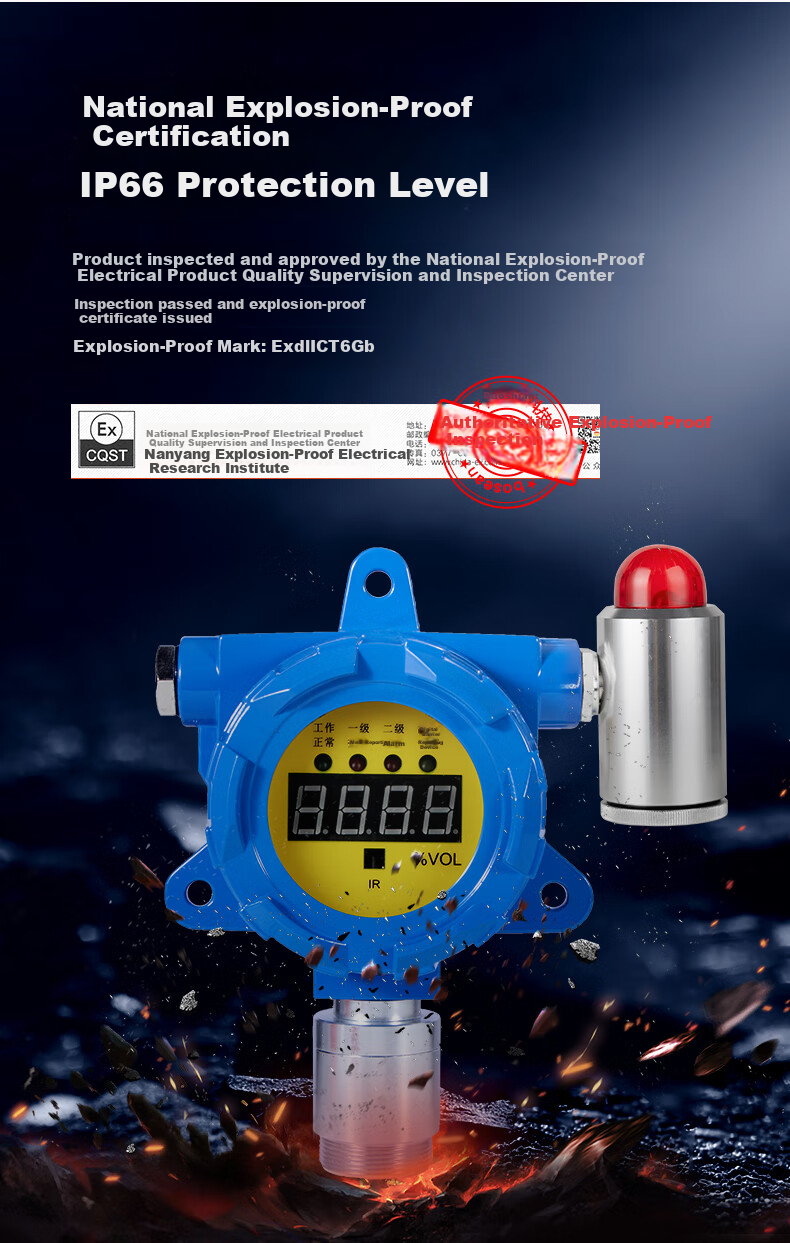

National explosion-proof certification with IP66 protection grade

Additional details

Explosion-proof mark: ExdIIC T6 Gb, certified by National Explosion-proof Electrical Product Quality Supervision and Inspection Center and Nanyang Explosion-proof Electrical Research Institute
Multiple alarm modes: audible (≥70dB), visual, and combined sound-light alarms

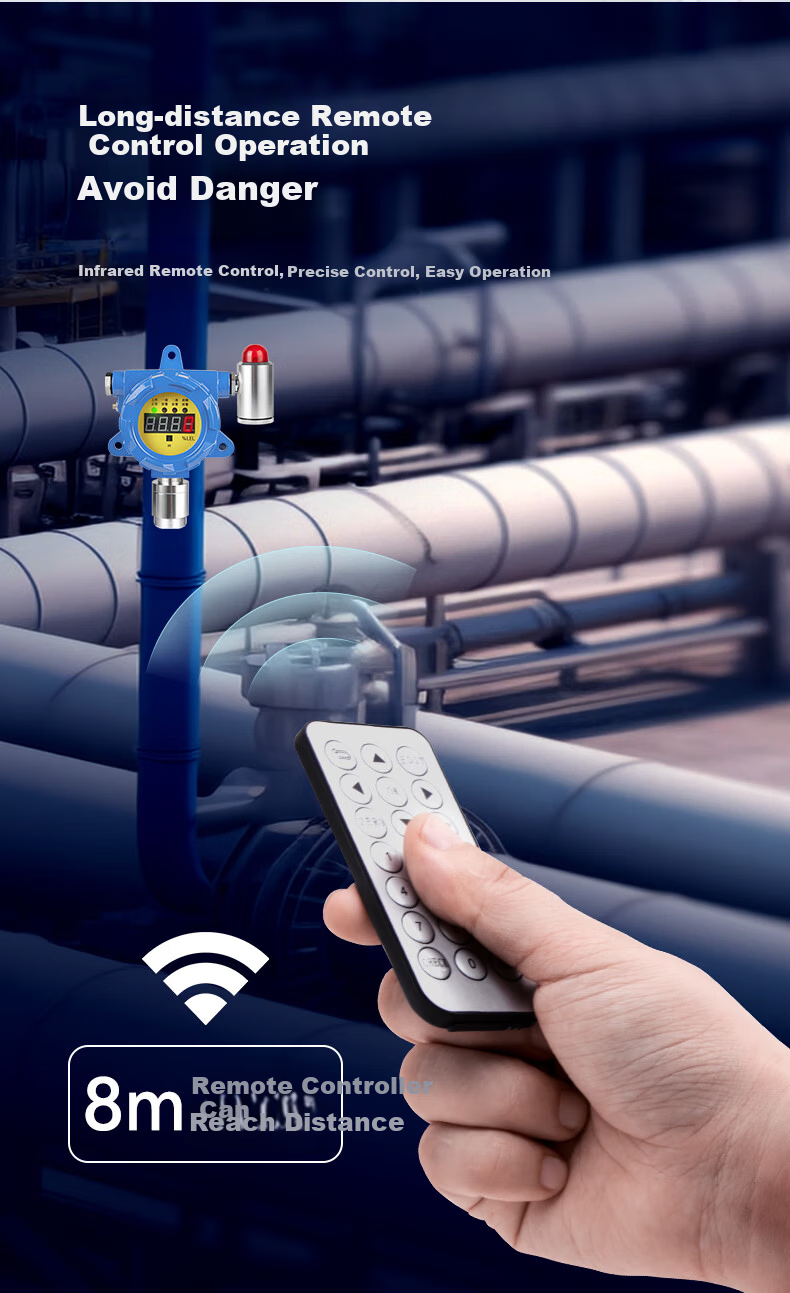

Remote control operation via infrared remote control for safe and precise control

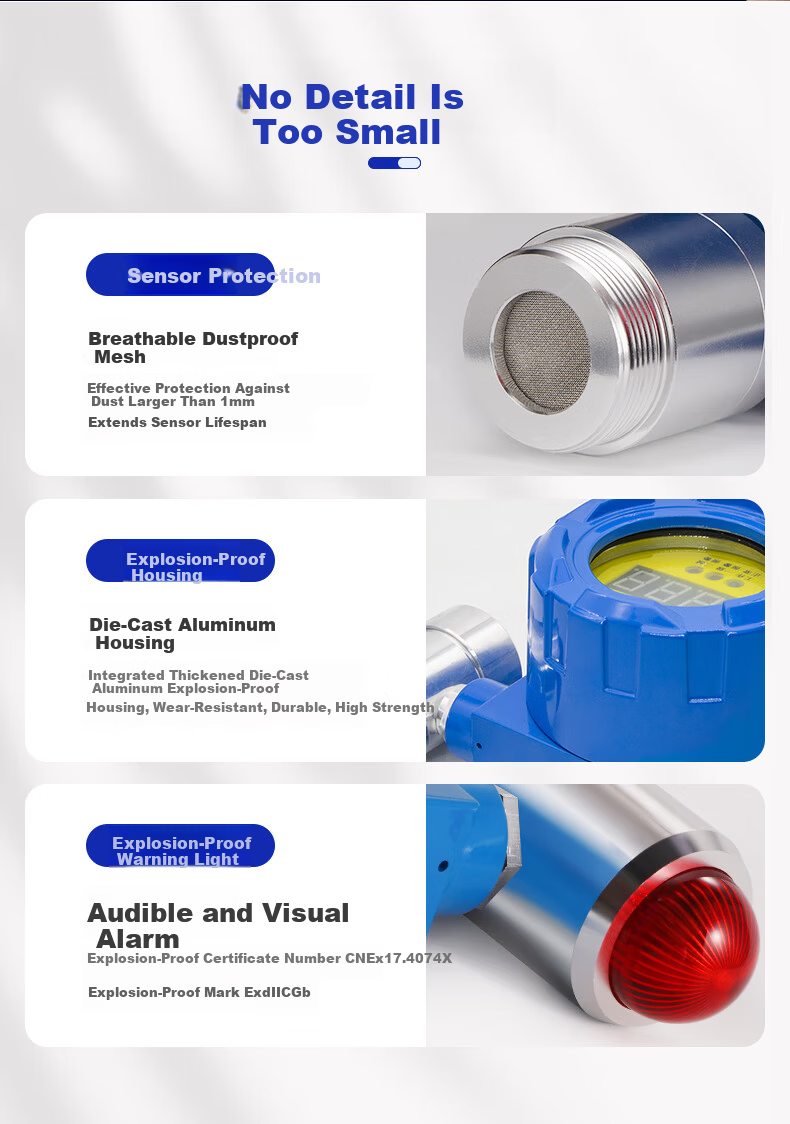

Protective features include breathable dust-proof mesh filtering particles >1mm to extend sensor life

Additional details

Explosion-proof housing: integrated thick die-cast aluminum, wear-resistant and durable

Explosion-proof warning light and sound-light alarm included

Additional details

Explosion-proof certificate number: CNEx17.4074X

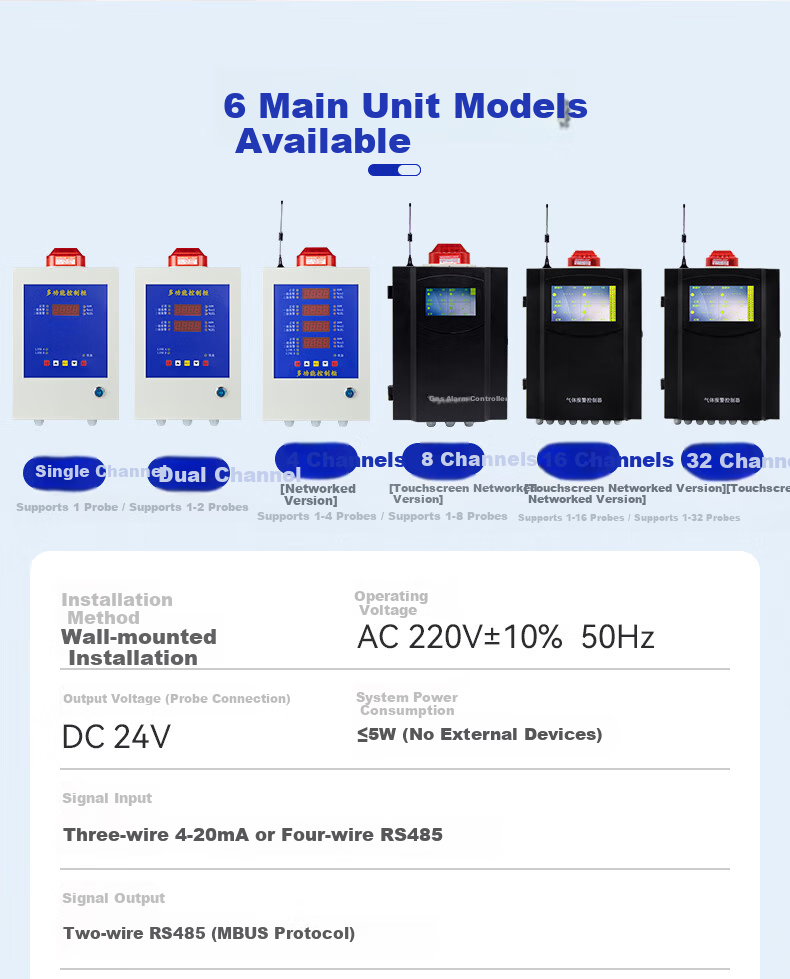

6 models available: single-channel, dual-channel, 4-channel, 8-channel, 16-channel, 32-channel

Networked and touchscreen networked versions available

Probe connection capacity varies by model (1 to 32 probes)

Wall-mounted installation

Additional details

Power supply: AC 220V ±10%, 50Hz; output voltage for probes: DC 24V
System power consumption: ≤5W (without external devices)
Signal input: 3-wire 4-20mA or 4-wire RS485
Signal output: 2-wire RS485 (MBUS protocol)

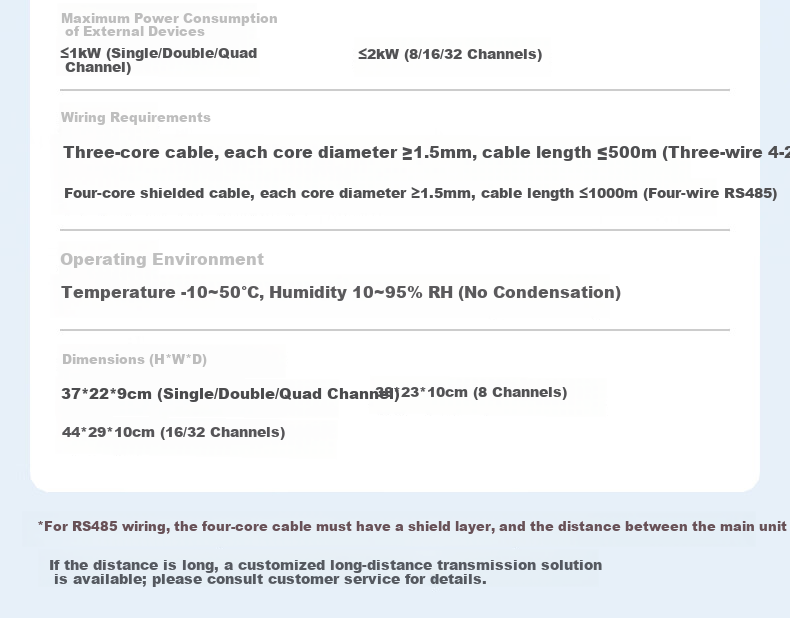

Maximum external device power consumption: ≤1kW (single/dual/4-channel), ≤2kW (8/16/32-channel)
Wiring requirements: 3-core cable ≥1.5 mm², max length 500 m (4-20mA); 4-core shielded cable ≥1.5 mm², max length 1000 m (RS485)
Operating environment: Temperature -10°C to 50°C; Humidity 10-95% RH (non-condensing)
Dimensions (H×W×D): 37×22×9 cm (1/2/4-channel), 38×23×10 cm (8-channel), 44×29×10 cm (16/32-channel)

RS485 wiring requires shielded 4-core cable

Custom long-distance transmission solutions available upon request

Additional details

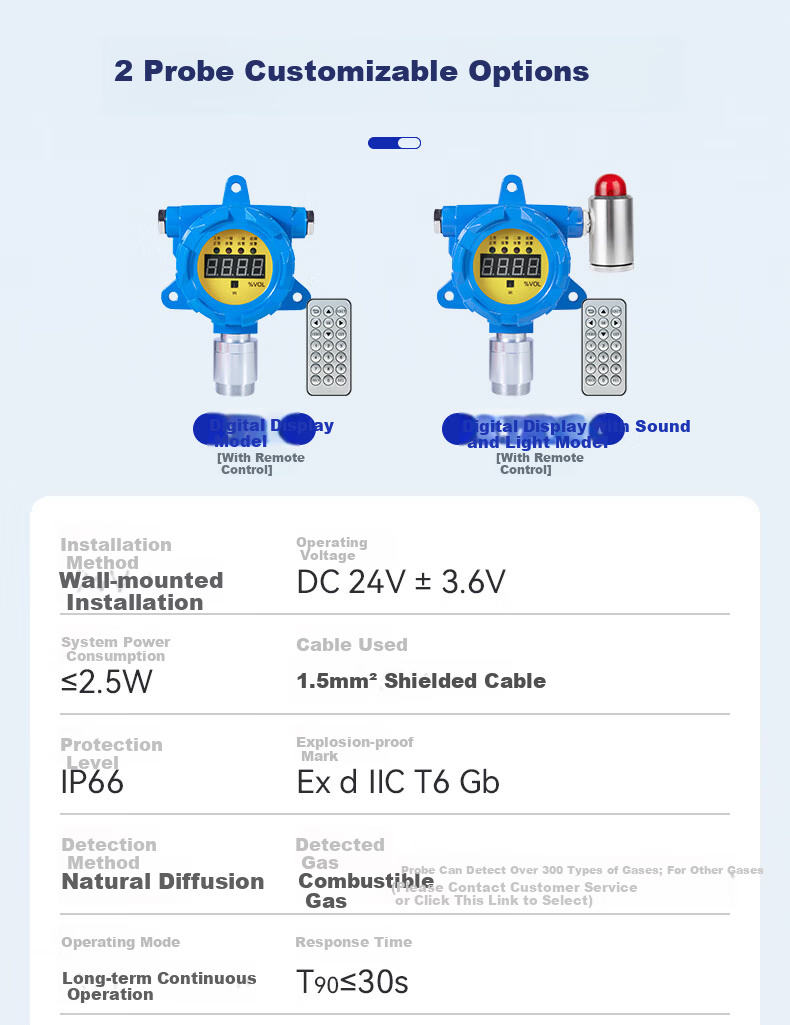

Two customizable probe models: digital display and digital display with sound-light alarm and remote control

Wall-mounted installation

Additional details

Power supply: DC 24V ±3.6V
System power consumption: ≤2.5W
Cable: 1.5 mm² shielded wire
Protection grade: IP66
Explosion-proof mark: ExdIIC T6 Gb
Detection method: natural diffusion
Detectable gases: combustible gases and over 300 other gases (contact customer service for custom gases)
Operating mode: continuous long-term operation
Response time: T90 ≤ 30 seconds

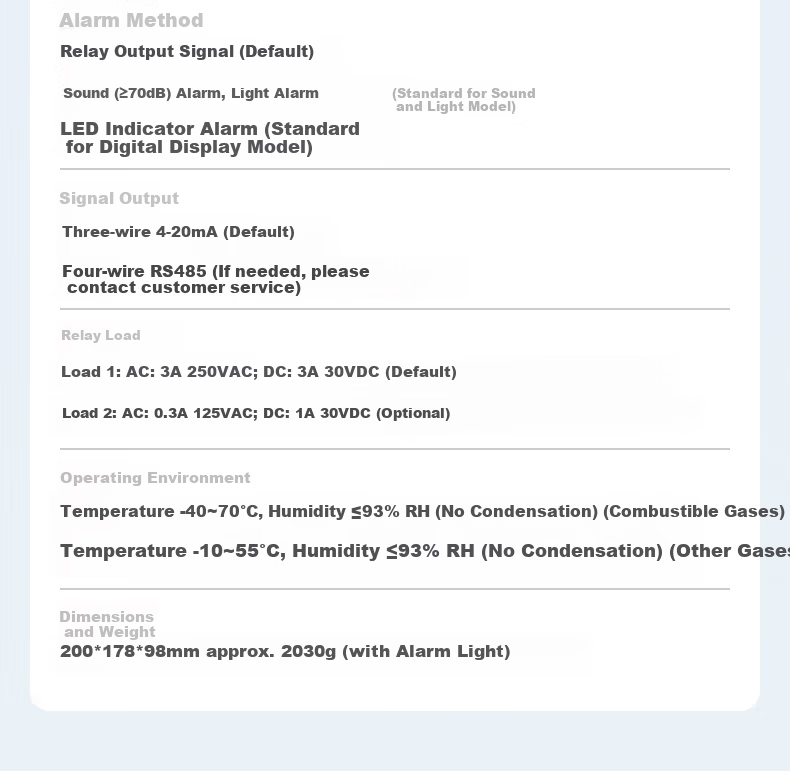

Alarm output: relay output (default), sound alarm (≥70dB), light alarm (standard for sound-light models), LED indicator (standard for digital display models)
Signal output: 3-wire 4-20mA (default), 4-wire RS485 optional
Relay load: Load 1: AC 3A 250VAC, DC 3A 30VDC (default); Load 2: AC 0.3A 125VAC, DC 1A 30VDC (optional)
Operating environment: Temperature -40°C to 70°C, Humidity ≤93% RH (non-condensing) for combustible gases; Temperature -10°C to 55°C, Humidity ≤93% RH (non-condensing) for other gases
Dimensions and weight: 200×178×98 mm, approx. 2030 g (with alarm light)

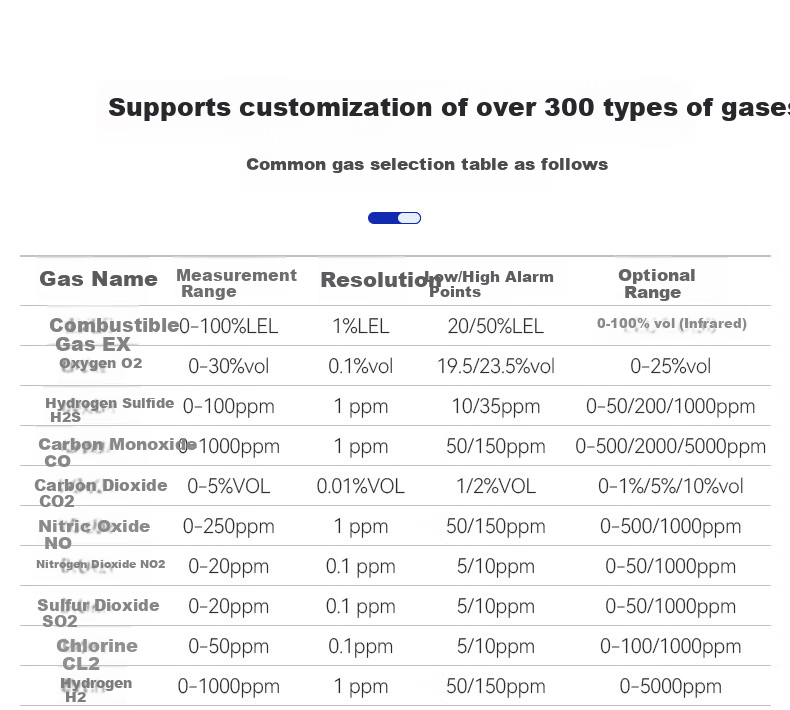

Combustible Gas (EX): 0-100% LEL, resolution 1% LEL, alarm points 20%/50% LEL, optional range 0-100% vol (infrared)
Oxygen (O2): 0-30% vol, resolution 0.1% vol, alarm points 19.5%/23.5% vol, optional range 0-25% vol
Hydrogen Sulfide (H2S): 0-100 ppm, resolution 1 ppm, alarm points 10/35 ppm, optional ranges 0-50/200/1000 ppm
Carbon Monoxide (CO): 0-1000 ppm, resolution 1 ppm, alarm points 50/150 ppm, optional ranges 0-500/2000/5000 ppm
Carbon Dioxide (CO2): 0-5% vol, resolution 0.01% vol, alarm points 1%/2% vol, optional ranges 0-1%/5%/10% vol

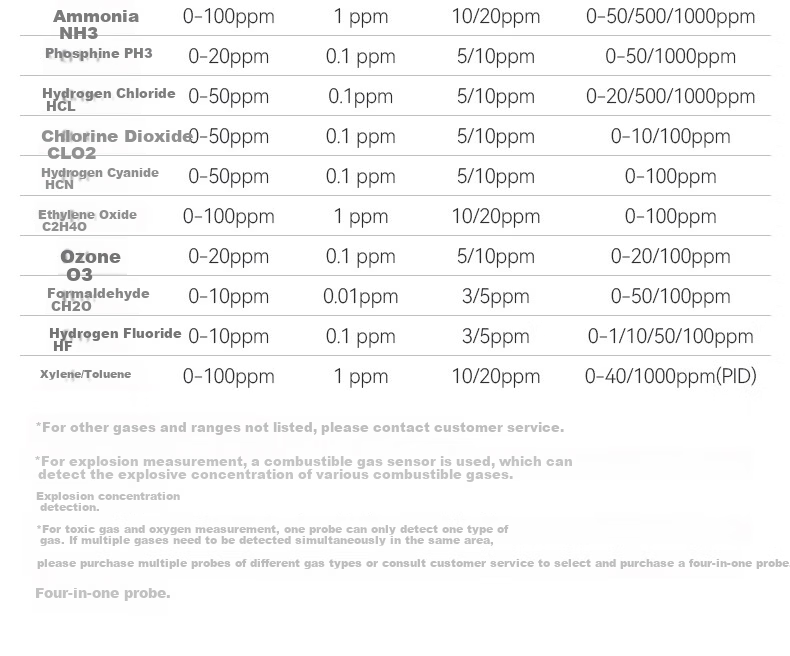

Other gases include NO, NO2, SO2, CL2, H2, NH3, PH3, HCL, CLO2, HCN, C2H4O, O3, CH2O, HF, Xylene/Toluene, etc.

Custom gases and ranges available upon request

Additional details

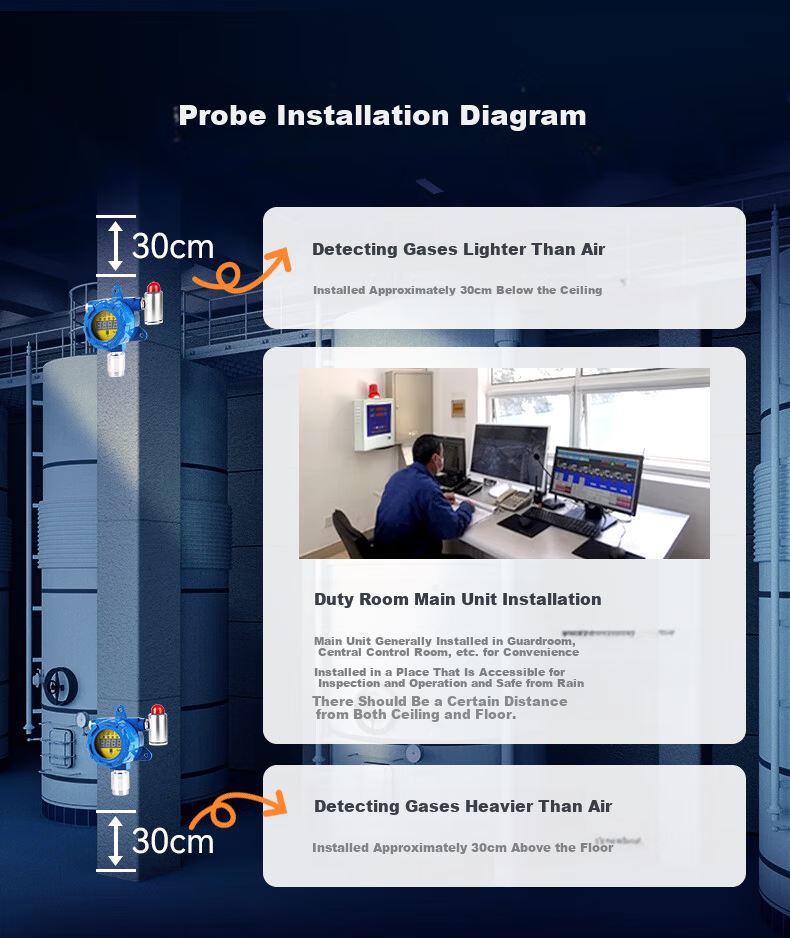

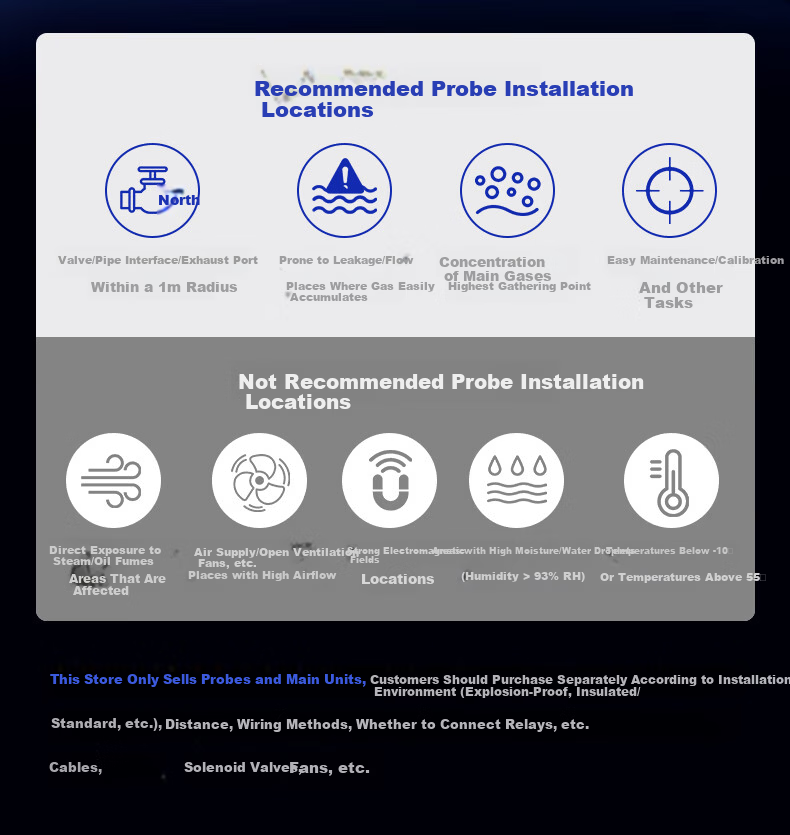

For gases lighter than air: install probes Approx. 30 cm below the ceiling
For gases heavier than air: install probes Approx. 30 cm above the floor

Avoid installation near direct steam/oil smoke, strong electromagnetic fields, high humidity (>93% RH), temperatures below -10°C or above 55°C, strong airflow, or near ventilation fans

Recommended installation locations include valve/pipeline interfaces, gas outlets, areas prone to leakage or gas accumulation, and locations convenient for maintenance and calibration

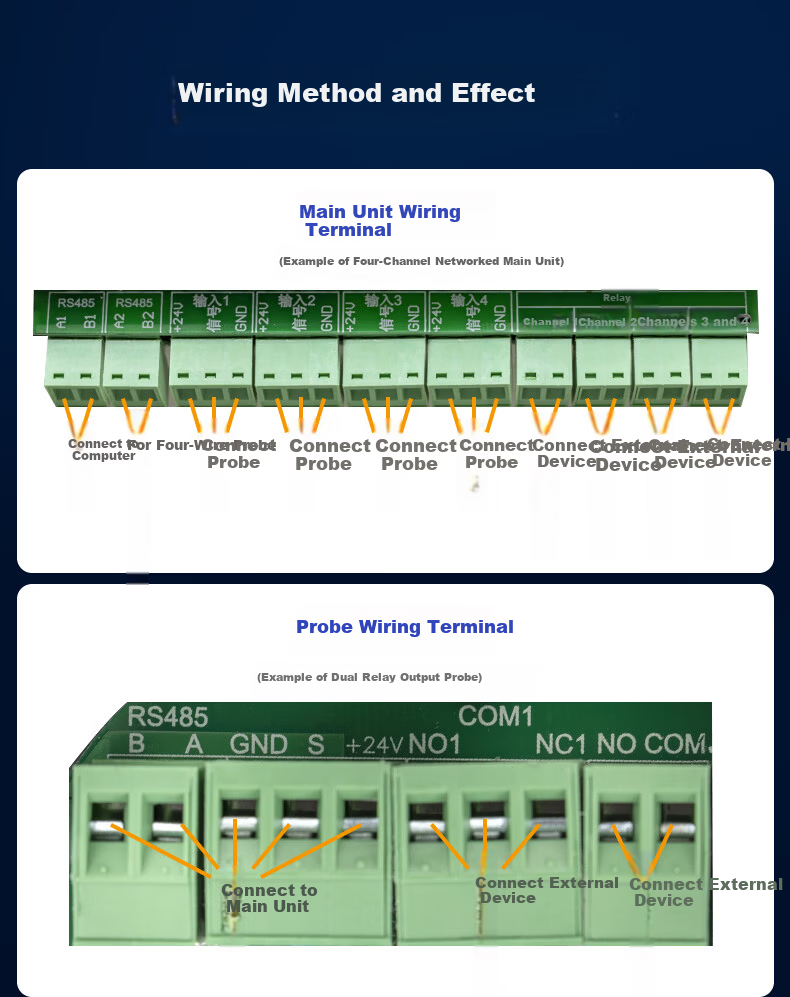

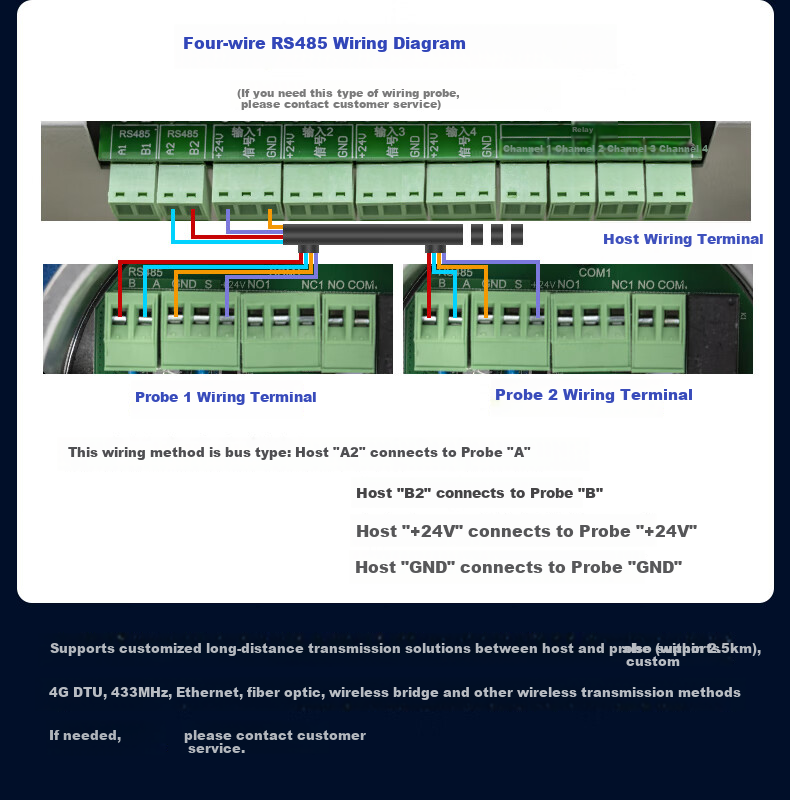

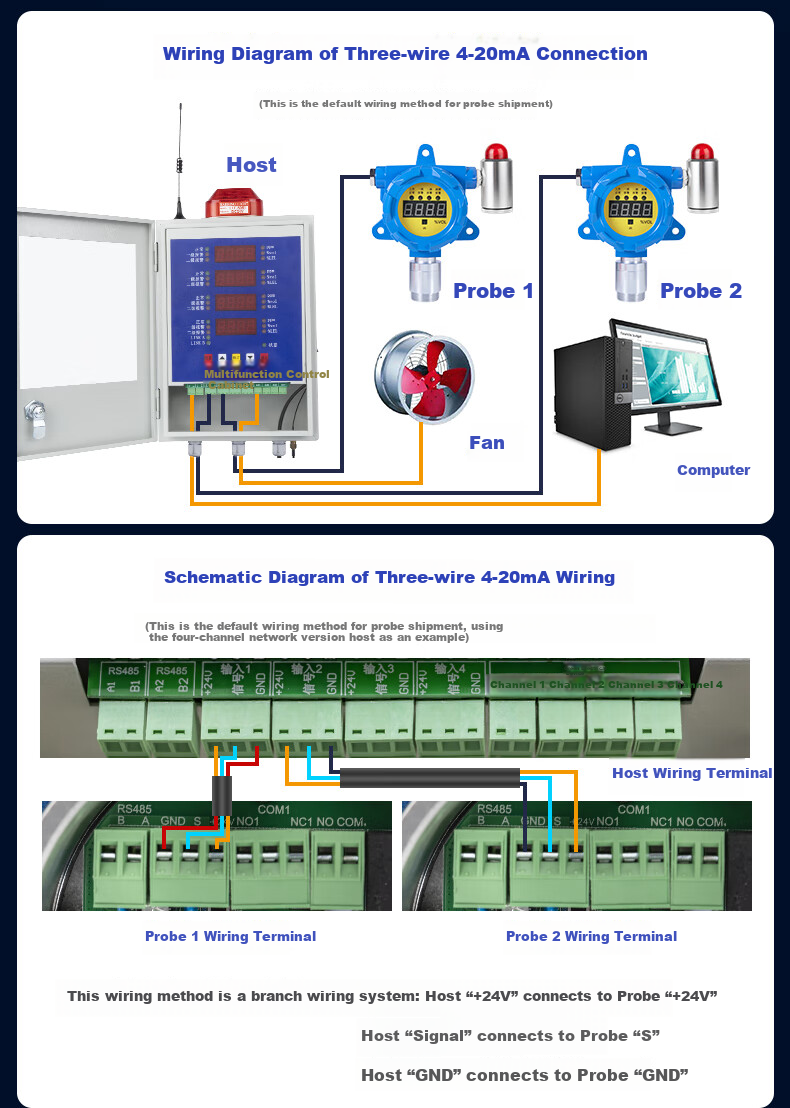

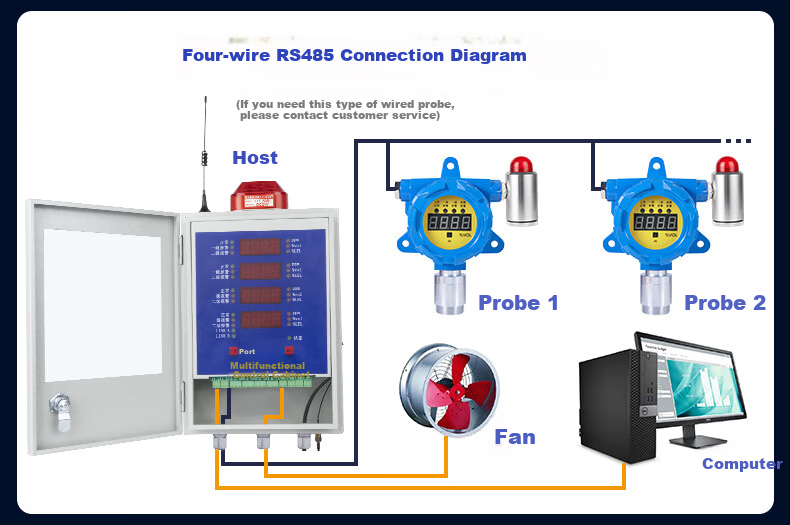

Supports 3-wire 4-20mA and 4-wire RS485 wiring schemes

Relay outputs and external device connections supported

Custom long-distance transmission solutions up to 2.5 km available, including 4G DTU, 433 MHz, Ethernet, fiber optic, and wireless bridge options (contact customer service)

Detailed wiring diagrams available for various configurations

Product includes probes and controllers only; cables, solenoid valves, fans, and other accessories must be purchased separately according to installation requirements

Price does not include third-party testing fees

For multi-gas detection in the same area, multiple probes of different gas types or multi-gas probes are recommended

All products comply with national explosion-proof standards and have authoritative certifications

This specification provides a comprehensive overview of BAOSHIAN industrial gas detection products, designed for reliable, sensitive, and safe gas monitoring in industrial environments.
