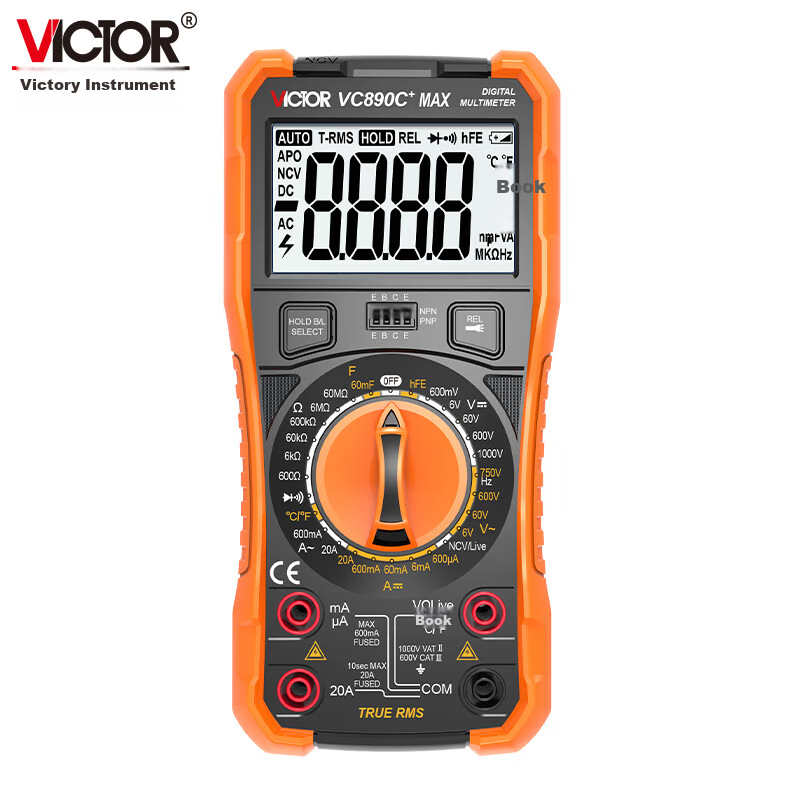

VICTOR High-Precision Multimeter, Professional Digital Meter for Electricians, Smart Household Anti-Burn Model VC890C+MAX
CNÂ¥119.00
SKU: 8136651
Status:In Stock (213)
ID: 8364404
Weight: 600.00 g
Dims:210x138x66 mm
Specifications
- Precision
- Other
- testing principles
- true effective value
- Functions
- voltage, electric current, temperature, backlight, Resistor, Capacitance, On/Off (buzzing), diode, transistor, Fireline judgment, Fire line detection, Smart NCV
- Measuring range
- Manual range
- Category
- digital multimeter
Variants / Sale Attributes
Model: VC890C+MAX [Capacitance Measurement, Transistors]

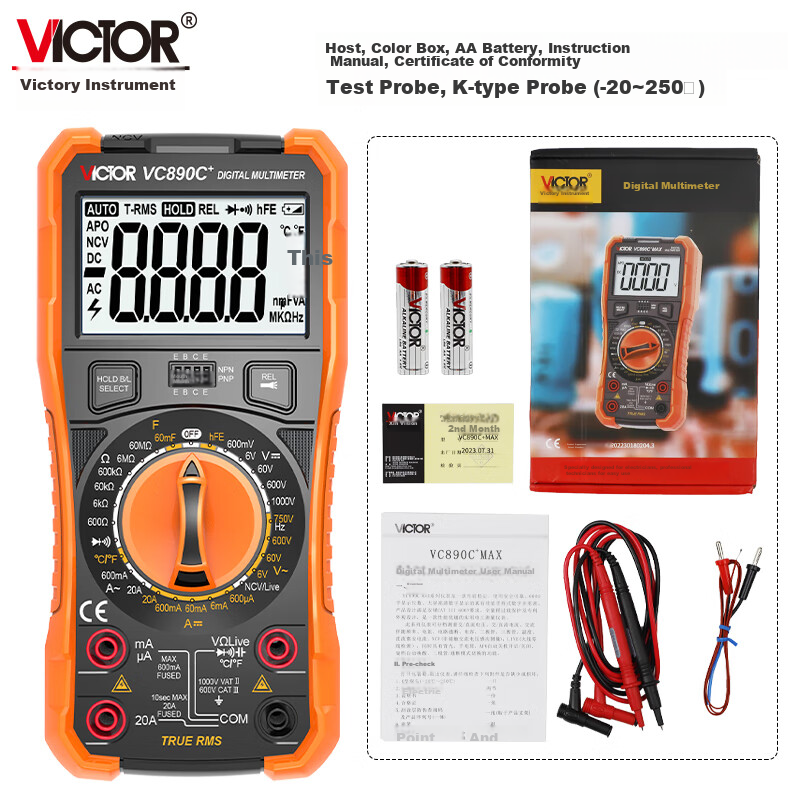

Package Contents
1 color box, 1 main unit, 1 stylus pen, 1 TP01 temperature probe, 1 user manual, 1 certificate of conformity, 2 AA 1.5V batteries
Product Description
Overview
- Brand
- VICTOR
- Model
- VICTOR VC890C+ MAX Multimeter
General Functions
- Range:
- DC Voltage: 600mV/6V/60V/600V, ±(0.5%+3); 1000V, ±(0.8%+10)
- AC Voltage: 6V/60V/600V, ±(0.8%+5); 750V, ±(1.2%+10)
- DC Current: 600uA/6mA/60mA, ±(0.8%+10); 600mA, ±(1.2%+8); 20A, ±(2.0%+5)
- AC Current: 600mA, ±(2.0%+5); 20A, ±(3.0%+10)
- Resistance: 6kΩ/60kΩ/600kΩ/6MΩ, ±(0.8%+3); 60MΩ, ±(1.0%+25)
- Capacitance: 60nF/600nF/6uF/60uF, ±(3.5%+20); 600uF/6mF/60mF, ±(5.0%+10)
- Temperature: -20°C~1000°C, ±(1.0%+5)
- Special Functions:
- Display: LCD with backlight
- Auto Power Off: after 15 minutes of inactivity
- Max Display: 5999 (3.5/6 digits)
- Data Hold: Yes
- Sampling Rate: 3 times/second
- Relative Measurement: Yes
- Overload Indication: "OL" on highest digit
- Backlight Display: Yes
- Low Voltage Indication: Yes
- NCV (Non-Contact Voltage): Yes
- Operating Environment: (0~40)°C, <75%RH
- Storage Environment: (-20~60)°C, <85%RH
