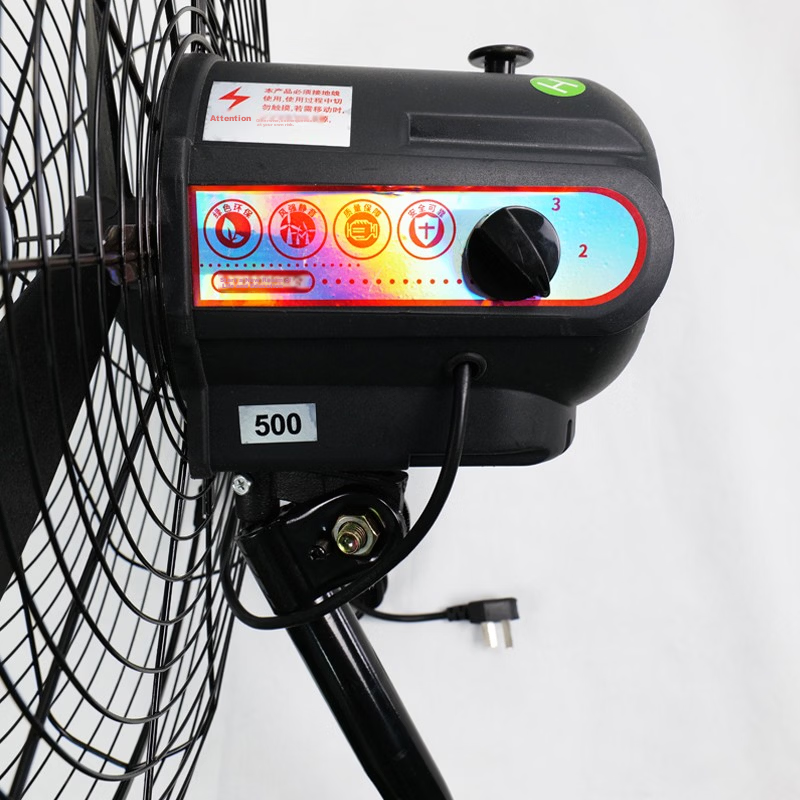

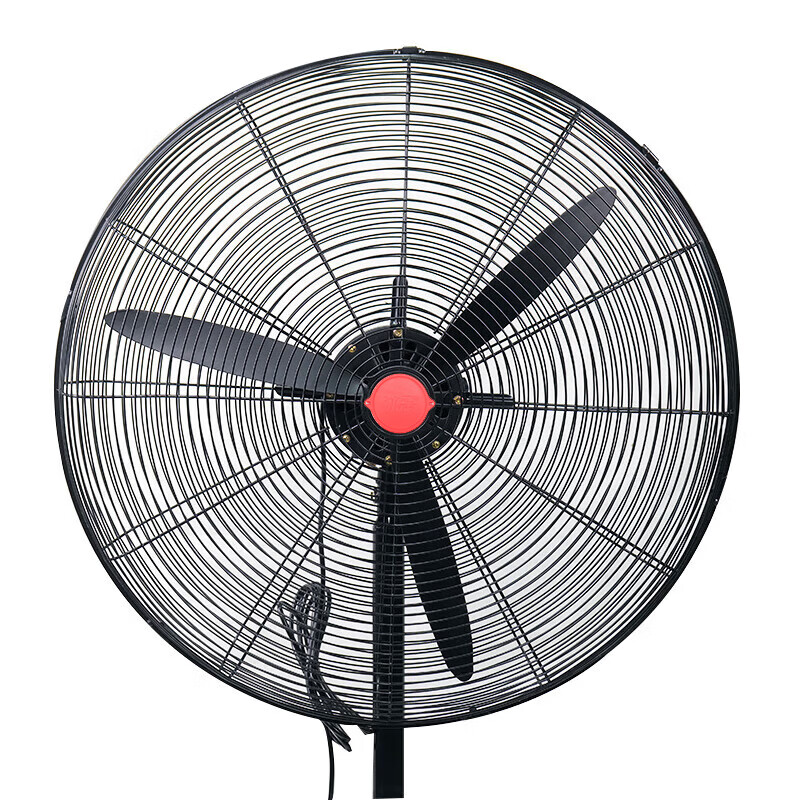

Bingyu BY-231 Industrial Fan Powerful Electric Fan Factory Workshop Oscillating Commercial Fan 3m Cord Model 500 Plastic Blade Wall Fan

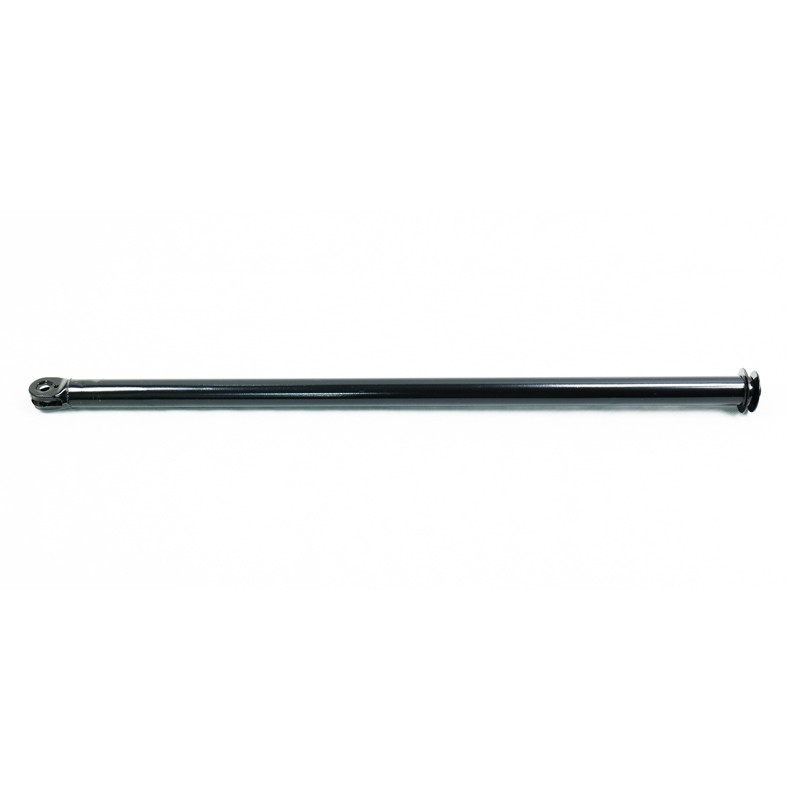

Metal thickened standing tube for strong support and load-bearing capacity

Thickened base plate for enhanced stability and safety during operation

1. Tighten the screw and patch on the bottom of the standing rod

2. Loosen the small black screw to the loosest position at the edge

3. Align the groove under the fan head, insert the standing rod into the base, and secure screws accordingly

4. Adjust the fan head height before tightening screws

5. Remove the three large screws on the fan head

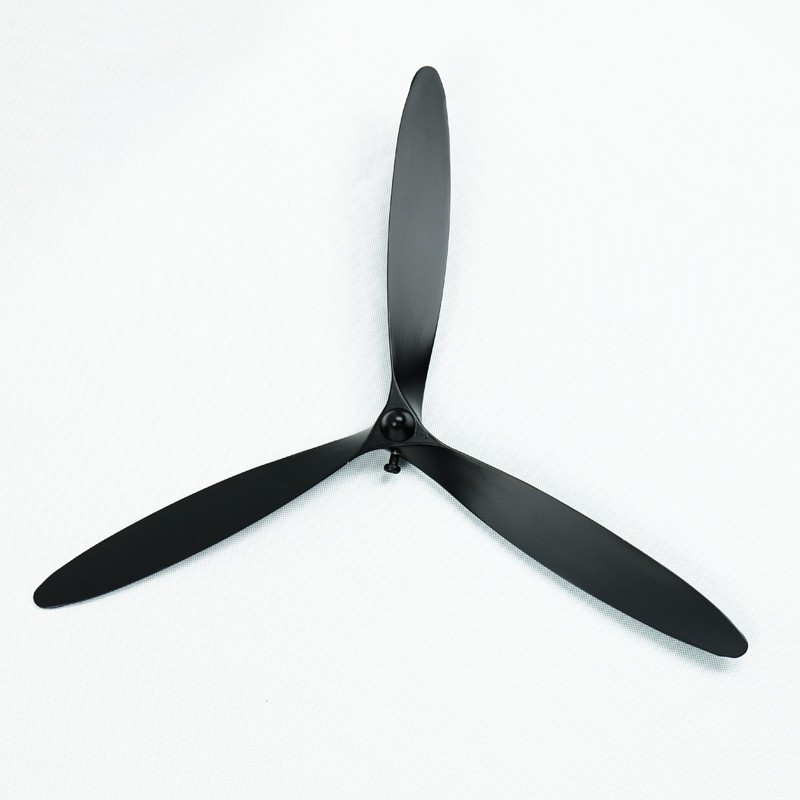

6. Install the rear grille, align the fan blade with the motor shaft groove, and tighten screws firmly

7. Attach and secure the front grille with screws

8. Slightly loosen the grille clip screws for alignment

9. Complete installation by aligning and securing the front and rear grilles with the iron clips and screws

Dimensions and weights are approximate and may vary slightly due to manual measurement and production batch differences.
