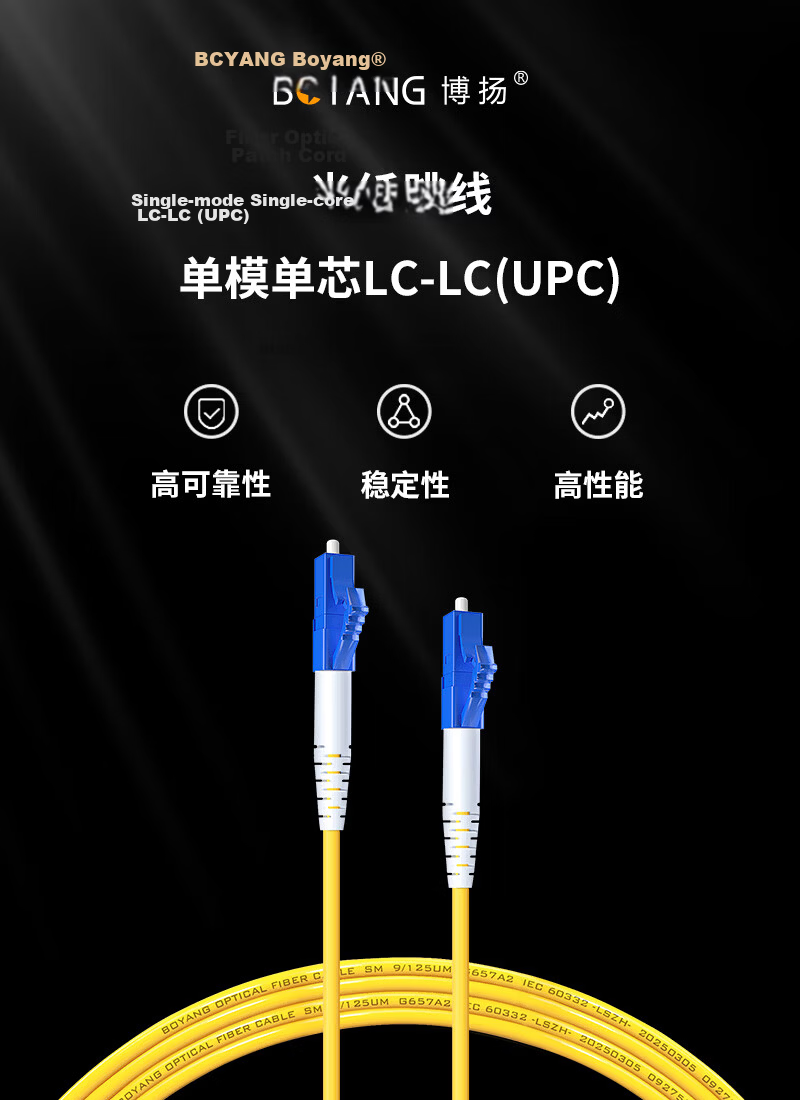

BOYANG Telecom-Grade Fiber Optic Patch Cable LC-LC (UPC), 1.5 Meters, Single-Mode Single-Core, Φ3.0 Flame-Retardant Low-Smoke Zero-Halogen Patch Cord Fiber Optic Cable Pigtail LC-LC BY-1.5551SM

BOYANG•Cable

BOYANG Telecom-Grade Fiber Optic Patch Cable LC-LC (UPC), 1.5 Meters, Single-Mode Single-Core, Φ3.0 Flame-Retardant Low-Smoke Zero-Halogen Patch Cord Fiber Optic Cable Pigtail LC-LC BY-1.5551SM

CN¥8.90

SKU: 8407403

Status:In Stock (7)

ID: 8195198

Weight: 25.00 g

Dims:268x218x2 mm

Specifications

Type: Fiber optic patch cords
Shielding type: Other
Performance Level: G.657A
External performance: LSOH (Low Smoke Zero Halogen)

Variants / Sale Attributes

Model: LC-LC (Single-Mode Single-Core)

Size: 1.5 meters

Package Contents

Boyang (BOYANG) BY-1551SM Telecom-grade Fiber Optic Patch Cord LC-LC 1 meter Single-mode Single-core Low-smoke Halogen-free Eco-friendly Fiber Optic Cable Transceiver Pigtail *1 Certificate of Conformity *1

Product Description

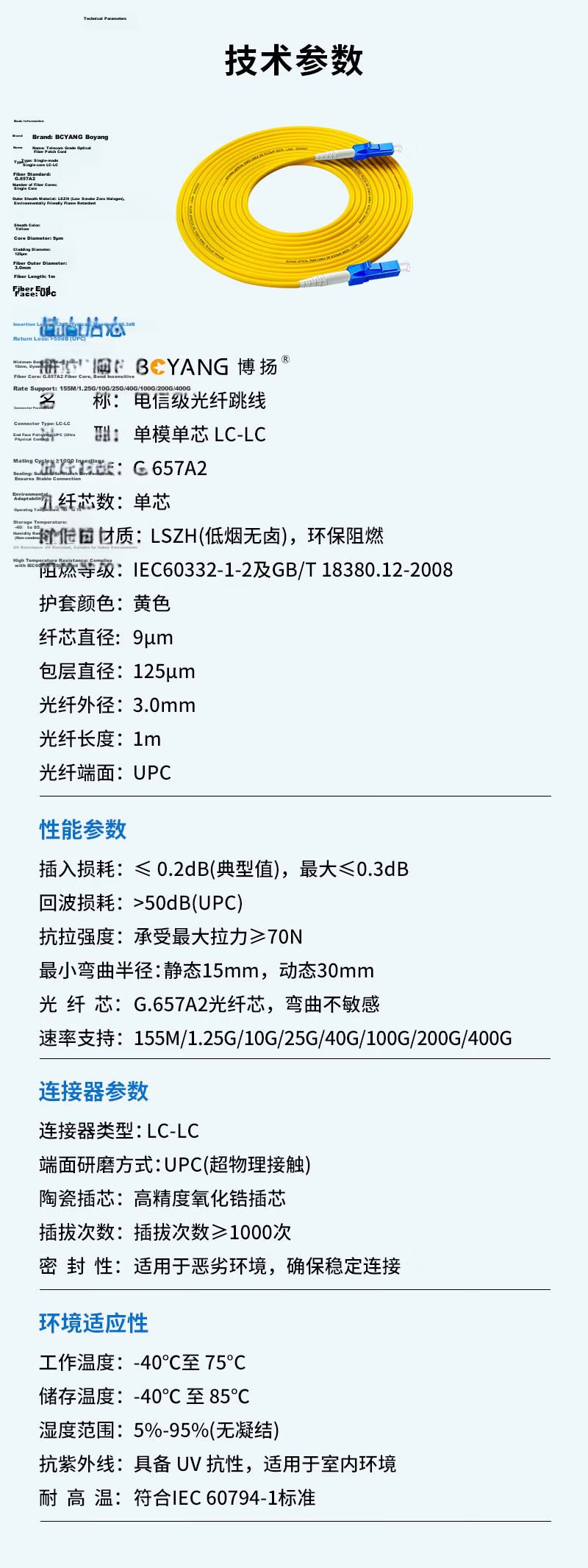

Product Specifications

Overview

Brand: BOYANG (BCYANG)
Product Name: Telecom Grade Fiber Optic Patch Cord
Type: Single-mode, Single-core LC-LC (UPC)
Fiber Standard: G.657A2
Fiber Core Count: Single-core
Fiber Core Diameter: 9 μm
Cladding Diameter: 125 μm
Fiber Outer Diameter

Similar Products

In Stock

WANJEEDCable

OFNPFTTH Fiber Patch Cable Engineering Telecom Grade LC-LC 10G Multimode Duplex OM3-150 Low Smoke Halogen-Free Flame Retardant Indoor Fiber Optic Cable Data Center Transceiver Pigtail 1 Meter 2-21231

LCLC Multimode Duplex OM3 Flame Retardant

CN¥26.90

View

In Stock

WANJEEDCable

10K Grade Fiber Optic Patch Cord Engineering Telecom Grade SC-SC (UPC) Single Mode Single Core Drop Fiber Cable Low Smoke Halogen-Free Eco-Friendly Jacket Data Center Transceiver Pigtail 1.2m 22212

SCSC singlemode singlecore 3.0 flameretardant

CN¥7.90

View

In Stock

WANJEEDCable

10K Fiber Optic Patch Cord Engineering Telecom Grade LC-LC 10G Multimode Duplex OM3-150 Low Smoke Halogen-Free Flame Retardant Drop Fiber Cable Transceiver Pigtail 3m 2-21231

LCLC Multimode Duplex OM3 Flame Retardant

CN¥37.00

View

Outer Sheath Material

LSZH (Low Smoke Zero Halogen), Environmentally Friendly, Flame Retardant

Flame Retardant Rating

IEC60332-1-2 and GB/T18380.12-2008

Connector Type

LC-LC

Connector End-face Polish

UPC (Ultra Physical Contact)

Ferrule Material

High-precision ceramic ferrule

Insertion Loss

Typical ≤0.2 dB, Maximum ≤0.3 dB

Return Loss

>50 dB (UPC)

Tensile Strength

Withstands maximum pull force >70 N

Minimum Bending Radius

Static 15 mm, Dynamic 30 mm

Fiber Type

G.657A2 bend-insensitive single-mode fiber

Supported Data Rates

155 M/1.25 G/10 G/25 G/40 G/100 G/200 G/400 G

Durability

Connector insertion/removal cycles ≥1000 times

Sealing

Suitable for harsh environments ensuring stable connection

Operating Temperature

-40°C to 75°C

Storage Temperature

-40°C to 85°C

Humidity Range

5% to 95% (non-condensing)

UV Resistance

Yes, suitable for indoor environments

High Temperature Resistance

Complies with IEC60794-1 standard

ISO9001 Quality Management System (Certificate No. 18726Q00026R101)

ISO14001 Environmental Management System (Certificate No. 18726E00027R101)

ISO45001 Occupational Health and Safety Management System (Certificate No. 187260H00028R101)

Additional details

Manufactured by: Shenzhen Boyang Communication Technology Co., Ltd.
Patent: Anti-pull and anti-detachment structure for fiber optic connector (Patent No. ZL202021984992.3)
Mechanical Durability: Mechanical endurance >500 cycles

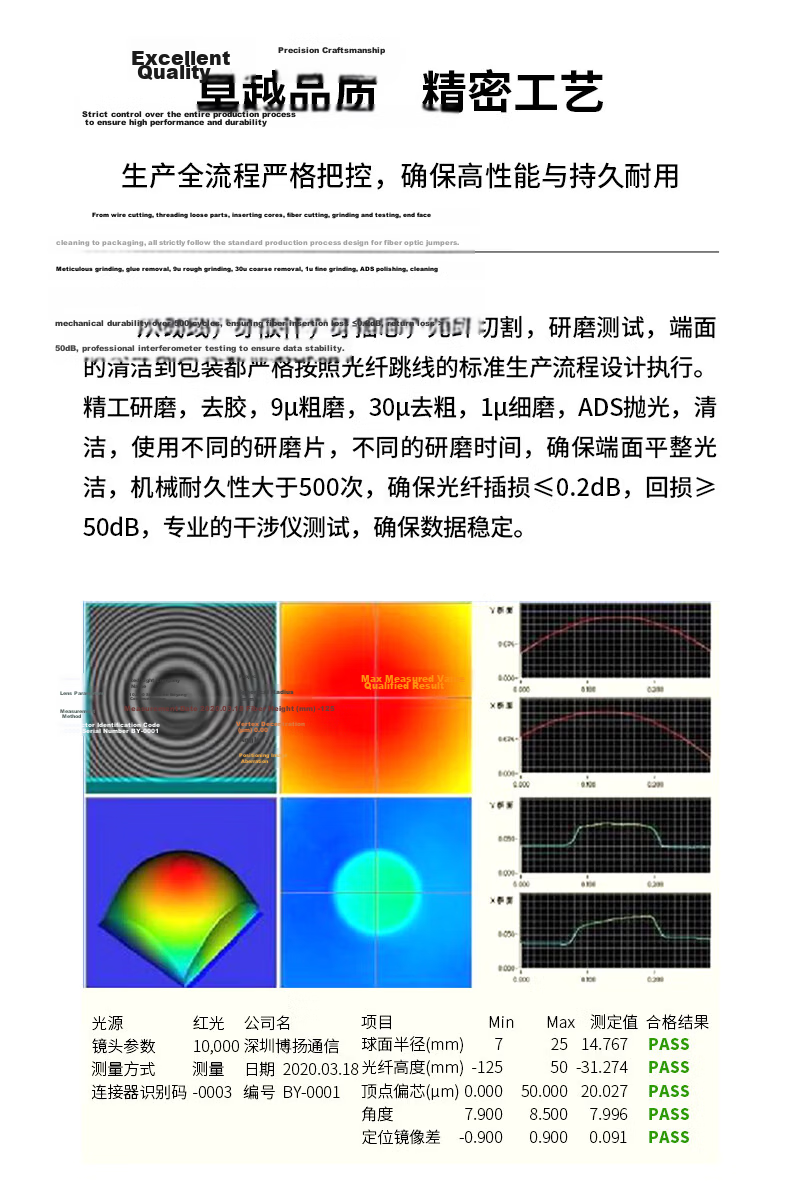

Polishing Process: Multi-stage polishing including 9μm rough, 30μm coarse removal, 1μm fine polishing, ADS polishing ensuring flat and clean end-face
Testing: Professional interferometer testing to ensure stable optical performance

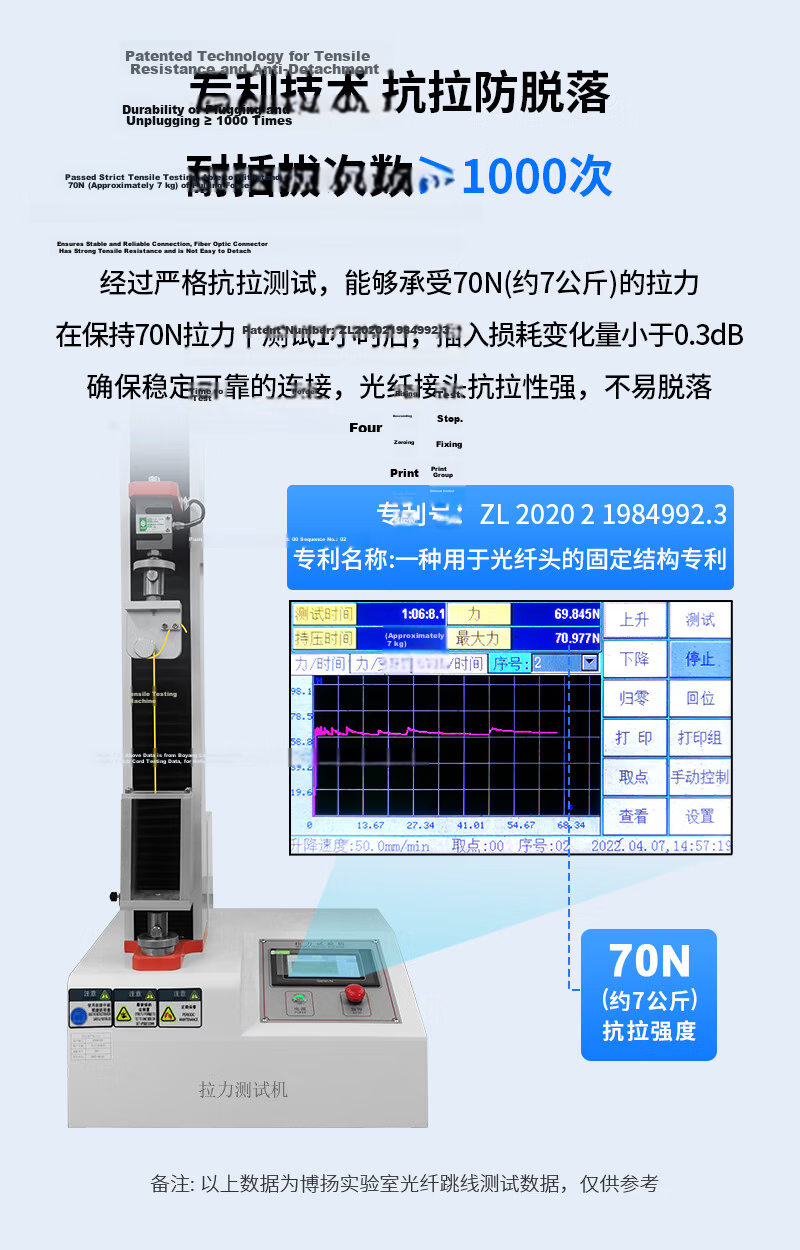

Insertion Loss Stability: Change <0.3 dB after 1 hour under 70N tensile load
Application: Research, development, production, and sales of communication equipment including PH, PCM multiplexers, optical transceivers, industrial Ethernet switches, fiber optic transmission converters, and structured cabling products

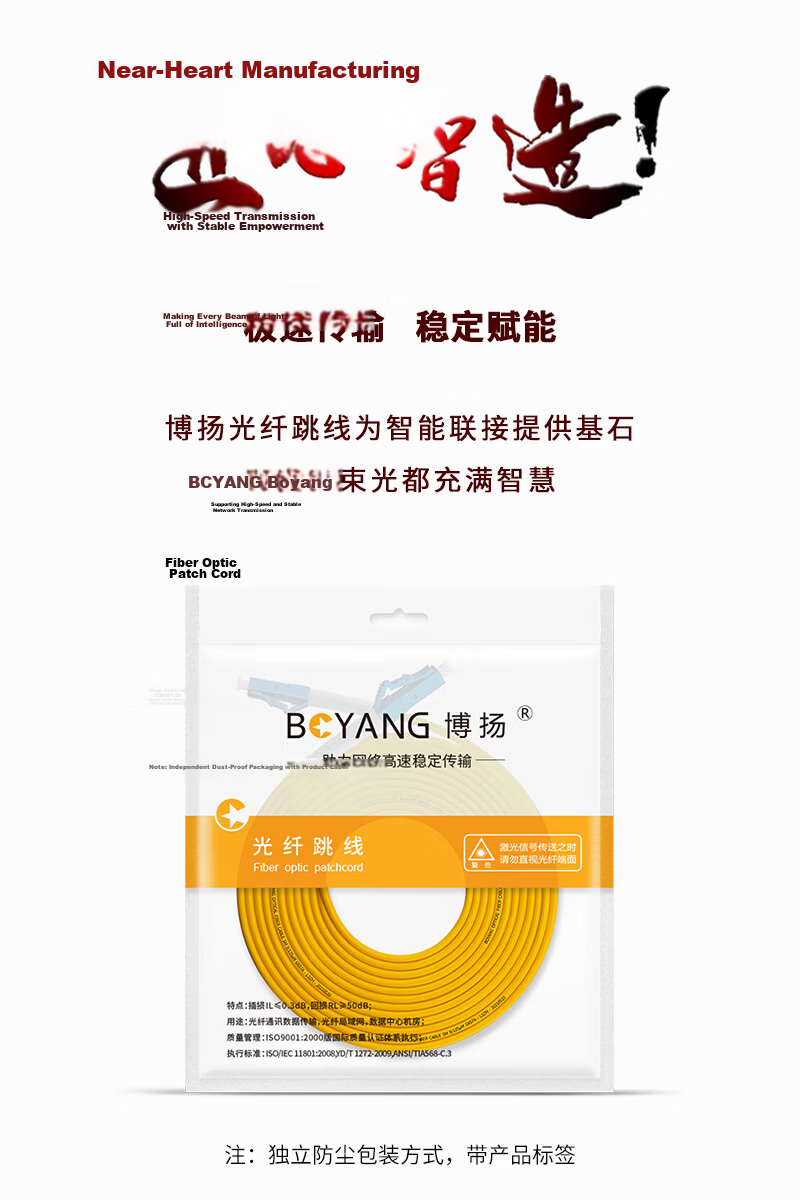

Packaging: Independent dust-proof packaging with product label

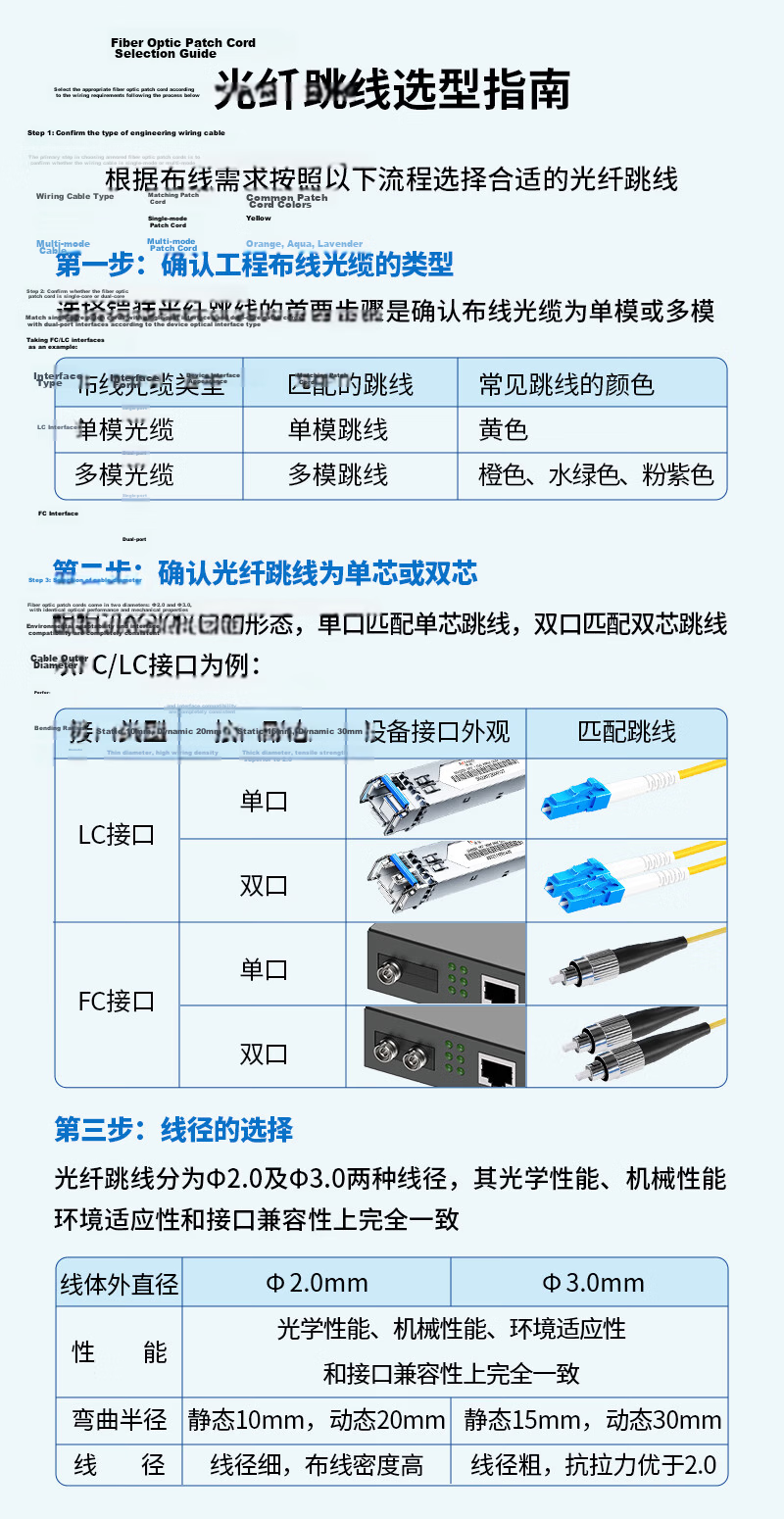

Fiber optic patch cord selection guide available based on cable type, core count, and diameter

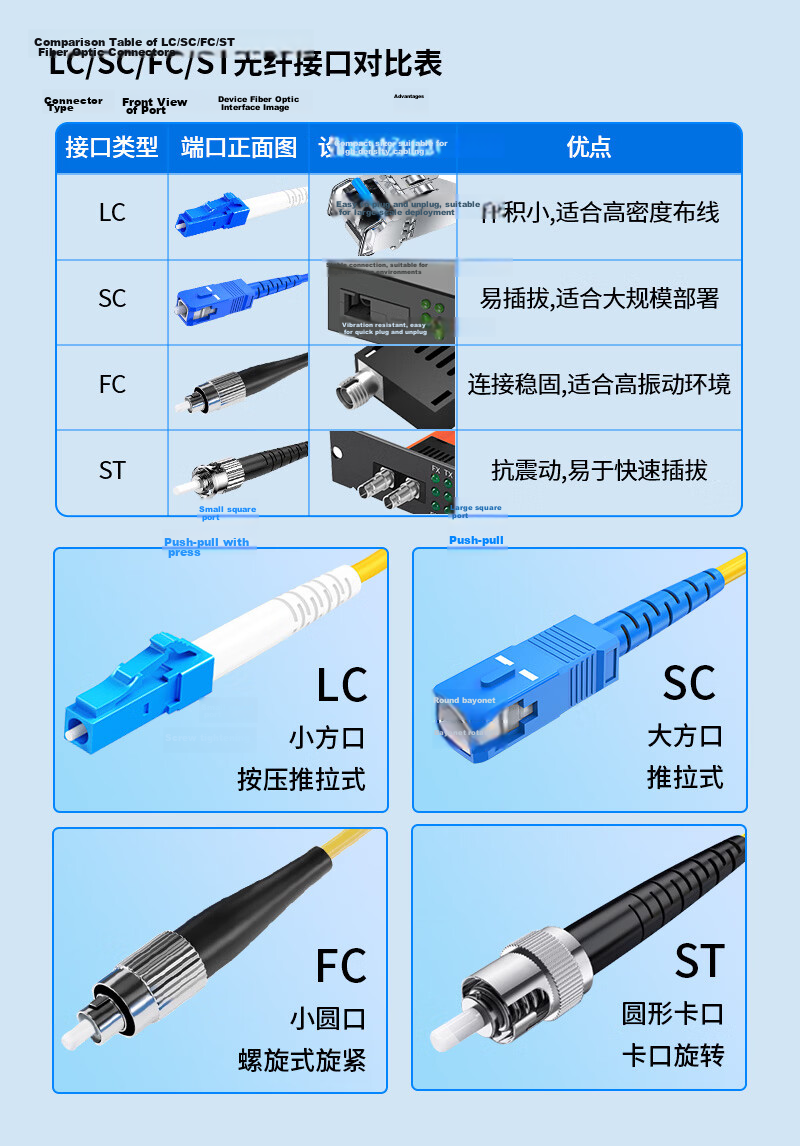

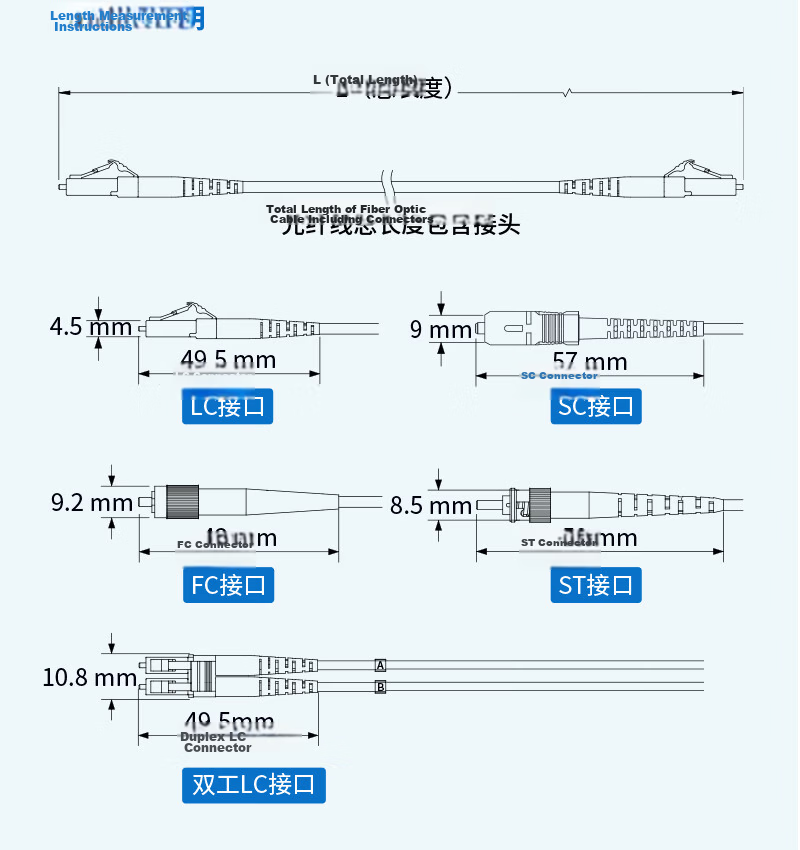

Compatible with LC, SC, FC, ST connectors with detailed interface comparison

Additional details

Cable diameter options: Φ2.0 mm and Φ3.0 mm with consistent optical and mechanical performance
Recommended bending radius varies by cable diameter (Φ2.0 mm: static 10 mm, dynamic 20 mm; Φ3.0 mm: static 15 mm, dynamic 30 mm)

BOYANG fiber optic patch cords deliver high reliability, stability, and performance with strict quality control throughout the manufacturing process. Designed for high-speed, stable network transmission, they provide intelligent connectivity solutions for telecom and industrial applications.
