Smart Mouse NF-8601S Upgraded Cable Length Breakpoint Short Circuit Tester POE Power Supply Length Measurement PING LAN WAN Cable Tracker Locator

•Network Analyzer

Smart Mouse NF-8601S Upgraded Cable Length Breakpoint Short Circuit Tester POE Power Supply Length Measurement PING LAN WAN Cable Tracker Locator

CN¥799.00

SKU: 100002891676

Status:In Stock (3)

ID: 100002891676

Weight: 785.00 g

Dims:275x200x90 mm

Specifications

Network Testing: Cable Tester

Variants / Sale Attributes

Model: NF-8601S

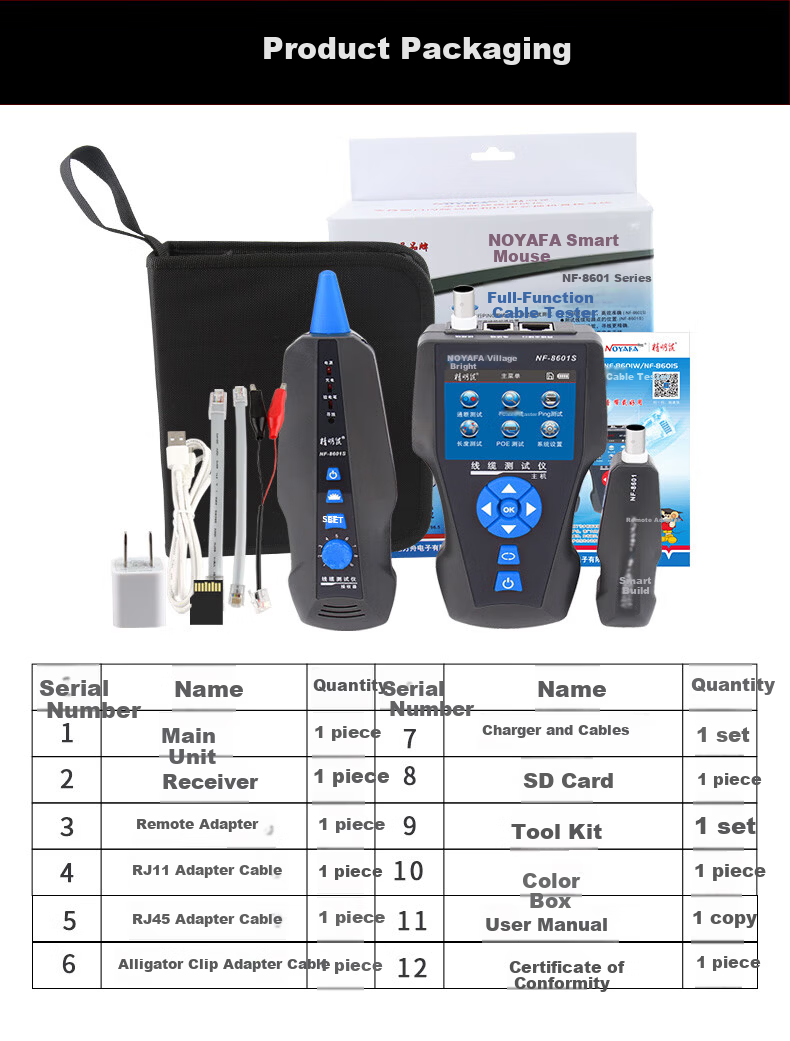

Package Contents

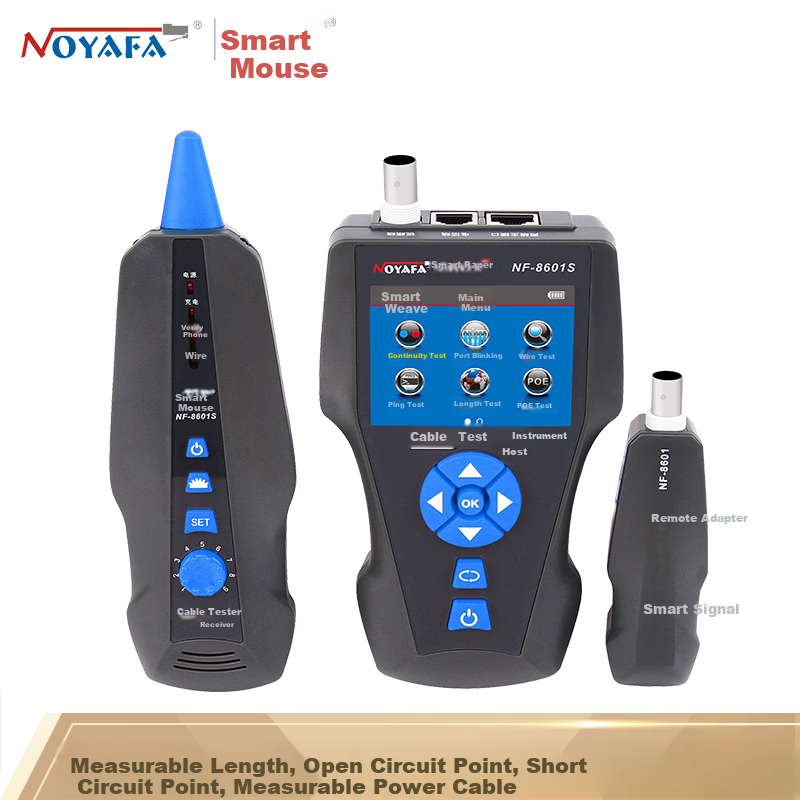

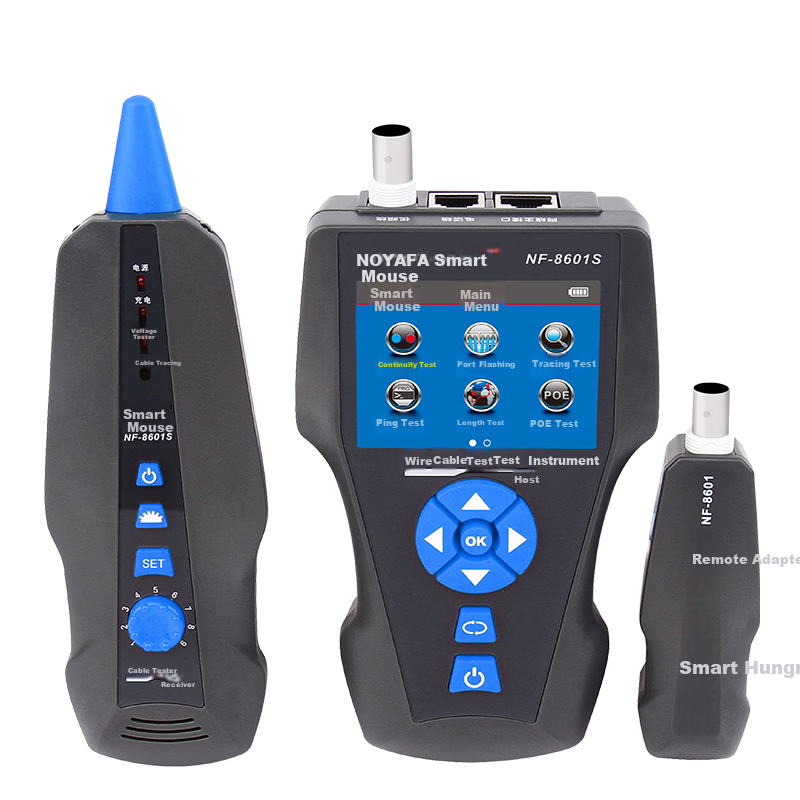

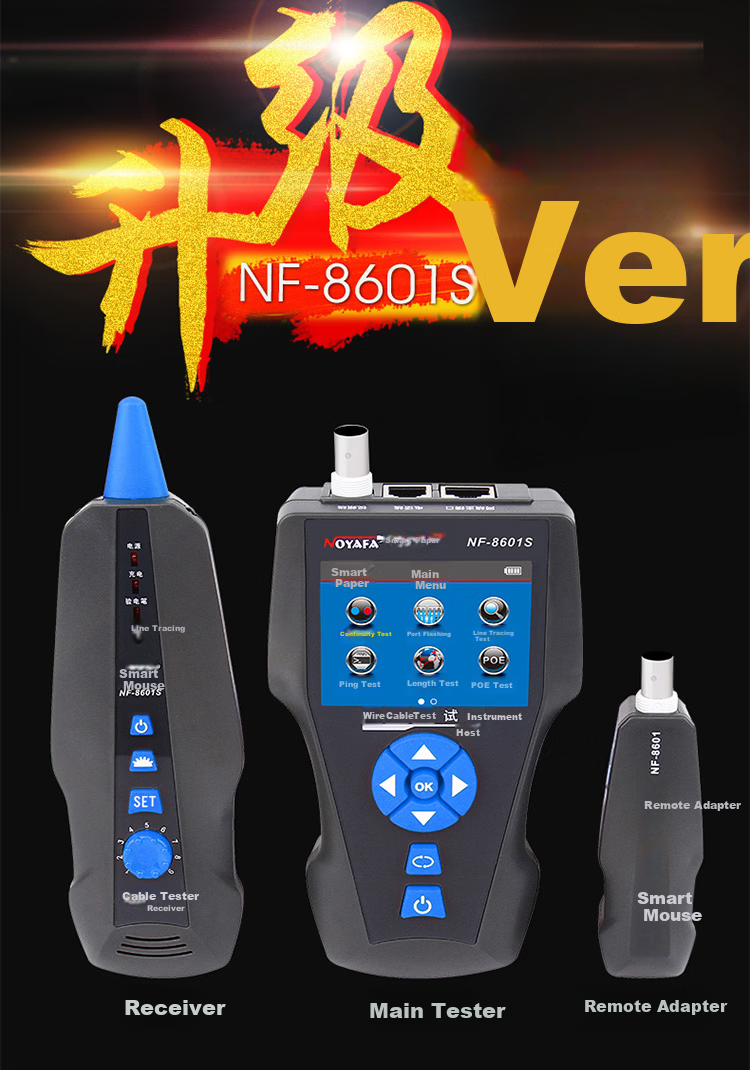

Host, receiver, remote, wiring, toolkit, manual, color box

Product Description

Overview

Brand: NOYAFA ()
Model: NF-8601S

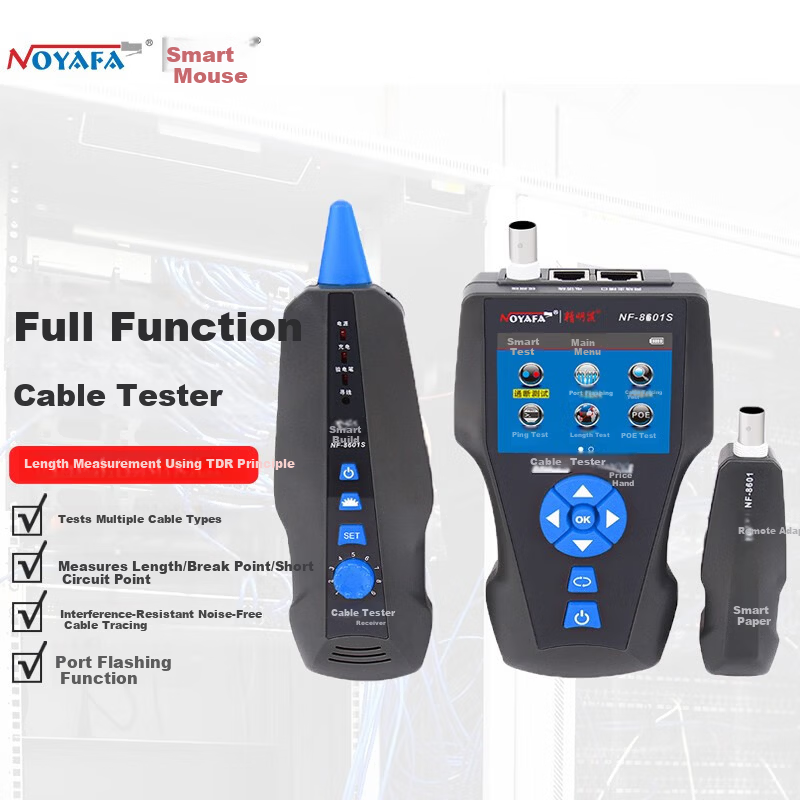

Full-function cable tester designed for network cables, telephone lines, BNC coaxial cables, and power cables.

Supports multiple cable types including Cat5e, Cat6e, Cat6a, Cat7, parallel telephone lines, twisted telephone lines, video cables, and customizable cable types.

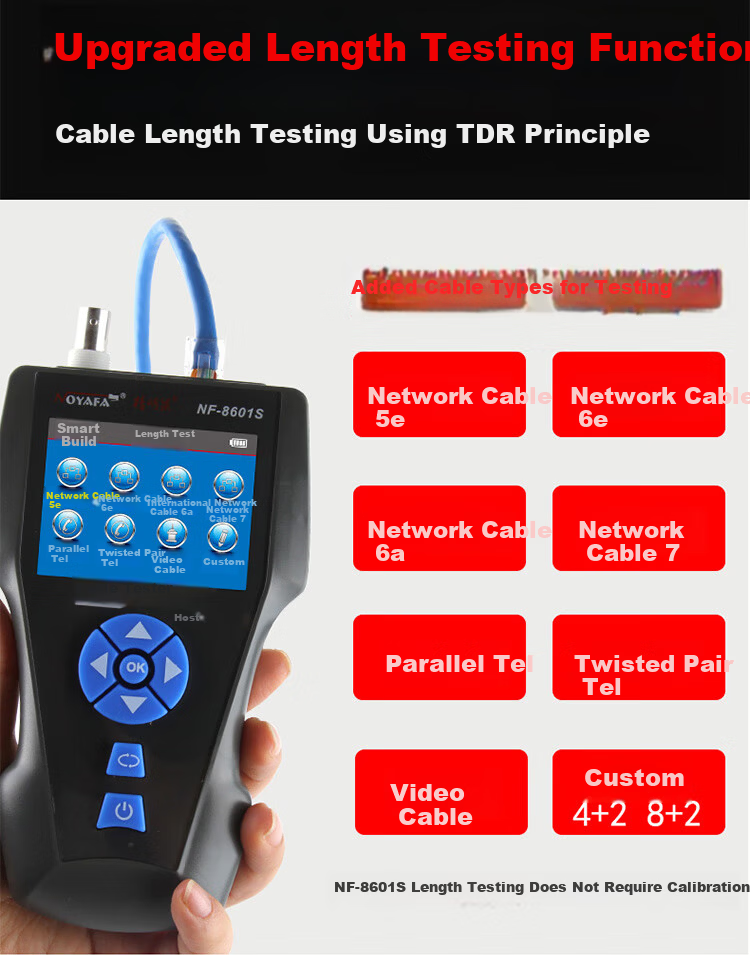

Utilizes TDR (Time Domain Reflectometry) principle for accurate cable length measurement without calibration.

Equipped with a 2.8-inch LCD screen for clear display of test results.

Supports Chinese and English language interface with adjustable backlight brightness and auto power-off settings.

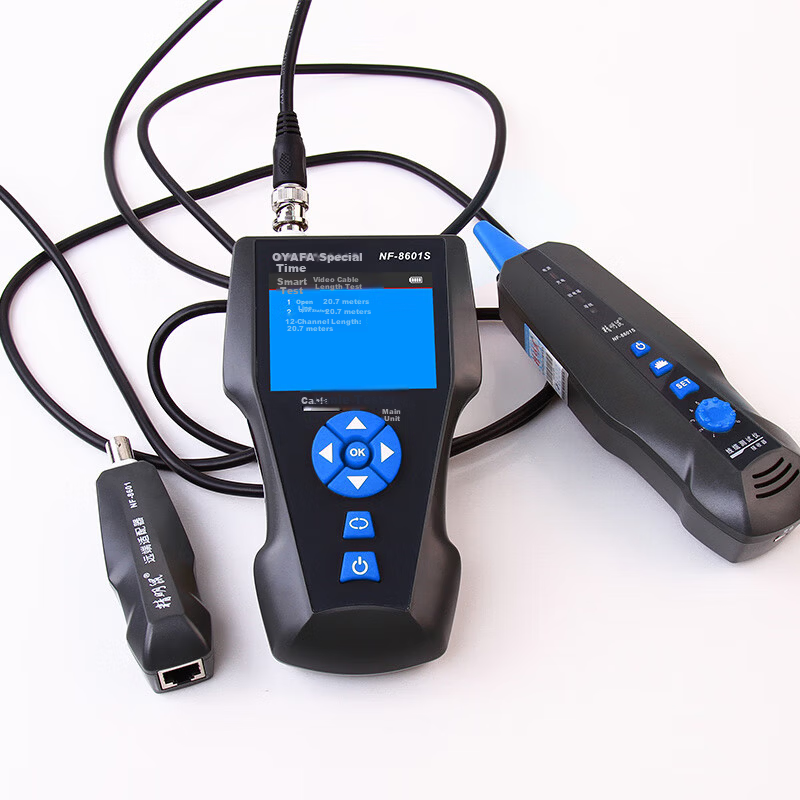

1. Cable Length Testing

Measures length up to 1000 meters for standard network cables.
Supports length testing for Cat5e, Cat6e, Cat6a, Cat7, telephone lines, BNC coaxial cables, and power cables.

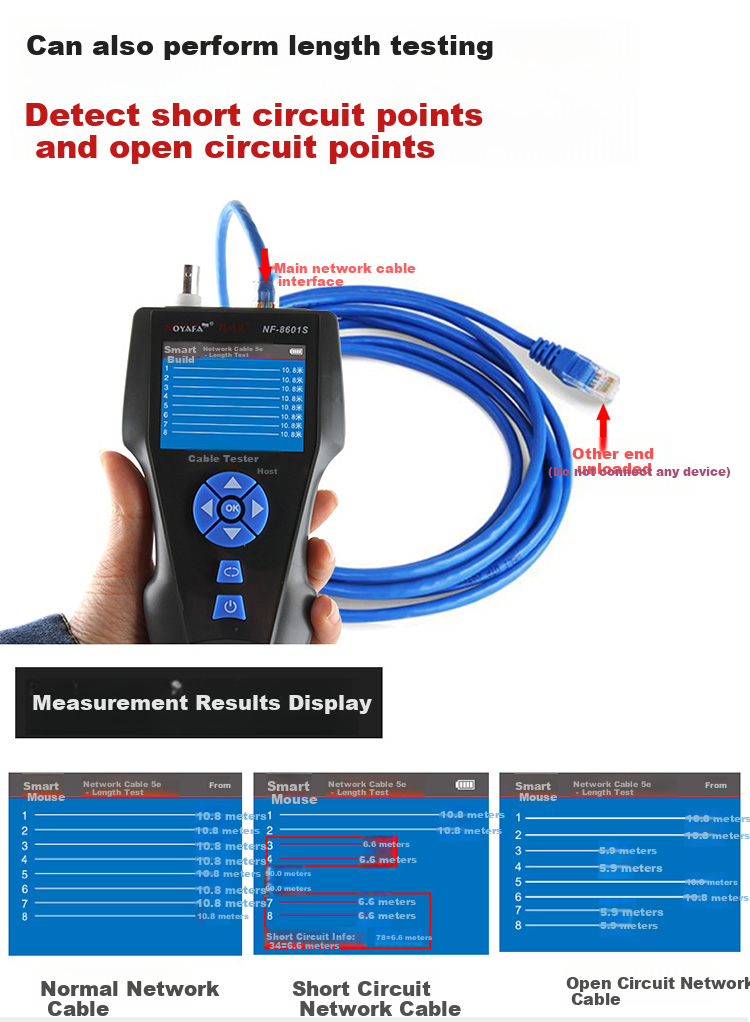

Detects short circuit points and open circuit points during length testing.

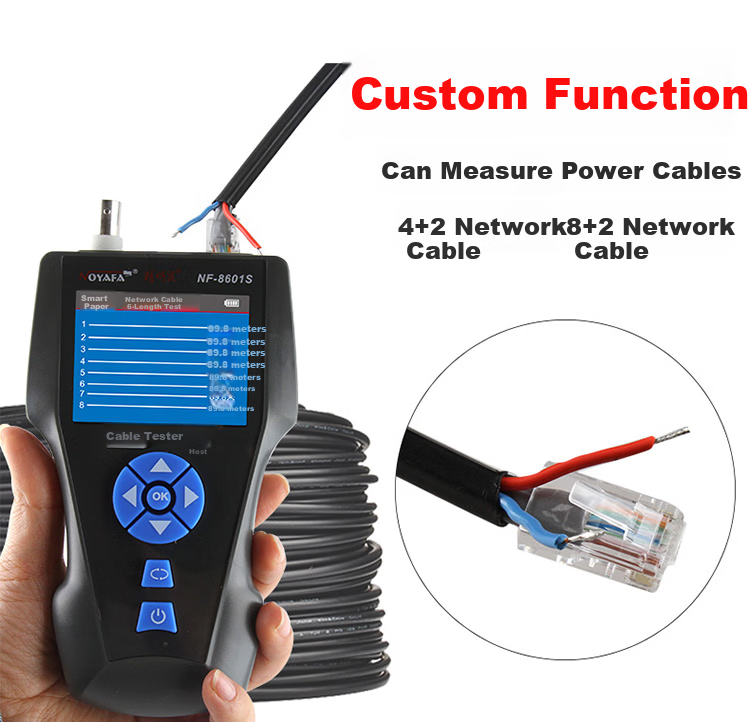

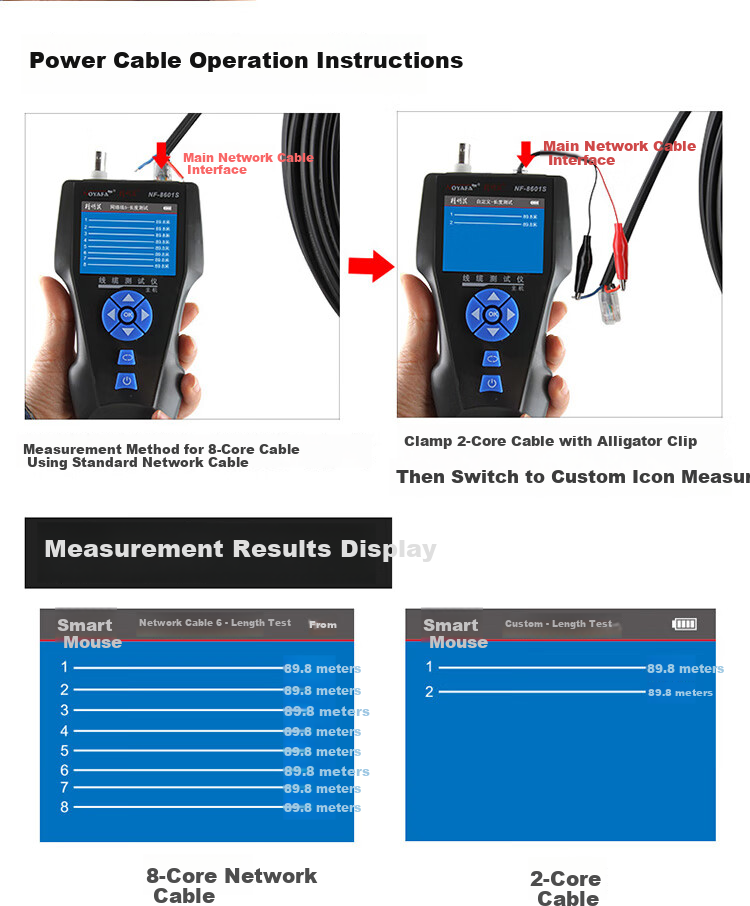

Customizable cable types including 4+2 and 8+2 power cables.
Length measurement example: up to 89.8 meters displayed in tests.

2. Continuity and Wiring Test

Similar Products

In Stock

Network Analyzer

Wanglu Tong OTDR Engineering Multi-Function Fiber Optic Fault Locator Comprehensive Tester Cable Fault Breakpoint Optical Time Domain Reflectometer MT-6510 (1310/1550) 28|26dB

MT-6510（1310/1550）28|26dB

CN¥2,682.00

View

In Stock

Network Analyzer

Wanglutong OTDR Engineer Pro 4K Fiber Breakpoint Detection Comprehensive Tester Multifunctional Optical Time Domain Reflectometer with Optical Testing Cable Detection MT-6510(1610) 28dB

MT6510 (1610) 28dB with optical measurement capability

CN¥2,772.00

View

In Stock

SAMZHENetwork Analyzer

SAMZHE Network Cable Tester, Optical Power Meter, Red Light Integrated Machine, Fiber Optic Tester, Port Flashing Crystal Head Crimping, Anti-Interference, 100V Voltage Resistance, Rechargeable Model SZ-D668

Fiber Optic Testing | Optical Power Meter + 10mW Red Light

CN¥607.05

View

In Stock

SAMZHENetwork Analyzer

SAMZHE Network Cable Tester, Multifunctional Telephone And Network Cable Tester, POE Switch 100V Voltage-Resistant Cable Finder, Anti-Interference Port Flasher NCV Voltage Detector SZ-D368

Industry Top | Synchronous End Flashing with 100V Voltage Resistance

CN¥229.00

View

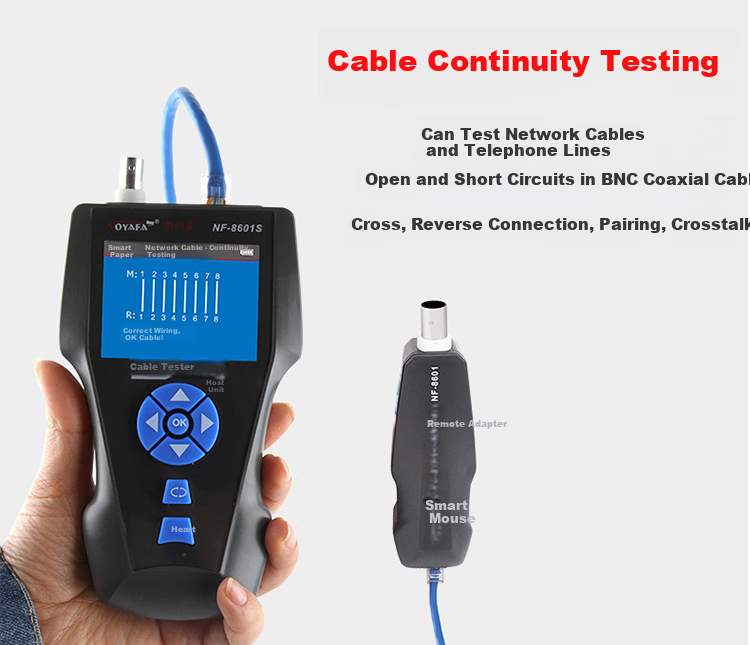

Tests continuity, short circuit, open circuit for network cables, telephone lines, and BNC coaxial cables.
Detects wiring faults such as crossover, reverse connection, pairing errors, and crosstalk.
Displays wiring status with clear indicators (e.g., M:1, R:1, OK).

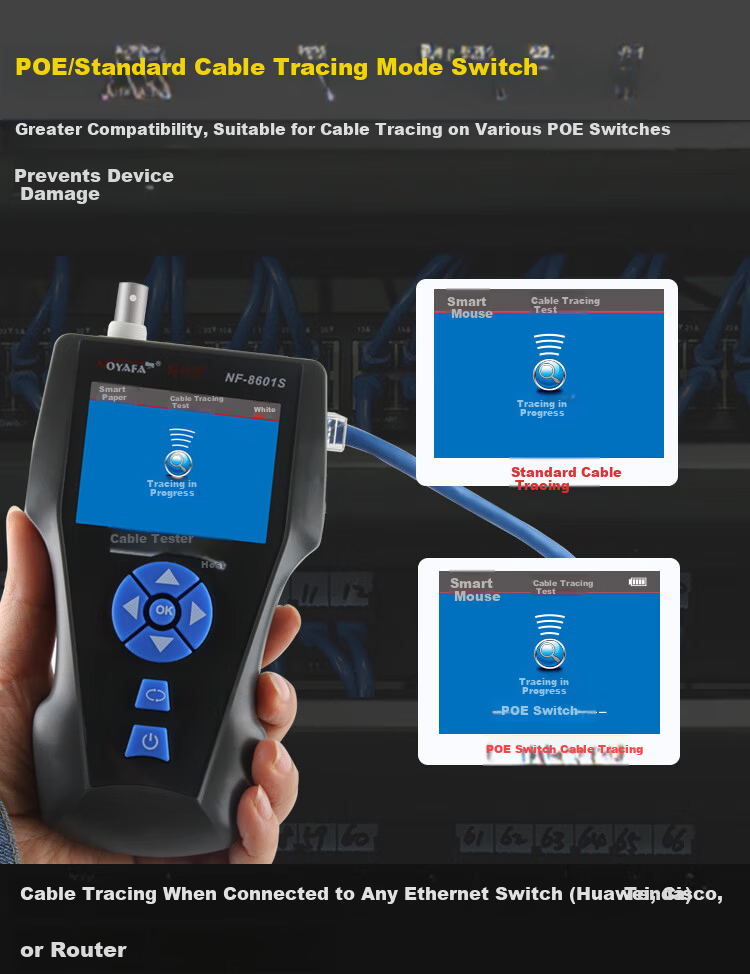

3. Cable Tracing and Tone Generation

Supports two modes: POE tracing and normal tracing.
Compatible with various POE switches and routers (Huawei, Cisco, TP-Link, Tenda).

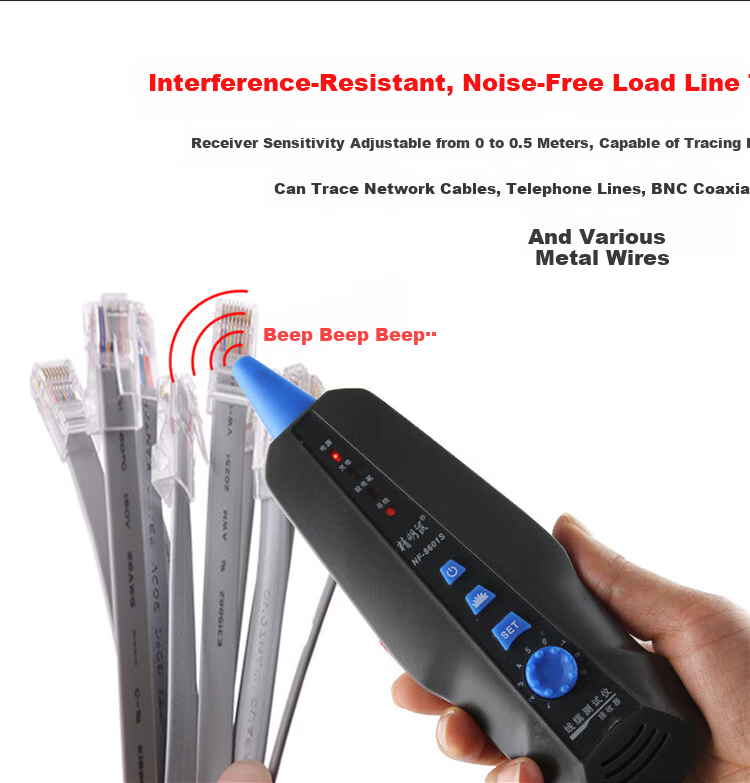

Adjustable receiver sensitivity (0-0.5 meters) for tracing hidden cables.
Supports tracing of network cables, telephone lines, BNC coaxial cables, and various metal wires.

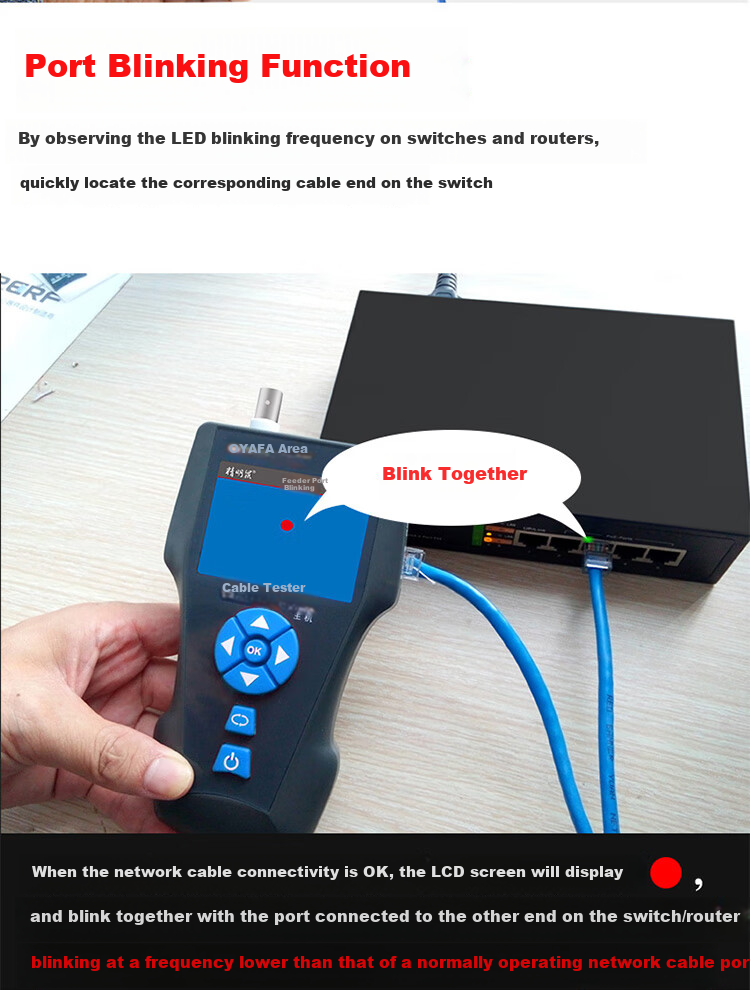

Port flashing function to identify switch/router ports by LED blinking synchronization.

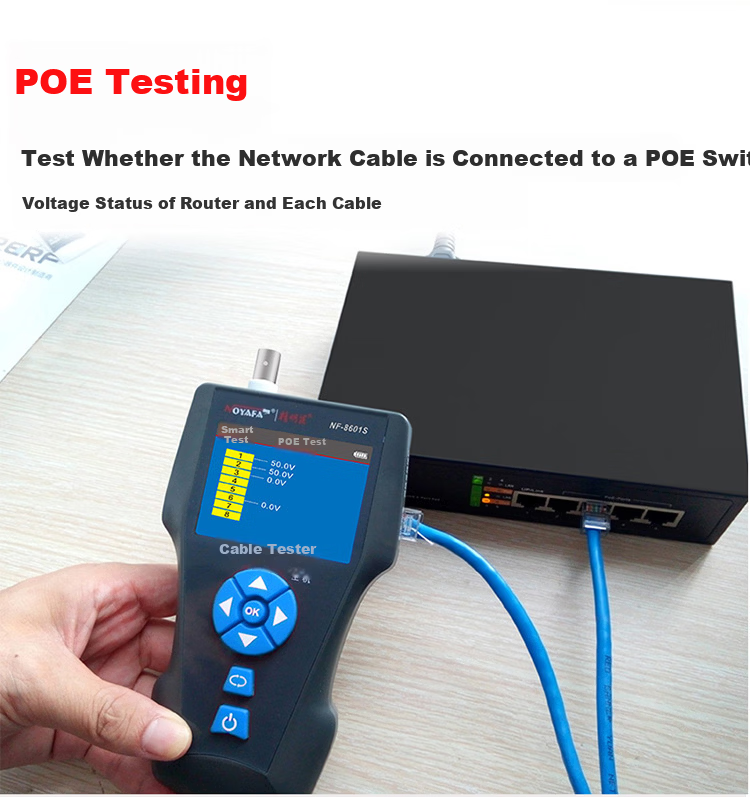

4. POE Testing

Detects presence and voltage of POE power on network cables.
Displays voltage readings (e.g., 50.0V, 0.0V).
Identifies power supply lines and protects against device damage during testing.

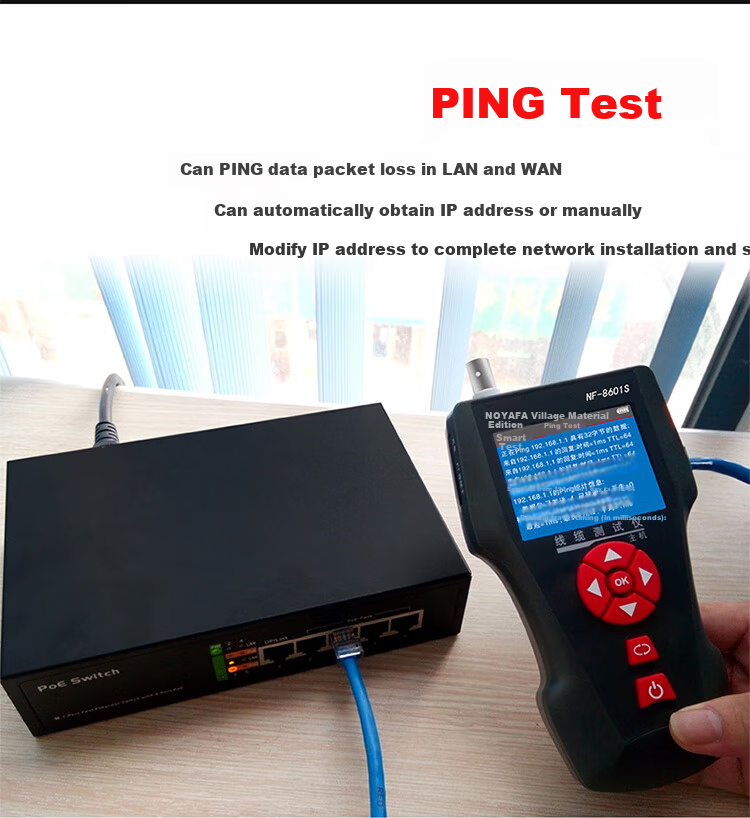

5. Ping Test

Tests LAN and WAN connectivity and packet loss.
Supports automatic and manual IP address configuration.
Useful for network installation and troubleshooting.

6. Data Storage and Export

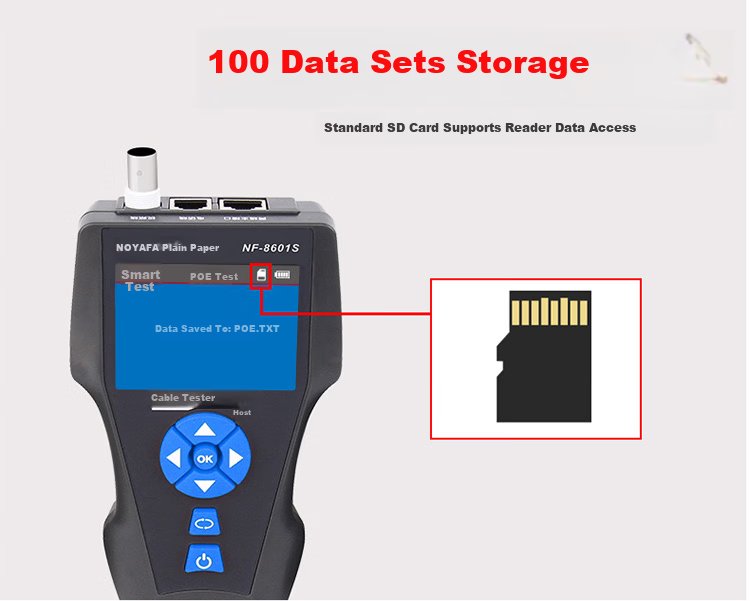

Stores up to 100 test records.
Equipped with SD card slot for data storage and external reading.
Supports exporting test data files (e.g., POE.TXT).

7. Power and Charging

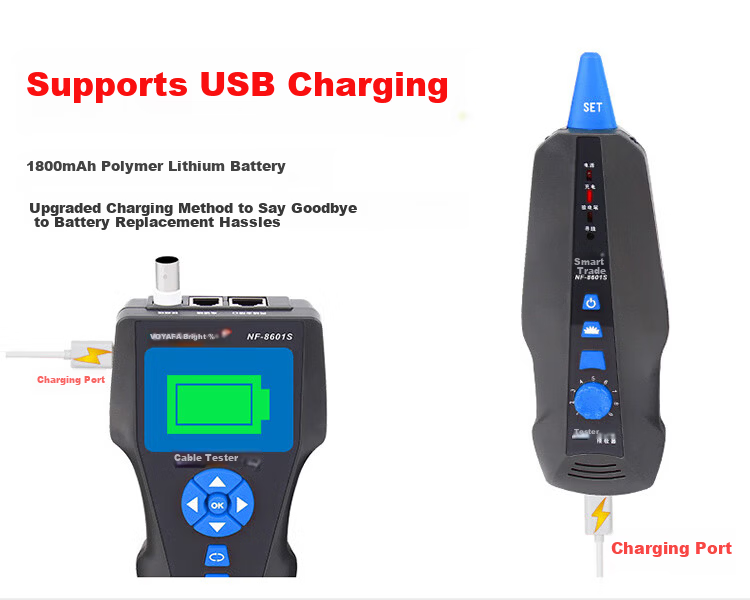

Built-in 1800mAh 3.7V polymer lithium battery.
Supports USB charging for convenience and eliminates battery replacement.

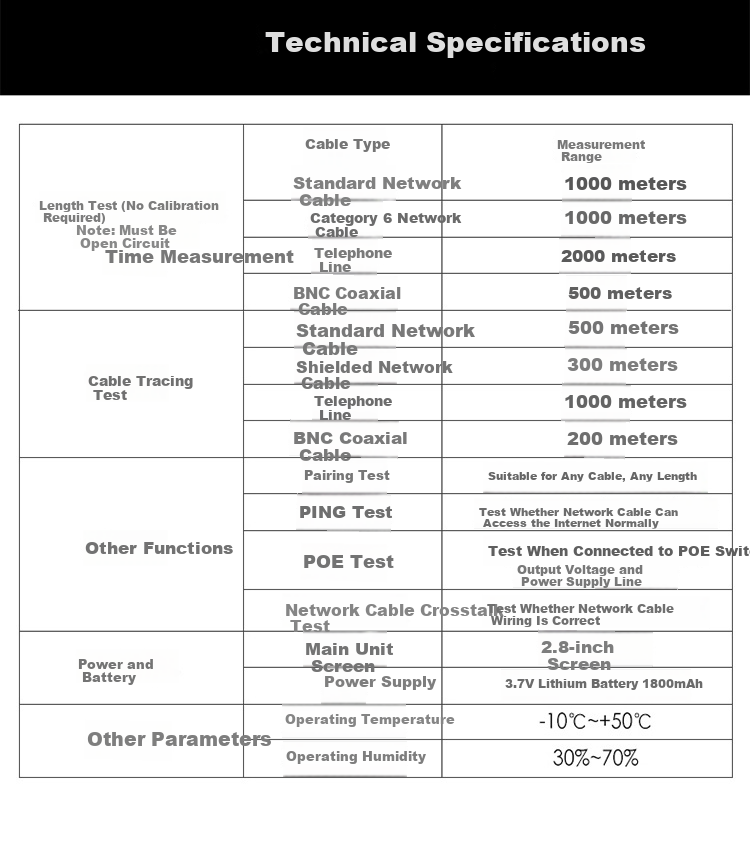

Cable Types and Maximum Test Lengths

Item	Detail
Standard Network Cable	1000 meters
Cat6 Cable	1000 meters (open circuit required)
Telephone Line	2000 meters
BNC Coaxial Cable	500 meters
Shielded Network Cable	300 meters

Additional details

Operating Temperature: -10°C to +50°C
Operating Humidity: 30% to 70%
Display: 2.8-inch LCD screen

3. Remote Adapter (1)

4. RJ11 Adapter Cable (1)

5. RJ45 Adapter Cable (1)

6. Alligator Clip Adapter Cable (1)

7. Charger and Charging Cable (1 set)

12. Certificate of Quality (1)

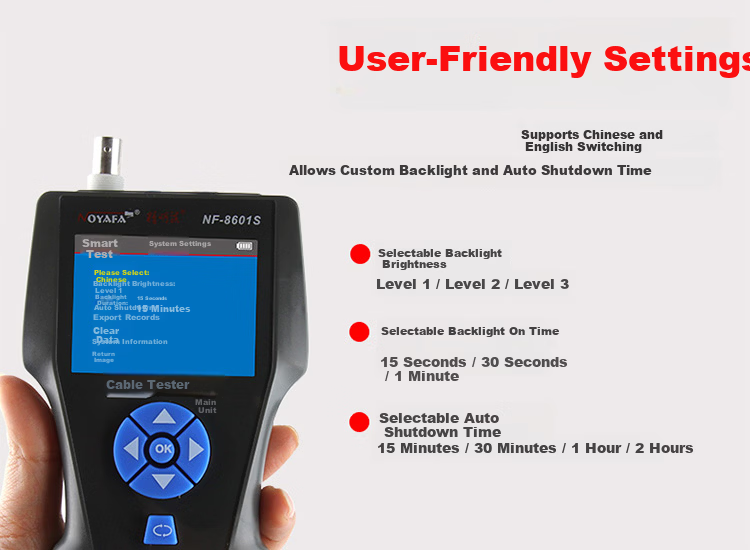

User-friendly system settings including language selection (Chinese/English), backlight brightness (3 levels), backlight duration (15s/30s/1min), and auto power-off time (15min/30min/1h/2h).

Supports custom cable definitions for specialized cable testing.

Anti-interference and noise-free cable tracing with audible tone signals.

Compatible with various network equipment brands and models.

This product is ideal for network engineers, technicians, and installers requiring comprehensive cable testing and troubleshooting capabilities in one portable device.
