NetLINK Fiber Optic Transceiver Rack, 14-Slot Standard 19-Inch 2U Chassis, Desktop Optical-Electrical Converter Frame, Dual Power Redundancy, Telecom Grade, HTB-14AC/D, One Unit
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
netLINK•Network accessories

NetLINK Fiber Optic Transceiver Rack, 14-Slot Standard 19-Inch 2U Chassis, Desktop Optical-Electrical Converter Frame, Dual Power Redundancy, Telecom Grade, HTB-14AC/D, One Unit

CN¥590.00
SKU: 100006849108
Status:In Stock (3)
ID: 100197090838
Weight: 5480.00 g
Dims:548x332x192 mm

Specifications

Category
Fiber Optic Product Accessories
Functions
Connector accessory
Type
Fiber-to-network port

Variants / Sale Attributes

Model: Fiber Optic Transceiver Rack - 14 Slots HTB-14AC/D
品质保证: 自有工厂 源头厂商 全网热销200W

Package Contents

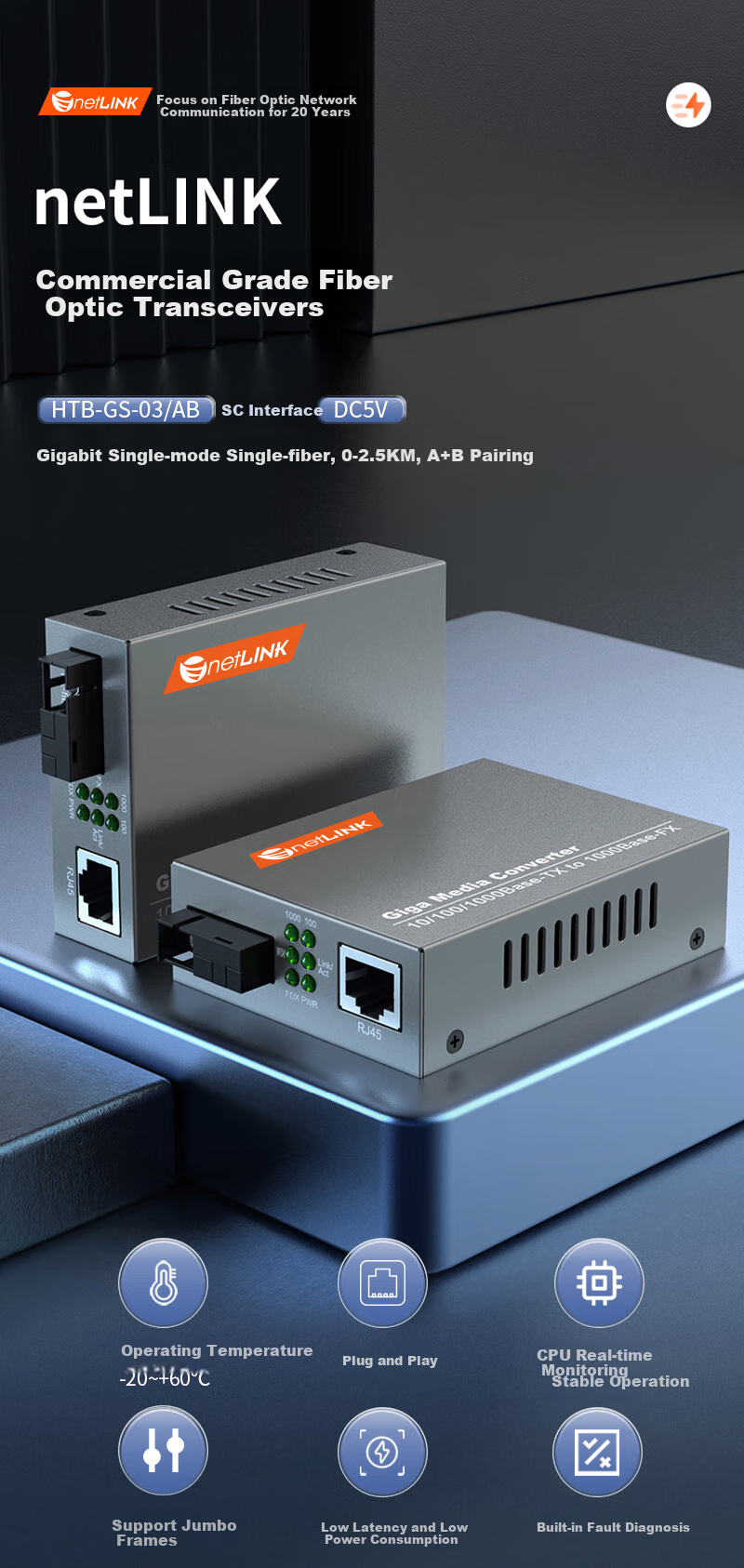

netLINK HTB-GS-03/AB Gigabit Single-mode Single-fiber Optical Transceiver Lightning and Surge Protection Opto-electronic Converter 0-2.5km SC Interface One Pair

Product Description

Overview

Brand
netLINK
Product Name
Fiber Optic Transceiver Rack
Rack Type
Card Type Rack/Desktop Rack
Compatibility
Compatible with netLINK fiber optic transceivers for better stability
Slot Options
14-slot, 16-slot
Rack Type
Desktop Rack
Quality Assurance
Manufacturer Direct Sales, Anti-counterfeiting Verification

Similar Products

In Stock
EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter
EB-LINKNetwork accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

1channel bidirectional 485 optical transceiver

CN¥145.00

View
In Stock
ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S
SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CN¥77.00

View
Power Supply
Centralized Power Conversion Center with main and backup power supply and automatic switching
Module Slots
Equipped with 14/16 module slots, supporting hot-swappable modules

Features

  • Dual Power Supply
  • Dual Switch
  • Dual Cooling Fans for uninterrupted system operation
  • Hot-swappable modules
  • Two high-performance fans for improved ventilation and heat dissipation

Additional details

Certifications
CEFC, CEFG
Standards
Compliant with Telecom Grade Operating Standards, Average Fault-free Operation for over 50,000 hours
Power Input
AC100-260V
Suitability
Suitable for various working environments
Model Options
HTB-14AC, CEFC; HTB-14AC/D, CEFC
Product Structure
19-inch 2U rack-mounted, 14 module slots
Power Input
AC100~260V, 50~60Hz
Power Configuration
Dual redundant power supplies
Operating Temperature
-10℃~65℃
Power Output
DC5V12A
Power Consumption
≤60W
Relative Humidity
5%~90%
Product Dimensions
488x230x90 mm
Stability
Main and backup power supplies ensure system stability

1. Unscrew the fiber optic transceiver with a screwdriver

2. Install the bracket on the fiber optic transceiver

3. Insert the transceiver with the installed bracket into the rack, screw (on the side without the warranty label)

4. Tighten the screws on the transceiver baffle, secure the transceiver

5. Installation complete, fix it on the rack

Additional details

Rack Type
Card Type Rack
Model Options
HTB-16AC, CEFO; HTB-16AC/D

Package Contents

  • Fiber Optic Transceiver Rack
  • Packaging Box x1
  • Power Cord x2
  • User Manual x1
  • Certificate of Conformity x1
  • Telecom Grade 14-slot Fiber Optic Transceiver Rack
  • Mounting Brackets x14
  • This unit does not include a power supply
