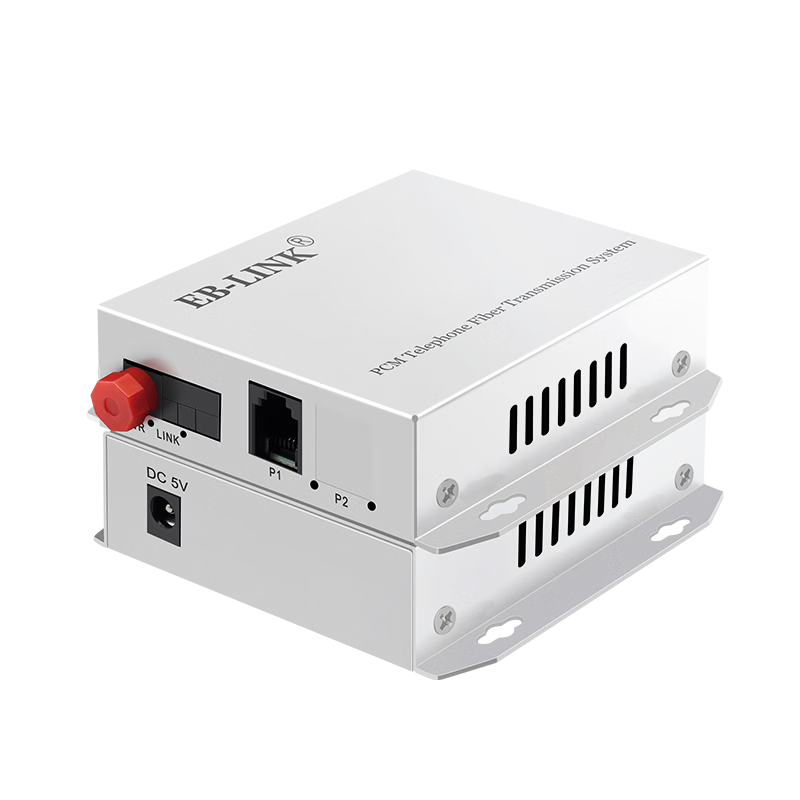

EB-LINK Optical Terminal 2-Channel Telephone + 1-Channel 100Mbps Network PCM Voice Audio Intercom Telephone Transceiver Fiber Optic Transmitter FC Interface
Thumbnail 1
Thumbnail 2
Thumbnail 3
EB-LINK•Network accessories

EB-LINK Optical Terminal 2-Channel Telephone + 1-Channel 100Mbps Network PCM Voice Audio Intercom Telephone Transceiver Fiber Optic Transmitter FC Interface

CNÂ¥138.00
SKU: 100007708371
Status:In Stock (5)
ID: 100007708371
Weight: 670.00 g
Dims:248x203x88 mm

Specifications

Category
Fiber Optic Product Accessories
Type
Optical Network Unit (ONU)

Variants / Sale Attributes

Model: 1channel telephone optical transceiver (1 pair)
Version: pure telephone

Package Contents

One pair of telephone optical transceivers, two power supplies, one instruction manual, and one certificate of conformity.

Product Description

Product Specifications

Overview

Brand
EB-LINK
Product Name
Single-Channel Telephone Optical Terminal

Supports Caller ID and Fax Function

High-Quality Voice Chip for Clear and Stable Telephone Audio

Plug and Play, No Setup Required

Compatible with 2U Rack Mount or Desktop Installation

Wall-Mountable Metal Case with Cooling Holes on Both Sides for Effective Heat Dissipation

Lightning Protection and Anti-Interference Design

Built-in AGM Voice Noise Reduction Chip for Clear Sound and Stable Data Transmission

Multi-threaded Decoding for Noise Reduction and Enhanced Call Quality

Supports Hot Swapping (Hot Plug)

High Performance Noise Reduction Chip

Additional details

Similar Products

In Stock
EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter
EB-LINKNetwork accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

1channel bidirectional 485 optical transceiver

CNÂ¥145.00

View
In Stock
ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S
SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CNÂ¥77.00

View
Interface
RJ11 Telephone Port, FC Fiber Optic Interface
Power Supply
DC 5V/2A
Transmission Distance
Single Mode Fiber up to 20 km; Multi Mode Fiber up to 2 km
Wavelength
1310/1550 nm
Product Dimensions
93 x 71 x 26 mm
Housing Material
Matte Metal, Corrosion and Rust Resistant
Operating Temperature
-10°C to 60°C
Storage Temperature
-40°C to 85°C
Operating Humidity
0% to 95% (Non-condensing)

FXS Telephone Port

ItemDetail
Ring Voltage75V
Ring Frequency25 Hz
Two-wire Input Impedance600 Ω
Return Loss20 dB (Off-hook)

FXO Trunk Port

ItemDetail
Ring Voltage35V
Ring Frequency17-60 Hz
Two-wire Input Impedance600 Ω
Return Loss20 dB (Off-hook)

Supports Desktop or Rack Mount (2U)

Wall Mountable

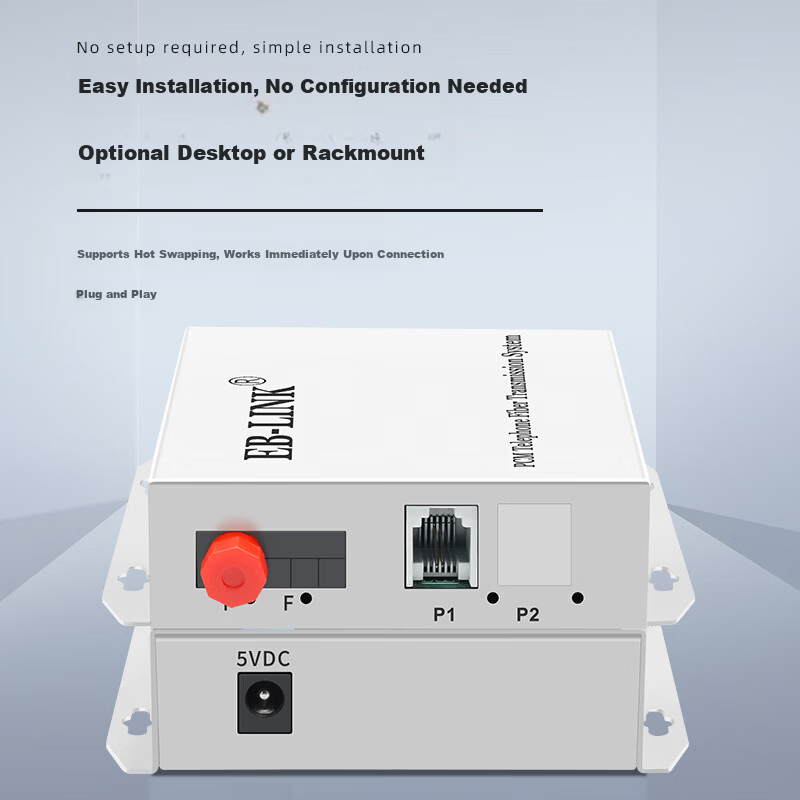

Simple Installation, No Configuration Needed

Connect Transmitter (A side) to Telephone Line or PBX; Receiver (B side) to Telephone or PBX

Reversing transmitter and receiver connections will cause malfunction

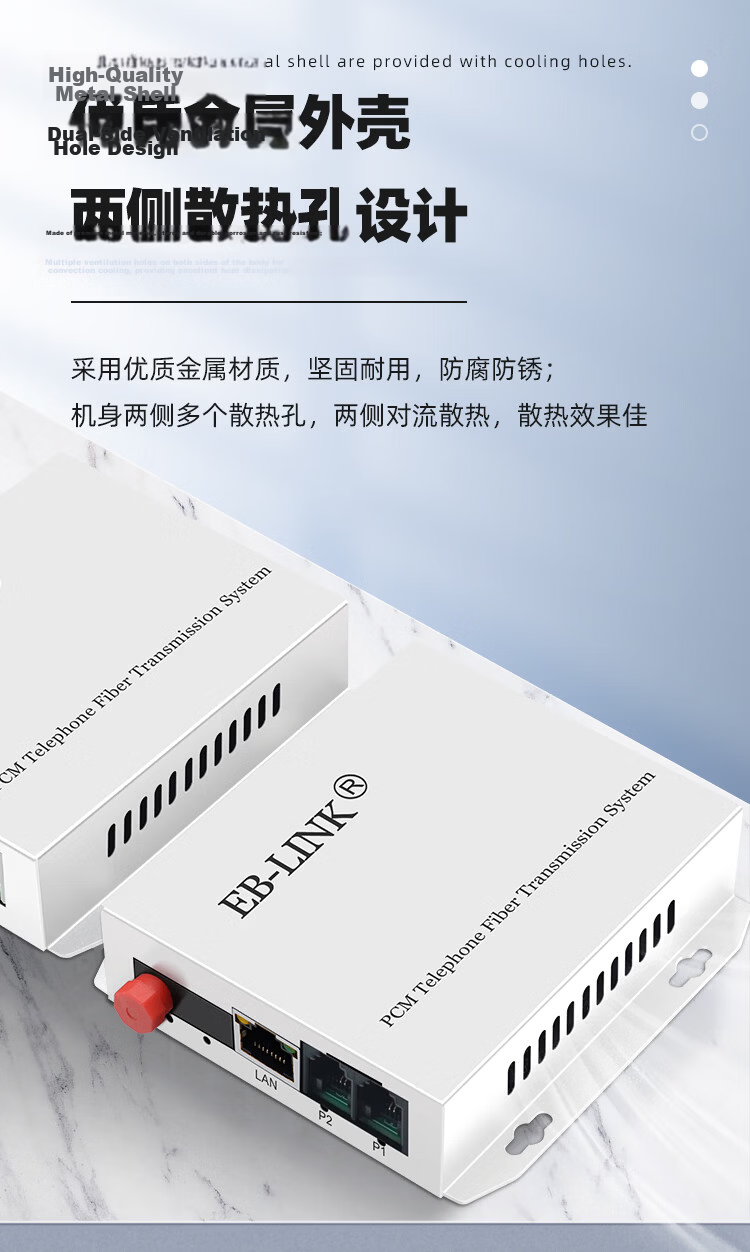

High-quality metal shell with multiple cooling holes on both sides for convection cooling

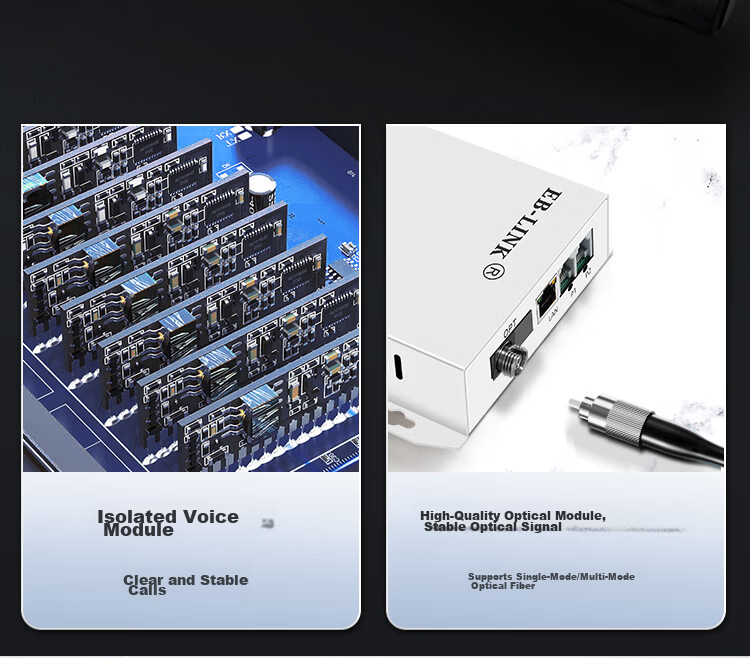

Ensures stable and clear voice transmission over fiber optic networks

Suitable for PCMTelephone Fiber Transmission Systems
