BOYANG Protocol Converter E1 to Ethernet, 2m Protocol Converter, 4e1 Protocol Converter, 4-Channel E1(8M) to 1-Channel Ethernet, Rack-Mounted, Price for One Pair BY-E4F1

BOYANG•Network accessories

BOYANG Protocol Converter E1 to Ethernet, 2m Protocol Converter, 4e1 Protocol Converter, 4-Channel E1(8M) to 1-Channel Ethernet, Rack-Mounted, Price for One Pair BY-E4F1

CN¥1,990.00

SKU: 100009900420

Status:In Stock (1)

ID: 100009900444

Weight: 4760.00 g

Dims:570x248x198 mm

Specifications

Category: Fiber Optic Product Accessories
Type: Optical Network Unit (ONU)

Variants / Sale Attributes

Model: 4-Port E1 to 1-Port Ethernet (Jingcang)

Package Contents

BOYANG E1 to Ethernet Protocol Converter 2M Protocol Converter 1 Channel E1(2M) to 1 Channel Ethernet Rack-mounted 1 set BY-E1F1*1 Certificate of Conformity *1

Product Description

Overview

Brand: BOYANG
Product Name: End-to-End E1 Dedicated Network Transmission System Solution
Model: BY-E4F1
Description: 4-channel E1 (8 M) to 1-channel Ethernet protocol converter

Features

Strong stability
High security and reliability

Similar Products

In Stock

EB-LINKNetwork accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

1channel bidirectional 485 optical transceiver

CN¥145.00

View

In Stock

SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CN¥77.00

View

Additional details

Power Supply: AC 220V
Warranty: Three years free warranty, nationwide coverage
Certifications: National High-tech Enterprise, Specialized and New Enterprise, Patent Technology Products

Patents

Communication Optical Terminal with Efficient Heat Dissipation (Patent No.: ZL202122616675.7)
PDH Optical Terminal Supporting Magnetic Phone, E1, and Network Isolation (Patent No.: ZL202221484804.X)

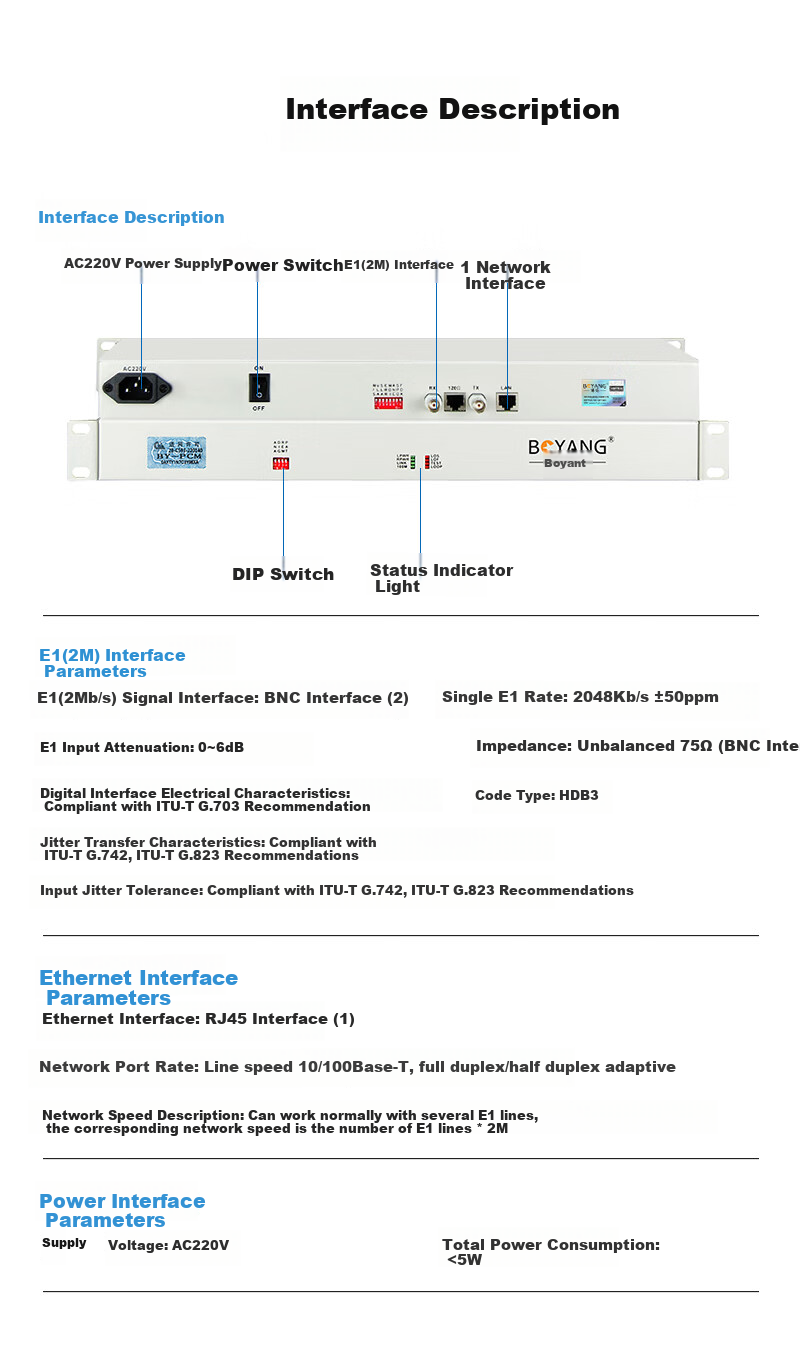

Interface

AC 220V power input
Power switch
Network interface
E1 (2M) interface

E1 Interface Parameters

Item	Detail
E1 (2Mb/s) signal interface	BNC interface (8 ports)
Single E1 rate	2048Kb/s ±50ppm
E1 input attenuation	0~6dB
Impedance	Unbalanced 75Ω (BNC port)
Digital interface electrical characteristics	Compliant with ITU-T G.703 recommendation

Ethernet Interface Parameters

Item	Detail
Ethernet interface	RJ45 interface (1 port)
Network speed	10/100Base-T line speed, full/half duplex adaptive

Power Interface Parameters

Item	Detail
Dual power supply	AC 220V, DC -48V
Total power consumption	<15W

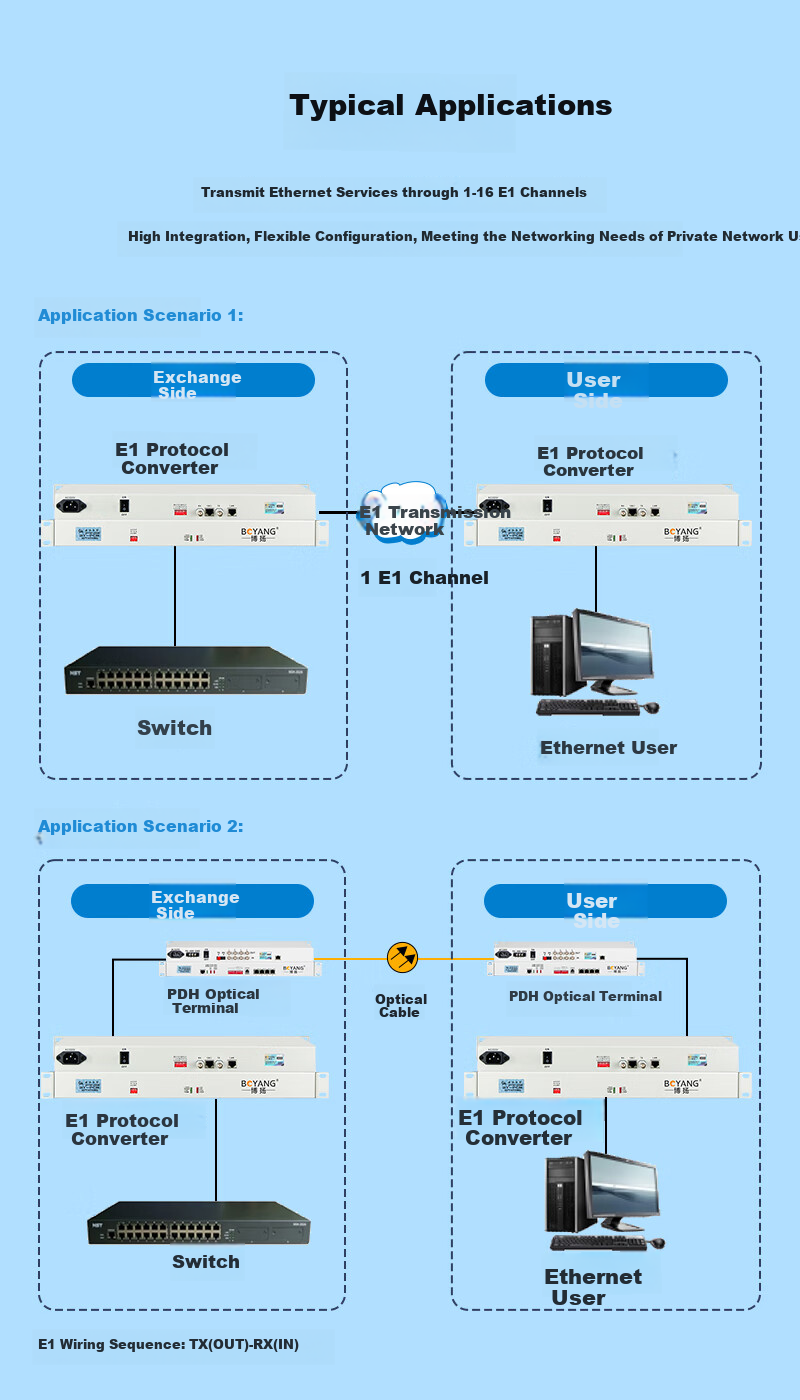

Typical Applications

Transmission of Ethernet services through 1-16 E1 channels
High integration, flexible configuration, meeting the networking needs of dedicated network users

Applications

E1 Protocol Converter
PDH Optical Terminal

Compatible Cables and Accessories

SYV75-2 cable
BNC-L9 jumper
DDF distribution frame
Network jumper

Additional details

Usage Scenarios: Widely used in public safety, power, telecommunications, and transportation industries for point-to-point optical transmission systems

This is a summary of the product specifications for the BOYANG End-to-End E1 Dedicated Network Transmission System Solution (Model: BY-E4F1).
