Back to CatalogDELIXI ELECTRIC Industrial Infrared Thermometer High-Precision Temperature Gun for Oil, Kitchen Baking, and Water Temperature Measurement
Specifications
- Category
- Handheld
- Screen display
- color screen
Variants / Sale Attributes
Model: [50~900℃] Adjustable Frequency / 13Point Positioning
Measuring range: official standard configuration
Package Contents
Product main body ×1
Product Description
Product Specifications
Overview
- Brand
- DELIXI ELECTRIC
- Product Type
- Infrared Non-contact Thermometer (Infrared Temperature Gun)
- Models
- DM-5001 (Basic), DM-5003 (Professional), DM-5005 (Industrial), DM-5006, DM-5007, DM-5008 (High Temperature Versions)
- DM-5001
- 0°C to 500°C (32°F to 932°F)

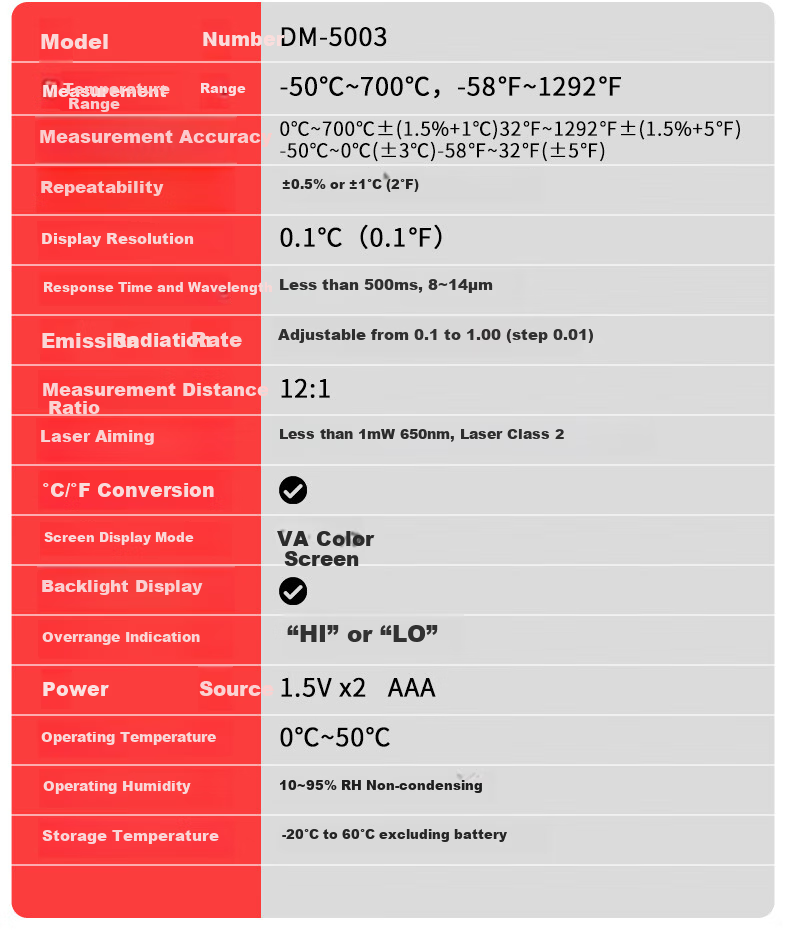

- DM-5003
- -50°C to 700°C (-58°F to 1292°F)

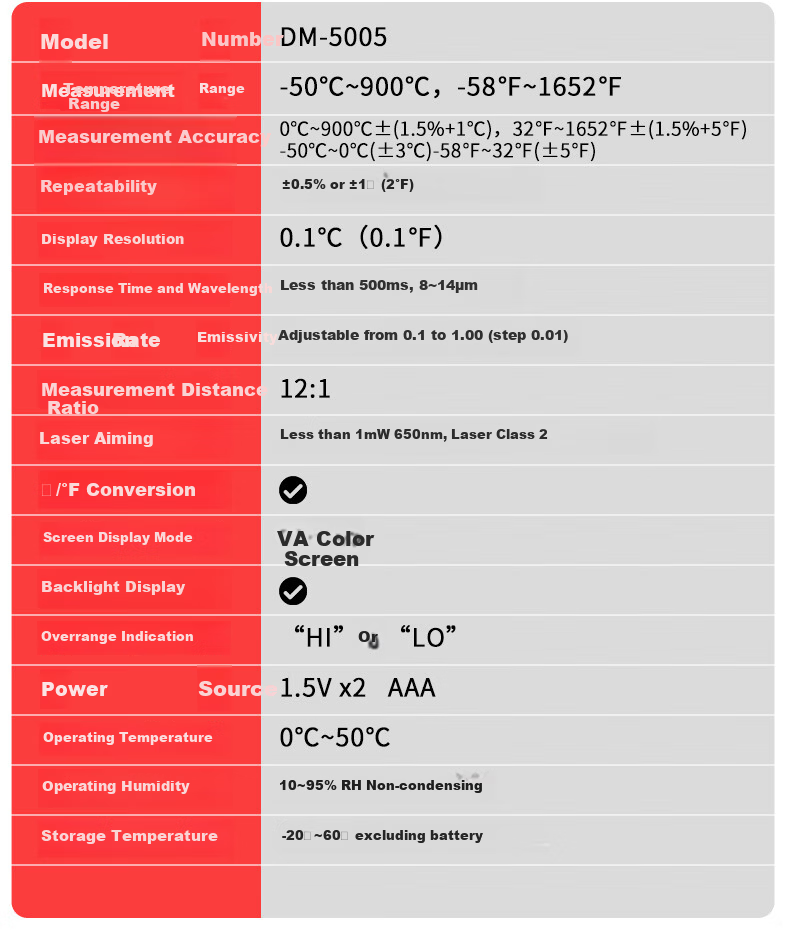

- DM-5005
- -50°C to 900°C (-58°F to 1652°F)
- DM-5006
Similar Products
In Stock
In Stock

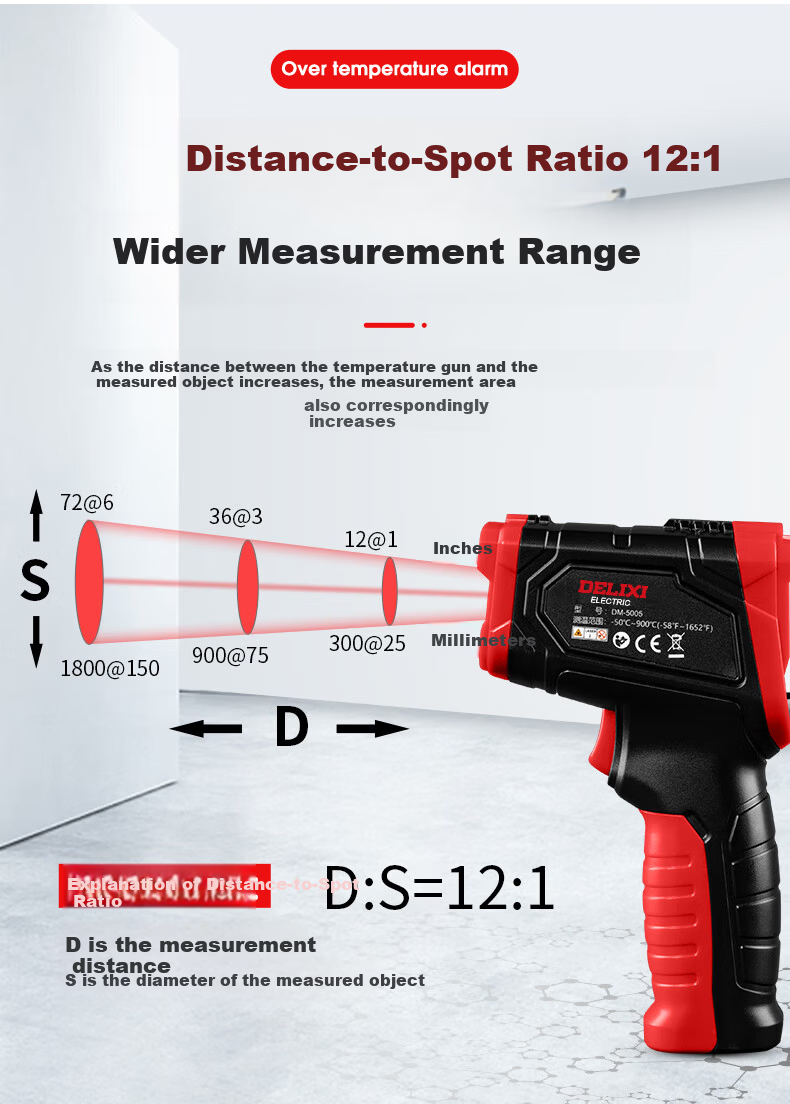

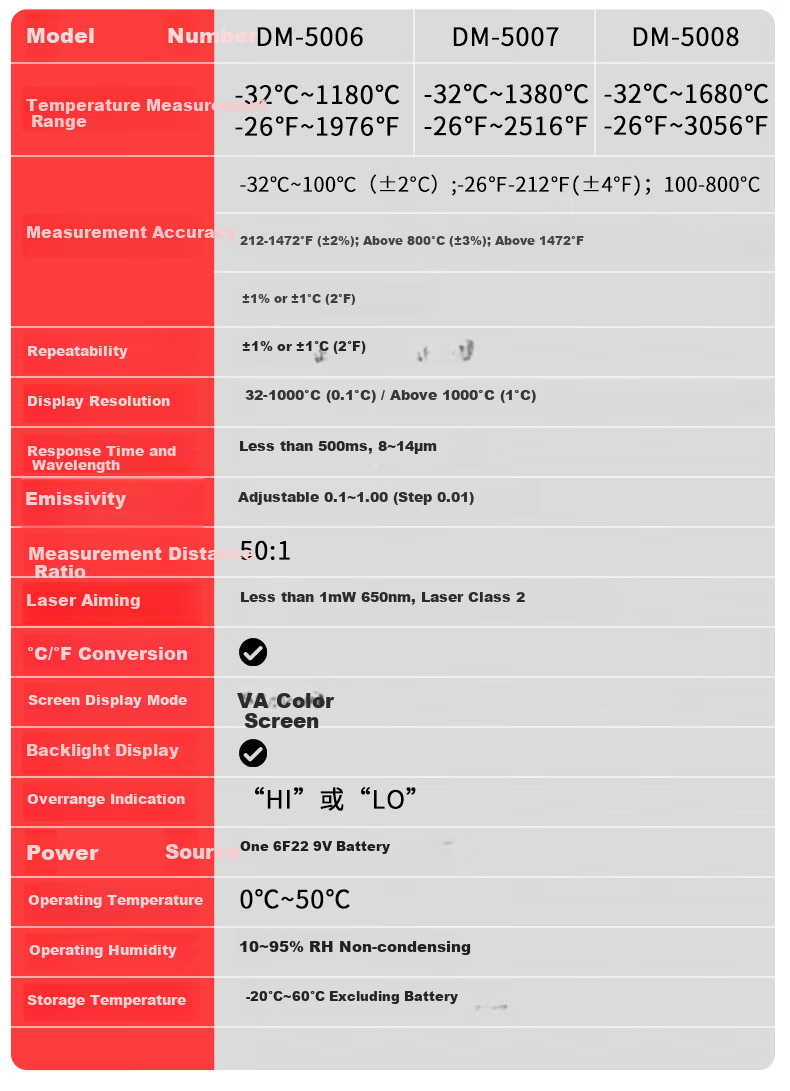

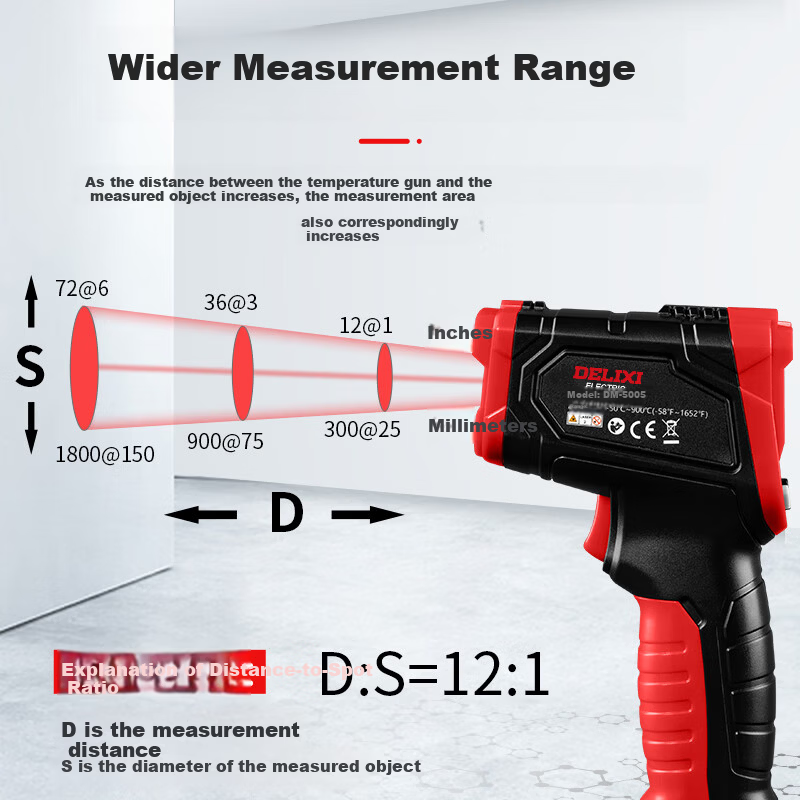

DM-5007-32°C to 1380°C (-26°F to 2516°F) DM-5008-32°C to 1680°C (-26°F to 3056°F) 0°C to 700°C±(1.5% + 1°C) Above 700°C (for high temp models)±1% or ±1°C Repeatability±0.5% or ±1°C (±2°F) Response TimeLess than 500 milliseconds Wavelength Range8 to 14 μm EmissivityAdjustable from 0.1 to 1.0 (step 0.01), default 0.95 Distance-to-Spot Ratio (DS): 12:1 for most models; up to 50:1 for high temperature models Laser PointsSingle or 13-point laser for precise positioning depending on model TypeHigh-definition color VA screen with backlight Features

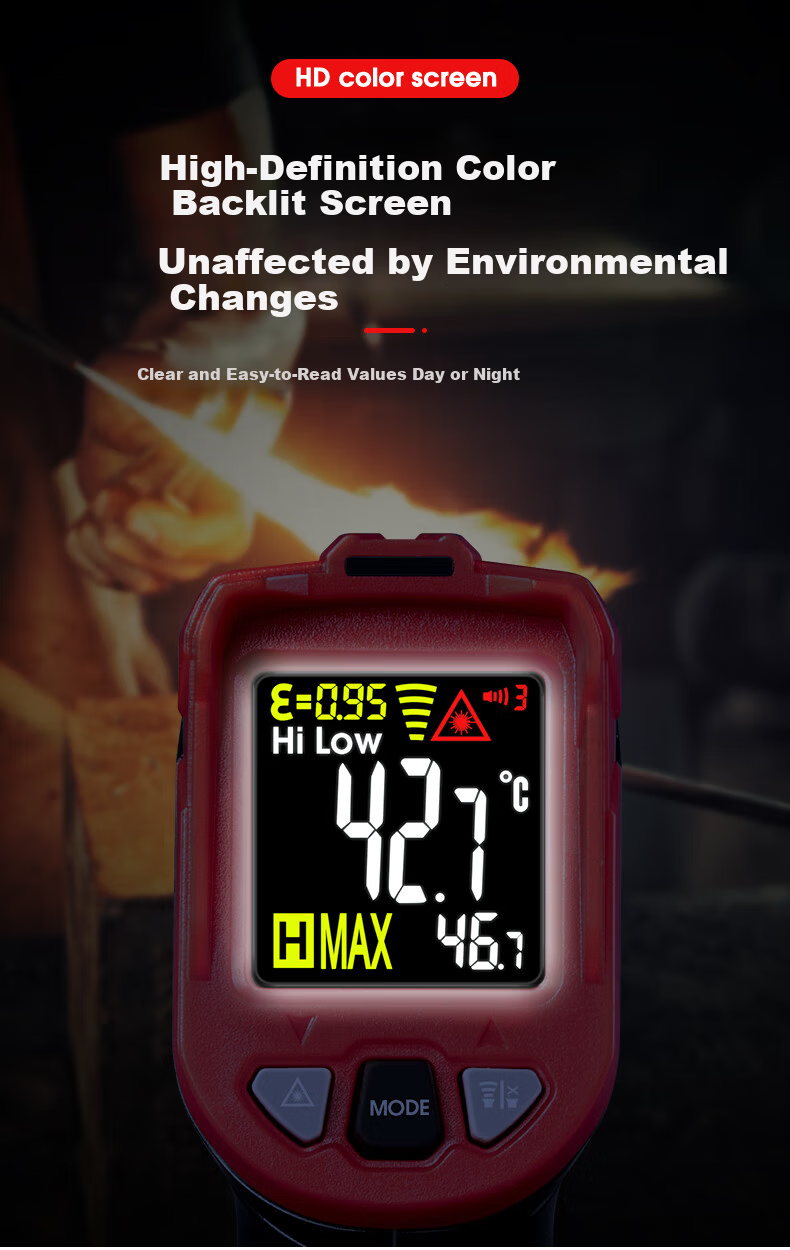

- Clear reading in various lighting conditions
- Temperature unit °C/°F selectable
- Over-range indication ("HI" or "LO")
Additional details
- Temperature Units
- °C and °F selectable

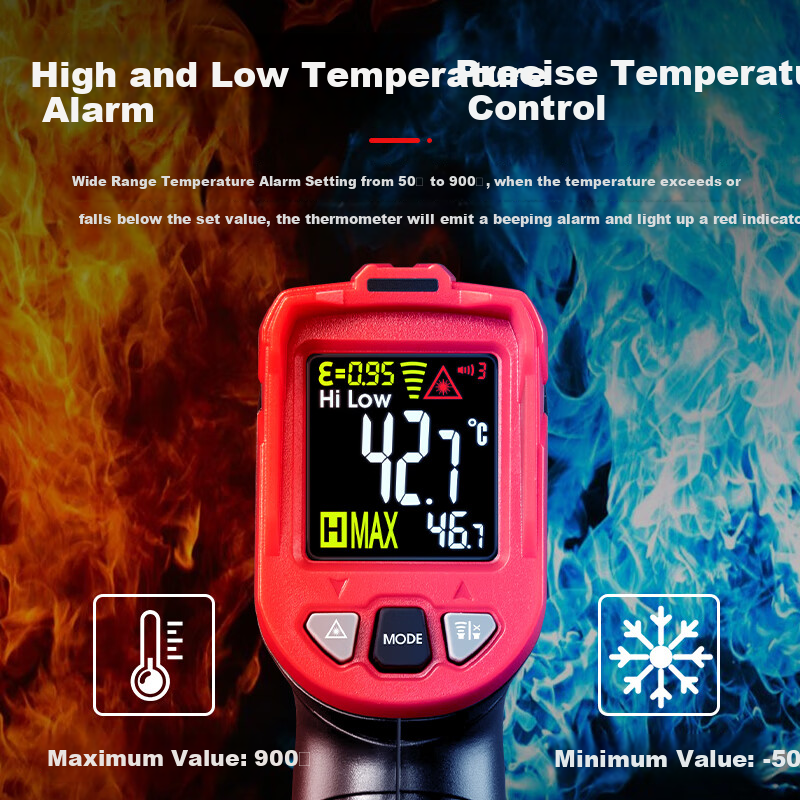

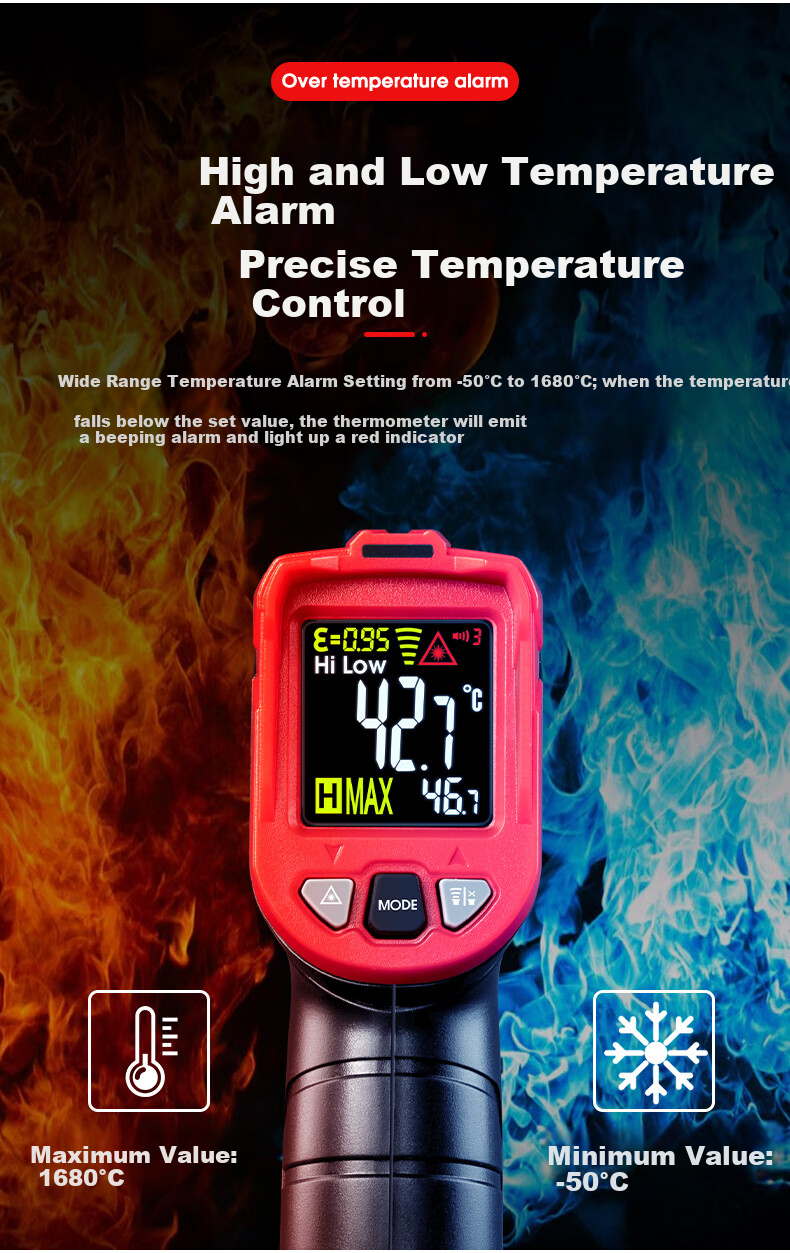

Adjustable high/low temperature alarm range from -50°C to 1680°C
Audible beep and red light indicator when temperature exceeds set limits
Additional details
- DM-5001, DM-5003, DM-5005
- 2 x 1.5V AAA batteries
- High temperature models
- 1 x 6V 229V battery
- Temperature
- 0°C to 50°C
- Humidity
- 10% to 95% RH, non-condensing
- Storage Temperature
- -20°C to 60°C (excluding batteries)

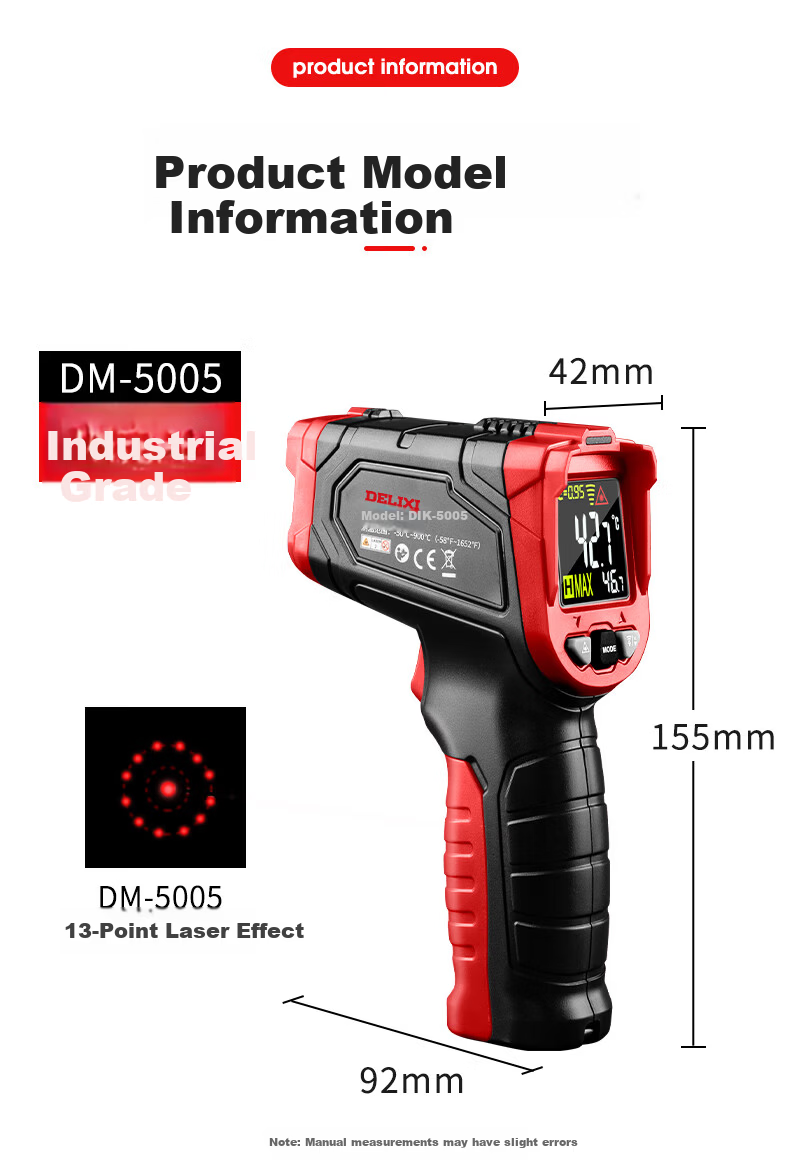

- DM-5005
- Length approx. 155 mm, laser effective distance approx. 92 mm

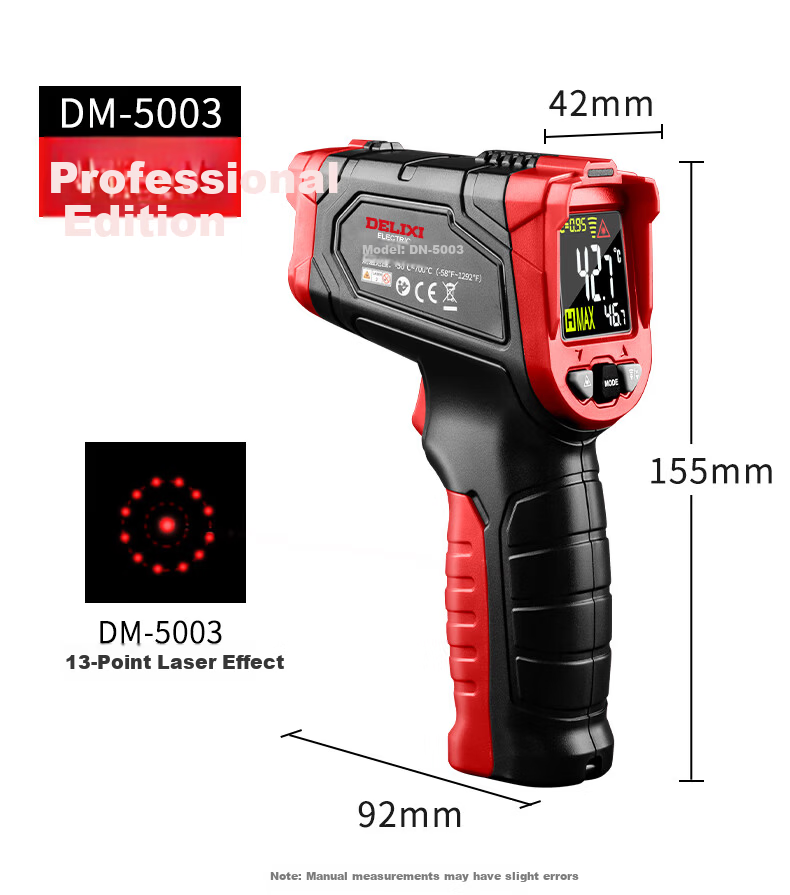

- DM-5003
- Length approx. 155 mm, laser effective distance approx. 92 mm

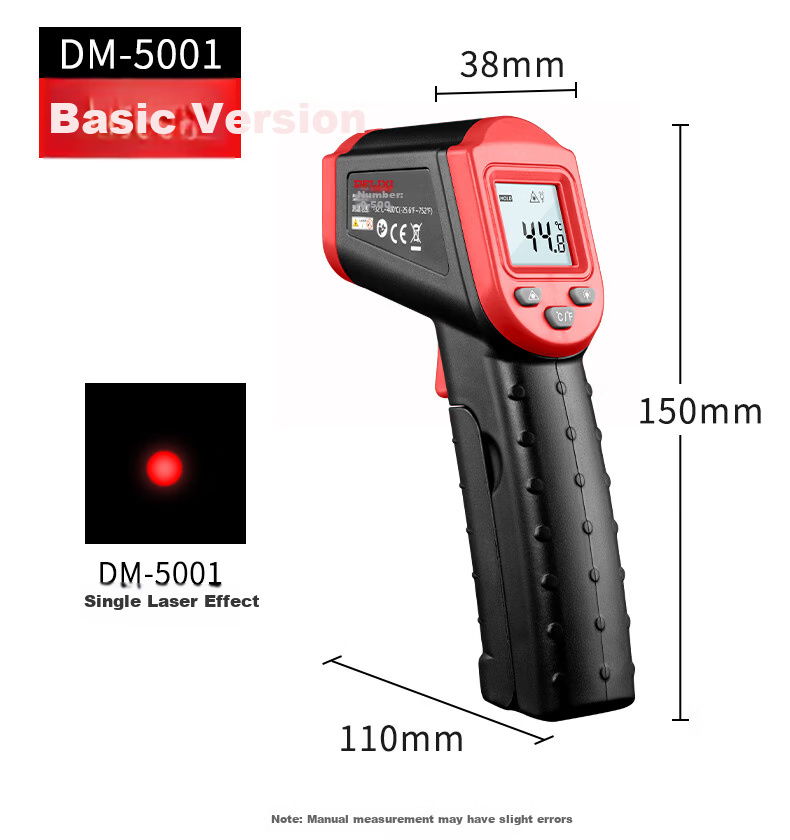

- DM-5001
- Length approx. 150 mm, laser effective distance approx. 110 mm

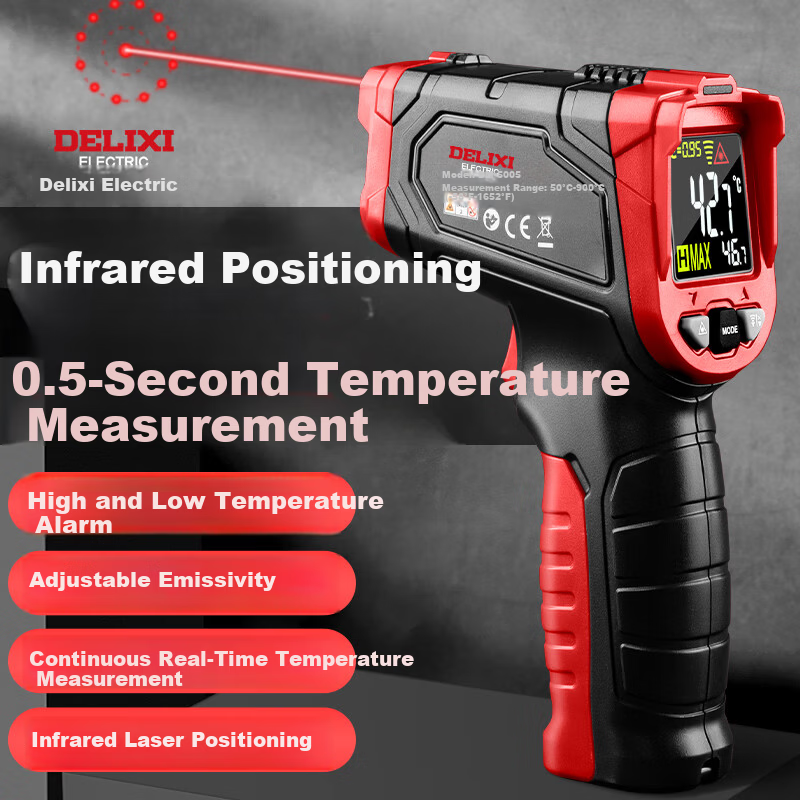

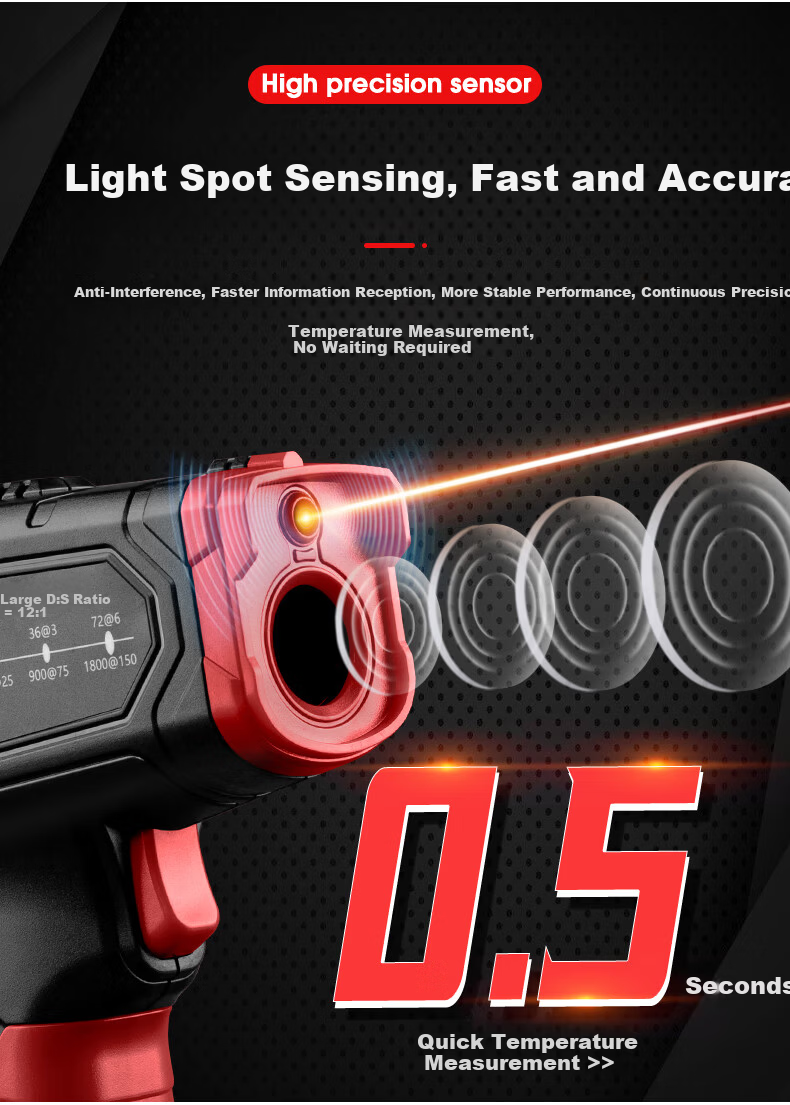

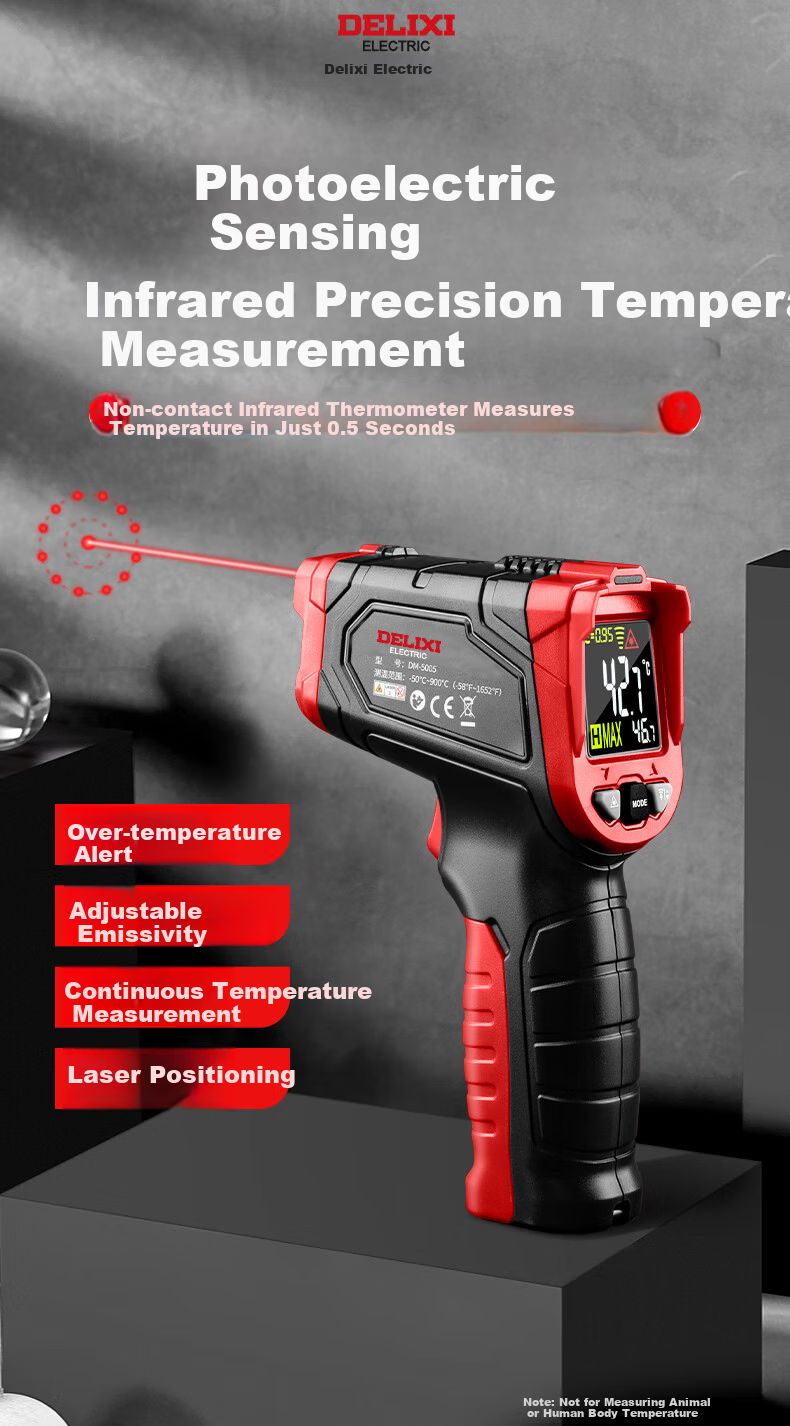

Non-contact infrared temperature measurement with 0.5-second fast response
Adjustable emissivity for accurate measurement of different materials

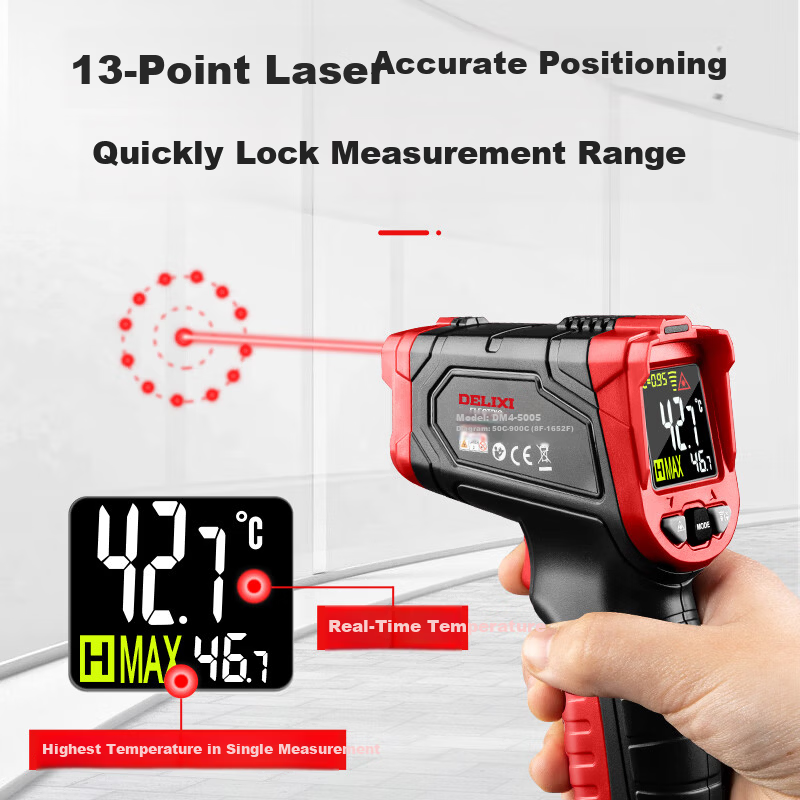

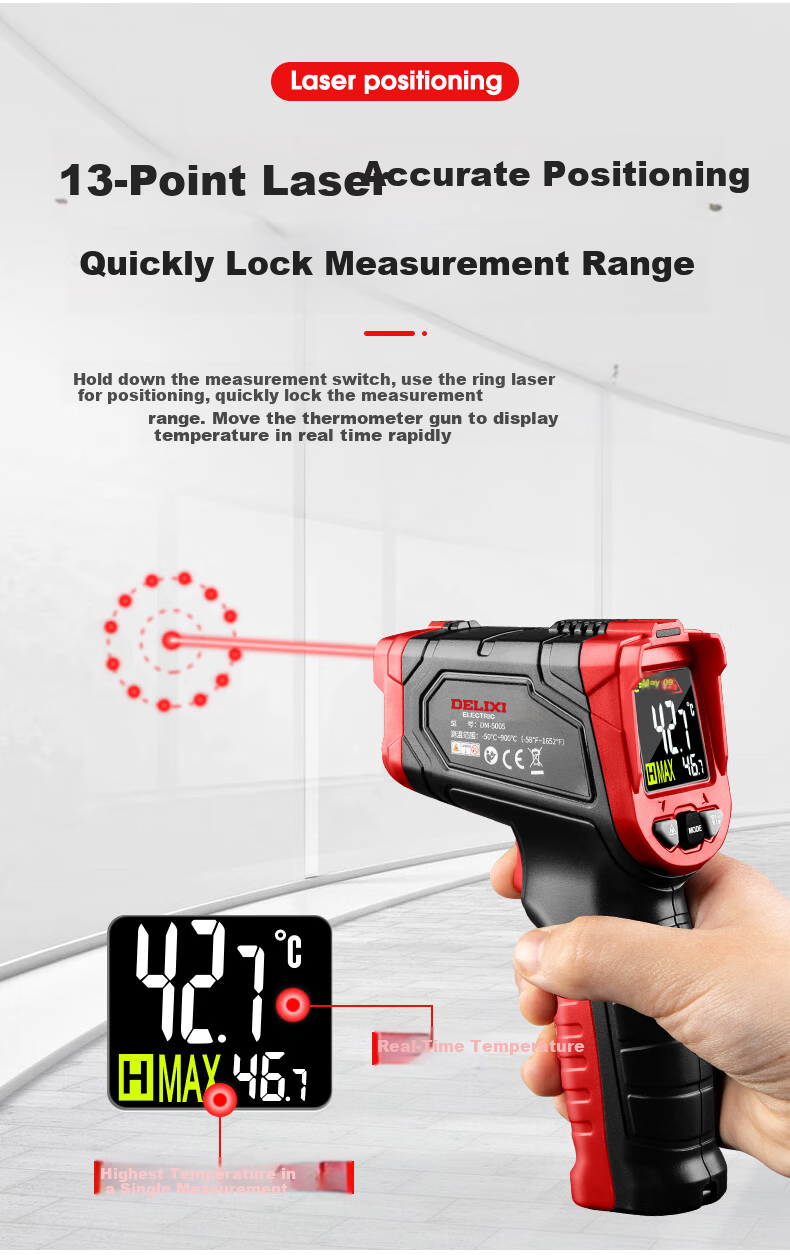

Laser positioning for precise targeting (single or 13-point laser)
Continuous temperature measurement and real-time display
Overtemperature alarm with audible and visual alerts
Low battery reminder and automatic shutdown to save power

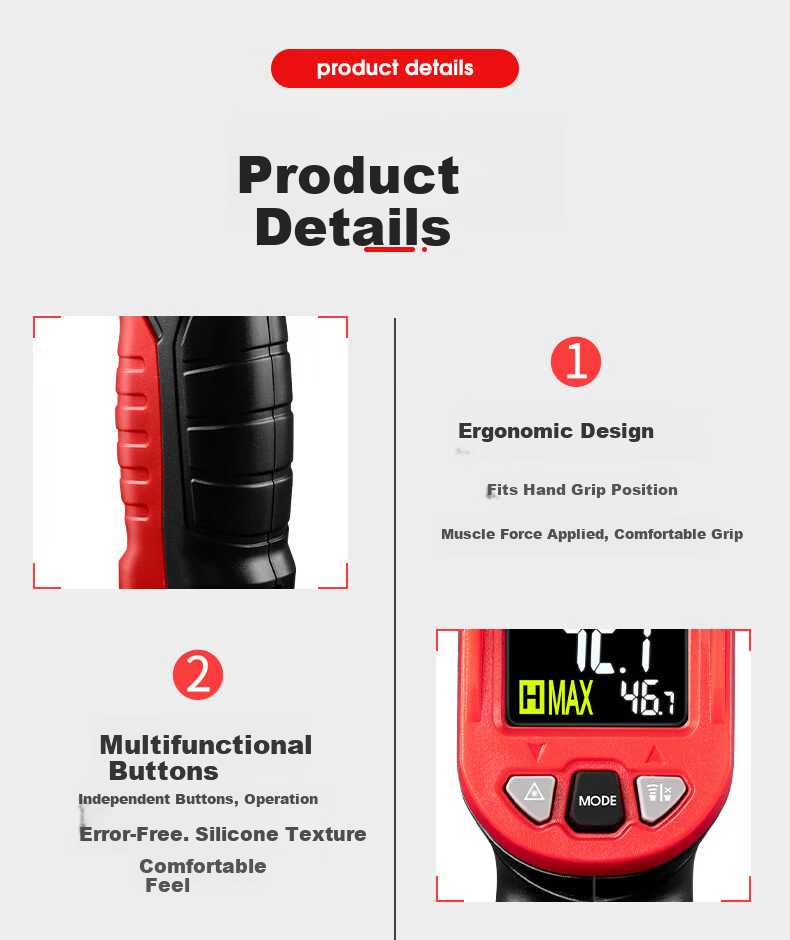

Ergonomic design with comfortable silicone grip and independent multifunction buttons
Suitable for industrial applications including glass processing, forging, metalworking, heat treatment, refrigeration, and food processing
Not suitable for measuring human or animal body temperature
Additional details

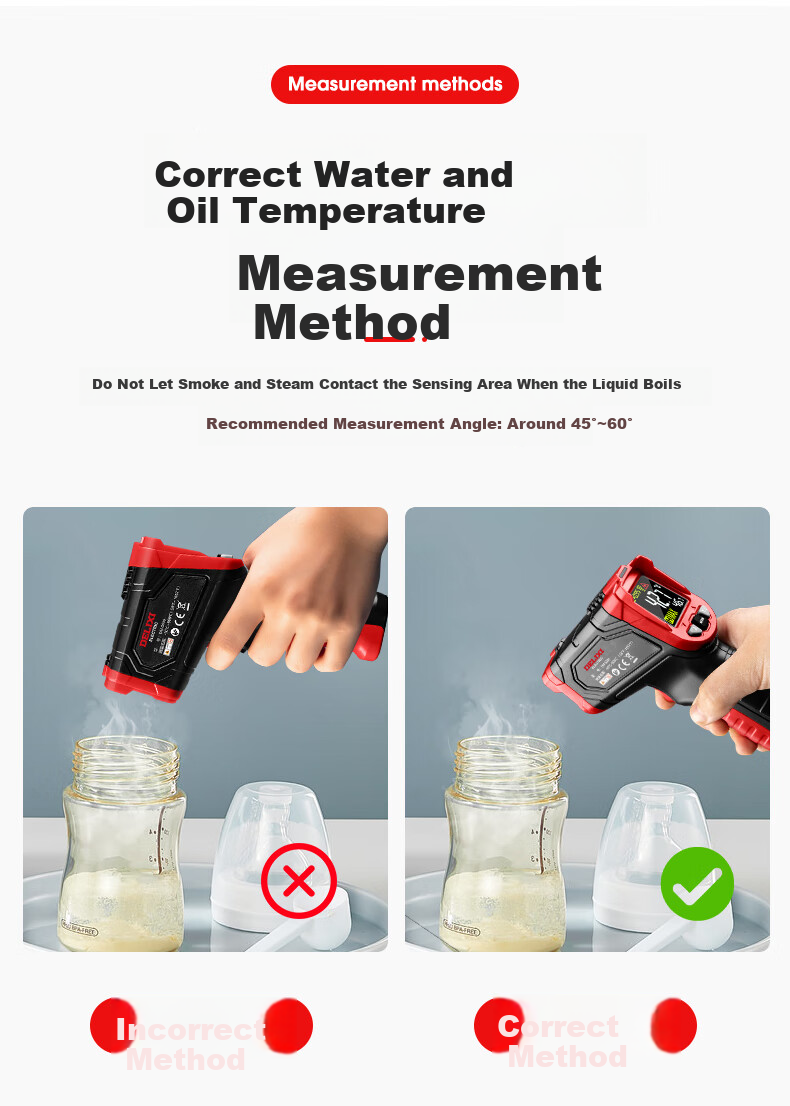

- Recommended measurement angle
- 45° to 60°
Avoid smoke and steam contact with sensor during liquid temperature measurement

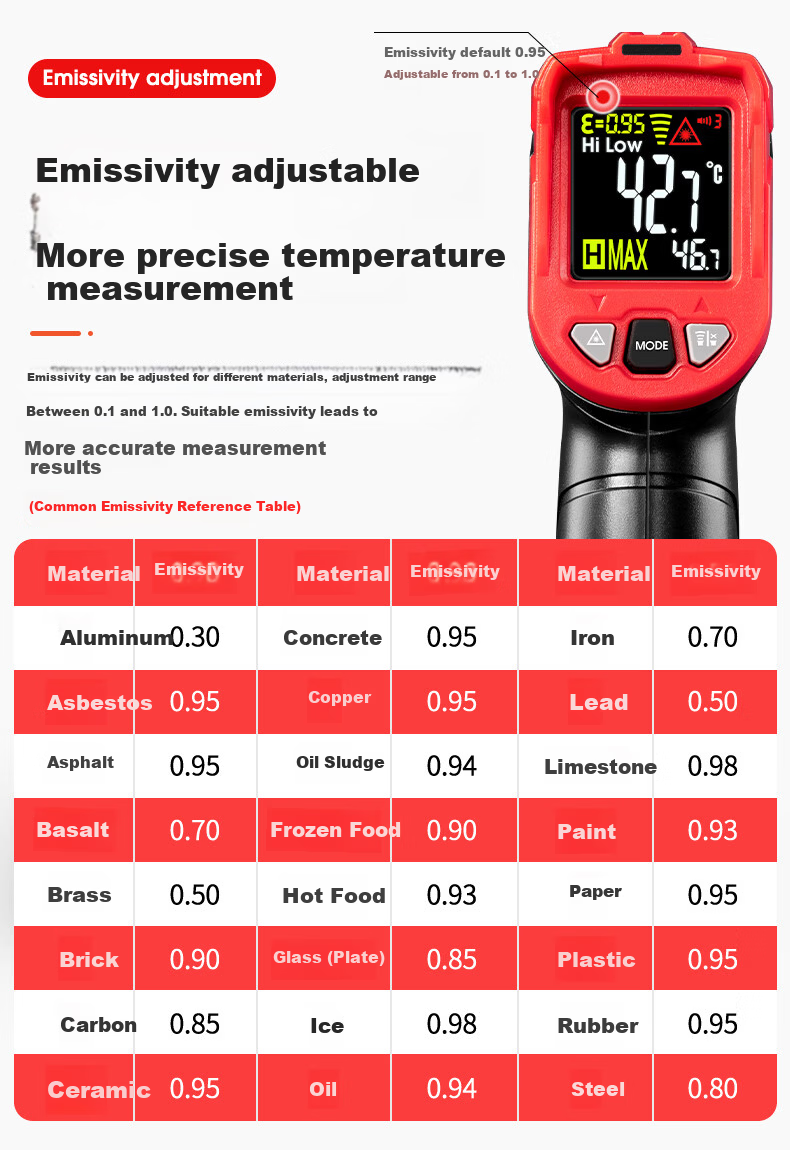

Emissivity adjustment improves accuracy for different materials (e.g., aluminum 0.30, iron 0.70, copper 0.95, glass 0.85, plastic 0.95, steel 0.80)

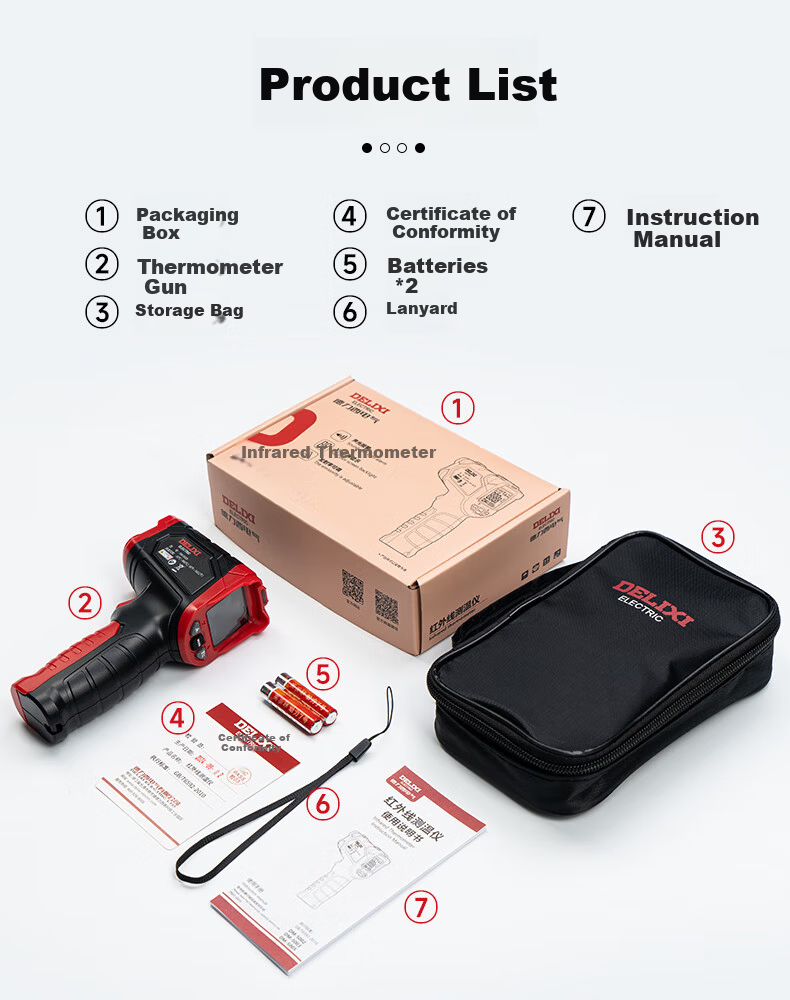

Batteries (2 x AAA or 1 x 6V depending on model)
Certificate of conformity
Industrial temperature monitoring of surfaces such as glass, metal, forging, furnaces, heat processing, refrigeration, and food industry

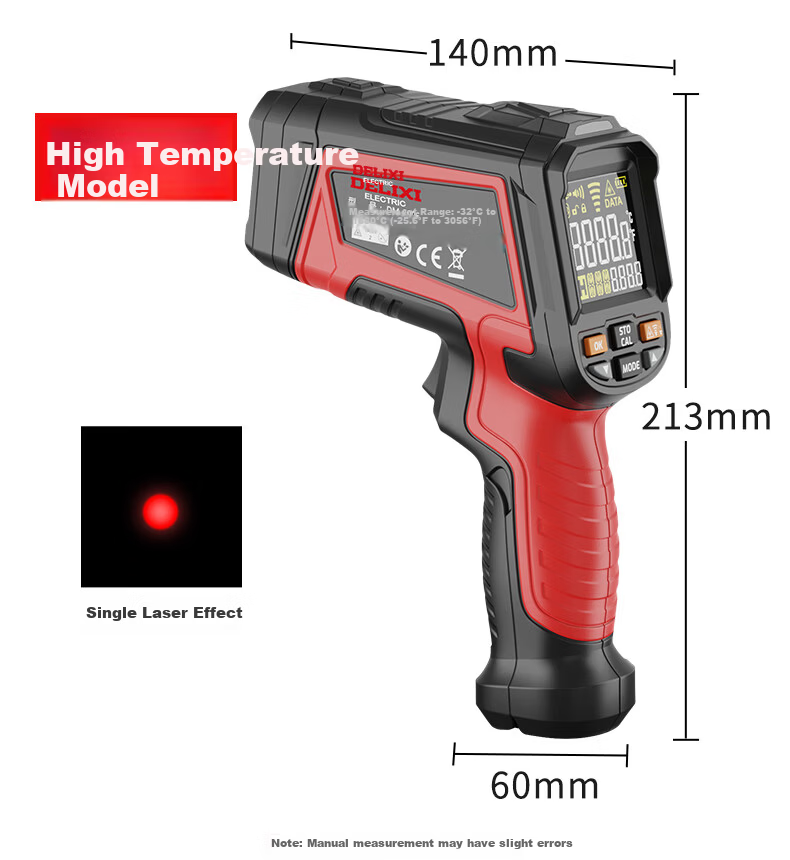

Manual measurement may have slight errors
Not for use on animals or humans
