DiuShitou Compatible Arduino Nano Microcontroller AVR Beginner Development Board ATmega328 Chip Main Control Board Unassembled Pin Header Mini-B Interface

丢石头•Network accessories

DiuShitou Compatible Arduino Nano Microcontroller AVR Beginner Development Board ATmega328 Chip Main Control Board Unassembled Pin Header Mini-B Interface

CN¥58.00

SKU: 100044319038

Status:In Stock (3)

ID: 100033234337

Weight: 20.00 g

Dims:88x59x40 mm

Specifications

Category: Network box accessories

Variants / Sale Attributes

Model: Compatible with Nano, unassembled pin header, MiniB without wiring

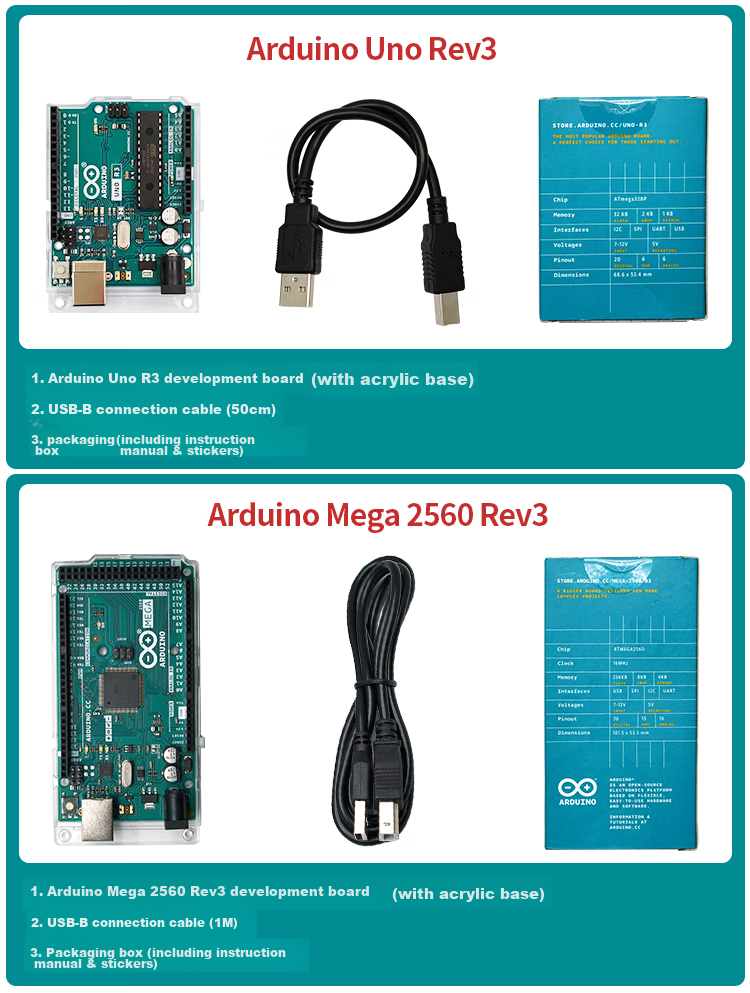

Package Contents

Arduino Uno R3 board *1; Connecting wire *1; Outer packaging + User manual

Product Description

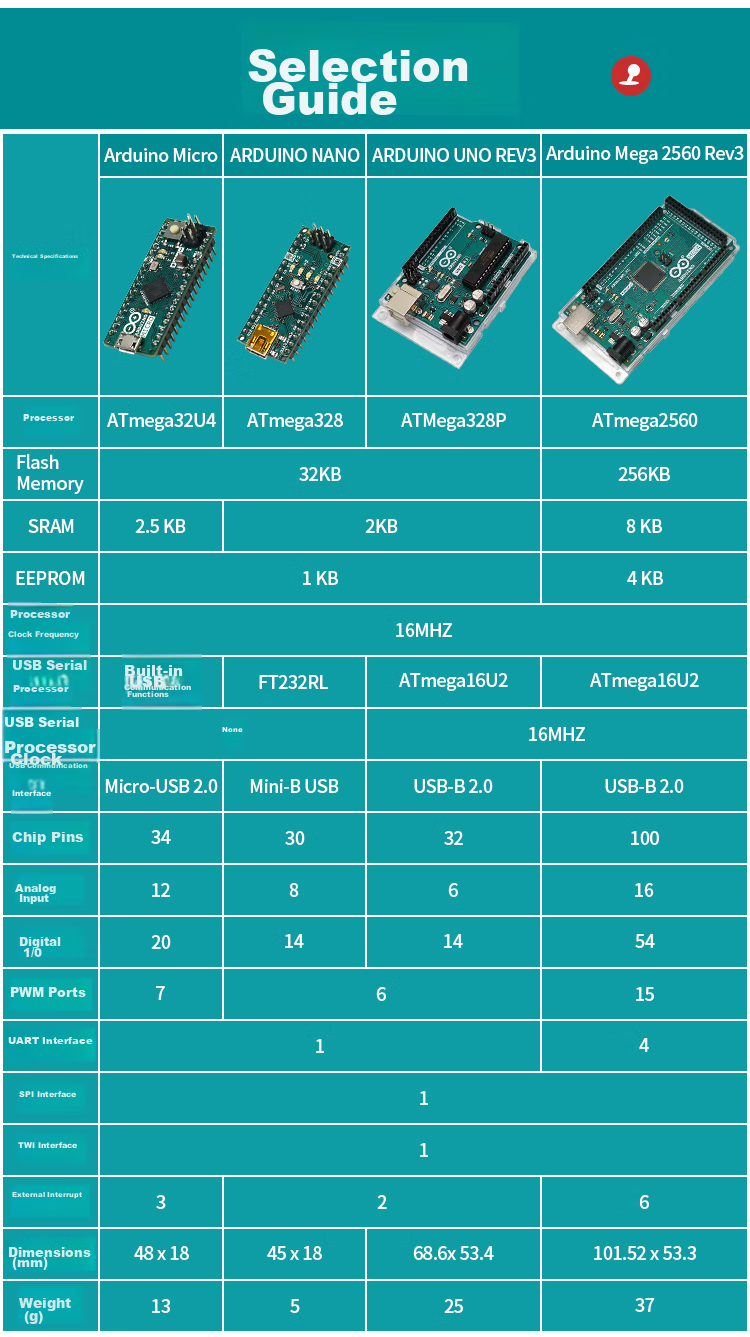

Product Specifications

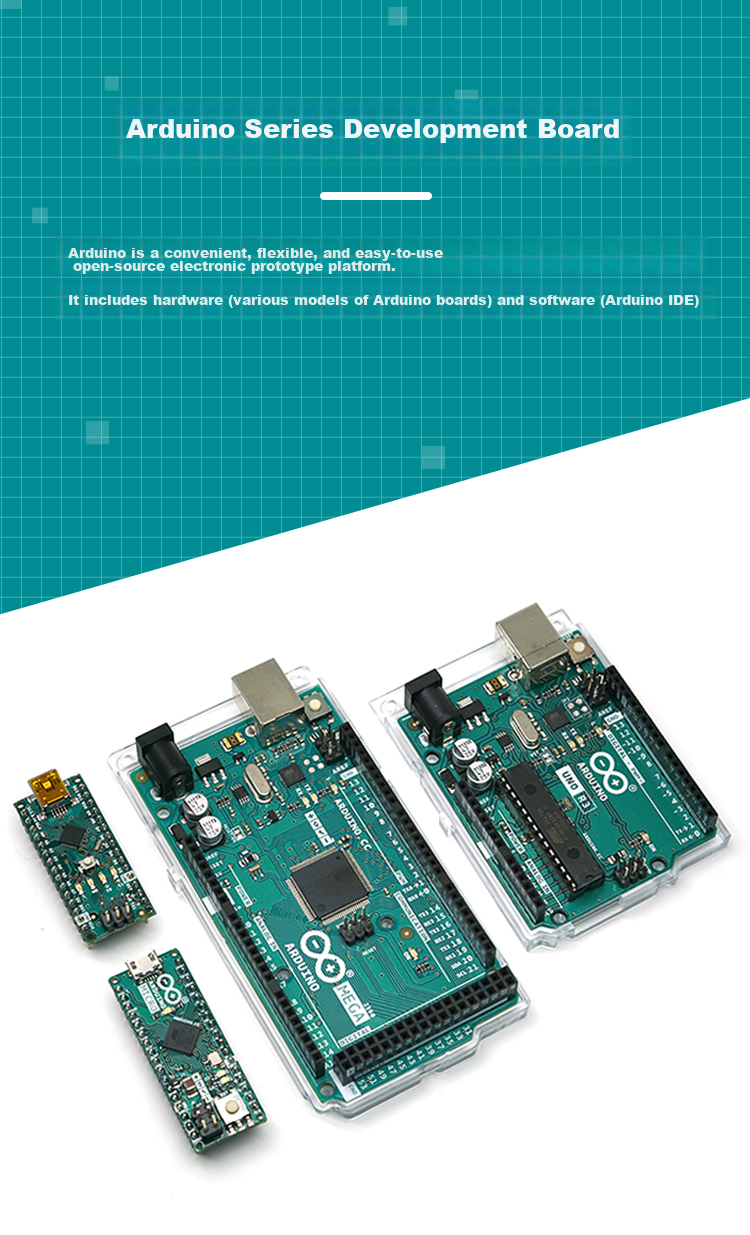

Overview

Brand: Diushitou
Product Series: Compatible Arduino Development Boards

Diushitou compatible Arduino series development boards utilize original imported chips, ensuring excellent quality and stable performance.

Arduino NANO (CH340) Mini-B

Arduino NANO (CH340) Type-C

Arduino UNO R3

Arduino Mega2560 Rev3

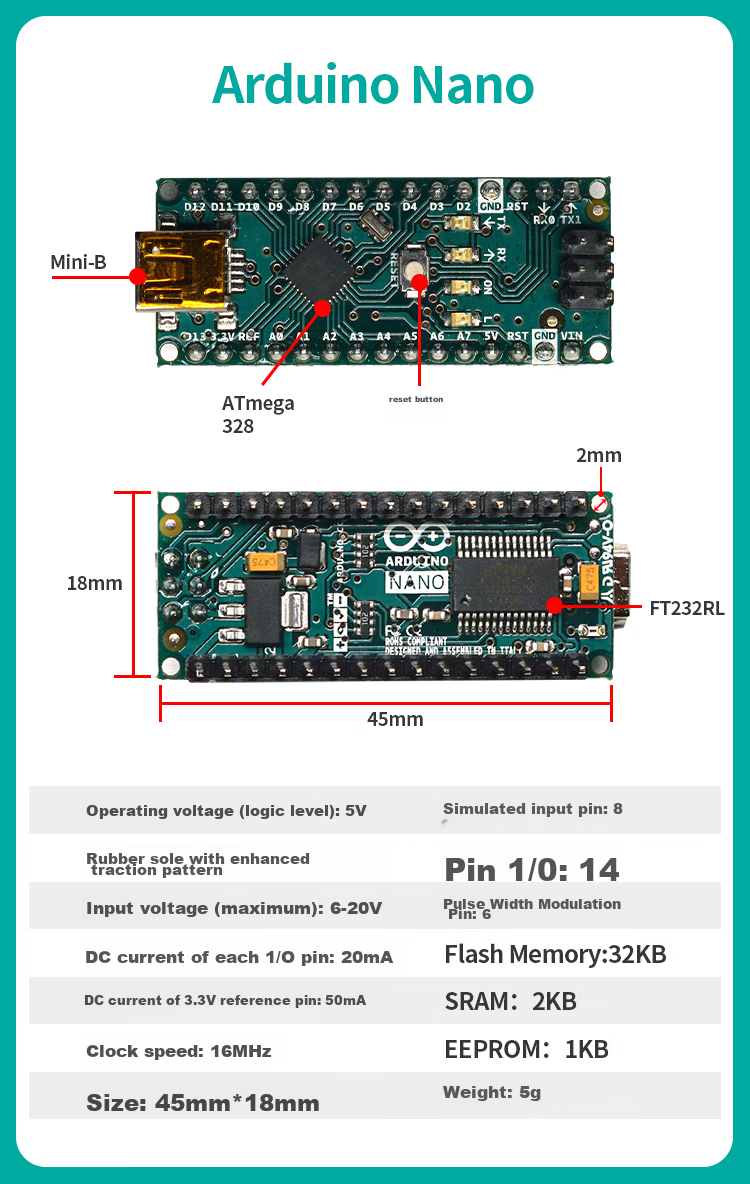

1. Arduino NANO (CH340) Mini-B

Additional details

Processor: ATMega328P
Flash Memory: 32KB
SRAM

Similar Products

In Stock

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

EB-LINKNetwork accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

1channel bidirectional 485 optical transceiver

CN¥145.00

In Stock

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CN¥77.00

2KB

EEPROM

1KB

Clock Frequency

16MHz

USB Serial Chip

CH340

USB Interface

Mini-B

Pin Count

32 chip pins, 30 board pins

Analog Inputs

8

Digital I/O Pins

14

PWM Ports

6

UART Interfaces

1

SPI Interface

1

TWI Interface

1

External Interrupts

6

Operating Voltage (Logic Level)

5V

Recommended Vin

7-12V

Vin Limit

6-20V

DC Current per I/O Pin

20mA

3.3V Pin DC Current

50mA

Dimensions

46 mm x 18 mm

Weight

5.5 g

Features

Power indicator LED
Serial indicator LED
Onboard LED
Reset button

2. Arduino NANO (CH340) Type-C

Additional details

Processor: ATMega328P
Flash Memory: 32KB
SRAM: 2KB
EEPROM: 1KB
Clock Frequency: 16MHz
USB Serial Chip: CH340
USB Interface: Type-C
Pin Count: 28 chip pins, 32 board pins
Analog Inputs: 8
Digital I/O Pins: 14
PWM Ports: 6
UART Interfaces: 1
SPI Interface: 1
TWI Interface: 1
External Interrupts: 6
Operating Voltage (Logic Level): 5V
Recommended Vin: 7-12V
Vin Limit: 6-20V
DC Current per I/O Pin: 20mA
3.3V Pin DC Current: 50mA
Dimensions: 45 mm x 18 mm
Weight: 5.5 g

Features

Power indicator LED
Serial indicator LED
Onboard LED
Reset button

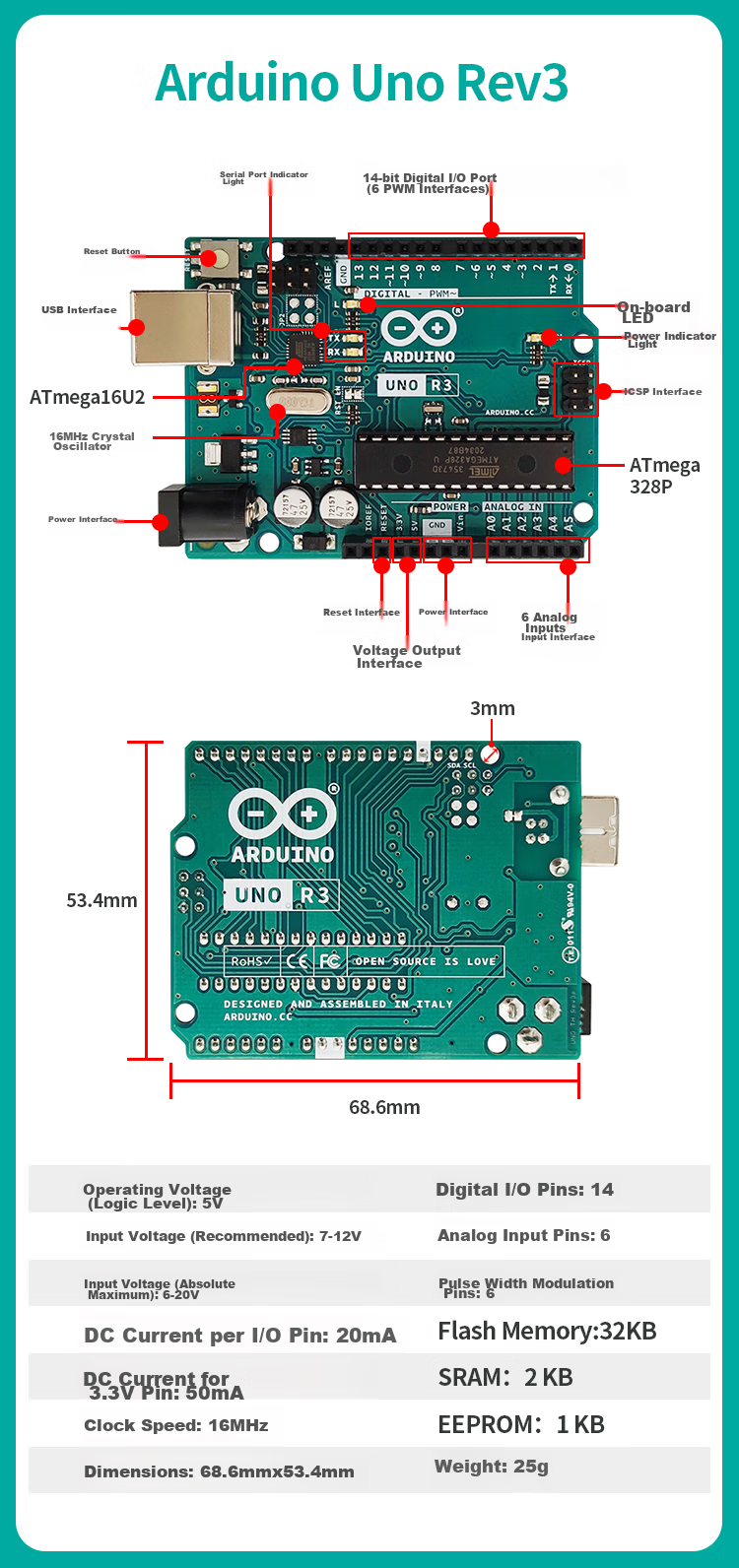

3. Arduino UNO R3 Compatible

Additional details

Processor: ATMega328P with ATmega16U2 USB interface
Flash Memory: 32KB
SRAM: 2KB
EEPROM: 1KB
Clock Frequency: 16MHz
USB Interface: USB-B 2.0
Pin Count: 32 chip pins, 86 board pins
Analog Inputs: 6
Digital I/O Pins: 14 (6 PWM)
PWM Ports: 6
UART Interfaces: 1
SPI Interface: 1
TWI Interface: 1
External Interrupts: 6
Operating Voltage (Logic Level): 5V
Recommended Vin: 7-12V
Vin Limit: 6-20V
DC Current per I/O Pin: 20mA
3.3V Pin DC Current: 50mA
Dimensions: 79 mm x 58 mm
Weight: 27 g

Features

Power indicator LED
Serial indicator LED
Onboard LED
Reset button

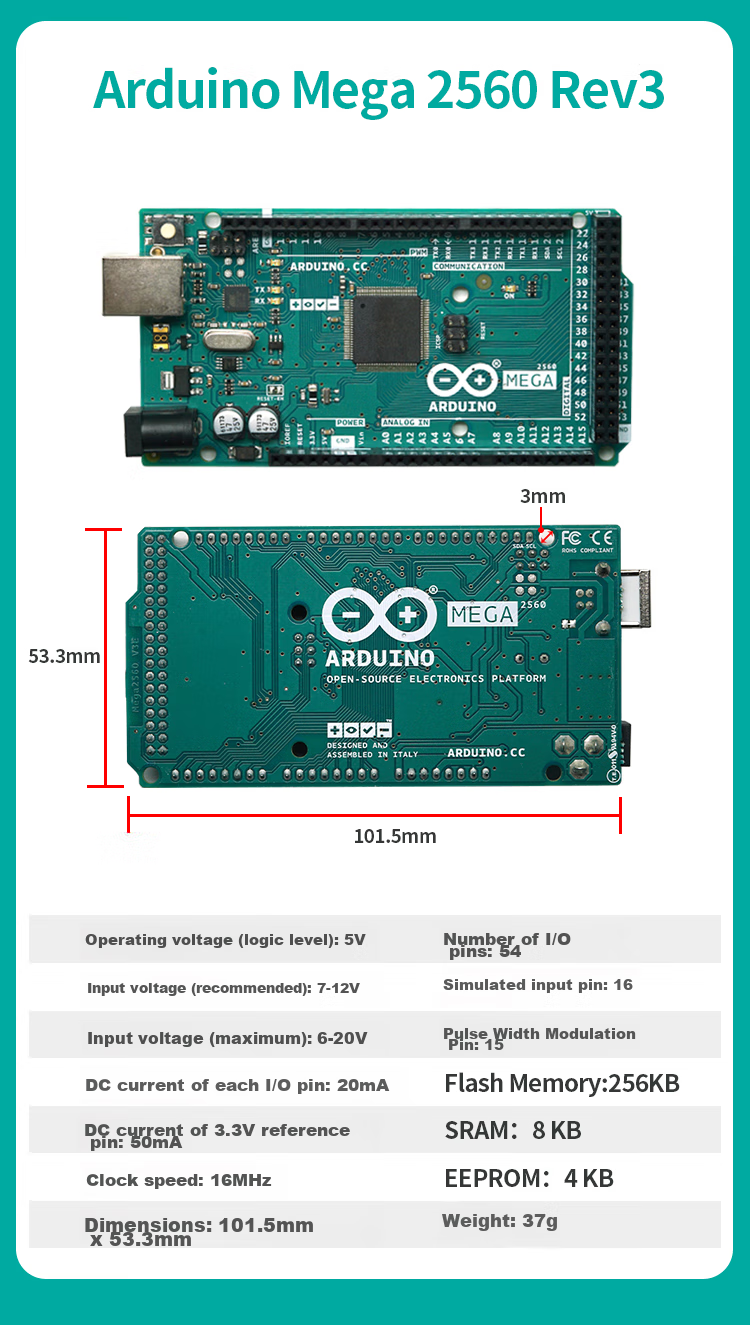

4. Arduino Mega2560 Rev3 Compatible

Additional details

Processor: ATMega2560 with ATmega16U2 USB interface
Flash Memory: 256KB
SRAM: 8KB
EEPROM: 4KB
Clock Frequency: 16MHz
USB Interface: USB-B 2.0
Pin Count: 100 chip pins, 86 board pins
Analog Inputs: 16
Digital I/O Pins: 54
PWM Ports: 15
UART Interfaces: 4
SPI Interface: 1
TWI Interface: 1
External Interrupts: 6
Operating Voltage (Logic Level): 5V
Recommended Vin: 7-12V
Vin Limit: 6-20V
DC Current per I/O Pin: 20mA
3.3V Pin DC Current: 50mA
Dimensions: 108 mm x 52 mm
Weight: 35 g

Features

Power indicator LED
Serial indicator LED
Onboard LED
Reset button

Dimensions and weight are manually measured; actual product may vary slightly.

All boards support standard Arduino pinouts and interfaces.

USB cables (Mini-B or USB-B 2.0, 50cm) included with UNO and Mega2560 models.

Some NANO models are available in unassembled versions with pin headers.

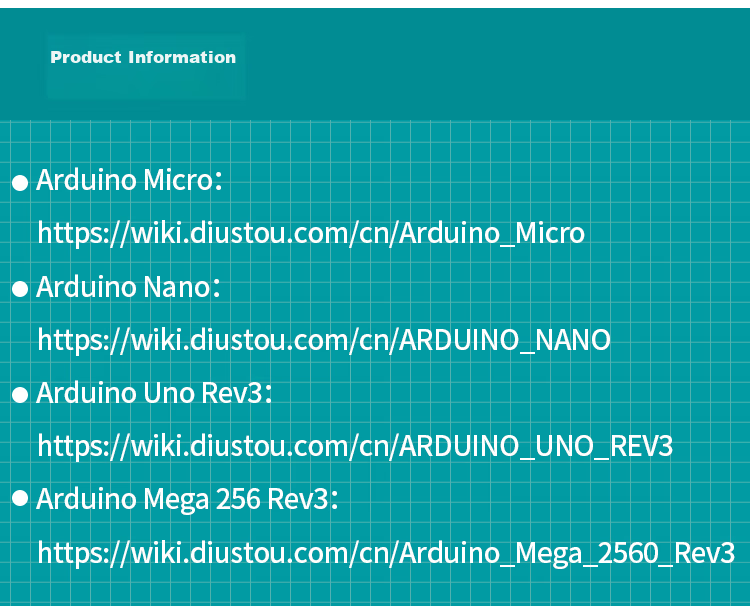

Additional details

Arduino NANO (CH340) Mini-B/Type-C: https://wiki.diustou.com/cn/ARDUINO_NANO(CH340)
Arduino UNO R3 Compatible: https://wiki.diustou.com/cn/UNo_REV3_for_Arduino
Arduino Mega2560 Rev3 Compatible: https://wiki.diustou.com/cn/Mega_2560_Rev3_for_Arduino
