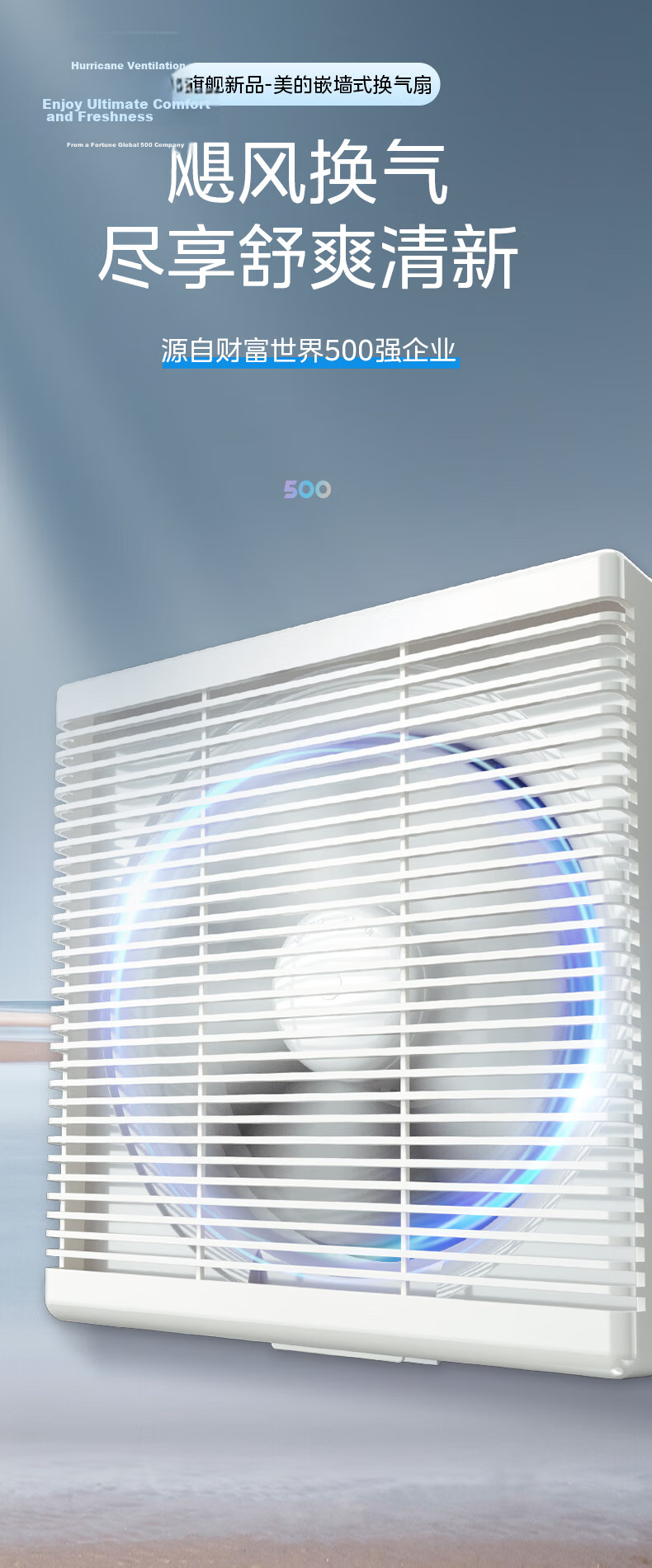

Midea [Window Exhaust] Window-Mounted Exhaust Fan Ventilation Fan for Bathroom Kitchen Wall Use 12-Inch Extractor Fa

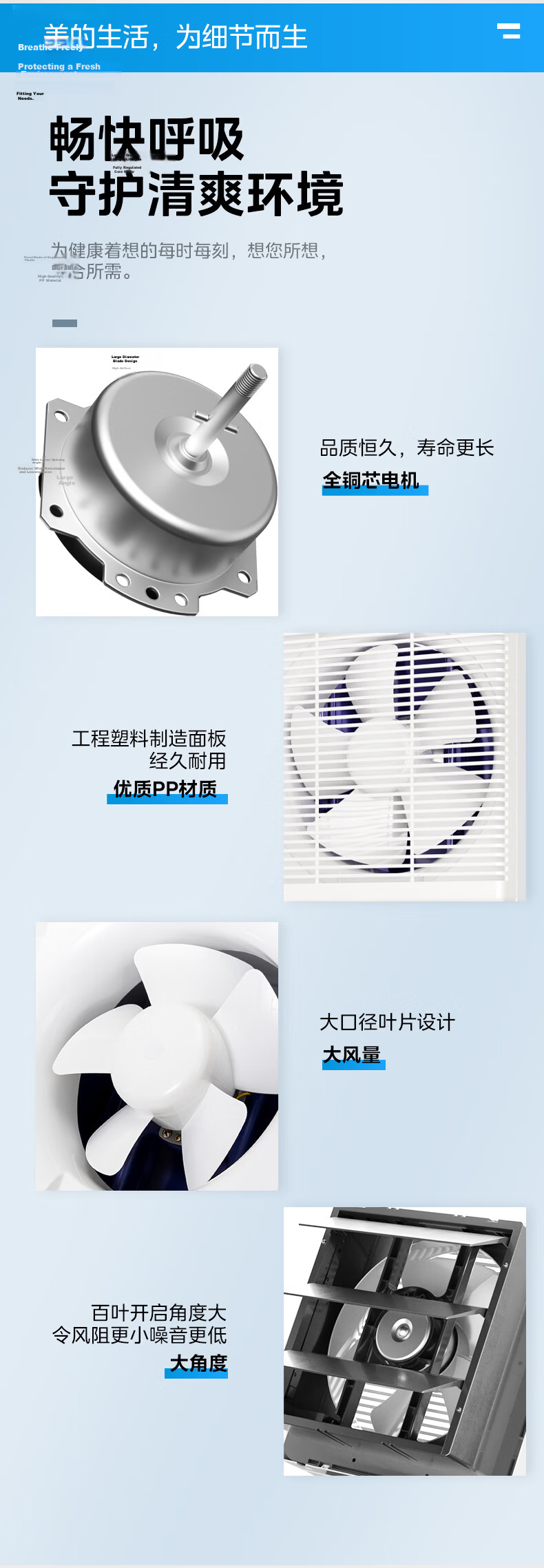

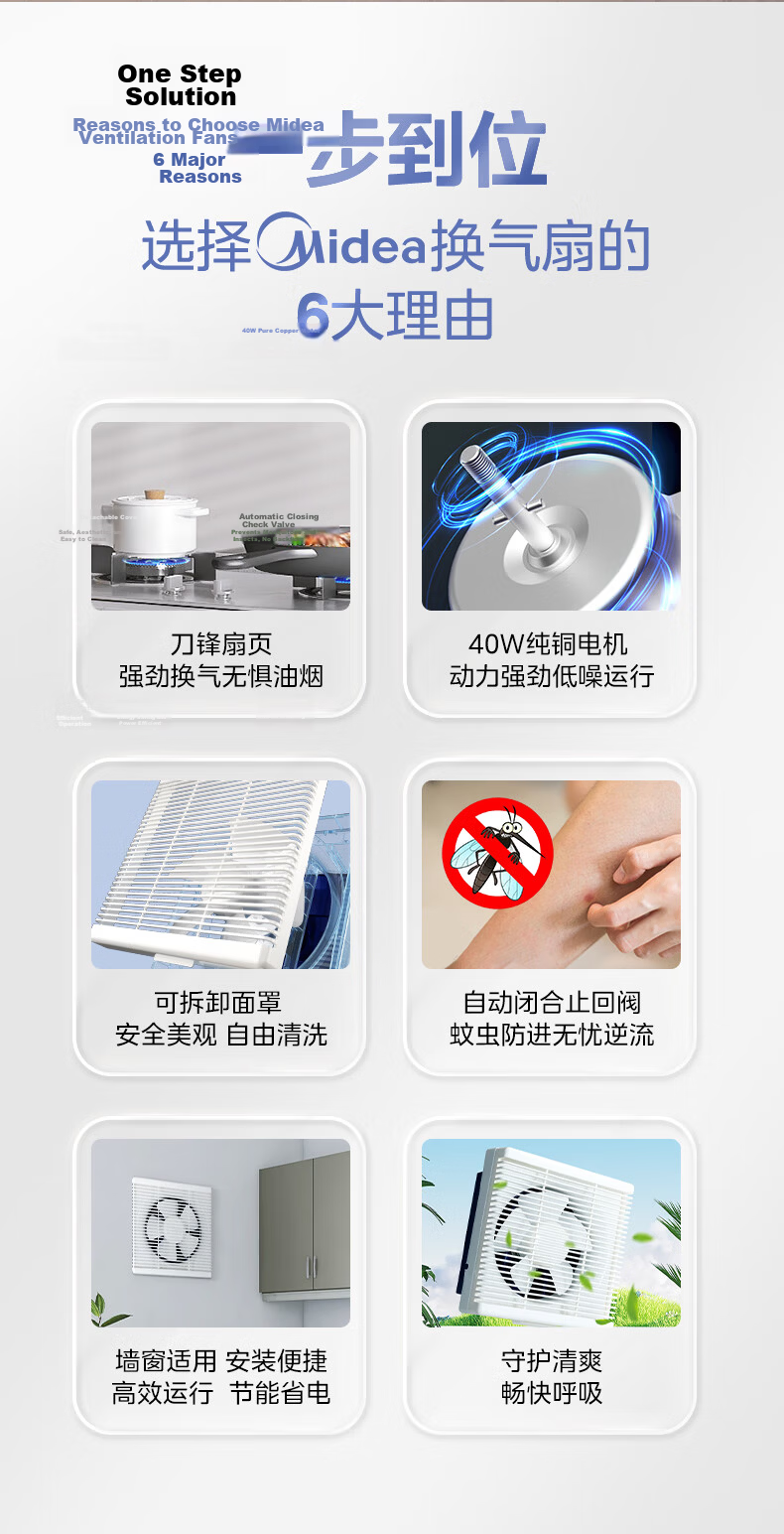

Powerful 40W pure copper motor for strong ventilation and oil fume resistance

Blade design with large diameter for high airflow and low noise operation

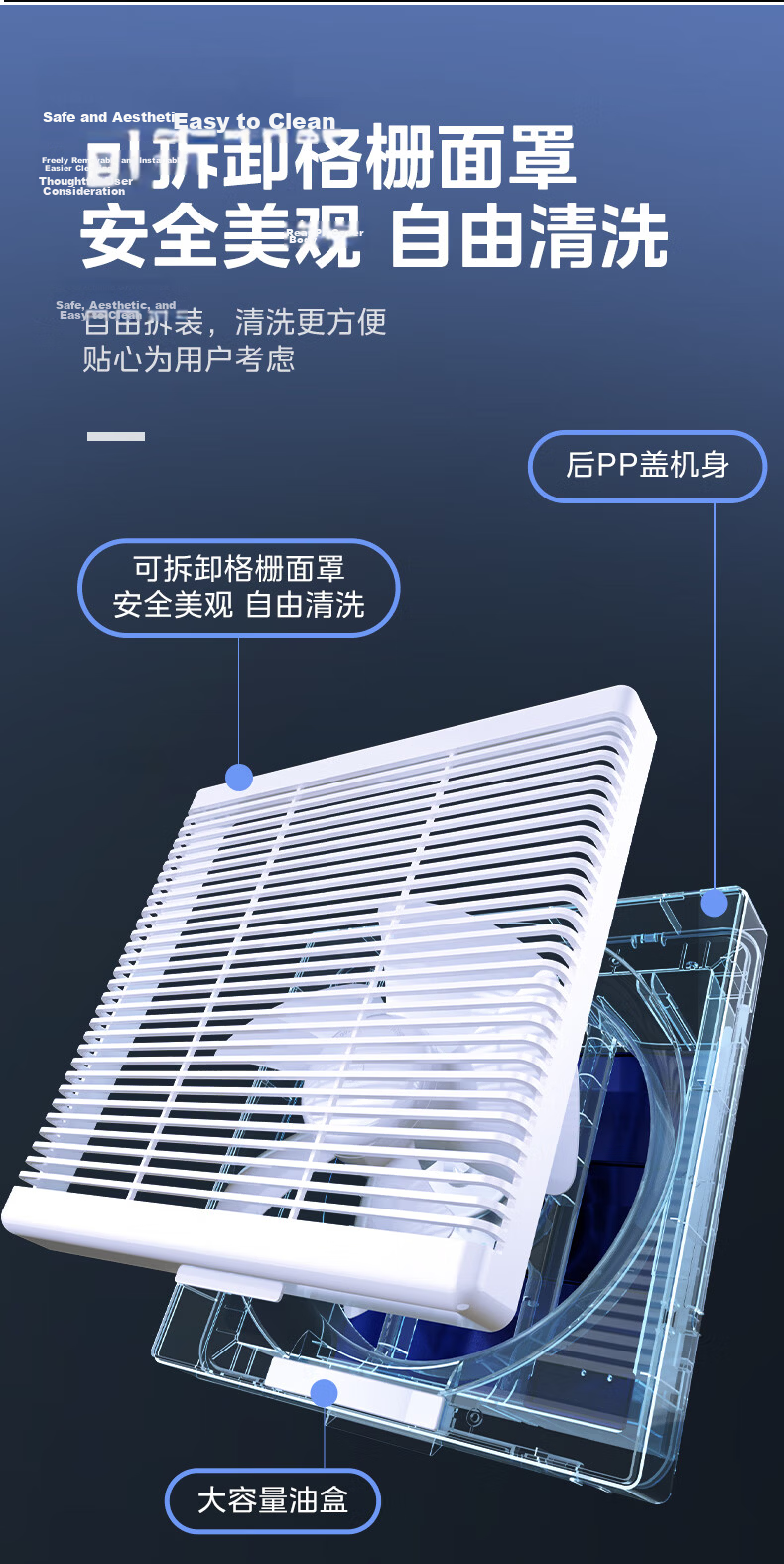

Detachable grille cover for easy cleaning and maintenance

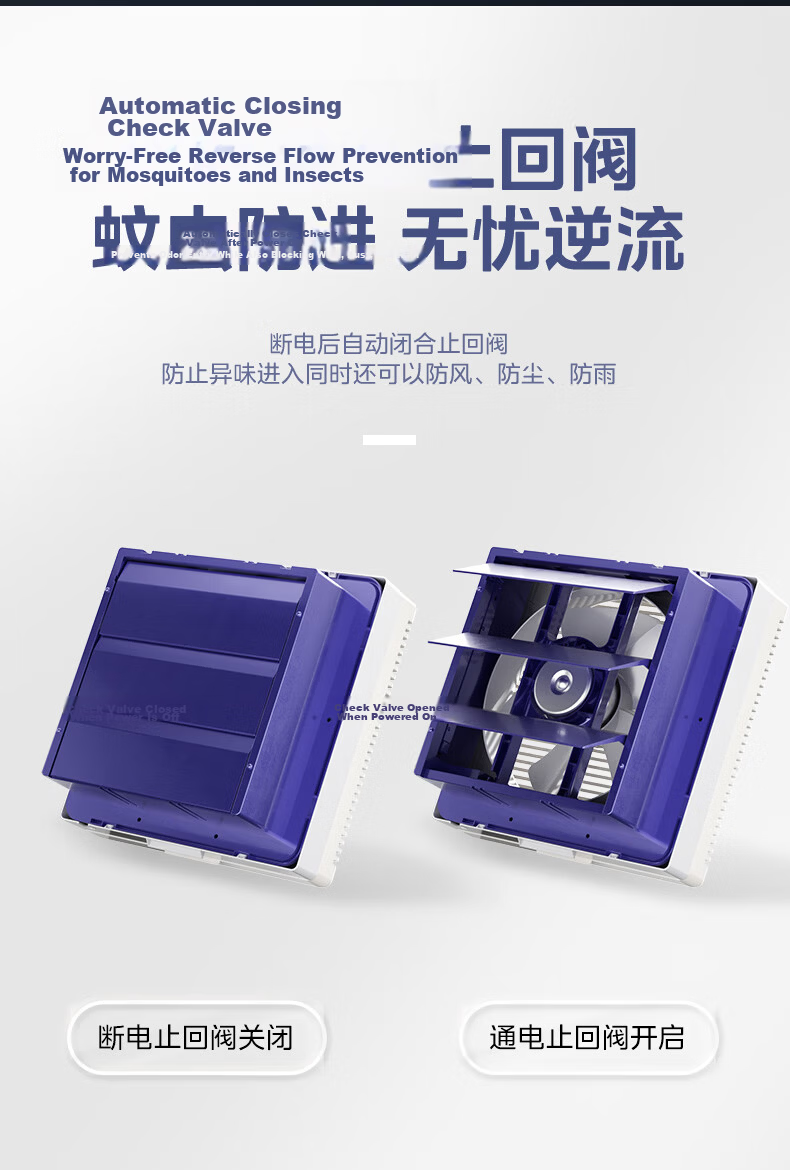

Automatic closing backdraft damper to prevent odor, wind, dust, rain, and insect intrusion

Suitable for wall and window installation with easy and flexible mounting options

Large capacity oil collection tray for kitchen use

Made with durable engineering plastic panel and high-quality PP materials for long-lasting performance

Wide blade opening angle reduces wind resistance and noise

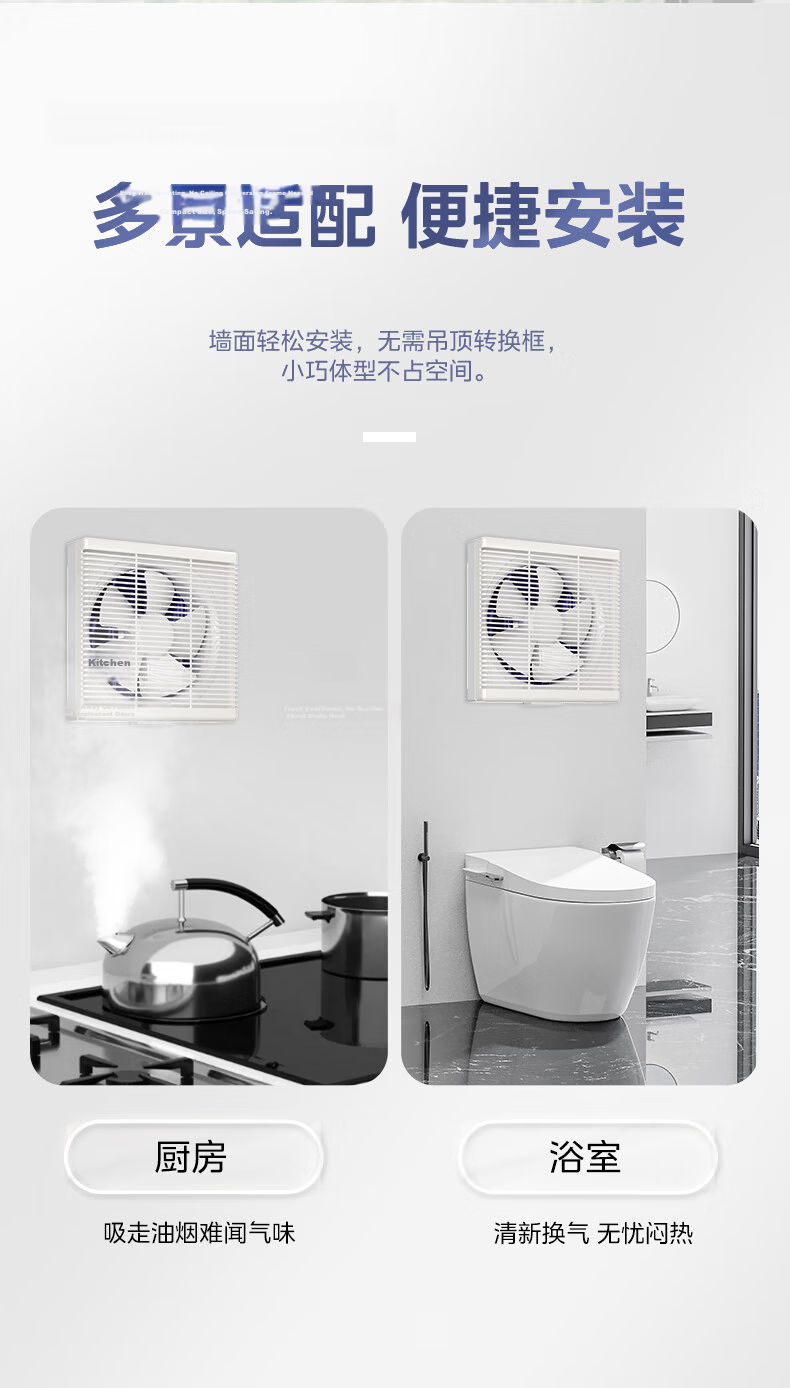

Designed for use in kitchens, bathrooms, and other indoor spaces prone to humidity, odors, and smoke

Safety features include grounding wire connection and compliance with rated voltage and frequency

Installation requires proper tools such as electric drill; suitable mounting height above 2.3 meters from the ground

Includes outdoor cover, front panel, fan blade assembly, screws, and wiring accessories

Power supply wiring must include a full-pole switch with contact gap ≥ 3mm for safety

Not suitable for installation directly on high-temperature appliances, ceilings, or locations exposed to water spray or curtains

Outdoor installation requires additional rainproof cover to prevent water ingress

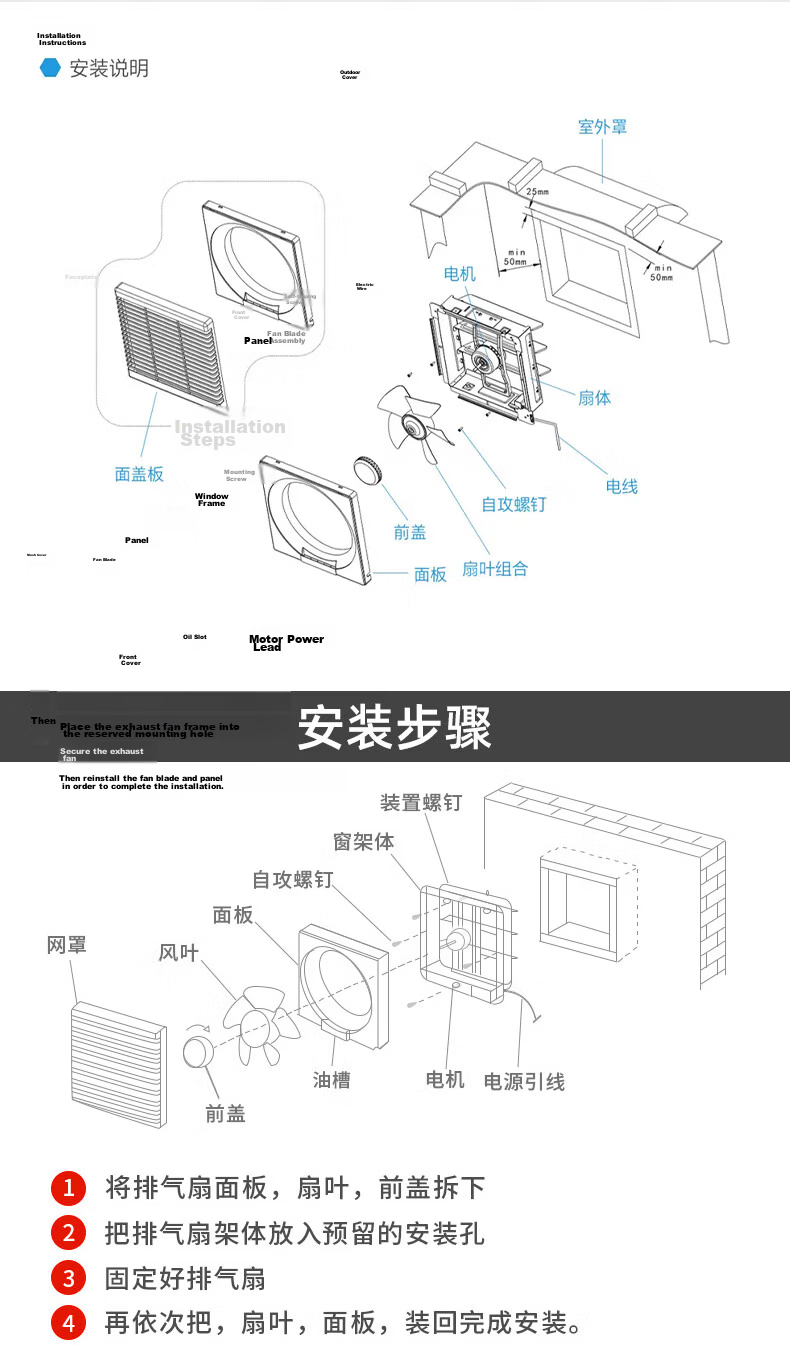

1. Remove the fan panel, fan blade, and front cover.

2. Insert the fan frame into the prepared wall opening.

3. Secure the fan frame with screws.

4. Reinstall the fan blade, panel, and front cover in sequence.

5. Connect wiring according to the wiring diagram ensuring proper grounding.

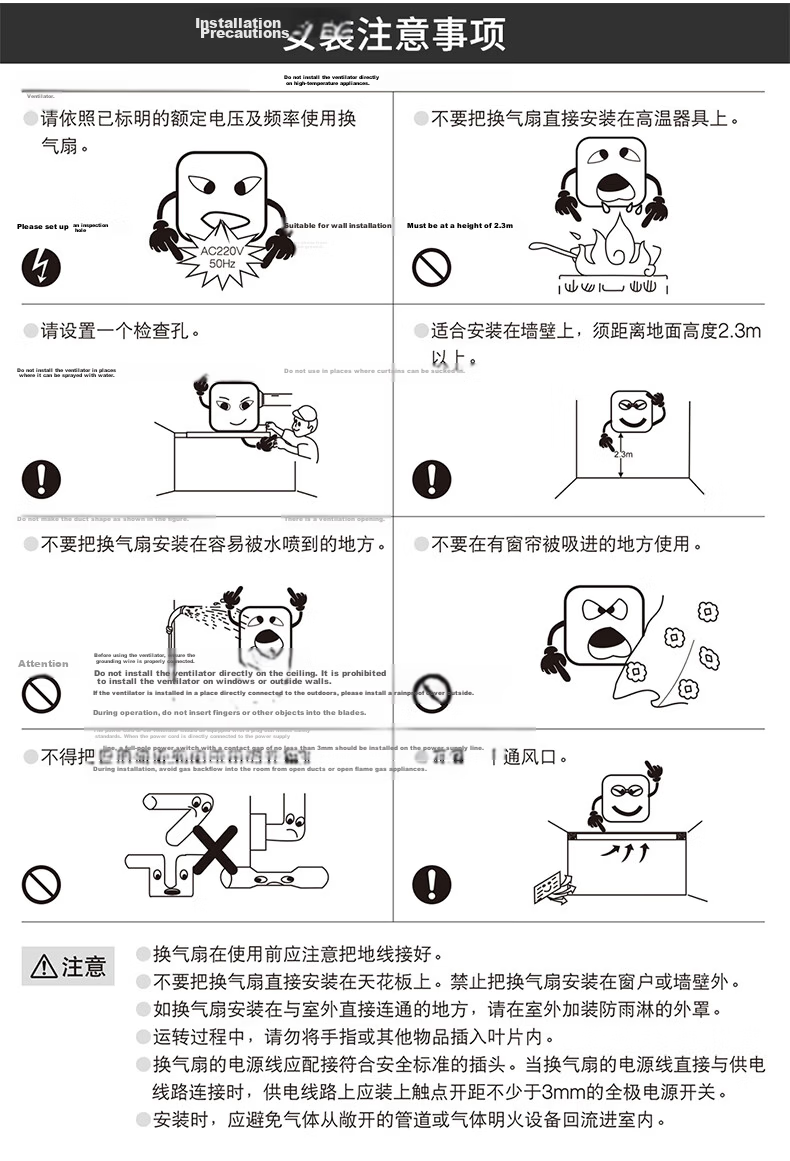

Ensure the fan is installed at least 2.3 meters above the floor.

Avoid installation in areas exposed to water spray or where curtains may be drawn into the fan.

Do not install the fan directly on ceilings or near open flames.

Do not insert fingers or objects into the fan blades during operation.

Use only rated voltage and frequency as specified.

Provide inspection holes as required for maintenance.

Prevent backflow of gases or flames into indoor spaces by proper ducting and installation.
