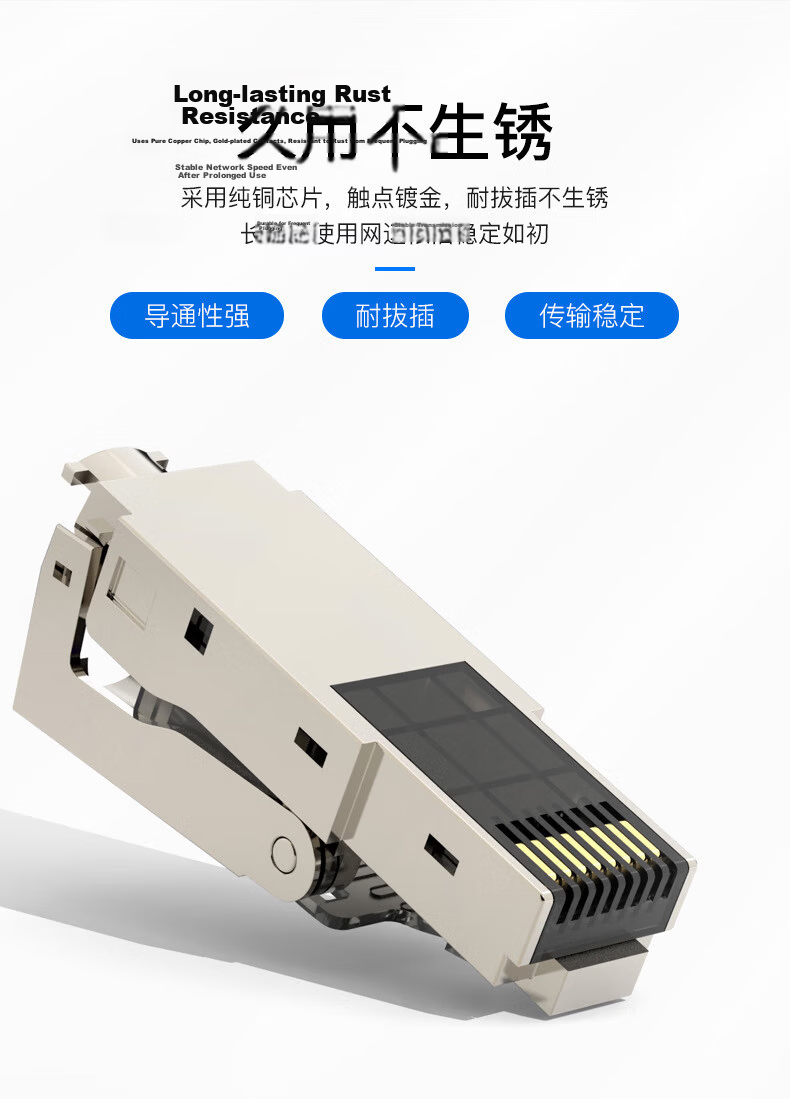

HAILE Category 6 Tool-Free Crystal Head, Gigabit Connector for Category 6 Unshielded Twisted Pair Cable, HT-MDC6

• No-pressure design

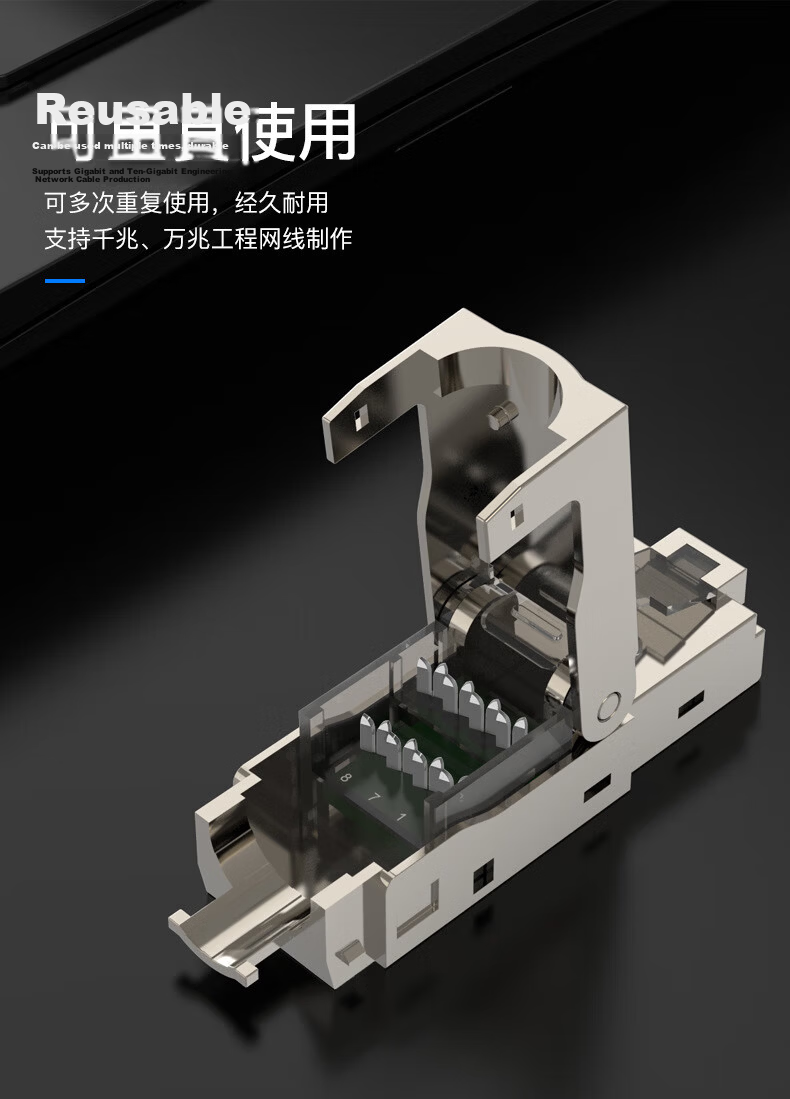

• Reusable

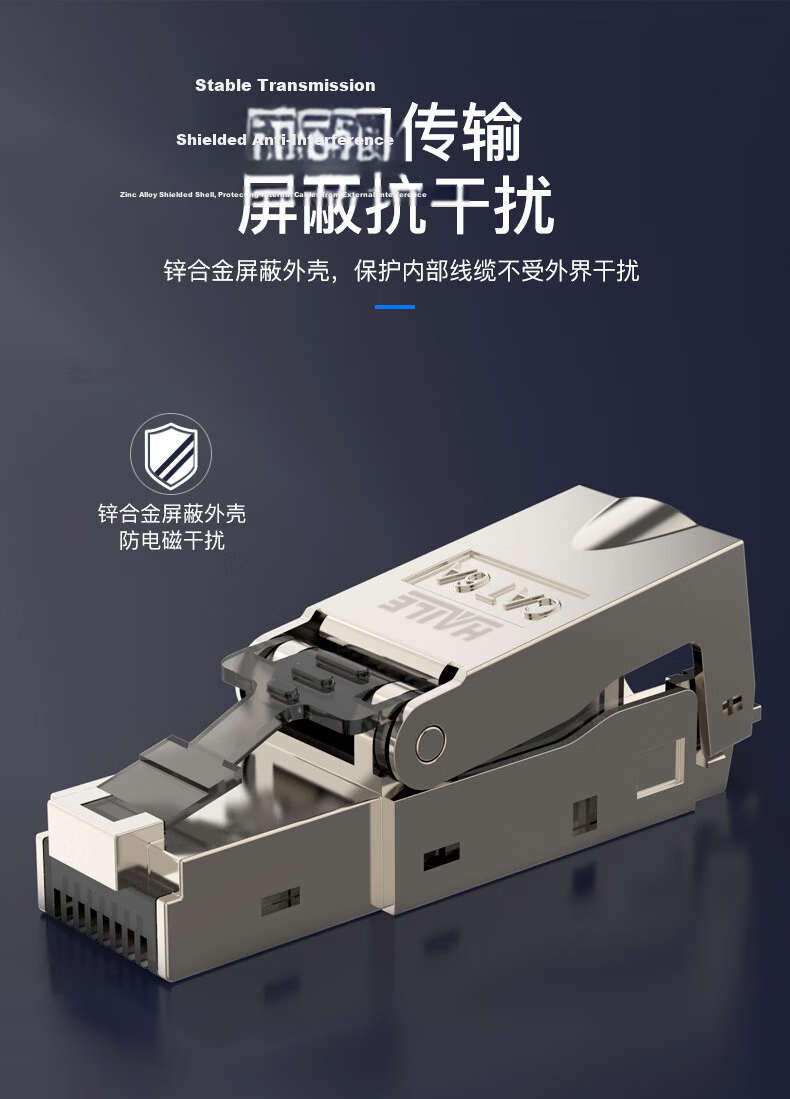

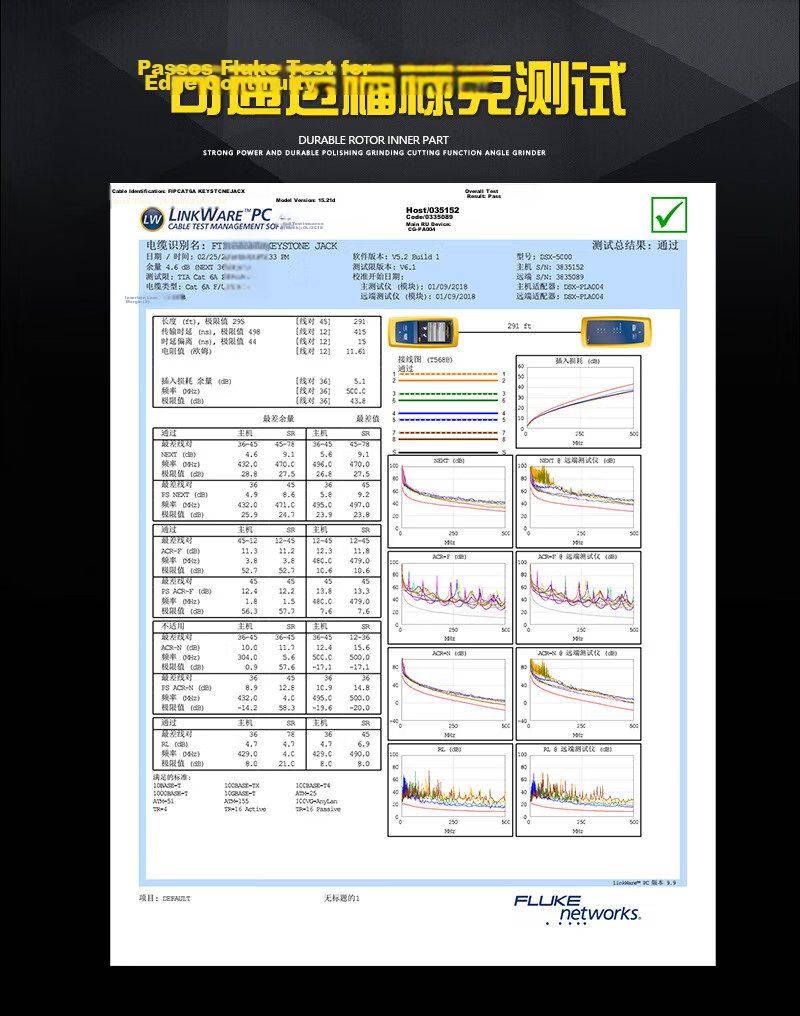

• Stable transmission
• Tool-free operation

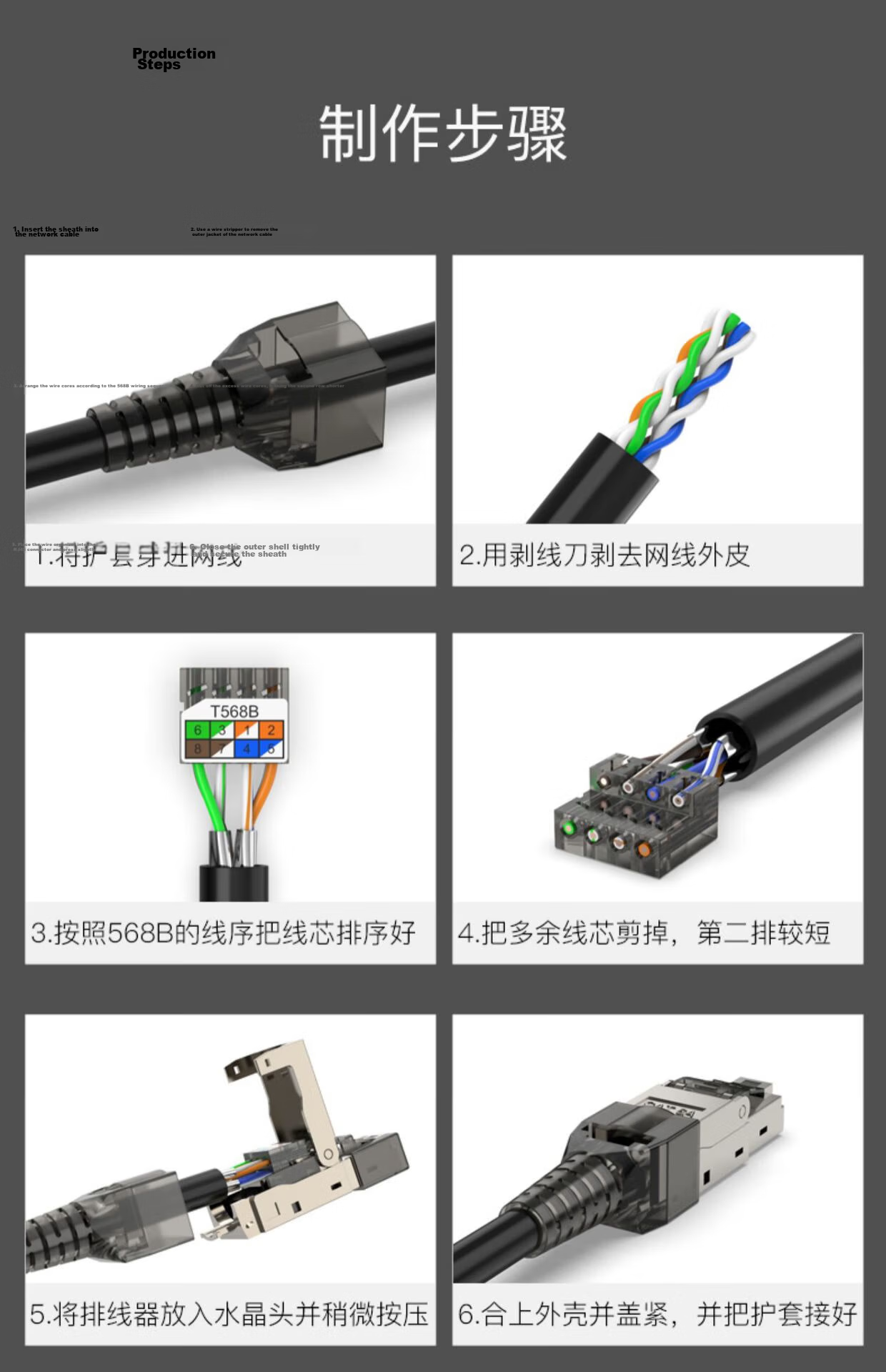

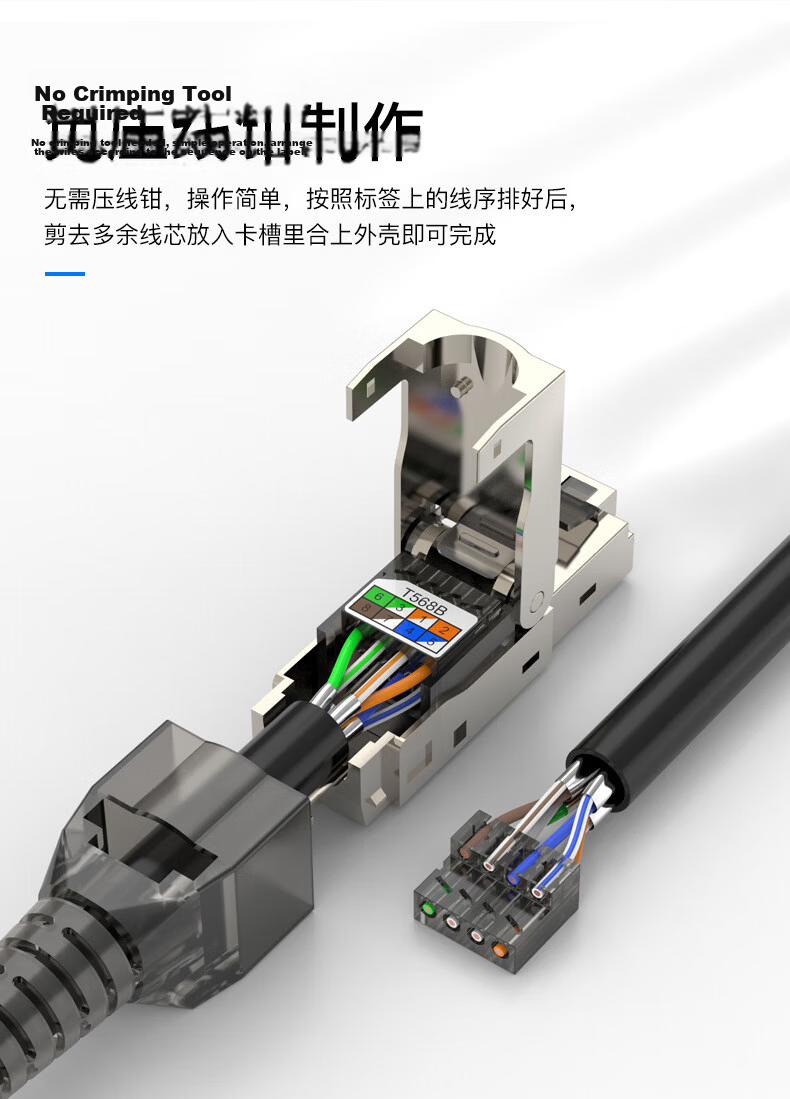

1. Open the rear shell of the crystal head

2. Strip the outer sheath of the network cable and arrange the cores

3. Insert according to the T568B wiring sequence

4. Close the shell to complete the crimping process at the crystal head IDC interface

The provided wiring sequence follows the 568B standard.
