Back to CatalogLinshang Bluetooth Touchscreen Colorimeter LS173 Hardware Paint Plastic Metal Surface Color Difference Meter Colorimeter
Specifications
- Category
- Portable colorimeter
- Sensor type
- Spectrophotometry
Variants / Sale Attributes
Model: LS173 (Bluetooth Touchscreen Model) Painted Plastic Metal
Measuring range: standard
Package Contents
Packaging × 1, Instrument × 1, Instruction Manual × 1, Warranty Card (Certificate of Conformity) × 1 (Specific packaging details are subject to the original factory standards).
Product Description
Overview
- Brand
- Linshang
- Model
- LS173 Colorimeter
- Measurement Aperture
- 8 mm
- Measurement Geometry
- D/8° (Diffuse illumination / 8° viewing angle) including specular component included (SCI)
- Display

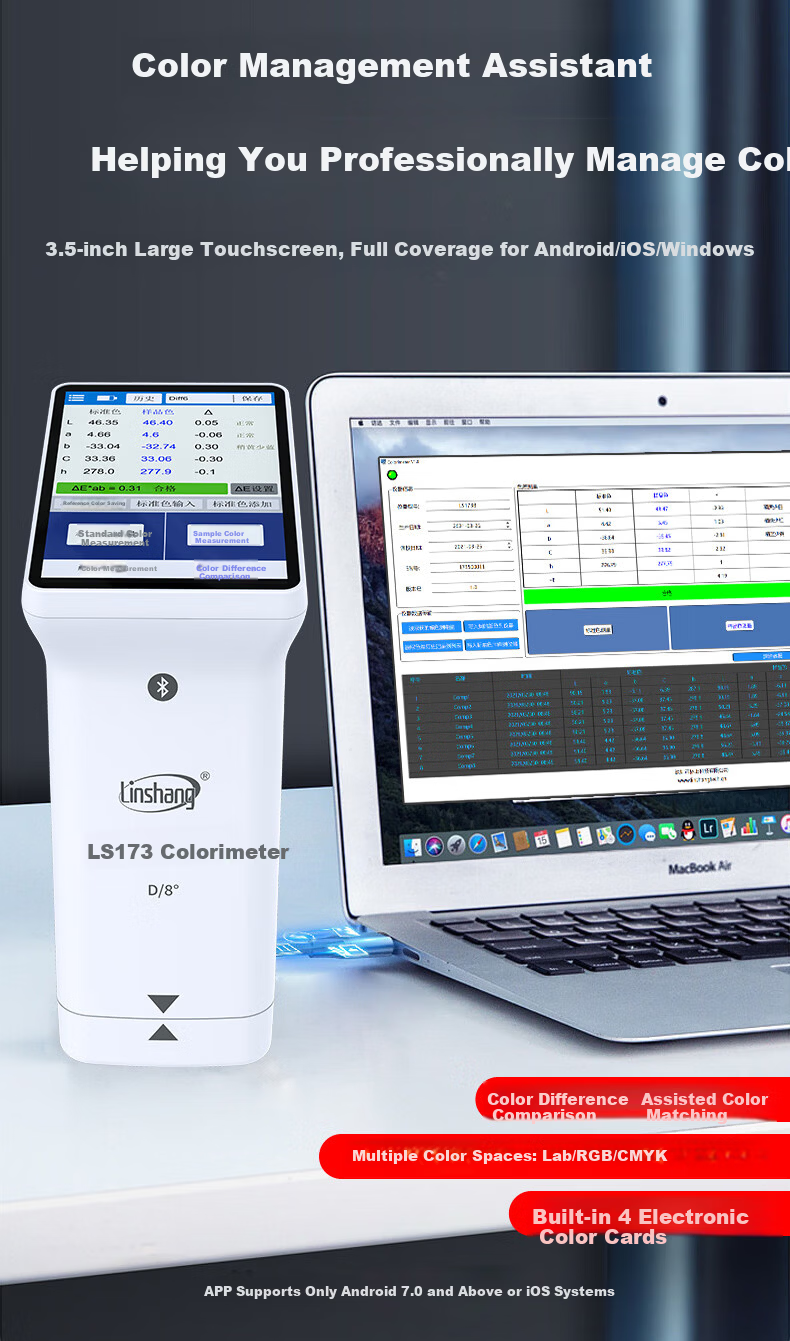

- 3.5-inch large touchscreen
- Operating Systems Supported
- Android (version 7.0 and above), iOS, Windows
- Connectivity
- USB, Bluetooth
Similar Products
In Stock
Out of Stock
In Stock

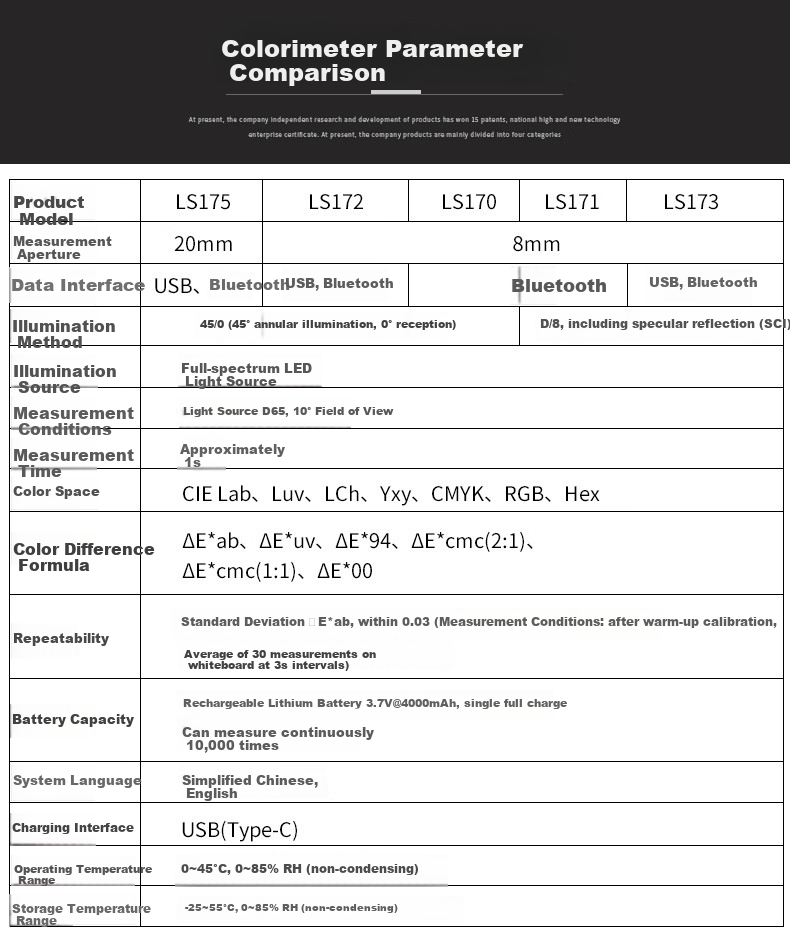

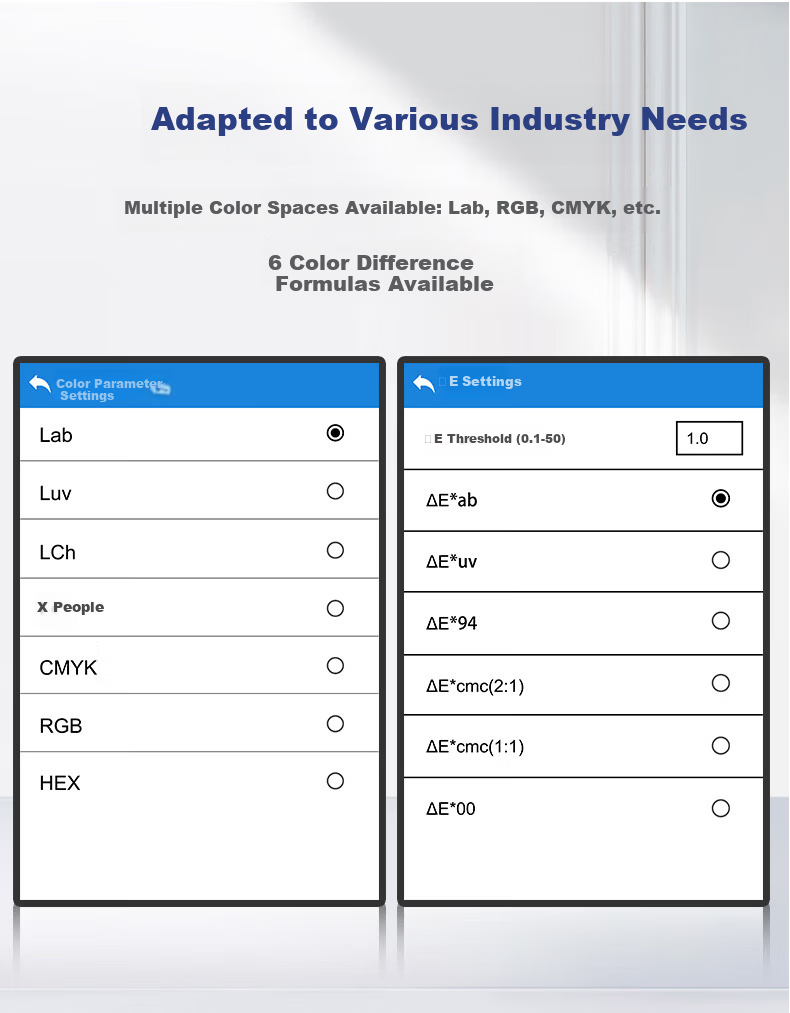

Measurement ConditionsD65 light source, 10° field of view Measurement TimeApprox. 1 second Color Spaces SupportedCIELab, Luv, LCh, Yxy, CMYK, RGB, Hex Color Difference FormulasΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Standard Deviation of ΔE*abWithin 0.03 (after preheating calibration, 30 repeated measurements on white plate with 3s interval) BatteryRechargeable lithium battery 3.7V, 4000mAh Battery LifeUp to 10,000 continuous measurements per full charge Charging InterfaceUSB Type-C Operating Temperature Range0°C to 45°C, 0-85% RH (non-condensing) Storage Temperature Range-25°C to 55°C, 0-85% RH (non-condensing) Languages SupportedSimplified Chinese, English (dual language switchable) Standard color saving and input

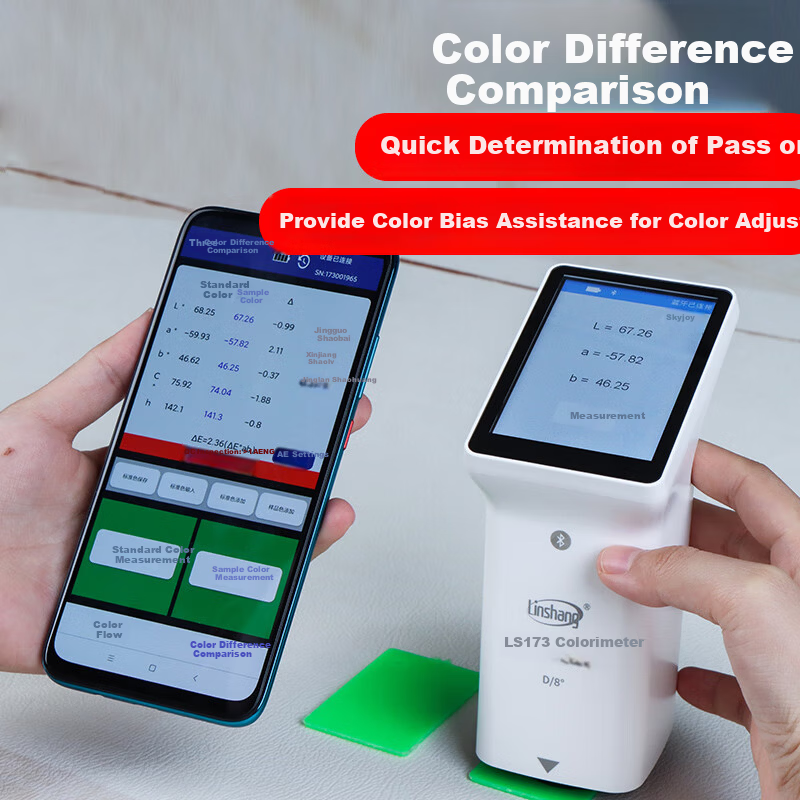

Color difference comparison

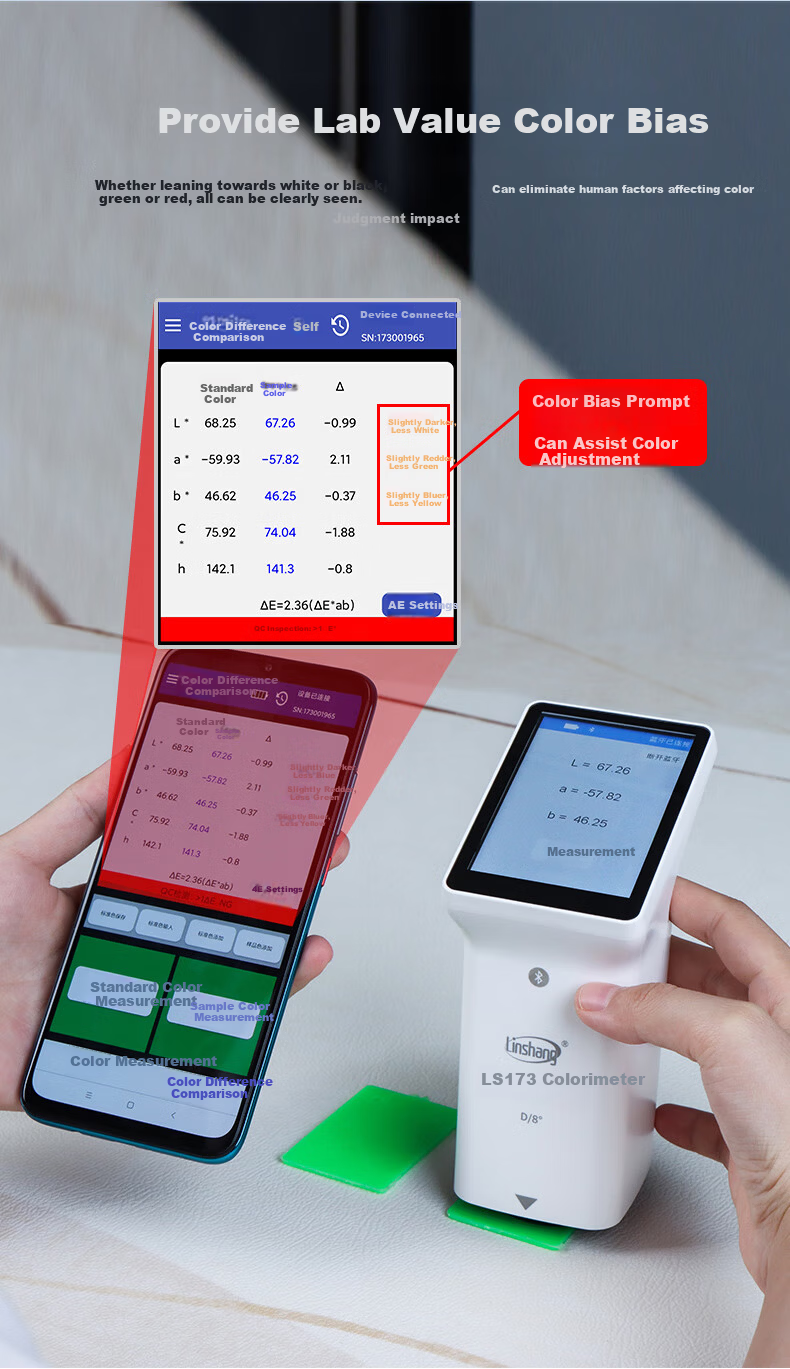

Color bias indication (e.g., lighter/darker, red/green, blue/yellow)

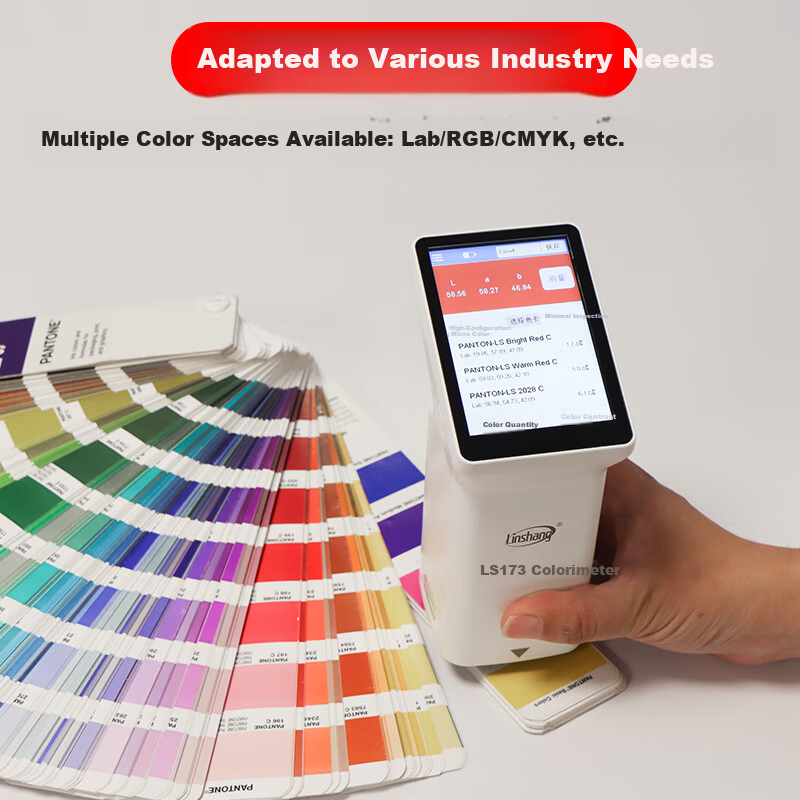

Supports Lab, RGB, CMYK color spaces

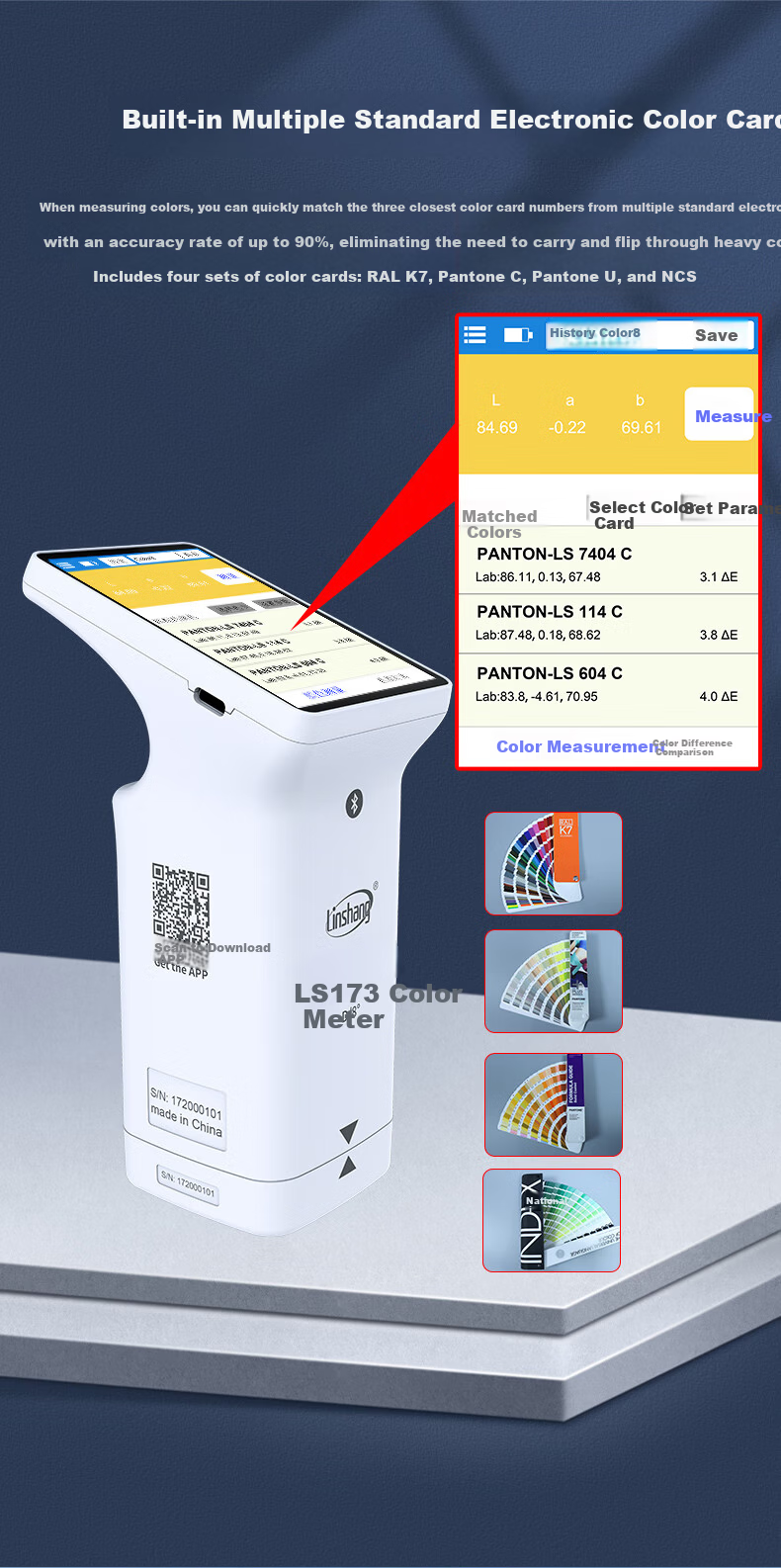

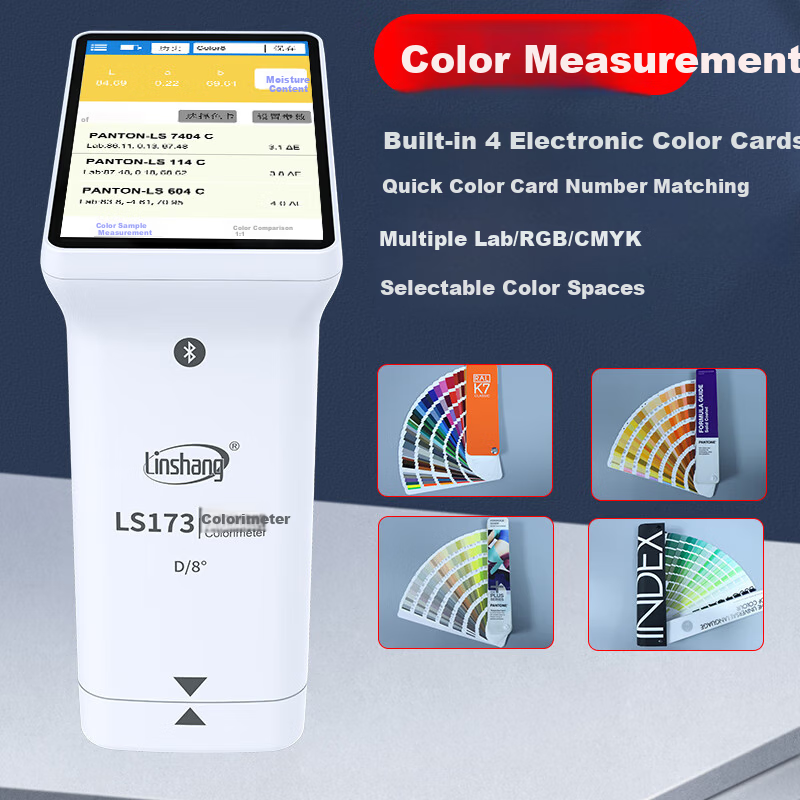

Built-in 4 electronic color card libraries including RAL K7, Pantone C, Pantone U, NCS
Quick matching of measured colors to closest 3 color card numbers with 90% accuracy

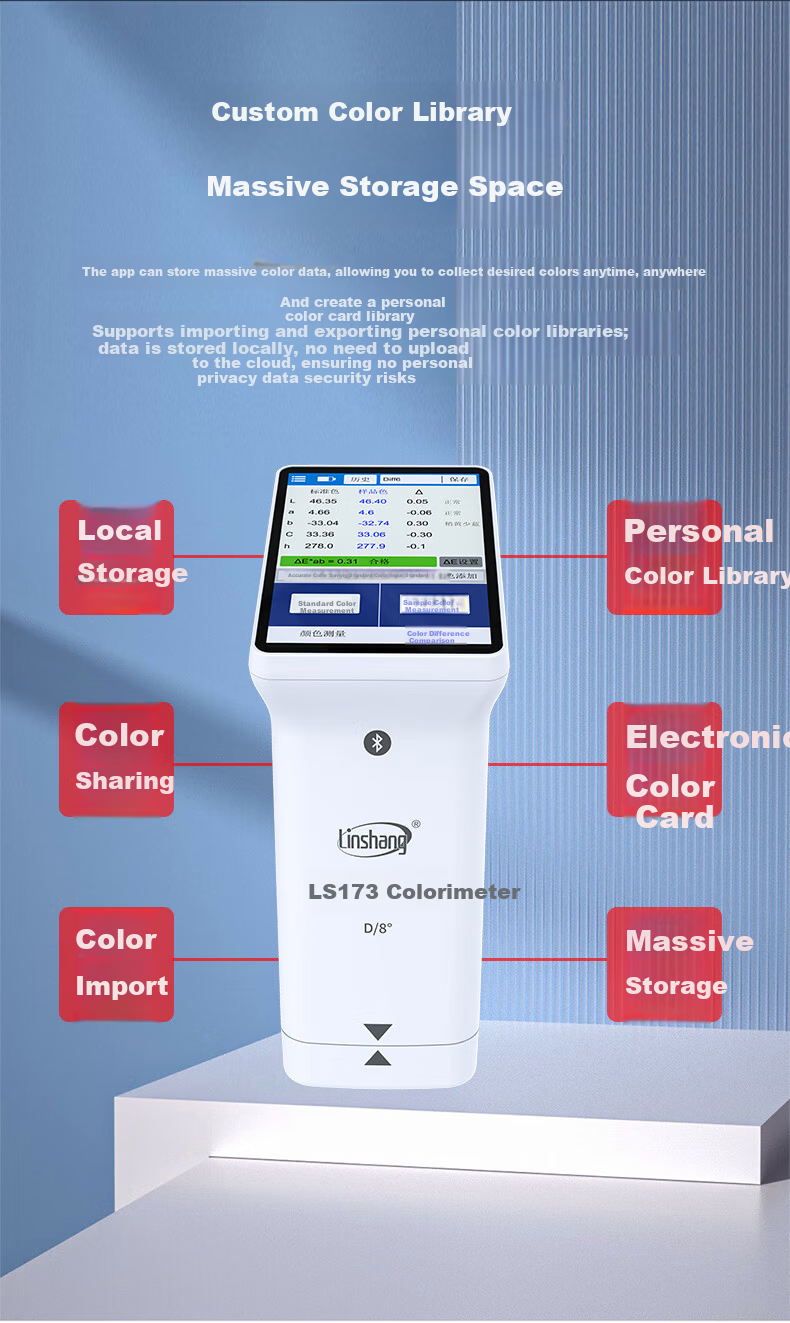

Customizable color libraries with local storage, import/export supported

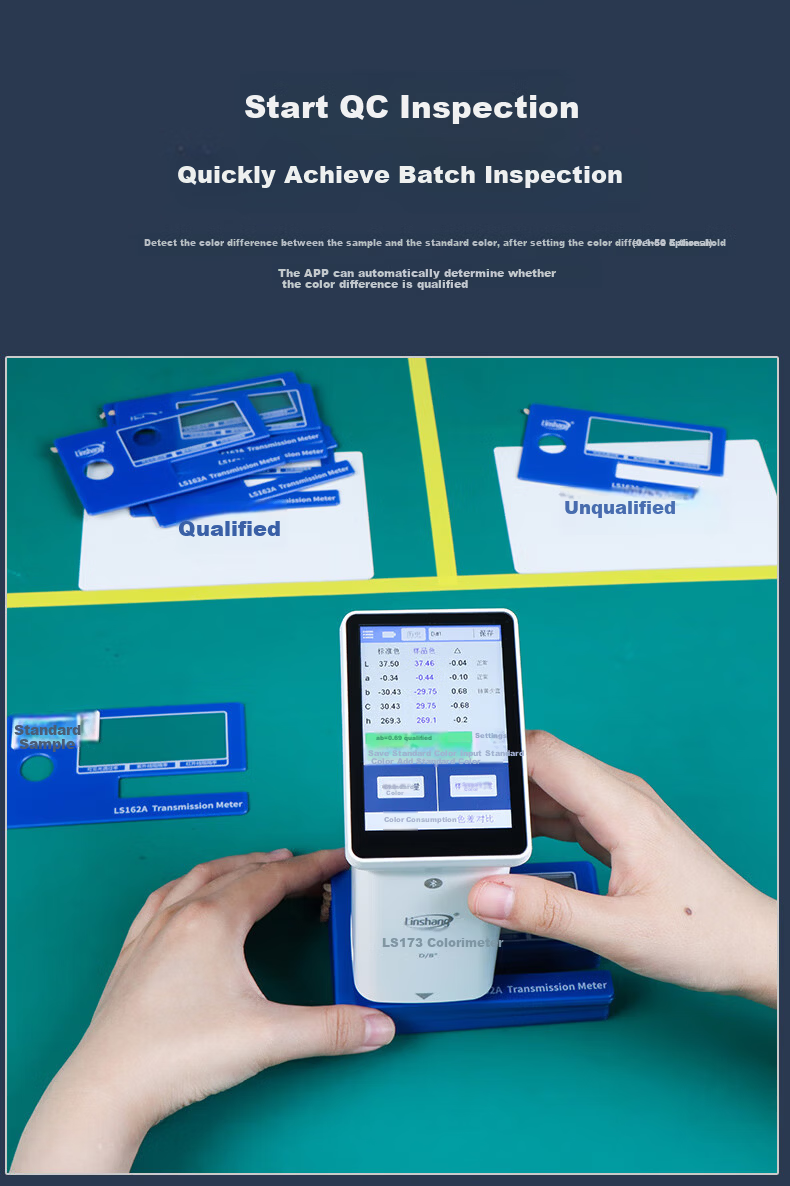

QC detection mode with adjustable ΔE threshold (0.1 to 50) and automatic pass/fail judgment
Additional details
- Supports multiple industry applications
- plastics, coatings, printing, textiles, metals, leather, ceramics, wood, automotive paint, ink, food, hardware, etc.

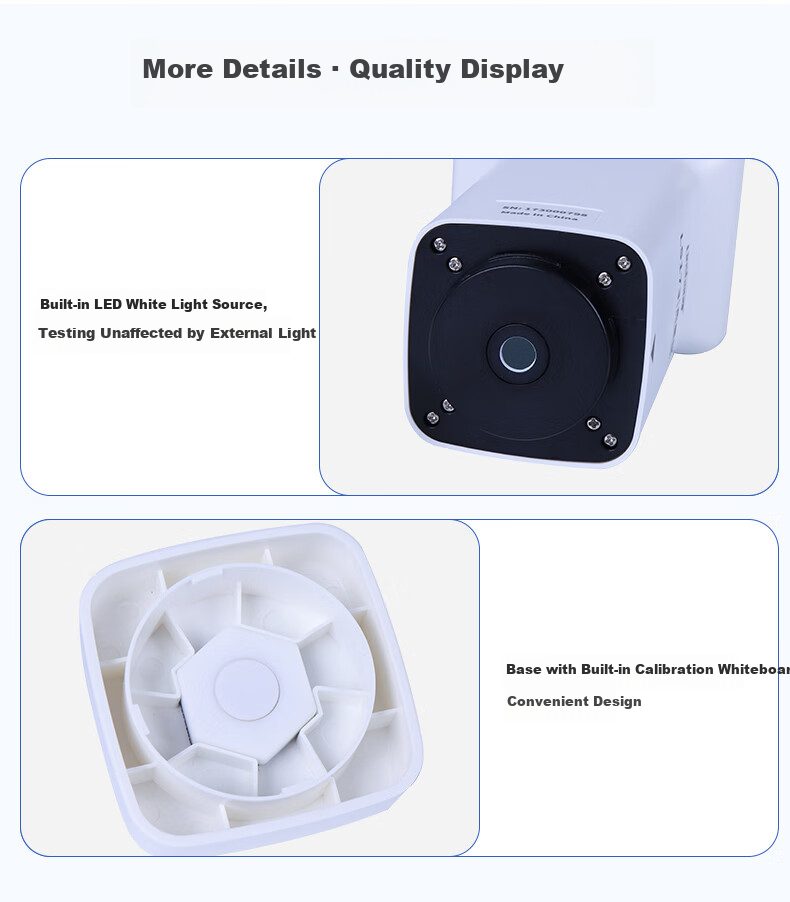

Compact design with built-in calibration white plate
LED white light source to avoid external light interference
Long standby and multiple power-saving modes
Calibration certificate issued by Shenzhen Metrology Quality Inspection Institute
National high-tech metrology station certified
Additional details
- Calibration report number
- 195504204
- Calibration uncertainty
- ±0.03°C for temperature related parameters
Product quality guaranteed with manufacturer warranty (1 year for main unit, excludes consumables and human damage)
Supports official invoice issuance (general or special VAT invoice)
Uses AMS AS7261 detector for advanced color detection with reduced cost and enhanced functionality

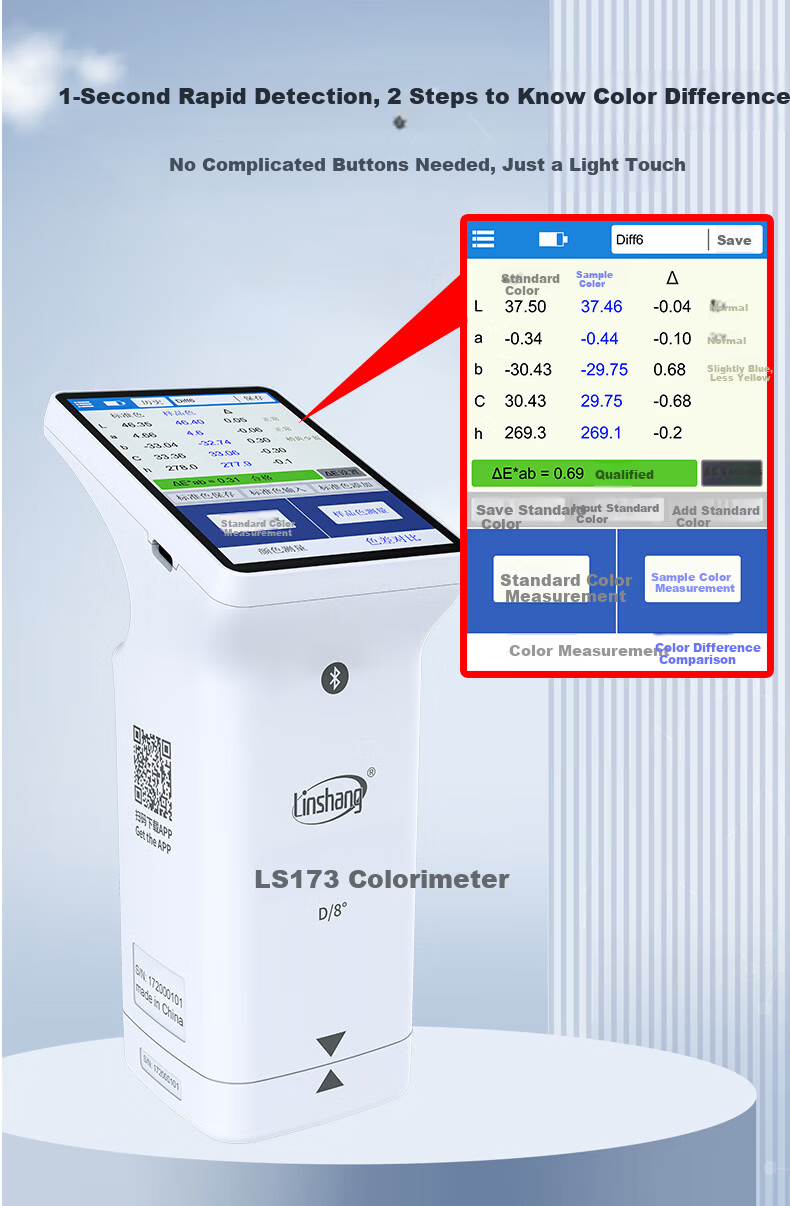

Fast 1-second measurement with simple two-step color difference detection

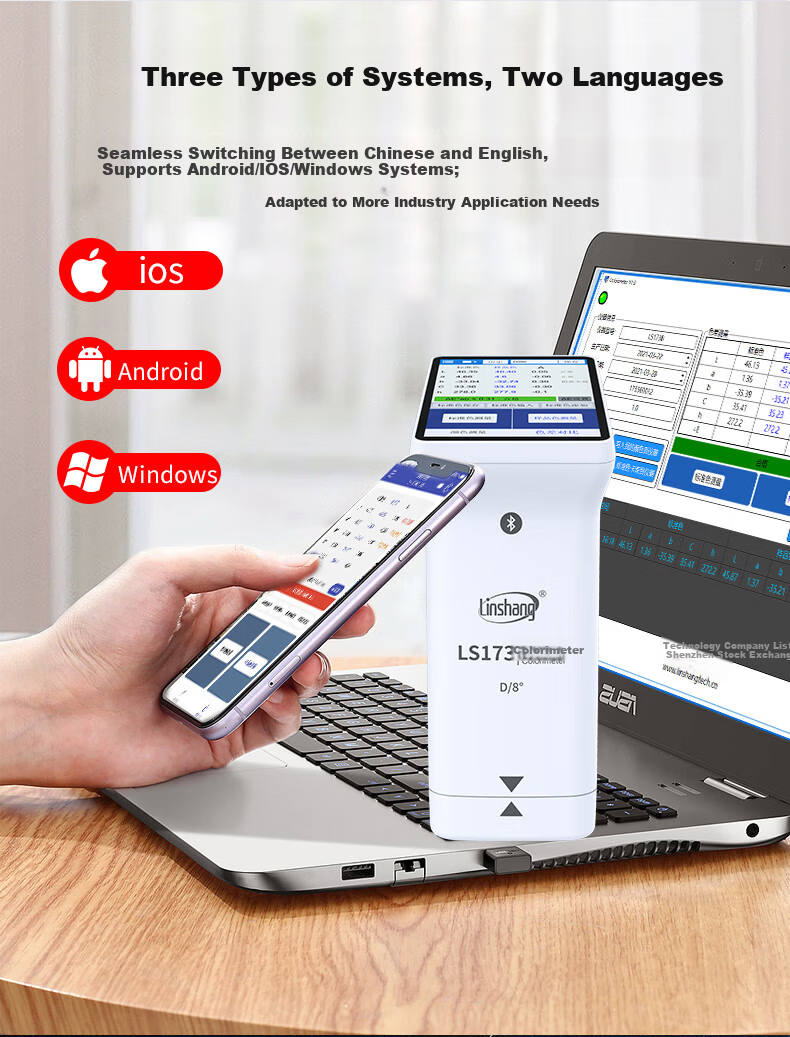

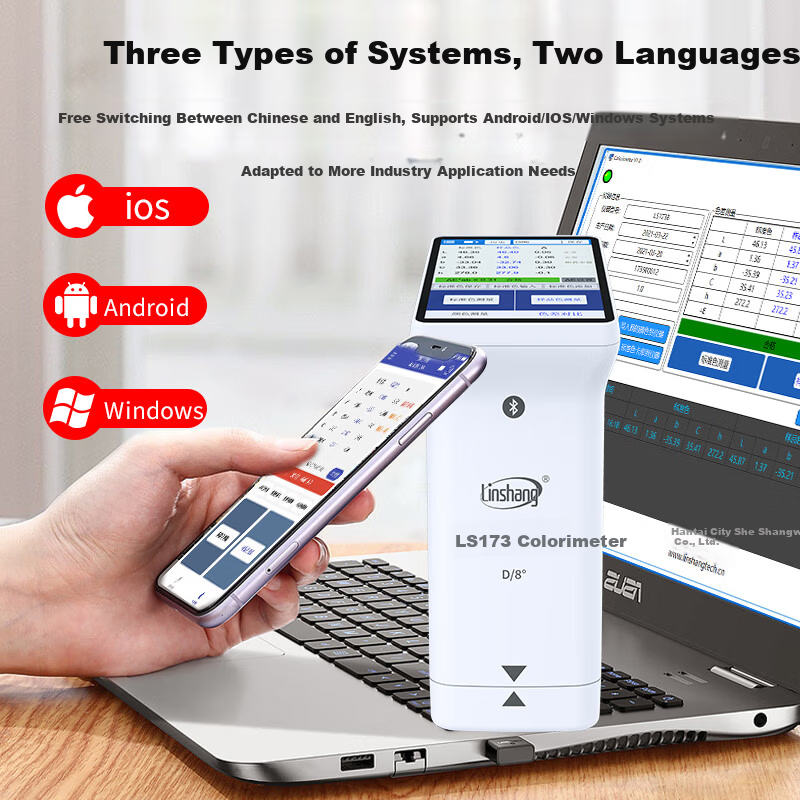

Supports Android, iOS, and Windows platforms with dedicated APP and PC software
Supports multi-language interface and extensive color parameter settings
Local data storage ensures privacy without cloud upload
Manufacturer reserves right to update product specifications without prior notice
Original factory new product with official warranty and after-sales support
